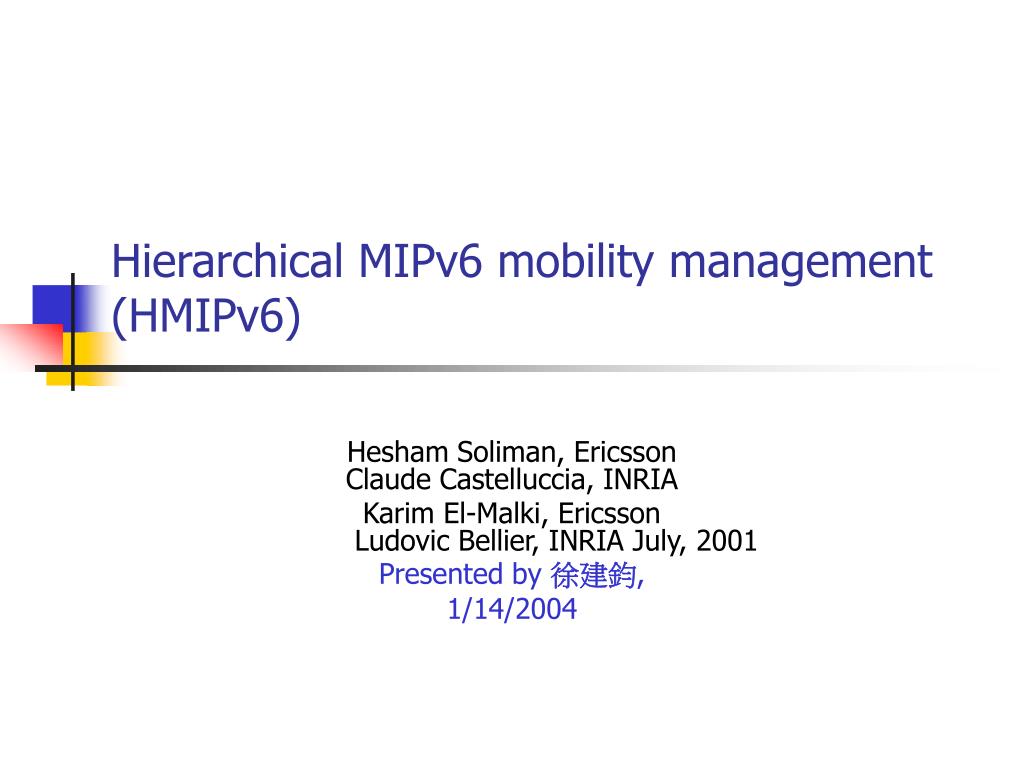

  1. Hierarchical MIPv6 mobility management (HMIPv6) Hesham Soliman, Ericsson Claude Castelluccia, INRIA Karim El-Malki, Ericsson Ludovic Bellier, INRIA July, 2001 Presented by 徐建鈞, 1/14/2004

  2. Outline • Introduction • Overview of HMIPv6 • Map Discovery • Operation modes • Comparison between the two modes of operation • Conclusion • Reference

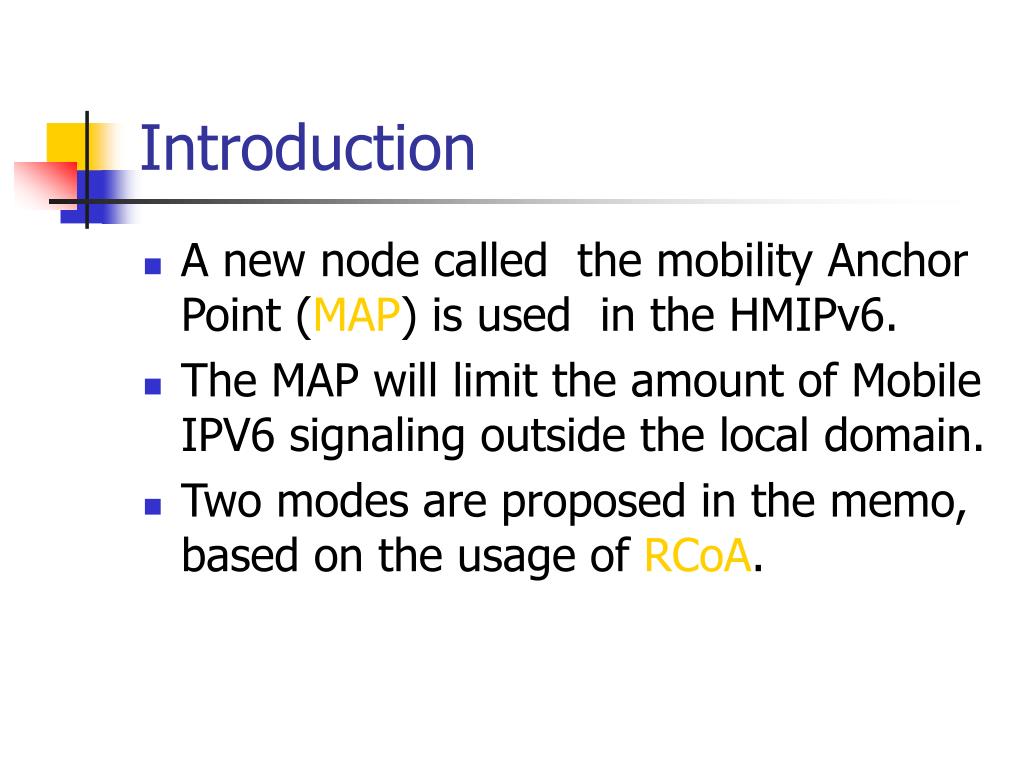

  3. Introduction • A new node called the mobility Anchor Point (MAP) is used in the HMIPv6. • The MAP will limit the amount of Mobile IPV6 signaling outside the local domain. • Two modes are proposed in the memo, based on the usage of RCoA.

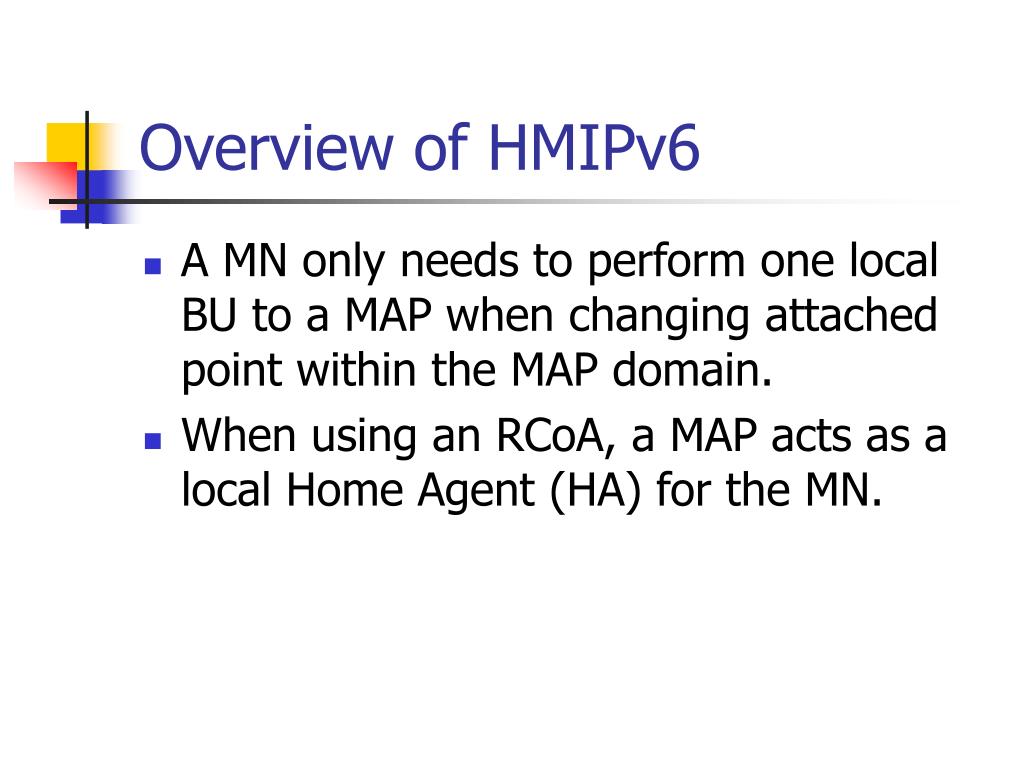

  4. Overview of HMIPv6 • A MN only needs to perform one local BU to a MAP when changing attached point within the MAP domain. • When using an RCoA, a MAP acts as a local Home Agent (HA) for the MN.

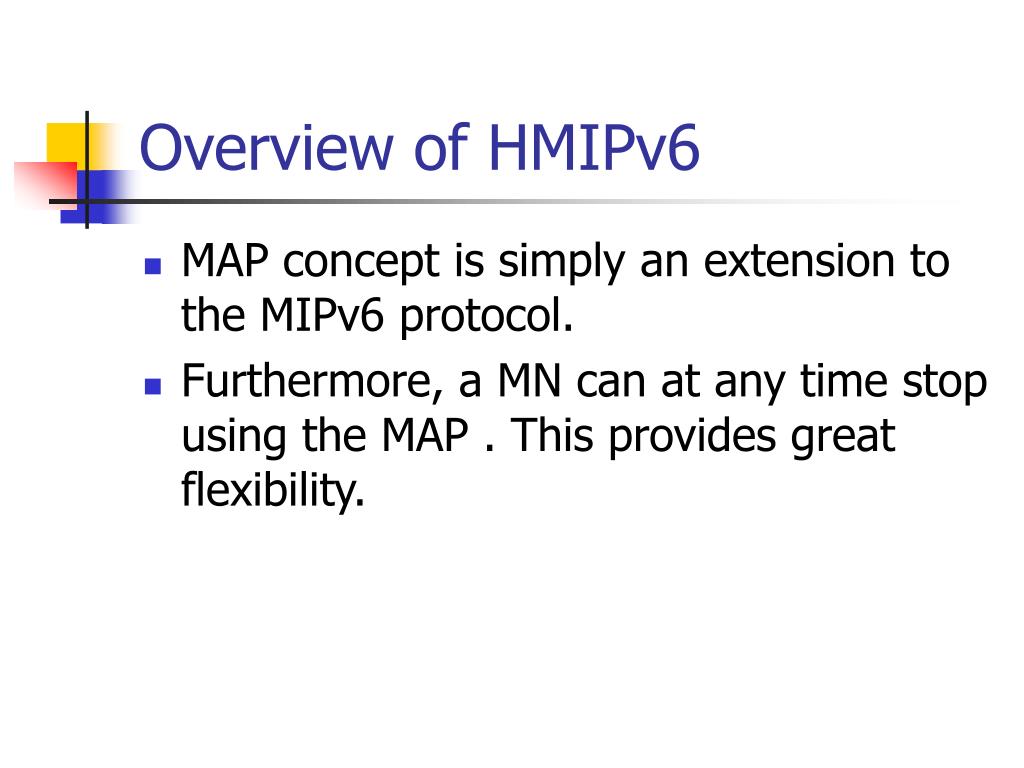

  5. Overview of HMIPv6 • MAP concept is simply an extension to the MIPv6 protocol. • Furthermore, a MN can at any time stop using the MAP . This provides great flexibility.

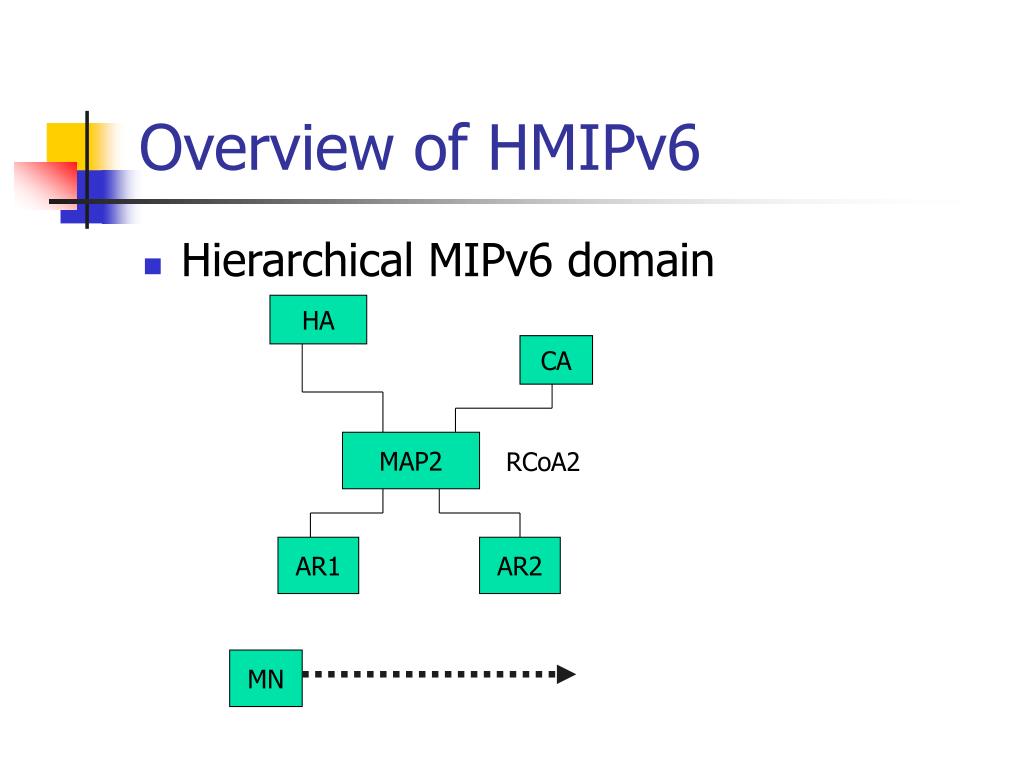

  6. HA CA MAP2 AR1 AR2 MN Overview of HMIPv6 • Hierarchical MIPv6 domain RCoA2

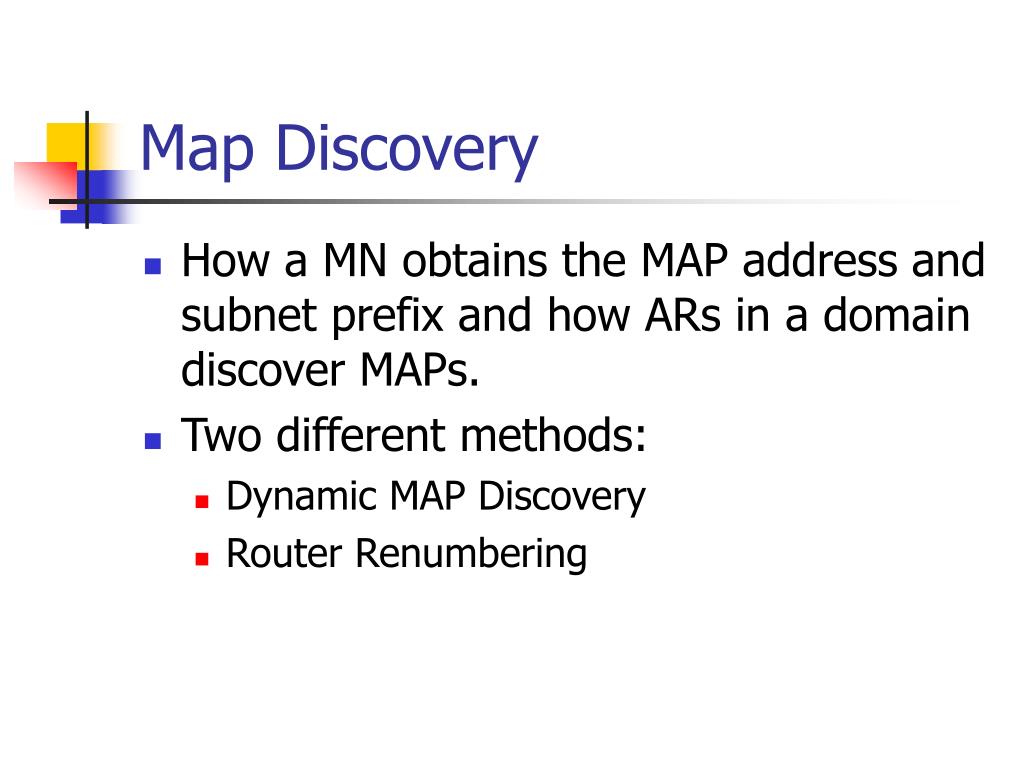

  7. Map Discovery • How a MN obtains the MAP address and subnet prefix and how ARs in a domain discover MAPs. • Two different methods: • Dynamic MAP Discovery • Router Renumbering

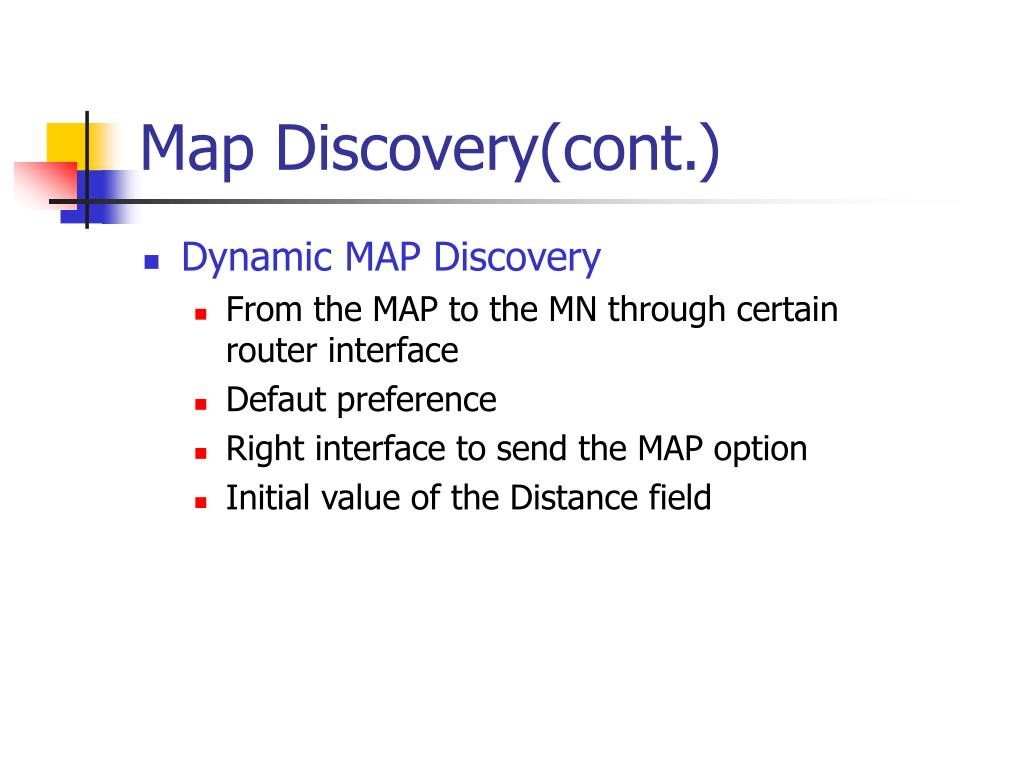

  8. Map Discovery(cont.) • Dynamic MAP Discovery • From the MAP to the MN through certain router interface • Defaut preference • Right interface to send the MAP option • Initial value of the Distance field

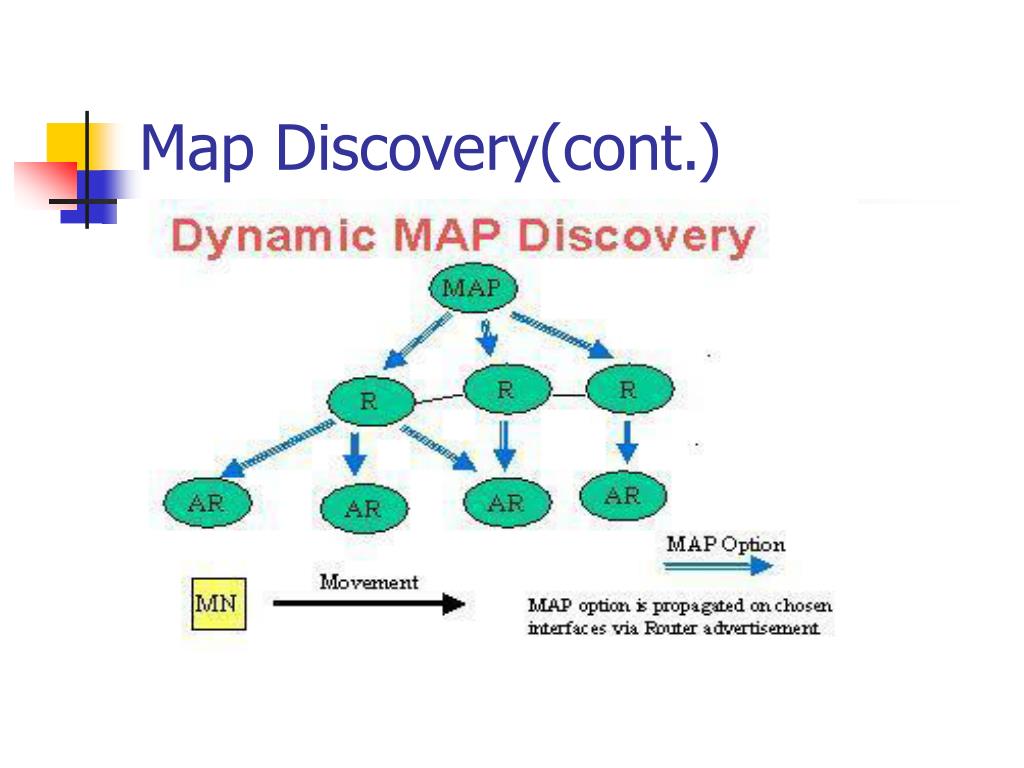

  9. Map Discovery(cont.)

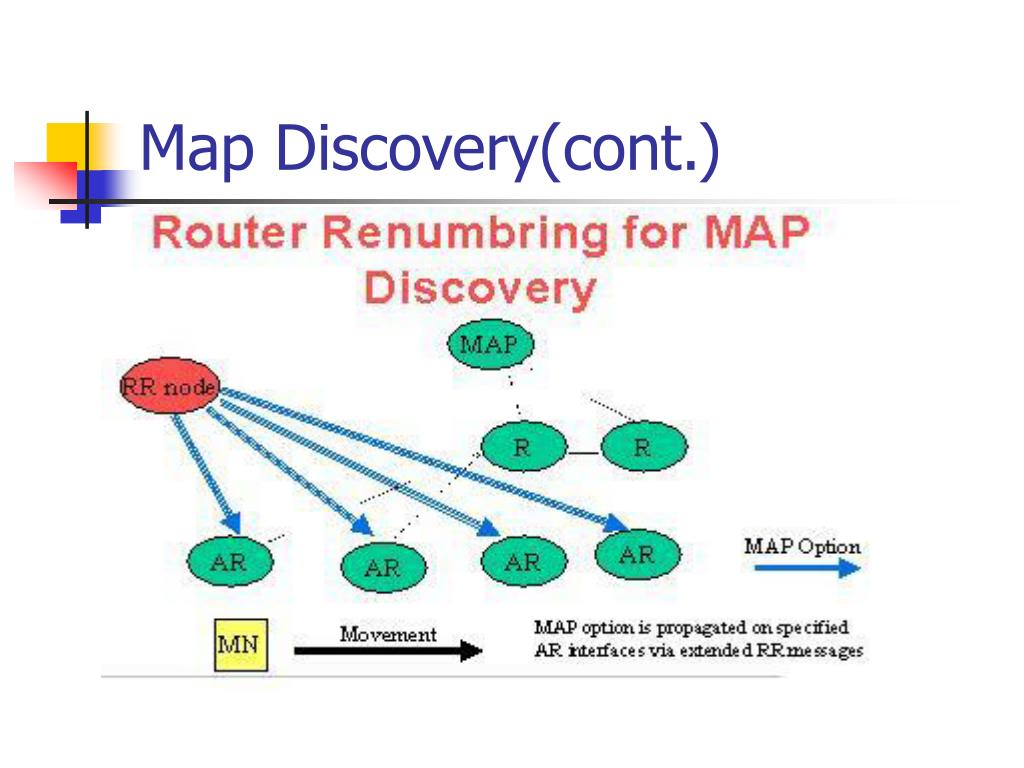

  10. Map Discovery(cont.) • Router Renumbering • A set of message that can be used to renumber certain interface on a router. • Prefix code operation(PCO) and is included in the Match prefix part of the message. • Best suited to large network

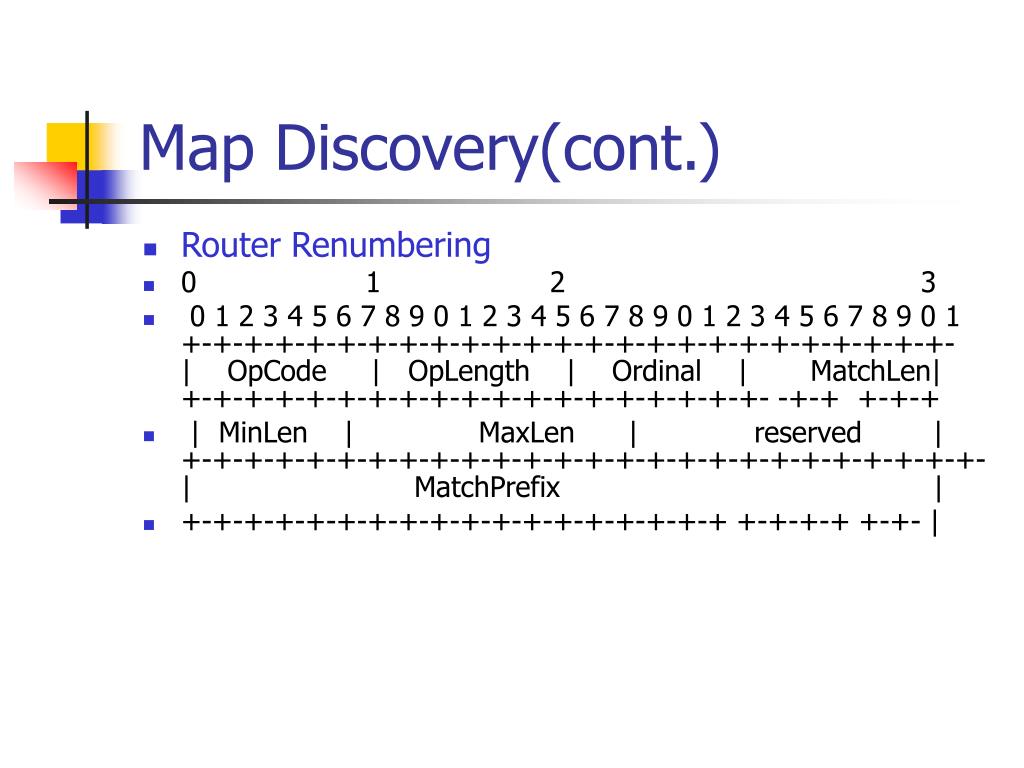

  11. Map Discovery(cont.) • Router Renumbering • 0 1 2 3 • 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+- | OpCode | OpLength | Ordinal | MatchLen| +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+- -+-+ +-+-+ • | MinLen | MaxLen | reserved | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+- | MatchPrefix | • +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ +-+-+-+ +-+- |

  12. Map Discovery(cont.)

  13. Map Discovery(cont.) • Router Renumbering • Extened Fields: • OpCode MatchPrefix matches an interface's prefix or address. Values are: 1. the ADD operation 2. the CHANGE operation 3. the SET-GLOBAL operation 4. the PROPAGATE operation (new code).

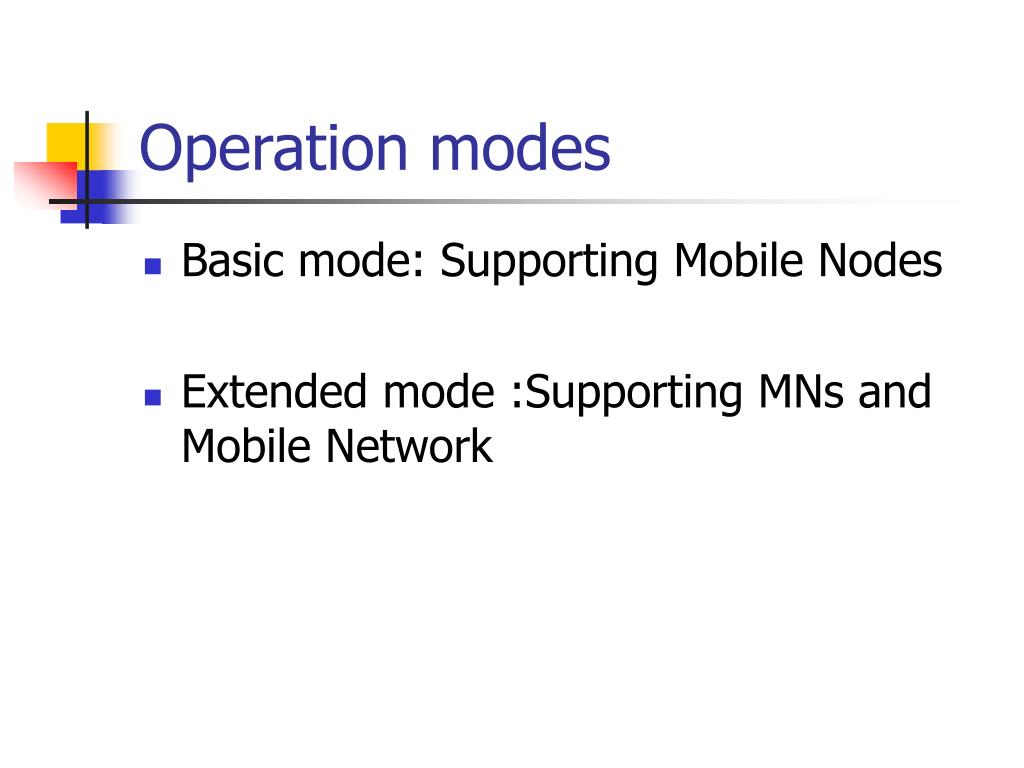

  14. Operation modes • Basic mode: Supporting Mobile Nodes • Extended mode :Supporting MNs and Mobile Network

  15. Operation modes(cont.) CN HA (HA,RCoA) (HA,RCoA) BU Basic mode Data Internet (HA,LCoA) CN MAP (RCoA,LCoA) LCoA

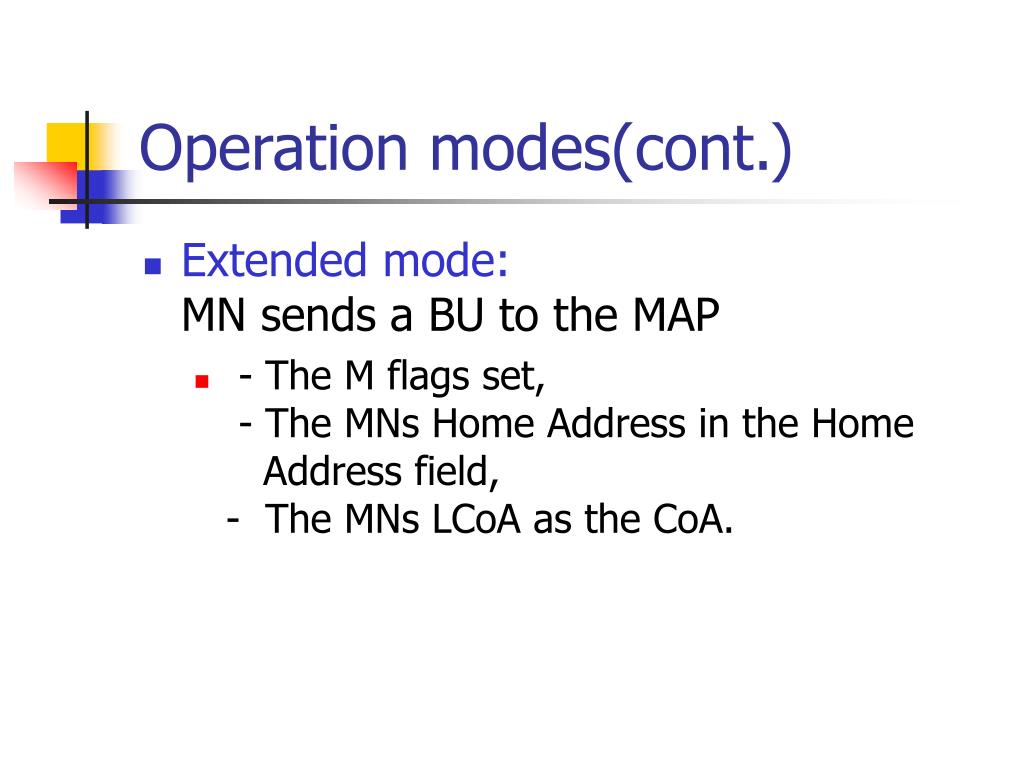

  16. Operation modes(cont.) • Extended mode:MN sends a BU to the MAP • - The M flags set, - The MNs Home Address in the Home Address field, - The MNs LCoA as the CoA.

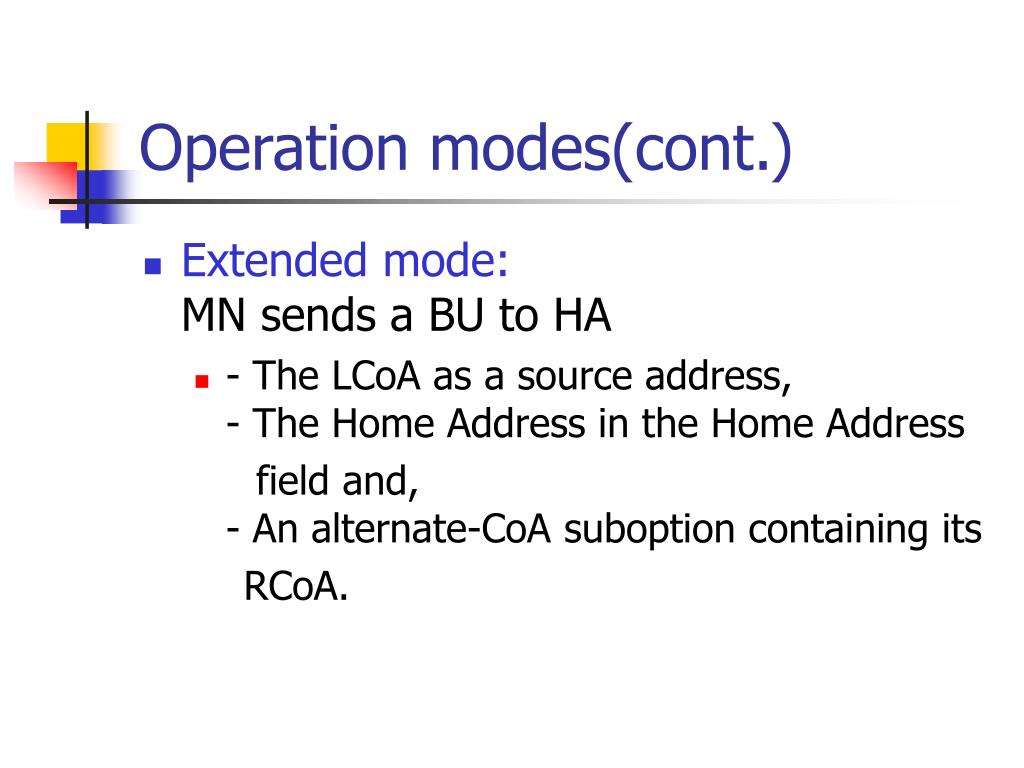

  17. Operation modes(cont.) • Extended mode:MN sends a BU to HA • - The LCoA as a source address, - The Home Address in the Home Address field and, - An alternate-CoA suboption containing its RCoA.

  18. Comparison between the two modes of operation • The headers in the packet • Appropriate header compression mechanism • DAD delays during inter-MAP mobility • MN may register its new LCoA to the previous MAP

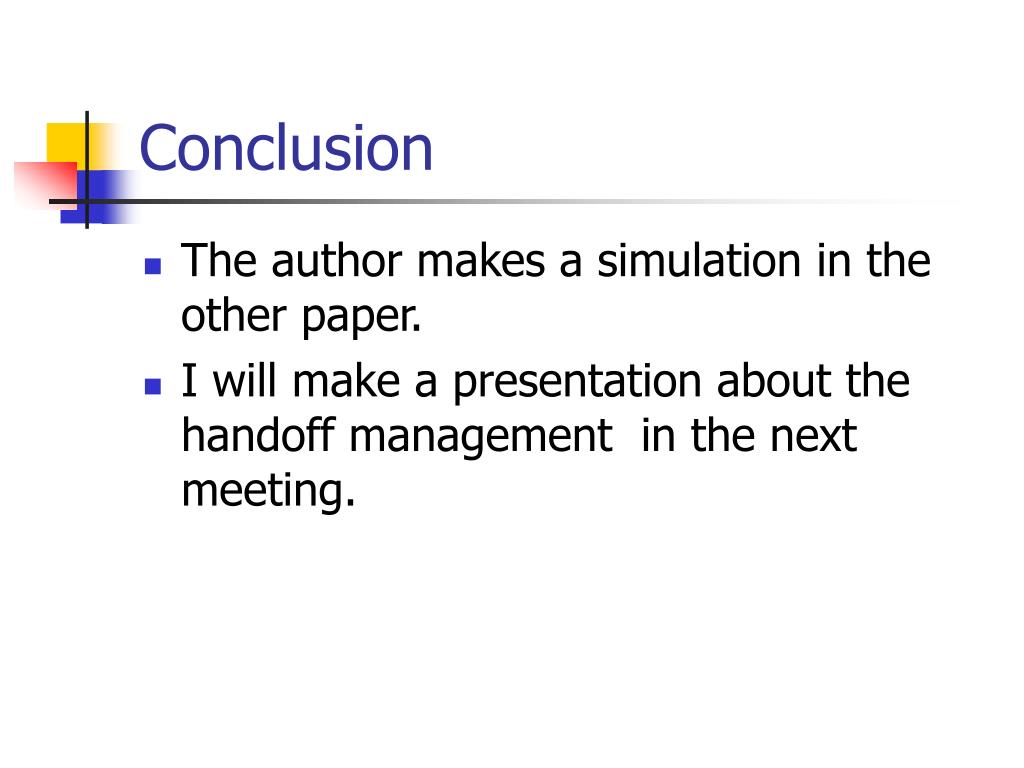

  19. Conclusion • The author makes a simulation in the other paper. • I will make a presentation about the handoff management in the next meeting.

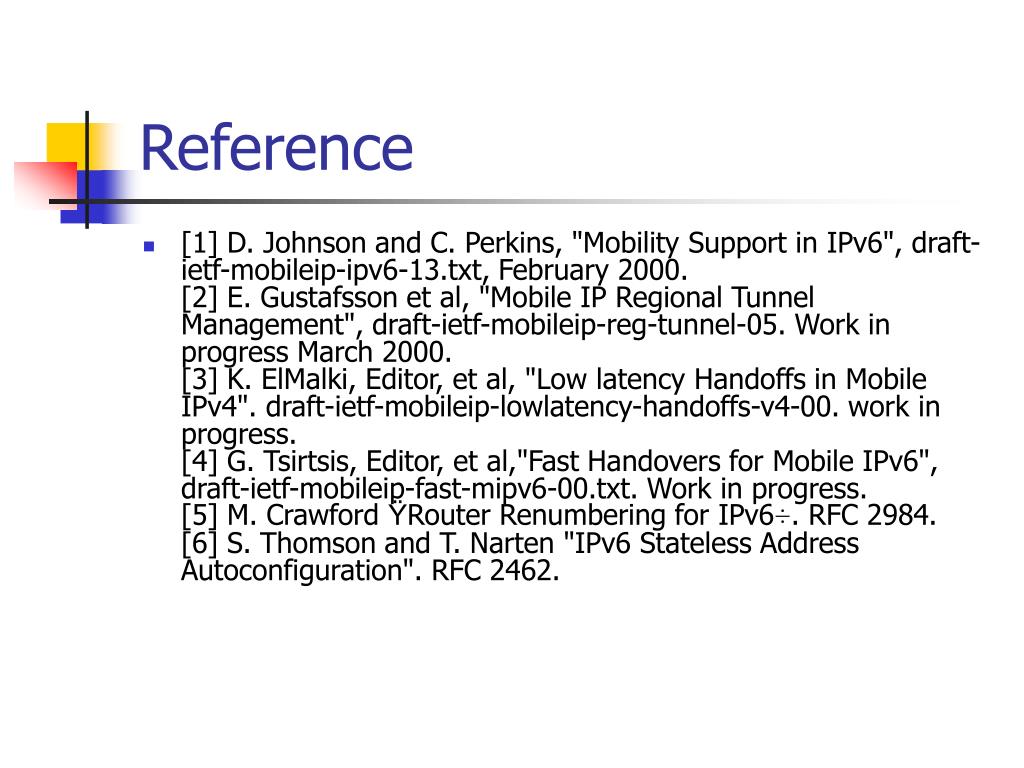

  20. Reference • [1] D. Johnson and C. Perkins, "Mobility Support in IPv6", draft-ietf-mobileip-ipv6-13.txt, February 2000. [2] E. Gustafsson et al, "Mobile IP Regional Tunnel Management", draft-ietf-mobileip-reg-tunnel-05. Work in progress March 2000. [3] K. ElMalki, Editor, et al, "Low latency Handoffs in Mobile IPv4". draft-ietf-mobileip-lowlatency-handoffs-v4-00. work in progress. [4] G. Tsirtsis, Editor, et al,"Fast Handovers for Mobile IPv6", draft-ietf-mobileip-fast-mipv6-00.txt. Work in progress. [5] M. Crawford ŸRouter Renumbering for IPv6÷. RFC 2984.[6] S. Thomson and T. Narten "IPv6 Stateless Address Autoconfiguration". RFC 2462.
