  1. Diameter MIPv6 Hannes Tschofenig * Tseno Tsenov Gerardo. Giaretta Julien Bournelle Victor Fajardo° Jouni Korhonen° Charles Perkins° * speaking ° joining

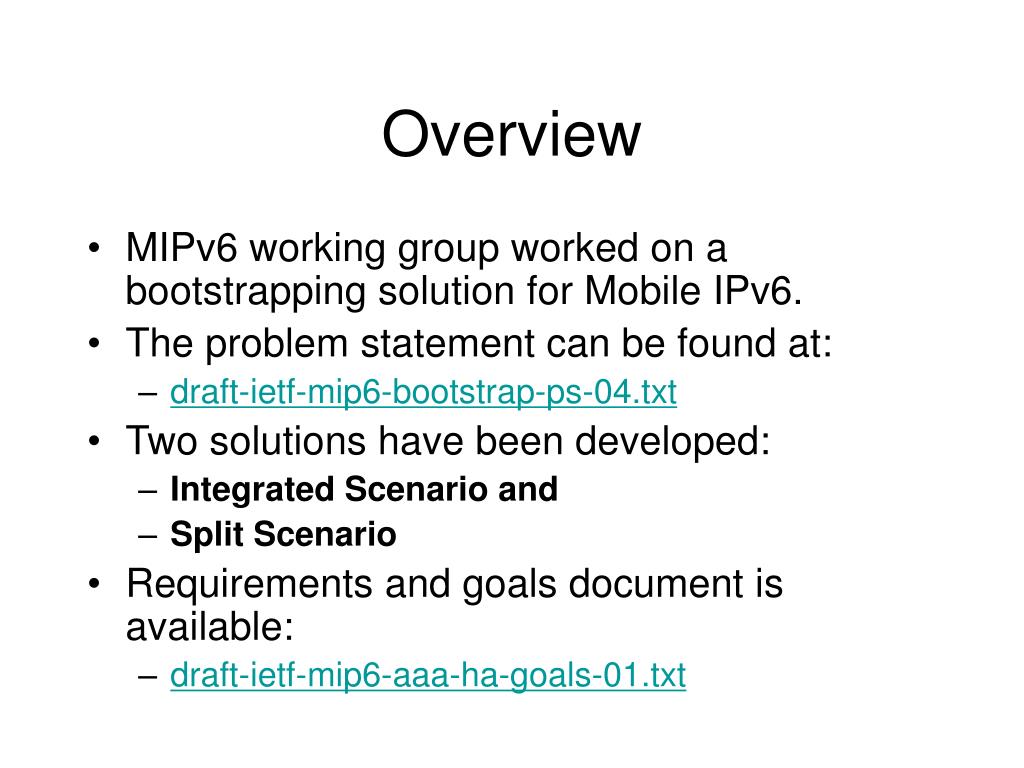

  2. Overview • MIPv6 working group worked on a bootstrapping solution for Mobile IPv6. • The problem statement can be found at: • draft-ietf-mip6-bootstrap-ps-04.txt • Two solutions have been developed: • Integrated Scenario and • Split Scenario • Requirements and goals document is available: • draft-ietf-mip6-aaa-ha-goals-01.txt

  3. Split Scenario • draft-ietf-mip6-bootstrapping-split-02.txt • Interaction between the MN and HA for bootstrapping based on IKEv2 (draft-ietf-mip6-ikev2) AAA-MSA Server AAA-MSP Server Home Agent NAS EAP in IKEv2 AAA-HA protocol Authentication and authorization

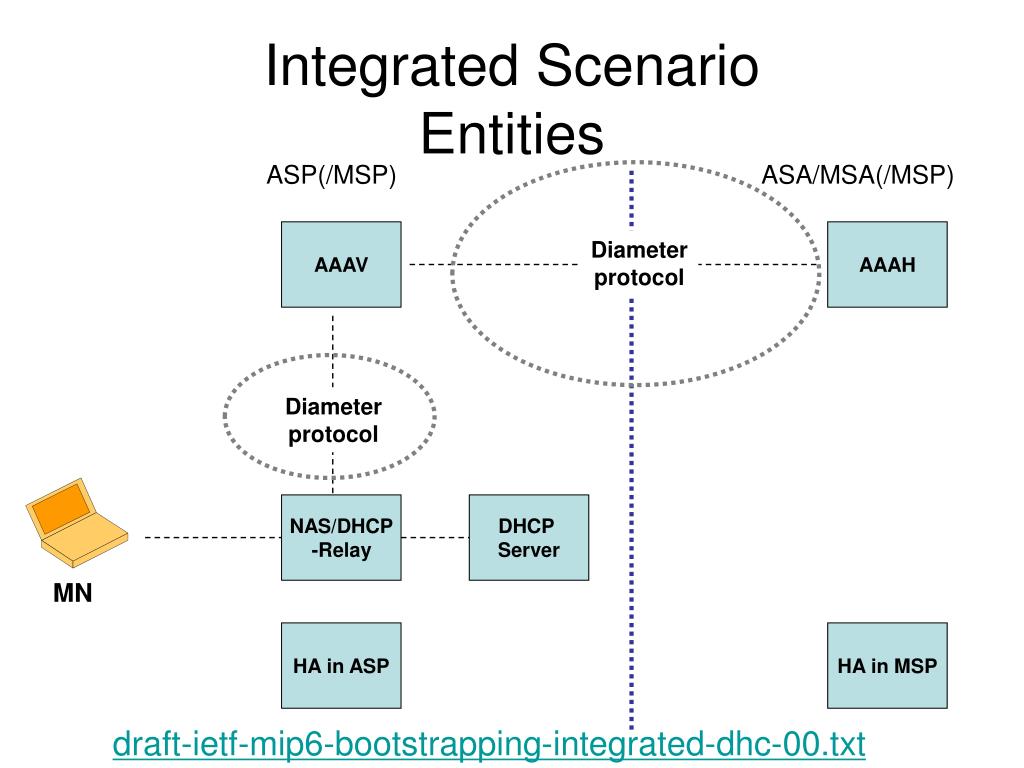

  4. Integrated ScenarioEntities ASP(/MSP) ASA/MSA(/MSP) AAAV AAAH Diameter protocol Diameter protocol NAS/DHCP -Relay DHCP Server MN HA in ASP HA in MSP draft-ietf-mip6-bootstrapping-integrated-dhc-00.txt

  5. Integrated Scenario Message Exchange MN NAS/ DHCP -Relay DHCP Server AAAH (1a. net-access) (1b. Net-access auth/authz (HA-AVP) (2. DHCPv6 info-request, OPTION_HNId) (3. Relay-Forward, OPTION_MIP6-RELAY) (4. Relay-Reply, OPTION_HNInf) (5. Reply, OPTION_HNInf) • Subsequent IKEv2 is executed between the MN and the HA.

  6. Solution Drafts • Diameter solution for integrated scenario is provided by: • draft-tschofenig-dime-mip6-integrated-00.txt • Diameter solution for split scenario is provided by: • draft-tschofenig-dime-mip6-split-01.txt • Solutions provide the backend protocols for the frontend solution developed in MIP6 WG. • Integrated solution simpler than split scenario.

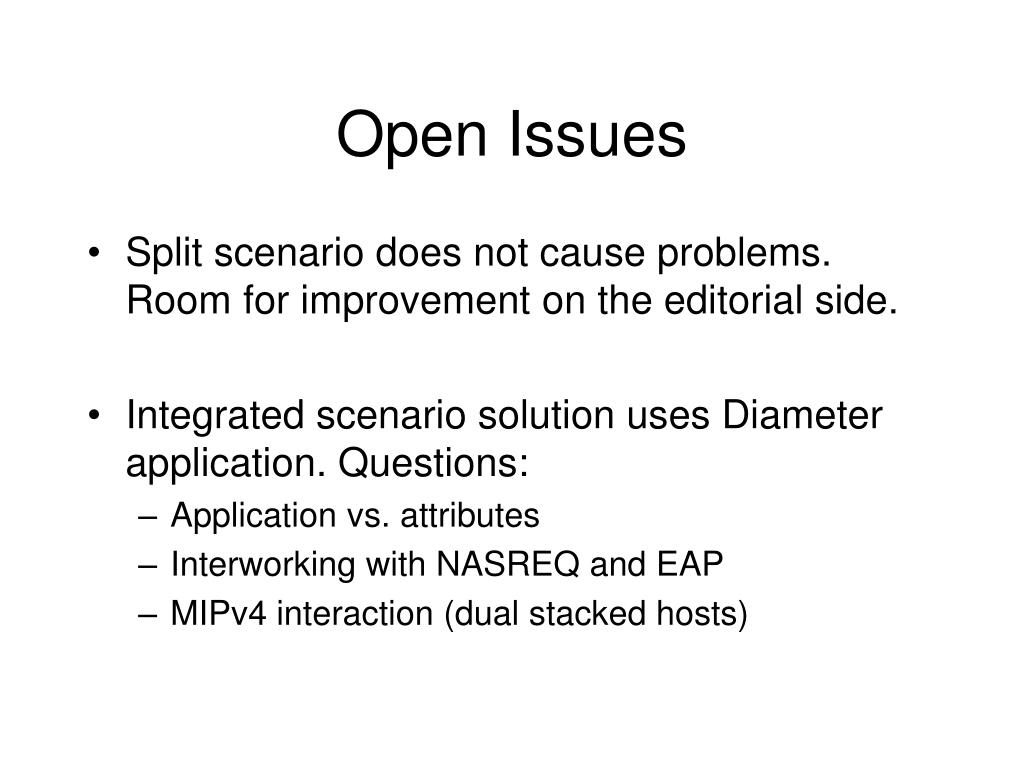

  7. Open Issues • Split scenario does not cause problems. Room for improvement on the editorial side. • Integrated scenario solution uses Diameter application. Questions: • Application vs. attributes • Interworking with NASREQ and EAP • MIPv4 interaction (dual stacked hosts)

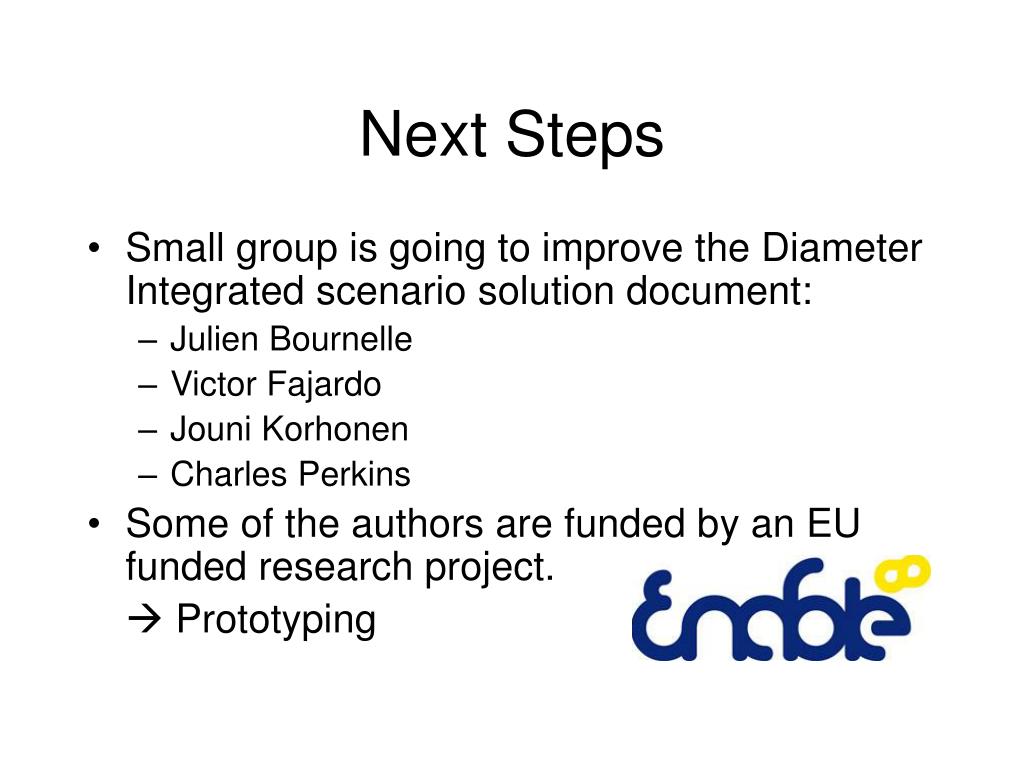

  8. Next Steps • Small group is going to improve the Diameter Integrated scenario solution document: • Julien Bournelle • Victor Fajardo • Jouni Korhonen • Charles Perkins • Some of the authors are funded by an EU funded research project.  Prototyping
