  1. Industrial VCI Ferro foil Creating a new and very unique barrier material protecting metals for short or long term storage Meeting the highest standard for MILITARY USE Nato Stock Number 8135-66-158-8103 and all alternative Industrial packaging applications

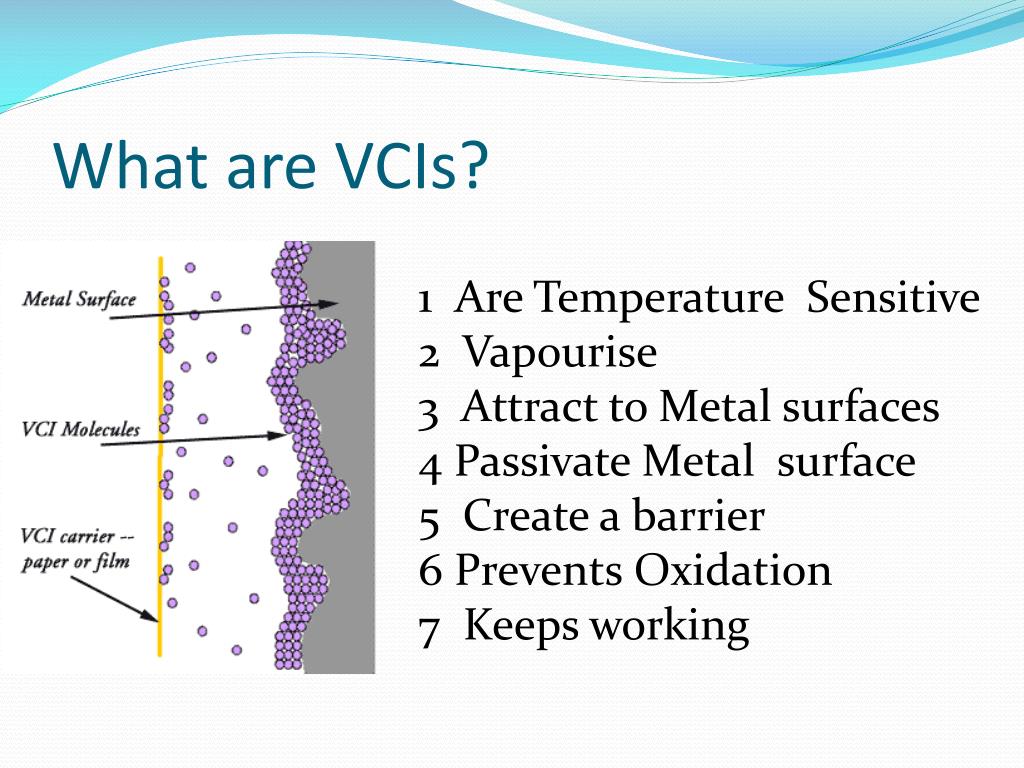

  2. What are VCIs? 1 Are Temperature Sensitive 2 Vapourise 3 Attract to Metal surfaces 4 Passivate Metal surface 5 Create a barrier 6 Prevents Oxidation 7 Keeps working

  3. What is Ferro foil ™??Ferro foil™ is a very unique and new material comprising specialised layers of barrier materials now conforming to Military Specifications NSN no 8135-66-158-8103 1 Outside layer –BOPP 2 Foil Laminate 3 Co –extruded L.D.P.E . VCI Vapour Corrosion Inhibitors

  4. Development of VCI Ferro Foil™ Tensile and Gauge Testing

  5. Development of VCI Ferro Foil ™ Grammage weight test Dart impact TEST

  6. Technical Data • Caliper 140 grams /Sq M • Water proof ,Greaseproof ,Flexible ,Heat sealable • Tensile strength 1600grams/5min ASTM D2103 • Break strength (grab method) 320 Tappi T 470 • Puncture 933 grams ASTM D1709 • Water Vapour TR 0.005g/h M2 ASTMe96-2005 • Military NATO Stock Numbered World wide • NSN 8135-66-158-8103

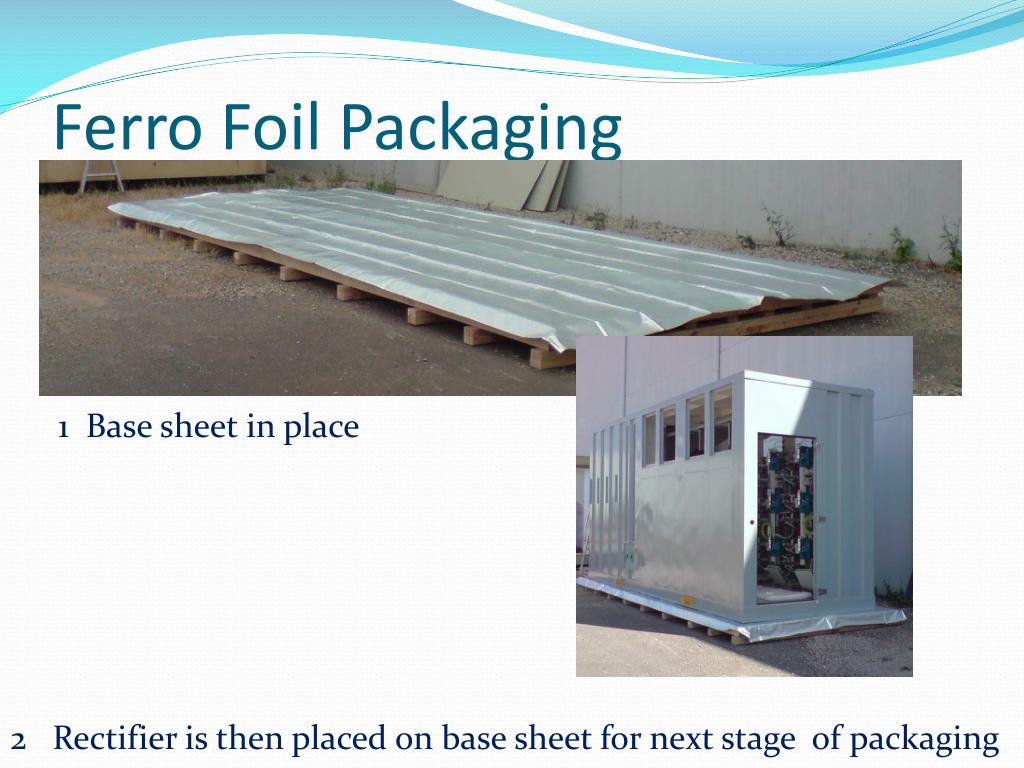

  7. Ferro Foil Packaging 1 Base sheet in place 2 Rectifier is then placed on base sheet for next stage of packaging

  8. Ferro Foil Packaging 3 Bag is heat sealed to base 4 Vacuum applied to dispel oxygen final seal is then completed

  9. Export applications of VCI Ferro foil CNC Machinery for export 1 Base sheet and bag sealed 2 VACUUM APPLIED then final edge seal Machine on pallet ready for export container Inner barrier integrity of metal parts are secure with vacuum seal and VCI protection

  10. Applications of VCI Ferro Foil ● Pistol and rifle Bags

  11. MILITARY -Hamel 105mm field gun 12 year storage program

  12. Hamel 105mm field gun storage Commencing November 2008 Storage program spanning 12 years incorporating regular annual inspections . Gun is Vacuum sealed .

  13. RAAF - The crate concept Timber crate comprising marine hatch for insertion of Silica gel To regulate temperature control . Crate also comprises data logger interfaced to on line computer for (4) year program of moisture control

  14. RAAF F11 and F18 storage Parts are placed in VCI triple layer film and inside crate walls are lined With VCI ferro foil for advanced barrier protection

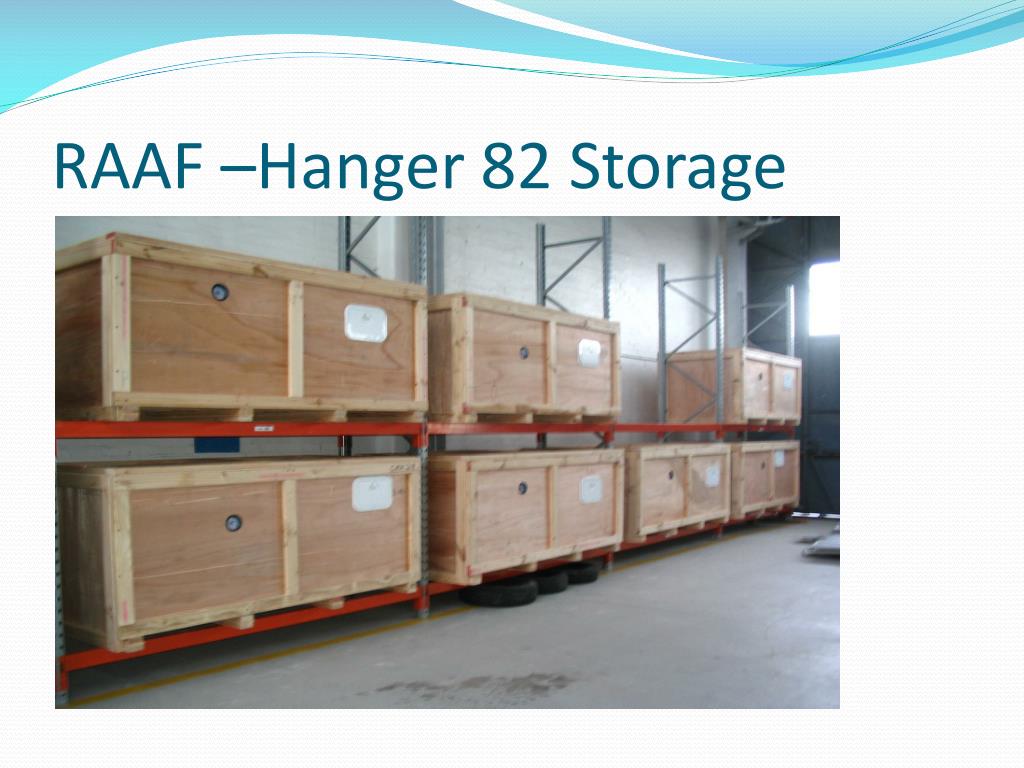

  15. RAAF –Hanger 82 Storage

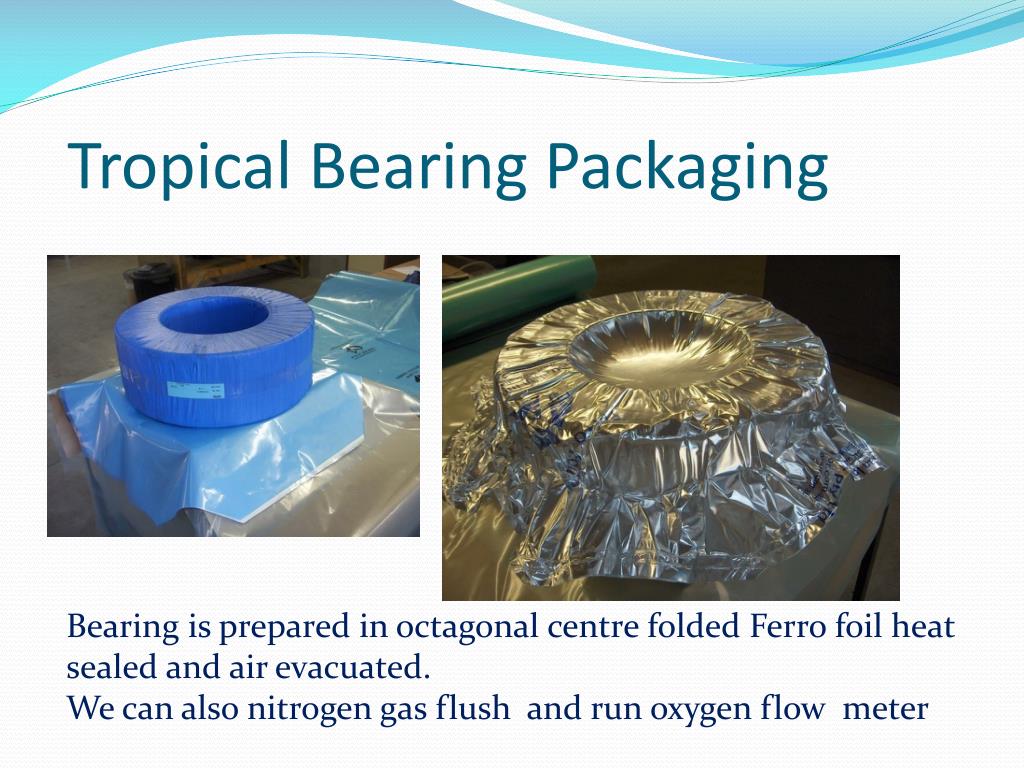

  16. Tropical Bearing Packaging Bearing is prepared in octagonal centre folded Ferro foil heat sealed and air evacuated. We can also nitrogen gas flush and run oxygen flow meter

  17. Works of Art –Preservationspecial flap seal 2 section bags National Gallery –Canberra employ valve bags to nitrogen gas flush , purging oxygen to maintain inner integrity for priceless works of art - short or long term storage

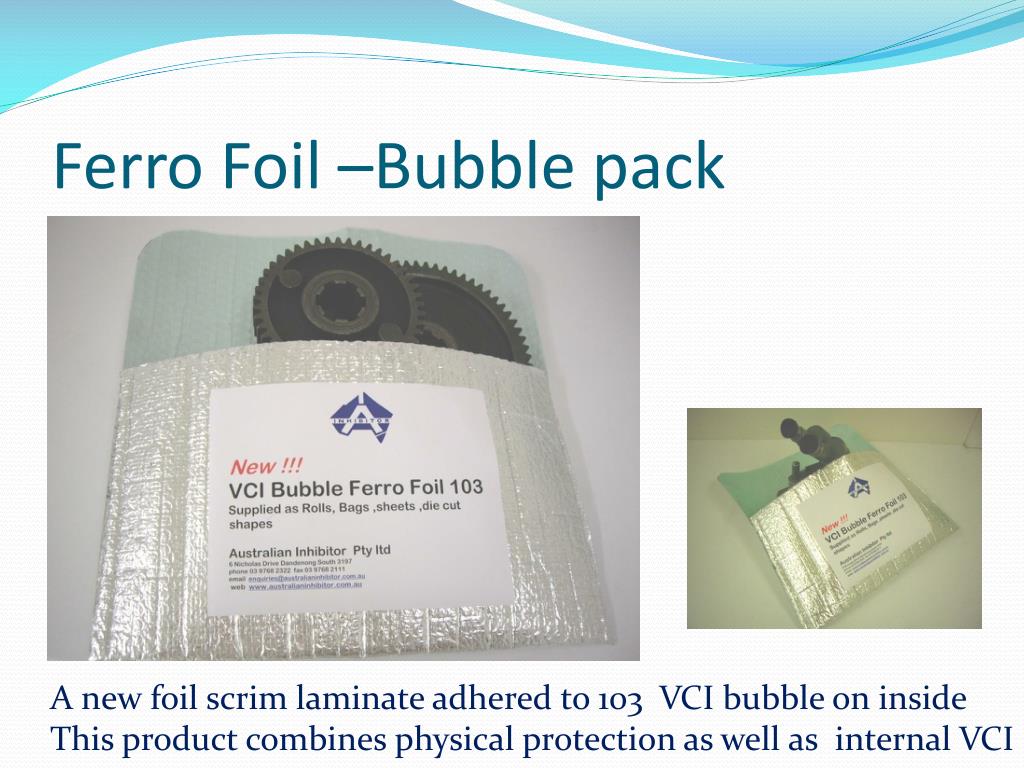

  18. Ferro Foil –Bubble pack A new foil scrim laminate adhered to 103 VCI bubble on inside This product combines physical protection as well as internal VCI
