Cryptographic methods

Cryptographic methods

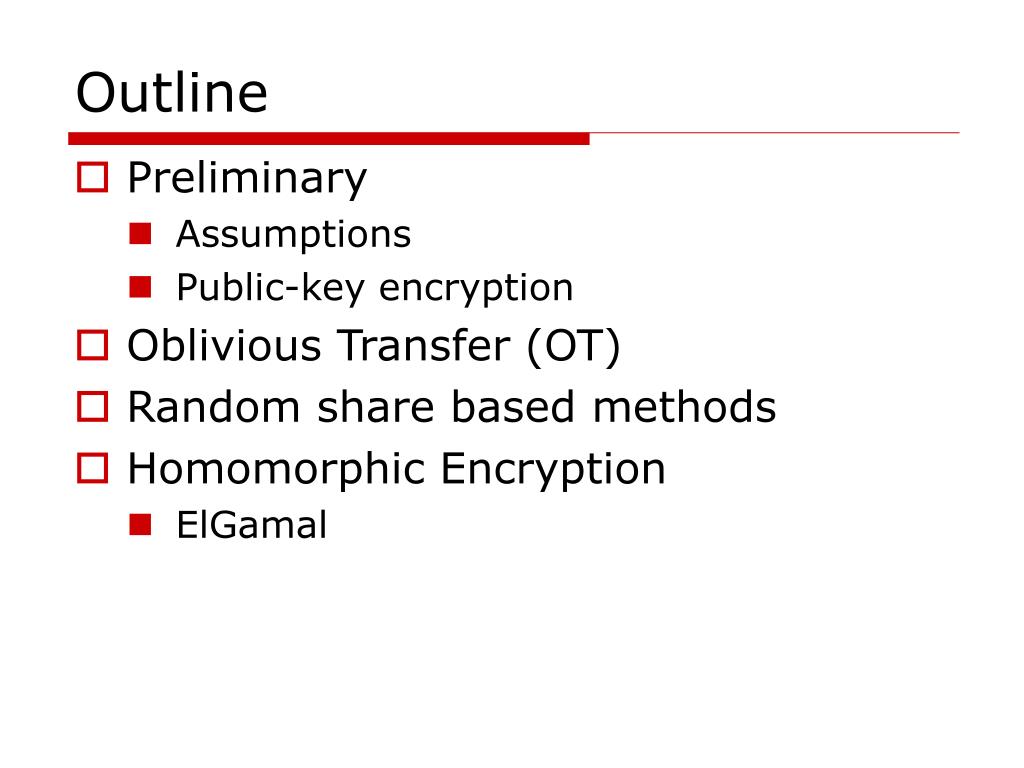

Outline • Preliminary • Assumptions • Public-key encryption • Oblivious Transfer (OT) • Random share based methods • Homomorphic Encryption • ElGamal

Assumptions • Semi-honest party assumption • Parties honestly follow the security protocol • Parties might be curious about the transferred data • Malicious party assumption • The malicious party can do anything • Transfer false data • Turn down the protocol • Collusion

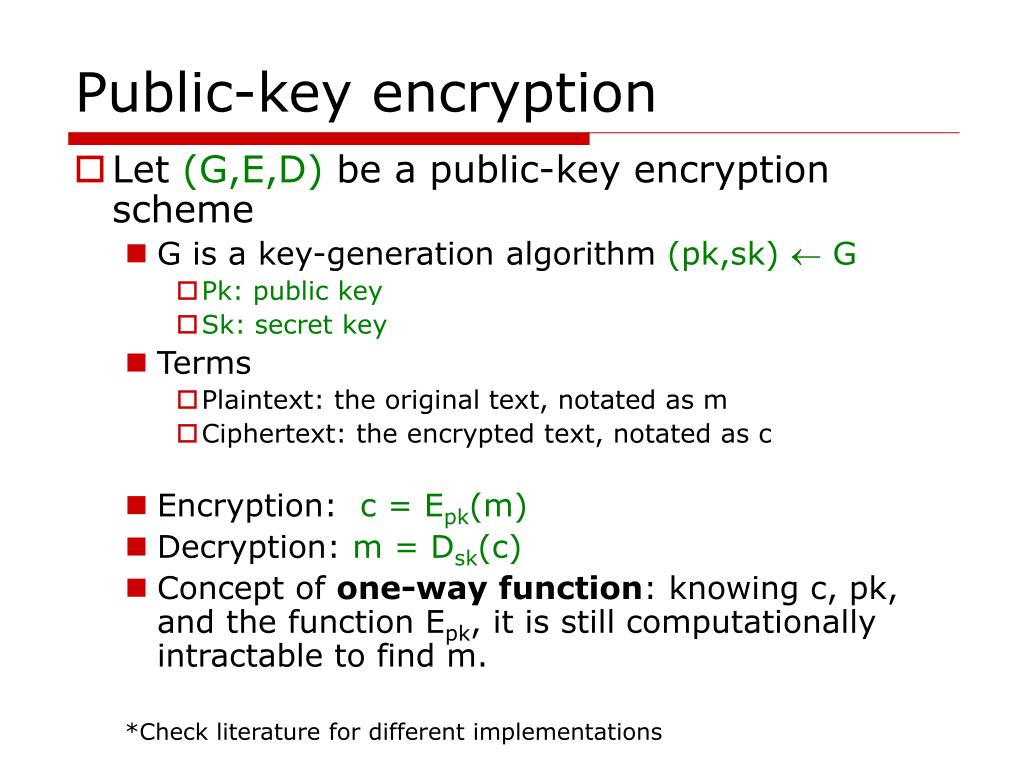

Public-key encryption • Let (G,E,D) be a public-key encryption scheme • G is a key-generation algorithm (pk,sk)  G • Pk: public key • Sk: secret key • Terms • Plaintext: the original text, notated as m • Ciphertext: the encrypted text, notated as c • Encryption: c = Epk(m) • Decryption: m = Dsk(c) • Concept of one-way function: knowing c, pk, and the function Epk, it is still computationally intractable to find m. *Check literature for different implementations

1-out-of-2 Oblivious Transfer (OT) • Inputs • Sender has two messages m0 and m1 • Receiver has a single bit {0,1} • Outputs • Sender receives nothing • Receiver obtain m and learns nothing ofm1-

Assume that a public-key can be sampled without knowledge of its secret key (knowing pk only): • Oblivious key generation: pk  OG • Protocol is simplified with this assumption

Protocol for Oblivious Transfer • Receiver (with input ): • Receiver chooses one key-pair (pk,sk) and one public-key pk’ (oblivious key generation). • Receiver sets pk = pk, pk1- = pk’ • Receiver sends pk0,pk1 to sender • Sender (with input m0,m1): • Sends receiver c0=Epk0(m0), c1=Epk1(m1) • Receiver: • Decrypts c using sk and obtains m. • Note: receiver can decrypt for pk but not for pk1-

Generalization • Can define 1-out-of-k oblivious transfer • Protocol remains the same: • Choose k-1 public keys for which the secret key is unknown • Choose 1 public-key and secret-key pair

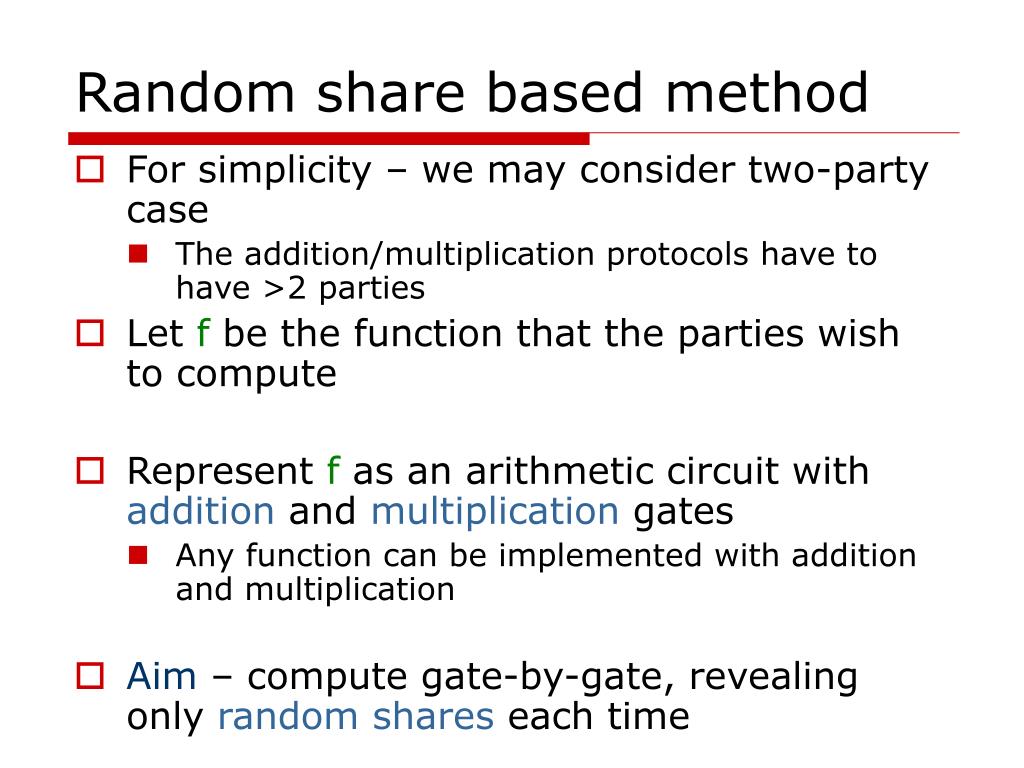

Random share based method • For simplicity – we may consider two-party case • The addition/multiplication protocols have to have >2 parties • Let f be the function that the parties wish to compute • Represent f as an arithmetic circuit with addition and multiplication gates • Any function can be implemented with addition and multiplication • Aim – compute gate-by-gate, revealing only random shares each time

Random Shares Paradigm • Let a be some value: • Party 1 holds a, distributes random values ai and thus knows a-ai • Party i receives ai • Note that without knowing a-ai, and all random shares ai , nothing of a is revealed. • We say that the parties hold random shares of a.

Securely computing addition • Party 1,2,3 hold a,b,c respectively • Generate random shares: • Party 1 has shares a1 , b1 andc1 • Party 2 has shares a2 , b2 andc2 • Party 3 has shares a3 , b3 andc3 • Note: a1+a2 +a3 =a, b1+b2 +b3 =b, and c1+c2 +c3 =c • To compute random shares of output d=a+b+c • Party 1 locally computes d1=a1+b1+c1 • Party 2 locally computes d2=a2+b2+c2 • Party 3 locally computes d3=a3+b3+c3 • Note: d1+d2 +d3 =d • The result shares do not reveal the original value of a,b,c

Multiplication (2 parties) • Simplified (a, b are binary bit) • Input wires to gate have values a and b: • Party 1 has shares a1 and b1 • Party 2 has shares a2 and b2 • Wish to compute c = ab = (a1+a2)(b1+b2) • Party 1 knows its concrete share values. • Party 2’s values are unknown to Party 1, but there are only 4 possibilities (depending on correspondence to 00,01,10,11)

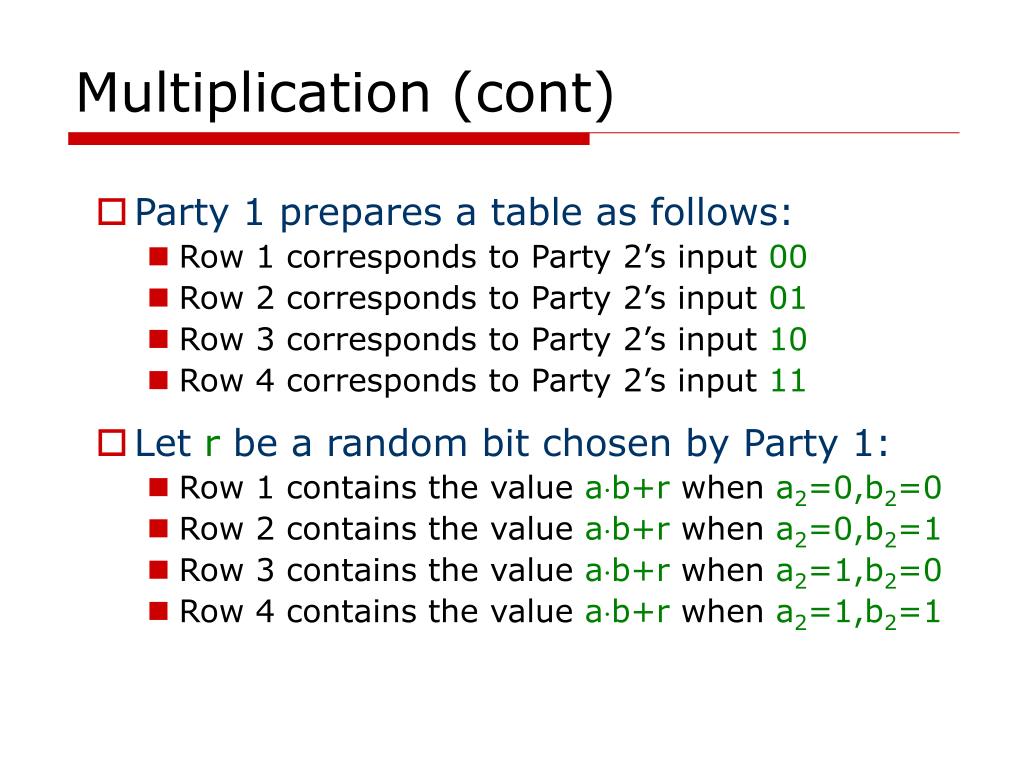

Multiplication (cont) • Party 1 prepares a table as follows: • Row 1 corresponds to Party 2’s input 00 • Row 2 corresponds to Party 2’s input 01 • Row 3 corresponds to Party 2’s input 10 • Row 4 corresponds to Party 2’s input 11 • Let rbe a random bit chosen by Party 1: • Row 1 contains the value ab+r when a2=0,b2=0 • Row 2 contains the value ab+r when a2=0,b2=1 • Row 3 contains the value ab+r when a2=1,b2=0 • Row 4 contains the value ab+r when a2=1,b2=1

Concrete Example • Assume: a1=0, b1=1 • Assume: r=1

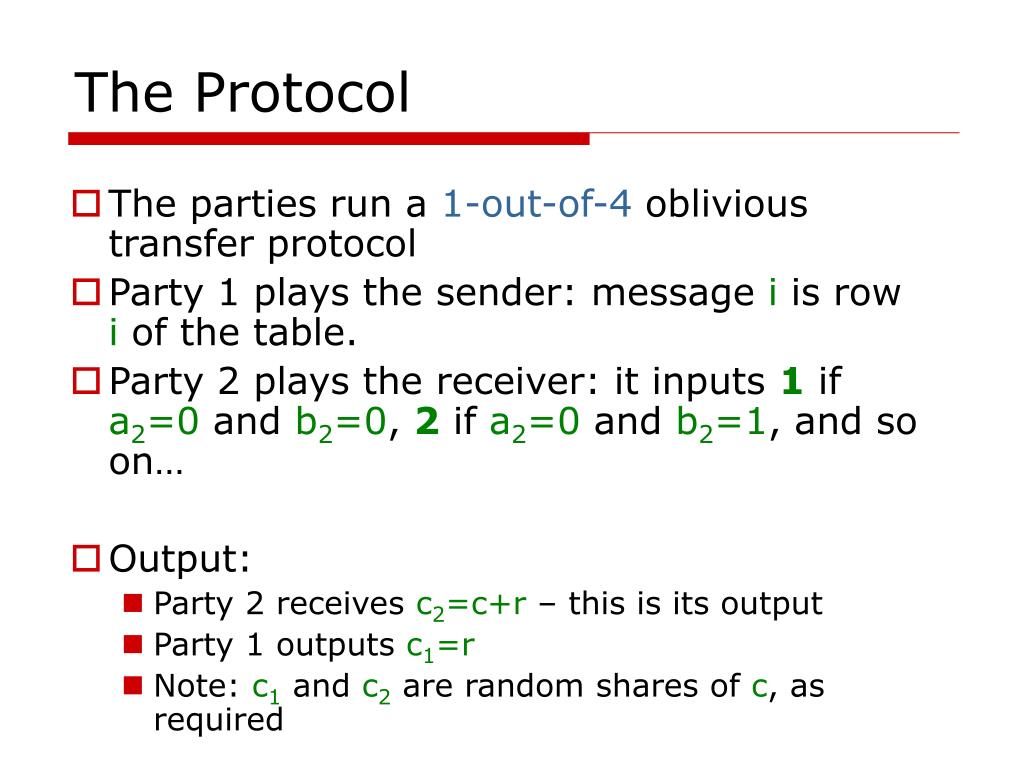

The Protocol • The parties run a 1-out-of-4 oblivious transfer protocol • Party 1 plays the sender: message i is row i of the table. • Party 2 plays the receiver: it inputs 1 if a2=0 and b2=0, 2 if a2=0 and b2=1, and so on… • Output: • Party 2 receives c2=c+r – this is its output • Party 1 outputs c1=r • Note: c1 and c2 are random shares of c, as required

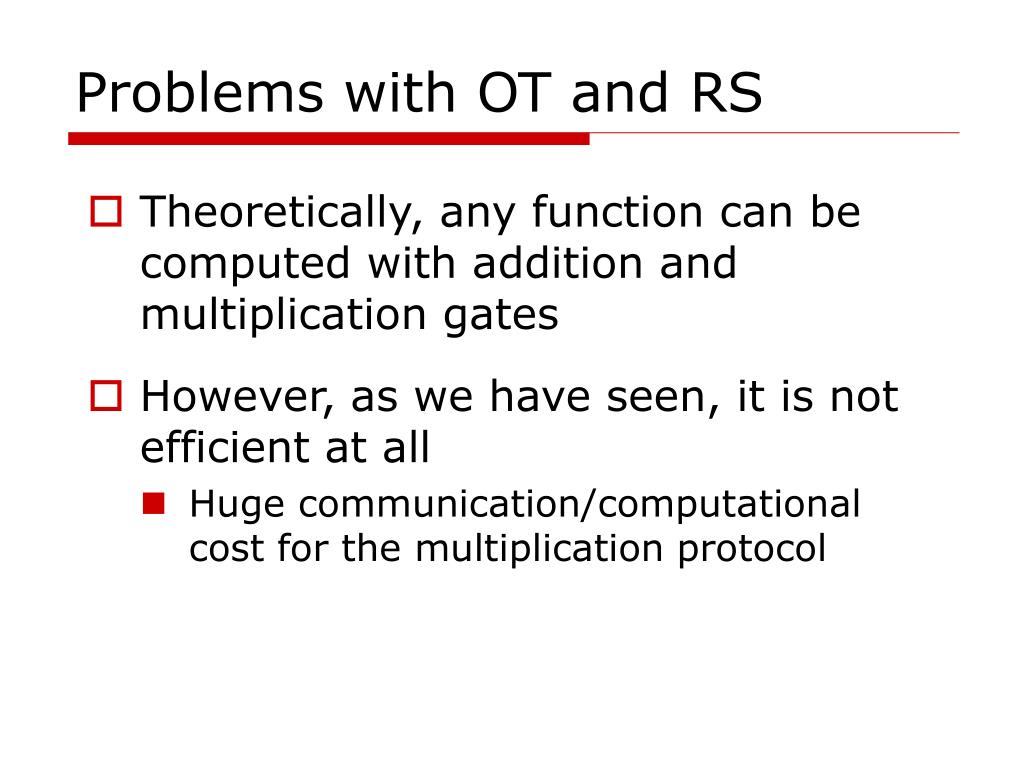

Problems with OT and RS • Theoretically, any function can be computed with addition and multiplication gates • However, as we have seen, it is not efficient at all • Huge communication/computational cost for the multiplication protocol

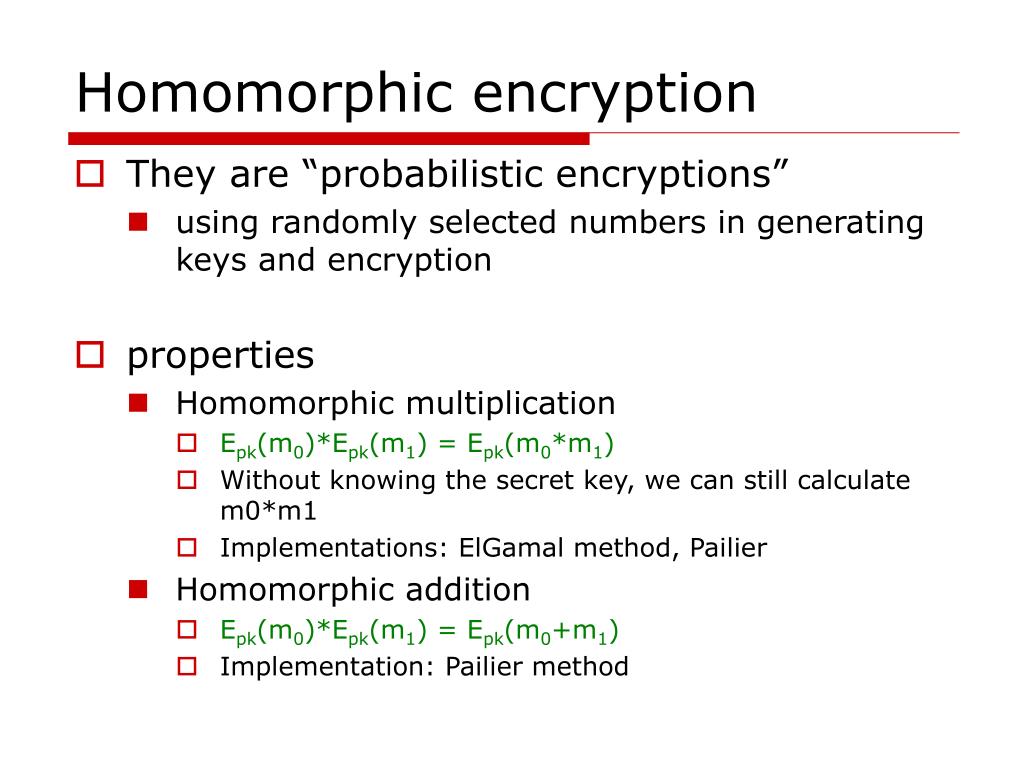

Homomorphic encryption • They are “probabilistic encryptions” • using randomly selected numbers in generating keys and encryption • properties • Homomorphic multiplication • Epk(m0)*Epk(m1) = Epk(m0*m1) • Without knowing the secret key, we can still calculate m0*m1 • Implementations: ElGamal method, Pailier • Homomorphic addition • Epk(m0)*Epk(m1) = Epk(m0+m1) • Implementation: Pailier method

ElGamal method • System parameters (P,g) • Input 1n • P is a uniformly chosen prime |P|>n • g: a random number called “generator” • keys • Private key (P,g,x), x is randomly chosen • Public key pk=(P, g, y): y = gx mod P (one way function, impossible to guess x given (P,g,y) ) • Encryption: • E(pk, m, k) = (gk mod P, mgk mod P), k is a random number, m is plaintext

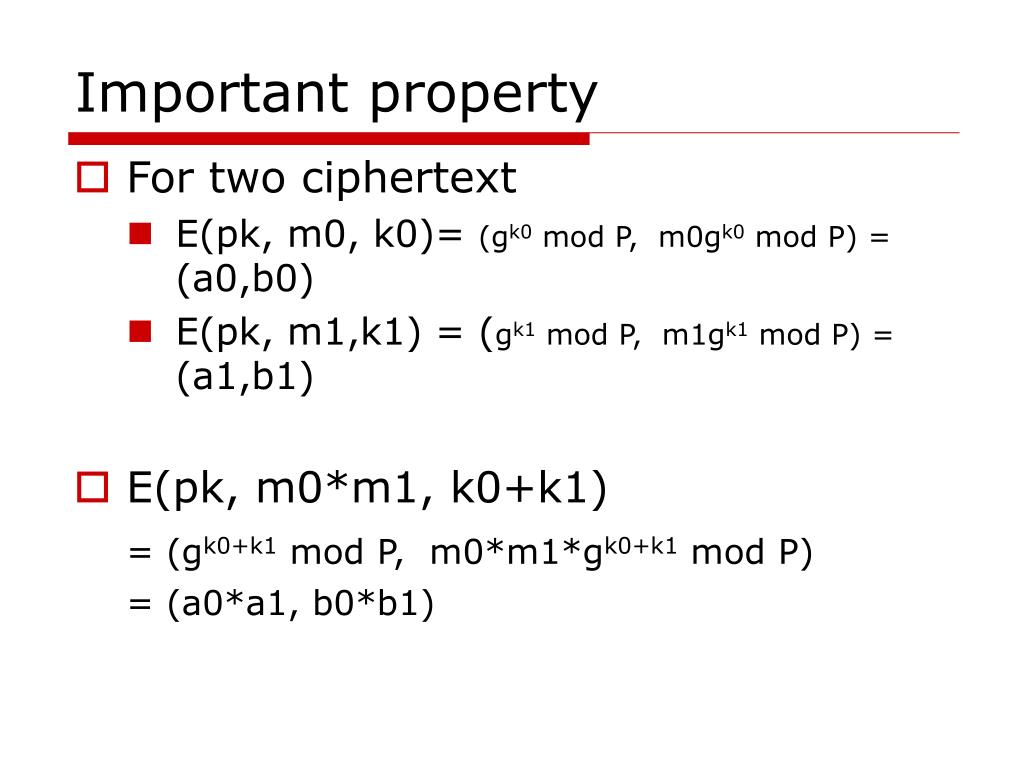

Important property • For two ciphertext • E(pk, m0, k0)= (gk0 mod P, m0gk0 mod P) = (a0,b0) • E(pk, m1,k1) = (gk1 mod P, m1gk1 mod P) = (a1,b1) • E(pk, m0*m1, k0+k1) = (gk0+k1 mod P, m0*m1*gk0+k1 mod P) = (a0*a1, b0*b1)

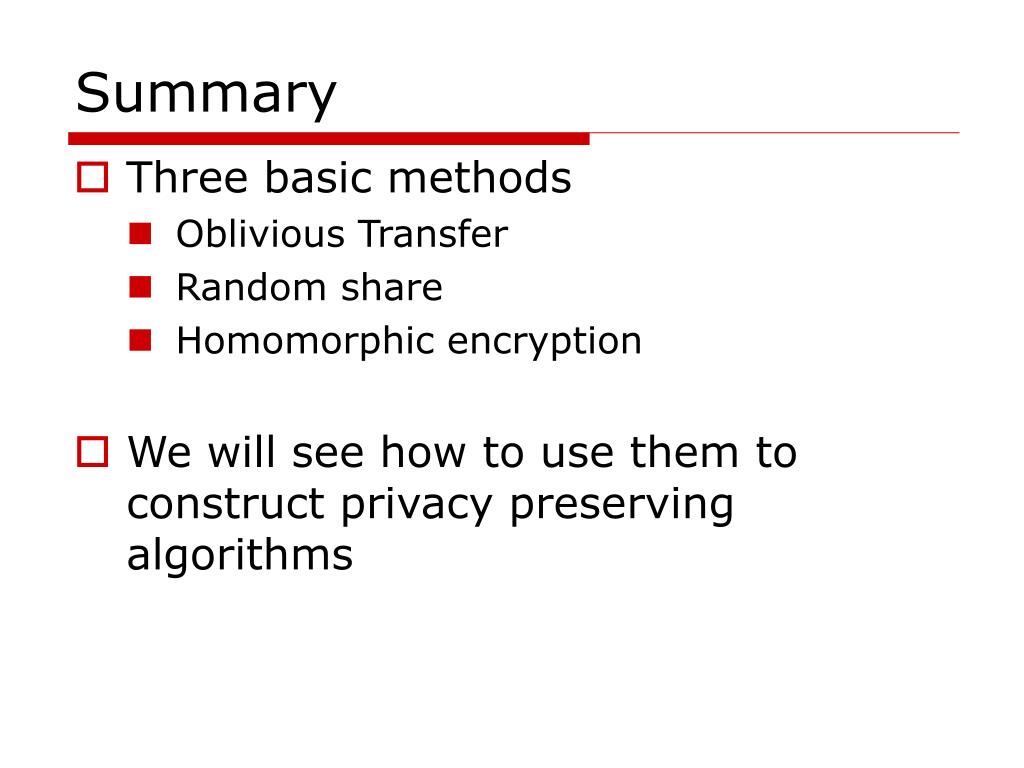

Summary • Three basic methods • Oblivious Transfer • Random share • Homomorphic encryption • We will see how to use them to construct privacy preserving algorithms
