Established in 2010, PG5 serves as a multifunctional facility offering diverse spaces, including a parking garage, classrooms, and a food court with seating for 300. It focuses on healthcare, featuring preventative care and mental health services on the first floor, with hospice care on the second. The building includes detailed zoning diagrams, structural layouts, and site views, emphasizing factors like natural lighting, acoustics, and accessibility. This comprehensive analysis ensures optimal patient care and operational efficiency.
E N D

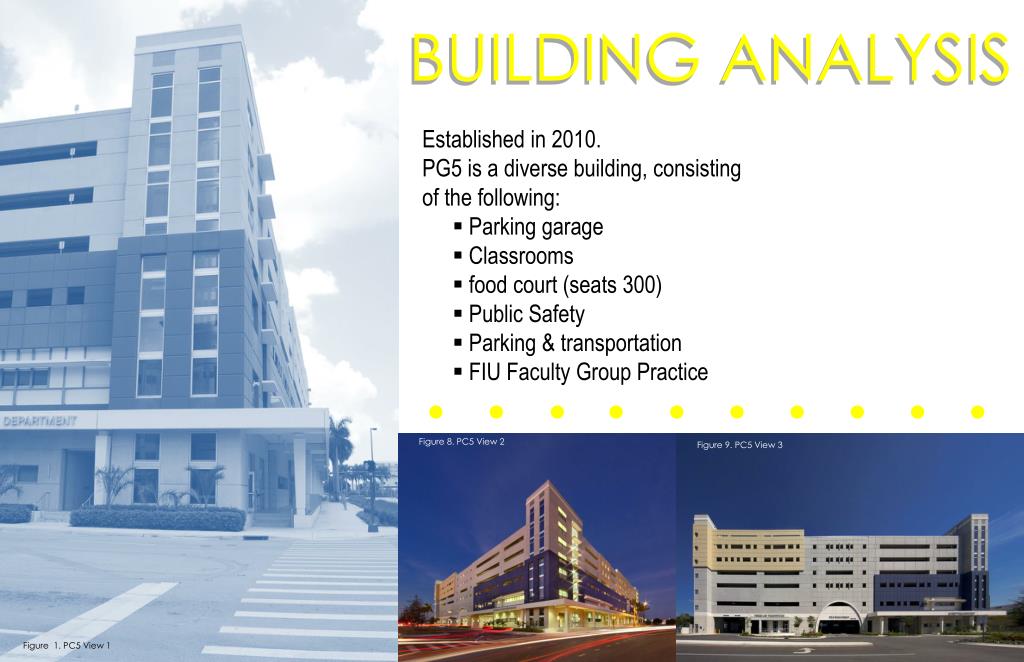

Established in 2010. • PG5 is a diverse building, consisting • of the following: • Parking garage • Classrooms • food court (seats 300) • Public Safety • Parking & transportation • FIU Faculty Group Practice BUILDING ANALYSIS BUILDING ANALYSIS Figure 8. PC5 View 2 Figure 9. PC5 View 3 Figure 1. PC5 View 1
First Floor : Linear | Axial Second Floor: Circular Spatial |Circulation Diagrams
8,692 sq. ft. Preventative Care Private Private Mental Health Semi Public Private Semi Public Public Public Hospice Care 38,189 sq. ft. First Floor: Preventative Care & Mental Health Second Floor: Hospice 10,561sq. ft. OLD Zoning Diagrams
8,692 sq. ft. Public Private Semi - Private Semi Public Semi - Private Public Semi Public Public 38,189 sq. ft. First Floor: Preventative Care & Mental Health Second Floor: Hospice 10,561sq. ft. Zoning Diagrams
First Floor: Column & Grid Pattern Second Floor: Column & Grid Pattern Structure Diagrams
First Floor: Plumbing Mechanical Electrical Second Floor: Plumbing Mechanical Mechanical | Electrical | Plumbing
Figure 2. Sun Path A Figure 4. Sun Calculation Figure 5. Trees Figure 6. PC5 North View Figure 3. Sun Earth Figure 7. Garage View Sun Path | Orientation
3 WEST VIEW Figure 10. West View KEY PLAN 4 EAST VIEW NORTH VIEW Figure 11. East View Figure 12. North View 1 4 SOUTH VIEW Views First | Second Floor Figure 13. South View
GLAZING AT ELEVATOR CORNER TREATMENT & CLADDING Figure 14. Corner Concrete Figure 17. Corner Concrete Figure 15. Glazing Figure 16. Concrete Flooring Figure 17. Column Detail GLAZING & PAINT CONCRETE FLOORING (THROUGHOUT) COLUMN DETAIL Materials
References Figure 1. PC5 View 1 – D. Paulino, 2013 Figure 2. Sun Path A- Figure 3 Sun Earth - Figure 4 Sun Calculation - Figure 5. PC5 North View - Figure 6. Group of People - http://static.guim.co.uk/sys-images/Guardian/Pix/pictures/2012/6/15/1339771788908/Happy-people-009.jpg Figure 7 Garage View - Figure 8. Figure 9. Figure 10. Figure 11. Figure 12. Figure 13. Figure 14. Figure 15.
FIU HEALTH+ ADJACENCY DIAGRAMS MENTAL HOSPICE PRIMARY CLOSE & CONVIENENT IMMEDIATE ACCESS CONVIENENT ACCESS ACCOUSTICS NATURAL LIGHTING LOBBY CARE
FIU HEALTH+ ADJACENCY DIAGRAMS STAIRS ELEVATORS HOSPICE PRIMARY M|W RR CLOSE & CONVIENENT DIRECTOR M|W RR M|W RR MENTAL IMMEDIATE ACCESS CONFERENCE CONVIENENT ACCESS COUNSELING ACCOUSTICS LOBBY LOBBY NATURAL LIGHTING STAFF OFFICES ADMIN CARE
FIU HEALTH+ ADJACENCY DIAGRAMS STAIRS ELEVATORS MENTAL HOSPICE PRIMARY CLOSE & CONVIENENT COUNSELING IMMEDIATE ACCESS CONFERENCE CONVIENENT ACCESS ] ] ] ] CONFERENECE ACCOUSTICS STAFF AREA RESTROOM NATURAL LIGHTING ADMIN LOBBY ] ] OFFICES CARE ] ] DIRECTOR
FIU HEALTH+ PREVENTATIVE CARE LECTURE SAPCES LECTURE SPACES PRIMARY CLOSE & CONVIENENT NURSES STATION M|W RR M|W RR CAREGIVER AREA PUBLIC EDUCATIONAL OUTREACH IMMEDIATE ACCESS CONVIENENT ACCESS ACCOUSTICS NATURAL LIGHTING TREATMENT ROOMS TREATMENT ROOMS STAFF DR. OFFICE FITNESS EVALUATION AREA RECEP. LOBBY PRIVATE PUBLIC SEMI-PRIVATE
FIU HEALTH+ HOSPICE RESTROOMS Offices PRIMARY PATIENT ROOMS Conference CLOSE & CONVIENENT Children Area Storage IMMEDIATE ACCESS Clinical Administrative Service Support Medical Supply CONVIENENT ACCESS ACCOUSTICS Maintenance NURSE STATION NATURAL LIGHTING RESTROOMS Reception Chapel ENTRANCE Living Room Family Room
