  1. Solar Powered Charging Station:Final Presentation Design Team: Ben Hemp Jahmai Turner Rob Wolf, PE Sponsors: Conn Center for Renewable Energy Dr. James Graham, PhD Dr. Chris Foreman, PhD Revision C, 12/10/11

  2. Agenda • Project Overview • System Requirements • Detailed Design • Trade Studies and Research • Test Results

  3. Project Overview System Goals • Charge an electric vehicle (EV) from a charging station using 110 VAC, 60 Hz, 1ø as the charging source • Use power created by solar panels (SP’s) for the EV charging • Use grid-tied energy to make the charging times more predictable • Use instrumentation to monitor the energy created by charging station and energy used by electrical grid • This semester’s team is expected to design the complete system, but is only expected to implement the solar charging aspect due to planning with subcontractors

  4. Project Overview The Test Subject • Manufactured by NoGas LLC in Nashville, TN • 50 MPH top speed/50 mile range • 72 VDC, 40 AH Lithium batteries with Battery Management System (BMS) • Regenerative braking • Built-in charger • 120 VAC charging with 1 to 8 hr. max charge time

  5. System Requirements

  6. Harvest Energy from Solar Panels Solar Panels • A solar array of multiple SP’s for solar charging • A solar study should be conducted to determine the number and size of SP’s needed to charge the scooter • Solar study determined seven solar panels are needed to reach 3.5 kW/day for worst case month • Conn Center funded two panels by vendor of choice • Decisions regarding fabrication technology and make/buy • Funded by Conn Center • Mounting location and attachment techniques must be determined (W.S. building, build structure, etc.) • “Cart-style” structure chosen for mobility

  7. Convert Energy into a Usable Form Inverter • Inverters are needed to convert DC power from SP’s to AC power for charging station • Must operate with two 230 W SP’s • Must tie to grid • Limited to two breakers in W.S. breaker panel • Expandability Transformer • Required to charge EV with 120 VAC • Converts 240 VAC from inverters to 120 VAC for EV

  8. Charging Station External Interfaces Charging Station • EV requires 120 VAC, 60 Hz, 1ɸ • NEMA 5-15R receptacle needed to charge EV

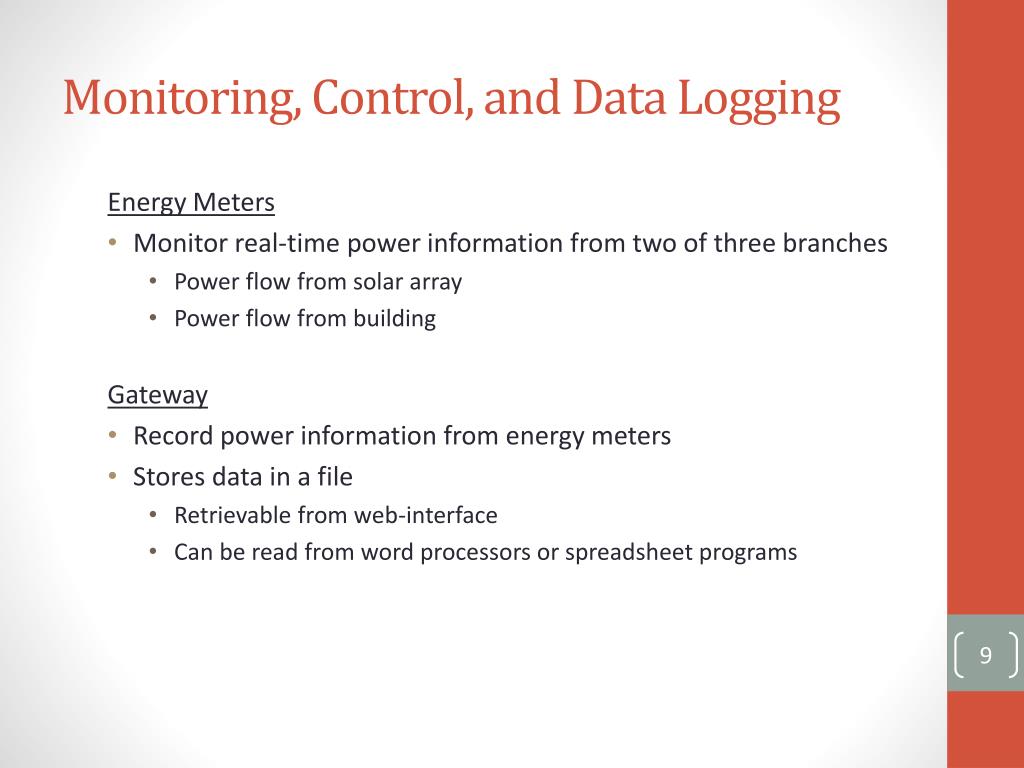

  9. Monitoring, Control, and Data Logging Energy Meters • Monitor real-time power information from two of three branches • Power flow from solar array • Power flow from building Gateway • Record power information from energy meters • Stores data in a file • Retrievable from web-interface • Can be read from word processors or spreadsheet programs

  10. Detailed Design

  11. Solar Panel Array

  12. Solar Panels Alternative Energies 230W • 230W maximum DC per SP • Poly-crystalline cells • MC-4 connectors connect to inverters • 60 cells per SP, soldered in series • Vmax (1000W/m2, 25°C, AM 1.5) = 29.7 VDC • Imax (1000W/m2, 25°C, AM 1.5) = 7.5A • ~18% efficient • Size = 39.375” (~3.25’) x 65.5” (~5.5’) • ~ 2.0 yards2or 1.9 m2

  13. Inverters

  14. Inverters Enphase M215 Distributed Inverter • Maximum input power: 260W • Output power: 215W • DC operation range: 16V – 36V • Maximum modules for 240VAC 20A branch circuit: 17 • Inverters operate independently • Low-voltage operation • 96% efficiency • Works with 60-cell SP’s • Plug-and-play trunk cabling • No high voltage DC wiring • Complies with IEEE 1547 Anti-Islanding code

  15. Inverters (continued) Enphase M215 Distributed Inverter

  16. Energy Meters

  17. Energy Meters Eaton IQ150 • Powered by 120 VAC • Capable of measuring: • Voltage (True RMS) – Up to 416 VAC • Amperage (True RMS) – 5A nominal, 10A maximum • kW • kVAR • Frequency • Communicates with Gateway via Modbus Protocol

  18. Energy Meters (cont.) Eaton IQ150

  19. Gateway Eaton PXG600A

  20. 24 VDC Power Supply Eaton EZ400-POW • Supplies 24 VDC to power the Gateway • Powered by 120 VAC

  21. Current Transformers Eaton • Measure current at specific branches in the circuit • 120 VAC wire from building to node • 120 VAC wire from transformer to node • Ratio used to compare current through the CT (branch circuit) vs. current output to the energy meters • Each CT is rated for a 50/5 ratio • Wire is wrapped twice for a 25/5 ratio • Better accuracy

  22. Trade Studies and Research

  23. Test Results

  24. Test Results Energy Meters Voltage (V) Line - Neutral Power (W), Reactive Power (VAR), Power Factor Amperage (A)

  25. Questions?
