  1. SLHC ROD project IN1_1 IN2_1 … INn_1 3.2Gb/s coax link Serializer IC Port 1 OUT1_1 OUT2_1 … OUTn_1 640Mb/s coax link De-serializer IC . . . ROD IN1_n IN2_n … INn_n Serializer IC Port n OUT1_n OUT2_n … OUTn_n De-serializer IC

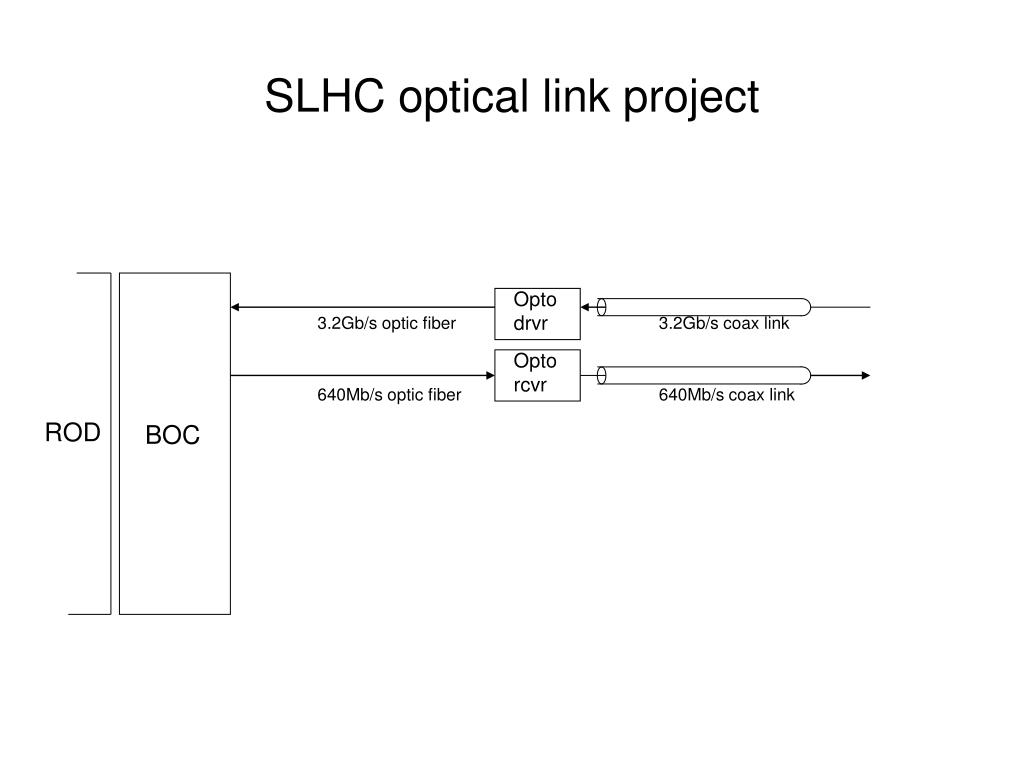

  2. SLHC optical link project Opto drvr 3.2Gb/s optic fiber 3.2Gb/s coax link Opto rcvr 640Mb/s optic fiber 640Mb/s coax link ROD BOC

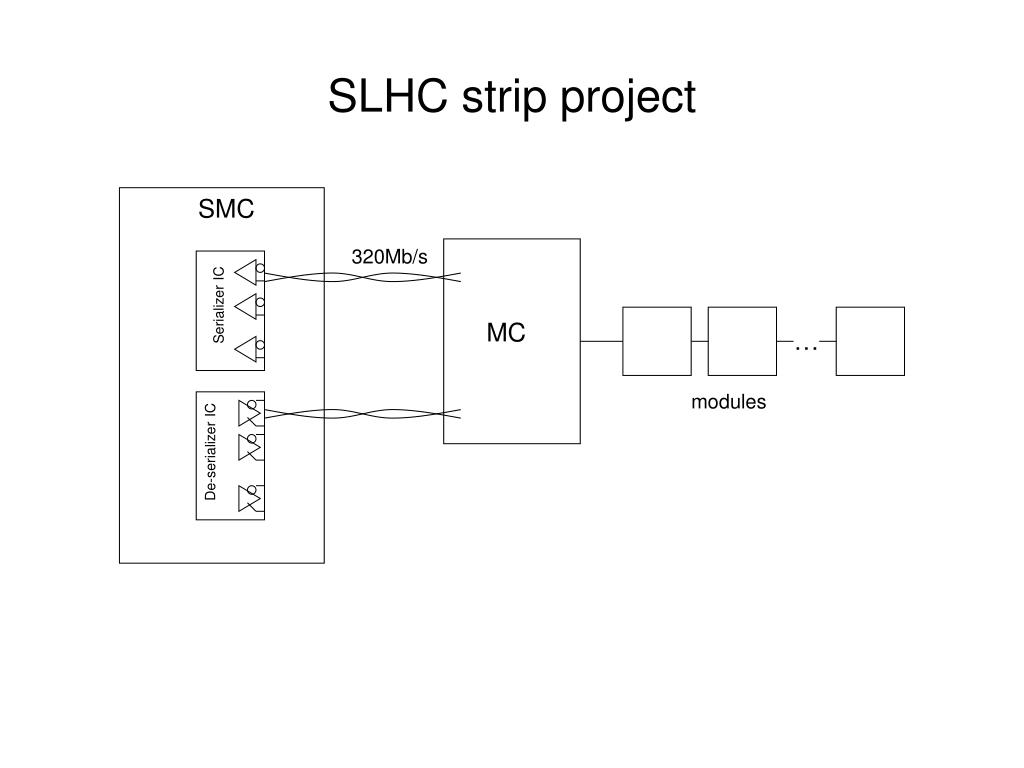

  3. SLHC strip project SMC 320Mb/s Serializer IC MC … modules De-serializer IC

  4. SLHC pixel project SMC (end of stave card) 320Mb/s Serializer IC Pixel chip Pixel chip 1 to 4 chips depending on layer De-serializer IC
