EXAMPLE 1

( x , y ) (2 x , 2 y ). A (2, 1) L (4, 2). B (4, 1) M (8, 2). C (4, –1) N (8, –2). D (1, –1) P (2, –2). EXAMPLE 1. Draw a dilation with a scale factor greater than 1.

lamar-tate
Télécharger la présentation

EXAMPLE 1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

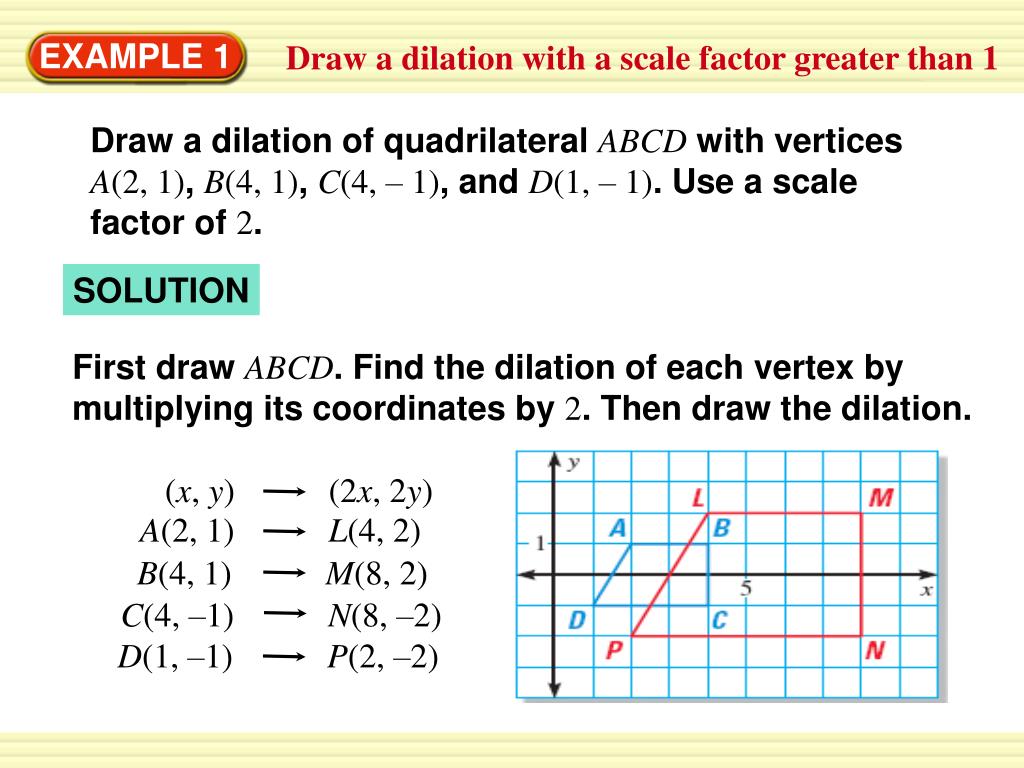

  1. (x, y) (2x, 2y) A(2, 1) L(4, 2) B(4, 1) M(8, 2) C(4, –1) N(8, –2) D(1, –1) P(2, –2) EXAMPLE 1 Draw a dilation with a scale factor greater than 1 Draw a dilation of quadrilateralABCDwith verticesA(2, 1), B(4, 1), C(4, – 1), andD(1, – 1). Use a scale factor of2. SOLUTION First draw ABCD. Find the dilation of each vertex by multiplying its coordinates by 2. Then draw the dilation.

  2. A triangle has the vertices A(4,– 4),B(8, 2), and C(8,– 4). The image of ABCafter a dilation with a scale factor of is DEF. SketchABCandDEF. Verify that ABCand DEFare similar. 1 a. 2 b. EXAMPLE 2 Verify that a figure is similar to its dilation

  3. a. The scale factor is less than one, so the dilation is a reduction. 1 1 2 2 A(4, – 4) D(2, – 2) y x, (x, y) C(8, – 4) F(4, – 2) B(8, 2) E(4, 1) EXAMPLE 2 Verify that a figure is similar to its dilation SOLUTION

  4. b. Because Cand Fare both right angles, C F. Show that the lengths of the sides that include Cand Fare proportional. Find the horizontal and vertical lengths from the coordinate plane. ? = AC BC = 4 6 EF DF So, the lengths of the sides that include Cand Fare proportional. 2 3 ANSWER Therefore, ABCDEFby the SAS Similarity Theorem. ~ EXAMPLE 2 Verify that a figure is similar to its dilation

  5. Find the coordinates of L, M, and N so that LMN is a dilation of PQR with a scale factor of k. Sketch PQR and LMN. x, y = 4x , 4y P (–2, –1) = L (–8, –4) M (– 4, 0) Q (–1, 0) = R (0, –1) = N (0, –4) for Examples 1 and 2 GUIDED PRACTICE 1. P(–2, 21), Q(–1, 0), R(0, –1); k = 4 SOLUTION Find the dilation of each vertex by multiplying its coordinates by 4. ANSWER

  6. 2 2 5 5 x, y x , y P(5, –5) L (2, –2) Q(10,–2) M (4, –2) R (10, 5) N (4, 2) for Examples 1 and 2 GUIDED PRACTICE 2. P(5, –5), Q(10, –5), R(10, 5); k = 0.4 SOLUTION Find the dilation of each vertex by multiplying its coordinates by 0.4. The scale is less than one, so the dilation is a reduction. ANSWER
