4.3 Parallel and Perpendicular Lines

4.3 Parallel and Perpendicular Lines. Algebra 2/Geometry High School. Teacher Page. Content: Write the equation of a parallel or perpendicular line to a given line, in slope intercept form. Grade Level: Algebra 2/Geometry Creator: Don Sutcliffe

lamya
Télécharger la présentation

4.3 Parallel and Perpendicular Lines

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 4.3 Parallel and Perpendicular Lines Algebra 2/Geometry High School

  2. Teacher Page • Content: Write the equation of a parallel or perpendicular line to a given line, in slope intercept form. • Grade Level: Algebra 2/Geometry • Creator: Don Sutcliffe • Other – Print slides 13-20 as a handout for students to take notes. Parallel and Perpendicular Lines

  3. Teacher Page • Curriculum Objectives: • Algebra 2 – II.A – The learner will find the slope of a linear equation and the relationships of the slopes of parallel and perpendicular lines. • MAP Objectives: • Missouri Show-Me Standard – Math – MA1, MA2, MA4, MA5 • Missouri Show-Me Standard – Goal – G1.6, G3.4, G3.5, G4.1 Parallel and Perpendicular Lines

  4. Two non-vertical lines are parallel if and only if their slopes are equal. If l1║l2, then m1= m2. If m1= m2, then l1║l2. Parallel Lines m1 m2 l1 l2 Parallel and Perpendicular Lines

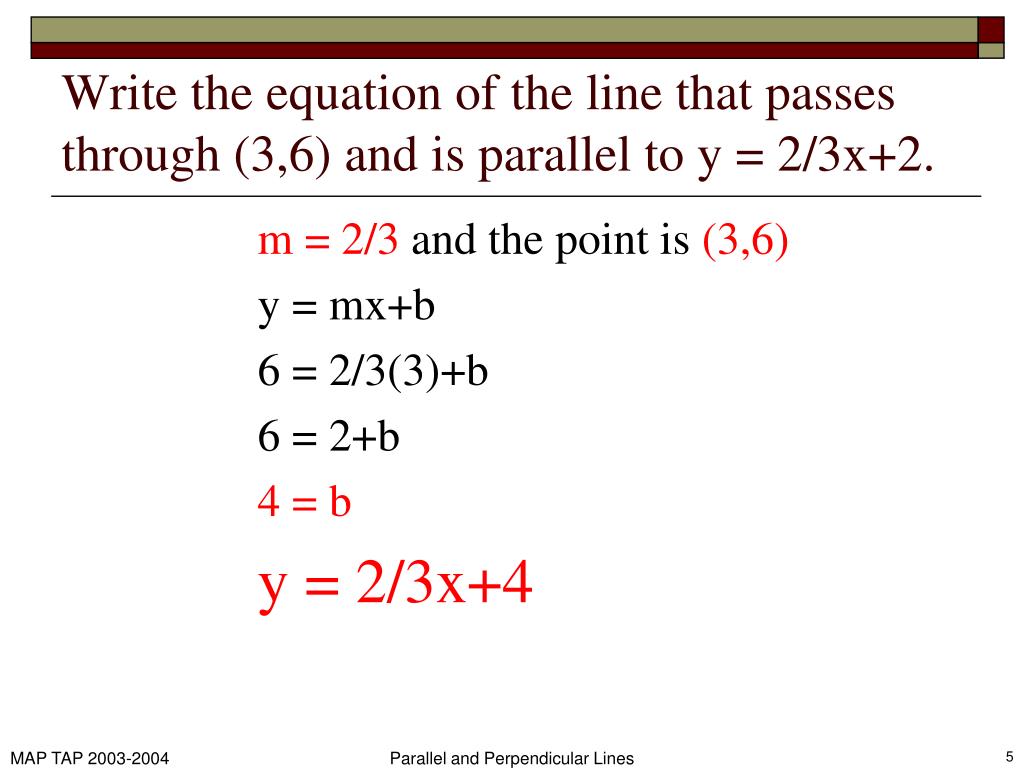

  5. Write the equation of the line that passes through (3,6) and is parallel to y = 2/3x+2. m = 2/3 and the point is (3,6) y = mx+b 6 = 2/3(3)+b 6 = 2+b 4 = b y = 2/3x+4 Parallel and Perpendicular Lines

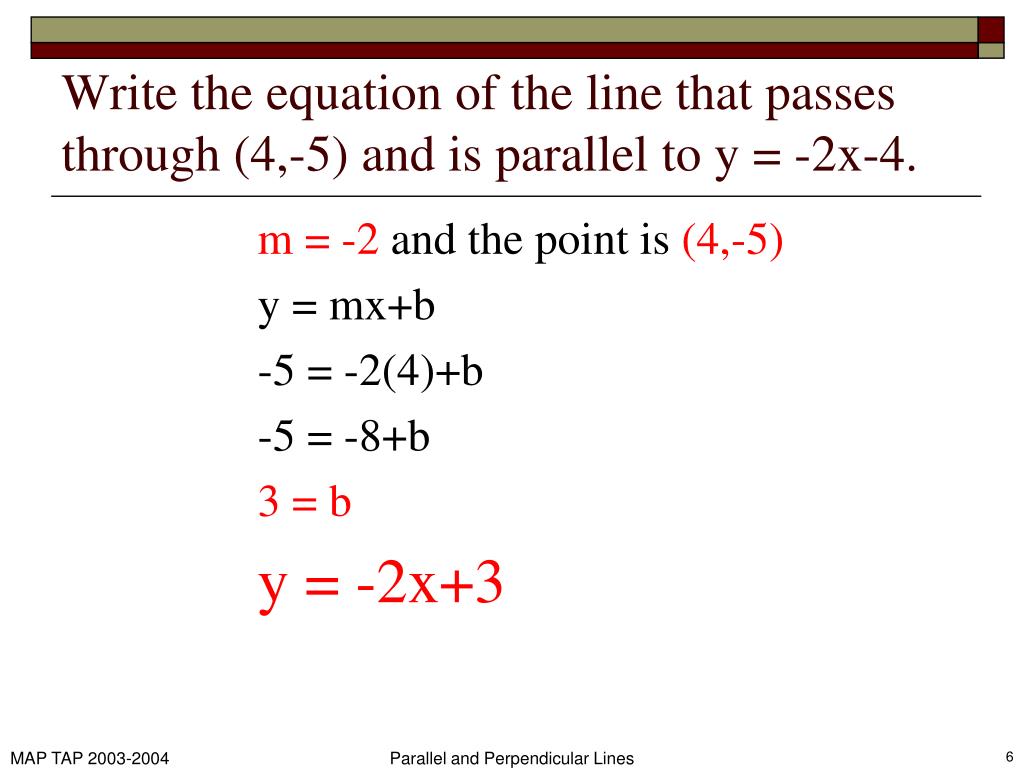

  6. Write the equation of the line that passes through (4,-5) and is parallel to y = -2x-4. m =-2 and the point is (4,-5) y = mx+b -5 = -2(4)+b -5 = -8+b 3 = b y = -2x+3 Parallel and Perpendicular Lines

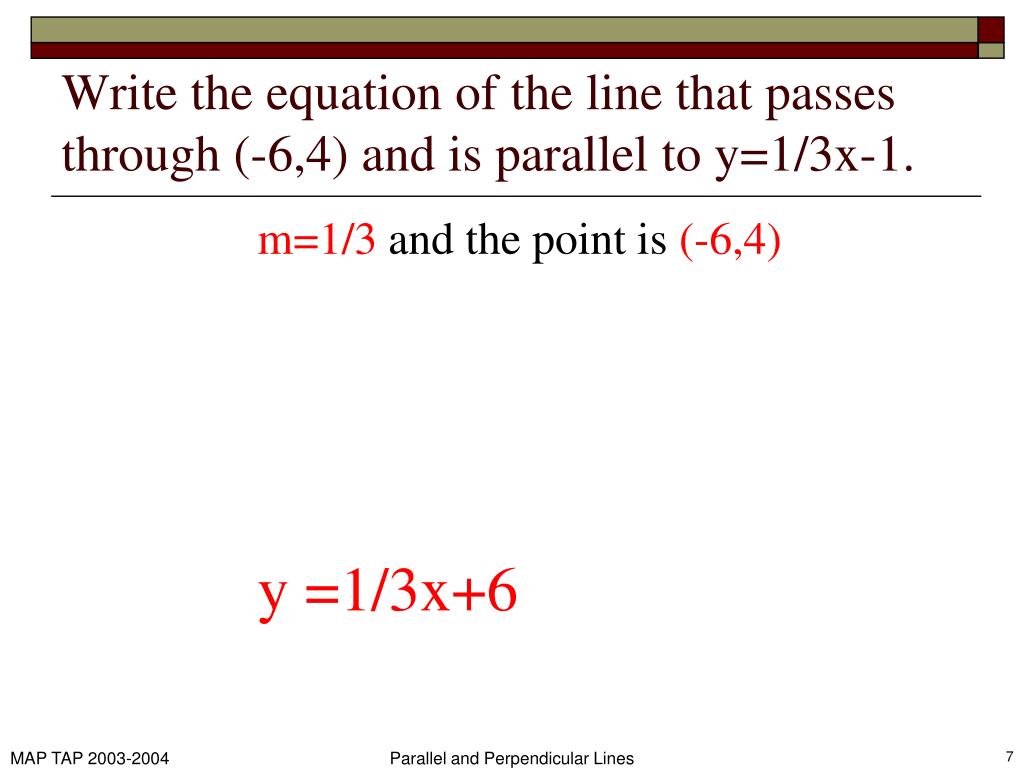

  7. Write the equation of the line that passes through (-6,4) and is parallel to y=1/3x-1. m=1/3 and the point is (-6,4) y =1/3x+6 Parallel and Perpendicular Lines

  8. Two non-vertical lines are perpendicular if and only if the product of their slopes is -1. If l1┴l2, then m1 ● m2= -1. If m1● m2 = -1, then l1┴l2. Perpendicular Lines m1 l1 m2 Slopes are negative reciprocals l2 Parallel and Perpendicular Lines

  9. Write the equation of the line that passes through (6,-5) and is perpendicular to y = 2x+3. m = -1/2 and the point is (6,-5) y = mx+b -5 = -1/2(6)+b -5 = -3+b -2 = b y = -1/2x-2 Parallel and Perpendicular Lines

  10. Write the equation of the line that passes through (6,-7) and is perpendicular to y = 2/3x+1. m = -3/2 and the point is (6,-7) y = mx+b -7 = -3/2(6)+b -7 = -9+b 2 = b y = -3/2x+2 Parallel and Perpendicular Lines

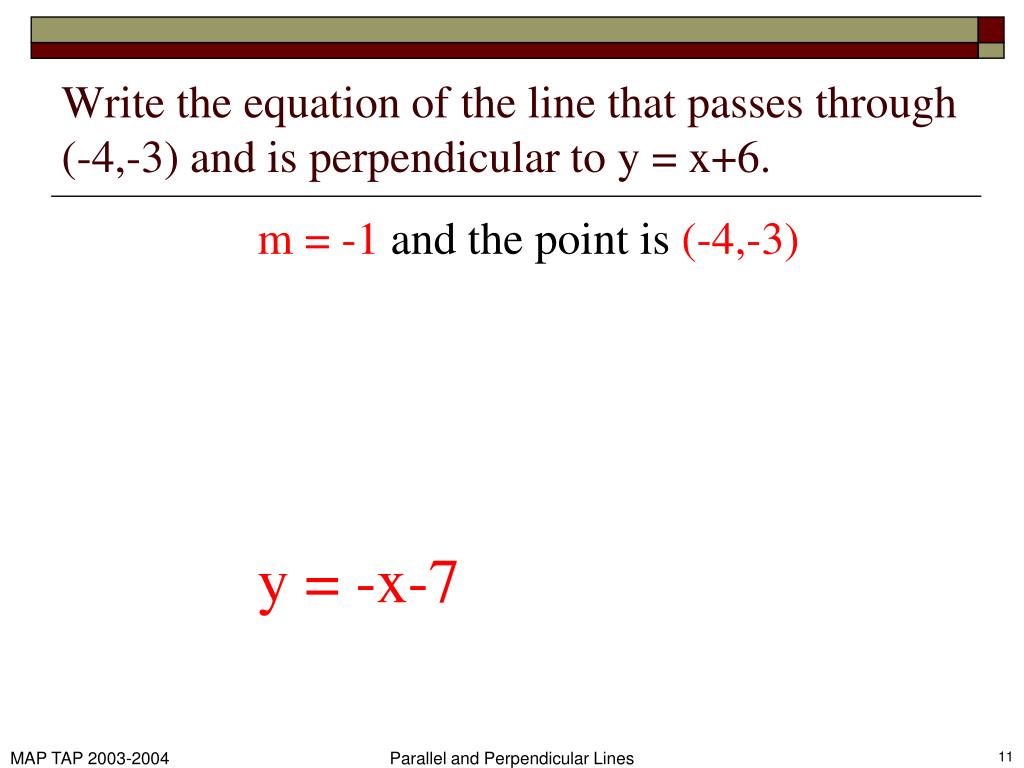

  11. Write the equation of the line that passes through (-4,-3) and is perpendicular to y = x+6. m = -1 and the point is (-4,-3) y = -x-7 Parallel and Perpendicular Lines

  12. End Show Parallel and Perpendicular Lines

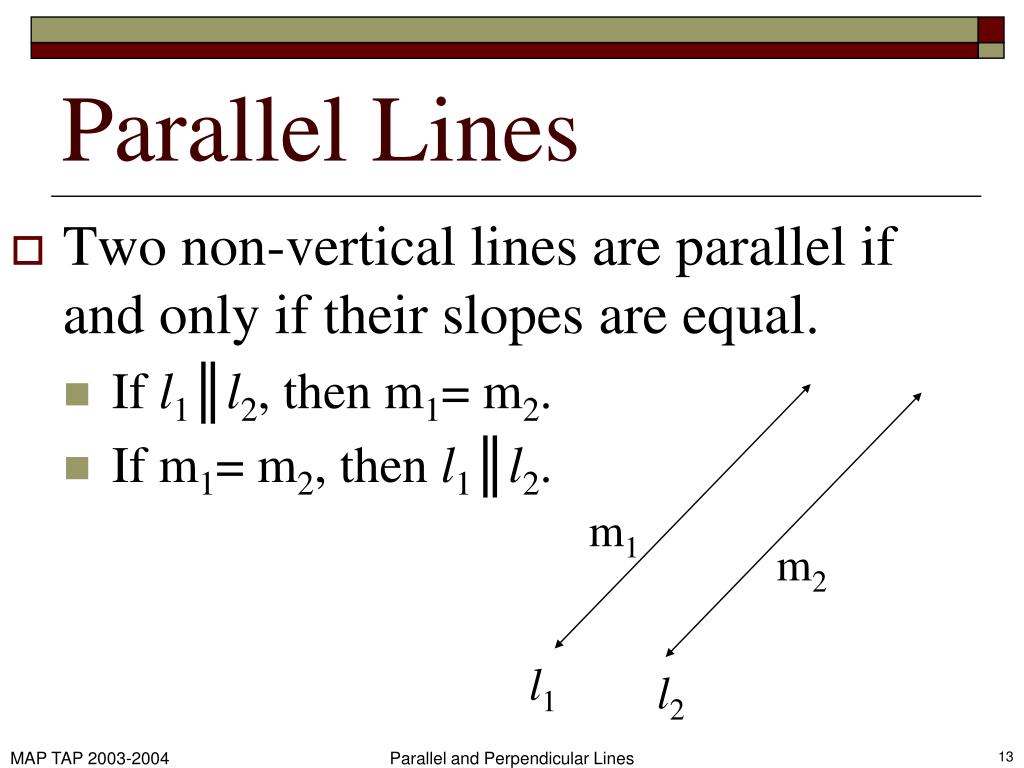

  13. Two non-vertical lines are parallel if and only if their slopes are equal. If l1║l2, then m1= m2. If m1= m2, then l1║l2. Parallel Lines m1 m2 l1 l2 Parallel and Perpendicular Lines

  14. Write the equation of the line that passes through (3,6) and is parallel to y = 2/3x+2. m = _____ and the point is (__,__) y = mx+b Parallel and Perpendicular Lines

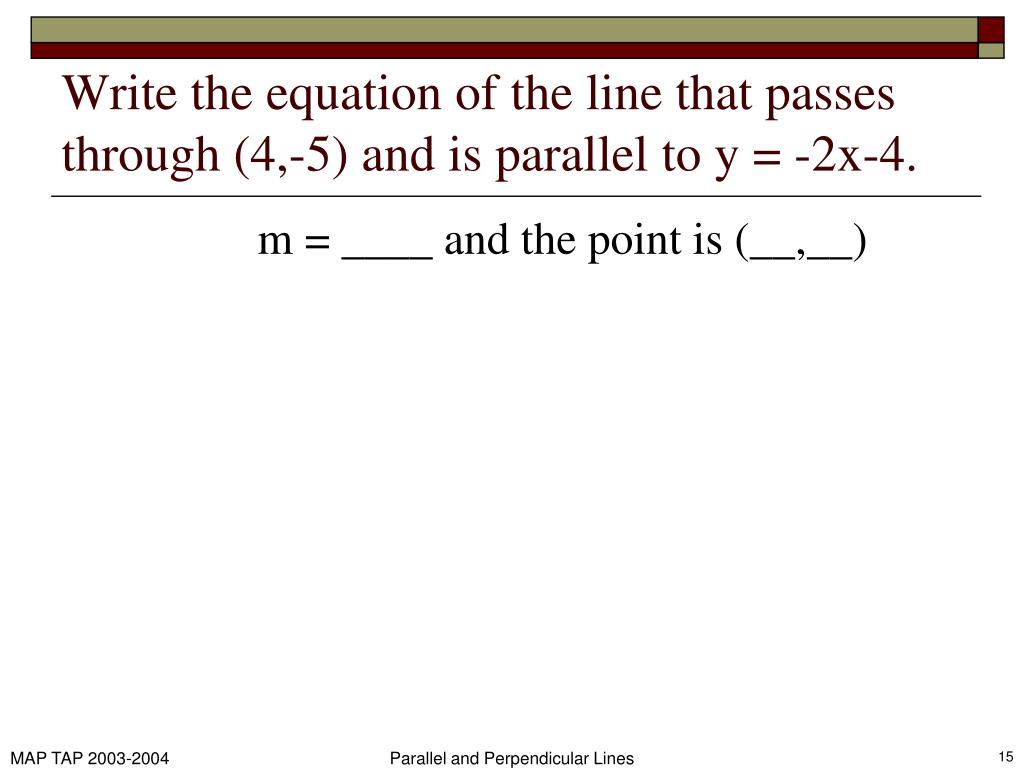

  15. Write the equation of the line that passes through (4,-5) and is parallel to y = -2x-4. m = ____ and the point is (__,__) Parallel and Perpendicular Lines

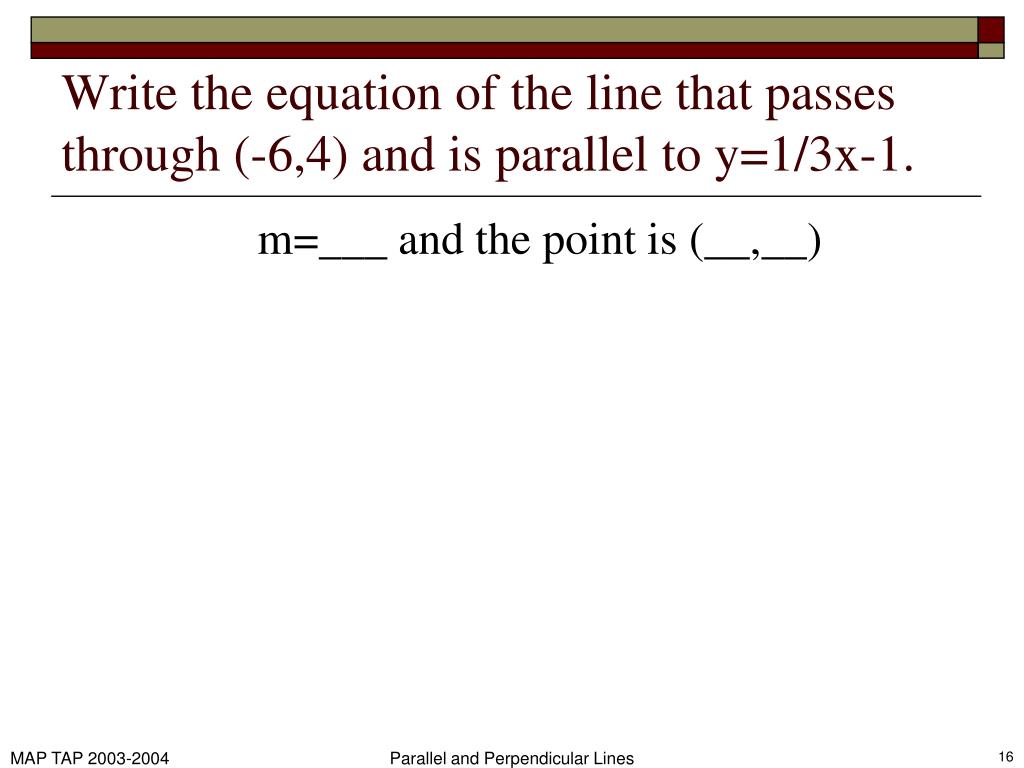

  16. Write the equation of the line that passes through (-6,4) and is parallel to y=1/3x-1. m=___ and the point is (__,__) Parallel and Perpendicular Lines

  17. Two non-vertical lines are perpendicular if and only if the product of their slopes is -1. If l1┴l2, then m1 ● m2= -1. If m1● m2 = -1, then l1┴l2. Perpendicular Lines m1 l1 m2 l2 Parallel and Perpendicular Lines

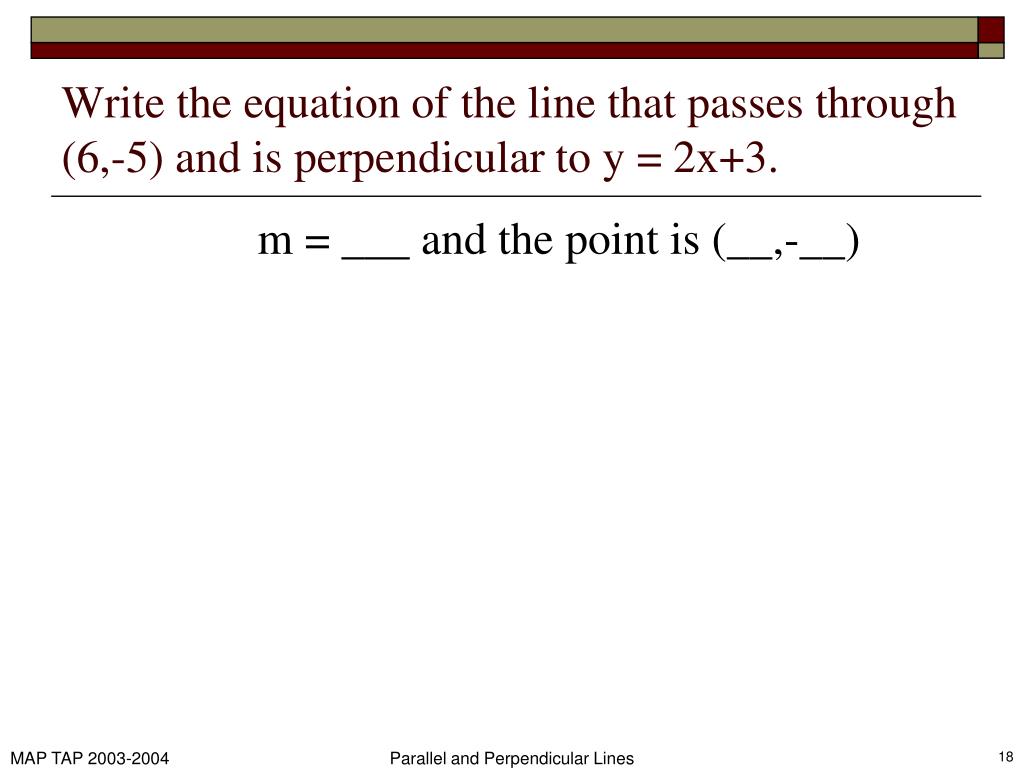

  18. Write the equation of the line that passes through (6,-5) and is perpendicular to y = 2x+3. m = ___ and the point is (__,-__) Parallel and Perpendicular Lines

  19. Write the equation of the line that passes through (6,-7) and is perpendicular to y = 2/3x+1. m = ____ and the point is (__, __) Parallel and Perpendicular Lines

  20. Write the equation of the line that passes through (-4,-3) and is perpendicular to y = x+6. m = ___ and the point is (__,__) Parallel and Perpendicular Lines
