  1. ASR 1000 EnterpriseSales Guide • Corrine Li • PSE, BN R&S Team • 2012.03

  2. 目录 • 下一代广域网趋势 • ASR1000产品简介 • ASR 1000 企业销售场景及优势 • 7200 Migration 技术分析 • 企业广域网汇聚 • 数据中心互联 • L3VPN汇聚 • Broadband • 安全防护

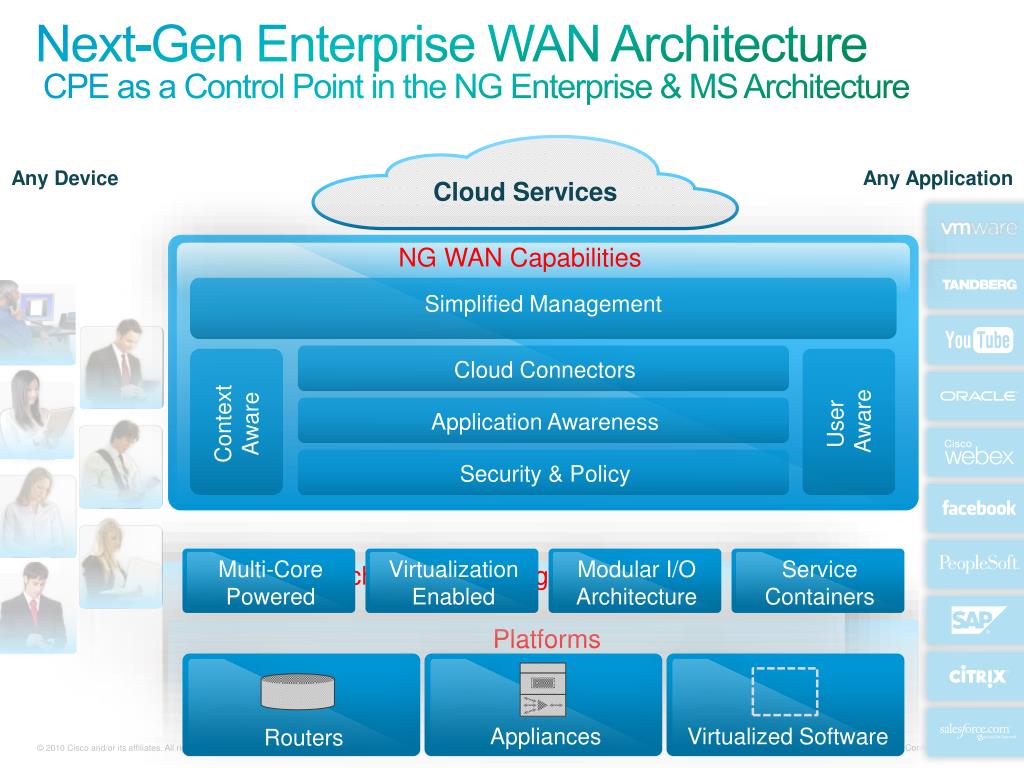

  3. Next-Gen Enterprise WAN Architecture CPE as a Control Point in the NG Enterprise & MS Architecture Any Device Any Application NG WAN Capabilities Simplified Management Application Awareness Security & Policy Cloud Connectors Technology Building Blocks Modular I/O Architecture Multi-Core Powered Virtualization Enabled Service Containers Platforms Appliances Virtualized Software Routers Cloud Services User Aware Context Aware

  4. Cisco EnterpriseRouting Positioning • S-Series Router: 小企业路由服务 7600/ ASR9000/C6500 • ISR G1C: 高性价比ISR (为中国定制） • ISR G2: 高性能下一代ISR ASR 1001/2/4/6/13 (ESP-2.5/5/10/20/40G) • ASR 1K: Carrier-class Multi-service WAN Aggregation, Internet Edge, DC Interconnect Performance, Scalability, Availability 5–20Gbps • 2.5–5Gbps 40+Gbps Modular software, Consistent services Sep 2012 EOS ISR Router G2 Series: 800,1921/1941,2901/2911/2921/2951,3925/3945/3925E/3945E G1C Series: 1841C, 2801C/2811C/2821C, 3825C/3845C ASR 1K ISR 3900E Highest Capacity, Highly Available, Modular Services High-Performance Embedded Services, Services Flexibility Hardware/Software Resiliency, Modular IOS XE 7200/7300Series S-Series VPN Router WRV210/RV110W/120W/Wudang… Secure, Reliable, Concurrent WAN Services Aggregation Small Branch VPN Router Branch Head Office/WAN Aggregation Routing System with Integrated Services—Security, Voice, Video, Wireless, WAN Optimization

  5. ASR1K WAN <专线, VPN, Internet> ASR1K BN路由销售场景及思科优势一览 Data Center HQ • ASR1000 - 广域网汇聚、数据中心互联 • H-QoS，BFD，Soft/Hard HA, WCCP, SBC/CUBE • 安全功能：FW/NAT, GETVPN/DM VPN, AVC • 数据中心互联特色功能：LISP, OTV, VPLS, NPS • BN 服务: Medianet,EnergyWise,TrustSec Cloud & Services EnterpriseEdge RWAN Aggregation Email ASR1K Video Conference SAP, Oracle,, ERP, CRM Collaborations File Sharing WAN High-End Branch / Remote Campus Standard Branch • ISR G2 – 分支机构接入 • H-QoS，BFD，PfR, LISP • 全面的安全解决方案: FW,IPSec/SSL VPN(web/client),IPS, NAM, DPI,AVC • 视频会议／统一通信／视频分发解决方案：语音网关，Video MCU,远程应急通信,视频转码／跟踪／监控 • 有线无线移动一体化 • 广域网加速WAAS,ECDS • 虚拟服务SRE • BN 服务－Medianet,EnergyWise,TrustSec Small/ Mobile Branch/ Kiosk Economic Branch ISR 800/1900 ISR 819 • WAAS ISR G1C ISR 3900/2900/1900 • ECDS • 支持如下ISR模块: • WAAS/ECDS • /无线控制器 • /交换机/服务器 3G-HSPA+/EVDO,802.11n 3G-HSPA+/EVDO, Hardened Design • Data, Routing & Security • Microsoft RemoteFX • /Citric/Vmware View • 视频会议、 • IP电话 • E-learning • VDI • 视频会议/IP电话/E-learning

  6. ASR1K WAN应用场景 Unified Wan Services Solutions Secure WAN(FW/AVC) WAN Aggregation(FW/AVC/NAT) Internet Edge（FW/NAT/VPN/AVC） Data Center Interconnect（FW/NAT/AVC）

  7. 7200 to ASR1000 Migration • Migration tools • Easy Migrate  compares existing config to ASR 1000

  8. ASR 1000 企业应用场景及优势 用户实际需要的pps 一、企业广域网汇聚 • QoS：支持五级H-QoS（层次化服务质量），支持多达128,000个硬件QoS队列，保障关键业务按时交付 • 性能：支持高性能的多业务并行处理，多服务转发延迟仅几十微秒（其他厂家在毫秒级别） • 高可靠性： • 软硬件冗余（ASR 1006 & 1013引擎硬件冗余，RP引擎切换零丢包；ASR 1001&1002&1004软件冗余） • ISSU（不中断服务软件升级）：模块化的IOS XE • 高性能BFD（双向转发检测） • MLPPP可跨板卡绑定端口 • 高性能RR路由反射及FRR • 链路优化：PfR，LISP • SLA诊断及流量监控功能; 视频监控排错 (Medianet) • 应用可视、控制及优化：NBAR2;高性能流量监控Netflowv9 • 高性能Stateful NAT64 • VPN建网及链路备份：L2TPv3,GET VPN, DMVPN等 • 其他：丰富的可重用的高密度板卡（from 7600）等

  9. ASR1000丰富的接口种类和数量 • ——Ethernet / Serial / POS /ATM / Channelized… Cisco ASR 1001 Router also introduces the concept of integrated daughter cards (IDCs). • ASR1001: Base version without an IDC • ASR1001-2XOC3POS: Delivered with an IDC that provides 2 OC-3 Packet-over-SONET/SDH (PoS) • ASR1001-4XT3: Delivered with an IDC that provides 4 T3 ports (no E3 circuitry) • ASR1001-4X1GE: Delivered with an IDC that provides 4 GE ports 多扩展至16个GE • ASR1001-8CHT1E1: Delivered with an IDC that provides 8 channelized T1/E1 ports • ASR1001-HDD: Delivered with an integrated hard disk drive (HDD) • * On ASR1001 with corresponding daughter card module • Physical interface termination capacities only • Assumes all SPA slots are filled with the respective SPA

  10. ASR 1000 企业应用场景及优势 二、数据中心互联－云计算／虚拟化Ready • 二层互联：覆盖传输虚拟化 OTV （Overlay Transport Virtualization） • 保障银行业务平台的实时迁移／负载均衡：名址分离网络协议 LISP（Location-ID Separation Protocol） • 数据中心／云服务动态资源调度：NPS （Network Positioning System） • 业界领先的芯片QFP技术高性能且节能 • 小RU节省机架空间 • 五级H-QoS（层次化服务质量），多达128,000个硬件QoS队列 • 多业务并行处理，转发延迟仅几十微秒  • 支持多种VPN建网及链路备份：L2TPv3,GET VPN, DMVPN等 • 高性能流量监控Netflowv9，应用可视化NBAR2 • Zone based 高性能防火墙

  11. ASR 1000 应用场景及优势 三、广域网L3VPN汇聚 -场景：企业、零售连锁、网点 • 支持L2TPv3,GET VPN, DMVPN,－》简化为Flex WAN • QoS per VPN：支持五级H-QoS（层次化服务质量），支持多达128,000个硬件QoS队列，基于VPN Tunnel的QoS策略控制，差分化服务 • 高性能加密：1.8G～11Gbps VPN

  12. ASR 1000 企业应用场景及优势 四、Broadband接入 -ASR1000 as Intelligent Service Gateway (ISG) -行业：学校，彩票，医疗，其他PS,SP • 支持PPPOE,IPOE,L2TP • QoSfor Broadband：支持五级H-QoS（层次化服务质量），支持多达128,000个硬件QoS队列，基于用户的QoS策略控制，差分化服务 • 支持Radius及RADIUS Extensions (RFC 5176) and XML based (SGI(*)) Open Interfaces用于策略推送 • IPv6 PPP & IP • 支持用户身份识别（认证和地址分配），用户策略，用户内容/时长/流量计费 • CPU保护：COPP，Subscriber Aware CoPP; 支持DHCP server及DHCP relay功能 • 应用可视、控制及优化：NBAR2; 高性能流量监控Netflow v9（4000会话/秒,硬件处理）

  13. ASR 1000 应用场景及优势 五、安全防护 ——保护广域网出口/数据中心/Internet出口 • 2.5G～40Gbps 小RU 防火墙+NAT，高性能低延迟的多业务叠加 • 1.8G～11Gbps VPN：GETVPN/DMVPN/EZVPN-> Flex VPN简化配置 • 入侵检测IPS • 应用流量控制AVC（NBAR, Netflow9） • 数据包从二层起完全可见,可实现多种DPI及其它业务 • 支持TruseSec架构 AVC应用举例：对文件共享进行限速 Policing
