  1. DCM Simulation ECEN 5807 Lecture 19

  2. Closed-loop buck converter example: Section 9.5.4

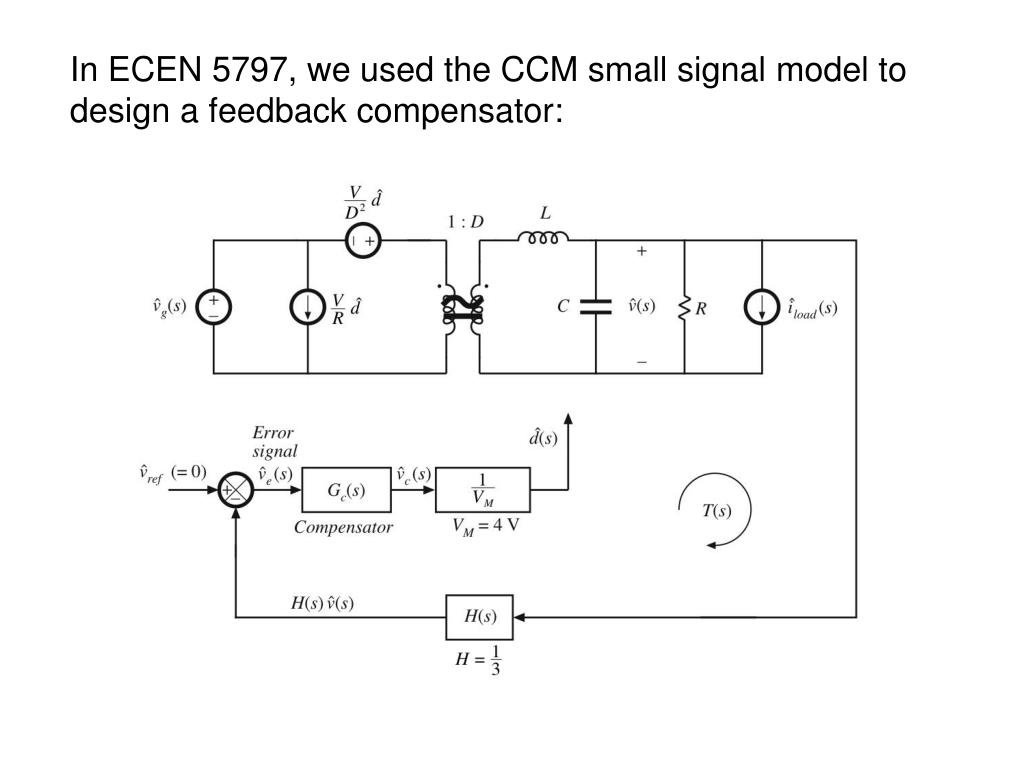

  3. In ECEN 5797, we used the CCM small signal model to design a feedback compensator:

  4. CCM design: theoretical loop gain

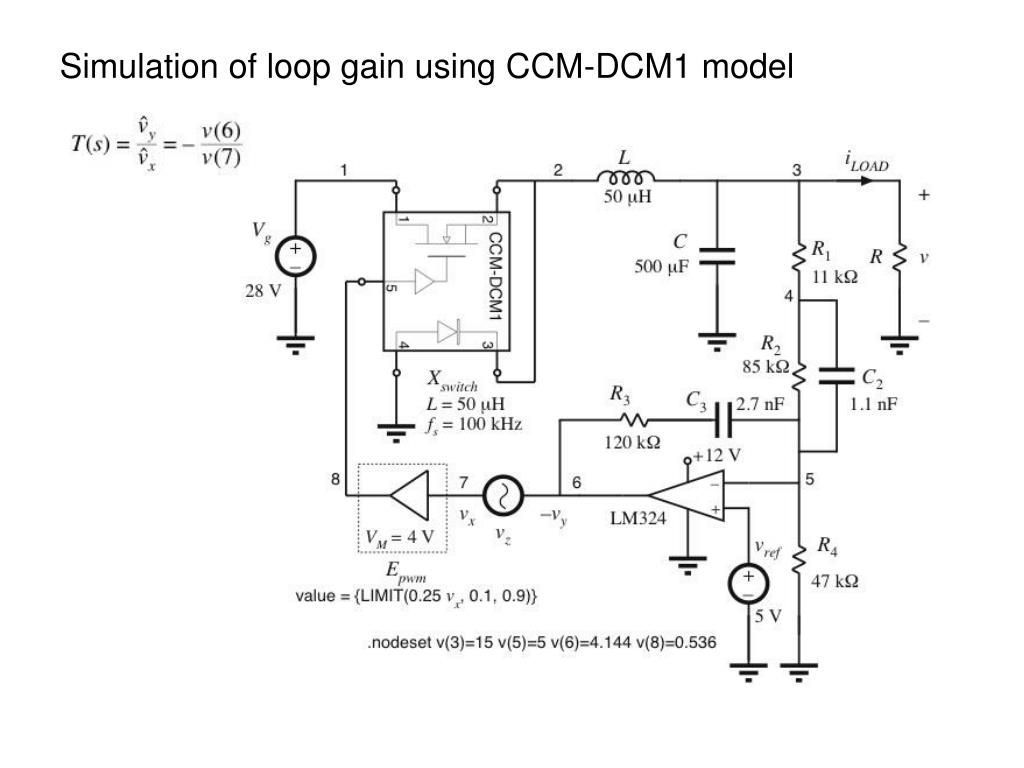

  5. Simulation of loop gain using CCM-DCM1 model

  6. Simulated loop gain T CCM: load resistance R = 3 ohms DCM: load resistance R = 25 ohms

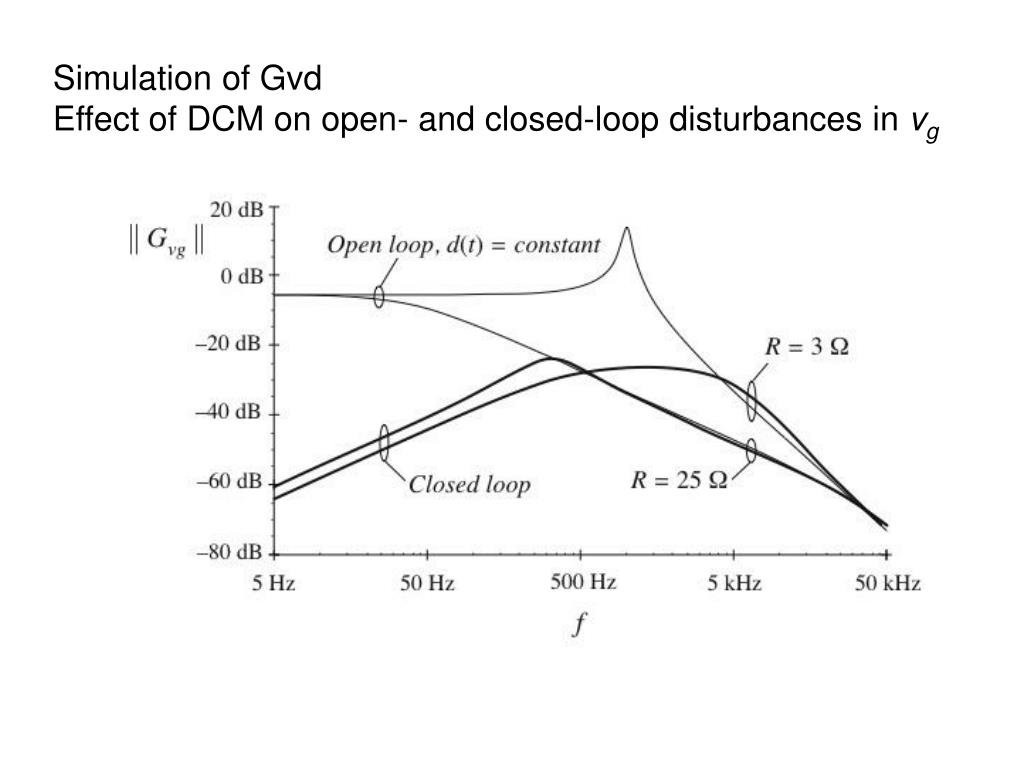

  7. Simulation of Gvd Effect of DCM on open- and closed-loop disturbances in vg
