  1. Industrial Process Modeling Dave Stropky, VP Research Process Simulations Ltd. 206-2386 East Mall, Vancouver, BC, Canada www.psl.bc.ca

  2. Contents Introduction to PSL 3D Process Modeling Process Modeling Information Industrial Applications

  3. Process Simulations Ltd. 1986 UBC modeling group (pulp and paper) 1993 PSL Incorporated, Recovery Boiler Model 1995 Bark boilers, Hydrocyclones 1998 Headboxes, Lime kilns, Wood Kilns 1999 Digesters 2000 Gasifiers, Clarifiers 2001 Cement Kilns, Coal Fired Boilers 2002 Precipitators, BFB Boilers 2003 Lagoons 2004 Calciners 2006 Multiphase fluidized beds

  4. PSL INTRODUCTION Industrial Projects Since 1997 • 89 Recovery Boilers • 25 Bark/Biomass/Power Boilers • 13 Lime Kilns • 3 Headboxes • 4 Precipitators • 5 Cement Kilns • 4 Gasifiers • 1 Precalciner • 2 Wastewater Lagoons • 10 Others

  5. PSL INTRODUCTION PSL Advantages • Independent Analysis • Advanced & Validated Computer Models. UBC connection. • Equipment equipment-specific submodels to predict the behavior of complex processes • Combustion and Flow Analysis Expertise • Advanced, Intuitive, Interactive 3-D display and analysis technologies • Broad Industrial Application Experience

  6. 3D ProcessModeling

  7. PROCESS MODELING 3D CFD IN OUT OUT Principle of Conservation Mass Momentum Energy ……. IN = OUT

  8. PROCESS MODELING 3D CFD Modeling Examples Weather Buildings Jet engines Harrier jet Industrial Equipment

  9. IndustrialApplications

  10. INDUSTRIAL APPLICATONS Recovery Boilers • Air System Design • Liquor Injection • Carryover/Plugging • Wall Corrosion • Tube Cracking • Steam Production • Boiler load • Burner Design • NCG Injection • Emissions

  11. INDUSTRIAL APPLICATONS Bark Boilers • Air System Design • Fuel Injection • Carryover • Wall Corrosion • Steam Production • Boiler load • Grate Design • NCG Injection • Emissions

  12. INDUSTRIAL APPLICATONS PreCalciners • Meal Injection • NOx Reduction • Gas Flow Distributions • Fuel combustion • Emissions • Temperature Profiles • Operational Optimization

  13. INDUSTRIAL APPLICATONS Digesters Lignin Mass Fraction Carbohydrates Mass Fraction Kappa Number Chip Compaction • Chip injection • Flow uniformity • Chip uniformity • Wash/screen effects

  14. INDUSTRIAL APPLICATONS Wastewater Lagoons • Flow patterns • Residence Time Distributions • Biological Models

  15. INDUSTRIAL APPLICATONS Precipitators • Flow Distribution • Efficiency • Baffle Design • Inlet/outlet ducting • Screen Design • Egg Crates

  16. INDUSTRIAL APPLICATONS Cyclones • Flow Distribution • Particle Distribution • Efficiency • Inlet ducting

  17. INDUSTRIAL APPLICATONS Kilns • Flame Profile • Calcination • Brick Failure/Heat Load • Alternate Fuels • Air/Fuel Ratios • Burner Design • NCG Injection • Emissions

  18. INDUSTRIAL APPLICATONS Kilns • Multi-layer refractory heat transfer model • Heat transfer and lime calcination CaCO3 = CaO + CO2 Heat absorbed 1.679 MJ/kg CaCO3 @1089K

  19. INDUSTRIAL APPLICATONS Kilns: Input Data GEOMETRY

  20. INDUSTRIAL APPLICATONS Kilns: Input Data BURNER GEOMETRY

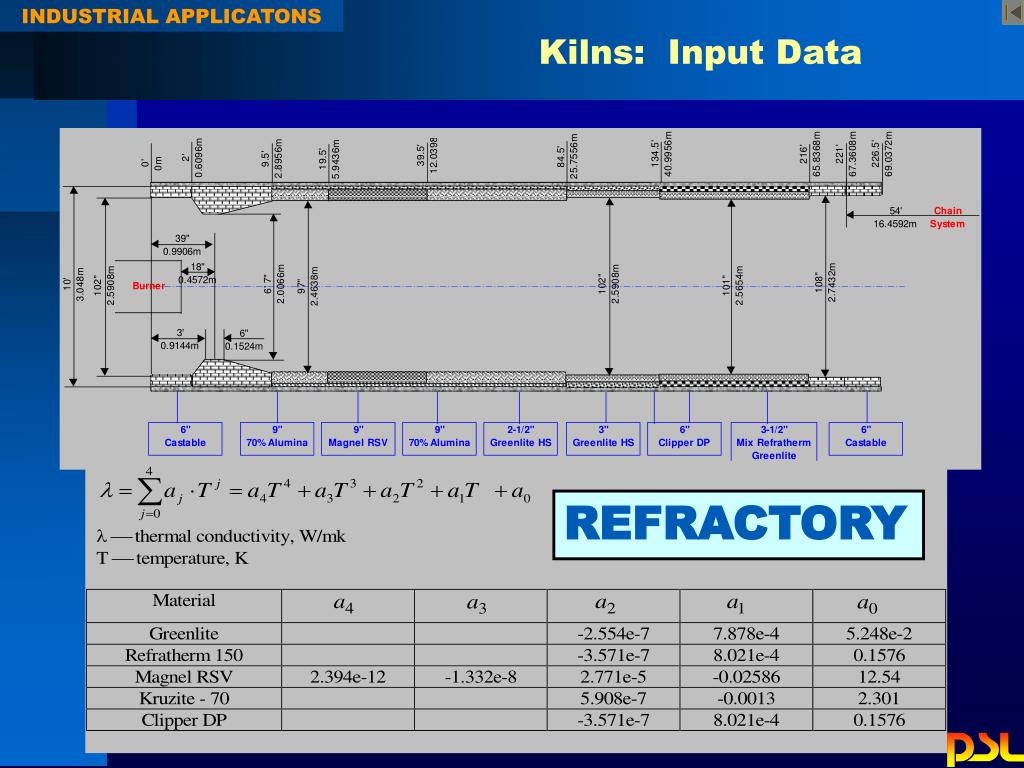

  21. INDUSTRIAL APPLICATONS Kilns: Input Data REFRACTORY

  22. INDUSTRIAL APPLICATONS Kilns: Operational Data DCS Data Analysis

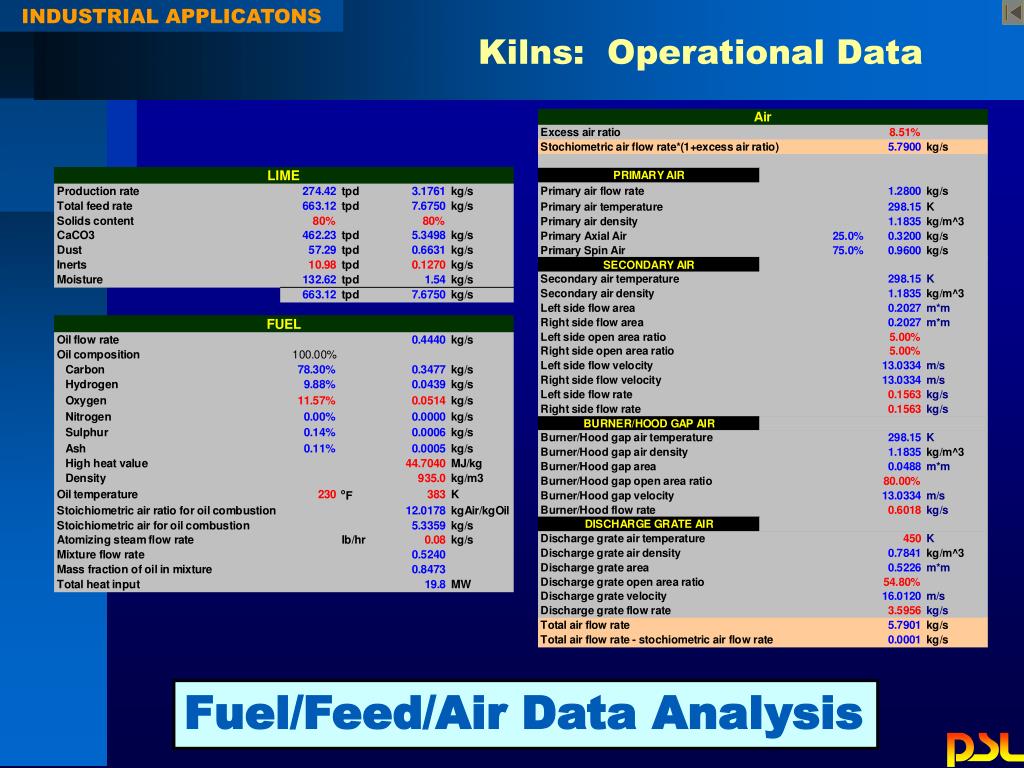

  23. INDUSTRIAL APPLICATONS Kilns: Operational Data Fuel/Feed/Air Data Analysis

  24. INDUSTRIAL APPLICATONS Kilns: Balance Sheets Energy/Mass Balance

  25. 3D MODEL INFORMATION Contour/Vector Planes

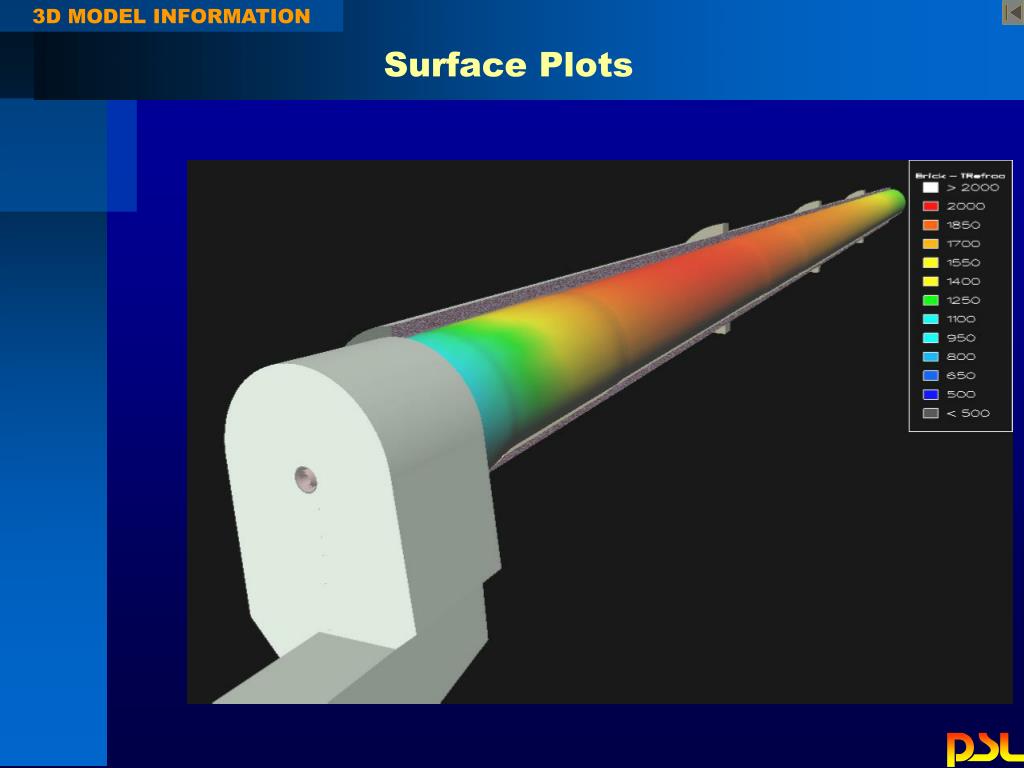

  26. 3D MODEL INFORMATION Surface Plots

  27. 3D MODEL INFORMATION Integrated Information

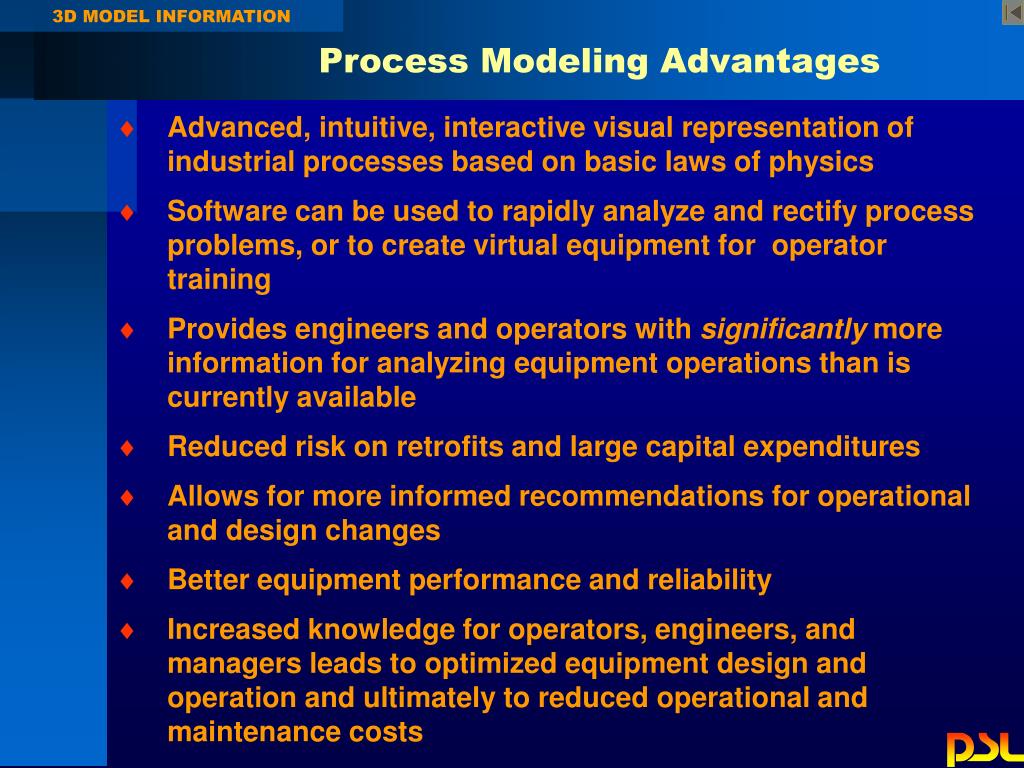

  28. 3D MODEL INFORMATION Process Modeling Advantages • Advanced, intuitive, interactive visual representation of industrial processes based on basic laws of physics • Software can be used to rapidly analyze and rectify process problems, or to create virtual equipment for operator training • Provides engineers and operators with significantly more information for analyzing equipment operations than is currently available • Reduced risk on retrofits and large capital expenditures • Allows for more informed recommendations for operational and design changes • Better equipment performance and reliability • Increased knowledge for operators, engineers, and managers leads to optimized equipment design and operation and ultimately to reduced operational and maintenance costs
