  1. LEADS/EMS DATA REPORTS

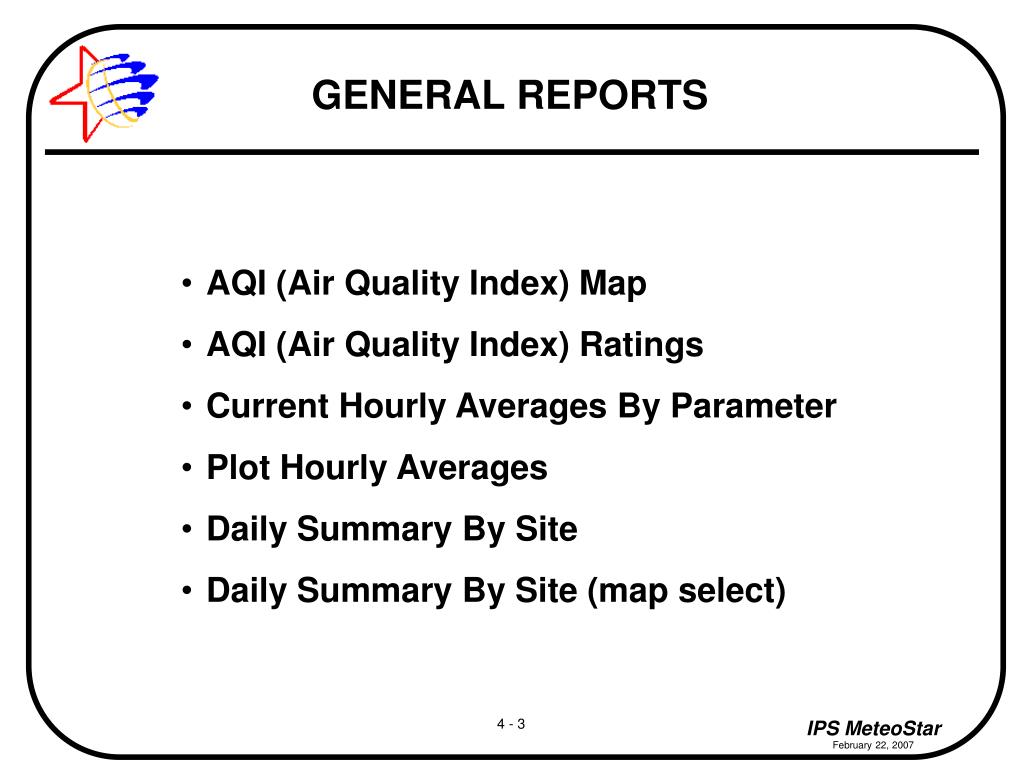

  2. AQI (Air Quality Index) Map AQI (Air Quality Index) Ratings Current Hourly Averages By Parameter Plot Hourly Averages Daily Summary By Site Daily Summary By Site (map select) GENERAL REPORTS

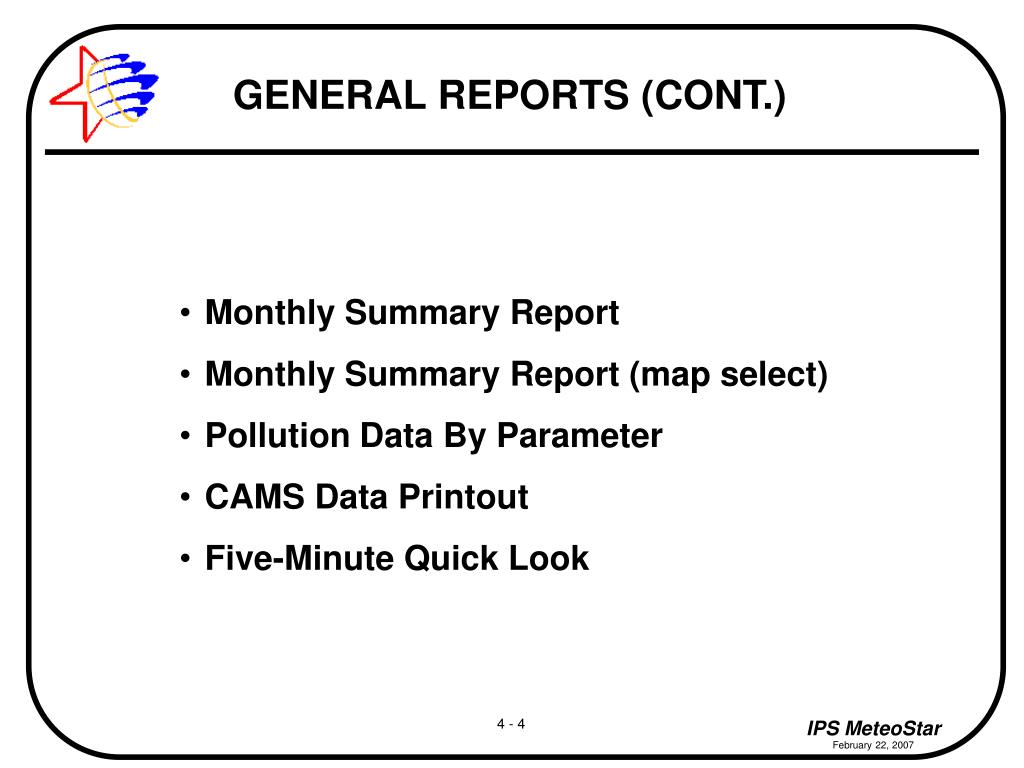

  3. Monthly Summary Report Monthly Summary Report (map select) Pollution Data By Parameter CAMS Data Printout Five-Minute Quick Look GENERAL REPORTS (CONT.)

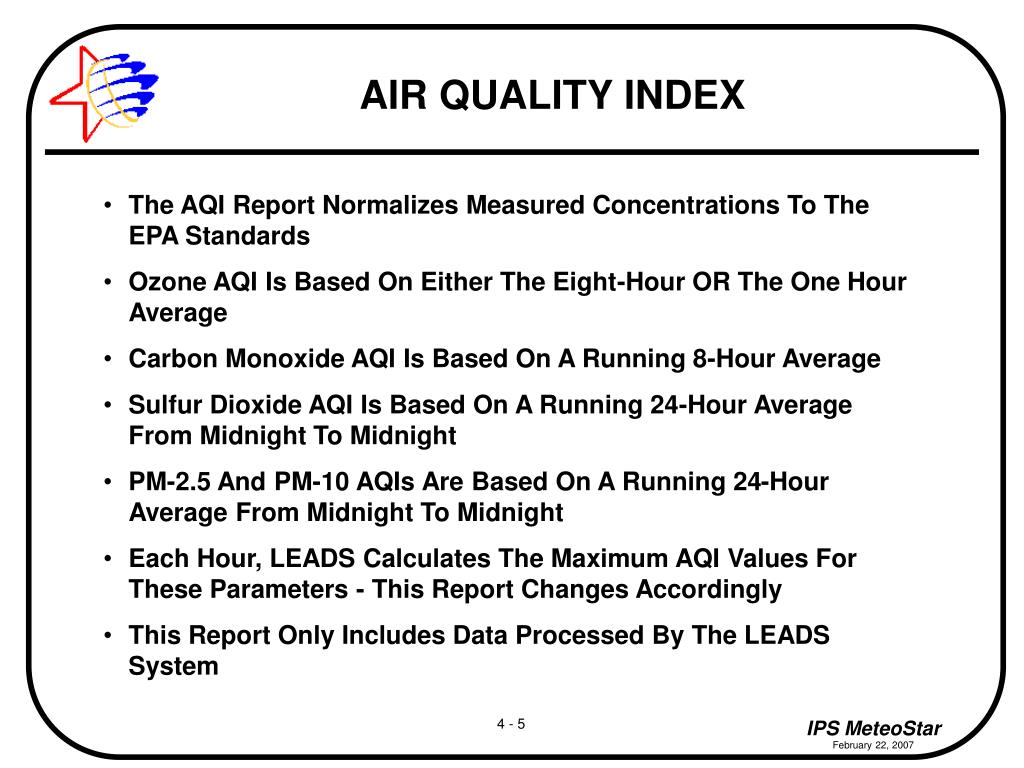

  4. The AQI Report Normalizes Measured Concentrations To The EPA Standards Ozone AQI Is Based On Either The Eight-Hour OR The One Hour Average Carbon Monoxide AQI Is Based On A Running 8-Hour Average Sulfur Dioxide AQI Is Based On A Running 24-Hour Average From Midnight To Midnight PM-2.5 And PM-10 AQIs Are Based On A Running 24-Hour Average From Midnight To Midnight Each Hour, LEADS Calculates The Maximum AQI Values For These Parameters - This Report Changes Accordingly This Report Only Includes Data Processed By The LEADS System AIR QUALITY INDEX

  5. There Are Two Paths To The Air Quality Index – Via A Map Showing The Current AQI Values, Or Direct To The Main AQI Report The AQI Report Will Summarize For Each Defined Metropolitan Area (Airshed) You Can Also View Detailed Reports For Each Metropolitan Area MORE AQI

  6. The EPA Defines How The AQI Is Computed For Each Pollutant The Following Table Summarizes The Calculation Standards AQI CALCULATION STANDARDS

  7. A Map Showing The Latest Air Quality Index Is Created Once An Hour There Are Multiple Metropolitan Areas That Will Appear On The AQI Map As More Sites Come On Line, More Areas Will Fill In The Box Over Each Area Is A Summary Of The Driving Parameter And Its Resulting AQI Value Clicking On Any Box Will Take You To A Detailed Report Of That Metropolitan Area AQI MAP

  8. AIR QUALITY INDEX MAP Each Box Shows The Driving Parameter For The AQI, The AQI Rating (As A Color), And The Parameters Measured In That Particular Area (Airshed)

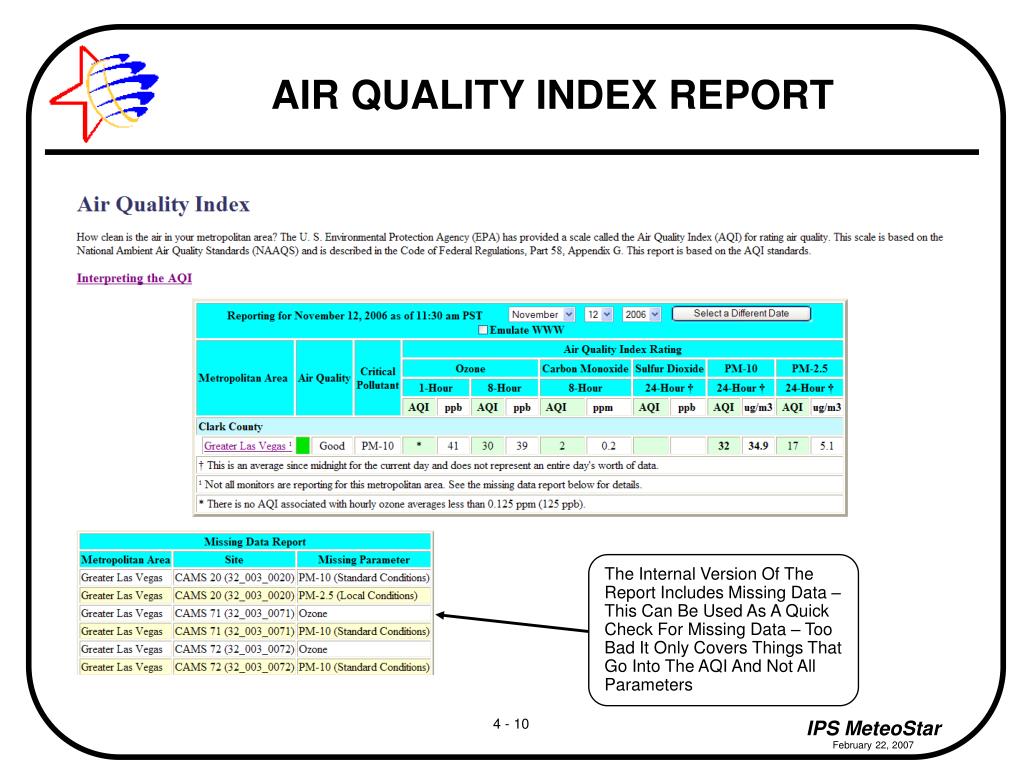

  9. AIR QUALITY INDEX REPORT The Internal Version Of The Report Includes Missing Data – This Can Be Used As A Quick Check For Missing Data – Too Bad It Only Covers Things That Go Into The AQI And Not All Parameters

  10. AIR QUALITY INDEX DETAIL A Detailed View Of An Airshed Showing Results From Each Site Individually

  11. Based On Hourly Averages Computed By LEADS That Are Automatically Created As Data Is Ingested The Data This Page Is Based On Is Updated At 15 Minutes Past The Hour - If You Look At The Report Before 10:15 For Example, The 10:00 Hour Will Show As LST (Lost) Or NA; If You Look At The Same Page At 10:20, There Will Be Values For The 10:00 Hour This Report Is Always Reported In LOCAL STANDARD TIME – During The Summer, It May Look Like The Report Is 2 Hours Behind, But It Really Isn’t That’s LOCAL STANDARD TIME For The Monitoring Site – Not Where You Are There Are Lots Of Highlighting Options Available – Make Use Of These To Help You Review Data CURRENT HOURLY AVERAGES

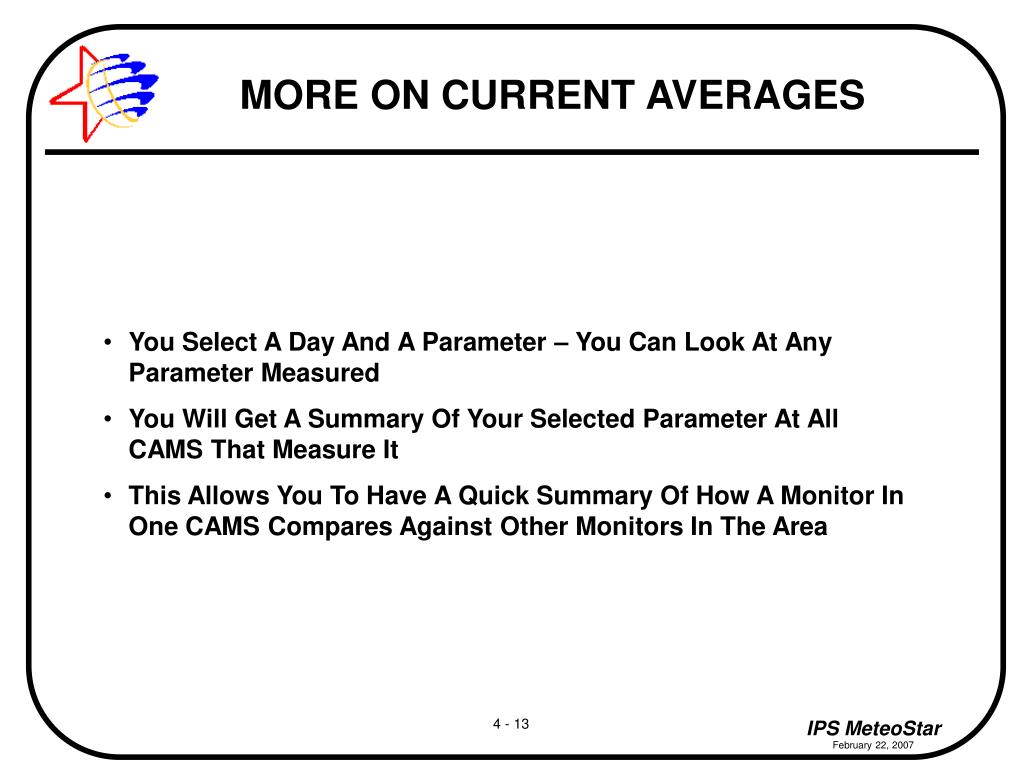

  12. You Select A Day And A Parameter – You Can Look At Any Parameter Measured You Will Get A Summary Of Your Selected Parameter At All CAMS That Measure It This Allows You To Have A Quick Summary Of How A Monitor In One CAMS Compares Against Other Monitors In The Area MORE ON CURRENT AVERAGES

  13. HOURLY AVERAGES FILTER Select A Date Here Select Which Parameter You Want A Report On You Can View The Data In Either AM/PM Time Format, Or 24 Hour Time Format

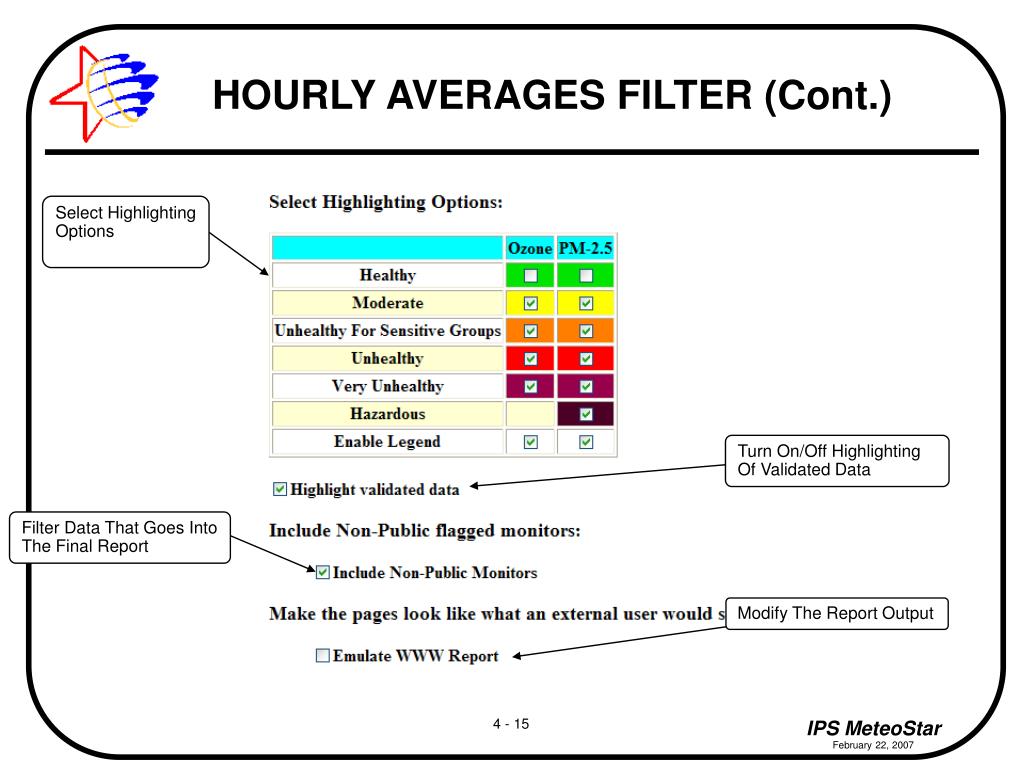

  14. HOURLY AVERAGES FILTER (Cont.) Select Highlighting Options Turn On/Off Highlighting Of Validated Data Filter Data That Goes Into The Final Report Modify The Report Output

  15. CURRENT HOURLY AVERAGES The Maximum Value For Each CAMS Is Highlighted In A Bold Red Font Cells Are Highlighted With Their Corresponding AQI Level (If Selected) A Minimum Value Is Calculated And Highlighted In A Bold Blue Font For Non-Pollutants (Met Data) If The Internal Temp Is Too Low, The Cells Will Be Highlighted Blue Click An Underlined Value To Get A More Detailed Description Move The Mouse Pointer Over An Underlined Value - The Status Window Of Your Browser Will Give You A Brief Description Of What That Item Is These Data Flags Are Automatically Set By The LEADS Software

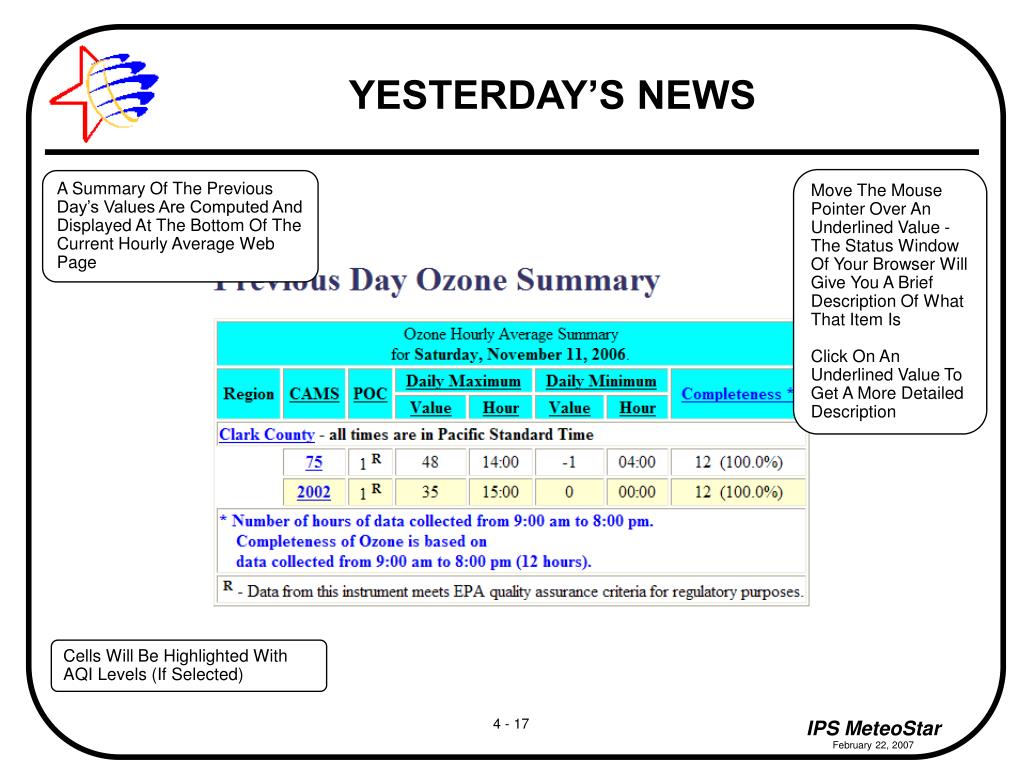

  16. YESTERDAY’S NEWS Move The Mouse Pointer Over An Underlined Value - The Status Window Of Your Browser Will Give You A Brief Description Of What That Item Is Click On An Underlined Value To Get A More Detailed Description A Summary Of The Previous Day’s Values Are Computed And Displayed At The Bottom Of The Current Hourly Average Web Page Cells Will Be Highlighted With AQI Levels (If Selected)

  17. Graphically Plot Any Parameter From Any Site If There Is More Than One Instance Of A Parameter At A Site, All Instances Will Be Plotted On The Same Graph You Can Plot Years Of Data The Only Limitations Are Your Computer And Your Patience All The Data Points Are Downloaded To Your Browser And The Plot Is Generated Locally By A Java Applet It Can Take A While To Download Years Of Data You Can Zoom In Either Axis Of The Resulting Graph PLOT HOURLY VALUES

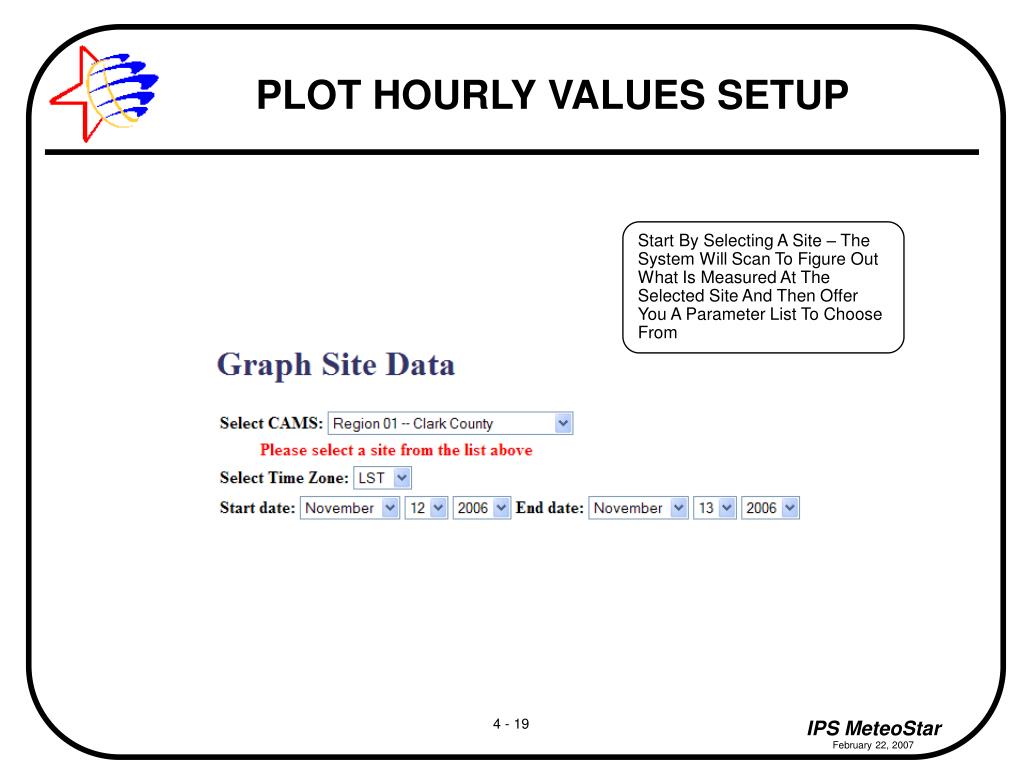

  18. PLOT HOURLY VALUES SETUP Start By Selecting A Site – The System Will Scan To Figure Out What Is Measured At The Selected Site And Then Offer You A Parameter List To Choose From

  19. PLOT SETUP (Cont.) Select Your Parameter Of Interest And Date Range – Then Click On Generate Graph You Can Have The Plot Display In UTC Or Local Standard Time (That’s Local Standard Time At The Monitoring Site)

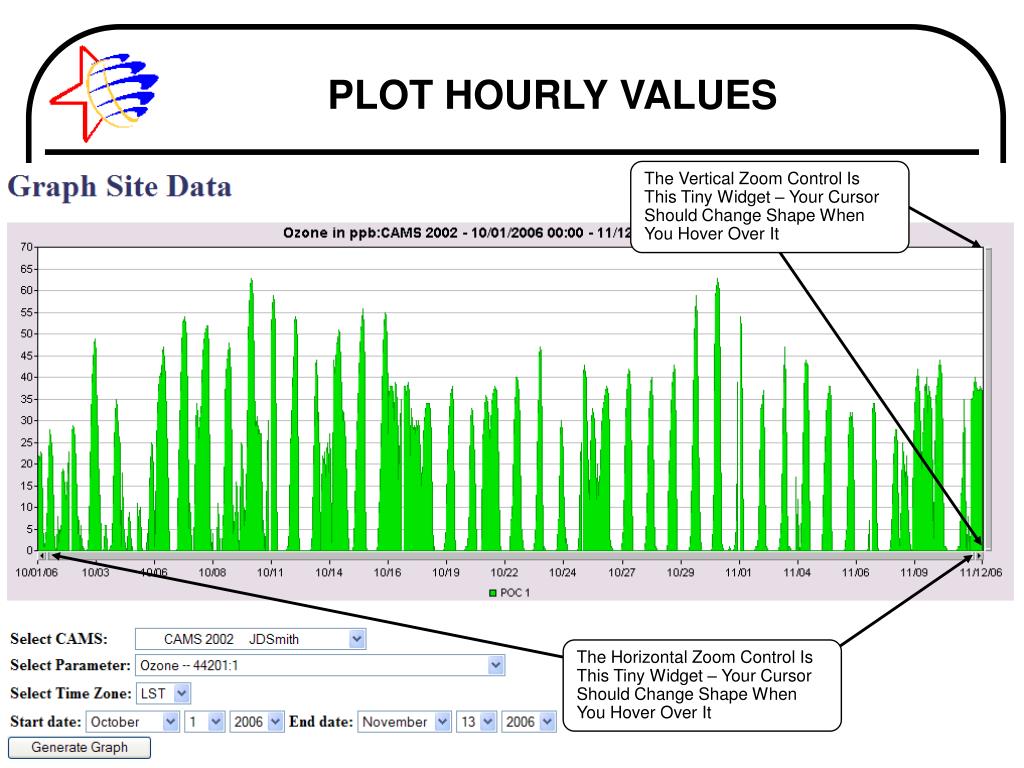

  20. PLOT HOURLY VALUES The Vertical Zoom Control Is This Tiny Widget – Your Cursor Should Change Shape When You Hover Over It The Horizontal Zoom Control Is This Tiny Widget – Your Cursor Should Change Shape When You Hover Over It

  21. Based On Hourly Averages Computed By LEADS That Are Automatically Created As Data Is Ingested The Data This Page Is Based On Is Updated At 15 Minutes Past The Hour - If You Look At The Report Before 10:15 For Example, The 10:00 Hour Will Show As LST (Lost) Or NA; If You Look At The Same Page At 10:20, There Will Be Values For The 10:00 Hour This Report Is Always Reported In LOCAL STANDARD TIME – During The Summer, It May Look Like The Report Is 2 Hours Behind, But It Really Isn’t That’s LOCAL STANDARD TIME For The Monitoring Site – Not Where You Are There Are Lots Of Highlighting Options Available – Make Use Of These To Help You Review Data DAILY SUMMARY BY SITE

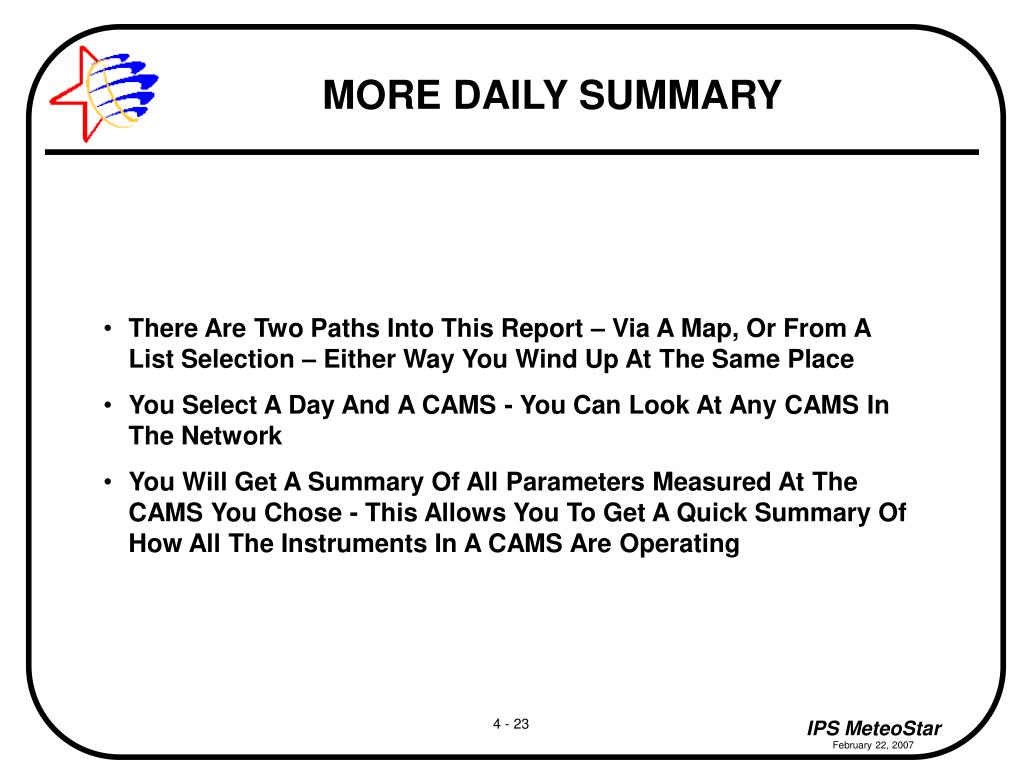

  22. MORE DAILY SUMMARY • There Are Two Paths Into This Report – Via A Map, Or From A List Selection – Either Way You Wind Up At The Same Place • You Select A Day And A CAMS - You Can Look At Any CAMS In The Network • You Will Get A Summary Of All Parameters Measured At The CAMS You Chose - This Allows You To Get A Quick Summary Of How All The Instruments In A CAMS Are Operating

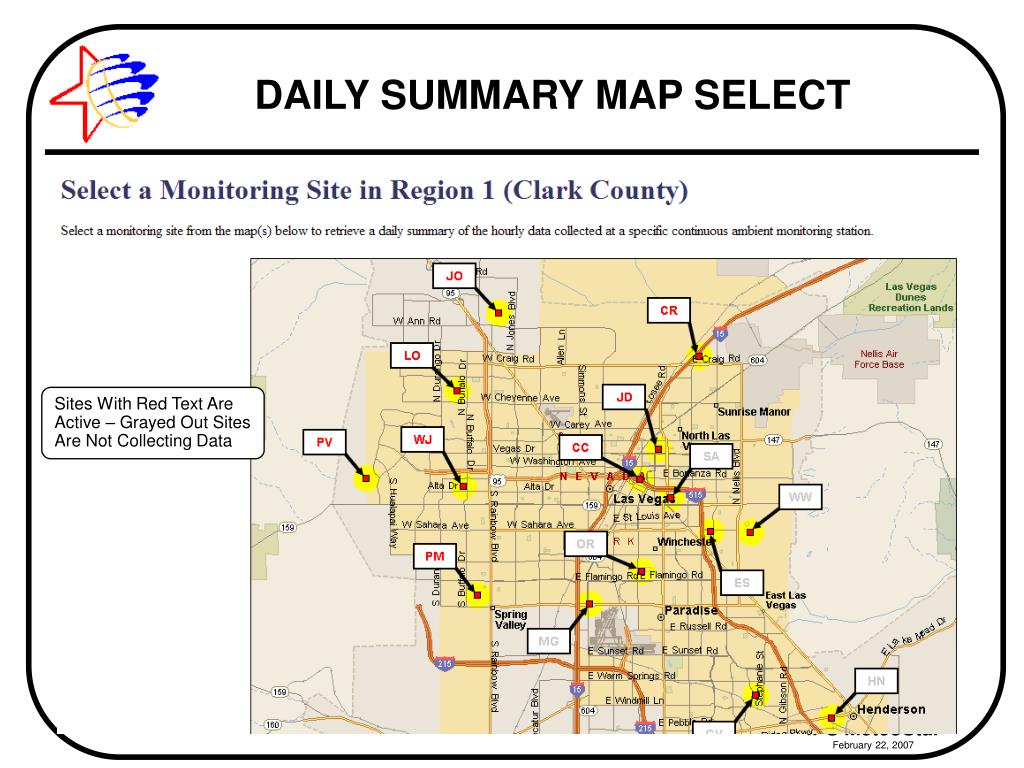

  23. DAILY SUMMARY MAP SELECT Sites With Red Text Are Active – Grayed Out Sites Are Not Collecting Data

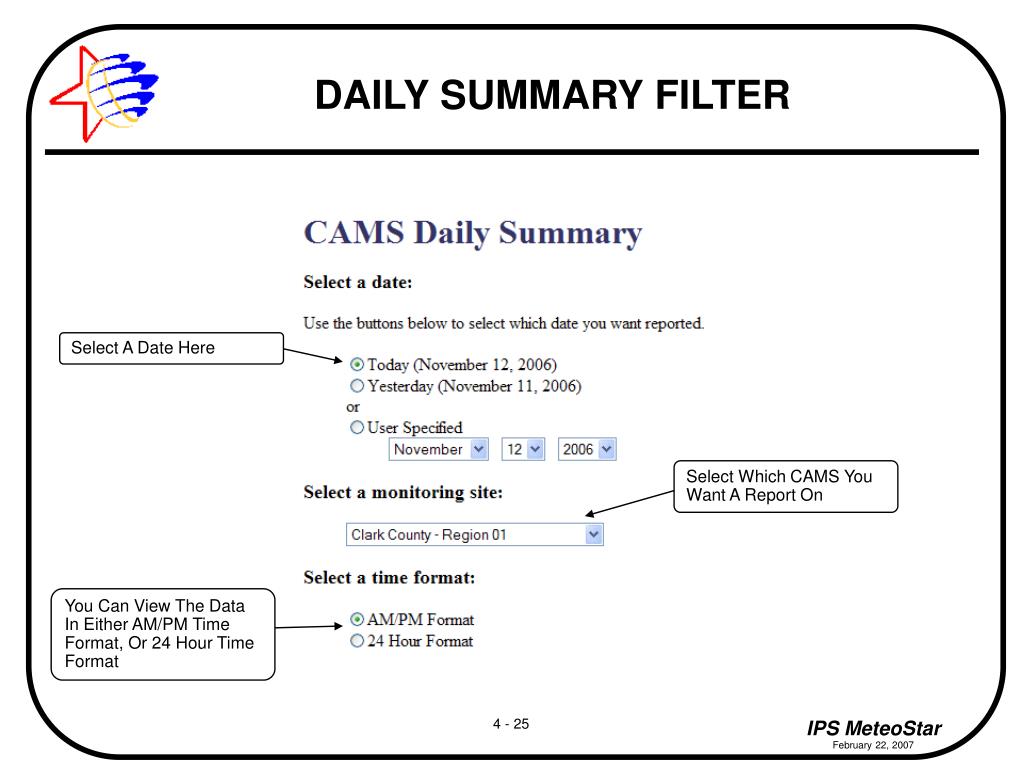

  24. DAILY SUMMARY FILTER Select A Date Here Select Which CAMS You Want A Report On You Can View The Data In Either AM/PM Time Format, Or 24 Hour Time Format

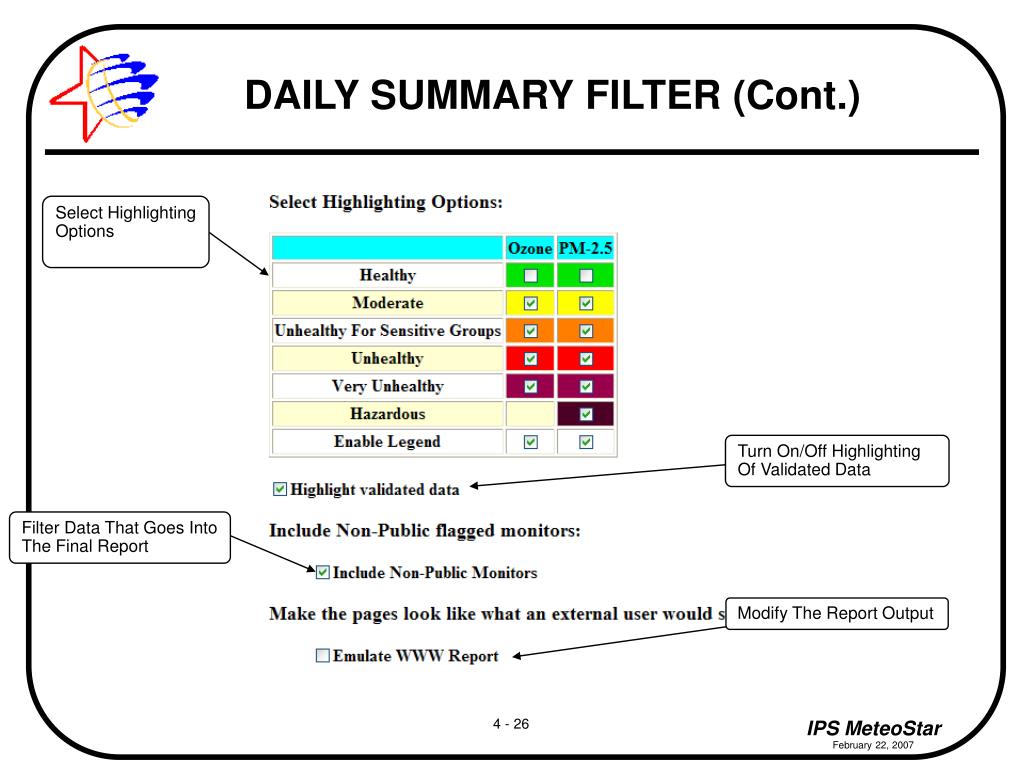

  25. DAILY SUMMARY FILTER (Cont.) Select Highlighting Options Turn On/Off Highlighting Of Validated Data Filter Data That Goes Into The Final Report Modify The Report Output

  26. DAILY SUMMARY BY SITE The Maximum Value For Each Parameter Is Highlighted In A Bold Underlined Font Cells Are Highlighted With AQI Levels (If Selected) A Minimum Value Is Calculated And Highlighted In A Bold Italic Font If The Internal Temp Is Too Low, The Cells Will Be Highlighted Blue Click An Underlined Value To Get A More Detailed Description Move The Mouse Pointer Over An Underlined Value - The Status Window Of Your Browser Will Give You A Brief Description Of What That Item Is

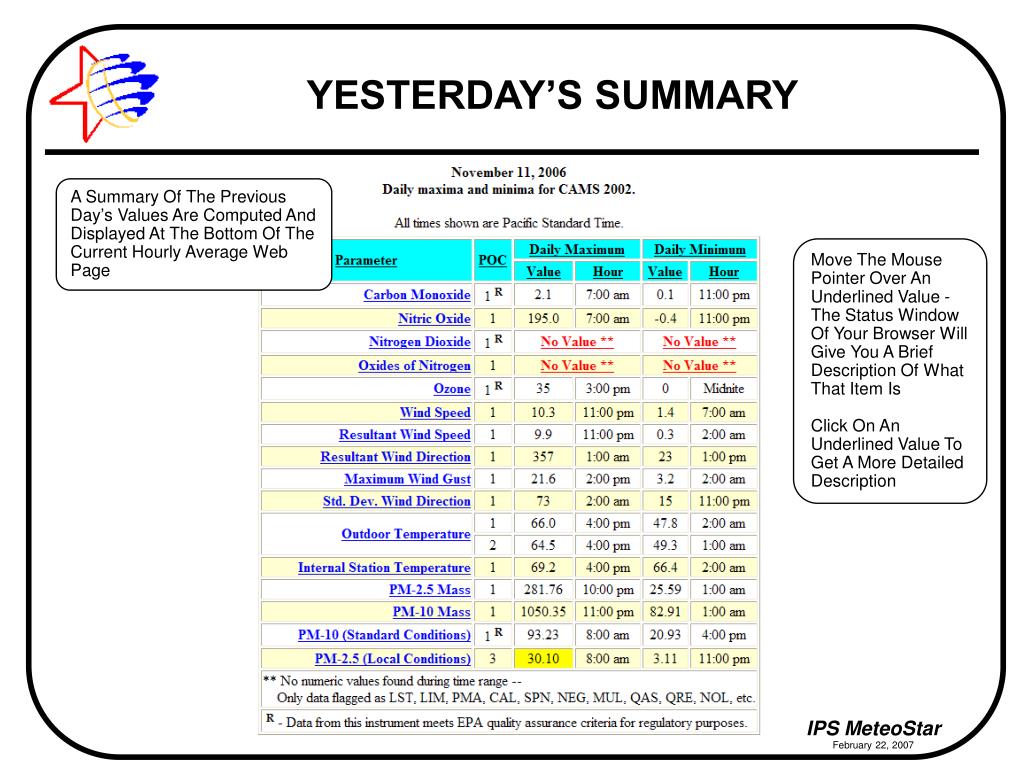

  27. YESTERDAY’S SUMMARY A Summary Of The Previous Day’s Values Are Computed And Displayed At The Bottom Of The Current Hourly Average Web Page Move The Mouse Pointer Over An Underlined Value - The Status Window Of Your Browser Will Give You A Brief Description Of What That Item Is Click On An Underlined Value To Get A More Detailed Description

  28. Based On Hourly Averages Computed By LEADS That Are Automatically Created As Data Is Ingested The Data This Page Is Based On Is Updated At 15 Minutes Past The Hour - If You Look At The Report Before 10:15 For Example, The 10:00 Hour Will Show As LST (Lost) Or NA; If You Look At The Same Page At 10:20, There Will Be Values For The 10:00 Hour This Report Is Always Reported In LOCAL STANDARD TIME – During The Summer, It May Look Like The Report Is 2 Hours Behind, But It Really Isn’t That’s LOCAL STANDARD TIME For The Monitoring Site – Not Where You Are There Are Lots Of Highlighting Options Available – Make Use Of These To Help You Review Data MONTHLY SUMMARY REPORT

  29. There Are Two Paths To This Report – Via A Map Select Or From A Table Select – Both Take You To The Same Place You Select A Month, A Site, Parameter(s), And The Reporting Options You Want A Monthly Summary Report Is Generated Based On Your Selections Several Statistical Parameters Are Computed: Maximum Hourly Average For The Day Second Highest Hourly Average For The Day Minimum Hourly Average For The Day Arithmetic Mean Of The Hourly Averages For The Day Standard Deviation (1/N Method) From The Mean Data Capture Rate For The Day The Same Statistics Are Calculated For The Entire Month There Are Lots Of Options Available – Use Them MORE MONTHLY SUMMARY

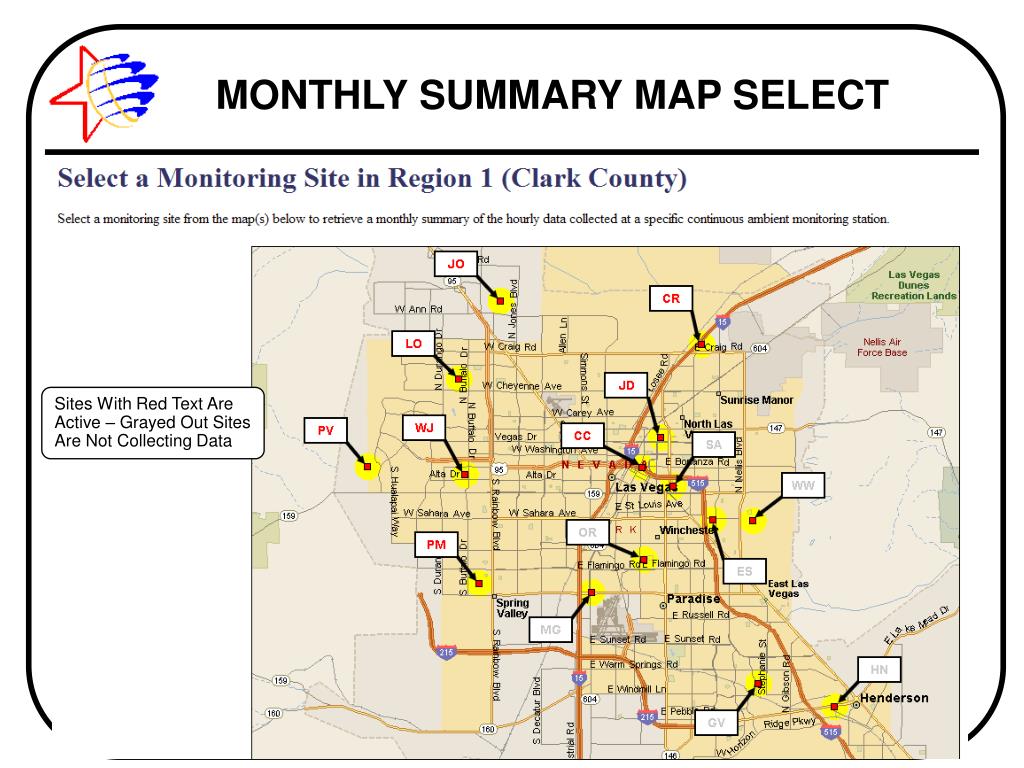

  30. MONTHLY SUMMARY MAP SELECT Sites With Red Text Are Active – Grayed Out Sites Are Not Collecting Data

  31. MONTHLY SUMMARY FILTER

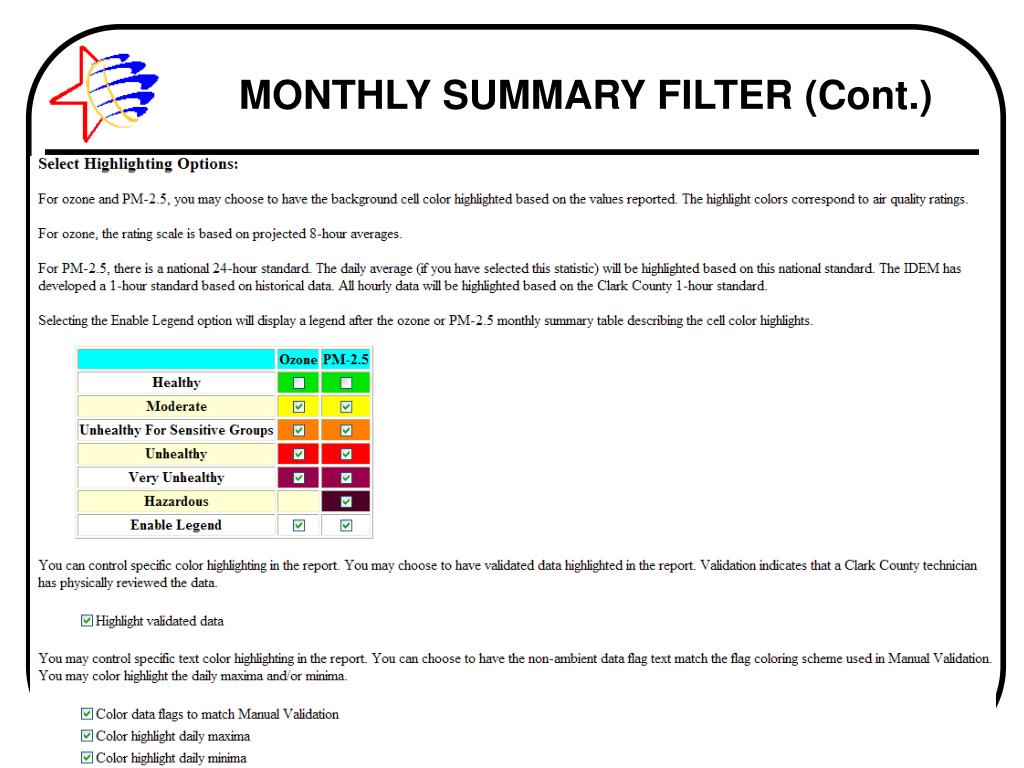

  32. MONTHLY SUMMARY FILTER (Cont.)

  33. MONTHLY SUMMARY FILTER (Cont.)

  34. MONTHLY SUMMARY FILTER (Cont.)

  35. MONTHLY SUMMARY FILTER (Cont.)

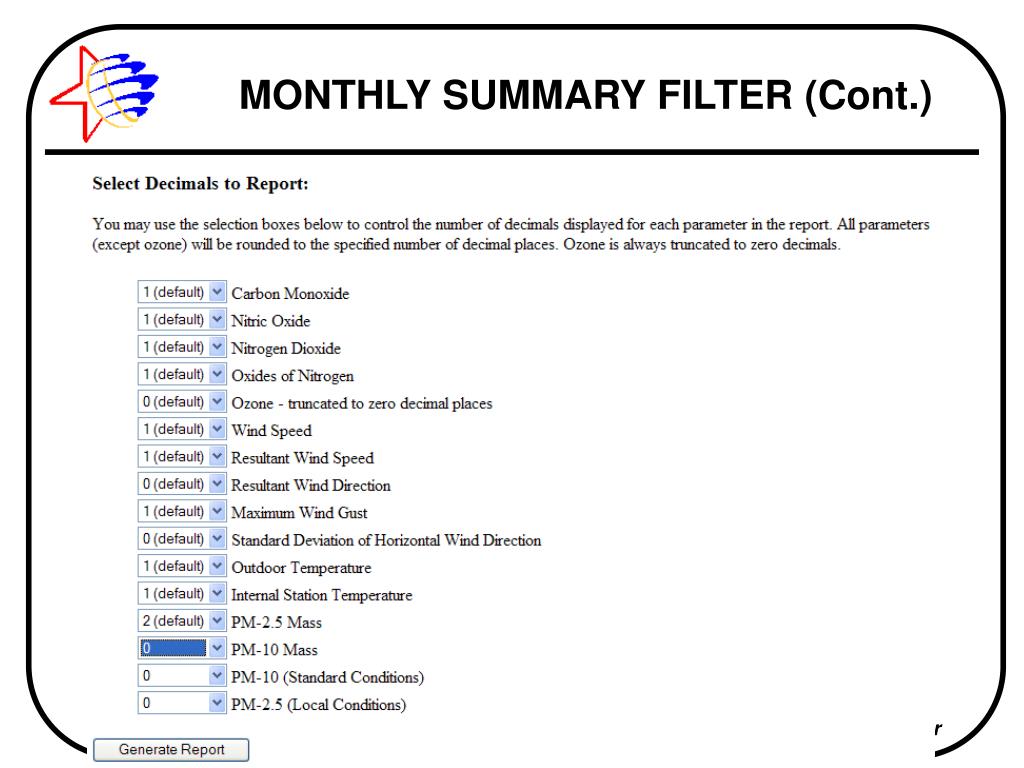

  36. MONTHLY SUMMARY FILTER (Cont.)

  37. MONTHLY SUMMARY FILTER (Cont.)

  38. MONTHLY SUMMARY REPORT Click An Underlined Value To Get A More Detailed Description Move The Mouse Pointer Over An Underlined Value - The Status Window Of Your Browser Will Give You A Brief Description Of What That Item Is The Maximum Value For Each CAMS Is Highlighted In A Bold Red Font Exceedances Are Highlighted By A Red Cell A Minimum Value Is Calculated And Highlighted In A Bold Blue Font

  39. MONTHLY SUMMARY (Cont.) A Summary Of The Statistical Values For The Entire Month Are Computed And Displayed At The Bottom Of The Table Successive Tables Are Generated For Each Parameter Selected – Use The Printer Friendly Format Option To Print

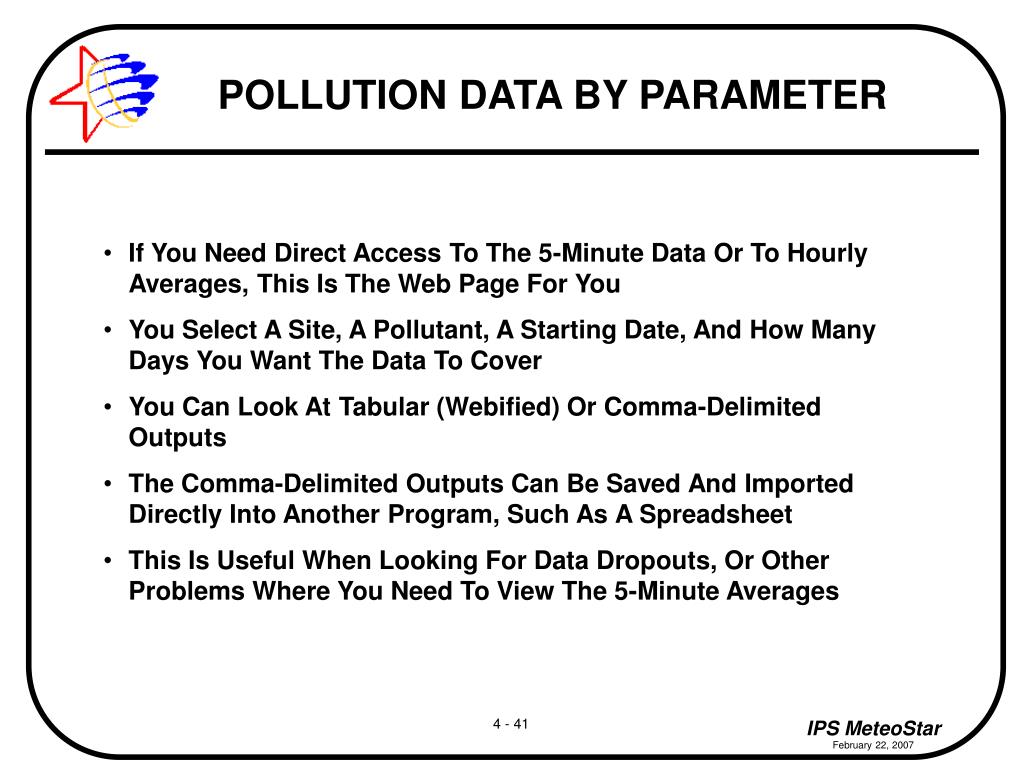

  40. If You Need Direct Access To The 5-Minute Data Or To Hourly Averages, This Is The Web Page For You You Select A Site, A Pollutant, A Starting Date, And How Many Days You Want The Data To Cover You Can Look At Tabular (Webified) Or Comma-Delimited Outputs The Comma-Delimited Outputs Can Be Saved And Imported Directly Into Another Program, Such As A Spreadsheet This Is Useful When Looking For Data Dropouts, Or Other Problems Where You Need To View The 5-Minute Averages POLLUTION DATA BY PARAMETER

  41. DATA BY PARAMETER FILTER Select A CAMS Here Select The Start Date For The Report Select How Many Days To Report Over Select Whether You Want 5-Minute Or One-Hour Data Select A Parameter Select Whether You Want A Table Or Comma-Delimited These Allow You To Turn Output Columns Off - Clear The Checkmark To Turn Off A Column Select The Time Zone You Want – That’s Local Standard Time For The Monitoring Site

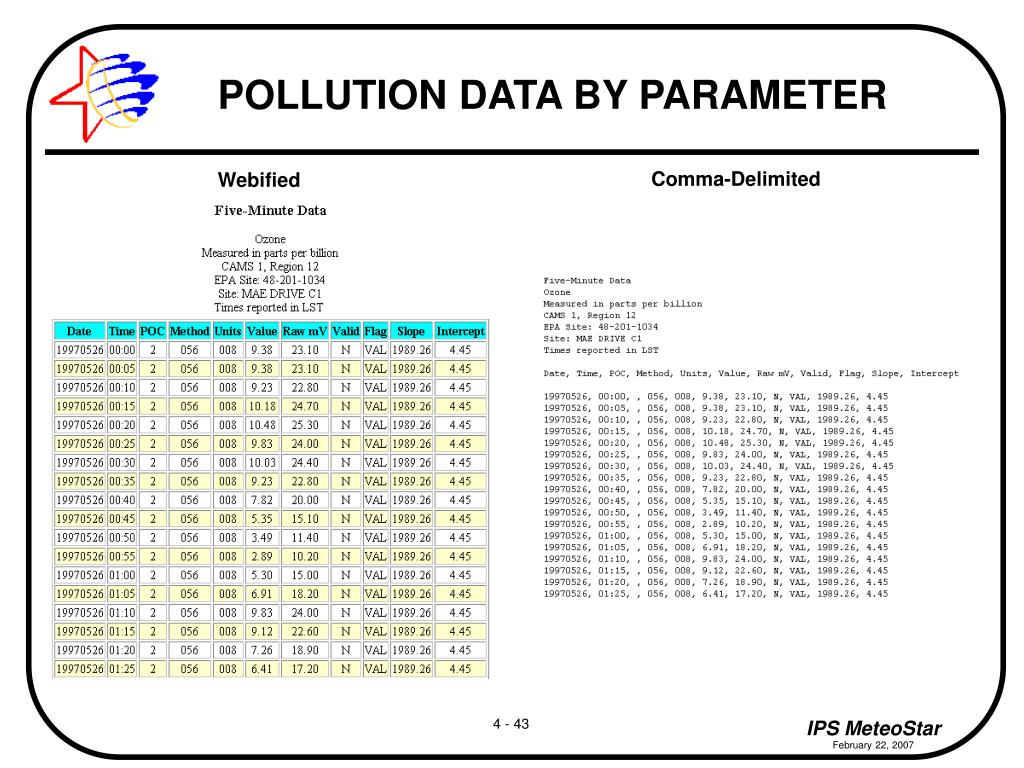

  42. POLLUTION DATA BY PARAMETER Comma-Delimited Webified

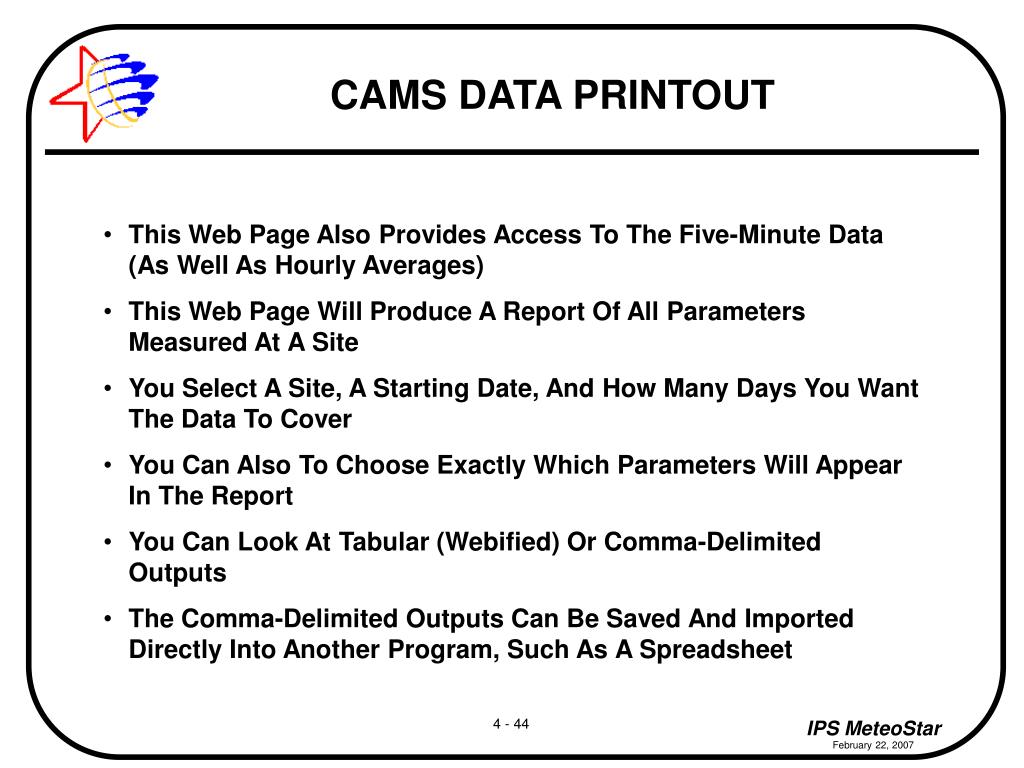

  43. This Web Page Also Provides Access To The Five-Minute Data (As Well As Hourly Averages) This Web Page Will Produce A Report Of All Parameters Measured At A Site You Select A Site, A Starting Date, And How Many Days You Want The Data To Cover You Can Also To Choose Exactly Which Parameters Will Appear In The Report You Can Look At Tabular (Webified) Or Comma-Delimited Outputs The Comma-Delimited Outputs Can Be Saved And Imported Directly Into Another Program, Such As A Spreadsheet CAMS DATA PRINTOUT

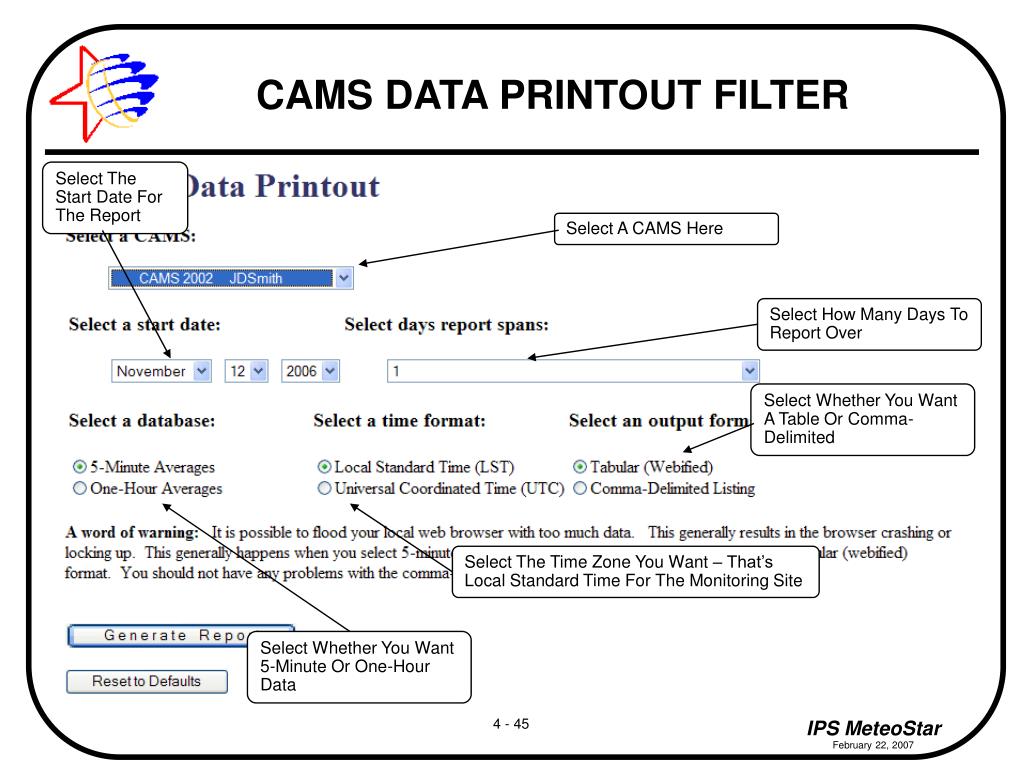

  44. CAMS DATA PRINTOUT FILTER Select The Start Date For The Report Select A CAMS Here Select How Many Days To Report Over Select Whether You Want A Table Or Comma-Delimited Select The Time Zone You Want – That’s Local Standard Time For The Monitoring Site Select Whether You Want 5-Minute Or One-Hour Data

  45. CAMS DATA PRINTOUT FILTER (Cont.) These Checkboxes Allow You To Control Exactly Which Parameters Appear On The Report

  46. CAMS DATA PRINTOUT

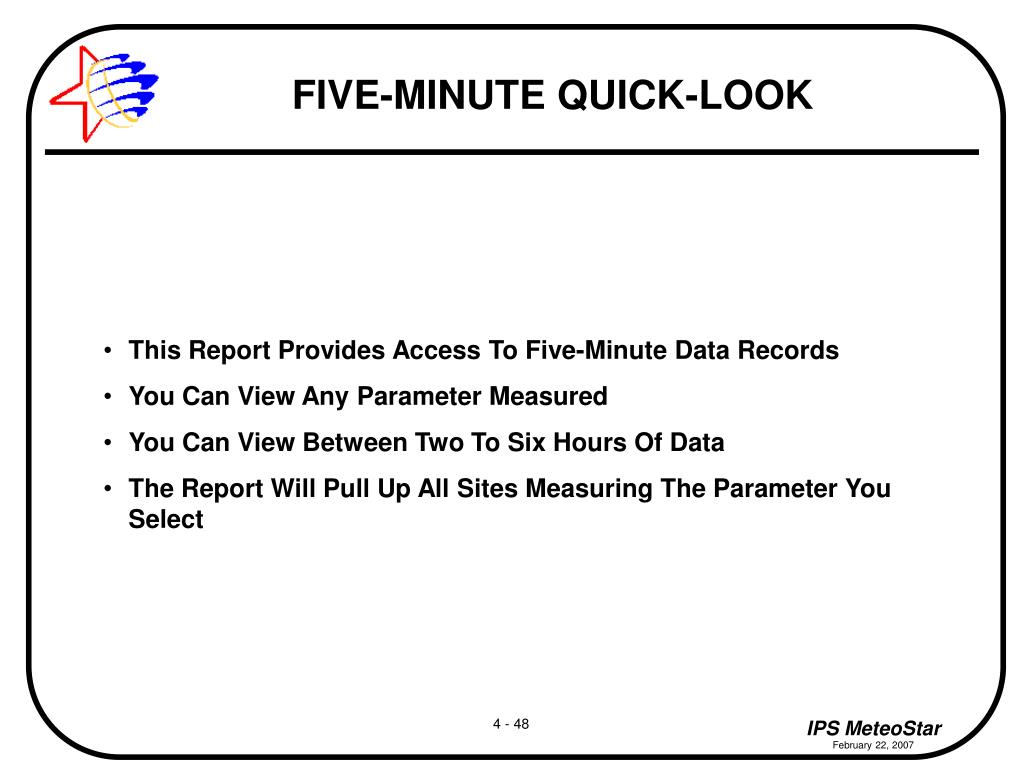

  47. This Report Provides Access To Five-Minute Data Records You Can View Any Parameter Measured You Can View Between Two To Six Hours Of Data The Report Will Pull Up All Sites Measuring The Parameter You Select FIVE-MINUTE QUICK-LOOK

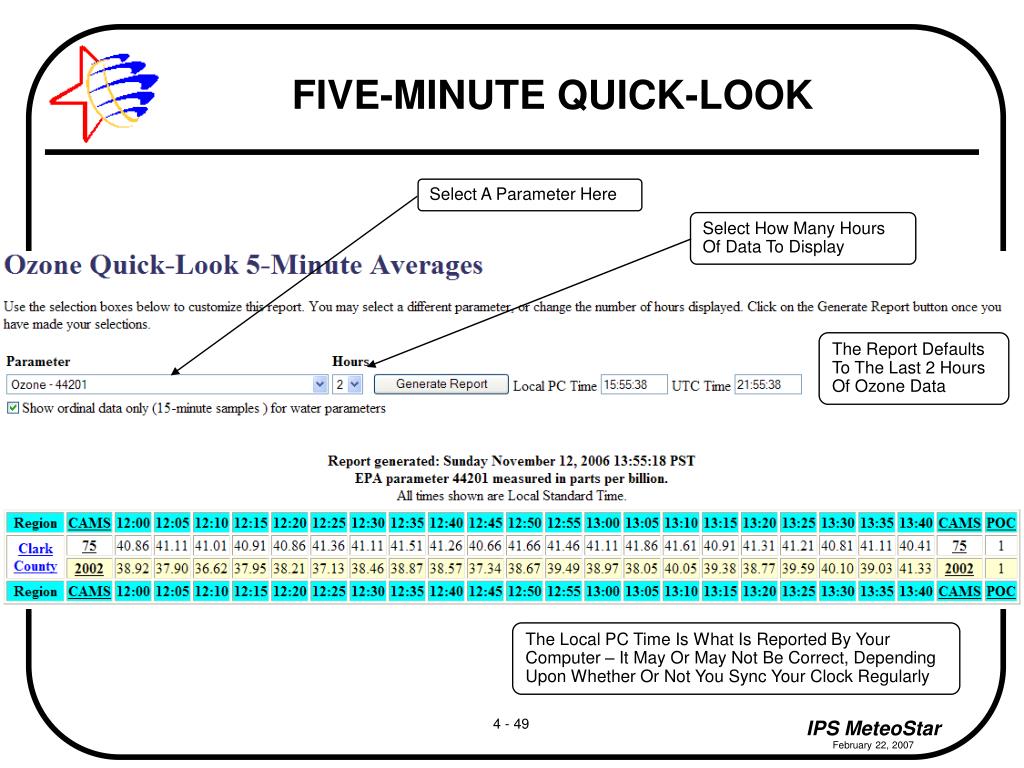

  48. FIVE-MINUTE QUICK-LOOK Select A Parameter Here Select How Many Hours Of Data To Display The Report Defaults To The Last 2 Hours Of Ozone Data The Local PC Time Is What Is Reported By Your Computer – It May Or May Not Be Correct, Depending Upon Whether Or Not You Sync Your Clock Regularly
