  1. Modeling and Simulation of Genetic Regulatory Systems paper by Hidde de Jong reviewed by Ulrich Basters and Christian Hahn

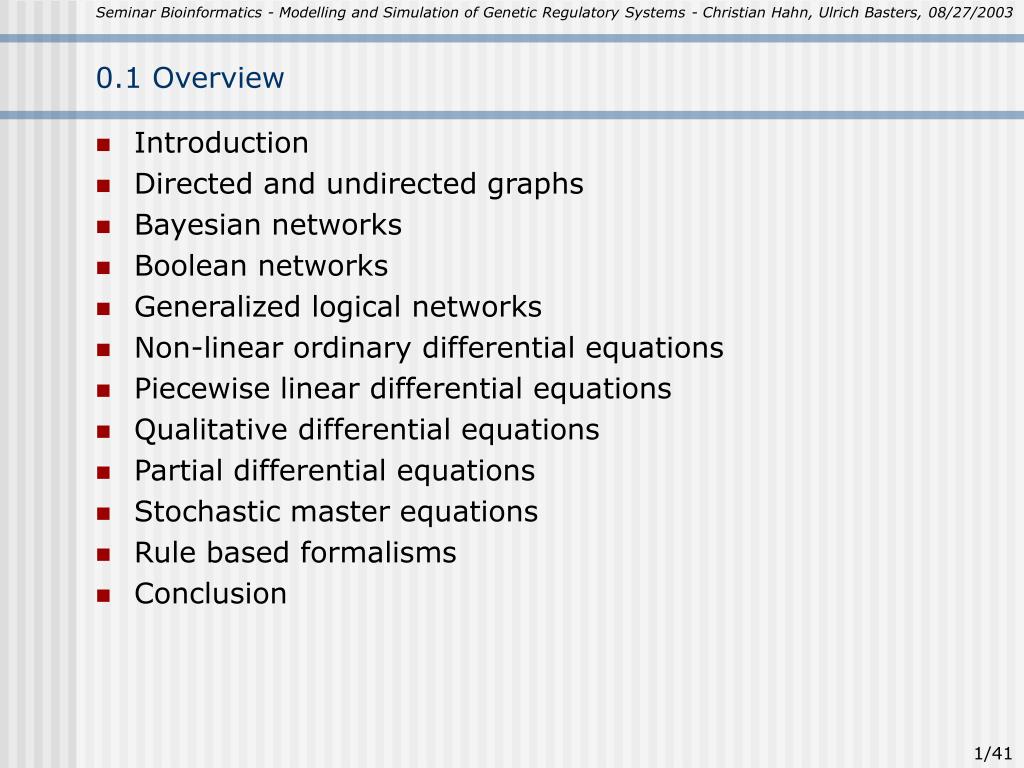

  2. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 0.1 Overview • Introduction • Directed and undirected graphs • Bayesian networks • Boolean networks • Generalized logical networks • Non-linear ordinary differential equations • Piecewise linear differential equations • Qualitative differential equations • Partial differential equations • Stochastic master equations • Rule based formalisms • Conclusion

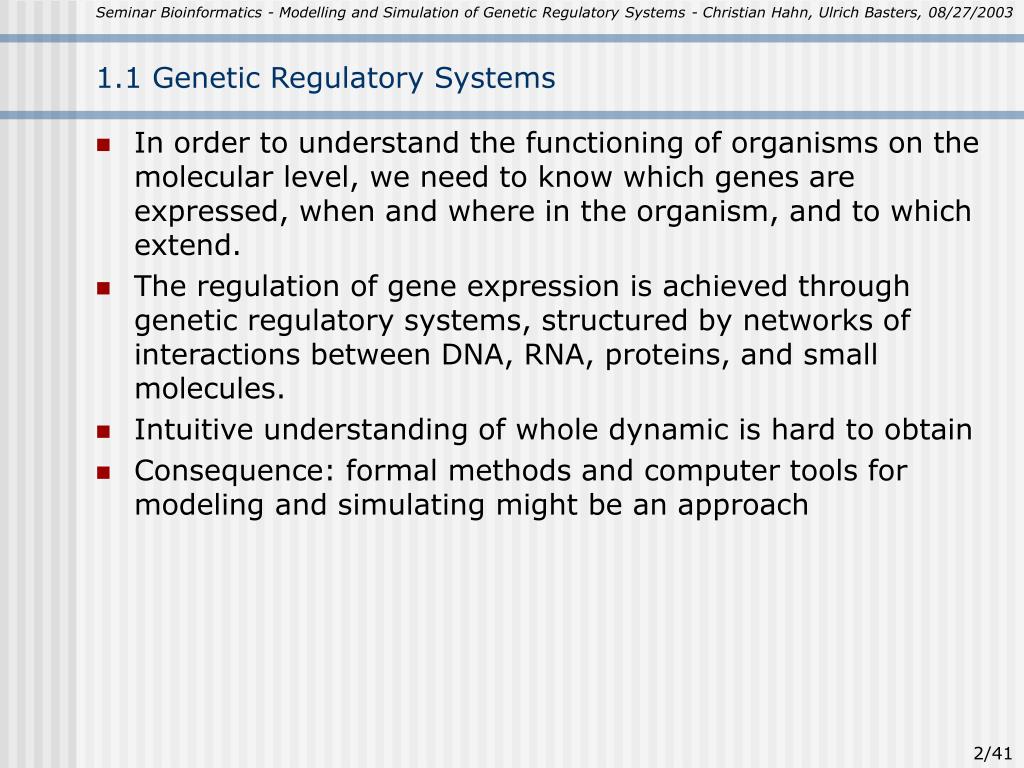

  3. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 1.1 Genetic Regulatory Systems • In order to understand the functioning of organisms on the molecular level, we need to know which genes are expressed, when and where in the organism, and to which extend. • The regulation of gene expression is achieved through genetic regulatory systems, structured by networks of interactions between DNA, RNA, proteins, and small molecules. • Intuitive understanding of whole dynamic is hard to obtain • Consequence: formal methods and computer tools for modeling and simulating might be an approach

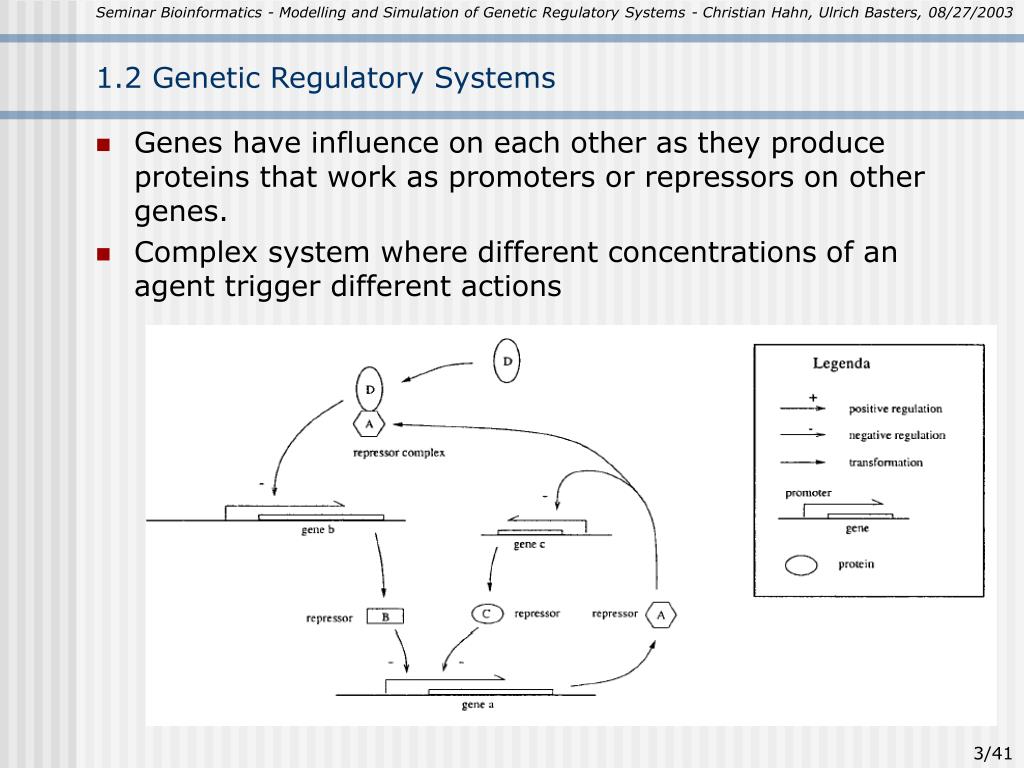

  4. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 1.2 Genetic Regulatory Systems • Genes have influence on each other as they produce proteins that work as promoters or repressors on other genes. • Complex system where different concentrations of an agent trigger different actions

  5. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 1.3 Motivation • Genetic regulatory systems hard to understand in whole complexity • GOAL: Complexity reduction by appropriate models and formalisms • Better understanding of GRSes • Intuitive visualization of GRSes • Better analysis of GRSes • Models can give hints where to continue research for dependencies • Models point out important parts of the system • Gaining understanding of emergence of complex patterns of behavior from interactions between genes in a Regulatory Network

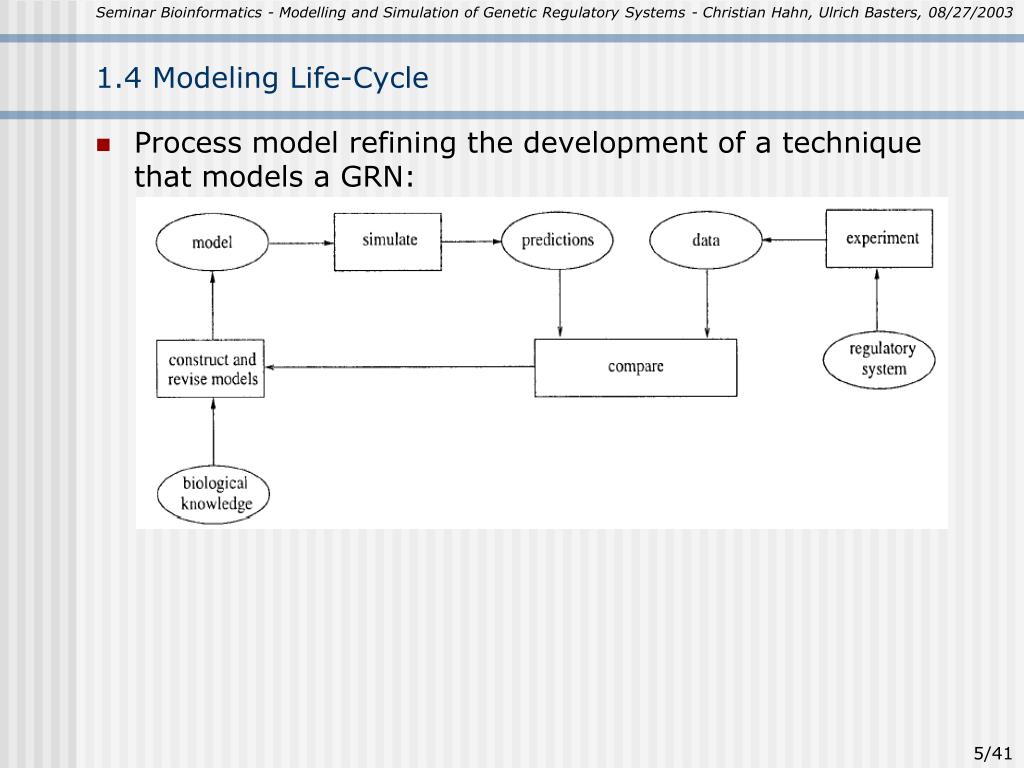

  6. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 1.4 Modeling Life-Cycle Process model refining the development of a technique that models a GRN:

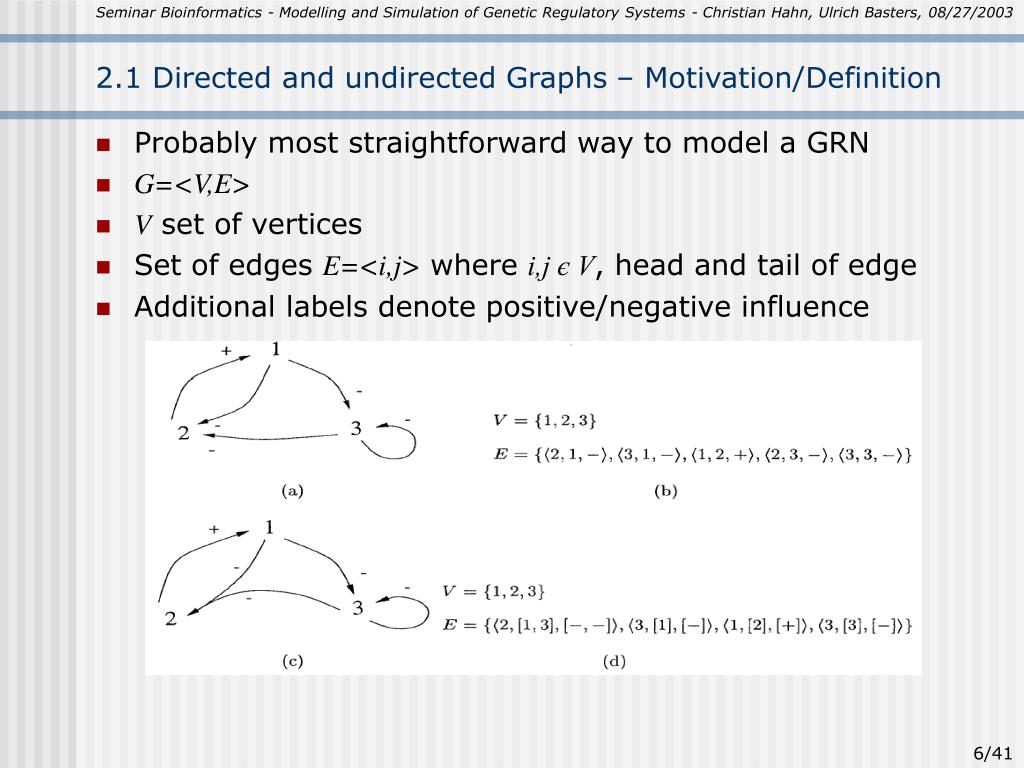

  7. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 2.1 Directed and undirected Graphs – Motivation/Definition • Probably most straightforward way to model a GRN • G=<V,E> • V set of vertices • Set of edges E=<i,j> where i,j є V, head and tail of edge • Additional labels denote positive/negative influence

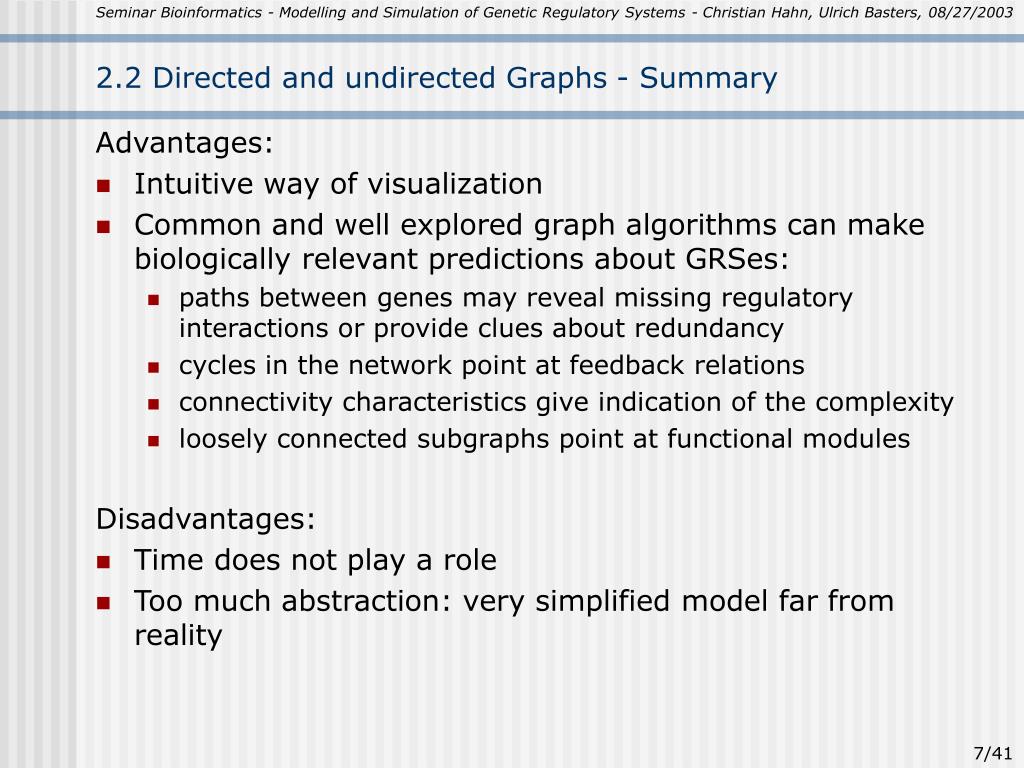

  8. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 2.2 Directed and undirected Graphs - Summary Advantages: • Intuitive way of visualization • Common and well explored graph algorithms can make biologically relevant predictions about GRSes: • paths between genes may reveal missing regulatory interactions or provide clues about redundancy • cycles in the network point at feedback relations • connectivity characteristics give indication of the complexity • loosely connected subgraphs point at functional modules Disadvantages: • Time does not play a role • Too much abstraction: very simplified model far from reality

  9. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 3.1 Bayesian Networks - Definition • Directed acyclic graph G=<V,E> • Vertices 1≤i≤n, iєV represent genes or other elements. Correspond to random variables Xi • Xi conditional distribution p(Xi | parents(Xi)), where parents(Xi) denotes direct regulators • Conditional Independency: i(Xi; Y | Z) expresses fact that Xi is independent of Y given Z

  10. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 3.2 Bayesian Networks – Markov Assumption • Graph encodes Markov assumption, stating that for every gene i in G the conditional independency holds • Method is used to analyse dependencies between genes, not applicable for a system-simulation • Techniques rely on a matching score to evaluate networks and search for the network with optimal score • Graphs are said to be equivalent, if they imply the same set of independencies thus forming an equivalence class (useful for determining important subgraphs) • Looking at Markov and order relations between pairs of genes may point to a relationship between the genes

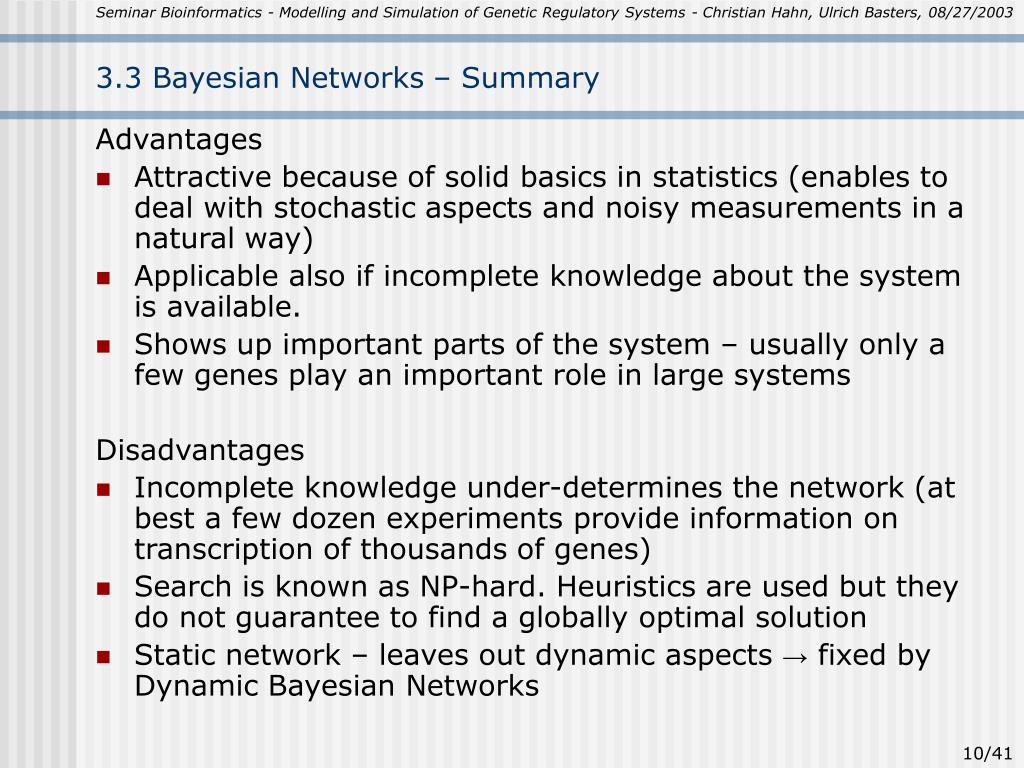

  11. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 3.3 Bayesian Networks – Summary Advantages • Attractive because of solid basics in statistics (enables to deal with stochastic aspects and noisy measurements in a natural way) • Applicable also if incomplete knowledge about the system is available. • Shows up important parts of the system – usually only a few genes play an important role in large systems Disadvantages • Incomplete knowledge under-determines the network (at best a few dozen experiments provide information on transcription of thousands of genes) • Search is known as NP-hard. Heuristics are used but they do not guarantee to find a globally optimal solution • Static network – leaves out dynamic aspects → fixed by Dynamic Bayesian Networks

  12. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 4.1 Boolean Networks - Definition • State of a gene can be expressed by boolean variable expressing that it is active (=1) or inactive (=0) • Interactions between genes can be represented by boolean functions calculating the state of a gene from activation of other genes • Results in a Boolean Network:

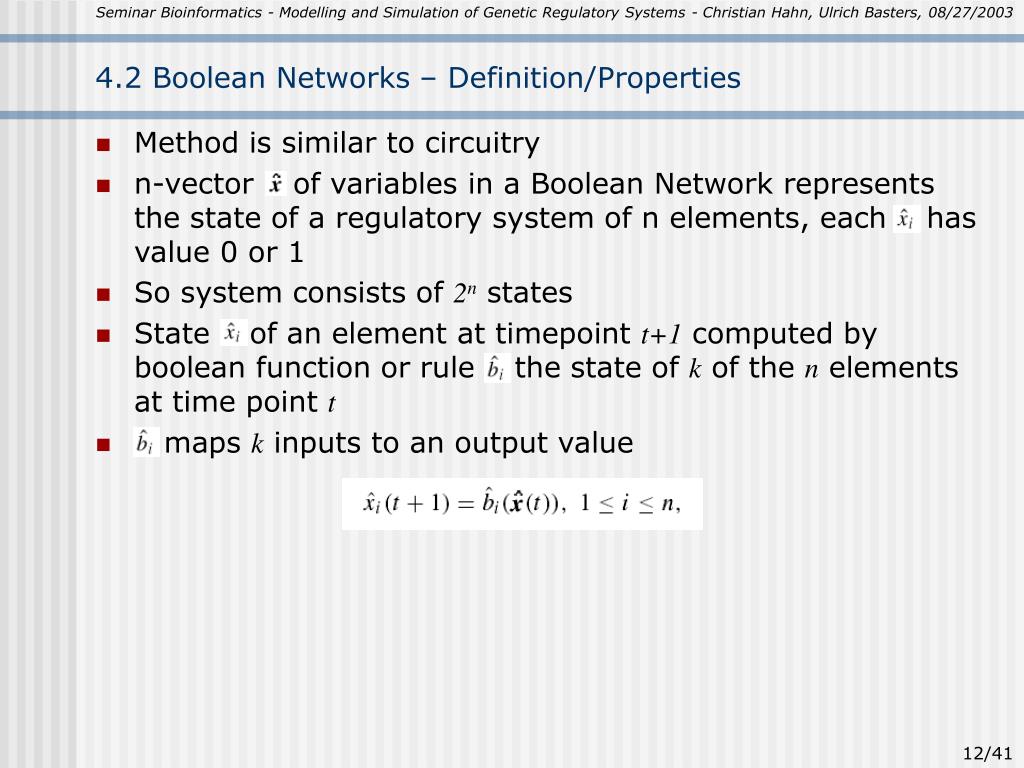

  13. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 4.2 Boolean Networks – Definition/Properties • Method is similar to circuitry • n-vector of variables in a Boolean Network represents the state of a regulatory system of n elements, each has value 0 or 1 • So system consists of 2n states • State of an element at timepoint t+1 computed by boolean function or rule the state of k of the n elements at time point t • maps k inputs to an output value

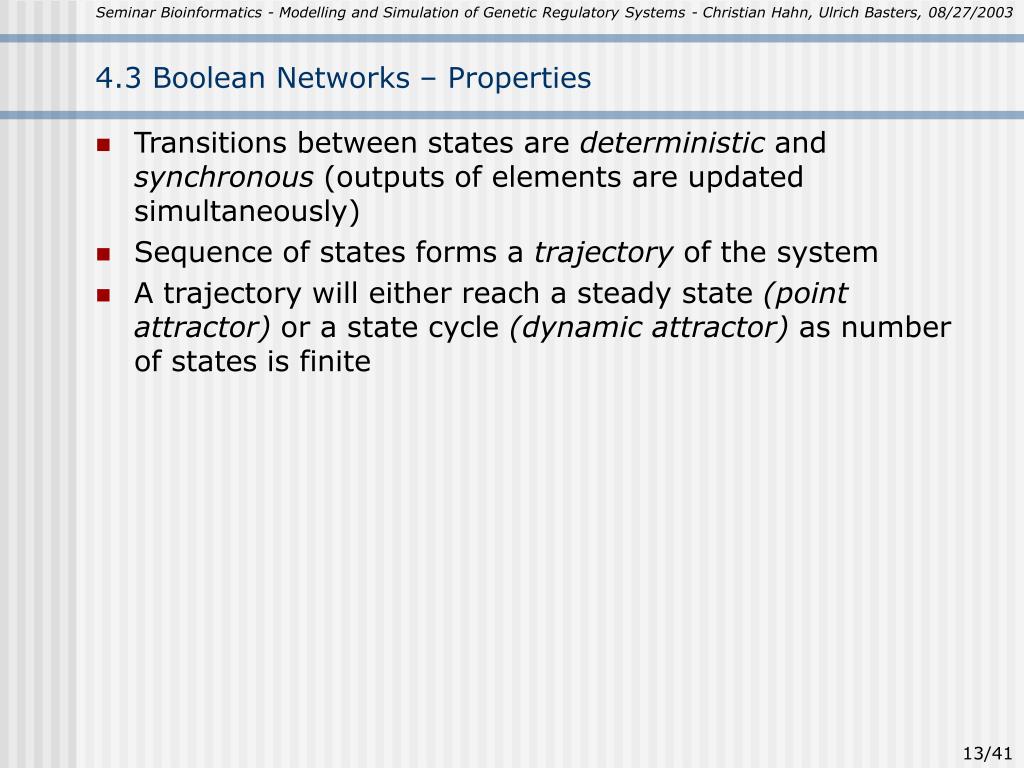

  14. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 4.3 Boolean Networks – Properties • Transitions between states are deterministic and synchronous (outputs of elements are updated simultaneously) • Sequence of states forms a trajectory of the system • A trajectory will either reach a steady state (point attractor) or a state cycle (dynamic attractor) as number of states is finite

  15. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 4.4 Boolean Networks – Summary Advantages • Efficient analysis of large RN • Positive/negative feedback-cycles can be modeled with BN‘s Disadvantages • Strong simplifying assumptions – gene is either on or off, no in between states • Transitions assumed to occur synchronously – not usually the case, so certain behaviors may be not predicted by simulation algorithm • There are situations where boolean idealisation is not appropriate – more general methods required

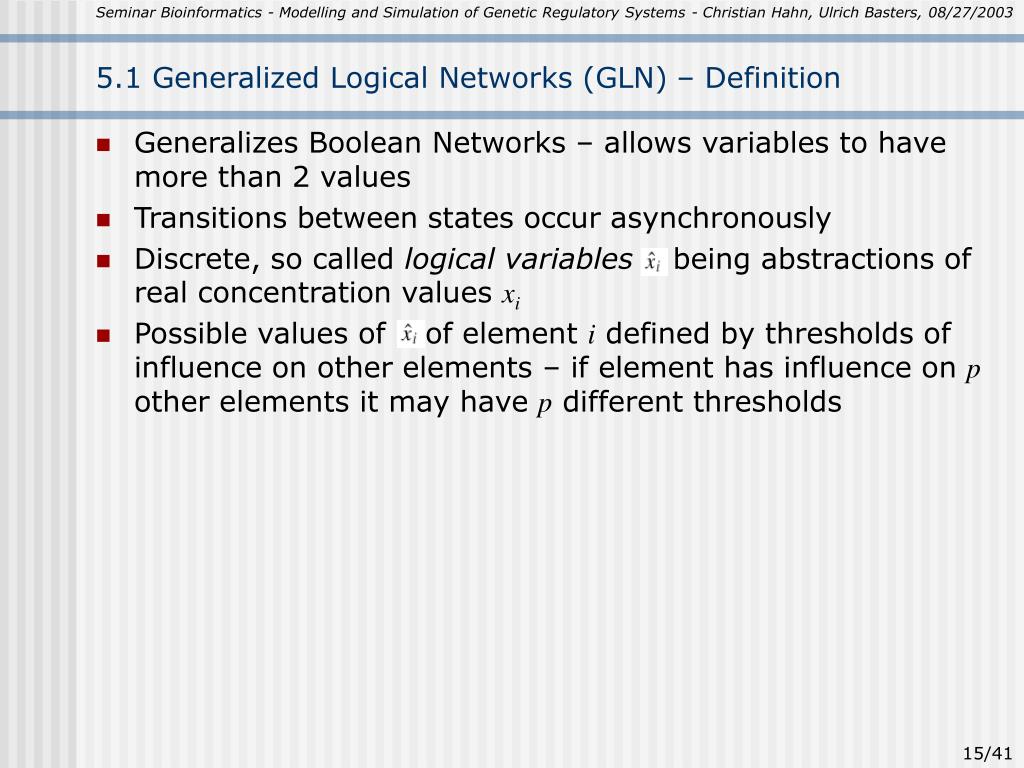

  16. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 5.1 Generalized Logical Networks (GLN) – Definition • Generalizes Boolean Networks – allows variables to have more than 2 values • Transitions between states occur asynchronously • Discrete, so called logical variables being abstractions of real concentration values xi • Possible values of of element i defined by thresholds of influence on other elements – if element has influence on p other elements it may have p different thresholds

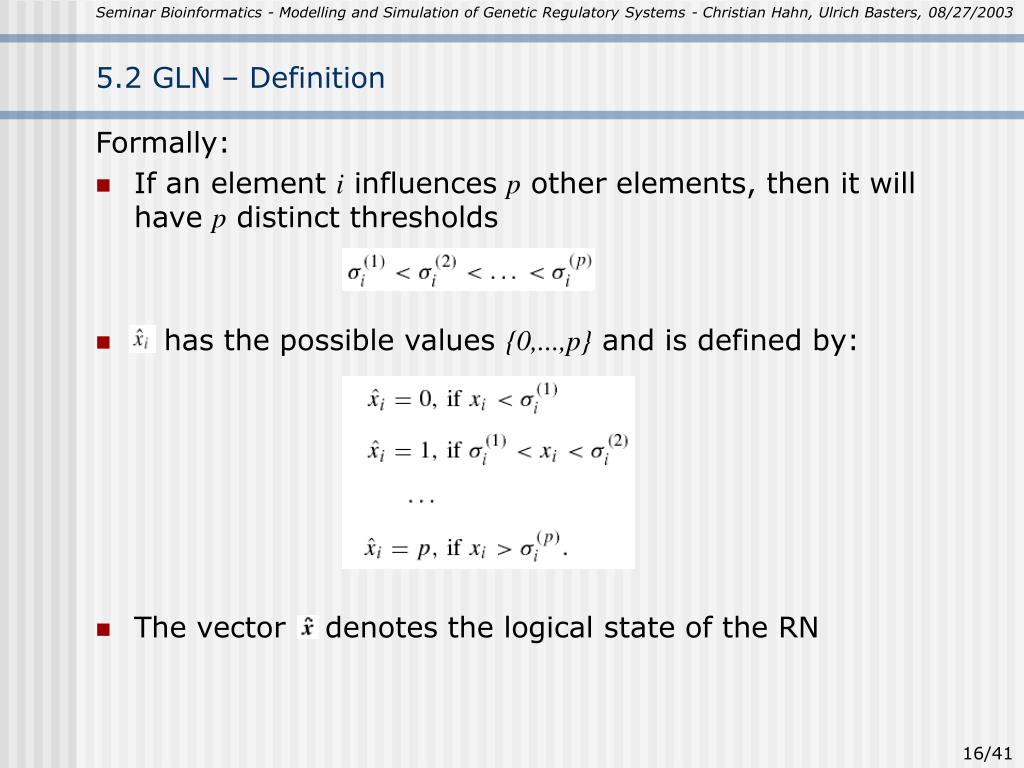

  17. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 5.2 GLN – Definition Formally: • If an element i influences p other elements, then it will have p distinct thresholds • has the possible values {0,...,p} and is defined by: • The vector denotes the logical state of the RN

  18. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 5.3 GLN – Definition • The pattern of an interaction is described by logical equations of the form: • is called the image of , which denotes the value towards which tends when the logical state is • Positive and negative feedback-loops are possible to model • Refinement of simple on/off variables in Boolean Networks

  19. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 5.4 GLN – Properties • A logical steady state occurs, when the logical state equals its image: • Since the number of logical states is finite, one can test for logical steady states, other states are called transient logical states • If the system is in a transient logical state, it will make a transition into another logical state • Since a logical variable will move into the direction of its image, the successor states can be deduced by comparing the value of a logical variable with that of its image • The logical states and transitions among them can be organized in a state transition graph • Analyses of state transitions, time delays, translation and transport can be taken into account • Improves standard Boolean Network model

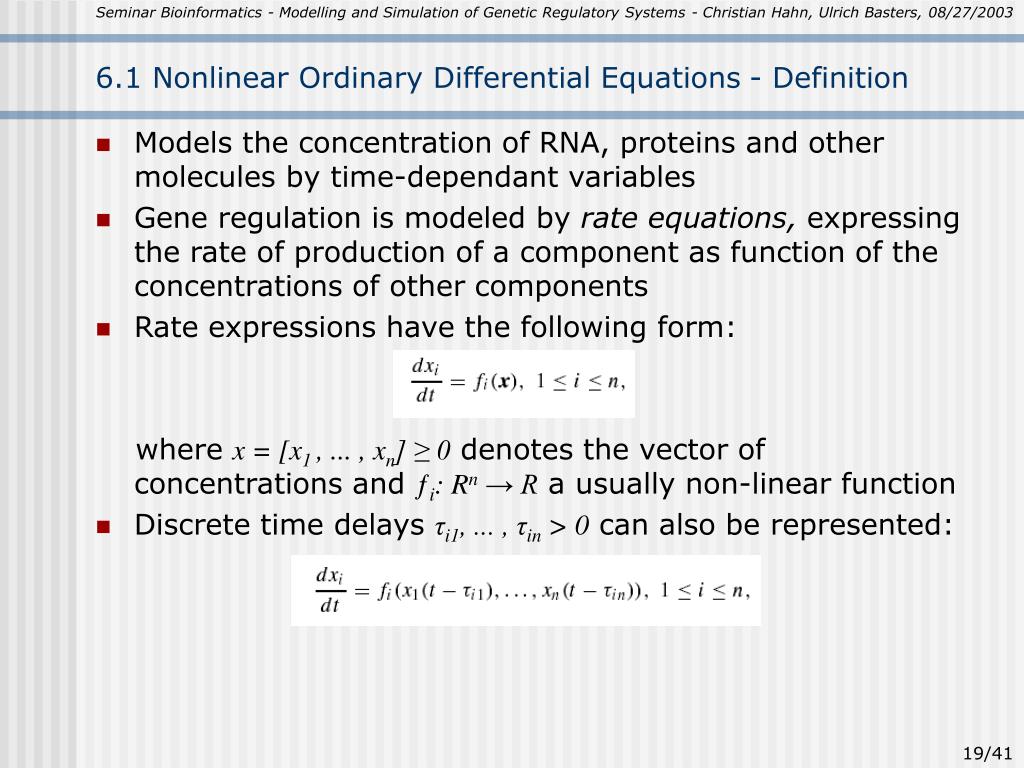

  20. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 6.1 Nonlinear Ordinary Differential Equations - Definition • Models the concentration of RNA, proteins and other molecules by time-dependant variables • Gene regulation is modeled by rate equations, expressing the rate of production of a component as function of the concentrations of other components • Rate expressions have the following form: where x = [x1 , ... , xn] ≥ 0 denotes the vector of concentrations and ƒi: Rn → R a usually non-linear function • Discrete time delays τi1, ... , τin > 0 can also be represented:

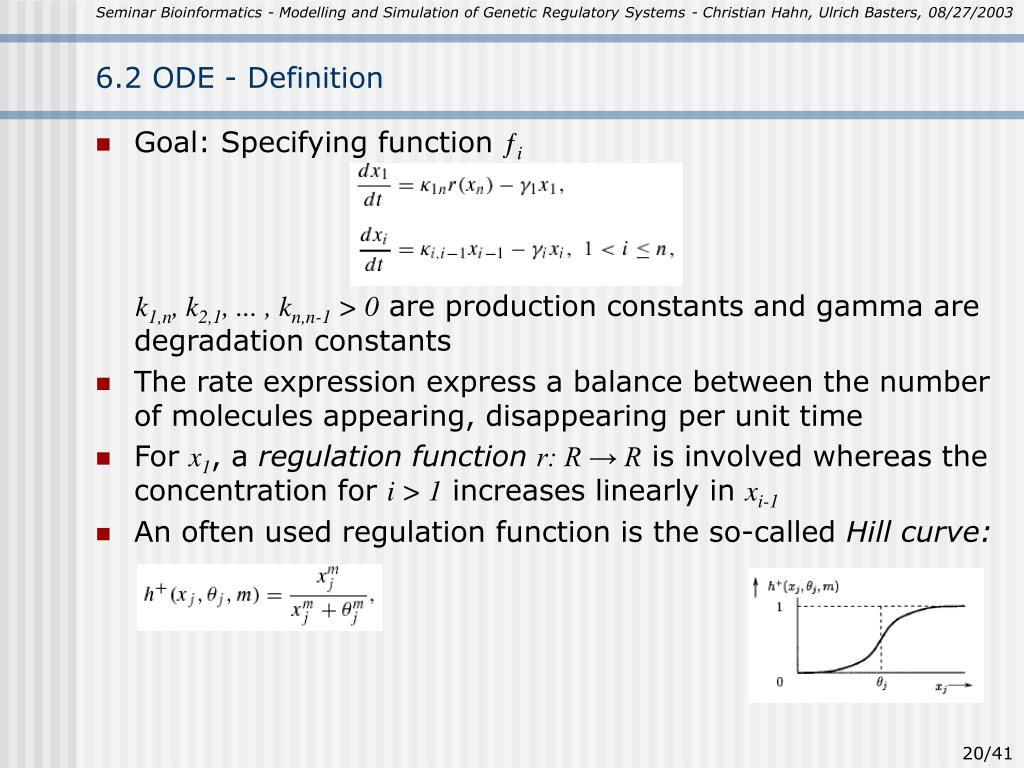

  21. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 6.2 ODE - Definition • Goal: Specifying function ƒi k1,n, k2,1, ... , kn,n-1 > 0 are production constants and gamma are degradation constants • The rate expression express a balance between the number of molecules appearing, disappearing per unit time • For x1, a regulation functionr: R → R is involved whereas the concentration for i > 1 increases linearly in xi-1 • An often used regulation function is the so-called Hill curve:

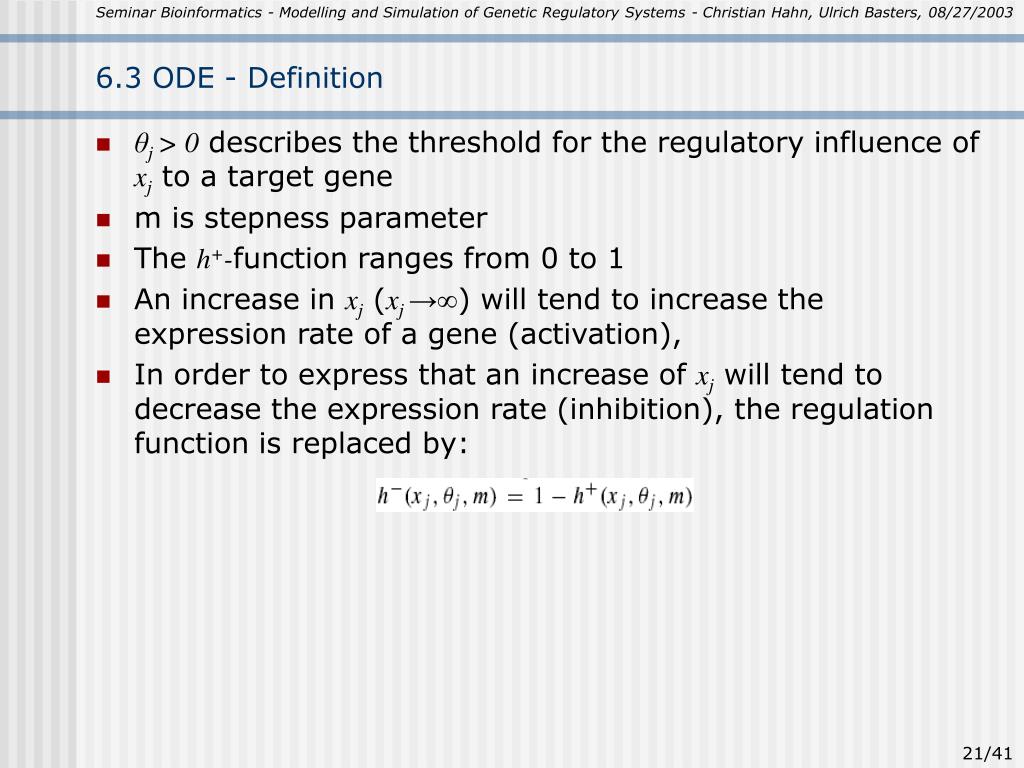

  22. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 6.3 ODE - Definition • θj > 0 describes the threshold for the regulatory influence of xj to a target gene • m is stepness parameter • The h+-function ranges from 0 to 1 • An increase in xj (xj →∞) will tend to increase the expression rate of a gene (activation), • In order to express that an increase of xj will tend to decrease the expression rate (inhibition), the regulation function is replaced by:

  23. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 6.4 ODE Properties Advantages • More „realistic“ way of modeling Disadvantages • Lack of in vivo or in vitro measurements of kinetic parameters in the rate equations • Numerical parameter values are available for only a handful of well-studied systems (λ-phage) • In most cases parameter values had to be chosen such that the models were able to reproduce observed qualitative behavior • For larger models finding appropriate values may be difficult Solution • Growing availability of data could handle the problem to some extent

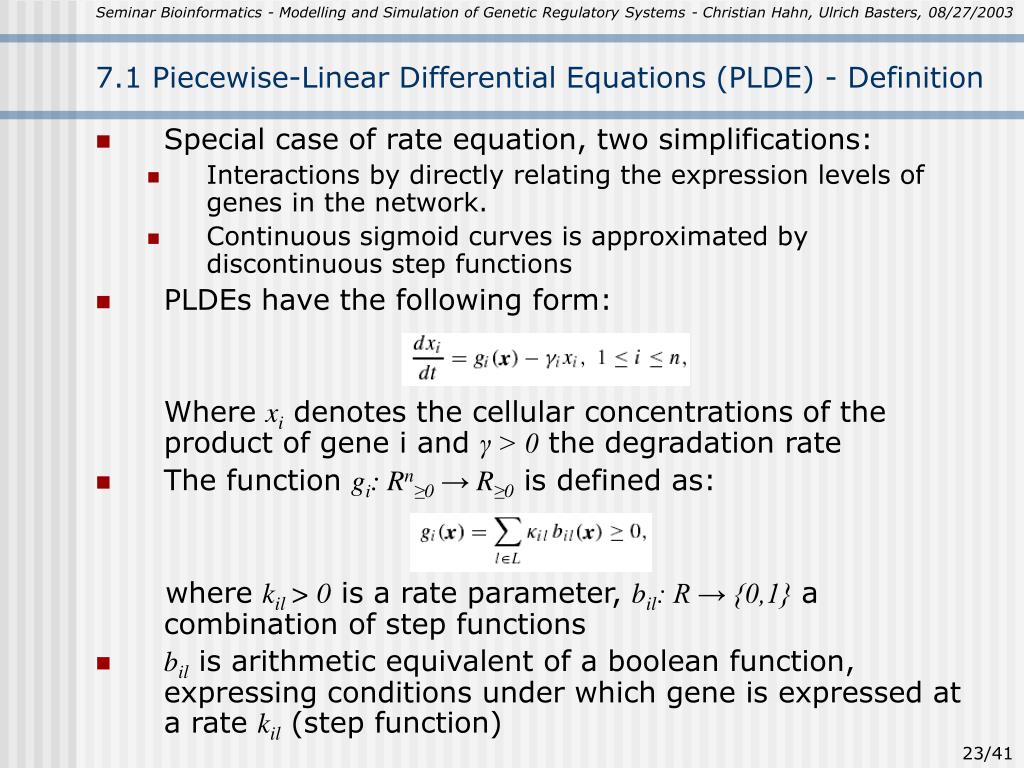

  24. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 7.1 Piecewise-Linear Differential Equations (PLDE) - Definition • Special case of rate equation, two simplifications: • Interactions by directly relating the expression levels of genes in the network. • Continuous sigmoid curves is approximated by discontinuous step functions • PLDEs have the following form: Where xi denotes the cellular concentrations of the product of gene i and γ > 0 the degradation rate • The function gi: Rn≥0→ R≥0 is defined as: where kil > 0 is a rate parameter, bil: R → {0,1} a combination of step functions • bil is arithmetic equivalent of a boolean function, expressing conditions under which gene is expressed at a rate kil (step function)

  25. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 7.2 PLDE - Graphical simplification • Consider an n-dimensional hyperbox defined by: • Assume that for all threshold concentrations θik of the protein encoded by gene i it holds that θik < maxi • The n-1 hyperplanes defined by the thresholds divide the box into orthants • Each orthant of the box reduces to ODEs with a constant production term μicomposed of rate parameters in bi:

  26. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 7.3 PLDE - Example • State equations corresponding to the orthant 0 ≤ x1 < θ21, θ12 < x2 ≤ max2and θ33 < x3 ≤ max3

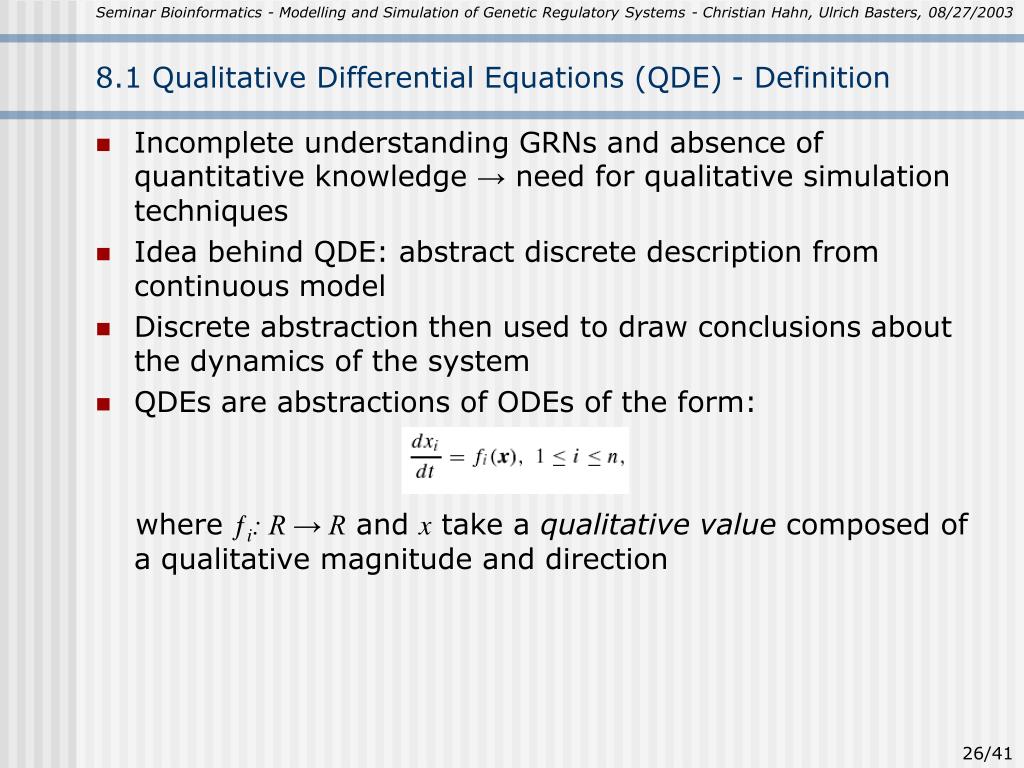

  27. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 8.1 Qualitative Differential Equations (QDE) - Definition • Incomplete understanding GRNs and absence of quantitative knowledge → need for qualitative simulation techniques • Idea behind QDE: abstract discrete description from continuous model • Discrete abstraction then used to draw conclusions about the dynamics of the system • QDEs are abstractions of ODEs of the form: where ƒi: R → R and x take a qualitative value composed of a qualitative magnitude and direction

  28. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 8.2 QDE - Properties • The qualitative magnitude of a variable xi is a discrete abstraction of its real value, the qualitative direction is the sign of its derivate • The function ƒi is abstracted into a set of qualitative constraints • Algorithm (QSIM) generates a tree of qualitative behaviors out of an initial qualitative state consisting of qualitative values • Each behavior in the tree describes a possible sequence of state transitions from the initial state • Every qualitatively distinct behavior of the ODE corresponds to a behavior in the tree generated from the QDE (the reverse may not be true)

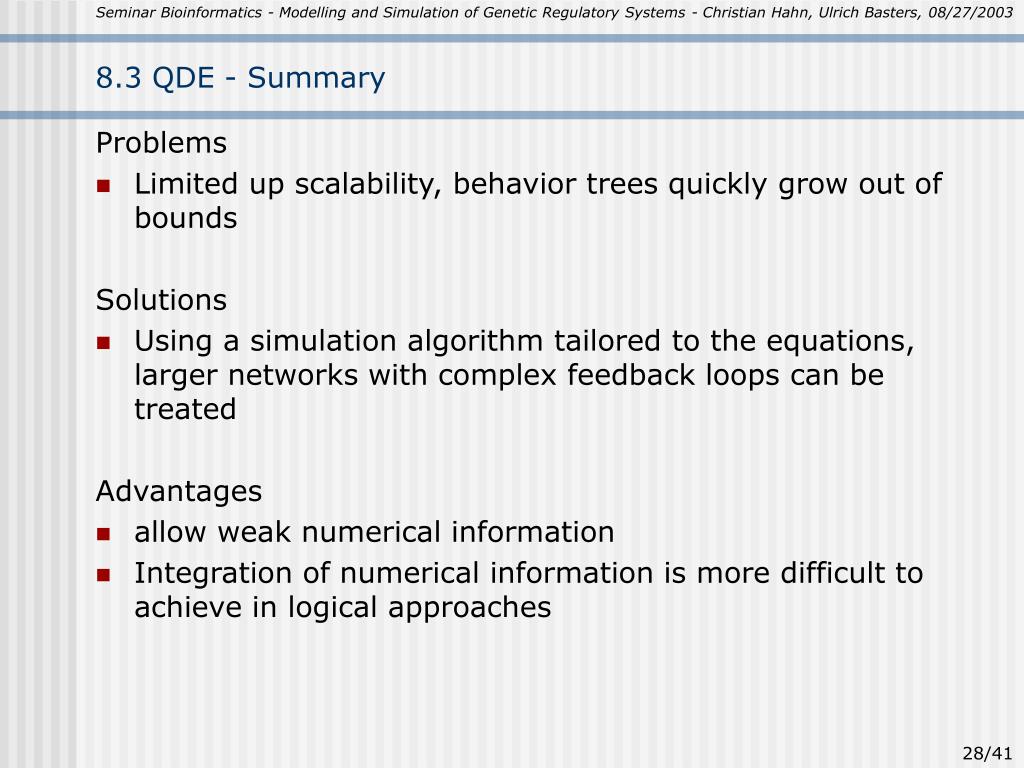

  29. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 8.3 QDE - Summary Problems • Limited up scalability, behavior trees quickly grow out of bounds Solutions • Using a simulation algorithm tailored to the equations, larger networks with complex feedback loops can be treated Advantages • allow weak numerical information • Integration of numerical information is more difficult to achieve in logical approaches

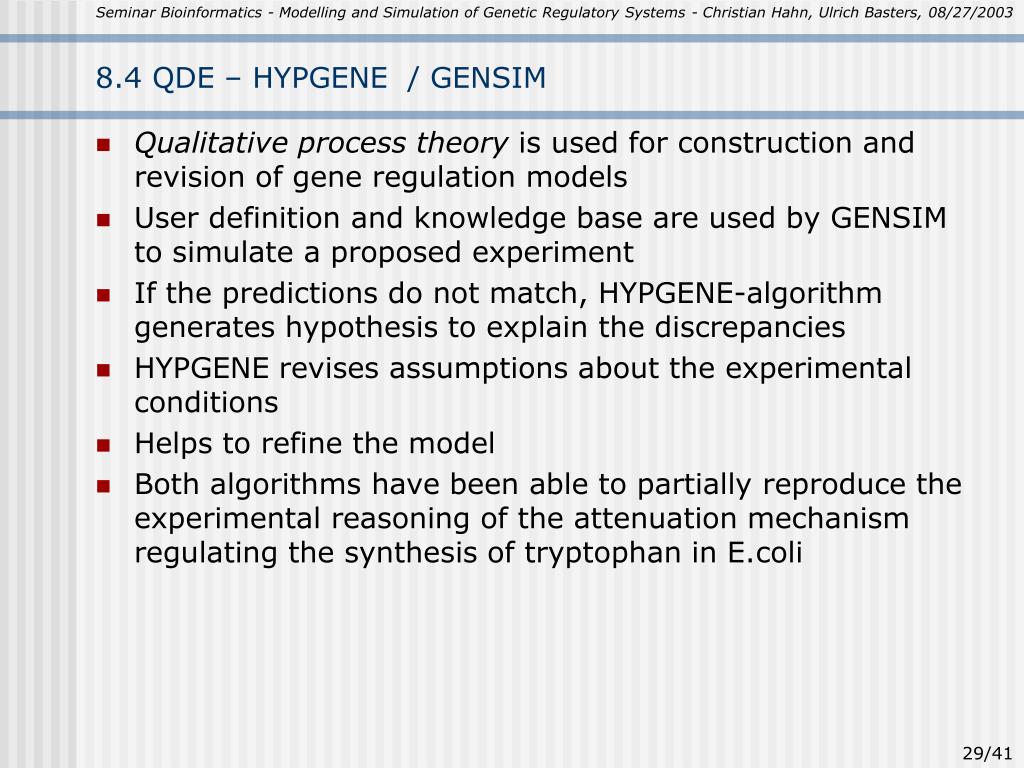

  30. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 8.4 QDE – HYPGENE / GENSIM • Qualitative process theory is used for construction and revision of gene regulation models • User definition and knowledge base are used by GENSIM to simulate a proposed experiment • If the predictionsdo not match, HYPGENE-algorithm generates hypothesis to explain the discrepancies • HYPGENE revises assumptions about the experimental conditions • Helps to refine the model • Both algorithms have been able to partially reproduce the experimental reasoning of the attenuation mechanism regulating the synthesis of tryptophan in E.coli

  31. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 9.1 Partial Differential Equations (PDE) – Motivation • Regulatory systems are assumed to be spatially homogenous • Important in certain situations to abstract from these assumptions • Distinguish between different compartments of a cell, for example nucleus and cytoplasm or multiple cells affecting each other • Diffusion of regulatory proteins or metabolites for one compartment to another • This is a critical feature in embryonal development

  32. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 9.2 Partial Differential Equations (PDE) – Definition • The reaction-diffusion-equation (for a row of cells): • Can be adapted to other 1- or higher dimensional spacial configurations • If number of cells is large enough, discrete variable l can be replaced by continuous variable λ representing the size of the system • Concentration variables now are defined as functions of l and t and the reaction-diffusion-equations become a partial differential equation (PDE): • Using modes or eigenfunctions of the Laplacian operator gives:

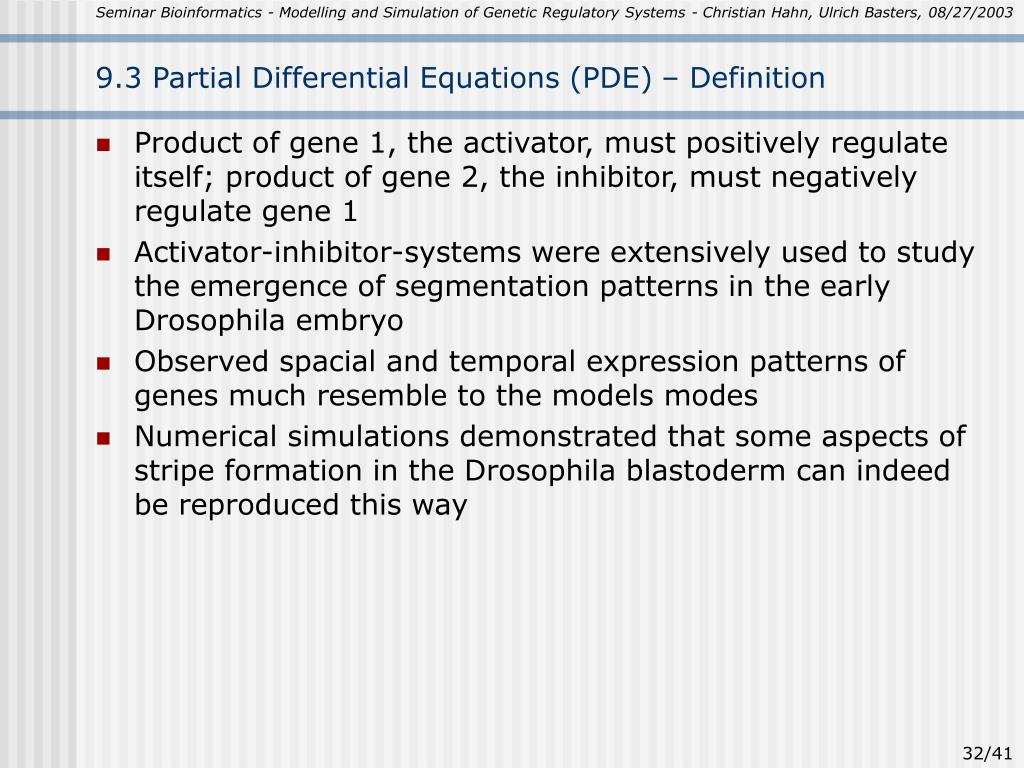

  33. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 9.3 Partial Differential Equations (PDE) – Definition • Product of gene 1, the activator, must positively regulate itself; product of gene 2, the inhibitor, must negatively regulate gene 1 • Activator-inhibitor-systems were extensively used to study the emergence of segmentation patterns in the early Drosophila embryo • Observed spacial and temporal expression patterns of genes much resemble to the models modes • Numerical simulations demonstrated that some aspects of stripe formation in the Drosophila blastoderm can indeed be reproduced this way

  34. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 9.4 Partial Differential Equations (PDE) – Properties • Shown formula still not applicable in all situations, more complex formulas were formed for several special cases • Predictions quite sensitive to the shape of the spacial domain, the boundary conditions and chosen parameter values • Models need to be simple and usually are strong abstractions of biological processes (i.e. only watch at concentrations of a few gene-products) • For larger and more complex models computational costs for finding an optimal fit between data and parameters may be prohibitively high

  35. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 10.1 Stochastic Master Equations - Motivation • Differential equations describe gene regulation in great detail • Differential equations presuppose the concentrations of substances continuously and deterministically • Both assumptions are questionable in the case of gene regulation • So, we prefer to use a discrete and stochastic approach • Discrete amounts Xof moleculesare taken as state variables, joint probability distribution p(X, t) is introduced to express probability that at time t the cell contains X1 molecules of the first species, X2 of the second, etc.

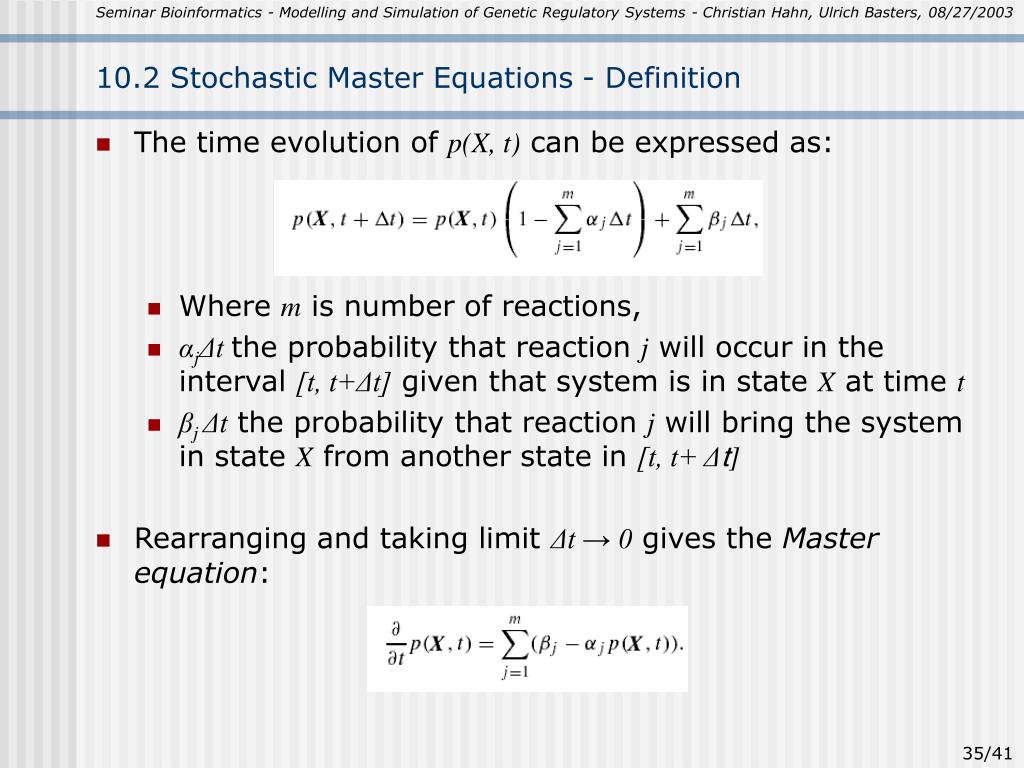

  36. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 10.2 Stochastic Master Equations - Definition • The time evolution of p(X, t) can be expressed as: • Where m is number of reactions, • αjΔtthe probability that reaction j will occur in the interval [t, t+Δt] given that system is in state X at time t • βj Δt the probability that reaction j will bring the system in state X from another state in [t, t+ Δt] • Rearranging and taking limit Δt → 0 gives the Master equation:

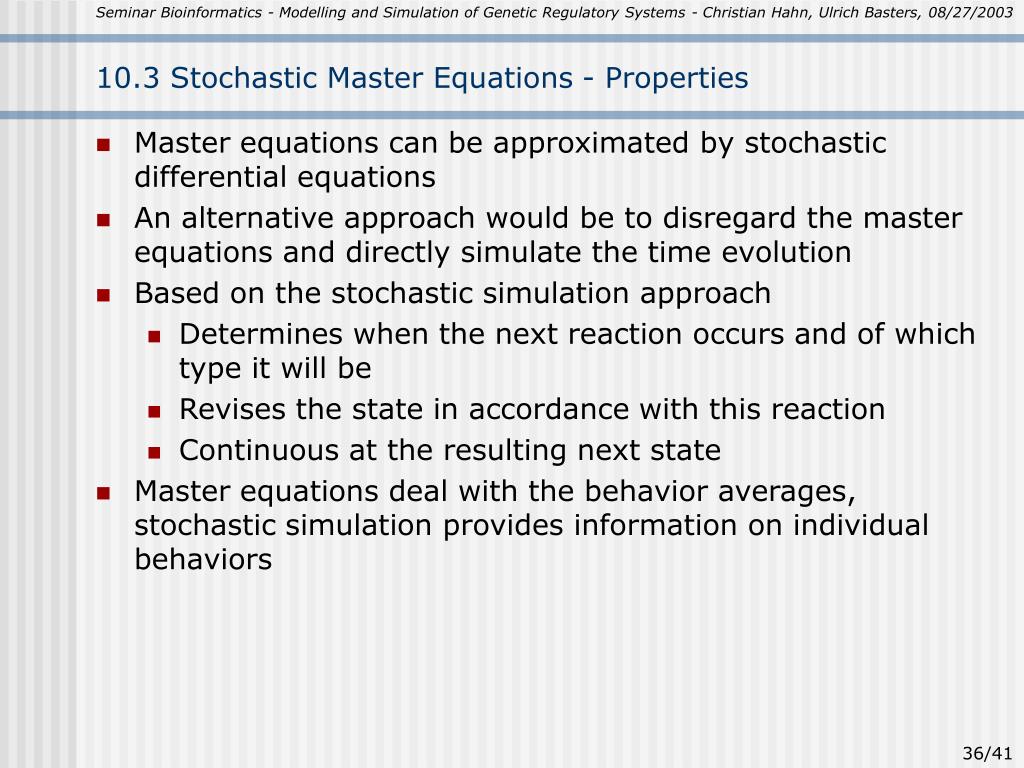

  37. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 10.3 Stochastic Master Equations - Properties • Master equations can be approximated by stochastic differential equations • An alternative approach would be to disregard the master equations and directly simulate the time evolution • Based on the stochastic simulation approach • Determines when the next reaction occurs and of which type it will be • Revises the state in accordance with this reaction • Continuous at the resulting next state • Master equations deal with the behavior averages, stochastic simulation provides information on individual behaviors

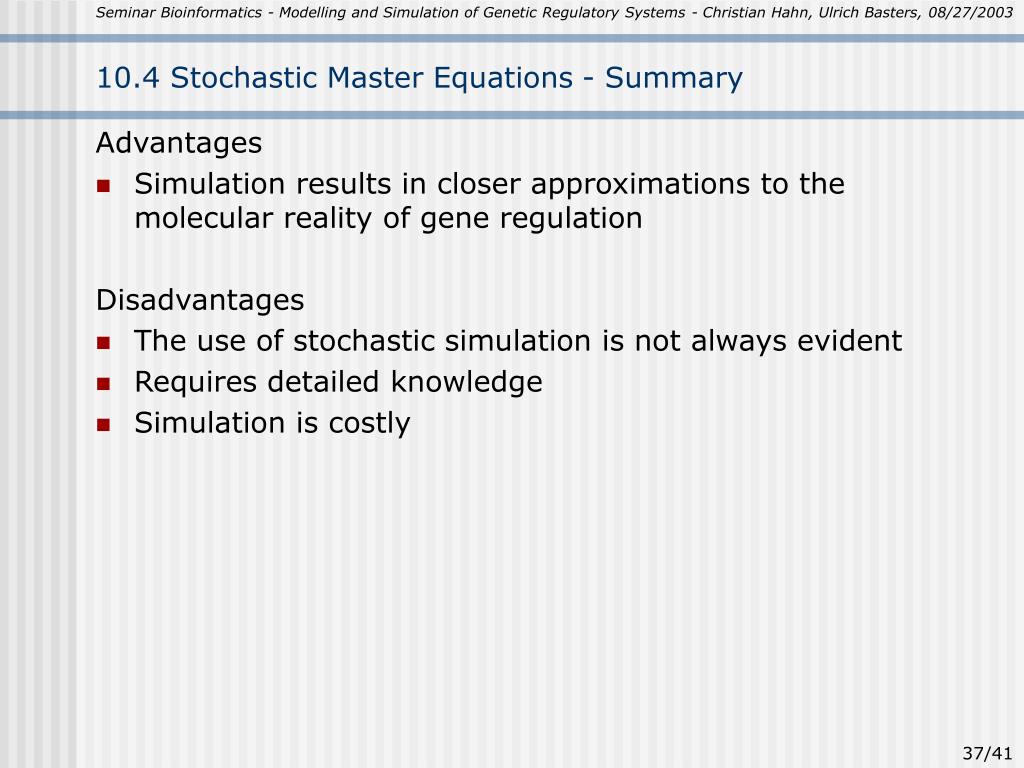

  38. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 10.4 Stochastic Master Equations - Summary Advantages • Simulation results in closer approximations to the molecular reality of gene regulation Disadvantages • The use of stochastic simulation is not always evident • Requires detailed knowledge • Simulation is costly

  39. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 11.1 Rule-Based Formalisms (RBF) - Definiton • Knowledge-based or rule-based simulation formalisms, permit rich knowledge about system to express in a single formalism • Consist of two components: facts and rules • The rules consist of two parts: condition and action Advantages • Capability to deal with a richer variety of biological knowledge Disadvantages • Difficulties in maintaining a consistent knowledge base • RBF cannot compete with former formalisms (quantitatively)

  40. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 12.1 Conclusions Major difficulties in modeling and simulating genetic regulatory networks: • Biochemical reaction mechanisms are not known or a incompletely known • Quantitative information and molecular concentration is only selfdom available Formalisms discussed allow GRSes to be modeled in quite different ways – depending on application:

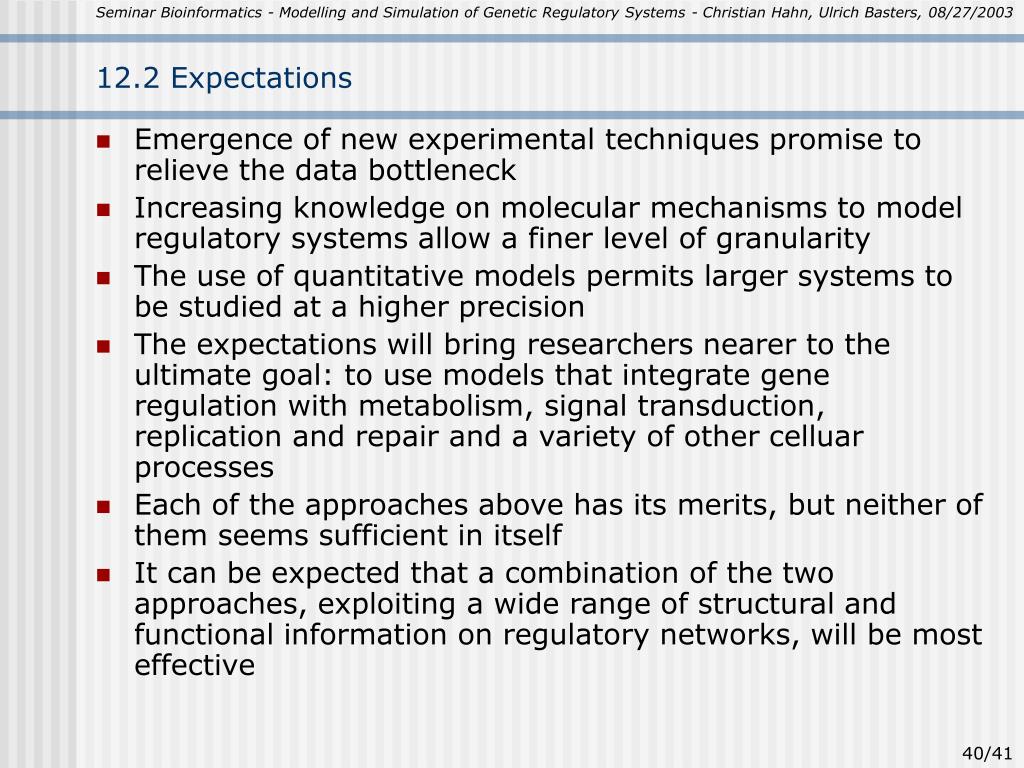

  41. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 12.2 Expectations • Emergence of new experimental techniques promise to relieve the data bottleneck • Increasing knowledge on molecular mechanisms to model regulatory systems allow a finer level of granularity • The use of quantitative models permits larger systems to be studied at a higher precision • The expectations will bring researchers nearer to the ultimate goal: to use models that integrate gene regulation with metabolism, signal transduction, replication and repair and a variety of other celluar processes • Each of the approaches above has its merits, but neither of them seems sufficient in itself • It can be expected that a combination of the two approaches, exploiting a wide range of structural and functional information on regulatory networks, will be most effective

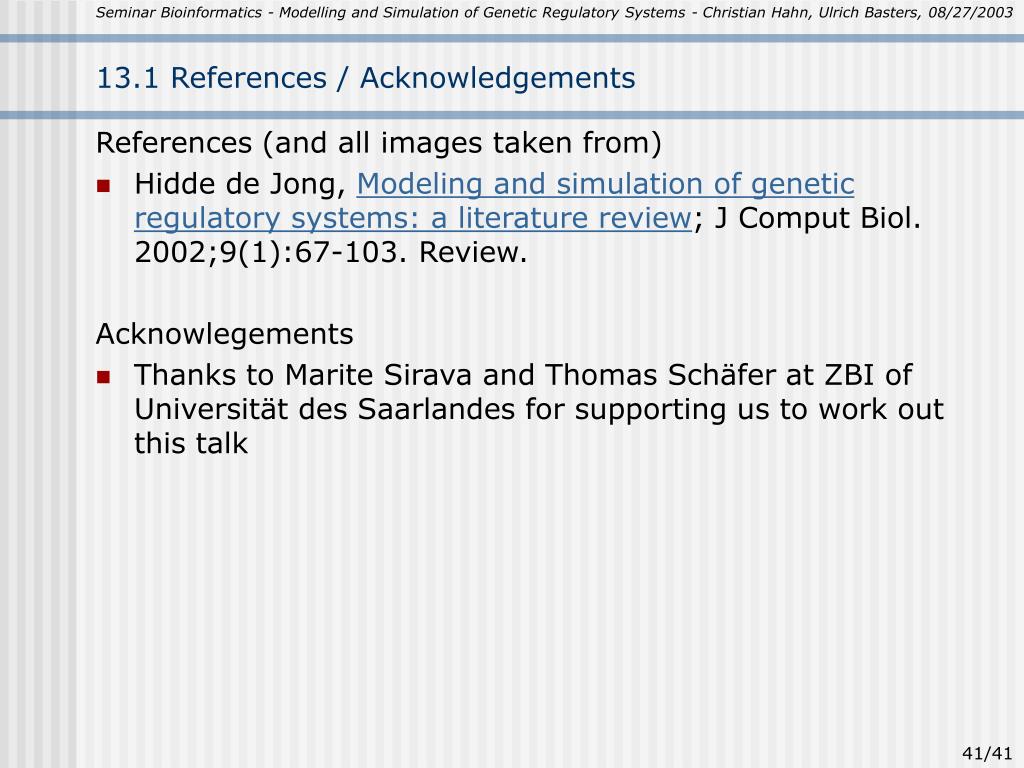

  42. Seminar Bioinformatics - Modelling and Simulation of Genetic Regulatory Systems - Christian Hahn, Ulrich Basters, 08/27/2003 13.1 References / Acknowledgements References (and all images taken from) • Hidde de Jong, Modeling and simulation of genetic regulatory systems: a literature review; J Comput Biol. 2002;9(1):67-103. Review.  Acknowlegements • Thanks to Marite Sirava and Thomas Schäfer at ZBI of Universität des Saarlandes for supporting us to work out this talk
