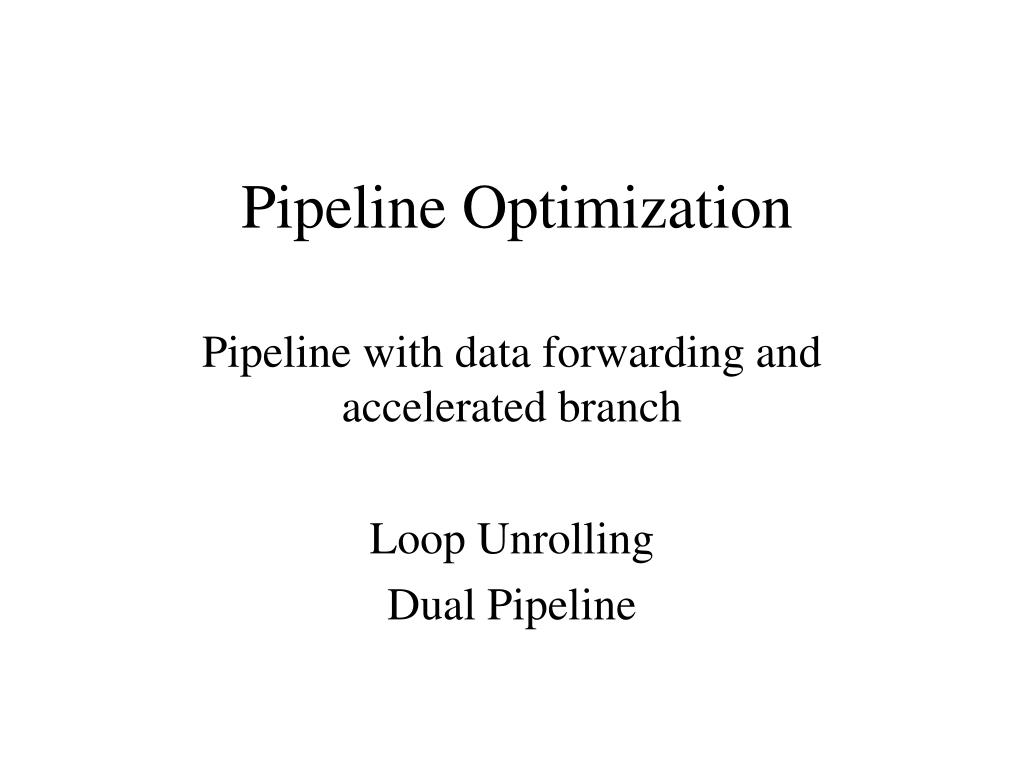

  1. Pipeline with data forwarding and accelerated branch Loop Unrolling Dual Pipeline Pipeline Optimization

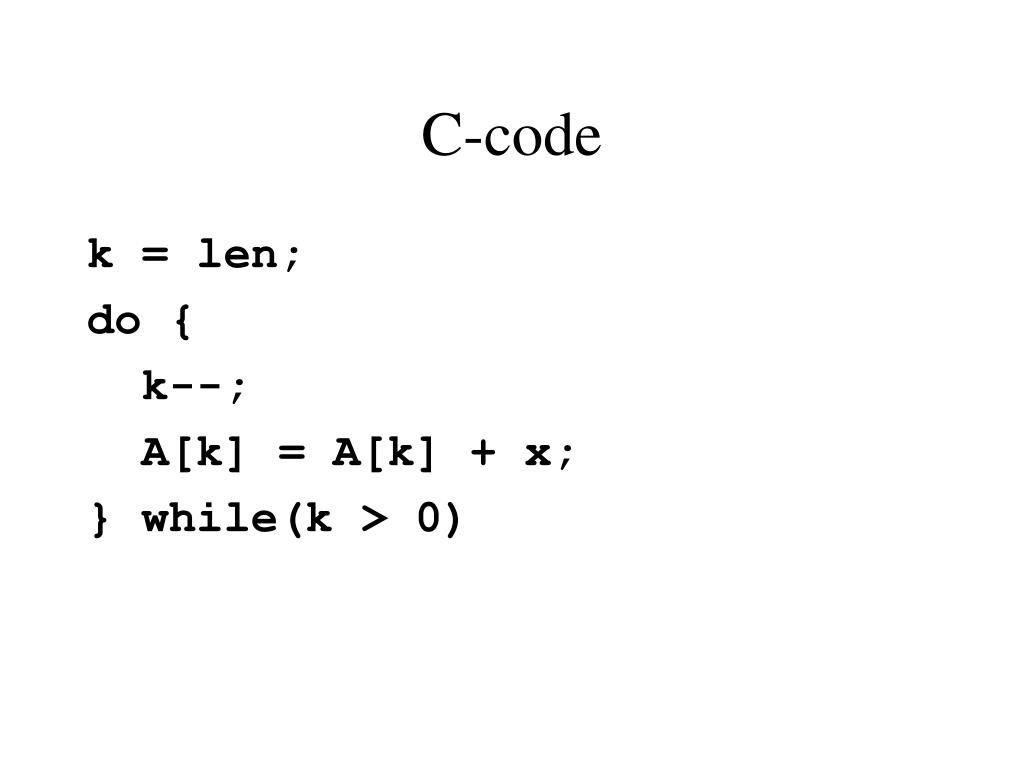

  2. C-code • k = len; • do { • k--; • A[k] = A[k] + x; • } while(k > 0)

  3. Register Usage • $so len • $s1 base address of A • $s2 x • $t1 address of A[k] • $t0 value of A[k] (old and new)

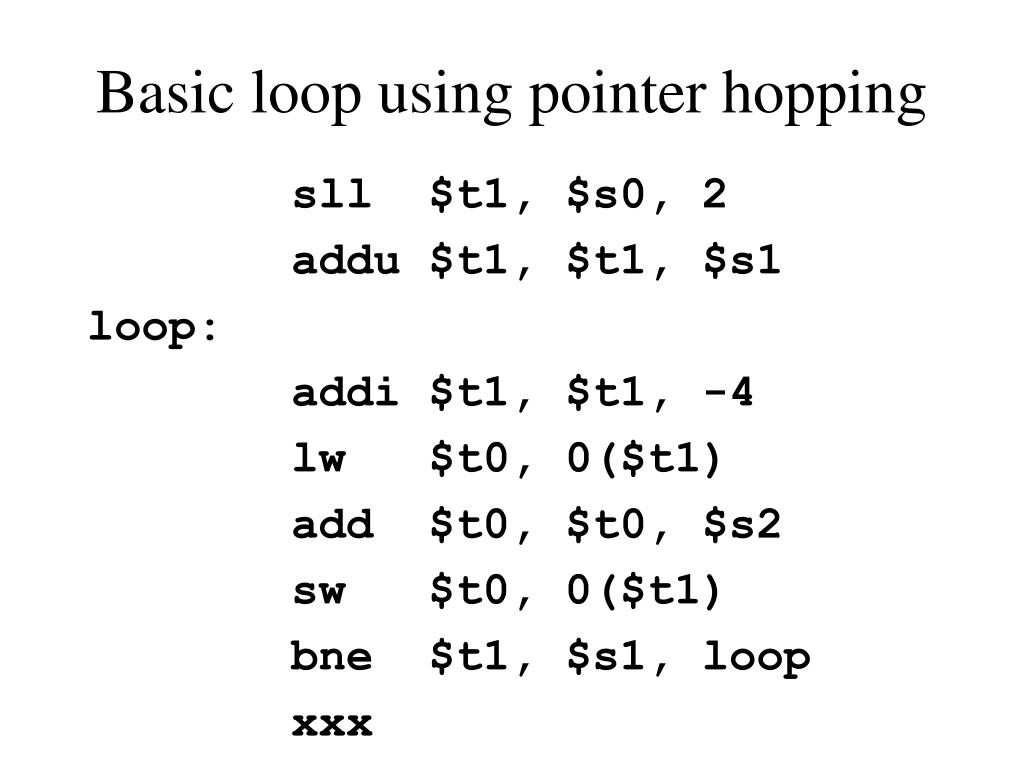

  4. Basic loop using pointer hopping • sll $t1, $s0, 2 • addu $t1, $t1, $s1 • loop: • addi $t1, $t1, -4 • lw $t0, 0($t1) • add $t0, $t0, $s2 • sw $t0, 0($t1) • bne $t1, $s1, loop • xxx

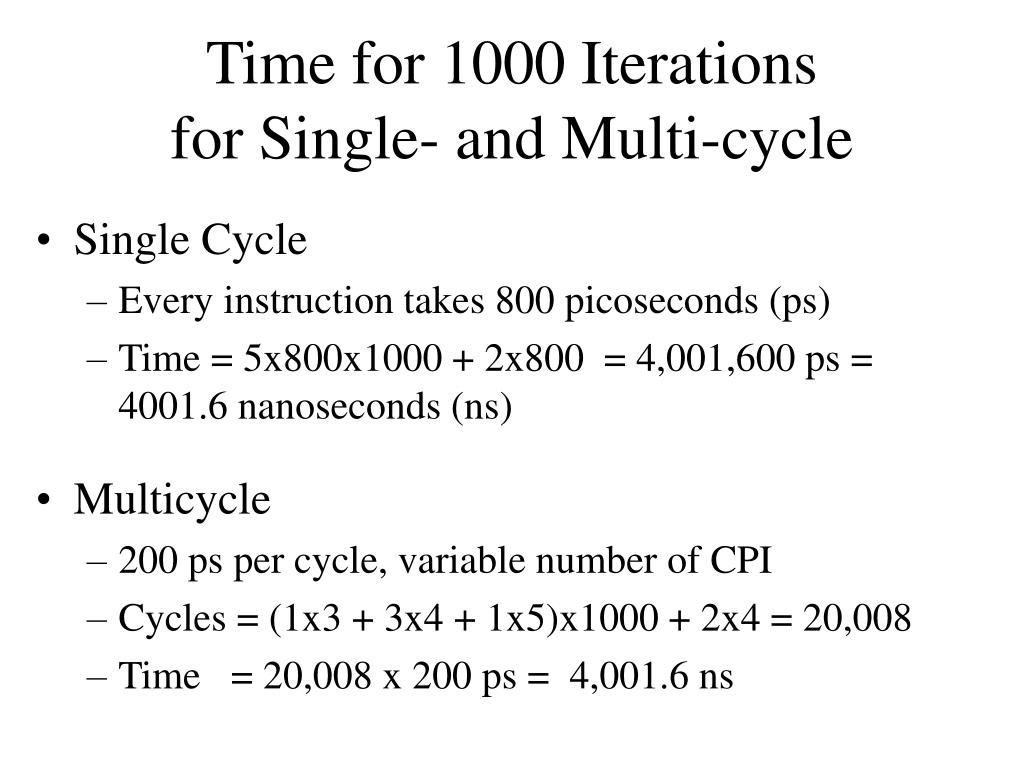

  5. Time for 1000 Iterationsfor Single- and Multi-cycle • Single Cycle • Every instruction takes 800 picoseconds (ps) • Time = 5x800x1000 + 2x800 = 4,001,600 ps = 4001.6 nanoseconds (ns) • Multicycle • 200 ps per cycle, variable number of CPI • Cycles = (1x3 + 3x4 + 1x5)x1000 + 2x4 = 20,008 • Time = 20,008 x 200 ps = 4,001.6 ns

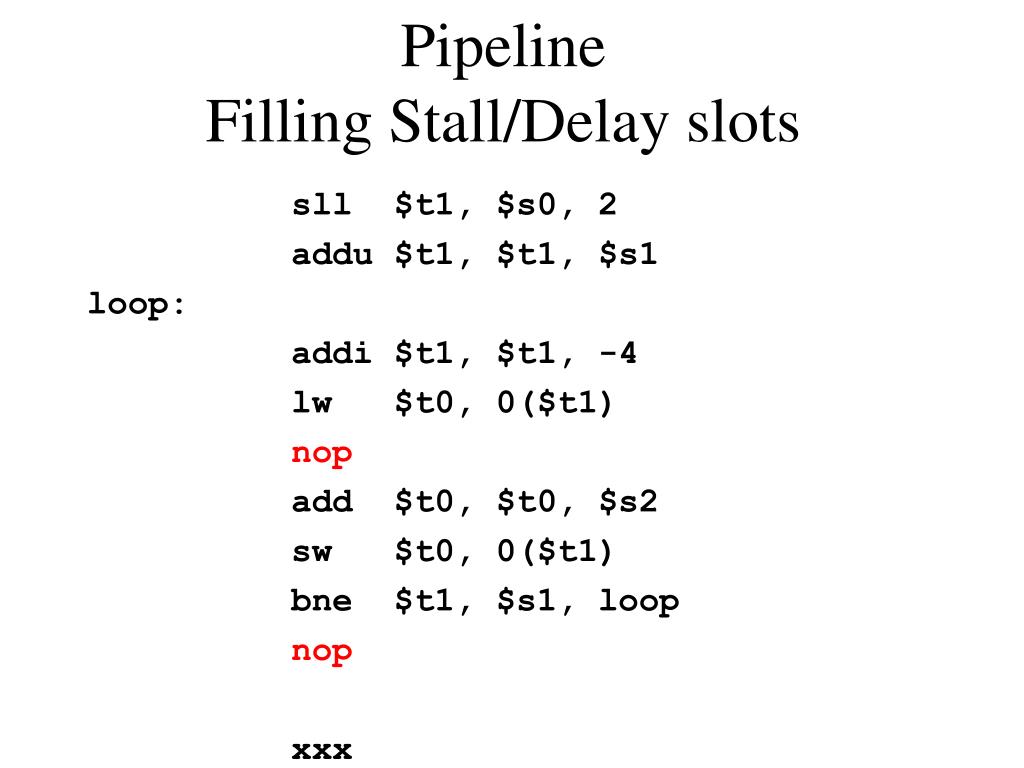

  6. PipelineFilling Stall/Delay slots • sll $t1, $s0, 2 • addu $t1, $t1, $s1 • loop: • addi $t1, $t1, -4 • lw $t0, 0($t1) • nop • add $t0, $t0, $s2 • sw $t0, 0($t1) • bne $t1, $s1, loop • nop • xxx

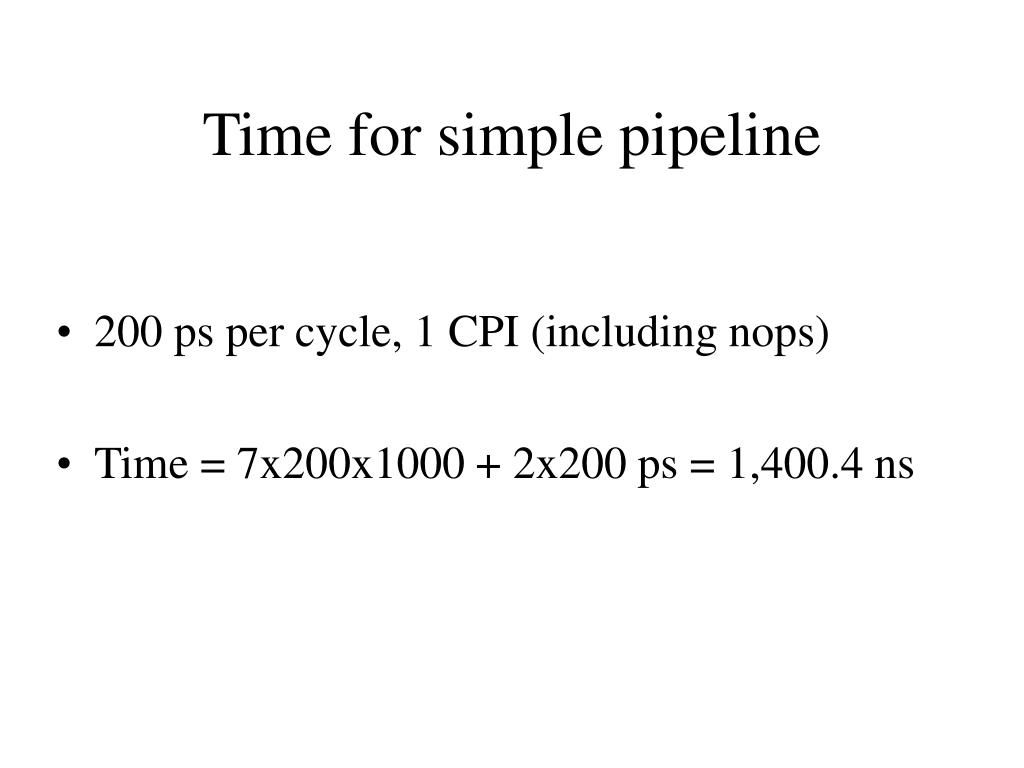

  7. Time for simple pipeline • 200 ps per cycle, 1 CPI (including nops) • Time = 7x200x1000 + 2x200 ps = 1,400.4 ns

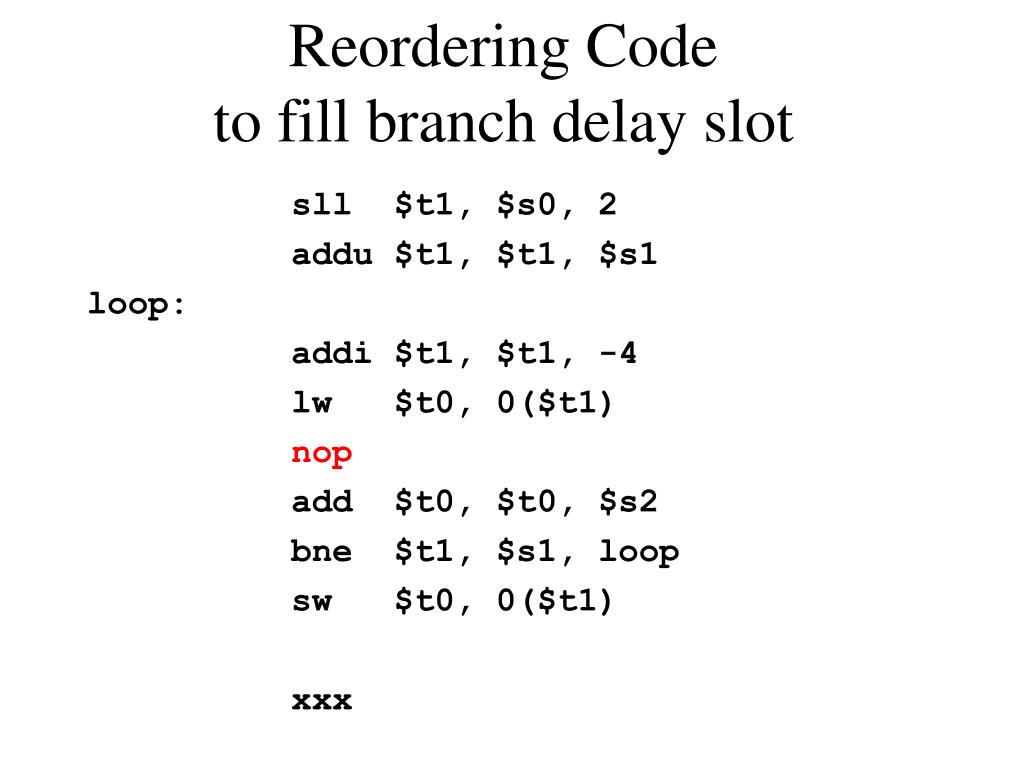

  8. Reordering Code to fill branch delay slot • sll $t1, $s0, 2 • addu $t1, $t1, $s1 • loop: • addi $t1, $t1, -4 • lw $t0, 0($t1) • nop • add $t0, $t0, $s2 • bne $t1, $s1, loop • sw $t0, 0($t1) • xxx

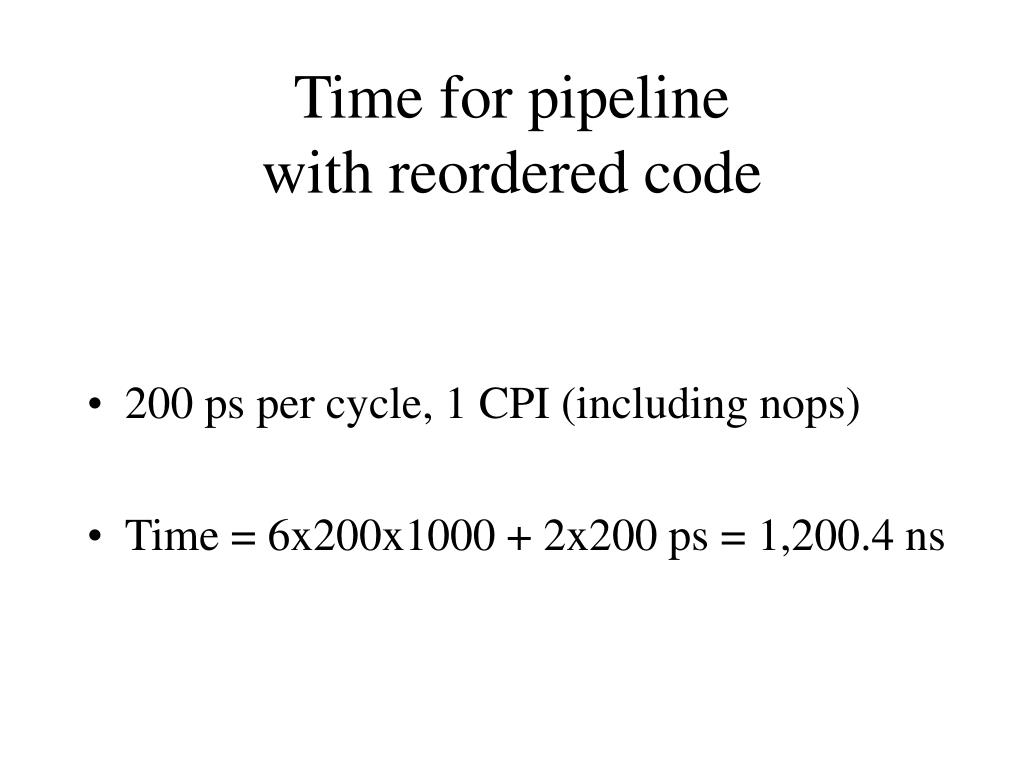

  9. Time for pipeline with reordered code • 200 ps per cycle, 1 CPI (including nops) • Time = 6x200x1000 + 2x200 ps = 1,200.4 ns

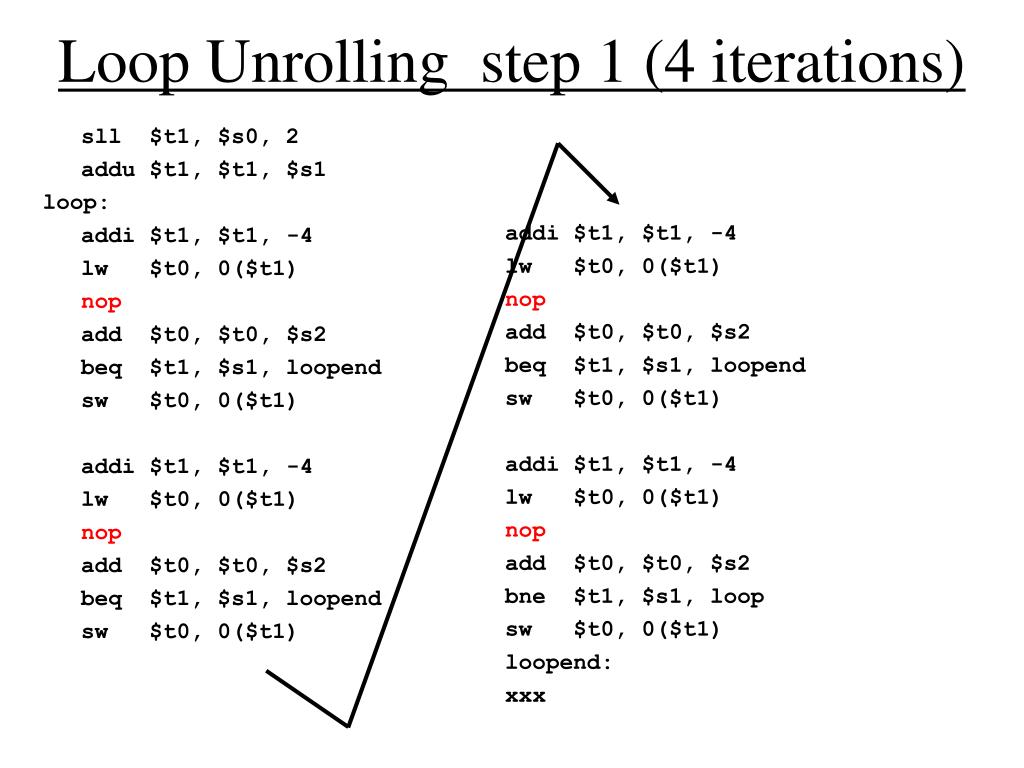

  10. Loop Unrolling step 1 (4 iterations) addi $t1, $t1, -4 lw $t0, 0($t1) nop add $t0, $t0, $s2 beq $t1, $s1, loopend sw $t0, 0($t1) addi $t1, $t1, -4 lw $t0, 0($t1) nop add $t0, $t0, $s2 bne $t1, $s1, loop sw $t0, 0($t1) loopend: xxx • sll $t1, $s0, 2 • addu $t1, $t1, $s1 • loop: • addi $t1, $t1, -4 • lw $t0, 0($t1) • nop • add $t0, $t0, $s2 • beq $t1, $s1, loopend • sw $t0, 0($t1) • addi $t1, $t1, -4 • lw $t0, 0($t1) • nop • add $t0, $t0, $s2 • beq $t1, $s1, loopend • sw $t0, 0($t1)

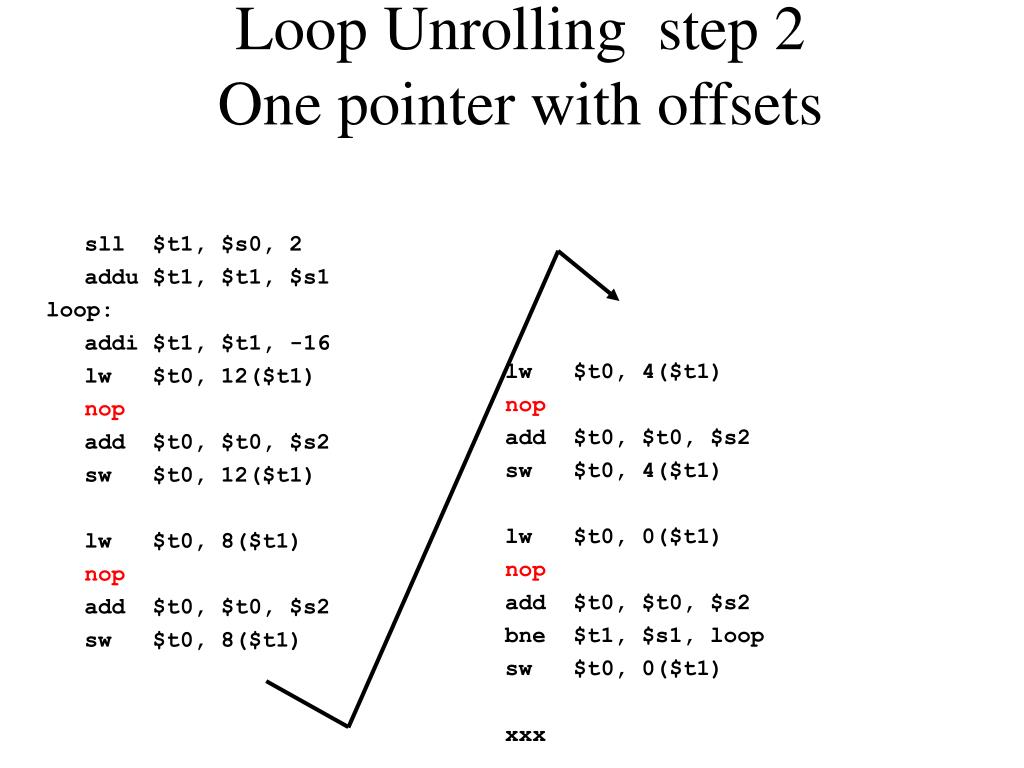

  11. Loop Unrolling step 2One pointer with offsets • sll $t1, $s0, 2 • addu $t1, $t1, $s1 • loop: • addi $t1, $t1, -16 • lw $t0, 12($t1) • nop • add $t0, $t0, $s2 • sw $t0, 12($t1) • lw $t0, 8($t1) • nop • add $t0, $t0, $s2 • sw $t0, 8($t1) lw $t0, 4($t1) nop add $t0, $t0, $s2 sw $t0, 4($t1) lw $t0, 0($t1) nop add $t0, $t0, $s2 bne $t1, $s1, loop sw $t0, 0($t1) xxx

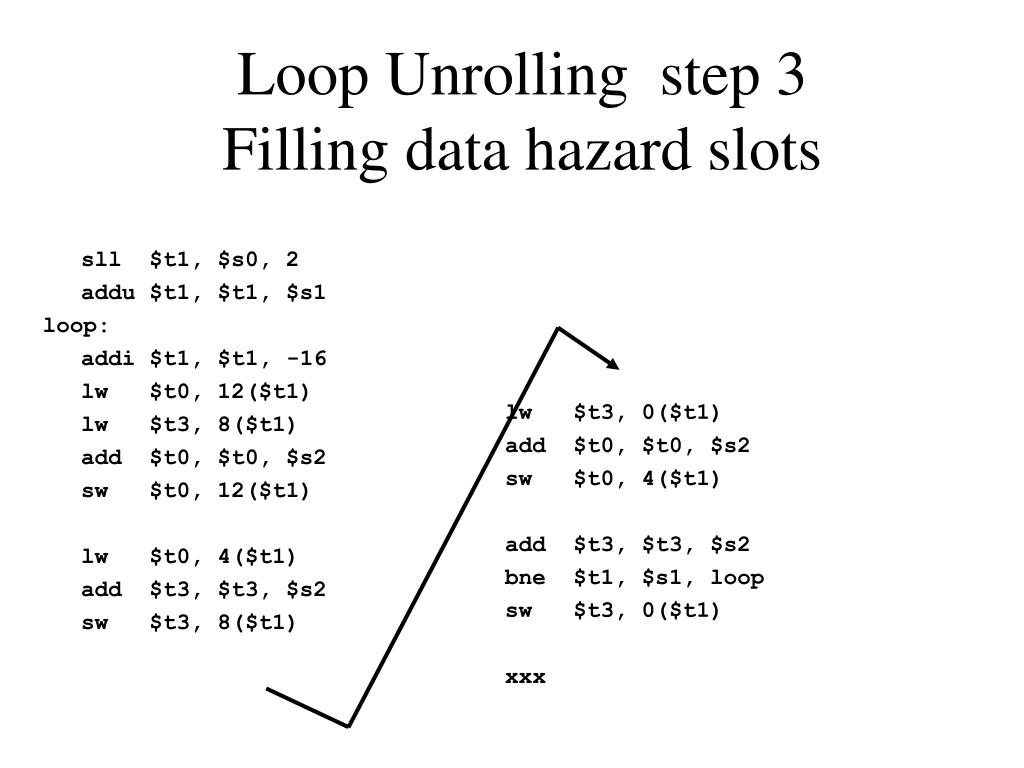

  12. Loop Unrolling step 3Filling data hazard slots • sll $t1, $s0, 2 • addu $t1, $t1, $s1 • loop: • addi $t1, $t1, -16 • lw $t0, 12($t1) • lw $t3, 8($t1) • add $t0, $t0, $s2 • sw $t0, 12($t1) • lw $t0, 4($t1) • add $t3, $t3, $s2 • sw $t3, 8($t1) lw $t3, 0($t1) add $t0, $t0, $s2 sw $t0, 4($t1) add $t3, $t3, $s2 bne $t1, $s1, loop sw $t3, 0($t1) xxx

  13. Time for pipeline with loop unrolling • 200 ps per cycle, 1 CPI (including nops) • 4 iterations per loop means 250 times in loop • Time = 14x200x250 + 2x200 ps = 700.4 ns

  14. Dual Pipeline • Two instruction pipe • one for arithmetic or branch • one for load or store • Instructions can be issued at same time • if no data dependencies • following instructions follow same delay rules • Loop unrolling for more overlap • Register renaming to avoid data dependency

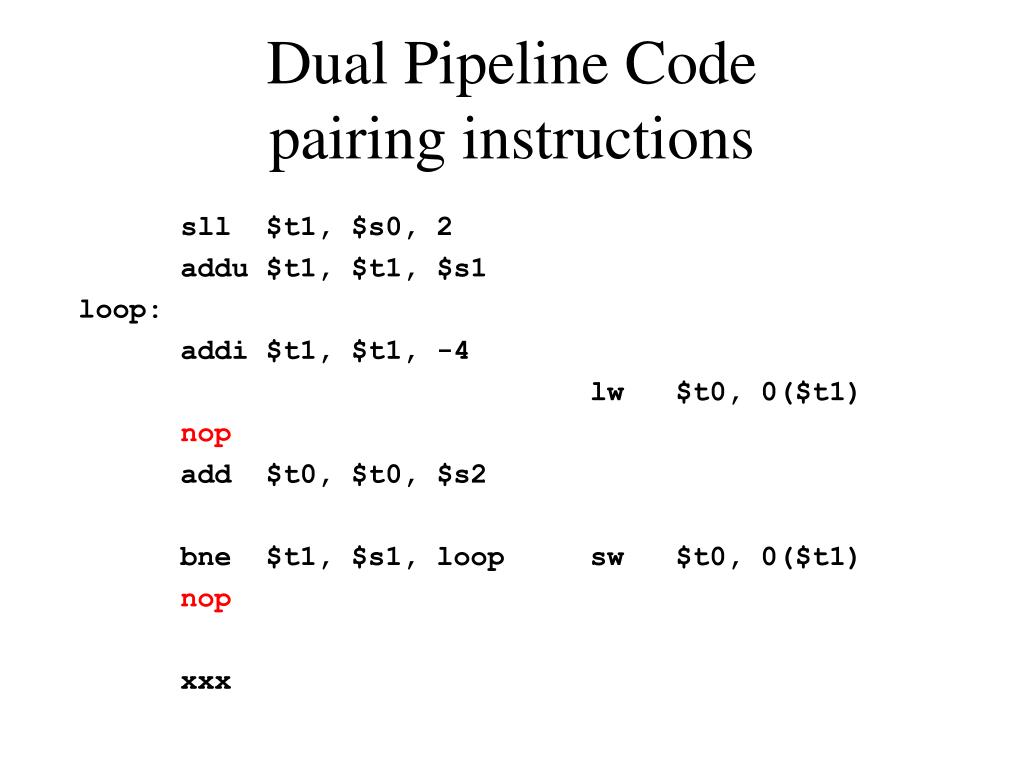

  15. Dual Pipeline Code pairing instructions • sll $t1, $s0, 2 • addu $t1, $t1, $s1 • loop: • addi $t1, $t1, -4 • lw $t0, 0($t1) • nop • add $t0, $t0, $s2 • bne $t1, $s1, loop sw $t0, 0($t1) • nop • xxx

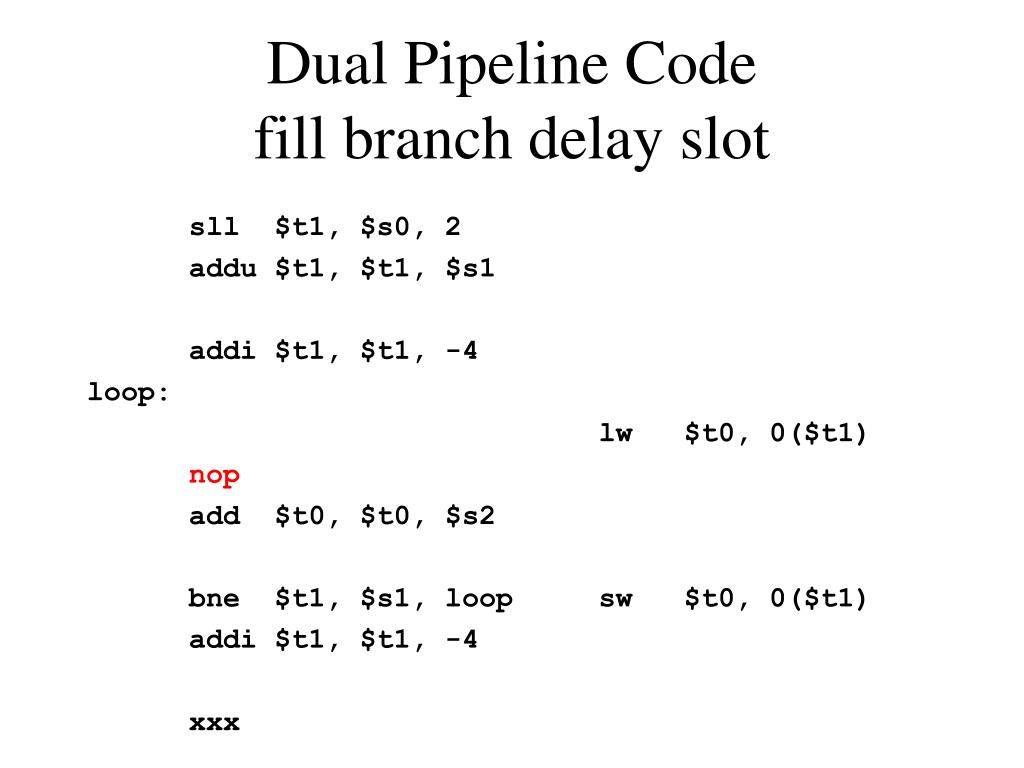

  16. Dual Pipeline Codefill branch delay slot • sll $t1, $s0, 2 • addu $t1, $t1, $s1 • addi $t1, $t1, -4 • loop: • lw $t0, 0($t1) • nop • add $t0, $t0, $s2 • bne $t1, $s1, loop sw $t0, 0($t1) • addi $t1, $t1, -4 • xxx

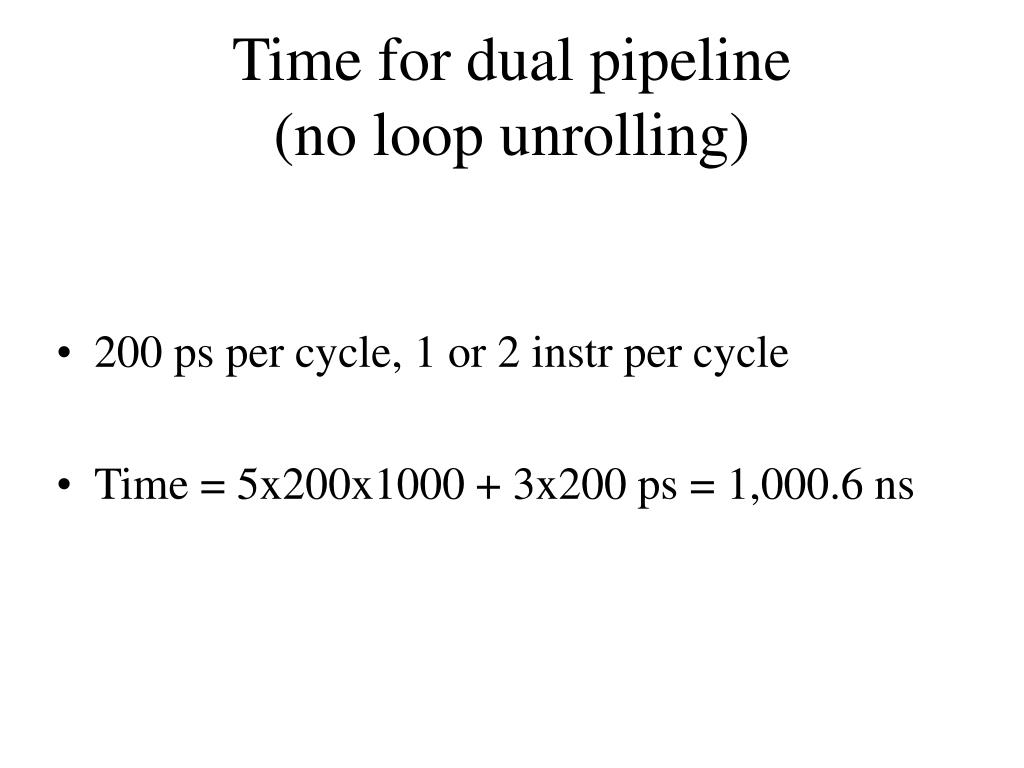

  17. Time for dual pipeline(no loop unrolling) • 200 ps per cycle, 1 or 2 instr per cycle • Time = 5x200x1000 + 3x200 ps = 1,000.6 ns

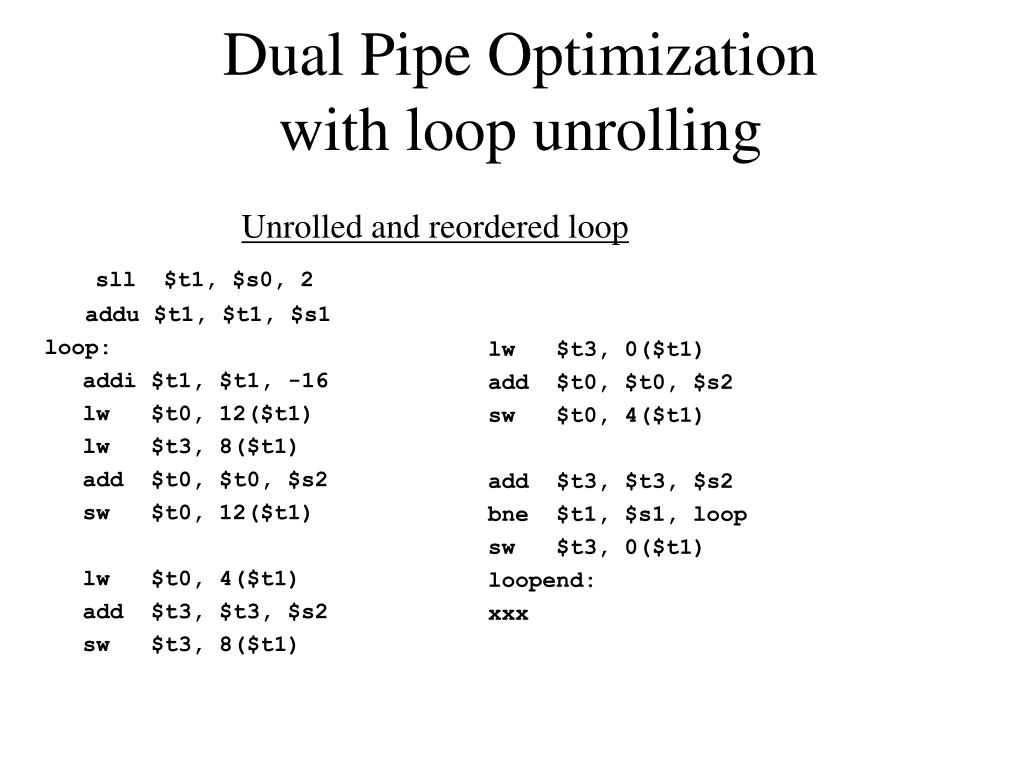

  18. Dual Pipe Optimizationwith loop unrolling Unrolled and reordered loop • sll $t1, $s0, 2 • addu $t1, $t1, $s1 • loop: • addi $t1, $t1, -16 • lw $t0, 12($t1) • lw $t3, 8($t1) • add $t0, $t0, $s2 • sw $t0, 12($t1) • lw $t0, 4($t1) • add $t3, $t3, $s2 • sw $t3, 8($t1) lw $t3, 0($t1) add $t0, $t0, $s2 sw $t0, 4($t1) add $t3, $t3, $s2 bne $t1, $s1, loop sw $t3, 0($t1) loopend: xxx

  19. step 1, use more registers(register renaming) • sll $t1, $s0, 2 • addu $t1, $t1, $s1 • loop: • addi $t1, $t1, -16 • lw $t0, 12($t1) • lw $t3, 8($t1) • add $t0, $t0, $s2 • sw $t0, 12($t1) • lw $t5, 4($t1) • add $t3, $t3, $s2 • sw $t3, 8($t1) lw $t7, 0($t1) add $t5, $t5, $s2 sw $t5, 4($t1) add $t7, $t7, $s2 bne $t1, $s1, loop sw $t7, 0($t1) loopend: xxx

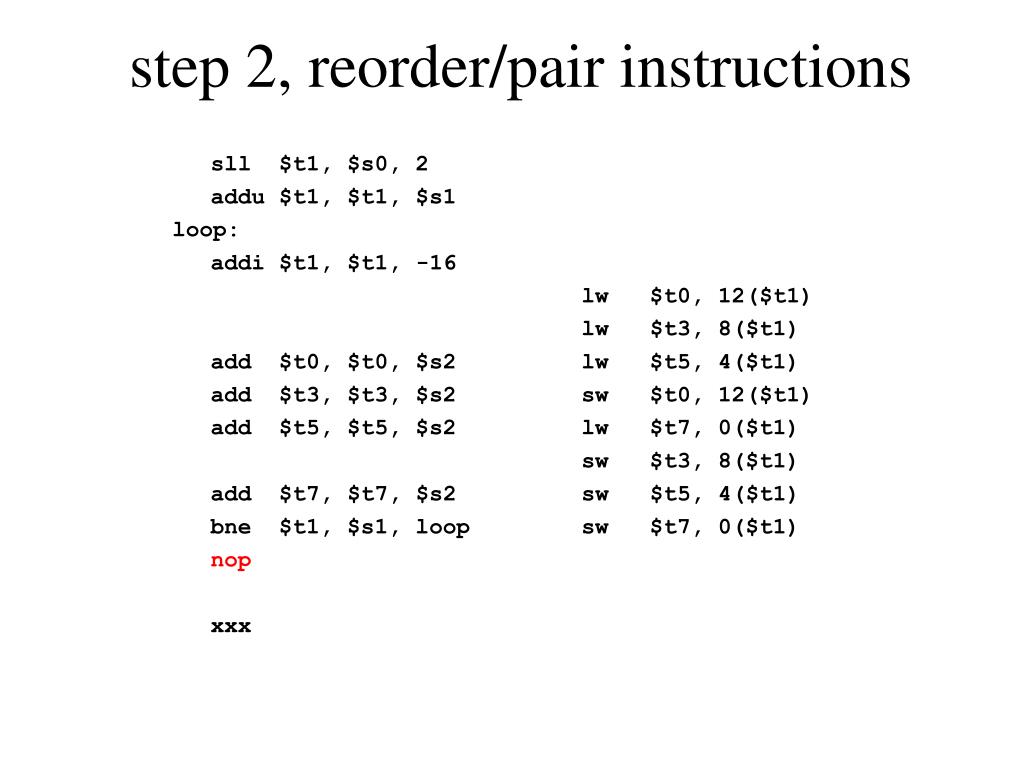

  20. step 2, reorder/pair instructions • sll $t1, $s0, 2 • addu $t1, $t1, $s1 • loop: • addi $t1, $t1, -16 • lw $t0, 12($t1) • lw $t3, 8($t1) • add $t0, $t0, $s2 lw $t5, 4($t1) • add $t3, $t3, $s2 sw $t0, 12($t1) • add $t5, $t5, $s2 lw $t7, 0($t1) • sw $t3, 8($t1) • add $t7, $t7, $s2 sw $t5, 4($t1) • bne $t1, $s1, loop sw $t7, 0($t1) • nop • xxx

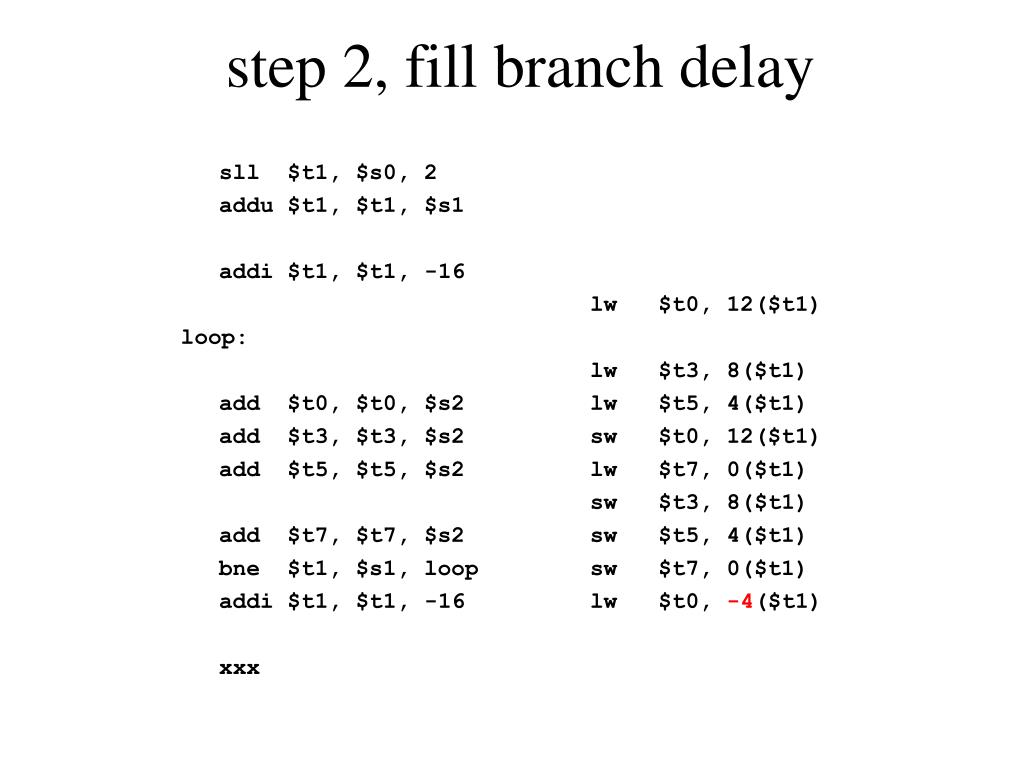

  21. step 2, fill branch delay • sll $t1, $s0, 2 • addu $t1, $t1, $s1 • addi $t1, $t1, -16 • lw $t0, 12($t1) • loop: • lw $t3, 8($t1) • add $t0, $t0, $s2 lw $t5, 4($t1) • add $t3, $t3, $s2 sw $t0, 12($t1) • add $t5, $t5, $s2 lw $t7, 0($t1) • sw $t3, 8($t1) • add $t7, $t7, $s2 sw $t5, 4($t1) • bne $t1, $s1, loop sw $t7, 0($t1) • addi $t1, $t1, -16 lw $t0, -4($t1) • xxx

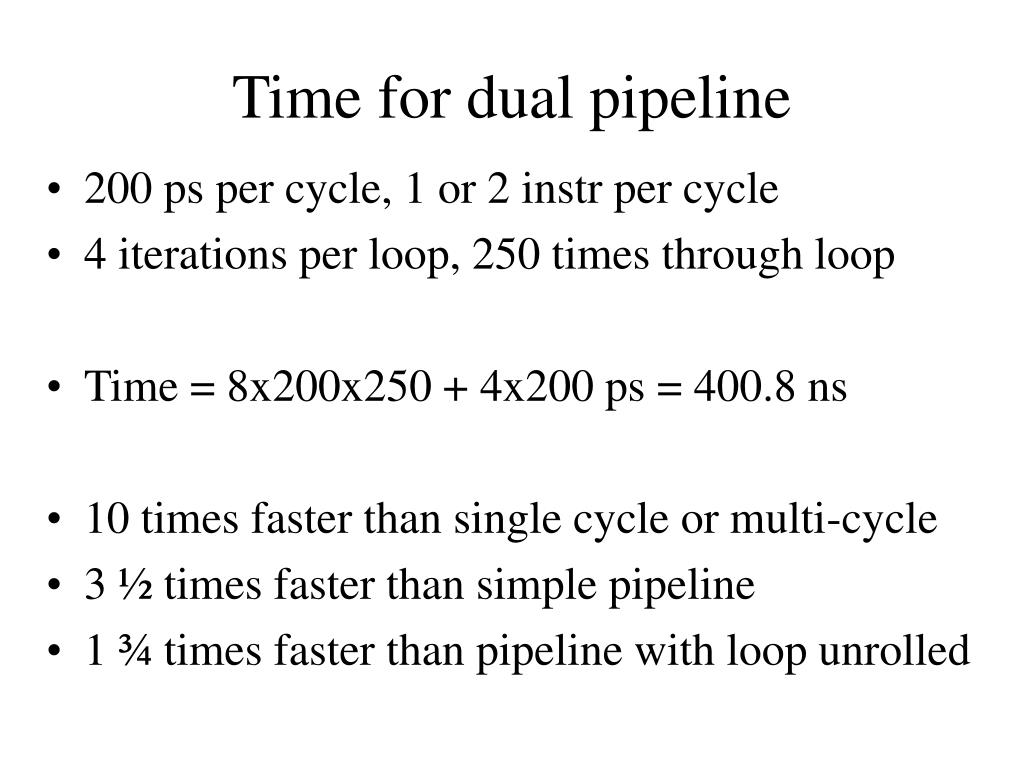

  22. Time for dual pipeline • 200 ps per cycle, 1 or 2 instr per cycle • 4 iterations per loop, 250 times through loop • Time = 8x200x250 + 4x200 ps = 400.8 ns • 10 times faster than single cycle or multi-cycle • 3 ½ times faster than simple pipeline • 1 ¾ times faster than pipeline with loop unrolled

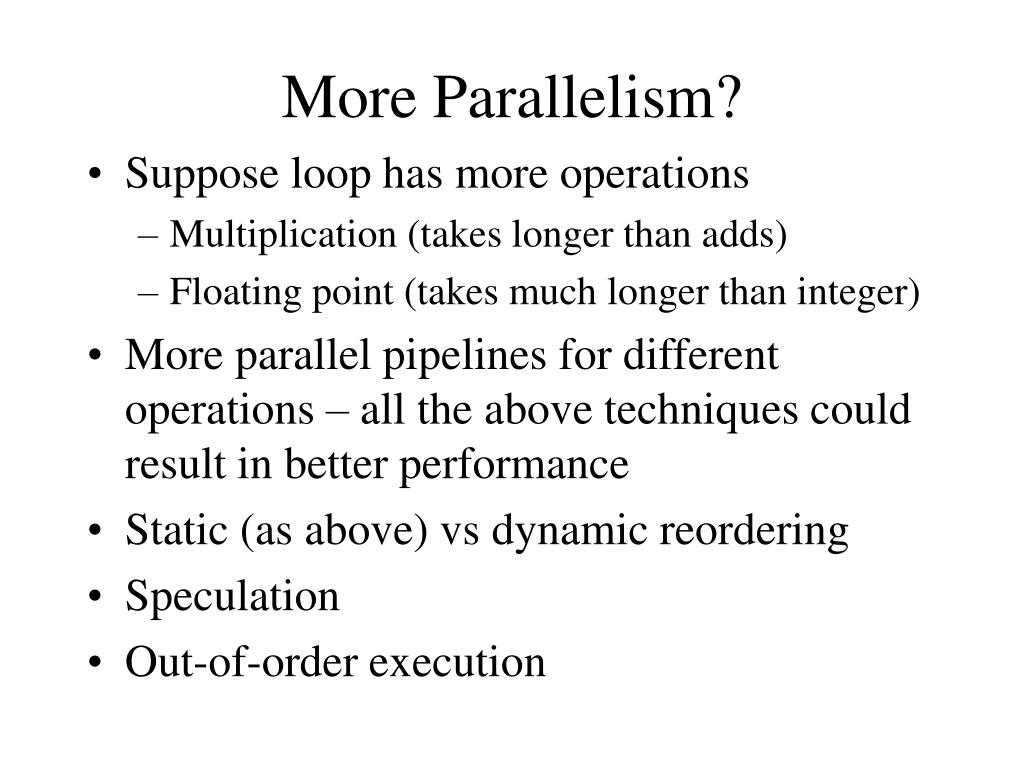

  23. More Parallelism? • Suppose loop has more operations • Multiplication (takes longer than adds) • Floating point (takes much longer than integer) • More parallel pipelines for different operations – all the above techniques could result in better performance • Static (as above) vs dynamic reordering • Speculation • Out-of-order execution
