Multi-anode linear silicon drift detectors for soft X-ray diffraction and spectroscopy

Multi-anode linear silicon drift detectors for soft X-ray diffraction and spectroscopy. Jan Šonský , R. Koornneef, J. Huizenga, R.W. Hollander, C.W.E. van Eijk Radiation Technology Group, Interfaculty Reactor Institute, TUDelft (e-mail: sonsky@iri.tudelft.nl ) P.M. Sarro, L.K. Nanver

lane-rollins
Télécharger la présentation

Multi-anode linear silicon drift detectors for soft X-ray diffraction and spectroscopy

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

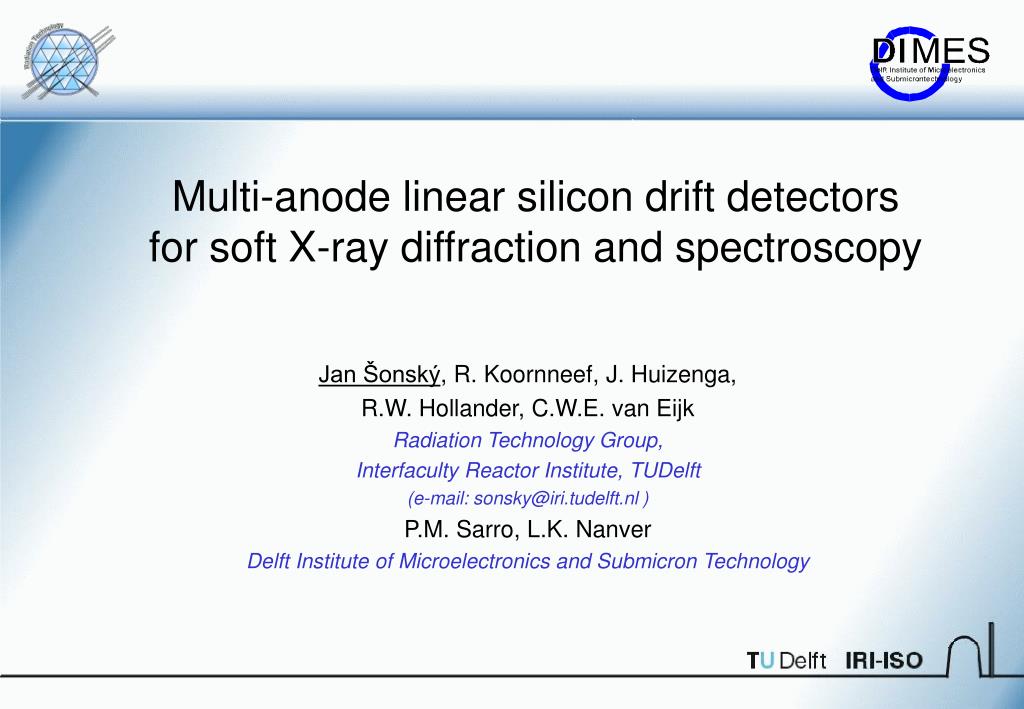

  1. Multi-anode linear silicon drift detectors for soft X-ray diffraction and spectroscopy Jan Šonský, R. Koornneef, J. Huizenga, R.W. Hollander, C.W.E. van Eijk Radiation Technology Group, Interfaculty Reactor Institute, TUDelft (e-mail: sonsky@iri.tudelft.nl ) P.M. Sarro, L.K. Nanver Delft Institute of Microelectronics and Submicron Technology

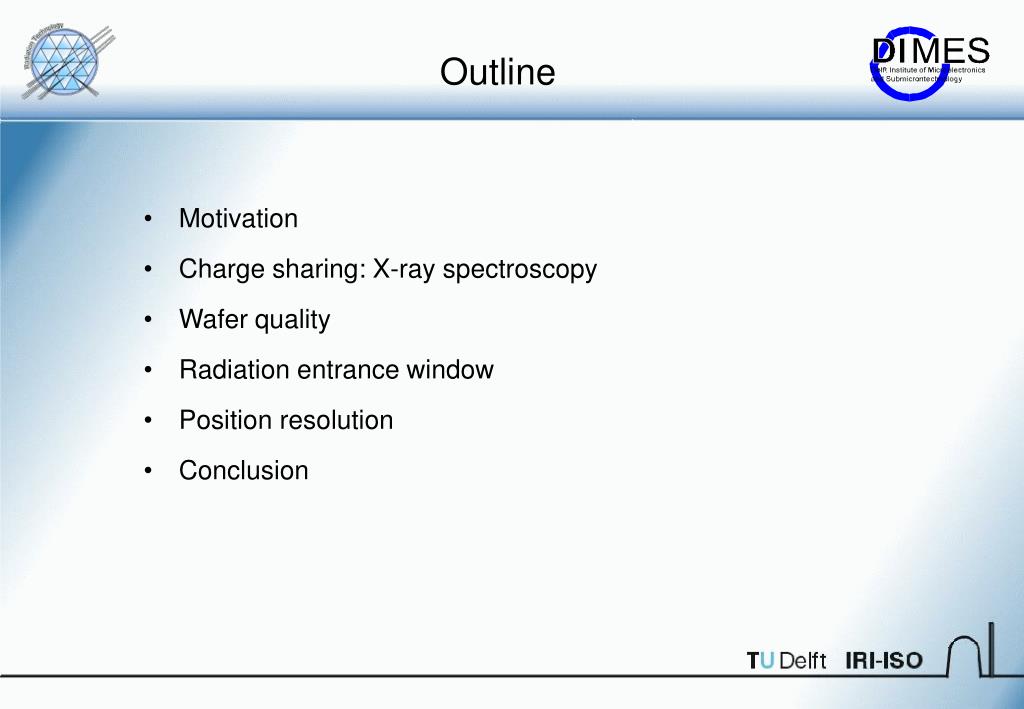

  2. Outline • Motivation • Charge sharing: X-ray spectroscopy • Wafer quality • Radiation entrance window • Position resolution • Conclusion

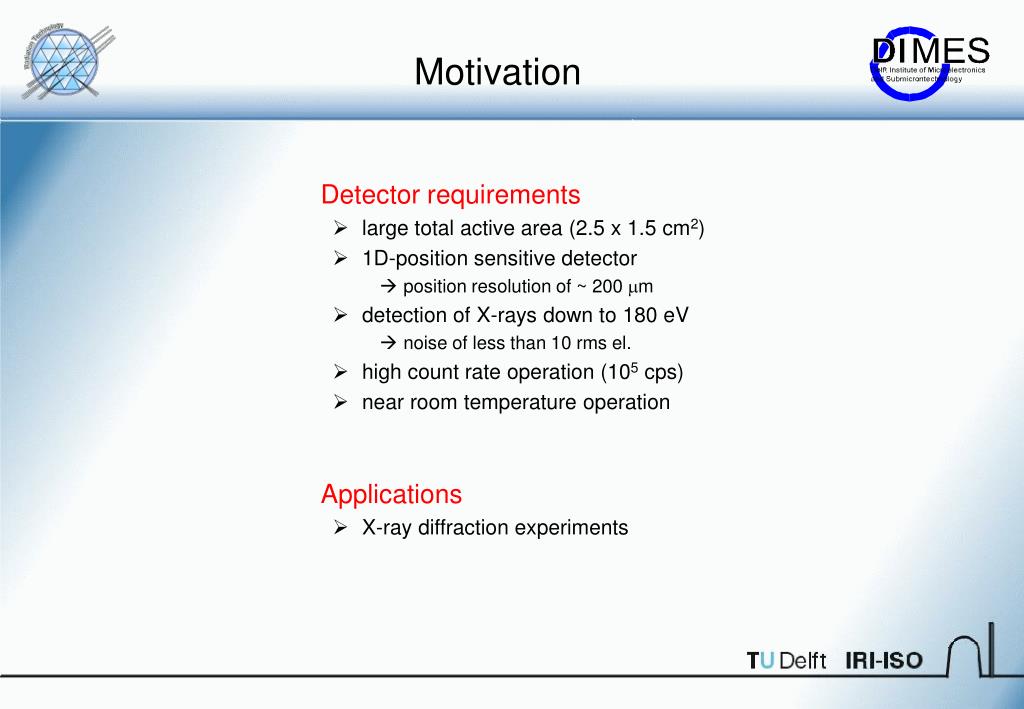

  3. Motivation Detector requirements • large total active area (2.5 x 1.5 cm2) • 1D-position sensitive detector • position resolution of ~ 200 mm • detection of X-rays down to 180 eV • noise of less than 10 rms el. • high count rate operation (105 cps) • near room temperature operation Applications • X-ray diffraction experiments

  4. Motivation - existing technologies Fully depleted pn-CCD • high-ohmic wafer allows detection of X-rays with energies up to 10 keV • energy resolution of 130 eV (~5 rms el.) • position resolution of 150 mm • integrator (~100 cps) Pixel detector • match the required position and energy resolution • small active area per pixel • high number of read-out channels • flip-chip bump bonding

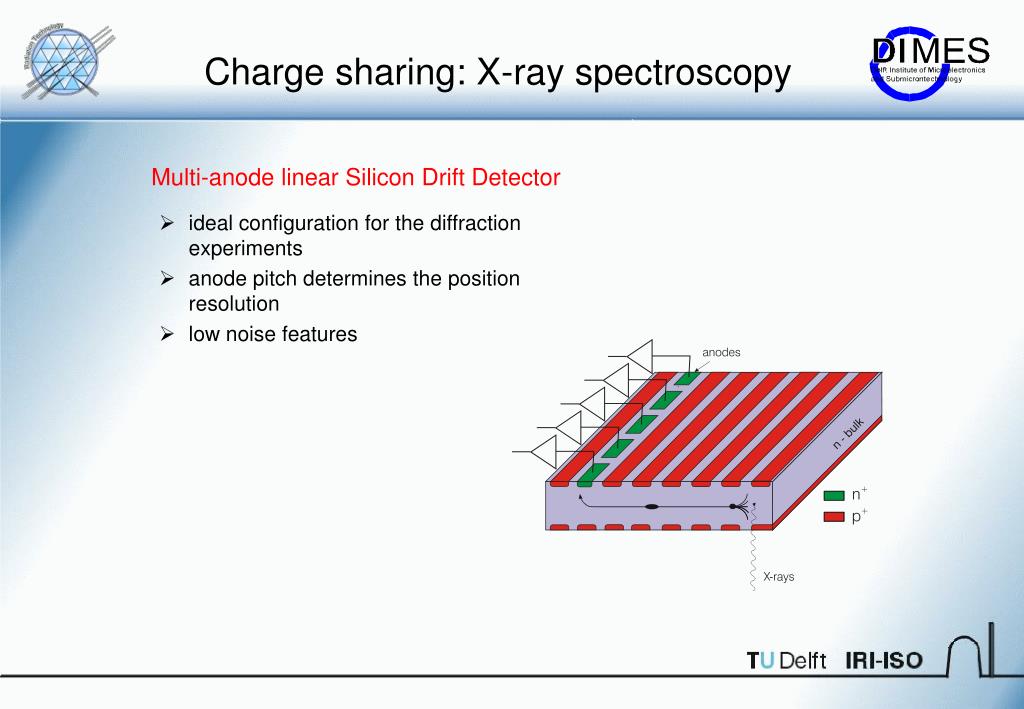

  5. Charge sharing: X-ray spectroscopy Multi-anode linear Silicon Drift Detector • ideal configuration for the diffraction experiments • anode pitch determines the position resolution • low noise features

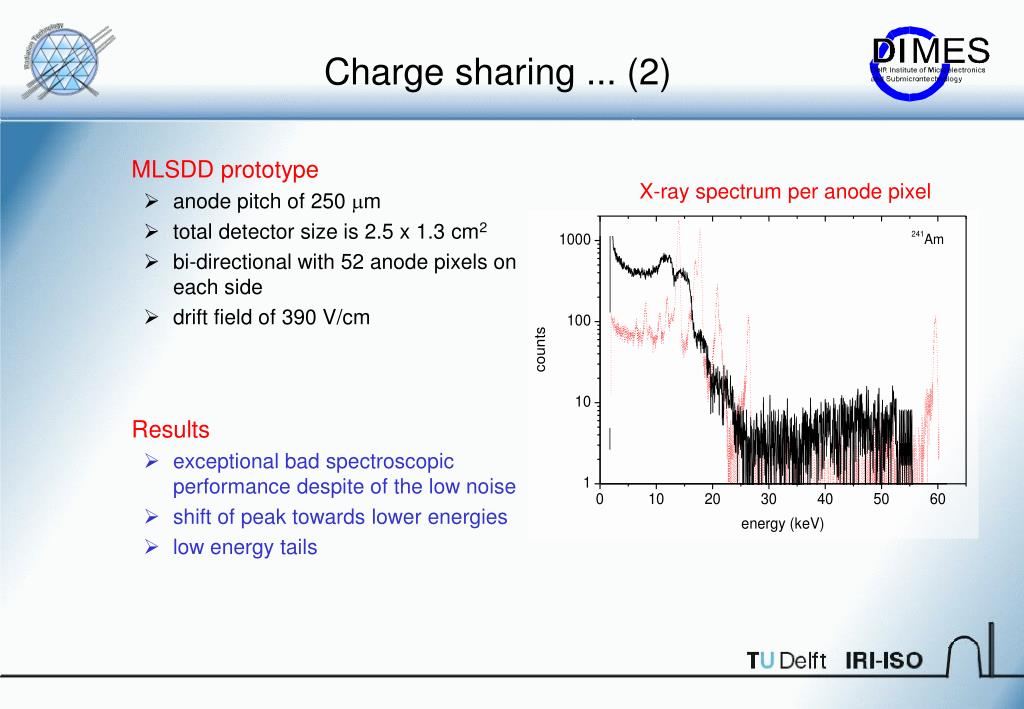

  6. Charge sharing ... (2) MLSDD prototype • anode pitch of 250 mm • total detector size is 2.5 x 1.3 cm2 • bi-directional with 52 anode pixels on each side • drift field of 390 V/cm X-ray spectrum per anode pixel Results • exceptional bad spectroscopic performance despite of the low noise • shift of peak towards lower energies • low energy tails

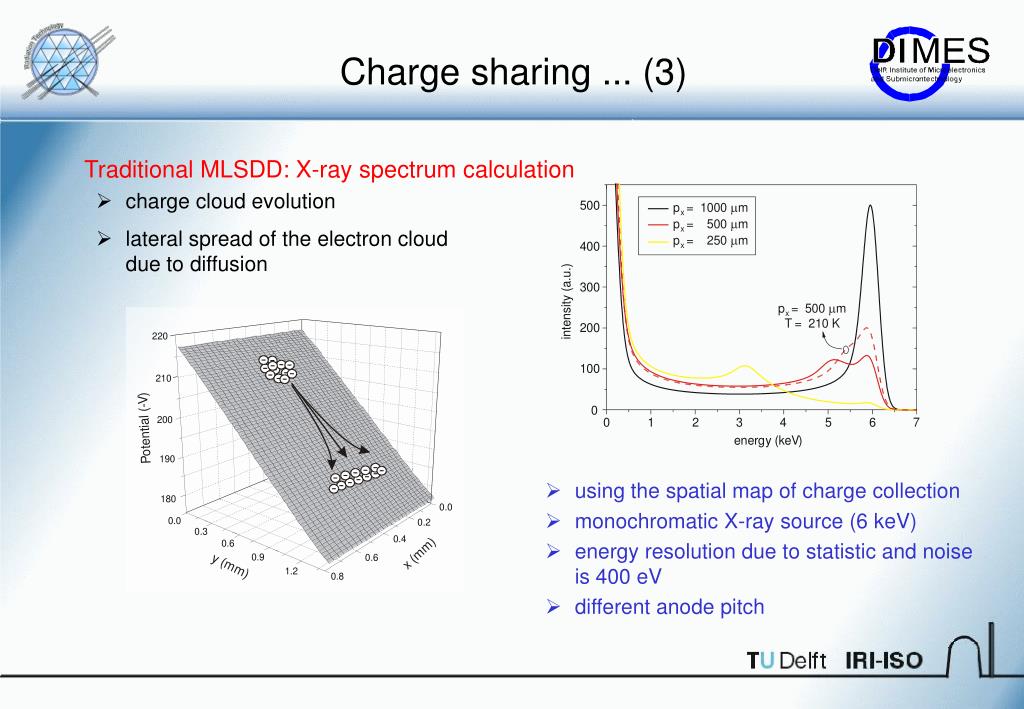

  7. Charge sharing ... (3) Traditional MLSDD: X-ray spectrum calculation • charge cloud evolution • lateral spread of the electron cloud due to diffusion • using the spatial map of charge collection • monochromatic X-ray source (6 keV) • energy resolution due to statistic and noise is 400 eV • different anode pitch

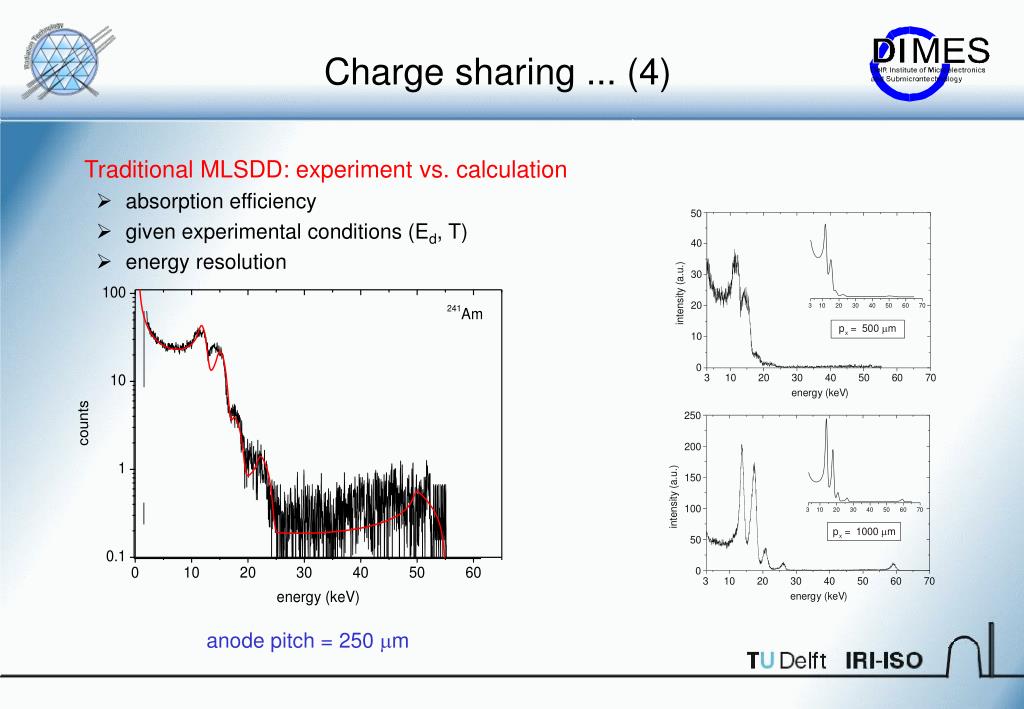

  8. Charge sharing ... (4) Traditional MLSDD: experiment vs. calculation • absorption efficiency • given experimental conditions (Ed, T) • energy resolution anode pitch = 250 mm

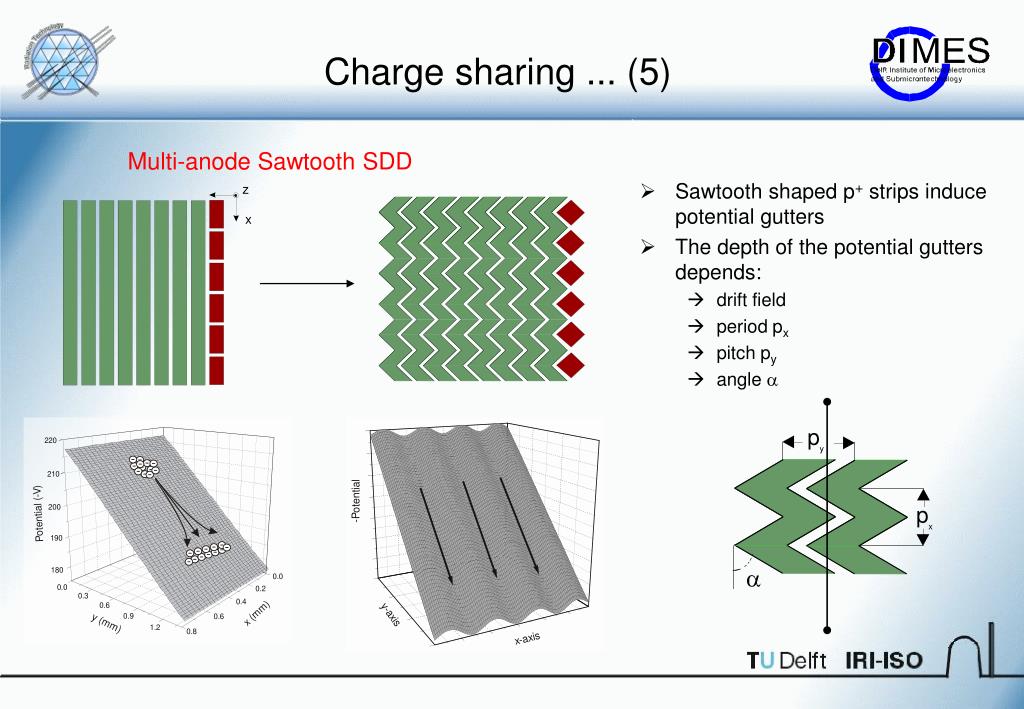

  9. z x Charge sharing ... (5) Multi-anode Sawtooth SDD • Sawtooth shaped p+ strips induce potential gutters • The depth of the potential gutters depends: • drift field • period px • pitch py • angle a

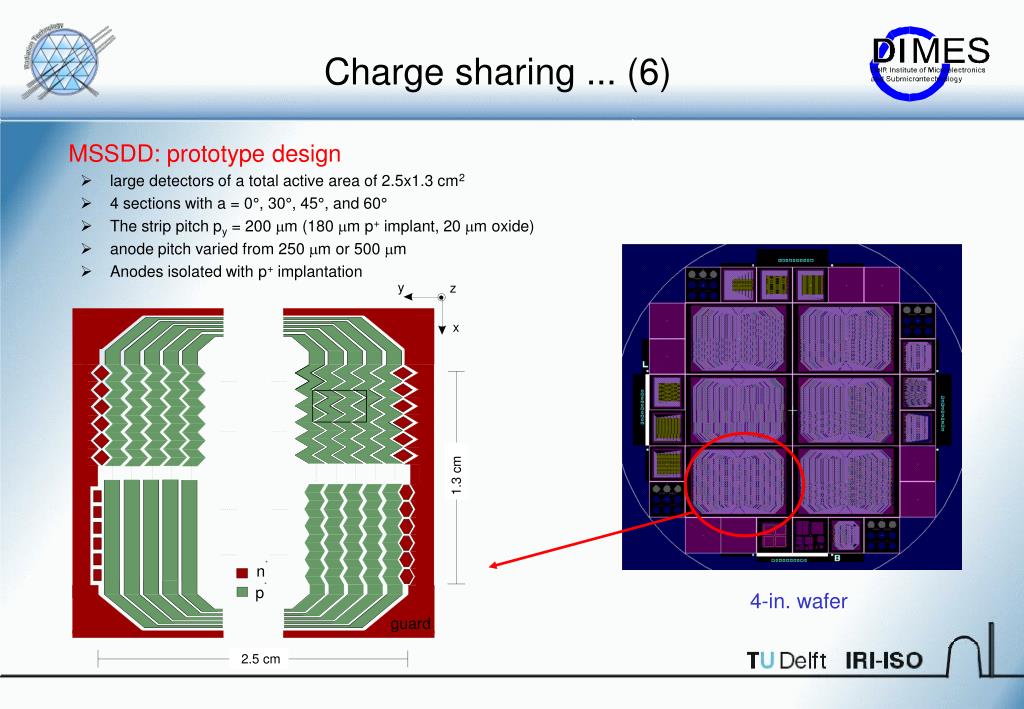

  10. Charge sharing ... (6) MSSDD: prototype design • large detectors of a total active area of 2.5x1.3 cm2 • 4 sections with a = 0°, 30°, 45°, and 60° • The strip pitch py = 200 mm (180 mm p+ implant, 20 mm oxide) • anode pitch varied from 250 mm or 500 mm • Anodes isolated with p+ implantation 4-in. wafer

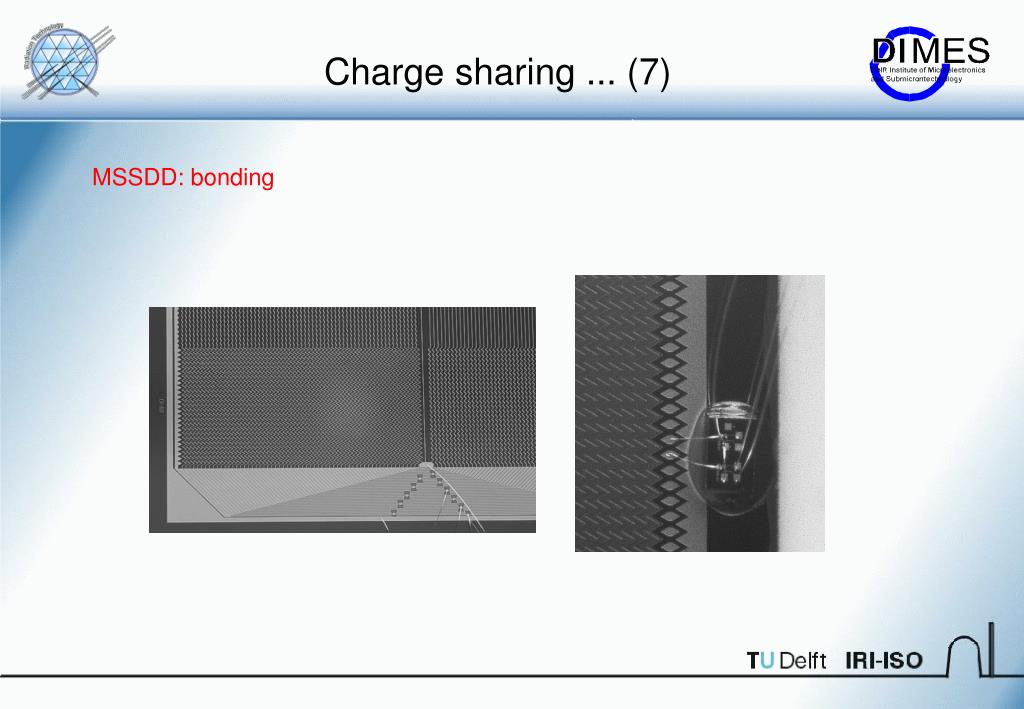

  11. Charge sharing ... (7) MSSDD: bonding

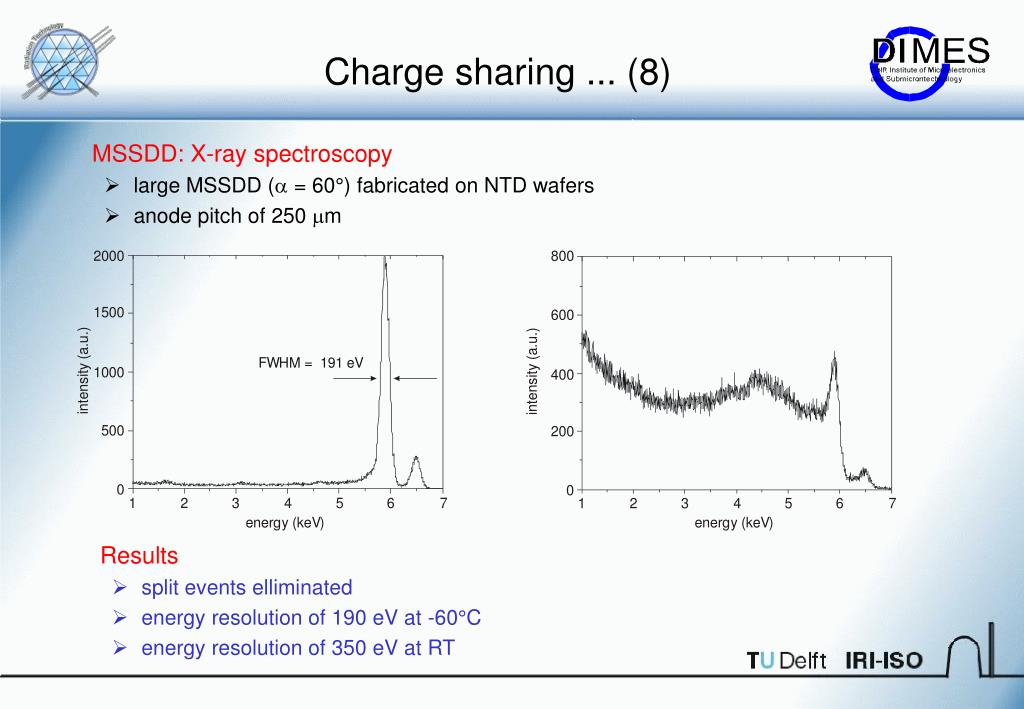

  12. Charge sharing ... (8) MSSDD: X-ray spectroscopy • large MSSDD (a = 60°) fabricated on NTD wafers • anode pitch of 250 mm Results • split events elliminated • energy resolution of 190 eV at -60°C • energy resolution of 350 eV at RT

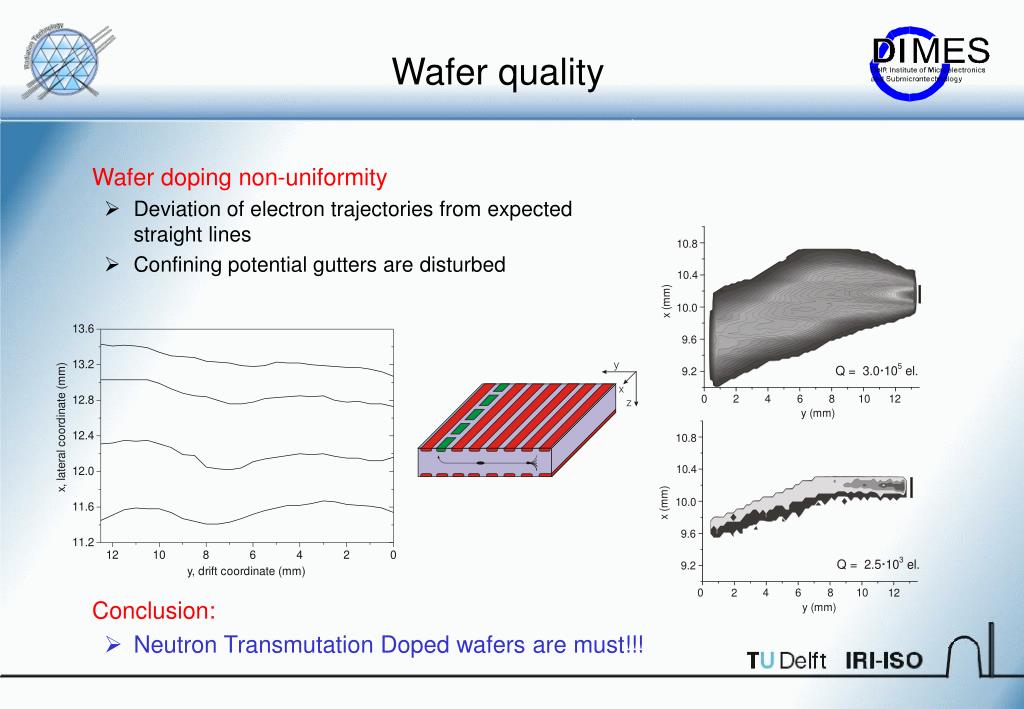

  13. Wafer quality Wafer doping non-uniformity • Deviation of electron trajectories from expected straight lines • Confining potential gutters are disturbed Conclusion: • Neutron Transmutation Doped wafers are must!!!

  14. Radiation entrance window • MSSDD with strips on both sides • Fixed oxide charge between p+ strips • Signal charge trapping, especially for soft X-rays • MSSDD with semi-continuous implant • 8 wide strips on the radiation entrance side • Total area covered with oxide is only a few percent (~3.6%)! • Staircase potential distribution • Drift field or drift length are not limited!

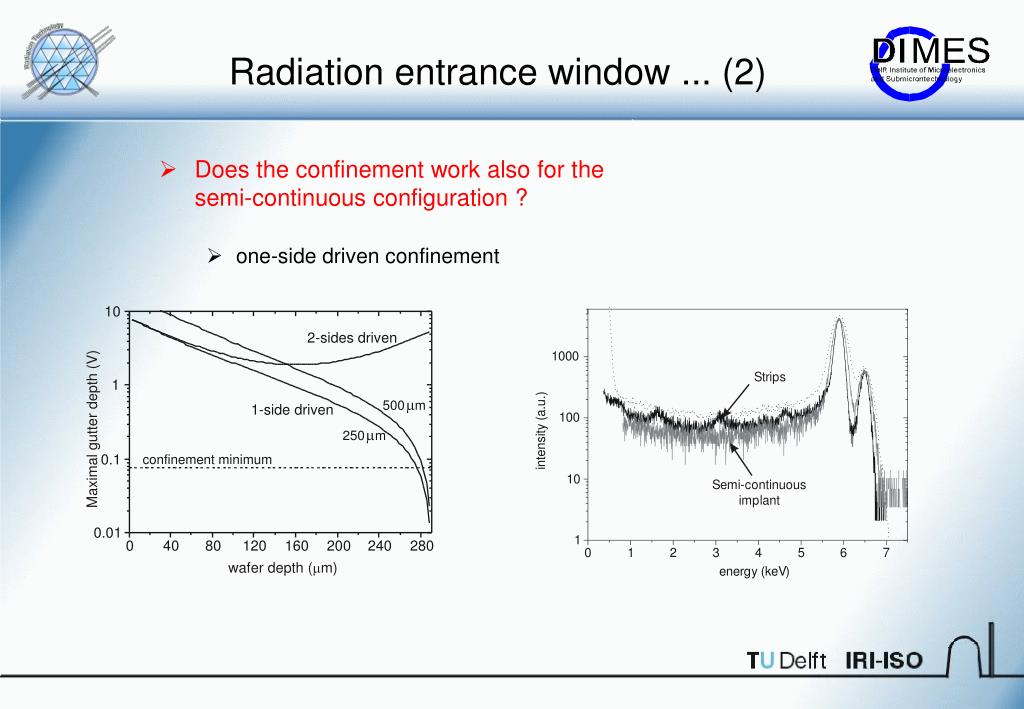

  15. Radiation entrance window ... (2) • Does the confinement work also for the semi-continuous configuration ? • one-side driven confinement

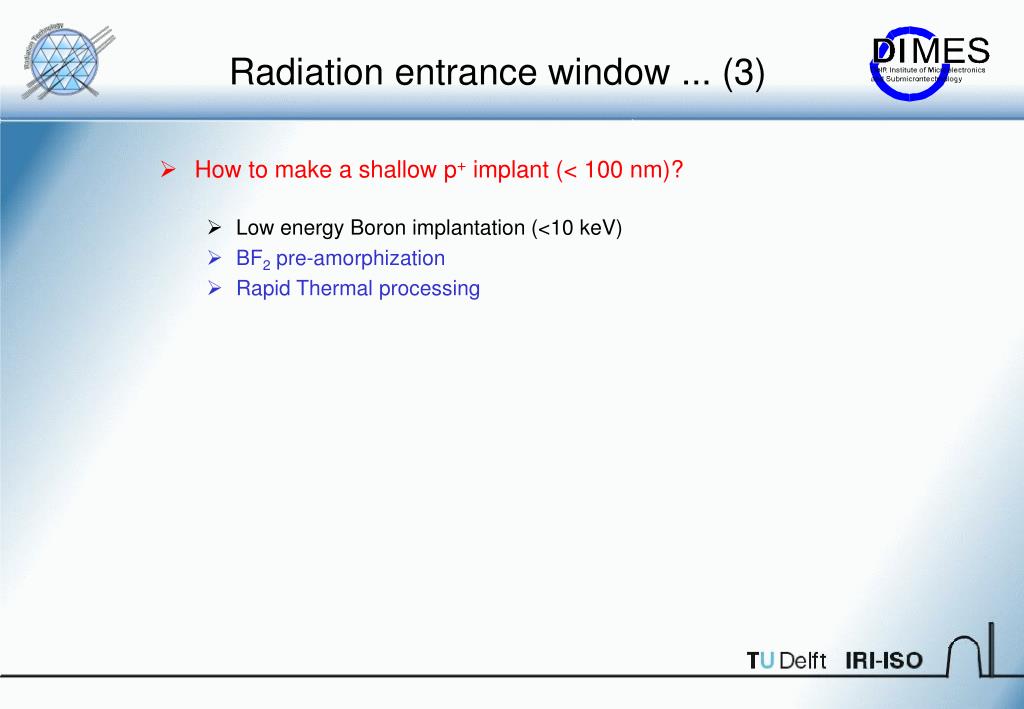

  16. Radiation entrance window ... (3) • How to make a shallow p+ implant (< 100 nm)? • Low energy Boron implantation (<10 keV) • BF2 pre-amorphization • Rapid Thermal processing

  17. Conclusions Detector performance/Status • detector prototype with an area of 2.5 x 1.3 cm2 • design optimized for detection of low energy X-rays • position resolution of 250 mm (~200 mm easily possible) • energy resolution of 190 eV (~18 rms el.) per anode pixel • count-rate: probably around 50-80k cps Could we do better ? • Better position resolution... • Better noise... • Imaging ?

  18. Conclusions MSSDD: achievable position resolution ? • while having the charge confined within one anode pixel • position resolution = anode pitch Results • position resolution of 100 - 150 mm • drift field of ~ 1000 V/cm Results: off-center drift • better than 100 mm @ smaller drift fields charge produced by a 10 keV X-ray photon is confined at any depth of wafer
