  1. TAIPANAutonomous Underwater Vehicle Bruno Jouvencel Professor University of Montpellier Underwater robotics Meditate

  2. OUTLINE • First part : our experience in AUV • Second part : new prototype of AUV for MEDITATE project • Third part: WP3 Meditate

  3. LIRMM - CNRS • Laboratory • Computing science • Robotics • Micro-electronics systems Staff 260 persons • Researchers 110 • Technical staff about 30 • About 120 invited researchers, postdoc, PhD students Meditate

  4. Underwater Robotics TEAMfor MEDITATE • Bruno Jouvencel Professor • Olivier Strauss : Assistant Professor • Michel Benoit : Research Engineer • Jean Mathias Spiewak : PhD Student • Lionel Lapierre postdoc from september 2004 Meditate

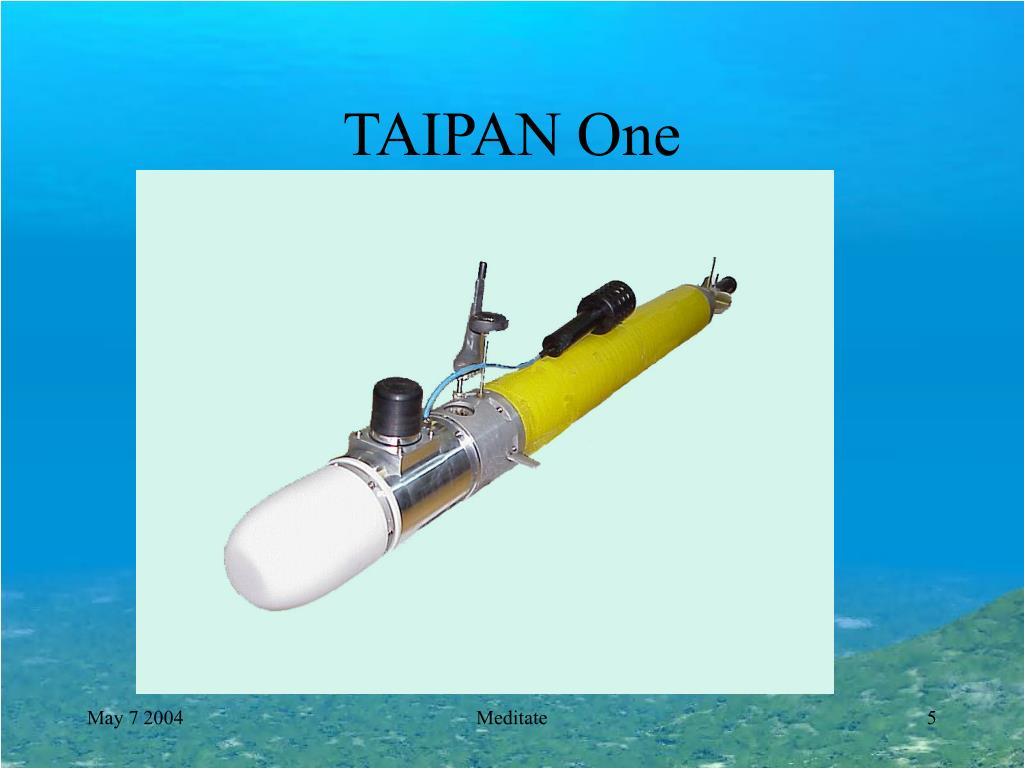

  5. TAIPAN One Meditate

  6. Video of TAIPAN Meditate

  7. FIRST Scientific Mission • GOATS : Generic Oceanographic Array Technology System: (scientific program of NATO) • For TAIPAN: • First field deployment with a real scientific goal • Role : to provide the modelers with CTD data along trajectories in Biodola bay (Elba) Meditate

  8. Scientific Sensors CTD sensor Positioning Transponder for Trackpoint 2 Meditate

  9. Mission Interface Meditate

  10. Vehicle Control Meditate

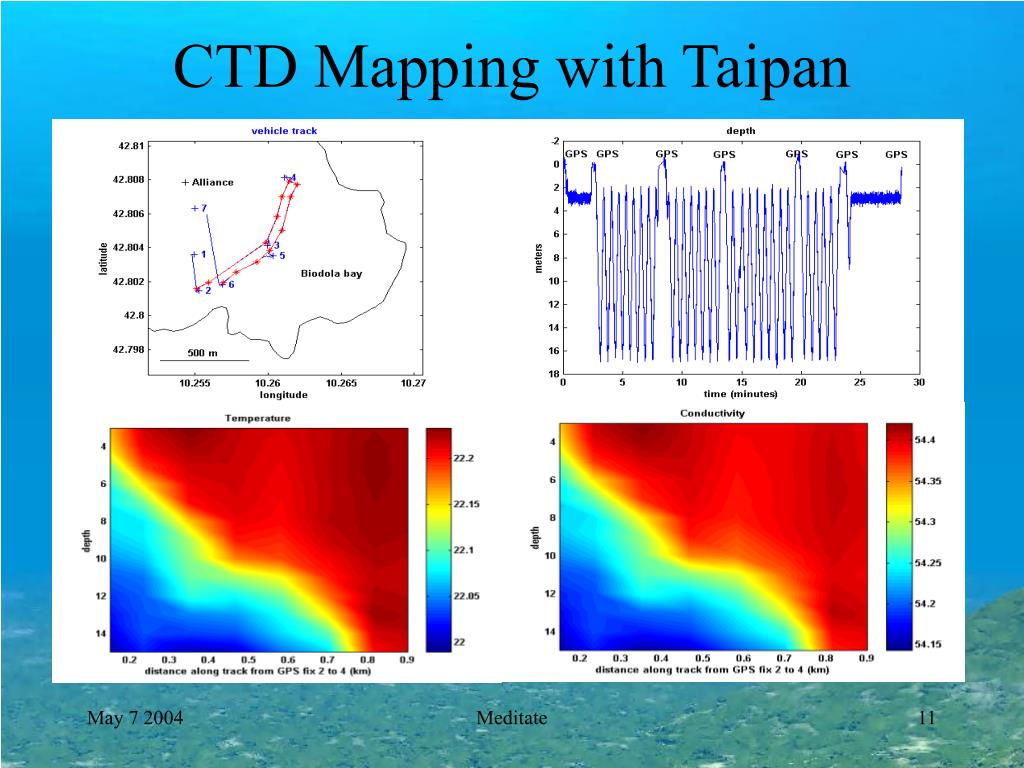

  11. CTD Mapping with Taipan Meditate

  12. 3D Trajectory Meditate

  13. Thau Lagoon : Spring LA-VISE Bathymetric measurements Real trajectories Meditate

  14. Thau Lagoon LA-VISE Bathymetric measurements Real trajectories Meditate

  15. Presentation of a new Autonomous Underwater Vehicle TAIPAN 2 Jean Mathias Spiewak PhD Student Meditate

  16. Overview of AUV Taipan 2 Meditate

  17. Topsolid view of Taipan 2 Meditate

  18. Two onboard computers : navigation -- perception • Additional card dedicated to : A/D conversions, RS232 serial communications, logical I/Os and PWM signal generation Meditate

  19.  To compute displacement •  three-axis inclinometer, •  three-axis magnetometer, • yaw rate and pitch rate gyrometers and accelerometers •  two pressure sensors, •  loch doppler  For dead reckoning  Acoustical range meter  GPS receiver  For communication  UHF radio link  Wifi link Meditate

  20. Scientific sensor payload • CTD sensor • Acoustical Doppler Current Profiler • Side Scan Sonar • CCD Camera • Acoustical sensors (obstacle avoidance) Meditate

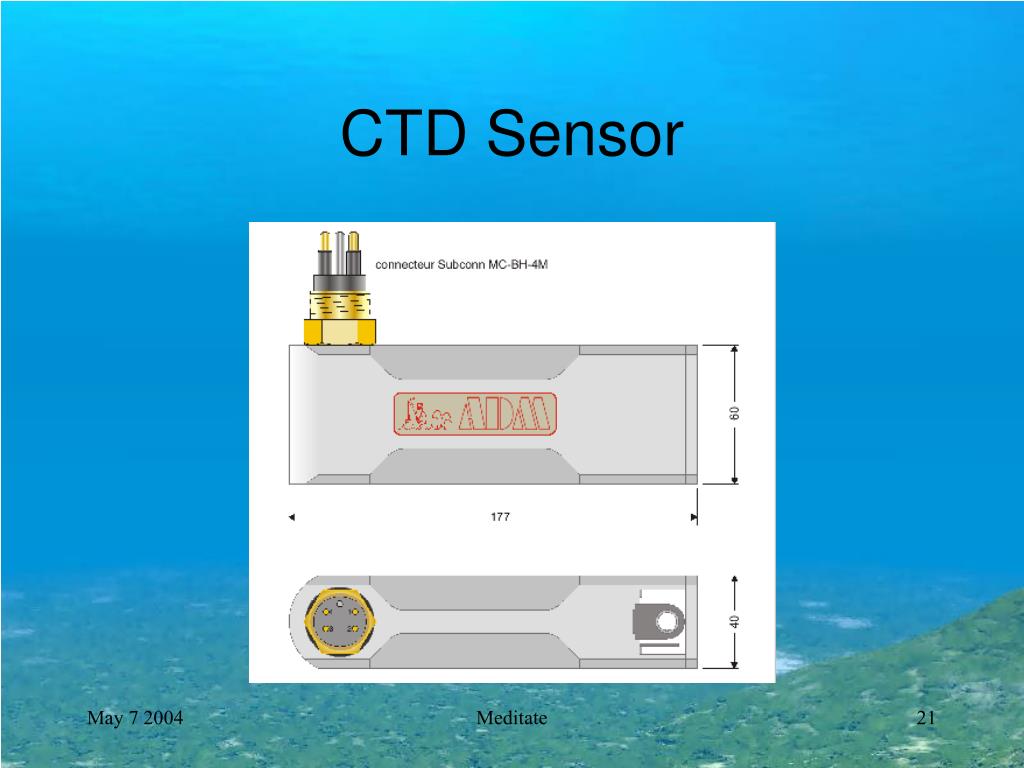

  21. CTD Sensor Meditate

  22. Side Scan Sonar picture • La Vise fresh underwater spring : 30 meter depth • starboard and port side pictures Meditate

  23. Meditate

  24. Work Package 3 Meditate

  25. WP3 • Task A.1. Define the pay-load of vehicle. • Selection of sensors (Conductivity Temperature Depth, loch, sonar, doppler, GPS…) • the determination of the best positioning of sensors according the desired precision on measurements. Meditate

  26. WP3 • Task A.2. Performances of the AUV. • Error on the trajectory of the vehicle, • The energy autonomy, • And so on. • Task A.3. Protocol to define for scientist missions: • The interface man machine has to be developed as well as the facility of using the files in a compatible format with the GIS that will be used in the WP1 and WP4. Meditate

  27. WP3 • Task A. 4.Development of vehicle and sensors integration • Task A. 5. Study of fusion data method to build a 3D representation of spring based on the lateral sonar data. • Task A. 6. Test of vehicle • Task A. 7. Submarine springs survey • Task A.8. Feasibility study concerning the use of the AUV in the Syrian test site, Meditate

  28. Deliverables • Vehicle’s specifications • Interface man machine • Data fusion méthod • Vehicle test Meditate

  29. Milestones expected results • Month 0 +7 : interface man machine • Month 0 +11 : demonstrator of data fusion • Month 0 + 10 start of submarine springs survey Meditate
