1. Software Fault Tolerance –The big Picture RTS April 2008 Anders P. Ravn Aalborg University

2. Fault Tolerance Means to isolate componentfaults Prevents systemfailures May increase systemdependability

3. Dependability - attributes • Availability • Reliability • Safety • Confidentiality • Integrity • Maintainability BW p. 129

4. ... Fault Error Failure Fault Dependability - impairments • Faults • Errors • Failures BW p. 103, ...,130

5. System and Component

6. Dependability - means • Fault prevention • Fault tolerance • Error Removal • Failure Forecasting BW p. 106, ..., 130

7. byzantine Fault classification • physical (internal/external) • logical (design/interaction) • Origin • Kind • Property • omission • value • timing • duration (permanent, transient) • consistency (determinate, nondeterminate) • autonomy (spontaneous, event-dependent)

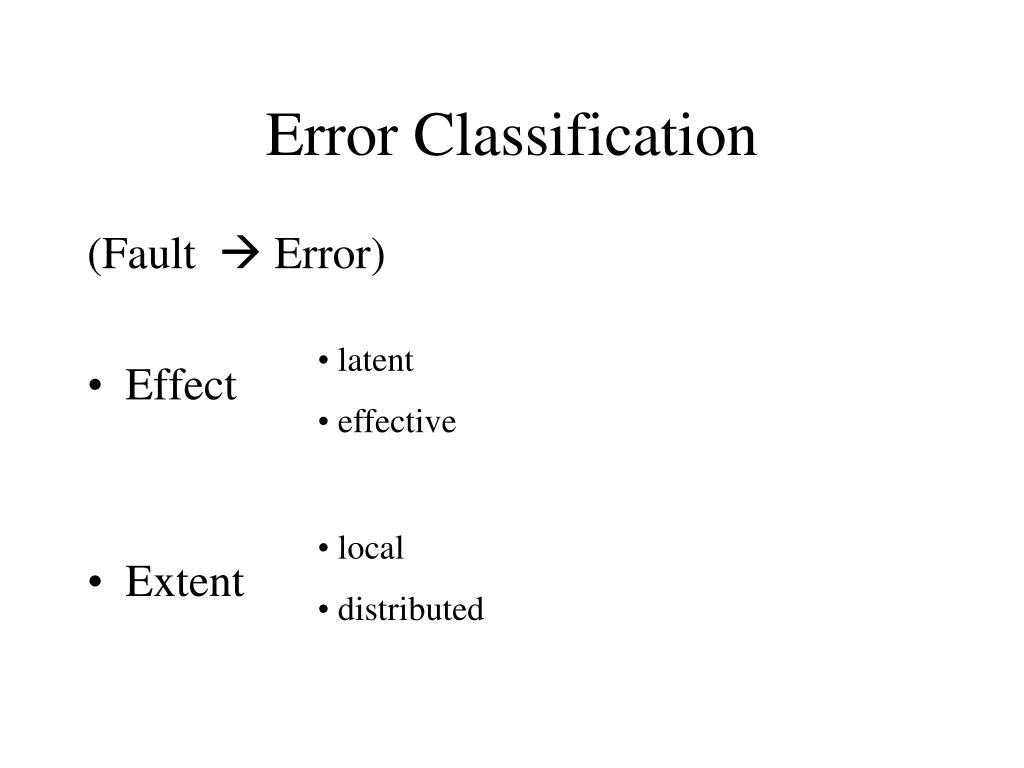

8. Error Classification (Fault  Error) • Effect • Extent • latent • effective • local • distributed

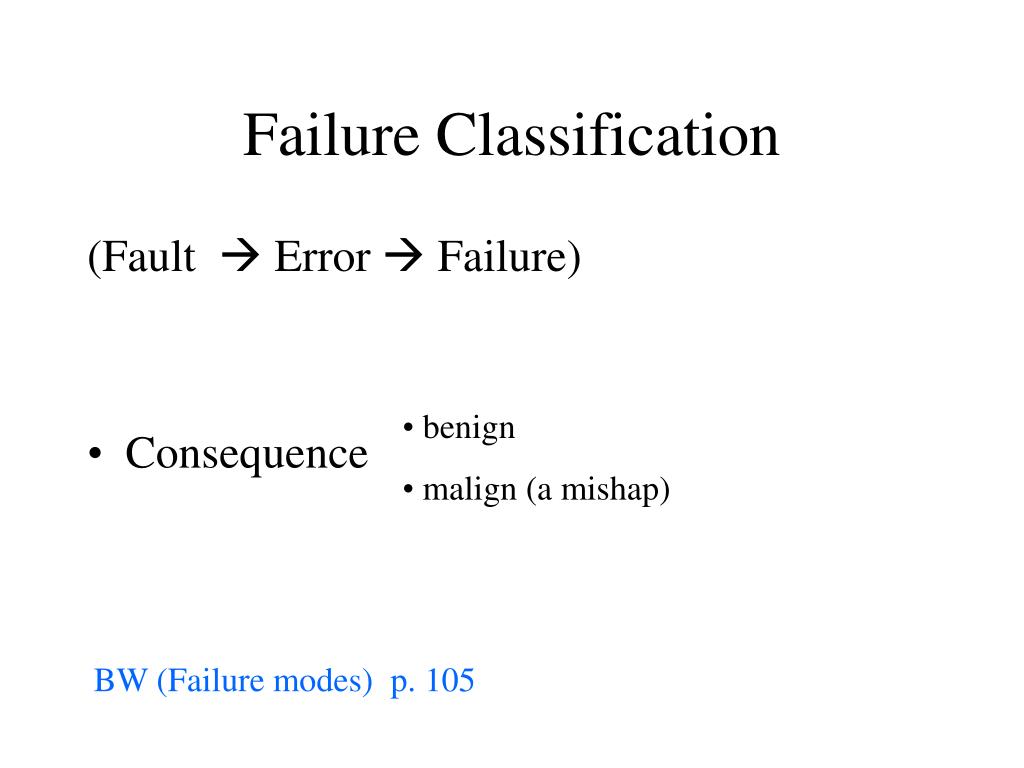

9. Failure Classification (Fault  Error  Failure) • Consequence • benign • malign (a mishap) BW (Failure modes) p. 105

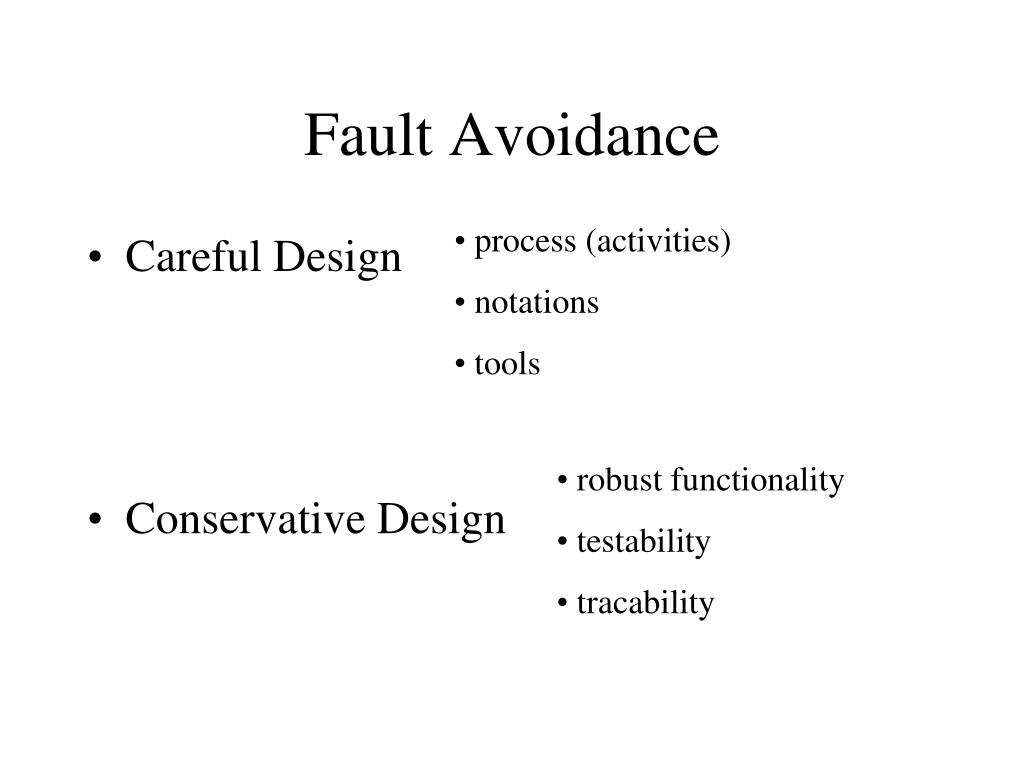

10. Fault Avoidance • process (activities) • notations • tools • Careful Design • Conservative Design • robust functionality • testability • tracability

11. Error Removal • Verification (analysis of design) • Test (analysis of implementation)

12. Failure Forecasting • Calculation – analysis of design • Simulation – measurement on design • Test -- measurement on implementation

13. Fault Tolerance Means to isolate componentfaults ... And mask them Prevents systemfailures May increase systemdependability

14. Dependability - means • Fault prevention • Fault tolerance • Error Removal • Failure Forecasting BW p. 106, ...

15. Fault Tolerance

16. Full tolerance • Graceful Degradation • Fail safe FT - levels BW p. 107

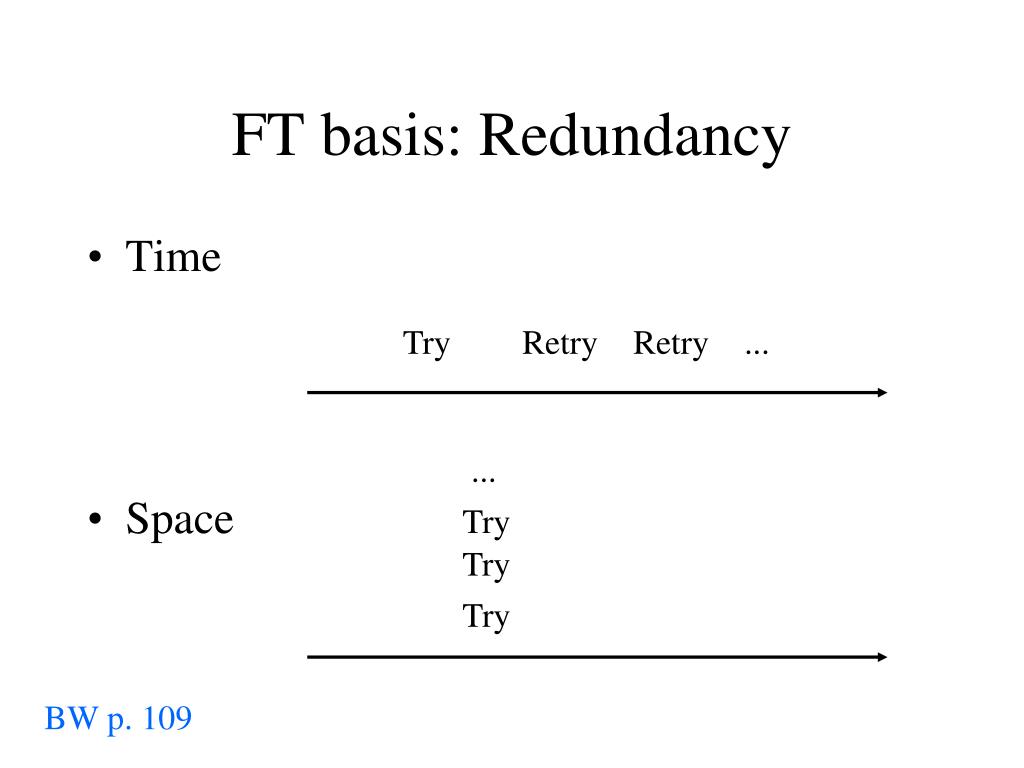

17. Retry ... ... Try Try Try FT basis: Redundancy • Time • Space Try Retry BW p. 109

18. N-version programming V1 V3 V2 Comparison vectors (votes) Driver (comparator) Comparison status indicators Comparison points BW p. 109

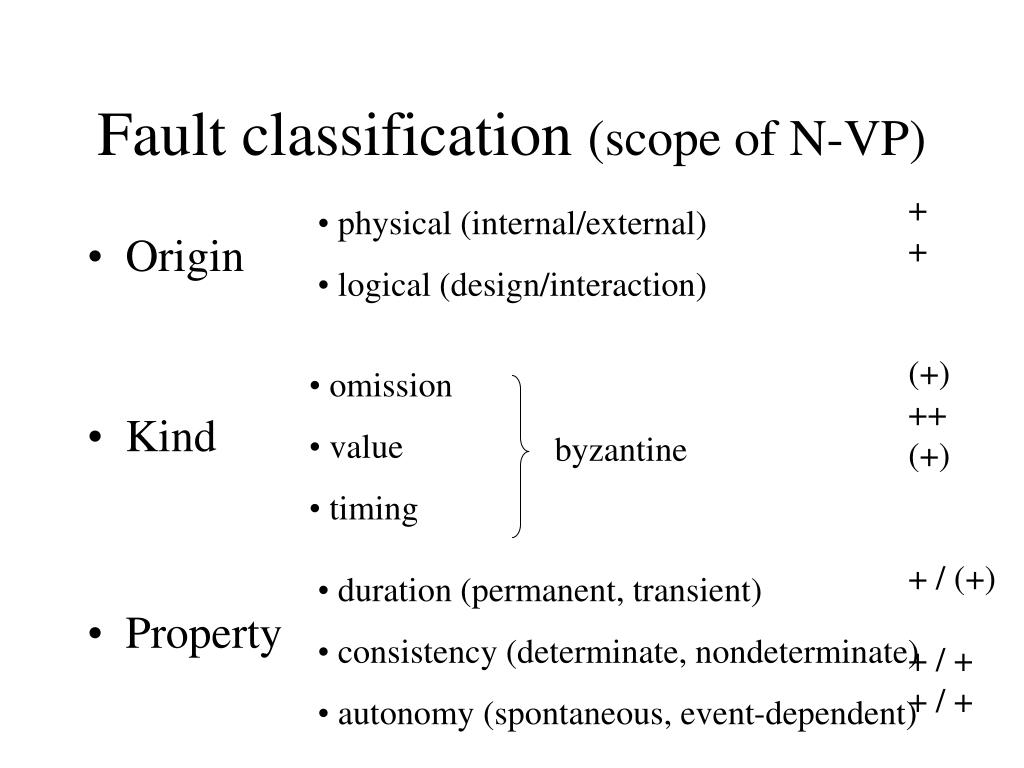

19. byzantine Fault classification (scope of N-VP) + + (+) ++ (+) + / (+) + / + + / + • physical (internal/external) • logical (design/interaction) • Origin • Kind • Property • omission • value • timing • duration (permanent, transient) • consistency (determinate, nondeterminate) • autonomy (spontaneous, event-dependent)

20. Dynamic Redundancy • Error detection • Damage confinement and assessment • Error recovery • Fault treatment and continued service BW p. 114

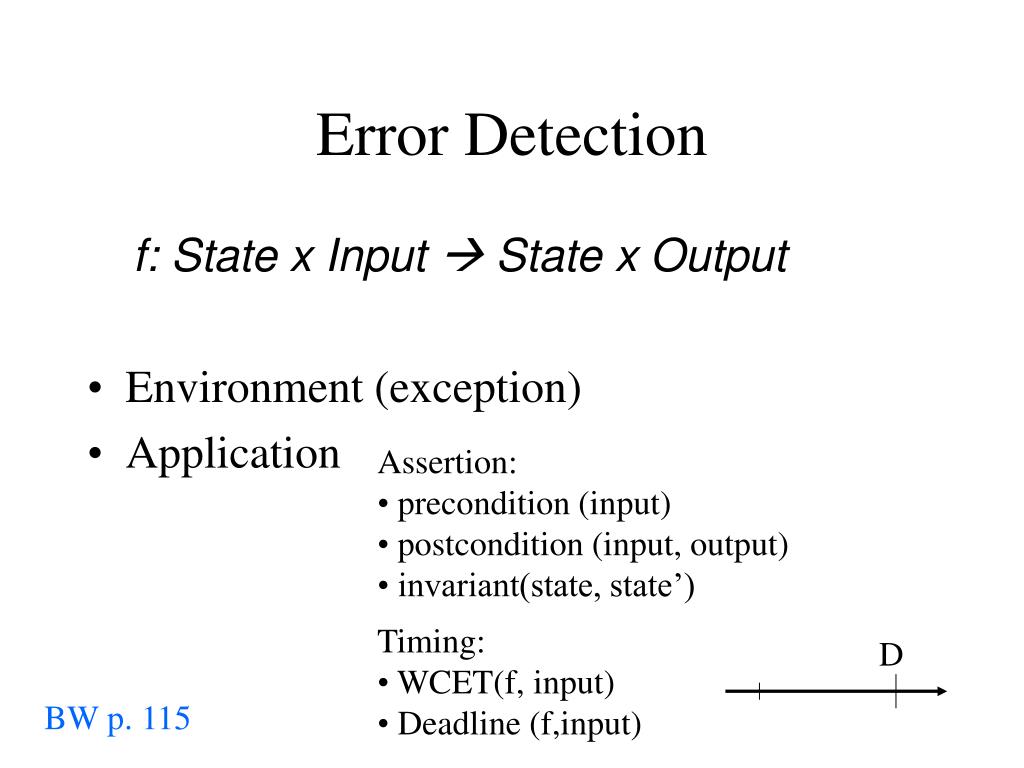

21. D Error Detection f: State x Input  State x Output • Environment (exception) • Application • Assertion: • precondition (input) • postcondition (input, output) • invariant(state, state’) • Timing: • WCET(f, input) • Deadline (f,input) BW p. 115

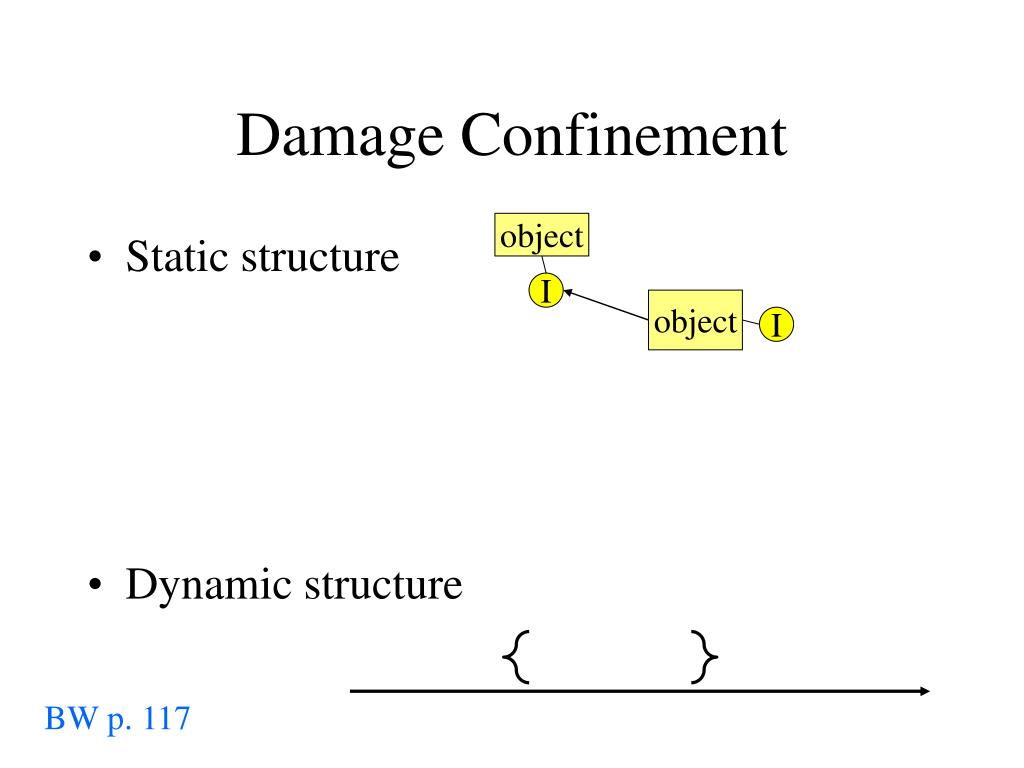

22. object I object I Damage Confinement • Static structure • Dynamic structure BW p. 117

23. Error Recovery • Forward • Backward Repair the state – if you can ! • define recovery points • checkpoint state at r. p. • roll back • retry Domino effect BW p. 118

24. Recovery blocks ENSURE acceptance_test BY { module_1 } ELSE BY { module_2 } ... ELSE BY { module_m } ELSE ERROR BW p. 120

25. Failure exception Interface exception Request/response Interface exception Failure exception Request/response The ideal FT-component Normal mode Exception Handler BW p. 126

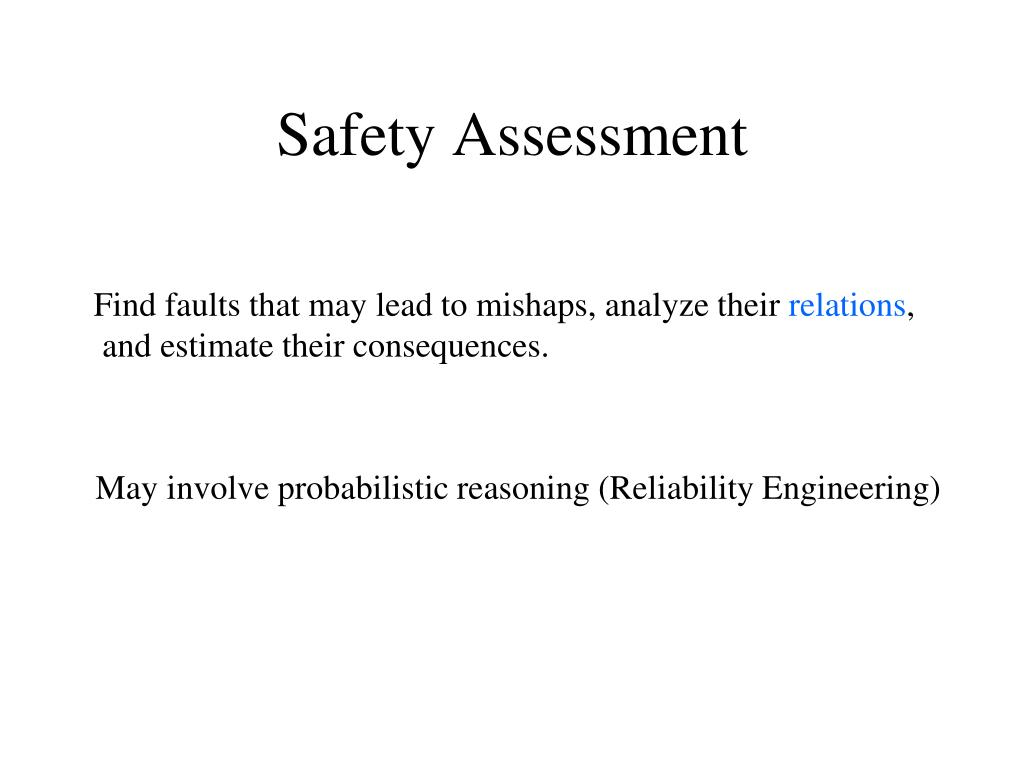

26. Safety Assessment Find faults that may lead to mishaps, analyze their relations, and estimate their consequences. May involve probabilistic reasoning (Reliability Engineering)

27. Primary Events: Basic event – fault in atomic component Undeveloped Event – fault in composite component (may be analyzed later) External event – expected event from environment Intermediate event: Nodes inside a fault-tree Fault Tree - Events

28. ... ... Fault Tree - Gates condition Inhibit gate

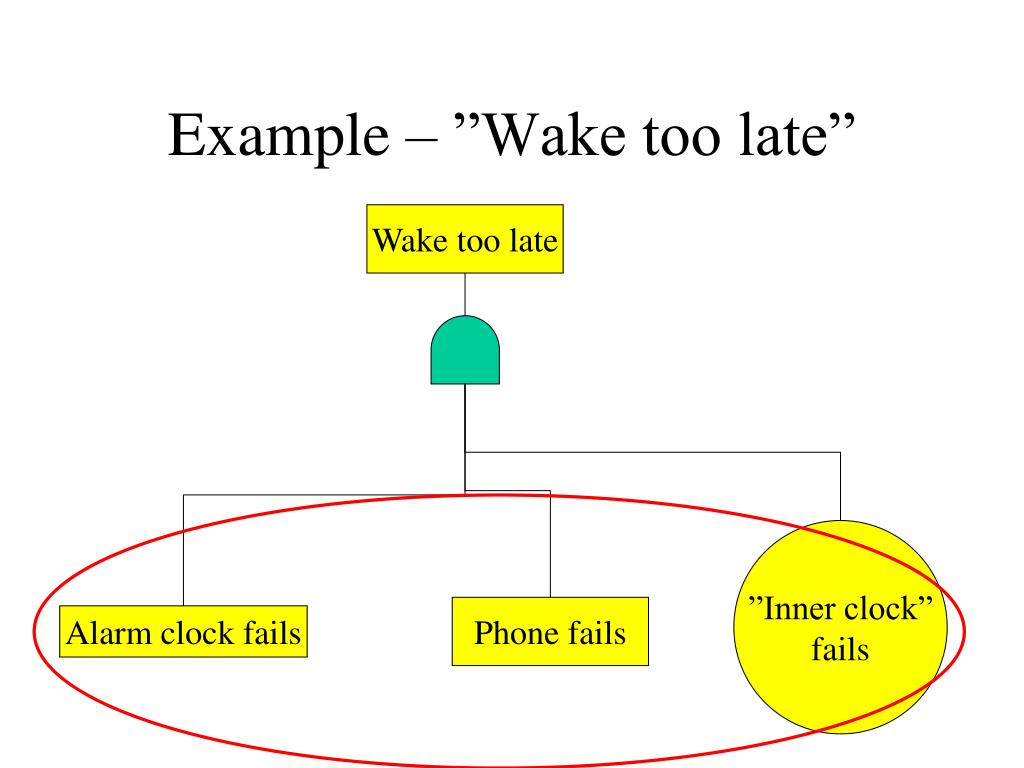

29. Example – ”Wake too late” Wake too late ”Inner clock” fails Phone fails Alarm clock fails

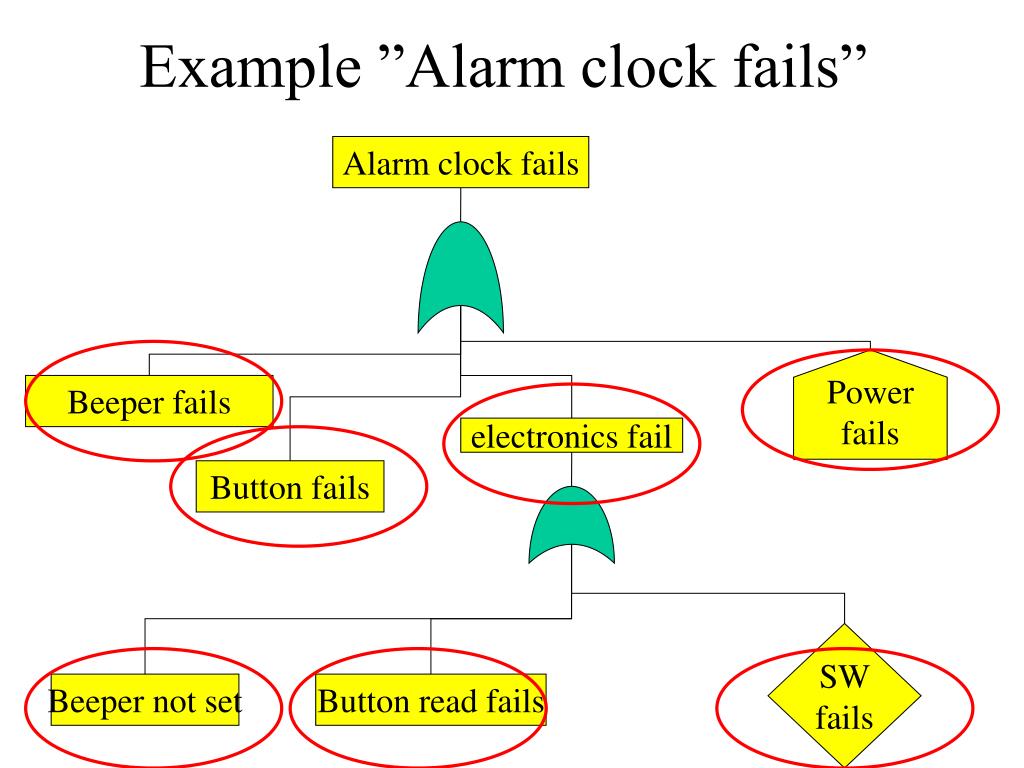

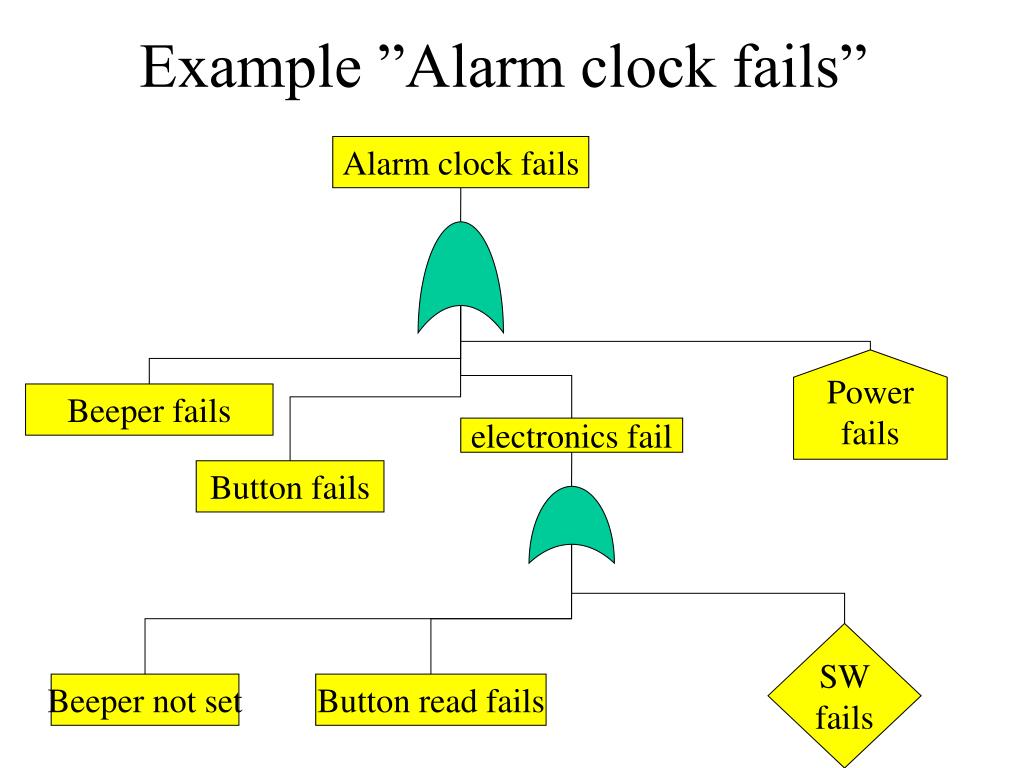

30. Example ”Alarm clock fails” Alarm clock fails Power fails Beeper fails electronics fail Button fails SW fails Beeper not set Button read fails

31. Cut Set A cut set is a set of events that causes a top level event A singleton cut set is a single point of failure

32. Example – ”Wake too late” Wake too late ”Inner clock” fails Phone fails Alarm clock fails

33. Example ”Alarm clock fails” Alarm clock fails Power fails Beeper fails electronics fail Button fails SW fails Beeper not set Button read fails

34. Extensions etc. • Probabilities on edges • Event tree (forward analysis from initiating event) • Combinations (cause-consequence diagrams) • Many tools Kirsten M. Hansen, Anders P. Ravn and Victoria Stavridou, From Safety Analysis to Formal Specification, IEEE Trans. Softw. Eng.24,pp. 573-584, July 1998

35. Example

36. Fault Hypotheses

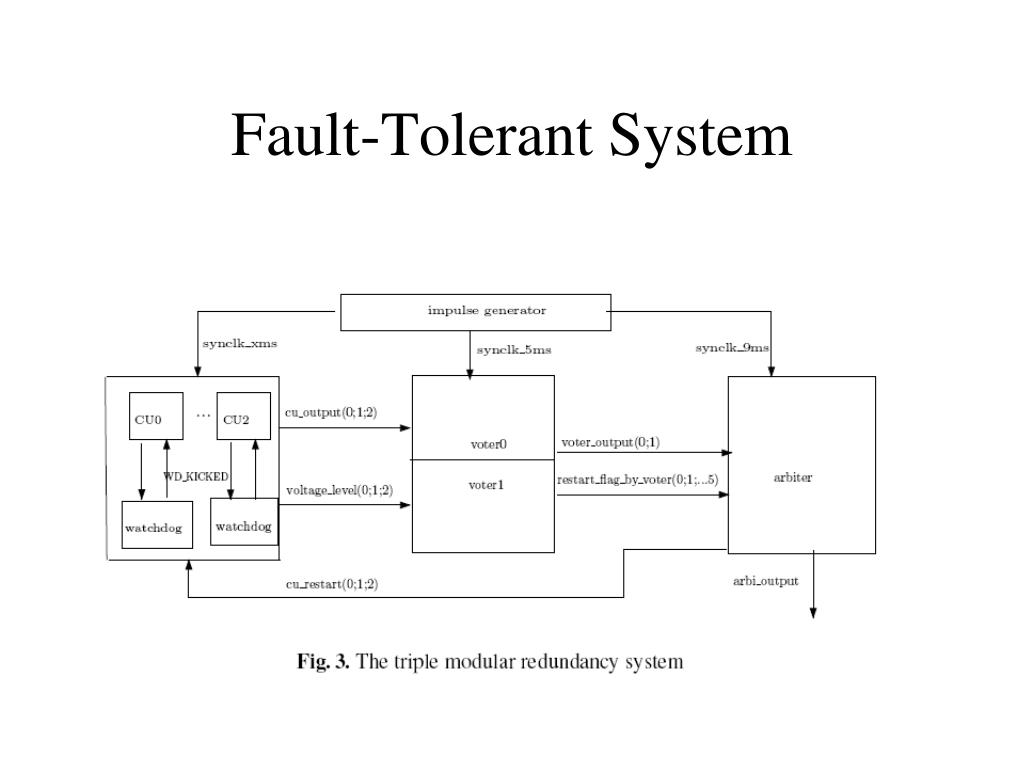

37. Fault-Tolerant System

38. Impulse Generator

39. CU

40. Voter and Arbiter

41. Parameters

42. Properties

43. Procedure • Model the correct component and check that it has the desired properties. • Model relevant faults and introduce them as internal transitions to error states. Check that this fault-affected. • Introduce into the model the mechanisms for fault detection, error recovery and masking and check that the desired properties are valid for this design.
