Presentation Transcript

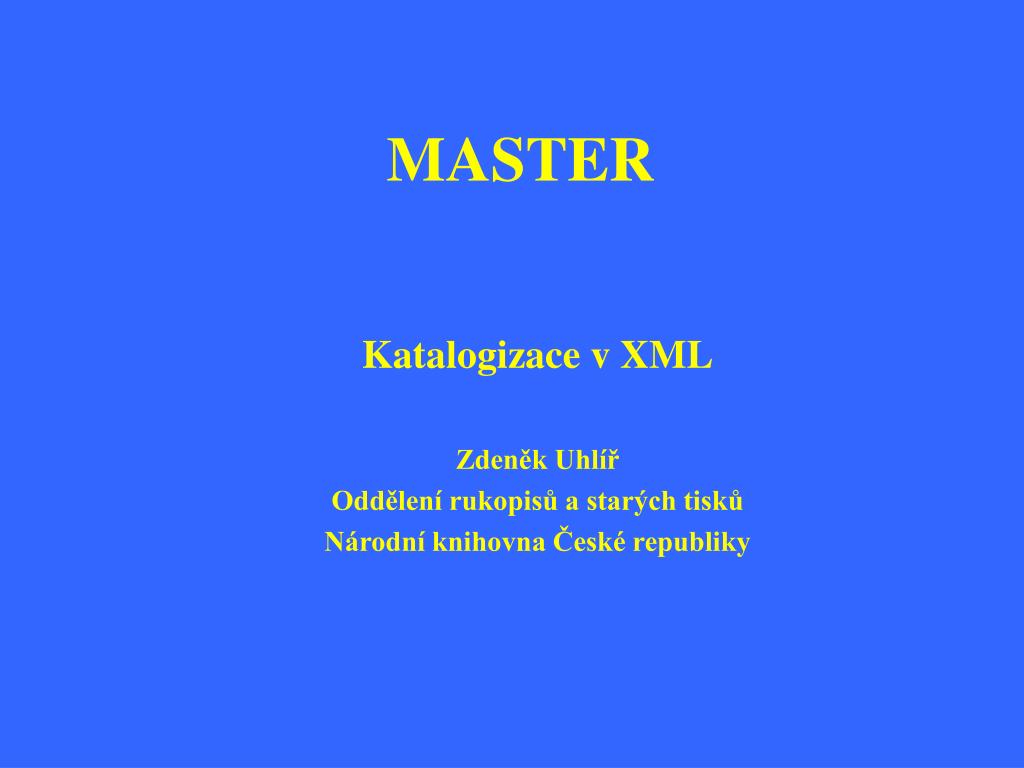

  1. MASTER Katalogizace v XML Zdeněk Uhlíř Oddělení rukopisů a starých tisků Národní knihovna České republiky

  2. MASTERManuscript Access through STandards for Electronic Recordshttp://www.cta.dmu.ac.uk/projects/master/

  3. AutomatizaceInformatizaceElektronizace

  4. Automatizace=transpozice dokumentu(záznamu)

  5. Automatizace:Handschriftenforum(Manuscripta mediaevalia)http://www.fotomr.uni-marburg.de/handschriften-forum.htm

  6. Informatizace=translokace dokumentu(záznamu)

  7. Informatizace:Electronic Access to Medieval Manuscriptshttp://www.hmml.org/eamms/index.html

  8. Informatizace:Digital Scriptoriumhttp://sunsite.berkeley.edu/Scriptorium/

  9. Elektronizace=transformace dokumentu(záznamu)

  10. Elektronizace=značkovací jazyky=Advanced Text Encoding

  11. Advanced Text Encoding:TEI(Text Encoding Initiative)http://www.hcu.ox.ac.uk/TEI/

  12. TEI MMSSTEI Medieval Manuscripts Description Work Grouphttp://www.stg.brown.edu/~tei-mmss/

  13. SGMLXMLTEIMASTER

  14. Definice typu dokumentu:DTDSTANDARDZÁZNAMU

  15. standard záznamu(= MASTER DTD)apravidlo popisu(= české „Zásady“, německé „Richtlinien“, americké „AMREMM“ apod.)NENÍ TOTÉŽ

  16. standard záznamu+katalogizační pravidlo+paradigma objektu=elektronizace prostředí

  17. standardpraxeúzus

  18. Nic totiž nevede k tak velké či ani zdaleka tak nebezpečné nevědomosti jako přesnost aplikovaná na nepochopení a nesprávnou interpretaci problému.Peter Drucker

  19. Unde tales sunt similes illis scolaribus, qui vadunt ad studia, ut faciant pulcros libros et non adiscant aliud, et sic cum saculo sapienti et cum incipienti animo redeunt.NK ČR: III.C.9, 131rb

  20. variabilitaflexibilitaalternabilita

  21. software:editor NoteTabLighthttp://www.cta.dmu.ac.uk/projects/master/notetabhelp.html

  22. Reference Manual for the MASTER Document Type Definition http://www.hcu.ox.ac.uk/TEI/Master/Reference/

  23. kontrola parserem:http://www.cta.dmu.ac.uk/projects/master/xmlparser/

  24. kontrola viewerem:http://www.cta.dmu.ac.uk/projects/master/viewer/

  25. uložení do databáze:http://janus.oucs.ox.ac.uk/master/html/index.php

  26. povinné minimum:<msDescription status="uni"><msIdentifier n=„TrLat 440"><country reg="CZ">Czechia</country><settlement>Prague</settlement><repository>National Library of the Czech Republic</repository><idno>III.C.9</idno></msIdentifier></msDescription>

  27. evidenční záznam:<msDescription status="uni"><msIdentifier n="TrLat 440"><country reg="CZ">Czechia</country><settlement>Prague</settlement><repository>National Library of the Czech Republic</repository><idno>III.C.9</idno></msIdentifier><msHeading><title>Commentarius in epistolas beati Pauli ad Hebraeos</title><author>Iohannes Chrysostomus </author><origPlace>&Ccaron;echy</origPlace><origDate notBefore="1366" notAfter="1400">XIV. ex.</origDate><textLang langKey="LAT">latinsky </textLang></msHeading></msDescription>

  28. „úplný“ záznam – rozdělení na sekce:<msDescription><msIdentifier></ms Identifier><msHeading></msHeading><msContents></msContents><physDesc></physDesc><history></history><additional></additional></msDescription>

  29. prohloubený inventární / katalogový záznam(1):<msDescription status="uni"><msIdentifier n="TrLat 440"></msIdentifier><msHeading></msHeading><msContents>…<msItem n="3"><locus from="117ra" to="148rb">117ra-148rb</locus><summary>37 z&aacute;du&scaron;n&iacute;ch kolac&iacute; na ned&ecaron;le c&iacute;rkevn&iacute;ho roku za&ccaron;&iacute;naj&iacute;c&iacute;ch na fol. 117ra, 118ra, 118vb, 119rb, 120va, 121rb, 122ra, 122vb, 123va, 124va, 125va, 126rb, 127ra, 128ra, 129ra, 130ra, 130vb, 131va, 132va, 133rb, 134rb, 135ra, 135vb, 136rb, 137ra, 137vb, 138va, 139va, 140rb, 141ra, 141va, 142rb, 142va, 143va, 144rb, 145va, 146rb </summary><title type="uniform">Collationes de mortuis</title><incipit>Solvite et adducite mihi (Matth. 21,2). Quia inter cetera animalia homo dicitur esse liberi arbitrii </incipit><explicit>Ut igitur ille possit de peccatis suis quietare, mutuemus sibi suffragia, ut vadat ad vitam eternam. Ad quam nos. </explicit><colophon>Expliciunt Collaciones de mortuis </colophon><textLang langKey="LAT">latinsky </textLang></msItem>…</msContents><physDesc></physDesc><history></history><additional></additional></msDescription>

  30. prohloubený inventární / katalogový záznam(2):<msDescription status="uni"><msIdentifier n="TrLat 440"></msIdentifier><msHeading></msHeading><msContents></msContents><physDesc><form><p>Codex.</p></form><support><p>Paper.</p></support><extent>I+149 ff. <dimensions type="leaf" scope="all"><height>290</height><width>210</width></dimensions></extent><layout columns="2" writtenLines="41-51"><p>Dva sloupce po 41-51 &rcaron;&aacute;dc&iacute;ch, rozm&ecaron;ry zrcadla<dimensions><height>210</height><width>150</width></dimensions></p></layout></physDesc><history></history><additional></additional></msDescription>

  31. prohloubený inventární / katalogový záznam(3):<msDescription status="uni"><msIdentifier n="TrLat 440"></msIdentifier><msHeading></msHeading><msContents></msContents><physDesc></physDesc><history><origin notBefore="1366" notAfter="1400" certainty="high" evidence="conjecture"><p>&Ccaron;echy, konec 14. stolet&iacute; </p></origin><provenance><p>na vev&aacute;zan&eacute;m pergamenu pozn&aacute;mka rukou 15. stolet&iacute;:<q lang="LAT">Crisostomus super Hebreis Thomasconis medici</q></p></provenance></history><additional></additional></msDescription>

  32. prohloubený inventární / katalogový záznam(4):<msDescription status="uni"><msIdentifier n="TrLat 440"></msIdentifier><msHeading></msHeading><msContents></msContents><physDesc></physDesc><history></history><additional><listBibl><bibl><author>Truhl&aacute;&rcaron;, Josef </author><title level="m">Catalogus codicum manus scriptorum qui in c. r. bibliotheca publica atque Universitatis Pragensis asservantur. I</title><imprint><pubPlace>Pragae</pubPlace><date>1905 </date></imprint>s. 172, &ccaron;. 440</bibl></listBibl></additional></msDescription>

  33. příklad další strukturace:<msContents><msItem n="2"><locus from="105ra" to="116vb">105ra-116vb </locus><summary>rozd&ecaron;leno na 12 k&aacute;z&aacute;n&iacute; za&ccaron;&iacute;naj&iacute;c&iacute;ch na fol. 105ra, 105vb, 107va, 109ra, 110rb, 110vb, 111ra, 111vb, 113ra, 114rb, 115rb, 116ra </summary><author>Bertrandus de Turre </author><title type="uniform">Opusculum de morte per fratrem Bertrandum ad ministrationem praedicatorum simplicium compilatum </title><incipit>Mortuo non prohibeatis graciam. (Eccli. 7, 37). Considerans pia mater ecclesia, quod illi fideles, qui iam mortui sunt in domino, quorum anime cruciantur in purgatorio </incipit><explicit>que solummodo est in celesti patria, in qua deus ipse cubat et requiescit et pascit</explicit><textLang langKey="LAT">latinsky </textLang><note><p>srv. Schneyer, I, s. 582, &ccaron;. 1115</p></note><msItem n=“2.1”><locus from=“105ra” to=“105vb”>105ra-105vb</locus><incipit>Mortuo non prohibeas graciam. Ecclesiastici VII. Considerans pia mater ecclesia</incipit><explicit>quod nobis concedat ille filius dei</explicit> </msItem></msItem></msContents>

  34. … a podrobněji:<msItem n=“2.1”><locus from=“105ra” to=“105vb”>105ra-105vb</locus><summary>breviter duo tanguntur: primum est indicativum impotencie ad erepcionem, secundum est procurativum beneficencie ad subvencionem</summary><incipit>Mortuo non prohibeas graciam. Ecclesiastici VII. Considerans pia mater ecclesia</incipit><explicit>quod nobis concedat ille filius dei</explicit> </msItem>

  35. Vytvoření TEI dokumentu:<?xml version="1.0"?><!DOCTYPE TEI.2 SYSTEM "masterx.dtd" [<!ENTITY mybibl SYSTEM "mybibl.xml"> <!ENTITY langids SYSTEM "langids.xml">]><?xml-stylesheet href="masterx.css" type="text/css"?><TEI.2> <teiHeader> <fileDesc> <titleStmt> <title>My manuscript catalogue</title> </titleStmt> <publicationStmt> <p>Where I am publishing this</p> </publicationStmt> <sourceDesc> <p>How I made it</p> </sourceDesc> </fileDesc> <profileDesc>&langids;</profileDesc> </teiHeader> <text> <body><div type="msdesc"><msDescription status="uni"></msDescription></div></body><back> <div type="bibliography">&mybibl;</div></back></text></TEI.2>

  36. příklad záznamu inkunábule:<msDescription><msIdentifier><country reg="CZ">Czechia</country><settlement>Prague</settlement><repository>National Library of the Czech Republic</repository><idno>39.A.12</idno></msIdentifier><msHeading><title>De animalibus</title><author>Albertus Magnus</author><origPlace>Mantua: Paulus de Butzbach [for himself and for Marcus Mazola and Antonius de Vignono]</origPlace><origDate notBefore="12.01.1479" notAfter="12.01.1479">12 Jan. 1479</origDate><textLang langKey="LAT">Latin</textLang><note>ISTC ia00224000</note></msHeading><additional><listBibl><bibl>Goff A224</bibl>…</listBibl></additional></msDescription>

  37. další možné použití:staré tiskyarchiválie (městské knihy atp.)

  38. To znamená:MOŽNOST INTEGRACE PAMĚŤOVÝCH INSTITUCÍ

  39. Digitální knihovna:http://www.cdh.nkp.cz/tm/cs/start.htm

  40. ESTATE(European Support for Techniques of Advanced Text Encoding)

  41. Děkuji,že jste to se mnou vydrželi!ZDENĚK UHLÍŘZdenek.Uhlir@nkp.cz
