  1. HATS on Handheld Gadgets Access your Legacy applications on the Go Modernize Legacy via HATS Enjoy access on mobile on the Go Royal Cyber, Inc HATS on Handheld Gadgets

  2. Agenda • Ecosystem of Innovation • HATS on Mobile (Gadgets) • HATS supported Mobiles(Gadgets) • Business Benefits • Demos • HATS on iPhone (Step by Step) • HATS on Smartphone • HATS on iPAD

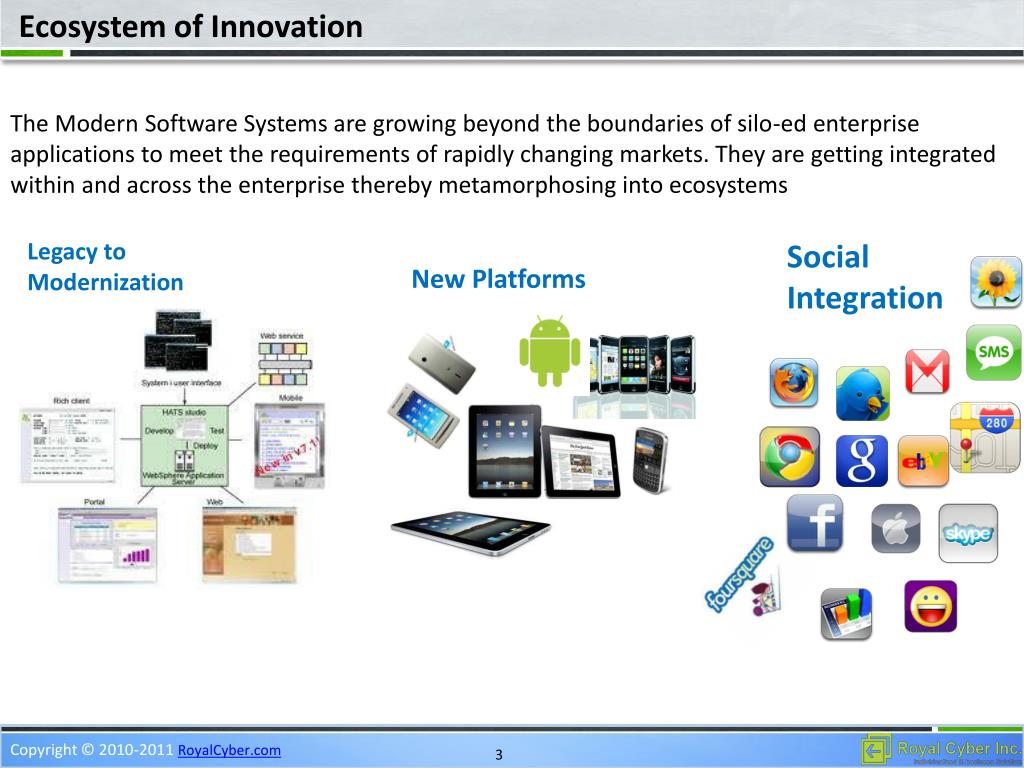

  3. Ecosystem of Innovation The Modern Software Systems are growing beyond the boundaries of silo-ed enterprise applications to meet the requirements of rapidly changing markets. They are getting integrated within and across the enterprise thereby metamorphosing into ecosystems Legacy to Modernization Social Integration New Platforms

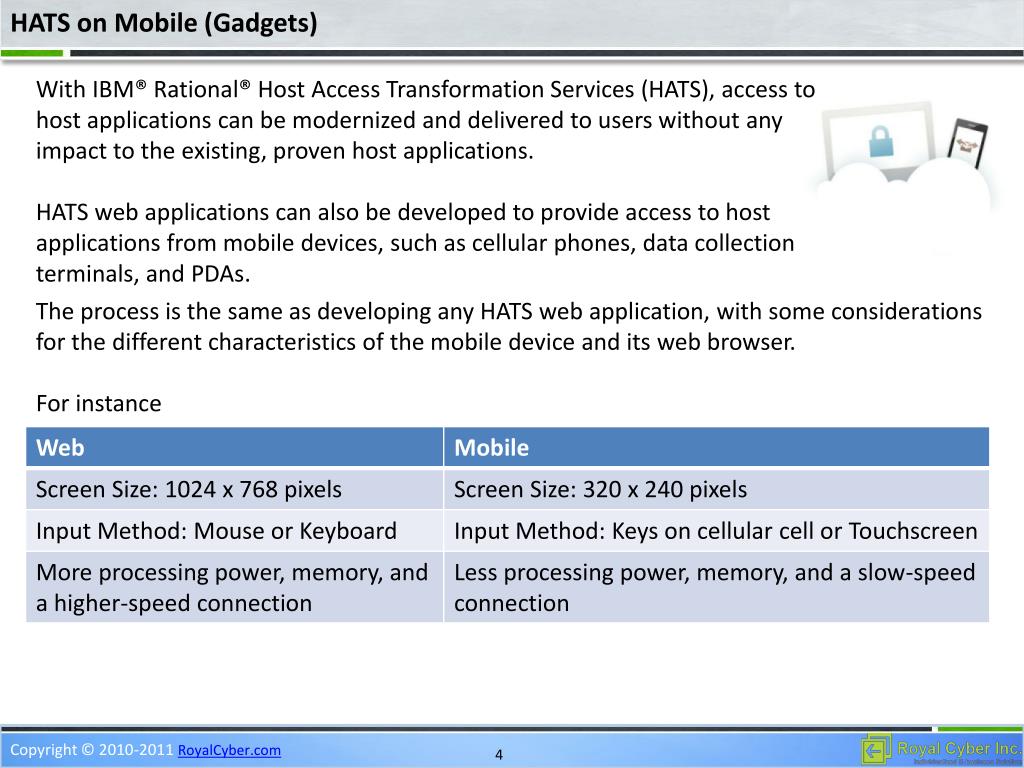

  4. HATS on Mobile (Gadgets) With IBM® Rational® Host Access Transformation Services (HATS), access to host applications can be modernized and delivered to users without any impact to the existing, proven host applications. HATS web applications can also be developed to provide access to host applications from mobile devices, such as cellular phones, data collection terminals, and PDAs. The process is the same as developing any HATS web application, with some considerations for the different characteristics of the mobile device and its web browser. For instance

  5. HATS supported Mobiles(Gadgets) Create a standard web application that is optimized for mobile devices running iOS or Windows Mobile • Mobile OS • Windows Mobile • iOS • Mobile Browsers • Microsoft Internet Explorer Mobile browser • iPhone OS Safari • Gadgets/Mobiles • Windows Mobile • Apple iPhone • iPod Touch • Apple iPAD

  6. Business Benefits • Access to host applications without any impact to the existing, proven host applications • Access from anywhere • Allows you to improve the productivity of your workforce • Increase your level of customer service • Increase in revenue

  7. HATS on CICS TS (z/Os, z/VSE) - Architecture Overview Client Application Server (WAS) Mainframe HATS (Host Access Transformation Services) Business Logic Module Webservice CICS/RPGLE Code HTTP Request JCA Webservices HTTP Response TCP/IP for VSE (Telnet Daemon) B Module A Module COBOL/RPGLE Host on-Demand Data AIX, Windows, Solaris, Linux, HP-UX, z/OS, IBM i, VMWare ESX / ESXi z/OS, z/VSE, iSeries

  8. HATS on Mobile (Gadgets) Demo

  9. Selection list on host screen Selection list on host screen Default rendering of selection list as a drop-down widget

  10. Green-screens on Mobile Selection list on host screen Default rendering of drop-down menu selections

  11. Selection list on host screen Host screen dialog Default dialog transformation

  12. Selection list on host screen Default application keypad displayed as icons Default host keypad displayed as a drop-down menu with a Submit button Host keypad drop-down menu

  13. Selection list on host screen • Notice a table with four columns on the host screen: • PART_NUMBER • PART_NAME • SALES_PRICE • PRODUCT_CATEGORY when the project is optimized for mobile devices, the Table widget displays only the first two columns as primary columns When the user expands the row to display the detail columns ,they are displayed verticallybelowthe primary columns

  14. Using Integration Objects to support mobile devices Using the Visual Macro Editor for macro development Web page that drives the HATS Integration Object

  15. Host macro driven using input submitted by the user Host macro driven using input submitted by the user Host data returned to the mobile device web browser Data extracted to return to the user

  16. HATS on Mobile

  17. HATS on Smartphone

  18. HATS on iPAD MilitaryCars Portal Sample Gartman

  19. HATS on Handheld Gadgets Canadian Tire is on the Canada’s 60 largest publicly traded companies. It businesses in retailing hard-goods, apparel and petroleum as well as financial and automotive services. Canadian Tire wanted to access HATSonMotorola MC9090-G to help boost their inventory process.

  20. HATS on Motorola MC9090-G • Inventory process becomes fast • Direct entry to mainframe DB • Live, fast transactions • Saves a lot of time & money

  21. HATS on Motorola MC9090-G

  22. Thank You
