  1. AP Physics Chapter 18Basic Electric Circuits

  2. Chapter 18: Basic Electric Circuits 18.1 Resistances in Series, Parallel, and Series-Parallel 18.2 Multiloop Circuits and Kirchoff’s Rules 18.3 RC Circuits 18.4 Ammeters and Voltmeters

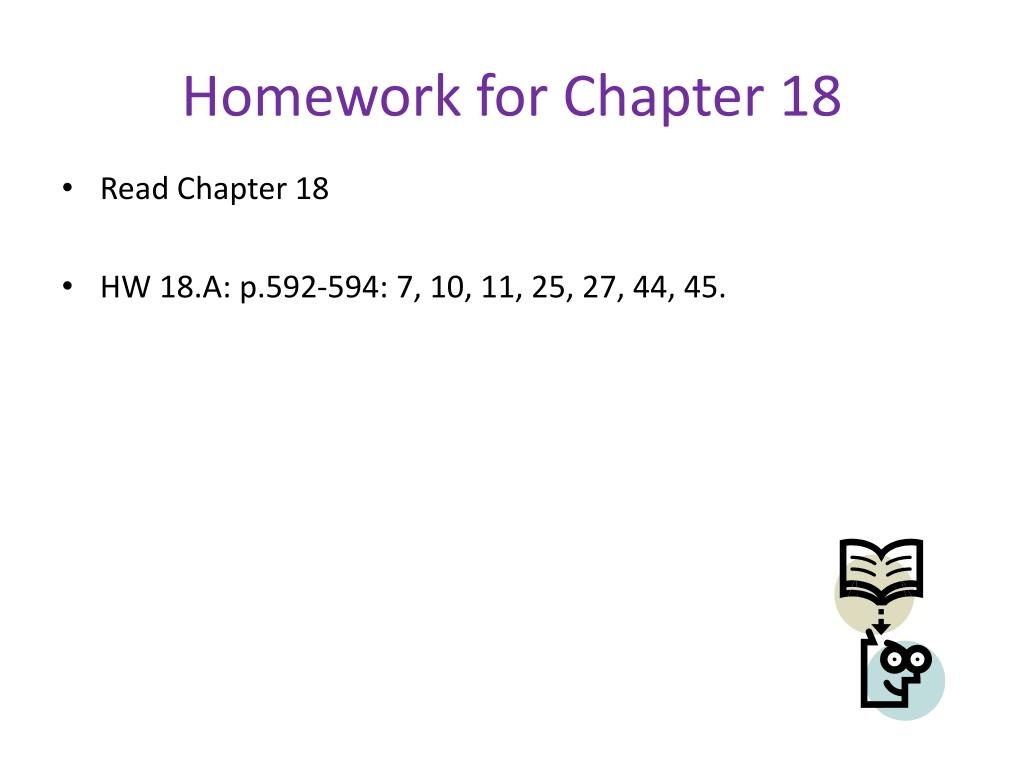

  3. Homework for Chapter 18 • Read Chapter 18 • HW 18.A: p.592-594: 7, 10, 11, 25, 27, 44, 45.

  4. Answer: Each appliance needs its own path so that it does not affect the operation of other appliances. As you add more appliances to a parallel circuit, the total current increases.

  5. 18.1 Resistances in Series, Parallel, and Series-Parallel

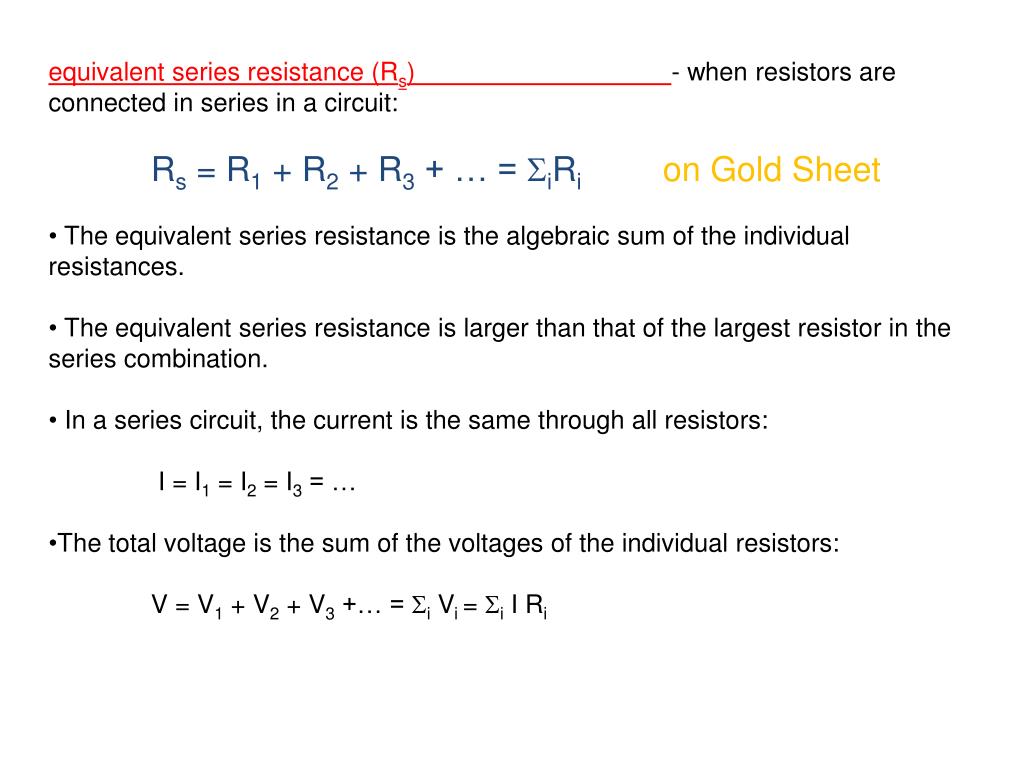

  6. equivalent series resistance (Rs) - when resistors are connected in series in a circuit: • Rs = R1 + R2 + R3 + … = iRi on Gold Sheet • The equivalent series resistance is the algebraic sum of the individual resistances. • The equivalent series resistance is larger than that of the largest resistor in the series combination. • In a series circuit, the current is the same through all resistors: • I = I1 = I2 = I3 = … • The total voltage is the sum of the voltages of the individual resistors: • V = V1 + V2 + V3 +… = i Vi = i I Ri

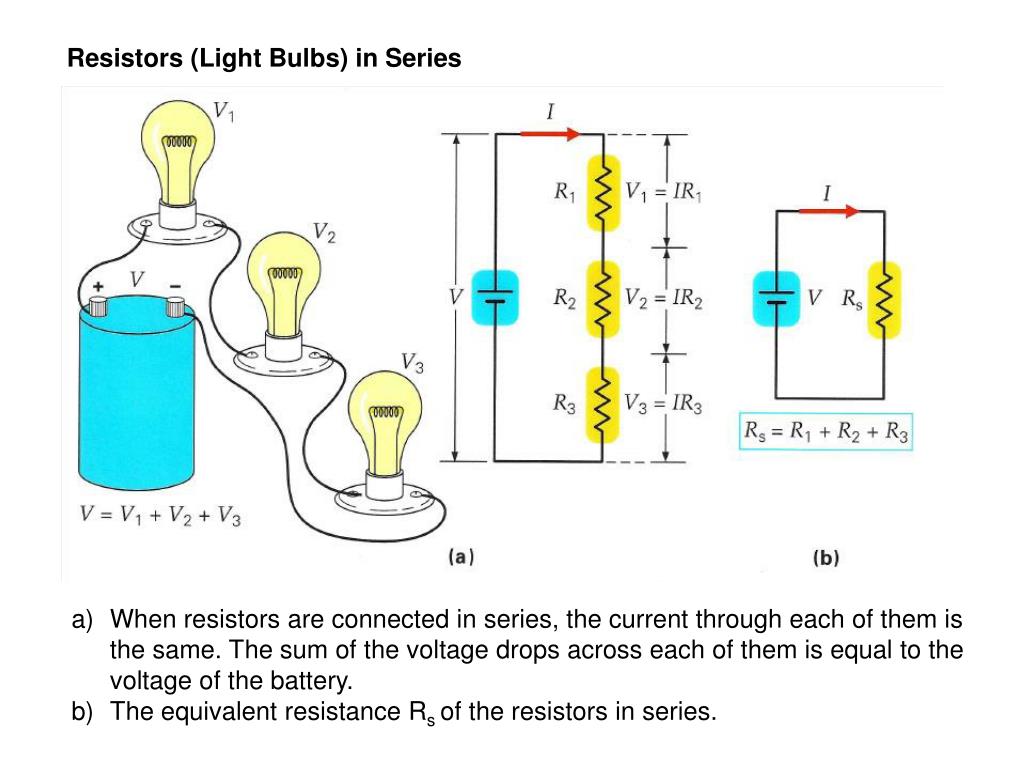

  7. Resistors (Light Bulbs) in Series • When resistors are connected in series, the current through each of them is the same. The sum of the voltage drops across each of them is equal to the voltage of the battery. • The equivalent resistance Rs of the resistors in series.

  8. equivalent parallel resistance (Rp) - when resistors are connected in parallel in a circuit: • 1 11 11 • Rp = R1 + R2 + R3 + … = iRi on Gold Sheet • The reciprocal of the equivalent parallel resistance is equal to the sum of the reciprocals of the individual resistances. • The equivalent parallel resistance is less than that of the smallest resistor in the parallel combination. • In a parallel circuit, the voltage is the same across all resistors: • V = V1 = V2 = V3 = … • The total current is the sum of the currents of the individual resistors: • I = I1 + I2 + I3 +… = i Ii

  9. Resistors (Light Bulbs) in Parallel • When resistors are connected in parallel, the voltage drop across each of the resistors is the same. The current from the battery divides among the resistors. • The equivalent resistance Rp of the resistors in parallel.

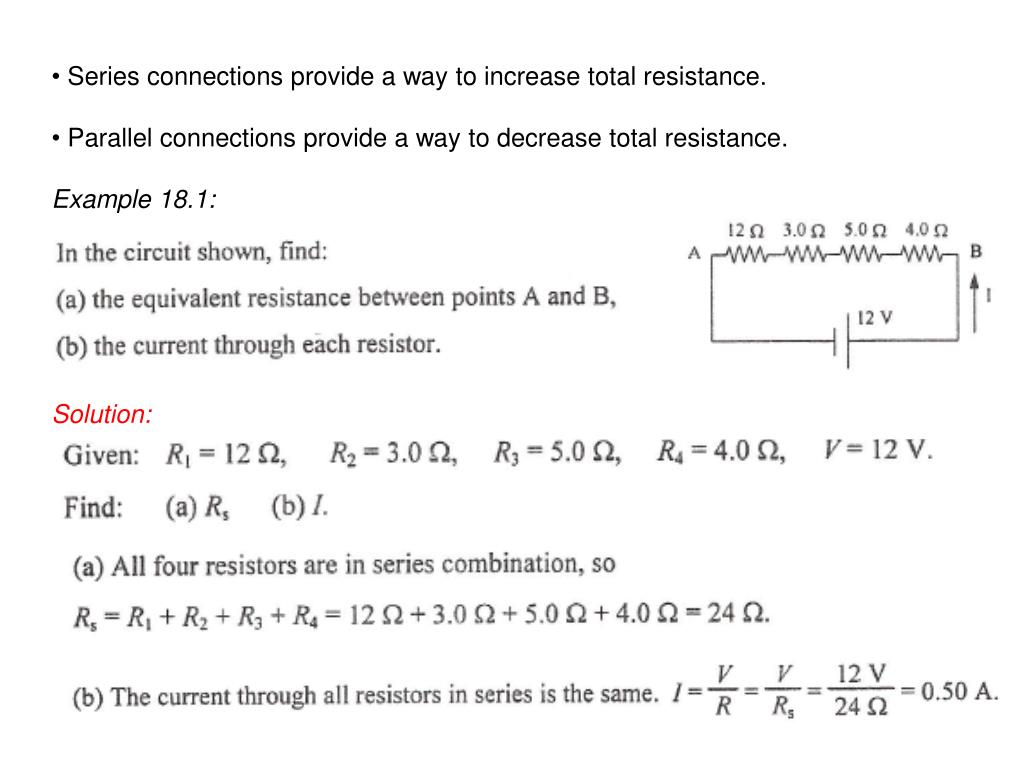

  10. Series connections provide a way to increase total resistance. • Parallel connections provide a way to decrease total resistance. • Example 18.1: • Solution:

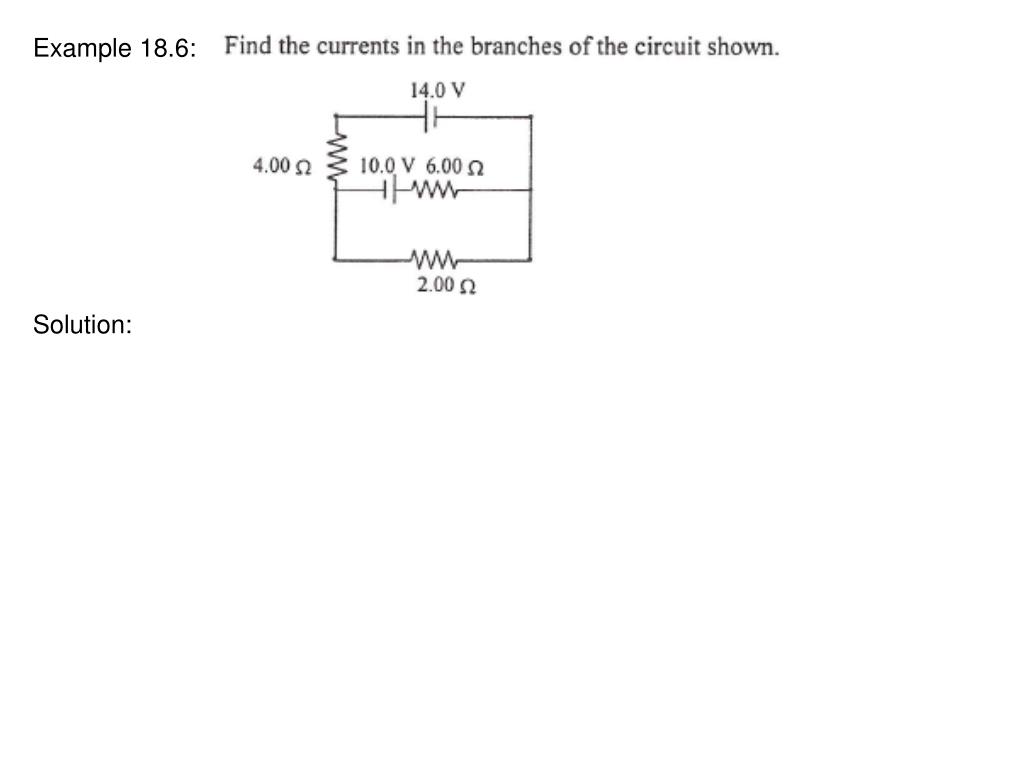

  11. Example 18.2: Solution:

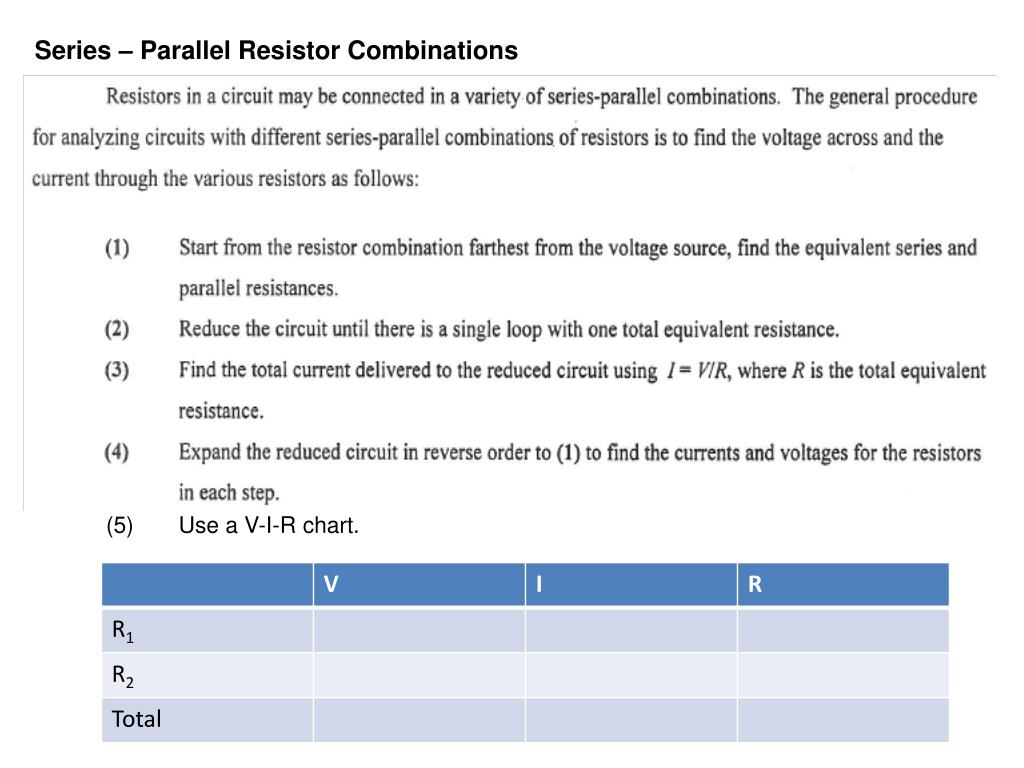

  12. Series – Parallel Resistor Combinations (5) Use a V-I-R chart.

  13. Example 18.3: Solution:

  14. Example 18.4: Solution:

  15. Check for Understanding • Which of the following is always the same for resistors in series? • a) voltage • b) current • c) power • d) energy • Answer: b • 2. Which of the following is always the same for resistors in parallel? • a) voltage • b) current • c) power • d) energy • Answer: a

  16. Check for Understanding 3. Are the voltages across resistors in series generally the same? Answer: No 4. Could they be so in certain cases? Answer: Yes, if all the resistors are equal 5. Are the currents in resistors in parallel generally the same? Answer: No 6. Could they be so in certain cases? Answer: Yes, if all the resistors are equal

  17. Check for Understanding 7. Three resistors that have values of 5 , 2 , and 1  are connected in series to a battery. Which gets the most power, and why? Answer: The 5  resistor gets the most power because:  P=IV  all the resistors get the same current  the voltage drop is the highest for the largest resistor (V=IR) 8. Three resistors that have values of 5 , 2 , and 1  are connected in parallel to a battery. Which gets the most power, and why? Answer: The 1 resistor gets the most power because:  P=IV  all the resistors have the same voltage  it gets the most current

  18. Answer: Five can safely be used. Each cooker draws 7.5 amps.

  19. 18.2 Multiloop Circuits and Kirchoff’s Rules

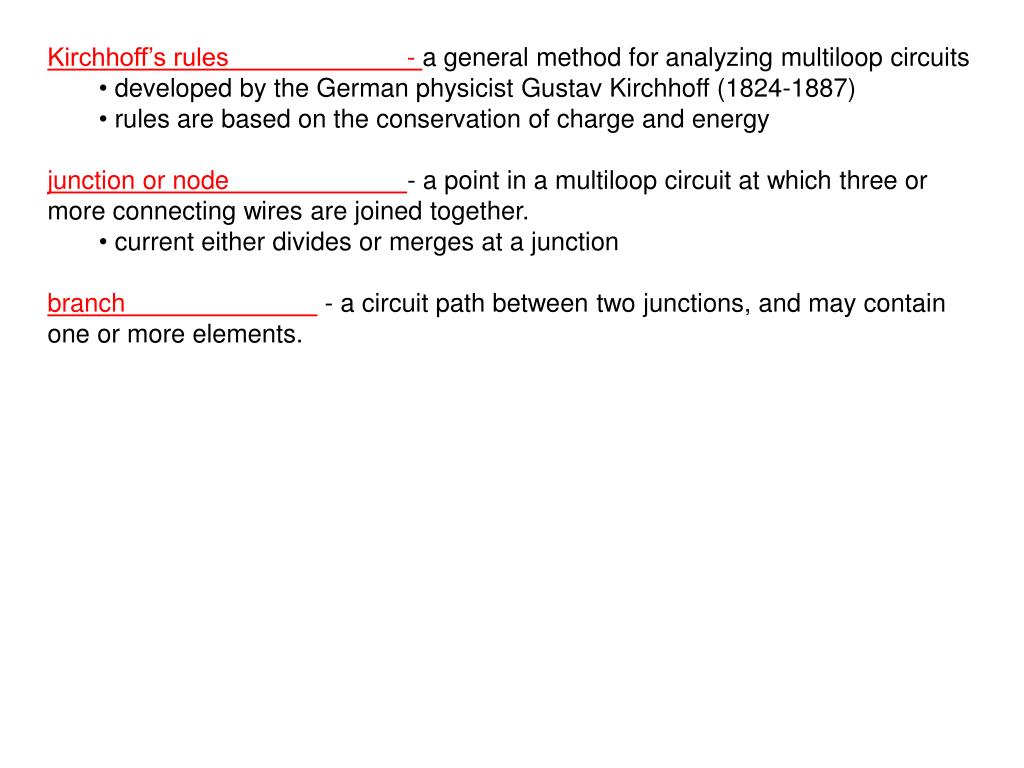

  20. Kirchhoff’s rules - a general method for analyzing multiloop circuits • developed by the German physicist Gustav Kirchhoff (1824-1887) • rules are based on the conservation of charge and energy • junction or node - a point in a multiloop circuit at which three or more connecting wires are joined together. • current either divides or merges at a junction • branch - a circuit path between two junctions, and may contain one or more elements.

  21. A Multiloop Circuit • Always reduce a circuit as far as possible before analyzing it. This circuit can be reduced to the one shown in b. • At junction A the current divides, and at B the current merges. The paths between junctions A and B are called branches. How many branches does this circuit have? • Answer: 3

  22. current in = current out (Junction Theorem) current in is positive and current out is negative

  23. Sign Convention for Kirchoff’s Rules • The voltage across a battery is taken to be positive (+) if a battery is traversed from the negative to the positive terminal. • The voltage across a battery is taken to be negative (-) if a battery is traversed from the positive to the negative terminal. • b) The voltage across a resistor is taken to be negative (-) if the resistance is traversed in the direction of the assigned branch currrent. • The voltage across a resistor is taken to be positive (+) if the resistance is traversed in the direction opposite that opposite that of the assigned branch currrent.

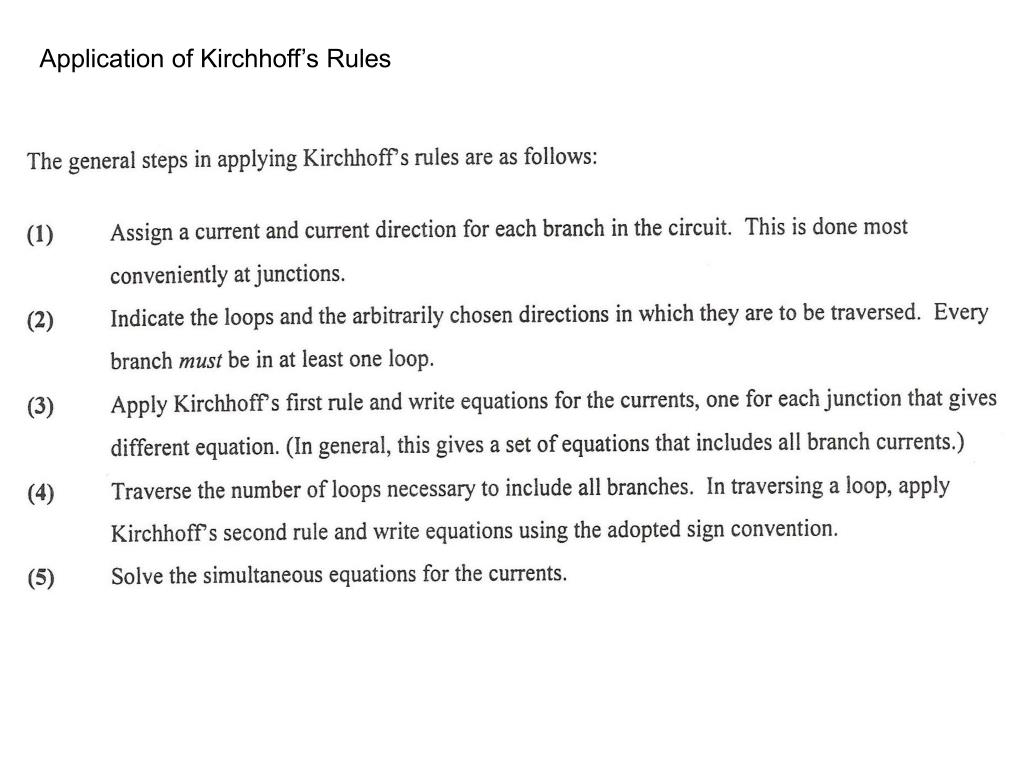

  24. Application of Kirchhoff’s Rules

  25. Example 18.5: Solution:

  26. Example 18.6: Solution:

  27. Check for Understanding • A multiloop circuit has more than one • junction • branch • current • all of these • Answer: d • 2. By our sign convention, if a resistor is traversed in the direction of the current in it • a) the current is negative • b) the current is positive • c) the voltage is negative • d) the voltage is positive • Answer: c

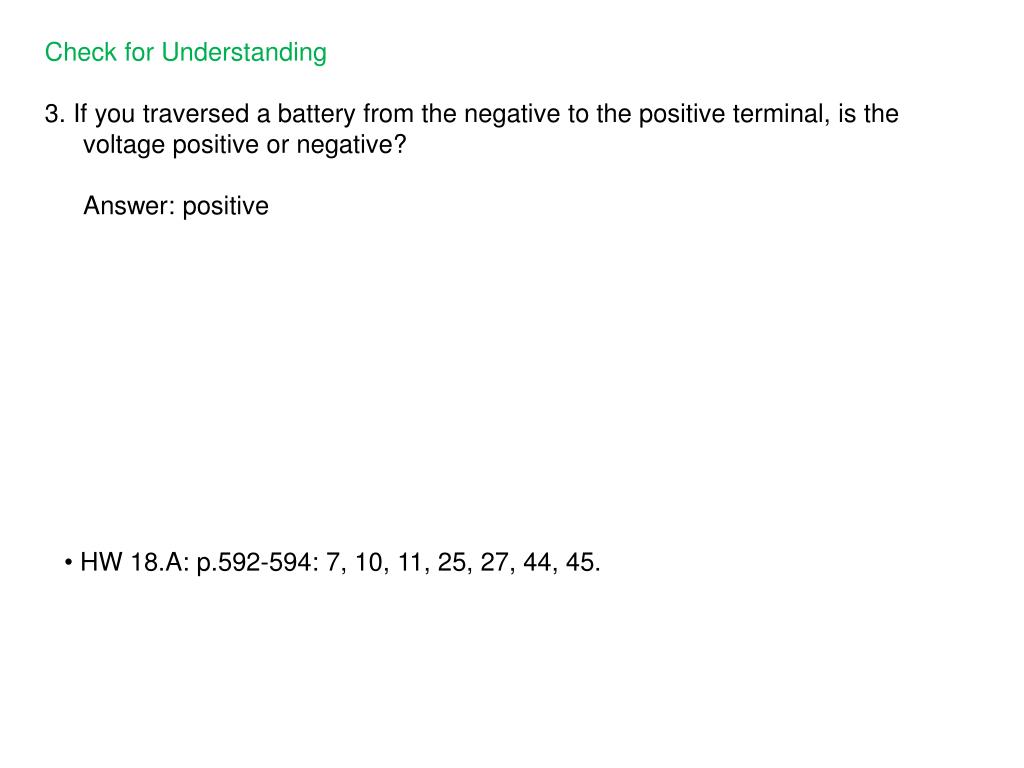

  28. Check for Understanding 3. If you traversed a battery from the negative to the positive terminal, is the voltage positive or negative? Answer: positive • HW 18.A: p.592-594: 7, 10, 11, 25, 27, 44, 45.

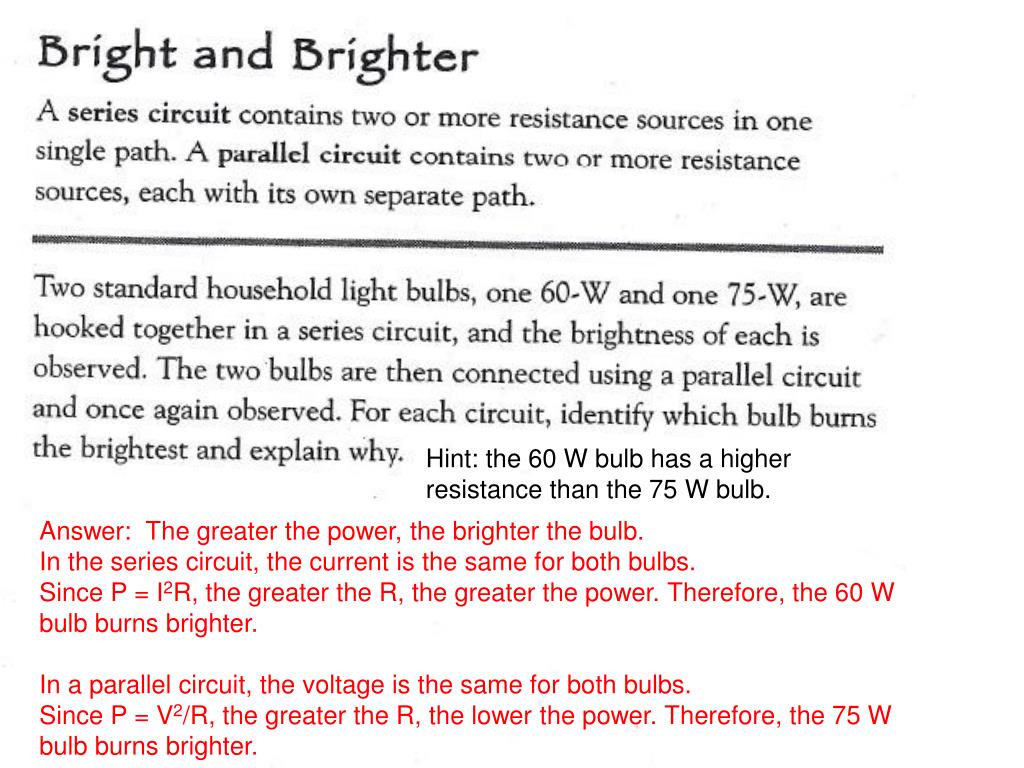

  29. Hint: the 60 W bulb has a higher resistance than the 75 W bulb. Answer: The greater the power, the brighter the bulb. In the series circuit, the current is the same for both bulbs. Since P = I2R, the greater the R, the greater the power. Therefore, the 60 W bulb burns brighter. In a parallel circuit, the voltage is the same for both bulbs. Since P = V2/R, the greater the R, the lower the power. Therefore, the 75 W bulb burns brighter.

  30. Brightness of a Bulb • The brightness of a bulb depends solely on the power dissipated by the bulb. • You can remember that from your own experience – when you go to the store to buy a light bulb, you as for a 60 watt or 75 watt bulb. Watt is the unit of power. • A 75 watt bulb is brighter than a 60 watt bulb, but be careful: a bulb’s power can change depending on the current and voltage it’s hooked up to. • Power is given by the equations P = IV, P = I2R, P = V2/R. • The resistance of a bulb can be calculated by hooking it up to a 120V source: • For a 60 W bulb: I = P = 60 W = 0.5 A so, R = V = 120 V = 240  • V 120 V I 0.5 A • For a 75 W bulb: I = 75 W = 0.625 A so, R = 120 V = 192  • The resistance of a bulb is a property of the bulb itself, and never changes.

  31. Question: A light bulb is rated at 100 W in the United States, where the standard wall outlet voltage is 120 V. If this bulb were plugged in in Europe, where standard wall outlet voltage is 240 V, which of the following would be true? a) The bulb would be ¼ as bright. b) The bulb would be ½ as bright. c) The bulb’s brightness would be the same. d) The bulb would be twice as bright. e) The bulb would be four times as bright. Answer: e The resistance does not change because it is a property of the bulb itself. It will not vary no matter what the bulb is hooked up to. Since P = V2/R, if the voltage is doubled, the power is quadrupled.

  32. 18.3 RC Circuits

  33. RC circuit – have a resistor (R), or other resistive components, and a capacitor (C) in series. • In some dc circuits, the current can vary with time, while maintaining a constant direction (so it is still “dc”). This is the case with RC circuits. • In Figure (a) shows a simple RC circuit. • The switch is open so no current flows. • There is no charge on the capacitor plates.

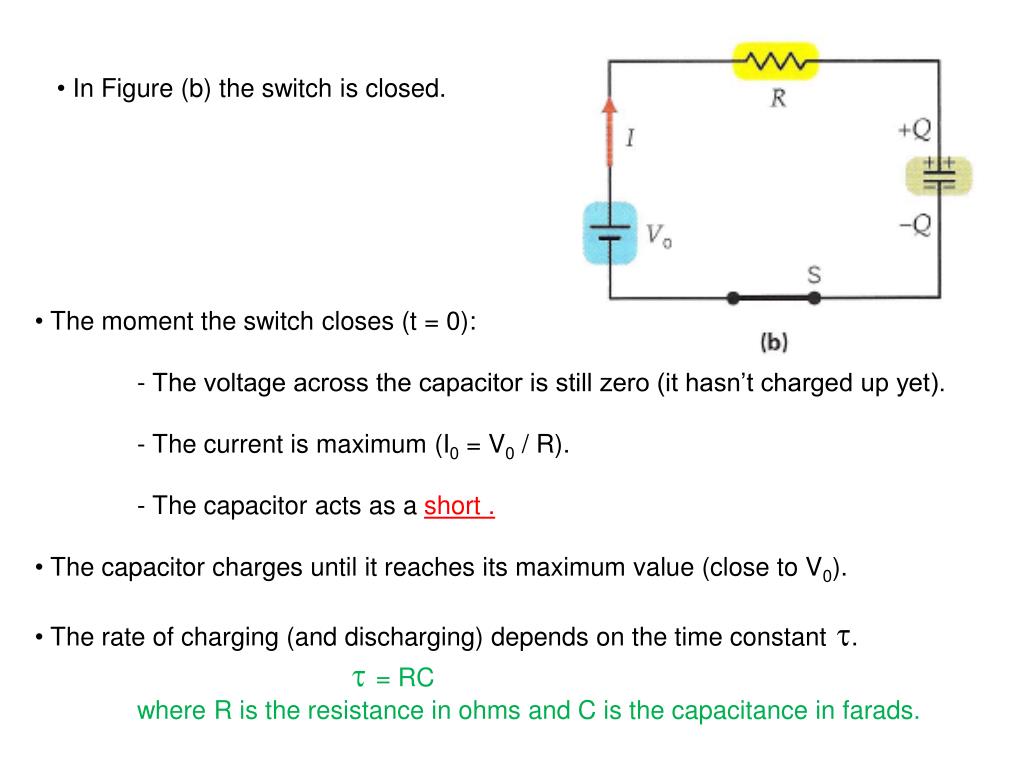

  34. In Figure (b) the switch is closed. • The moment the switch closes (t = 0): • - The voltage across the capacitor is still zero (it hasn’t charged up yet). • - The current is maximum (I0 = V0 / R). • - The capacitor acts as a short . • The capacitor charges until it reaches its maximum value (close to V0). • The rate of charging (and discharging) depends on the time constant. •  = RC • where R is the resistance in ohms and C is the capacitance in farads.

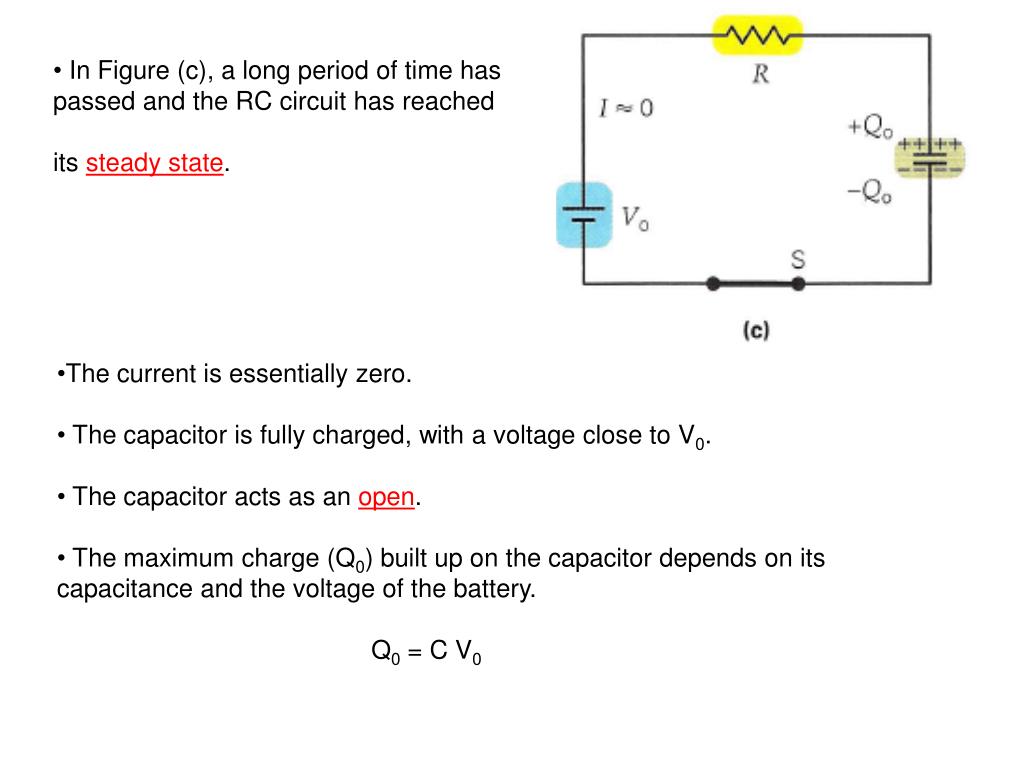

  35. In Figure (c), a long period of time has passed and the RC circuit has reached • its steady state. • The current is essentially zero. • The capacitor is fully charged, with a voltage close to V0. • The capacitor acts as an open. • The maximum charge (Q0) built up on the capacitor depends on its capacitance and the voltage of the battery. • Q0 = C V0

  36. In a series RC circuit, the voltage across the capacitor increases an exponentially with time, reaching 63% of its maximum voltage in one time constant, t = . • The current in the circuit is initially at maximum and decays exponentially with time, falling to 37% of its initial value in one time constant.

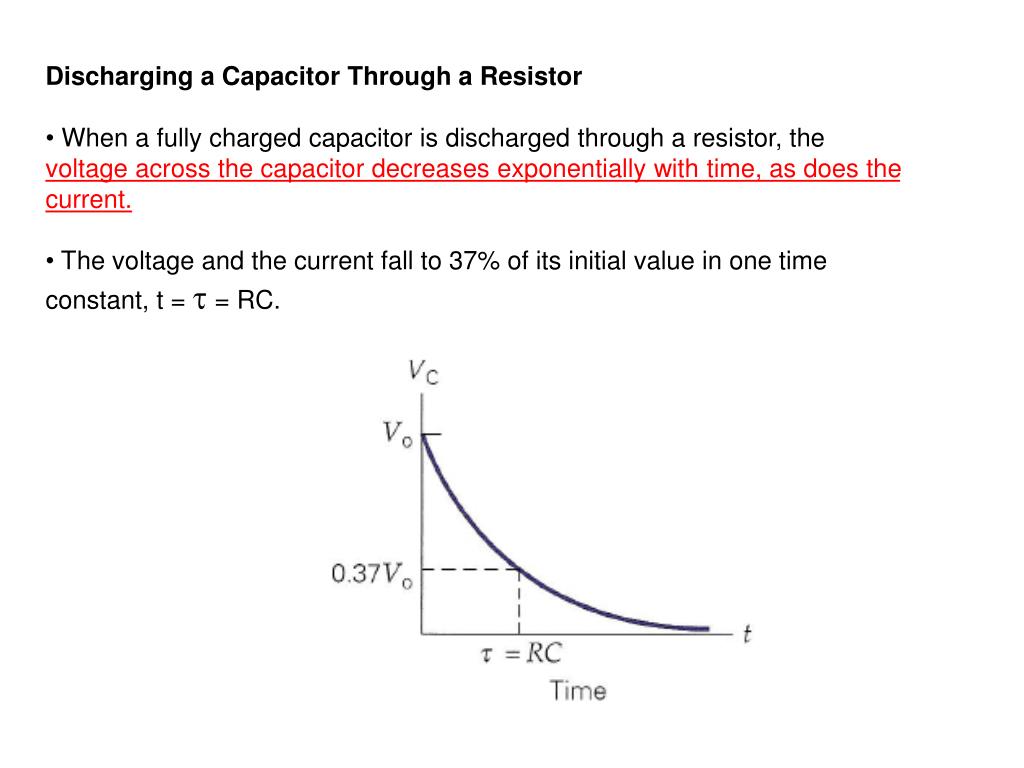

  37. Discharging a Capacitor Through a Resistor • When a fully charged capacitor is discharged through a resistor, the voltage across the capacitor decreases exponentially with time, as does the current. • The voltage and the current fall to 37% of its initial value in one time constant, t =  = RC.

  38. Check for Understanding • When a capacitor charges through a resistor, the minimum current occurs • a) at the beginning of the charging process • b) near the middle of the charging process • c) at the end of the charging process • d) after one time constant • Answer: c • 2. When a capacitor discharges through a resistor, the voltage across the capacitor is a maximum • at the beginning of the discharging process • near the middle of the discharging process • at the end of the discharging process • after one time constant • Answer: a

  39. Check for Understanding 3. To increase the time constant of an RC series circuit, you can a) increase the capacitance b) increase the resistance c) decrease the capacitance d) both (a) and (b) Answer: d
