Tues 1/22 and Wed. 1/23

Tues 1/22 and Wed. 1/23. New INBs today—50 pts. Get them out—when I call your name, hold up your new INB for points. Each class they are late will be -10 points. Several layers of the Earth are exposed. The oldest rock layer is most likely to be at the bottom layer. the thickest layer.

latoya
Télécharger la présentation

Tues 1/22 and Wed. 1/23

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Tues 1/22 and Wed. 1/23 • New INBs today—50 pts. • Get them out—when I call your name, hold up your new INB for points. • Each class they are late will be -10 points.

  2. Several layers of the Earth are exposed. The oldest rock layer is most likely to be • at the bottom layer. • the thickest layer. • the layer with the most fossils. • igneous intrusive rock.

  3. Science Interactive Notebook Setup Number EVERY page in your notebook, front and back. Start with page 1 on the front of the first page and number up to page 140. The number should go in the upper corner farthest away from the spiral. 1 1 Start with page 1 on the front of the first page and number up to page 140. The number should go in the upper corner farthest away from the spiral. Number the front and back of each page.

  4. Interactive Notebook (INB) Set-Up • Even numbers should be on the left side of the spiral and odd numbers should be on the right. spiral Even # Odd #

  5. Science Interactive Notebook Setup 1 Glue Handout Titled: Geoscience Interactive Notebook on the front page. Fill in name and period and decorate the box at the bottom.

  6. 2 THRU: Anything in red must be written down and answers must be highlighted. 3 IN: Write out anything in red. Answers must be highlighted OUT: Write out anything in red. Answers must be highlighted

  7. We can find the age of rocks and fossils in a couple of different ways. The first way is relative age. The relative age of an object is its age in relationship to the age of other objects(older, younger). Absolute age is the numeric age of an object(years, days). It is often stated in years(or millions of years) before present.

  8. In: pg. 2 • What is “relative age”? • What is “absolute age”? Look at the picture of the grandfather and the girl. Think about their absolute and relative ages. • Relative age • Man • Girl • Absolute age • Man • Girl

  9. Thru 1: pg. 3 Determining Relative Age Tree Map • Read section 8.1 in the textbook and construct a tree map classifying the different principles we use to find the relative age of rocks.

  10. Principle of Original Horizontality Law of Crosscutting Relationships Determining Relative Age Principle of Uniformitarianism Law of Superposition Unconformities • Book definition • Definition in your own words • Picture

  11. Out • According to the Principle of _______, layer A is older than layer B. • According to the Law of _____ _______, D is younger than B. • According to the Law of ____ ____, these layers are in their original, horizontal position. E A

  12. Thurs. 1/24 and Fri. 1/25 • Anyone have notebooks for 40pts? • Pass out new restroom passes and tape them on the inside back cover of your INB.

  13. Which relative aging principle does this diagram best illustrate? • Principle of Superposition. • Law of Crosscutting Relationships. • Principle of Uniformitarianism • Principle of Original Horizontality

  14. In: Pg. 4 • Which layer is the oldest? • Which layer is the youngest? • Layer B is ______ compared to layer C and D. • Layer C is _____ compared to layer A. D C B A

  15. Unconformities Movements in the Earth’s crust can lift up rock layer that were buried and expose them to erosion. If layers of new sedimentary rock are laid down on this eroded surfaces, an unconformity forms. Unconformities are boundaries between old rock and new rock and they indicate an interruption in the rock record. The old rock may be igneous, metamorphic or sedimentary. The new rock is always sedimentary. According to the Law of Superposition, all rocks beneath the unconformity are older than the rocks above it.

  16. Thu 1: Pg. 5 Definition Construct the spider diagram. At the end of each leg, there are 2 lines(toes). At the end of one line/toe write the definition for the concept and at the end of the second line/toe, draw a picture illustrating the concept. Picture Nonconformity Types of unconformities Disconformity Angular unconformity Unconformities are boundaries between old rock and new rock and they indicate an interruption in the rock record.

  17. Nonconformity HACHURES INDICATE METAMORPHISM • When igneous or metamorphic rock is exposed and eroded and new sedimentary rock is laid over top.

  18. Angular nonconformity • When rock layers are tilted or folded, then eroded and new sedimentary rock is laid on top of the eroded surface.

  19. Disconformity • When sedimentary rock is eroded and new sedimentary rock is laid over top.

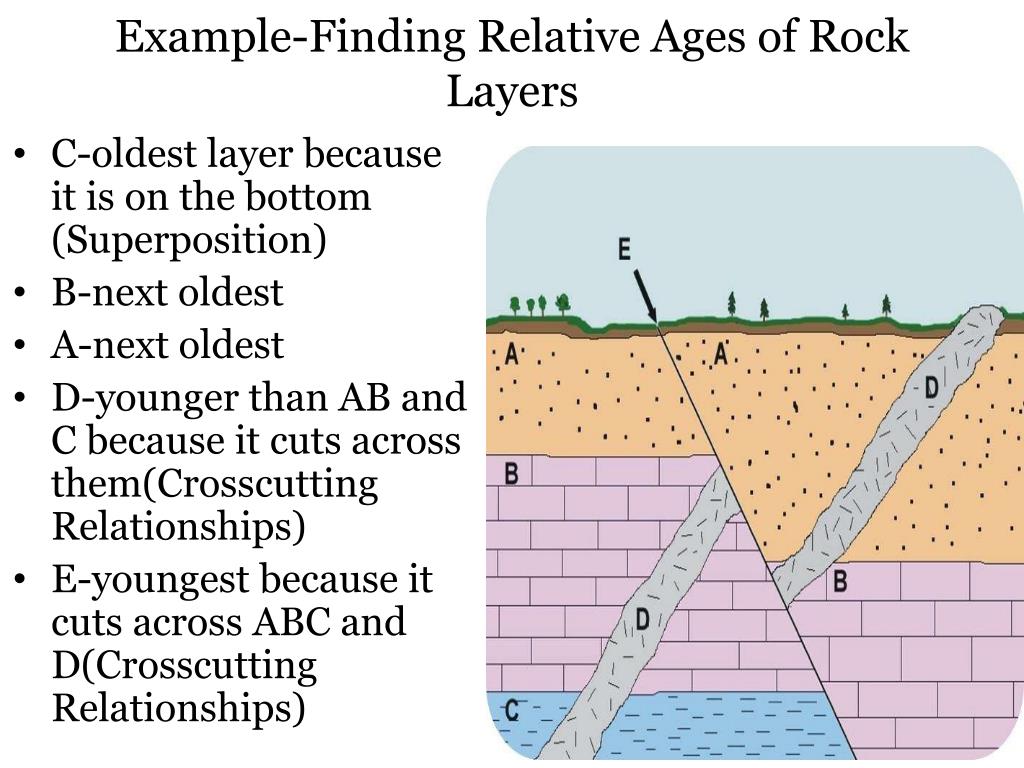

  20. Example-Finding Relative Ages of Rock Layers • C-oldest layer because it is on the bottom (Superposition) • B-next oldest • A-next oldest • D-younger than AB and C because it cuts across them(Crosscutting Relationships) • E-youngest because it cuts across ABC and D(Crosscutting Relationships)

  21. Thru 2 Pg. 6 Blank Pg. 7 Determining Relative Age worksheet Complete the worksheet and tape it in as a flap on this page.

  22. Out • List these layers from oldest to youngest.

  23. Mon 1/28 and Tues. 1/29 • Quiz #1 today—get out your INB and paper. • Any new notebooks for 30 pts? • If you need help setting up your notebook, come in after school on Thursday 1/31.

  24. Quiz #1 • What is the relative age of the girl on pg. 2 in the IN? • Which law/principle states that the layers of rock on the bottom are the oldest? Pg 3 • Which law/principle states that the geologic processes that occurred in the past can be explained by current processes? Pg3 • ______ are boundaries between old and new rock that indicate an interruption in the geologic record. Pg 5 • What is the answer to #2? Pg 7 • What is the answer to #4? Pg 7

  25. Which is the youngest rock shown in the diagram below? • 1 • 2 • 3 • 4

  26. Isotopes(SPECIAL ATOMS) • Atoms that belong to the same element but have different atomic masses are isotopes of one another. • Isotopes of the same element have the same # of protons and electrons but a different # of neutrons. • All elements have isotopes • Isotopes are the reason why atomic masses are decimals and not whole #’s. • Some isotopes are radioisotopes, which means they are unstable and their nucleus breaks apart. • Release energy. • Turns the isotope into an atom of a different element.

  27. Isotopes of Carbon • Carbon-14 and Carbon-13 are unstable isotopes of carbon. • They decay into Carbon-12 over time. 6P 7N Carbon - 13 6P 8N Carbon - 14

  28. If carbon had no isotopes: 12+12+12+12=48/4 Average mass=12.00… Since carbon does have isotopes, not all of the atoms in a pure sample of the element have the same mass: 12+12+13+14=51/4=12.8 Now, carbon’s actual average atomic mass is 12.0107(carbon-12 is the most common isotope in elemental carbon)

  29. In: Pg. 8 Do 5 facts about isotopes ISOTOPES

  30. Periodic Table

  31. Thru 1: Pg9 Isotope Activity Do the Isotope models as a group and answer the Isotope questions individually. The Isotope questions go on this page. The models will be handed in. Put all group member names on the sheet!

  32. Thru 2 Pg. 10 8.2 Guided Reading Answer questions here Pg. 11 8.2 Absolute Age Guided Reading Tape in questions here • Use section8.2 to answer the questions. • We will finish it after the lab next class.

  33. Out • Radioisotopes are useful to humans in several different ways. • Carbon-14 can be used to find the age of once living substances. • Radioactive tracers like Tantalum-182 can be used to track an objects location because they decay and give off radiation. If it is added to a fluid, radioactivity will be detected where ever the fluid flows. • The radiation from isotopes like Cobalt-60 can be injected into patients to kill unwanted, diseased cells. Which radioisotope would you use for the following purposes: • Inject into a cancer patient to destroy a tumor. • Finding the age of charcoal found at an ancient human settlement. • Following the flow of blood in a stroke victims brain.

  34. Wed. 1/30 and Thurs. 1/31 • If you need help setting up your notebook, come in after school on Thurs. 1/31

  35. A student is reading about uranium isotopes and doesn’t understand how they can be the same element. Your best answer is • isotopes are not the same but are in the same family as the main element. • uranium is unique and does not follow the definition of an isotope. • isotopes all have the same number of protons which makesthem the same element. • the electrons do not change in isotopes even when formingpositive or negative ions.

  36. In: pg 12 Atom A has 7 protons, 7 neutrons and 7 electrons. Atom B has 8 protons, 7 neutrons and 6 electrons. Atom C has 8 protons, 7 neutrons and 7 electrons Atom D has 7 protons, 8 neutrons and 7 electrons. • Which 2 atoms from the list above are isotopes of the same element? • How do you know this?

  37. Isotopes and Carbon • You probably have heard news stories about fascinating ancient artifacts. At an archaeological dig, a piece of wooden tool is unearthed and the archaeologist finds it to be 5,000 years old! A child mummy is found high in the Andes and the archaeologist says the child lived more than 2,000 years ago. How do scientists know how old an object or human remains are? What methods do they use and how do these methods work? http://www.exn.ca/mummies/ story.asp?id=1999041452

  38. Radiocarbon dating Radiocarbon (Carbon-14) dating is a way of determining the age of certain biological artifacts up to about 50,000 years old. It is used in dating things such as bone, cloth, wood and plant fibers that were created in the relatively recent past by human activities.

  39. Thru 1: pg 13 Radioactive Decay Activity—Make sure you do the data table, graph and questions!!!!! When you are done, finish the guided reading questions from last class!

  40. Thru 2 Pg. 14 blank Pg. 15 Carbon Aging of Masterpieces • Homework! • Finish after you get the questions on pg. 11 from last class done!

  41. Out Otzi The Iceman-The oldest frozen mummy found. Otzi’s dead body was found frozen in the snow in the Swiss Alps. Later examination showed he had numerous injuries, INCLUDING AN ARROWHEAD buried in his shoulder. Scientists were able to use radiocarbon dating of a wooden ax handle to place his death at 5,300 years ago. Why did scientists have to use the wooden ax handle and not the arrow head to do radiocarbon dating on Otzi?

  42. Fri. 2/1 and Mon. 2/4 • Quiz #2

  43. Quiz #2

  44. The diagram shows the decay of a 50-gram sample of a radioactive isotope. According to the graph, what is the half-life of this isotope? • 100 years • 150 years • 200 years • 300 years

  45. In: pg. 16 Complete the sentence: A fossil is….

  46. Thru 1: Pg.17 8.3 The Fossil Record CLOZE • Complete the CLOZE passage while you read pages 197-200.

  47. Thru 2 Pg. 18 Article: Who Killed the Iceman? 1.Where was the Iceman found? • What was he named? • How was he fossilized? • Why do they think Otzi was murdered? Pg. 19 • What is Reinhard’s theory on how Otzi died? • What clues did he have? • What is Vigl’s theory on how Otzi died? • What clues did he have?

  48. Thru 2 Pg. 18 Pg. 19 Movie: Iceman • 20 facts.

  49. Out • Why are most fossils found formed from the bones or shells of animals?
