  1. Oak, the Architecture of the new Repository Michael Dürig, Adobe Research

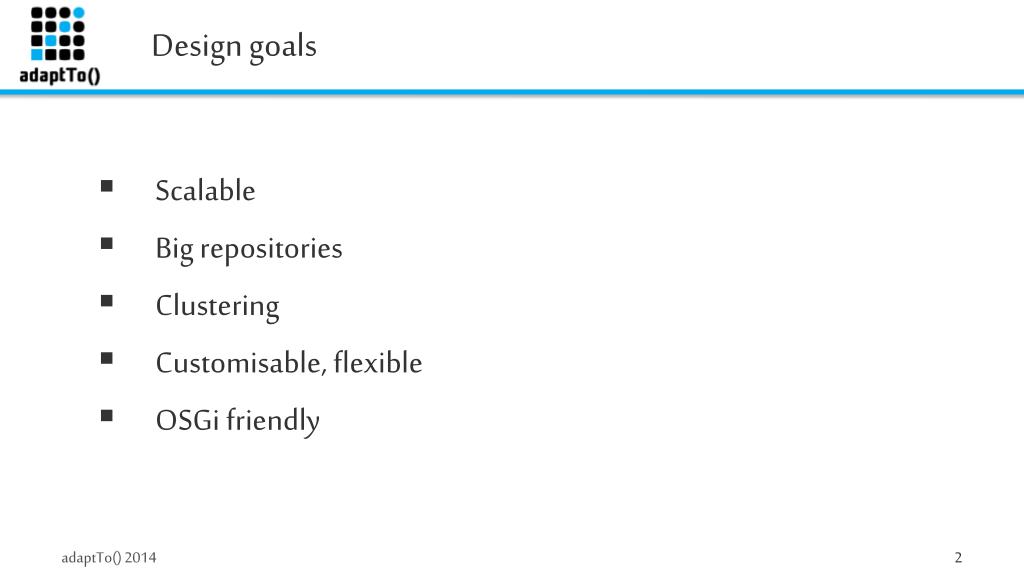

  2. Design goals • Scalable • Big repositories • Clustering • Customisable, flexible • OSGi friendly

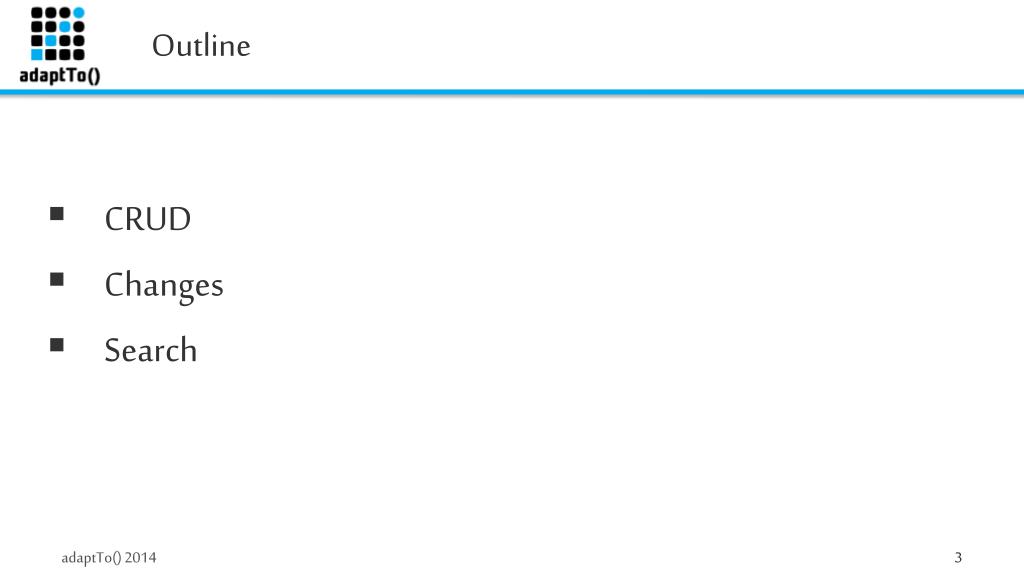

  3. Outline • CRUD • Changes • Search

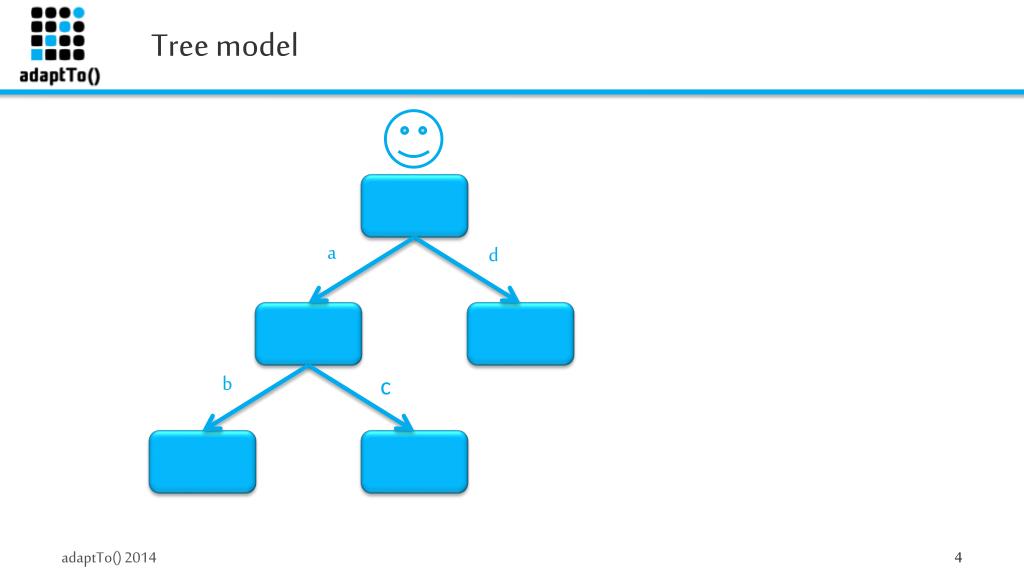

  4. Tree model a d b c

  5. Updating ? a d b c x

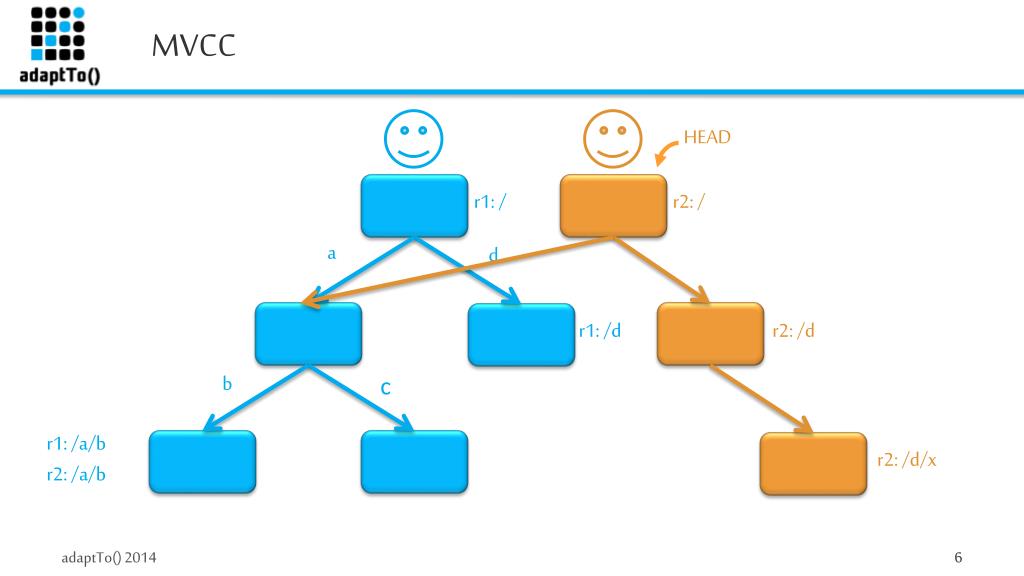

  6. MVCC HEAD r1: / r2: / a d r1: /d r2: /d b c r1: /a/b r2: /a/b r2: /d/x

  7. Refresh and Garbage Collection

  8. Refresh garbage

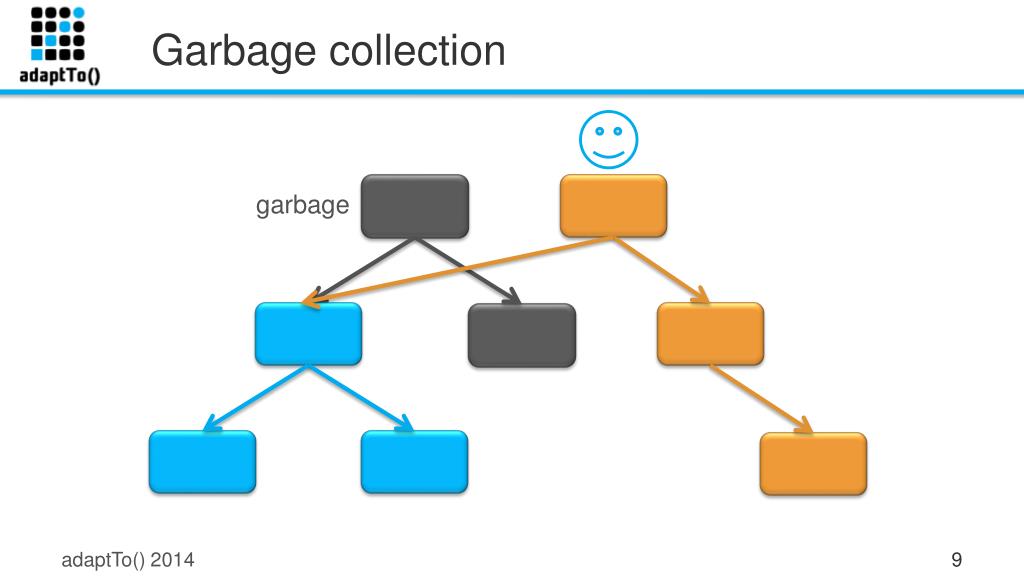

  9. Garbage collection garbage

  10. Concurrency and Conflicts

  11. Concurrent updates r2a r1 r2b

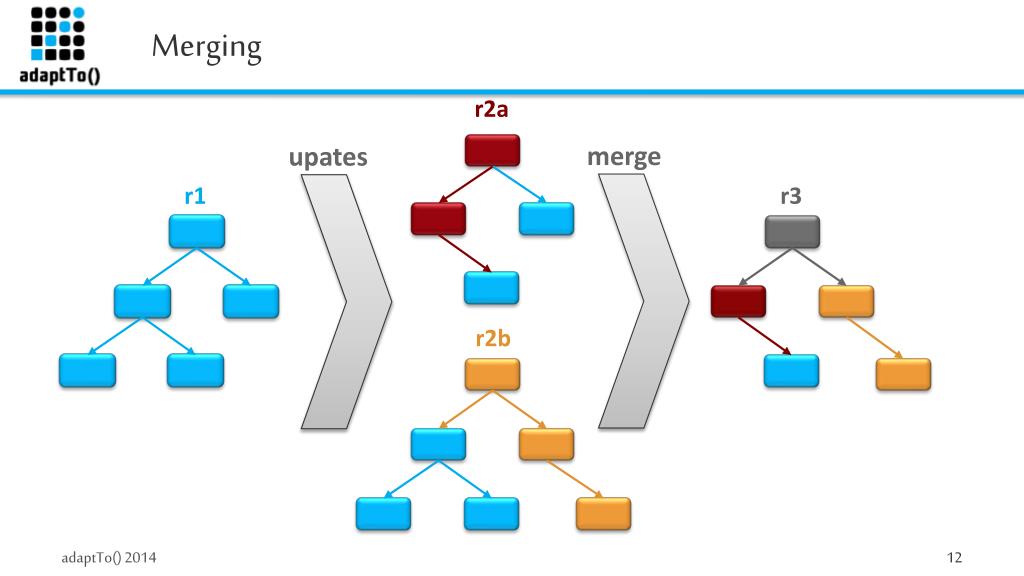

  12. Merging r2a merge upates r1 r3 r2b

  13. Conflict handling: serialisation • Fullyserialised • Fail, no concurrent update • Partially serialised • Concurrent conflict free updates

  14. Conflict handling strategies: merging • Partial merge • Conflict markers, deferred resolution • Full merge • Need to choose victim

  15. Replicas and Sharding

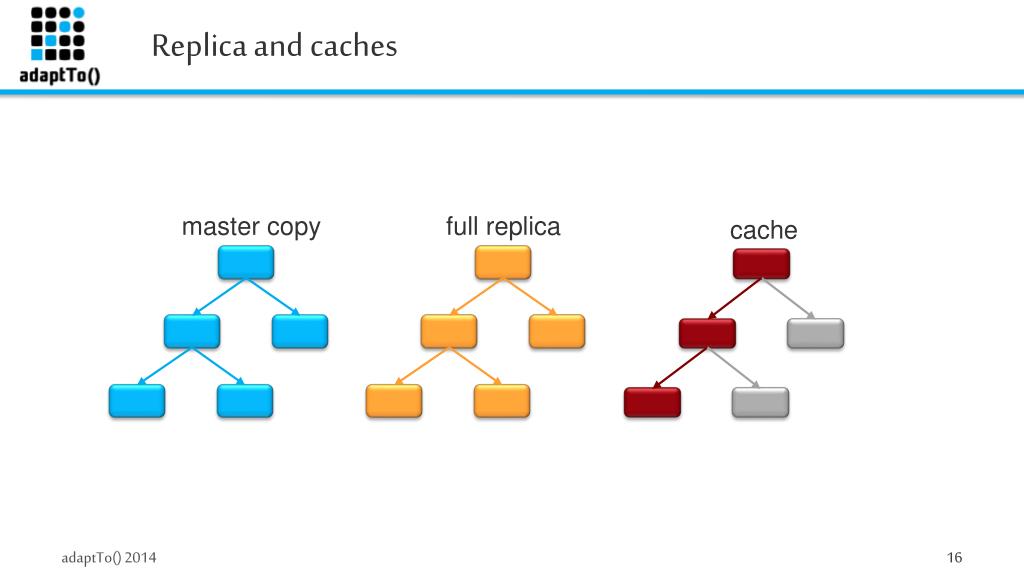

  16. Replica and caches master copy full replica cache

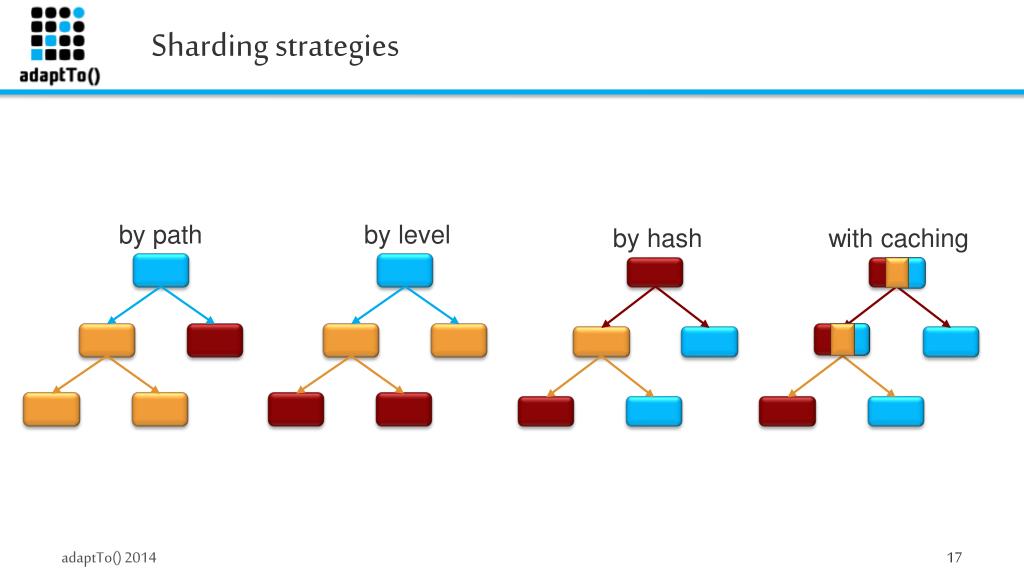

  17. Sharding strategies by path by level by hash with caching

  18. Implementations

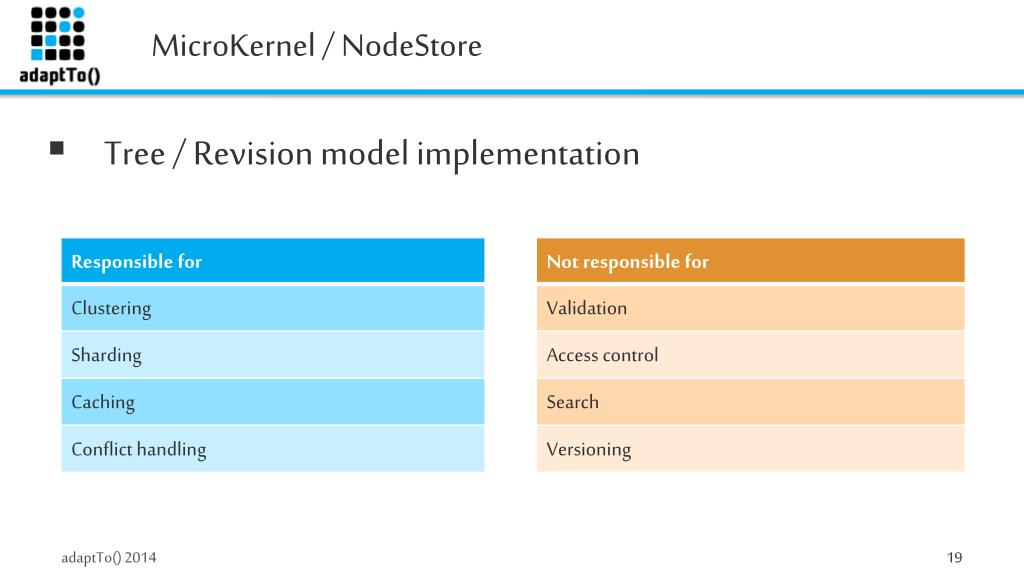

  19. MicroKernel / NodeStore • Tree / Revision model implementation

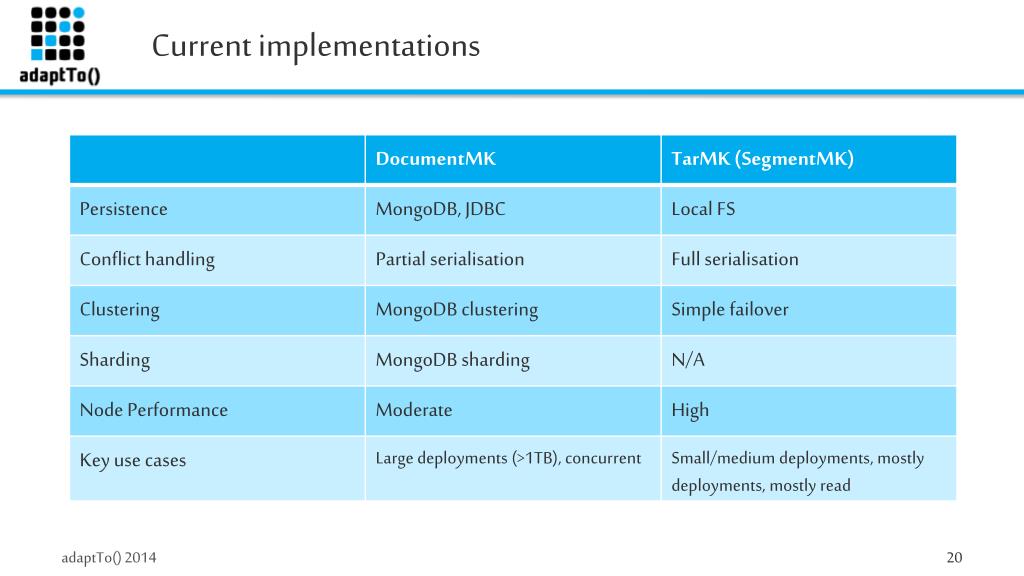

  20. Current implementations

  21. Access Control

  22. Accessible paths a d b c

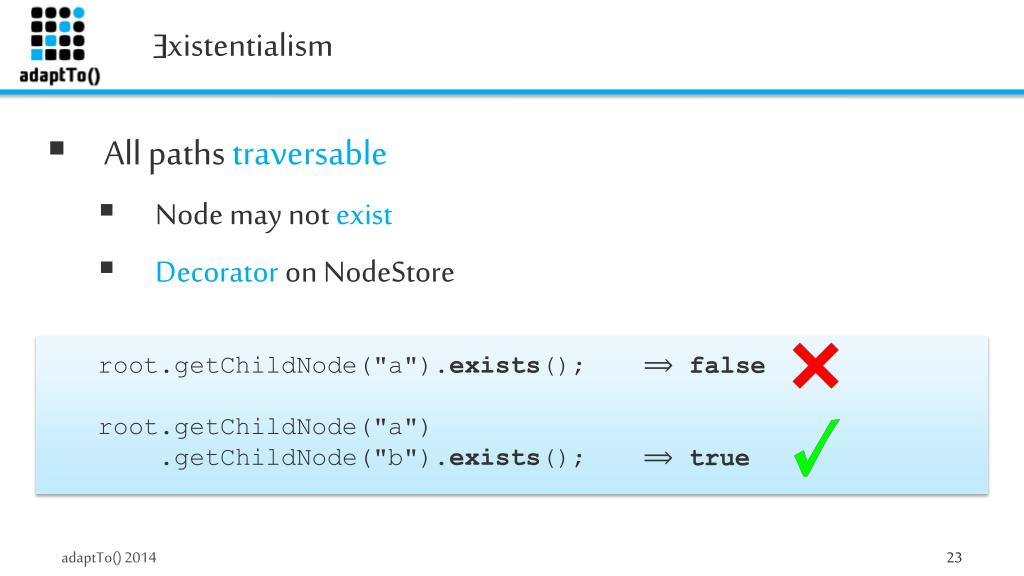

  23. xistentialism E • All paths traversable • Node may not exist • Decorator on NodeStore • root.getChildNode("a").exists(); • root.getChildNode("a") • .getChildNode("b").exists(); ⟹ false ⟹ true

  24. Comparing Revisions

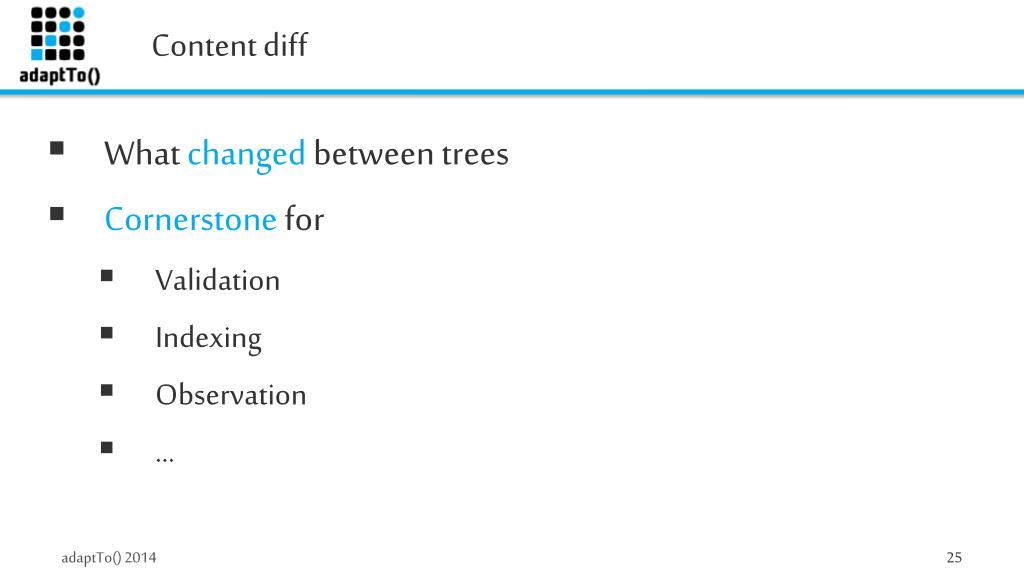

  25. Content diff • What changed between trees • Cornerstone for • Validation • Indexing • Observation • …

  26. What changed? ∆

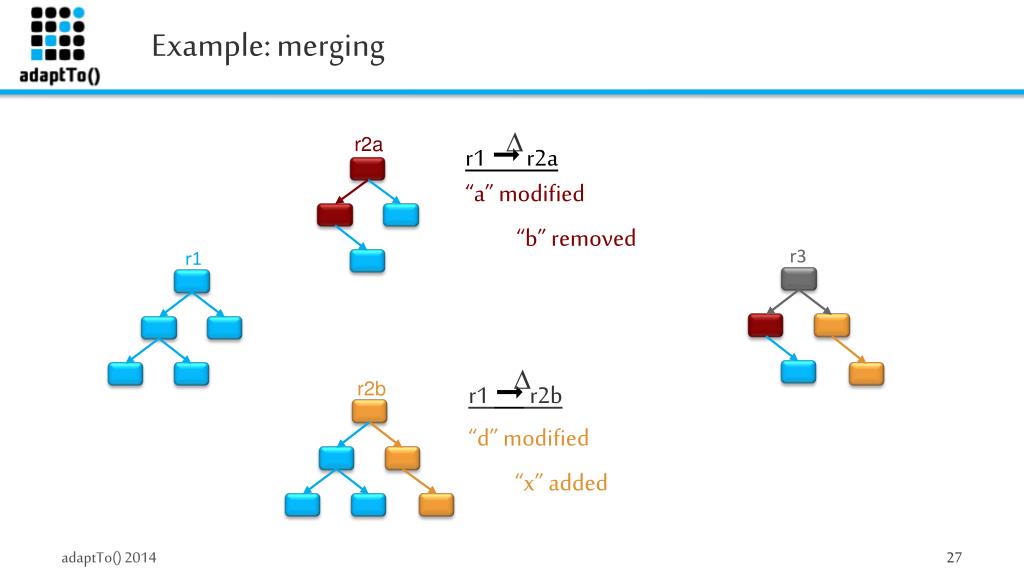

  27. Example: merging ∆ • r1 ➞ r2a“a” modified • “b” removed r2a r1 r3 ∆ r2b • r1 ➞r2b • “d” modified • “x” added

  28. Commit Hooks

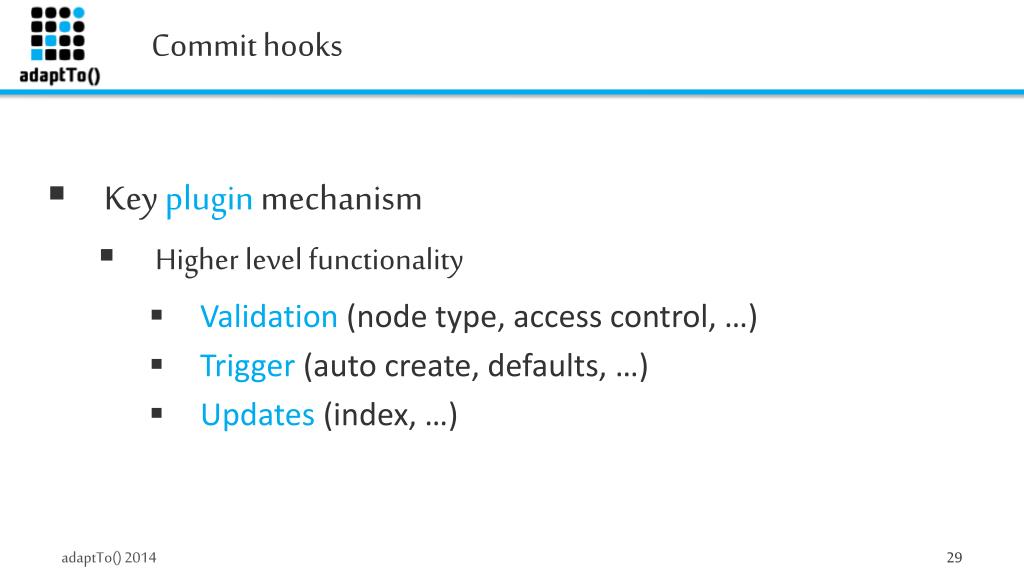

  29. Commit hooks • Key plugin mechanism • Higher level functionality • Validation (node type, access control, …) • Trigger (auto create, defaults, …) • Updates (index, …)

  30. Editing a commit ∆ ∆ + x

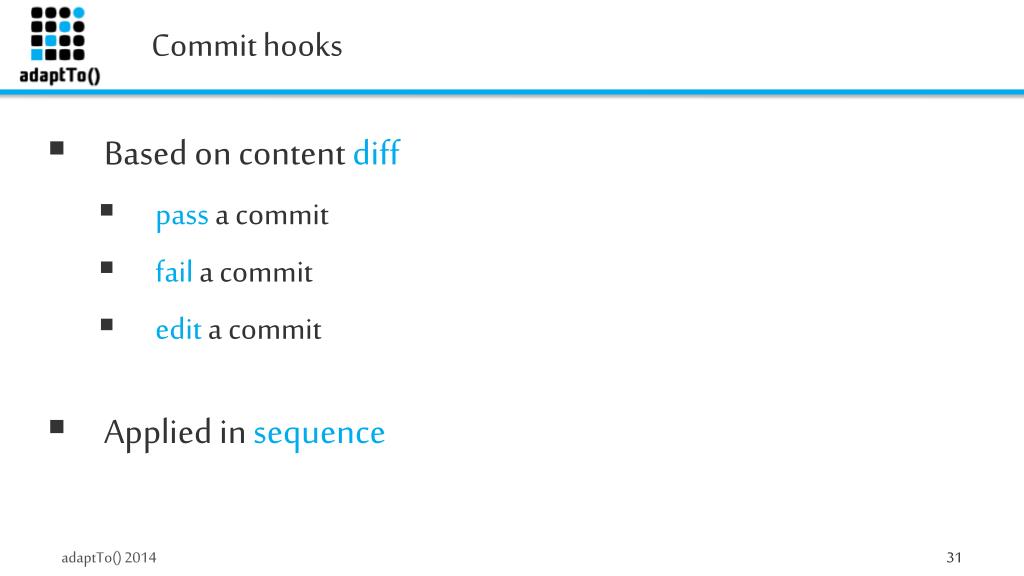

  31. Commit hooks • Based on content diff • pass a commit • fail a commit • edit a commit • Applied in sequence

  32. Type of hooks

  33. Observers

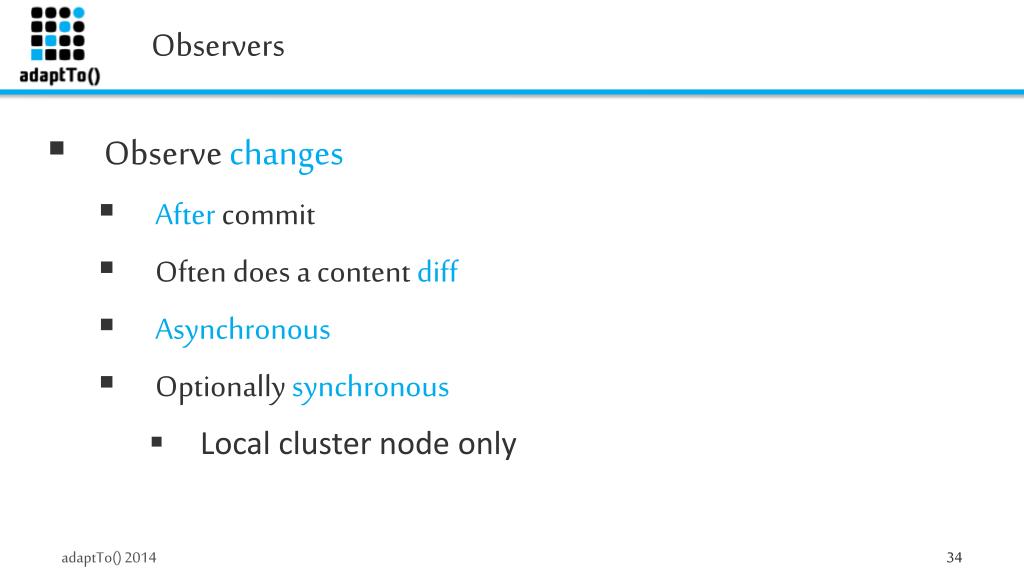

  34. Observers • Observe changes • After commit • Often does a content diff • Asynchronous • Optionally synchronous • Local cluster node only

  35. Examples • JCR observation • External index update • Cache invalidation • Logging

  36. Search

  37. Query Engine parse execute post process SELECT WHERE x=y Parser Index /a//* Parser Index Parser Index Parser Traverse

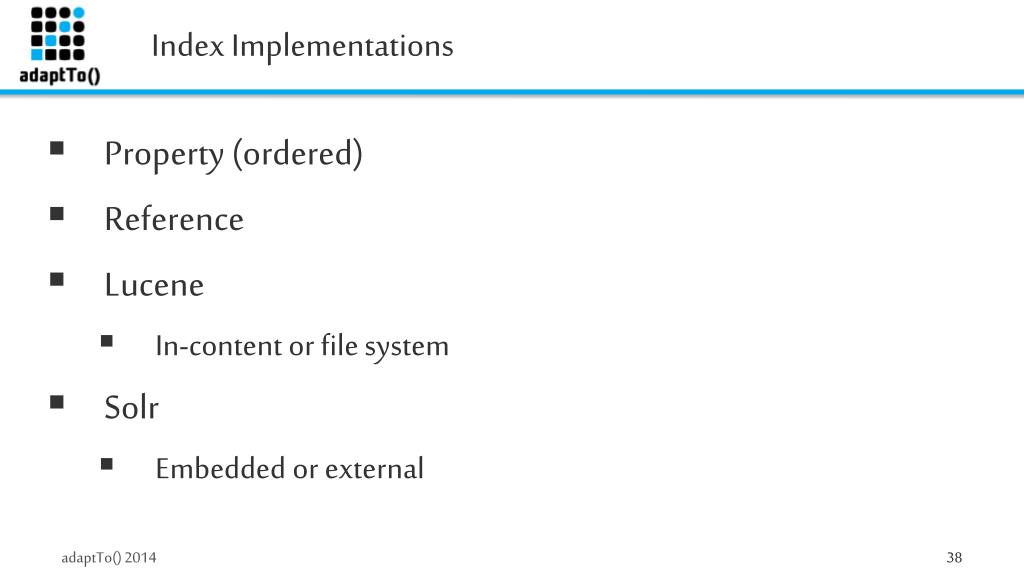

  38. Index Implementations • Property (ordered) • Reference • Lucene • In-content or file system • Solr • Embedded or external

  39. Big Picture

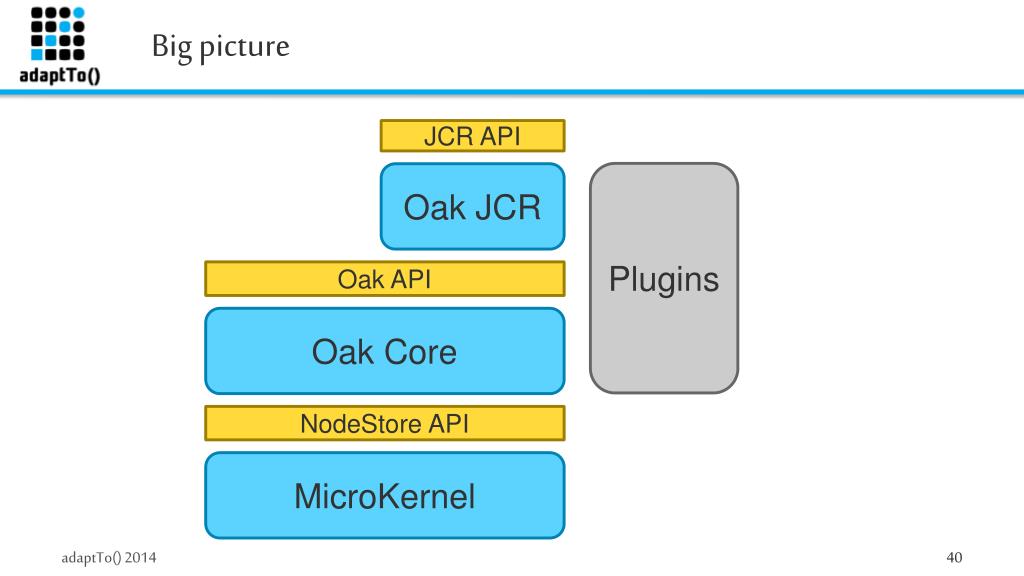

  40. Big picture JCR API Plugins Oak JCR Oak API Oak Core NodeStore API MicroKernel

  41. Resources http://jackrabbit.apache.org/oak/

  42. Appendix

  43. Resources http://jackrabbit.apache.org/oak/ http://jackrabbit.apache.org/oak/docs/ https://svn.apache.org/repos/asf/jackrabbit/oak/trunk/
