SCI Communication

1. SCI Communication Proudly Presented By: Adam Cardi & Aaron Enes

2. The outline of the presentation. • Serial vs. Parallel Communication • Synchronous vs. Asynchronous Serial Communication • Baud and Bit Rates • Asynchronous Serial Communication • Emphasis on HC11 implementation • Explicit Outline of Data Transmission Process

3. Motivation. • Suppose two devices need to communicate with one another…how can this be done? (a) Telephone (b) Smoke signals (c) Pony Express (d) Serial Communication

4. Serial One bit at a time on one data line Slower than parallel transmission Inexpensive Example: modem, USB Parallel N bits at a time over N data lines Synchronization among all N bits Faster than serial transmission More expensive Example: printer connections There are two major communication methods.

5. Receiver Receiver 1st word 2nd word 1st word Transmitter 2nd word Transmitter Serial Parallel Hmm…how do I know where to start?

6. There are two breeds of serial communication. • Synchronous • Additional clock signal to keep sync. • Bit transfer rate determined by the clock signal • Continuously transmitting characters to remain in sync. • Asynchronous • No clock signal, intermittent data transfer • Uses fixed-size packets to keep sync. • Bit transfer rate preset by programmer • Transmission data contains information to synchronize receiver when receiving data

7. More on data transfer rates. • Baud rate: net number of bits per second that can be transmitted, including overhead (start/stop/parity bits). • Bit rate: number of data bits per second that can be transmitted.

8. Asynchronous Communication • Most common form of serial communication • Data is carried in fixed-size ‘packets’ • Usually 8 data bits for word length • Bits are followed by a parity bit (optional) to verify signal integrity • Packet is surrounded by a start bit and stop bits (both zeros)

9. Bitstream was high before start bit parity start stop 0x52 Start Bit Data Bit 0 Data Bit 1 Parity Bit Stop Bit Stop Bit Data Bit 2 Data Bit 3 Data Bit 4 Data Bit 5 Data Bit 6 Data Bit 7 0 1 1 1 0 0 1 0 1 0 0 1 Asynchronous communication: anatomy of total data package

10. parity stop 0x52 start Start Bit Data Bit 0 Data Bit 1 Parity Bit Stop Bit Stop Bit Data Bit 2 Data Bit 3 Data Bit 4 Data Bit 5 Data Bit 6 Data Bit 7 0 1 1 1 0 0 1 0 1 0 0 1 If the Baud rate was set at 9600, then bitrate is 8/12*9600 = 6400 bps.

11. So what about that parity bit? • Used to help verify signal integrity • Even parity • Parity bit set or cleared such that the sum of all high bits (including the parity bit itself) is even • Odd parity • Parity bit set or cleared such that the sum of all high bits (including the parity bit itself) is odd

12. More about parity. • The type of parity is known a priori (determined by programmer) • Parity bit calculated and set by software before transmission • e.g. the HC11 knows nothing about parity • Not used very often…better ways to check for errors…

13. An example of even parity. parity start stop 0x52 ??? Start Bit Data Bit 0 Data Bit 1 Parity Bit Stop Bit Stop Bit Data Bit 2 Data Bit 3 Data Bit 4 Data Bit 5 Data Bit 6 Data Bit 7 0 1 1 1 0 0 1 0 1 0 0 1

14. Start bit—Ideal Case Receiver Idle

15. HC11’s got your back. Length (Time) of one serial bit Data receiving aborted!!!

16. Noise in action. Period determine by baud rate • Noise causes start bit to be detected too soon • RT1, RT5 and RT7 are 0, so start will be accepted (majority rules) • RT3 is 1, so noise flag will be set Period determine by clock frequency (fixed)

17. The details of asynchronous serial data transmission on the 68HC11. • 4 control and status registers: • BAUD – Sets the bit rate for the SCI system • SCCR1 – Sets control bits for the 9-bit character format and the receiver wake up feature • SCCR2 – Main control register for the SCI sub-system • SCSR – Status register for the SCI system • 1 data register: • SCDR – Main data register for the SCI system • Port D, pins 0 and 1 contain SCI Input/Output

18. SCDR Register • SCI data register • Two separate registers, same address • Use it to Read the Received data • Use it to Write the Transmit data • R7 - R0 – Read bits • T7 - T0 – Write bits

19. Parity bit can go here (optional) SCCR1 Register • Contains control bits to set Word length and Wakeup feature • M – SCI character length bit (to send either 8 or 9 bits) • R8, T8 – Receive and Transmit data bit 8 (for Parity) • WAKE – Wakeup method select bit • Bits 0:2 & 5 are not used (always 0)

20. SCCR2 Register • Main control register for SCI sub-system • TIE – Transmit interrupt enable bit • TCIE – Transmit complete interrupt enable bit • RIE – Receive interrupt enable bit (Receive Data Register Full) • ILIE – Idle-line interrupt enable bit • TE – Transmit enable bit • RE – Receive enable bit • RWU – Receiver wakeup bit • SBK – Send break bit

21. SCSR Register • SCI status register. Used for system interrupt. • TDRE – Transmit data register empty bit • TC – Transmit complete bit • RDRF – Receive data register full bit • IDLE – Idle-line detect bit • OR – Overrun error bit • NF – Noise flag • FE – Framing Error bit • Bit 0 is not used (always 0) Will be “1” after data is received Should be “0s” after data is received

22. Address: $102B Bit 7 6 5 4 3 2 1 Bit 0 0 0 Read: 0 SCP1 SCP0 SCR2 SCR1 SCR0 TCLR RCKB Write: Reset: 0 0 0 0 0 U U U U = Unaffected The BAUD register • BAUD register • TCLR – Clear baud rate timing chain bit • SCP[2:0]– Baud rate pre-scale select bits • RCKB –Baud rate clock test bit • SCR[2:0]– SCI baud rate select bits

24. Set Baud rate of transmitter Must match Receiver Set M bit of SCCR1 for 8 or 9 bit data Must match Receiver Set TE bit of SCCR2 high to enable transmitter Set Baud rate of receiver Must match Transmitter Set M bit of SCCR1 for 8 or 9 bit data Must match Transmitter Set RE bit of SCCR2 high to enable receiver How to Send and Receive Data Transmitter Receiver

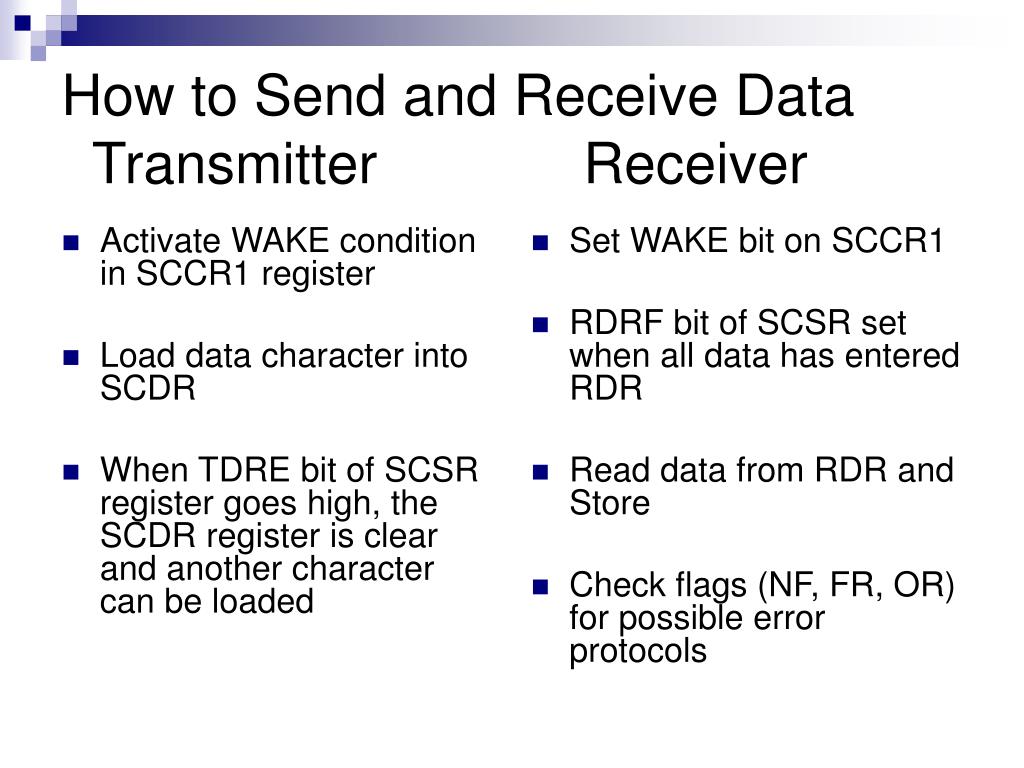

25. Activate WAKE condition in SCCR1 register Load data character into SCDR When TDRE bit of SCSR register goes high, the SCDR register is clear and another character can be loaded Set WAKE bit on SCCR1 RDRF bit of SCSR set when all data has entered RDR Read data from RDR and Store Check flags (NF, FR, OR) for possible error protocols How to Send and Receive Data Transmitter Receiver

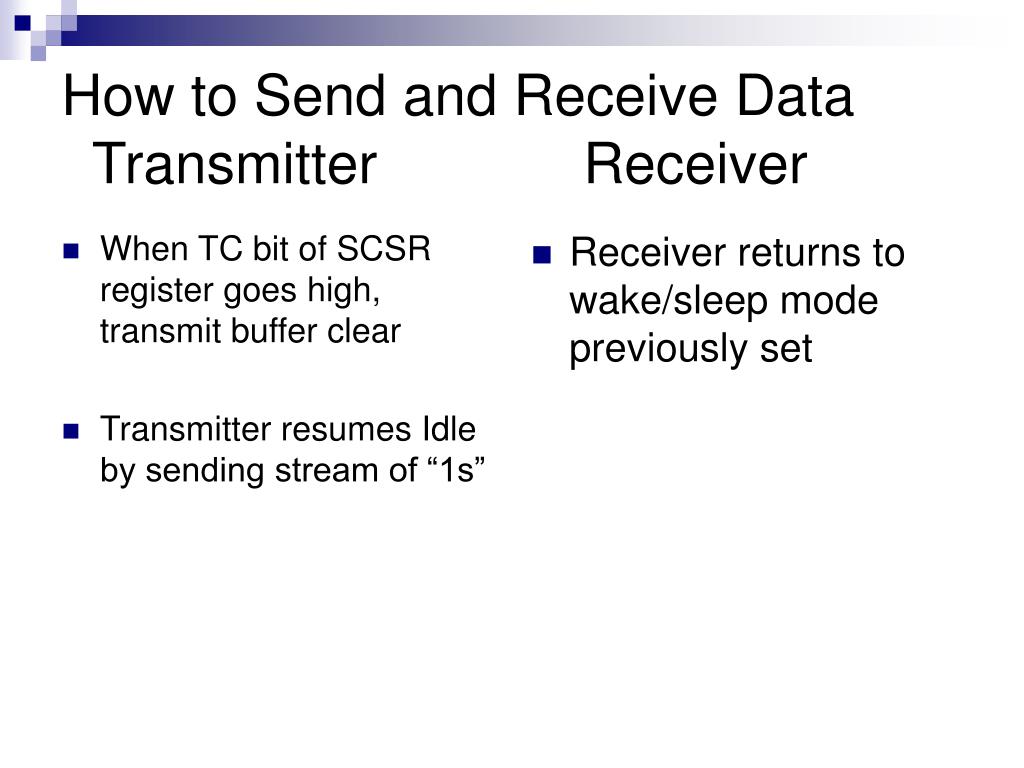

26. When TC bit of SCSR register goes high, transmit buffer clear Transmitter resumes Idle by sending stream of “1s” Receiver returns to wake/sleep mode previously set How to Send and Receive Data Transmitter Receiver

27. This program can be used to send data. • *----------------------------------------------------------------------------* Test program for transmitting for serial data.  User* specifies 8-bit data.  See below.*----------------------------------------------------------------------------MAIN    EQU        $1040                *Assemble code here starting at $1040PORTC        EQU        $1003         *Equate PORTC to $1003DDRC        EQU        $1007           *Equate data direction register DDRCSCCR2        EQU        $102D         *Equate SCI control register 2BAUD        EQU        $102B           *Equate BAUD registerSCSR        EQU        $102E           *Equate SCI status registerSCDR        EQU        $102F           *Equate SCI data register*===========================PROGRAM==========================================         ORG     MAIN     LDAA    #$33           *Select 1200 baud.  Refer to Pink book P9-7         STAA   BAUD         LDAA   #$08               *Enable TX and RX         STAA SCCR2LOOP    LDAA    #$05            *Put data into TXD for transmission.  User                                *specify data here!         STAA    SCDR                 *Put transmit data into SCI data registerCHECK   LDAA    SCSR            *Check to see if data has been transferred        ANDA        #$C0        CMPA        #$C0      BNE        CHECK       BRA        LOOP                *Do it again

28. This program can be used to receive data. • *----------------------------------------------------------------------------* Test program for serial receive using MING RF Rx module.  MCU waits for data* and then outputs received data to PORT C.  Connect LEDs to PORT C to see the* 8-bit data that has been received.*----------------------------------------------------------------------------MAIN        EQU        $1040                *Assemble code here starting at $1040PORTC        EQU        $1003                *Equate PORTC to $1003DDRC        EQU        $1007                *Equate data direction register DDRCSCCR2        EQU        $102D                *Equate SCI control register 2BAUD        EQU        $102B                *Equate BAUD registerSCSR        EQU        $102E                *Equate SCI status registerSCDR        EQU        $102F                *Equate SCI data register*===========================PROGRAM==========================================        ORG        MAIN        LDAA        #$FF                *Load ACCA with $FF to config PORTC as input        STAA        DDRC        LDAA        #$33                *Select 1200 baud.  Refer to Pink book P9-7        STAA        BAUD        LDAA        #$04                *Enable RX        STAA        SCCR2CHECK        LDAA        SCSR                *Check to see if data has been received        ANDA        #$20        CMPA        #$20        BNE        CHECK                *Branch back up to check if not received        LDAA        SCDR        STAA        PORTC                *Send data to PORT C.  Use LEDs on PORT C                                *to display received data.        BRA        CHECK                *Repeat process*============================================================================
