Square Roots and Cubic functions

lavender avatar
lavender
23 diapositives · 469 Views · Jul 24, 2014

Square Roots and Cubic functions. Learning Targets. Recognize and describe the following functions: Square Roots Cubics Learn about the locater points for each function and use it to determine transformations, reflections and translations. Square Roots.

#square roots and cubic functions #square roots and cubic functions ppt #powerpoint #presentation
Square Roots and Cubic functions - slide 1
01 / 23Square Roots and Cubic functions
1 / 17

Télécharger la présentation

Square Roots and Cubic functions
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Square Roots and Cubic functions

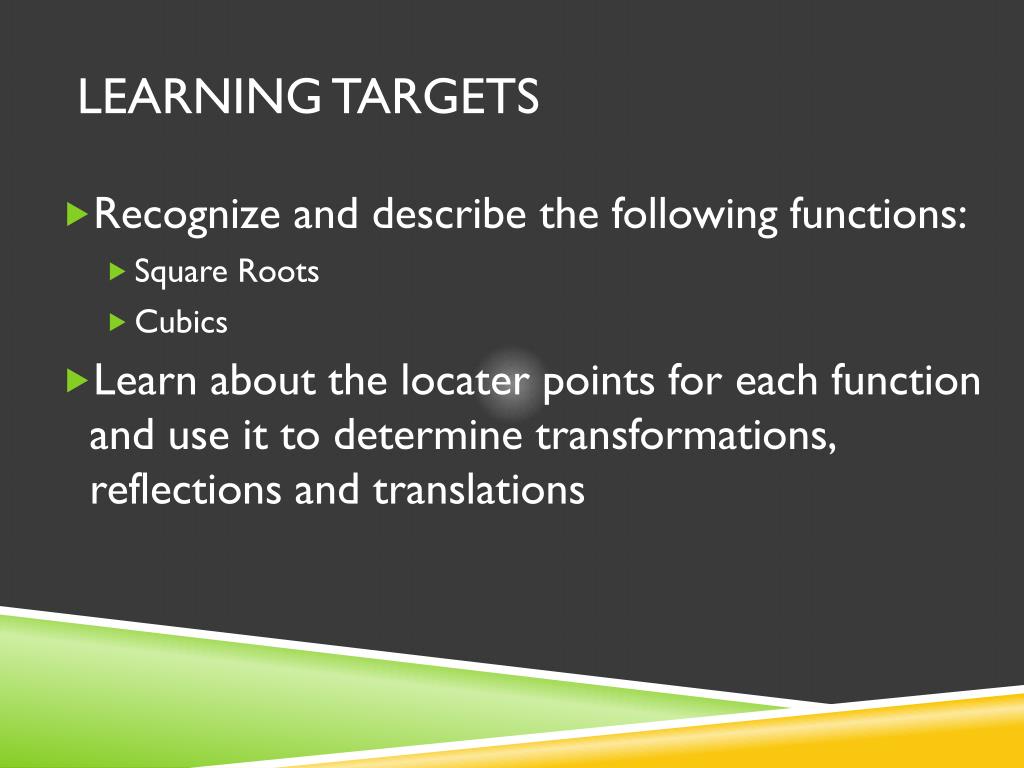

  2. Learning Targets • Recognize and describe the following functions: • Square Roots • Cubics • Learn about the locater points for each function and use it to determine transformations, reflections and translations

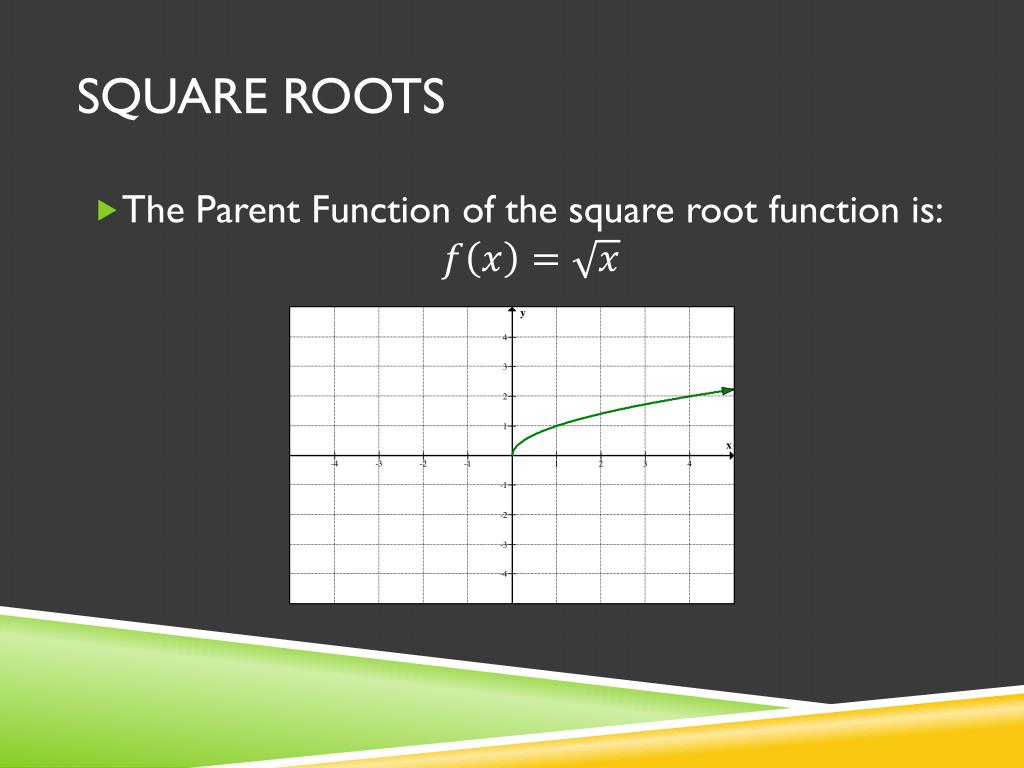

  3. Square Roots • The Parent Function of the square root function is:

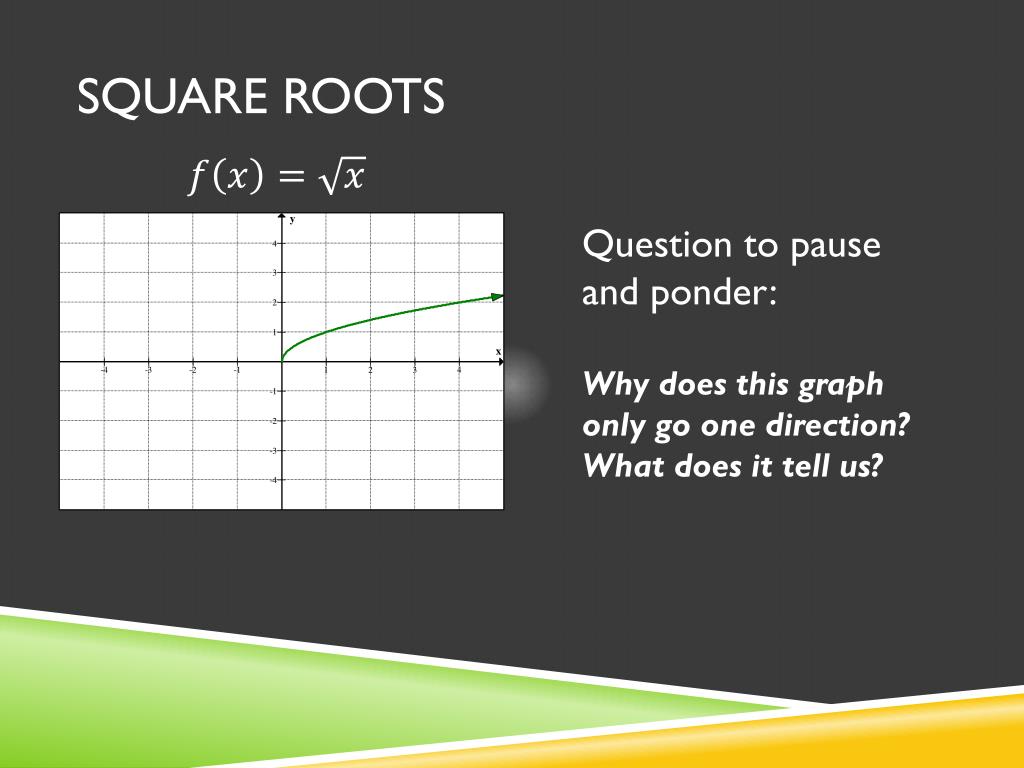

  4. Square Roots Question to pause and ponder: Why does this graph only go one direction? What does it tell us?

  5. Square Roots We cannot have negative inputs within a square root. Try and calculate it on your graphing calculator… Why can’t there be any negatives inputs within a square root? ? ?

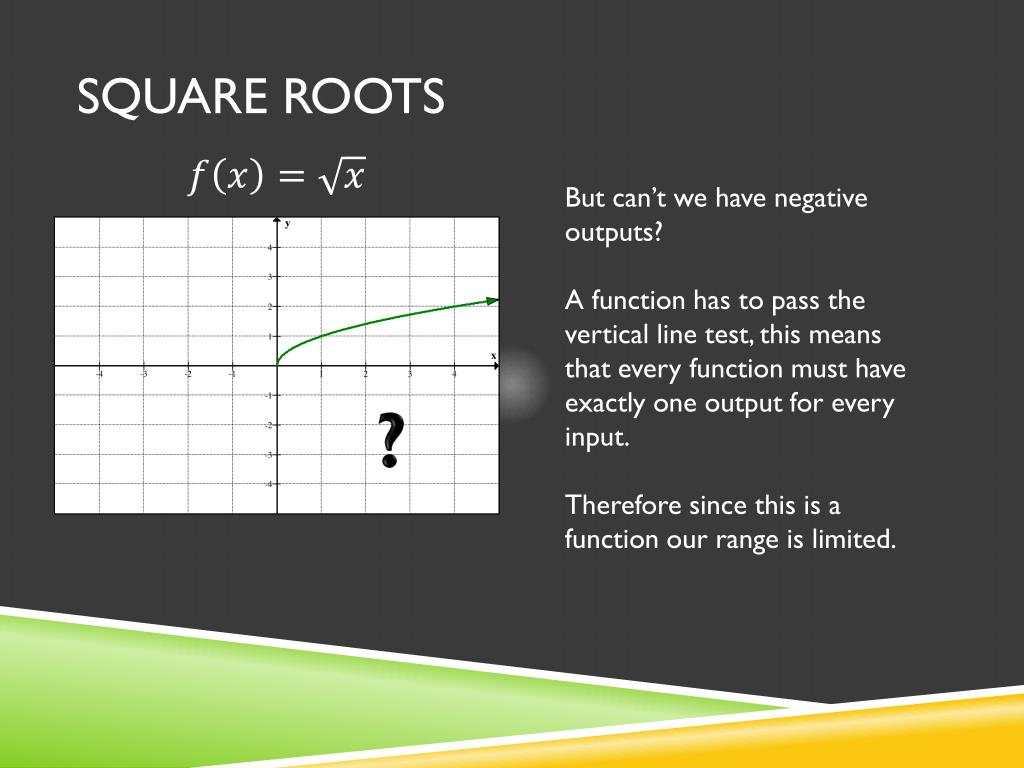

  6. Square Roots But can’t we have negative outputs? A function has to pass the vertical line test, this means that every function must have exactly one output for every input. Therefore since this is a function our range is limited. ?

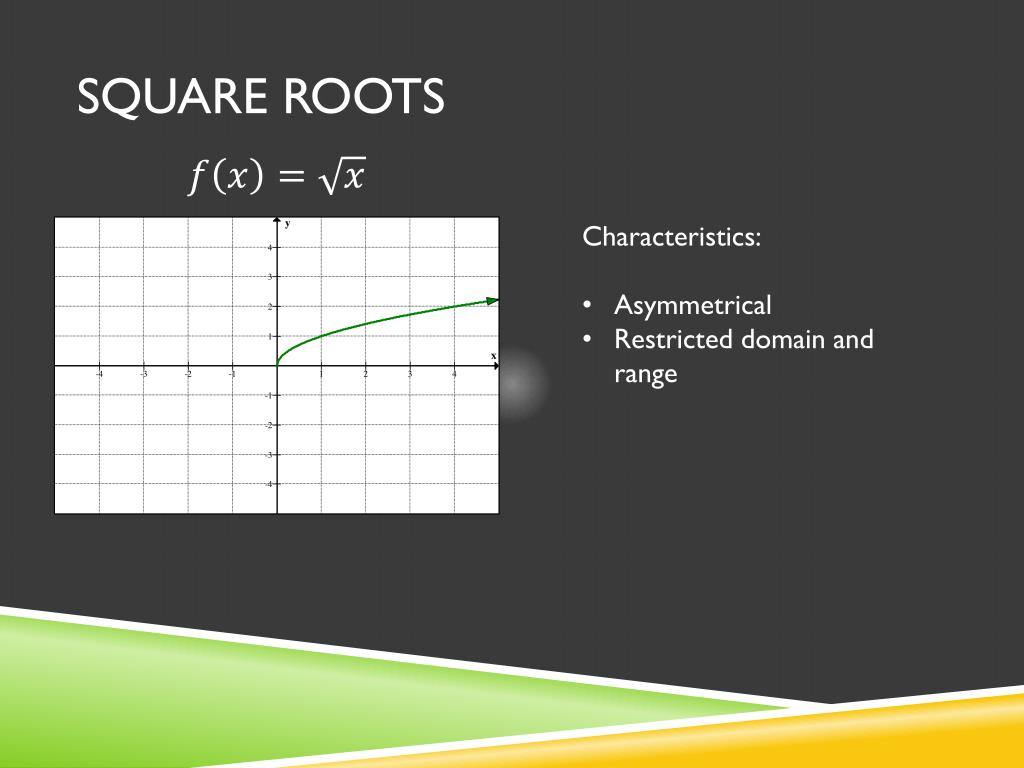

  7. Square Roots • Characteristics: • Asymmetrical • Restricted domain and range

  8. Transformations Lets think about how we can transform, translate or reflect this function? Can we vertically or horizontally translate ? Can we reflect over the x axis? Can we stretch or compress this function?

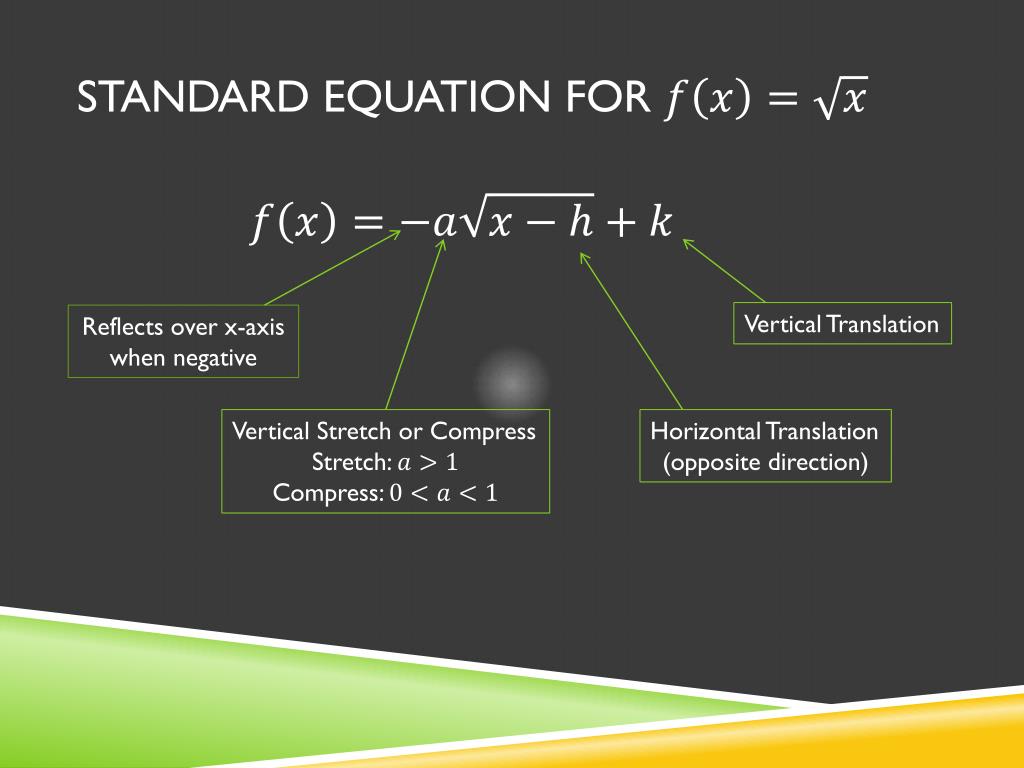

  9. Standard Equation for Vertical Translation Reflects over x-axis when negative Vertical Stretch or Compress Stretch: Compress: Horizontal Translation (opposite direction)

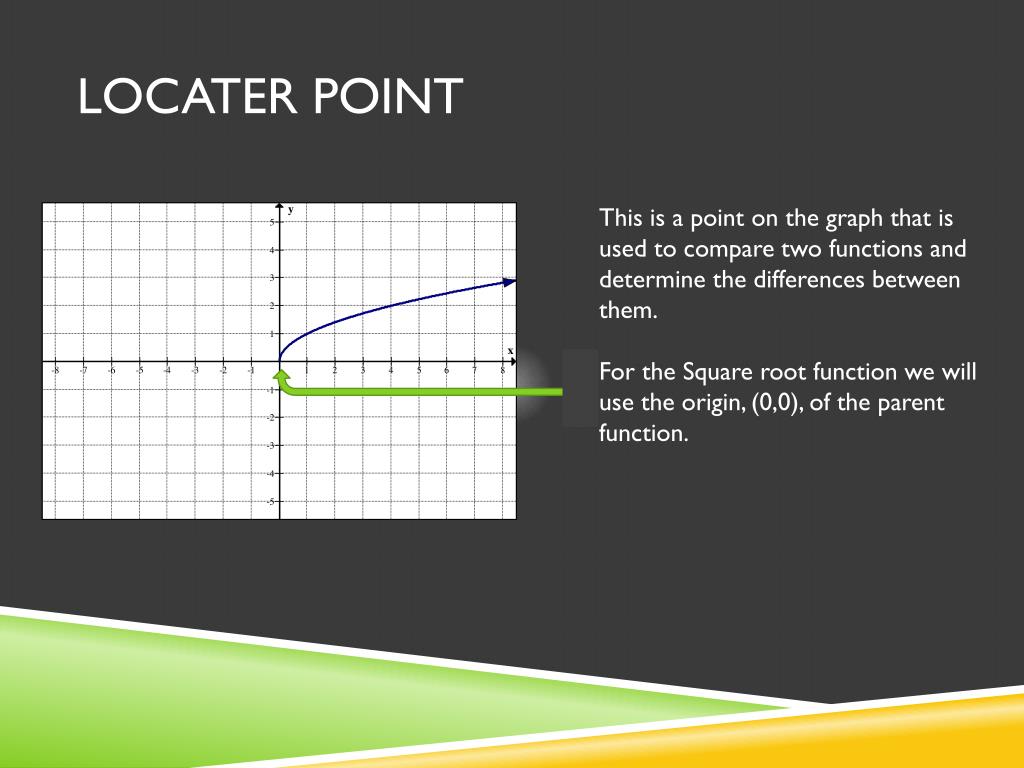

  10. Locater Point This is a point on the graph that is used to compare two functions and determine the differences between them. For the Square root function we will use the origin, (0,0), of the parent function.

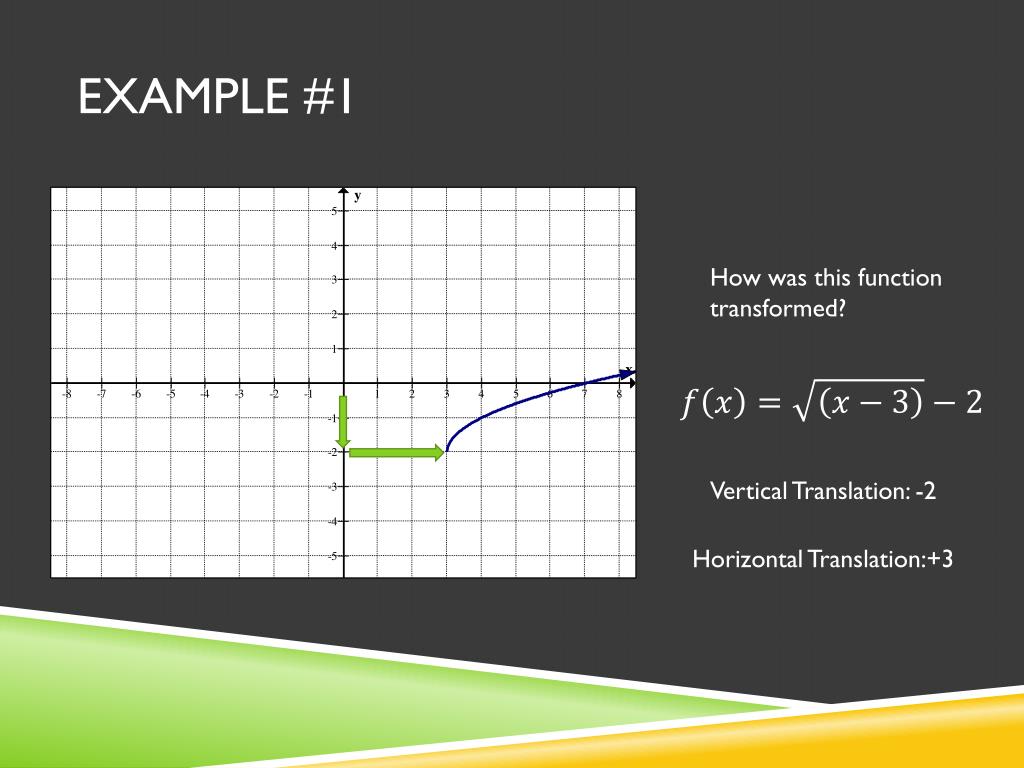

  11. Example #1 How was this function transformed? Vertical Translation: -2 Horizontal Translation:+3

  12. Example #2 How was this function transformed? Vertical Translation: +3 Reflected over the x-axis

  13. Example #3 How was this function transformed? Vertical Compression

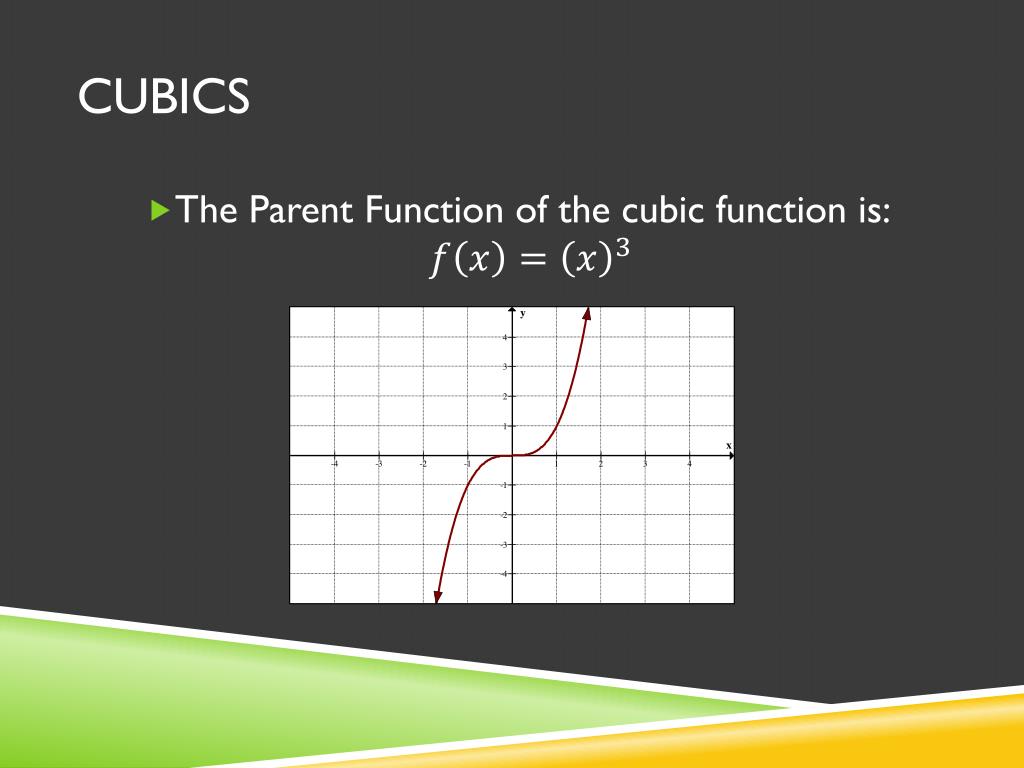

  14. Cubics • The Parent Function of the cubic function is:

  15. Cubics • Characteristics: • Asymmetrical • No maximum/minimum • Domain and Range is all real numbers

  16. Transformations Lets think about how we can transform, translate or reflect this function? Can we vertically or horizontally translate ? Can we reflect over the x axis? Can we stretch or compress this function?

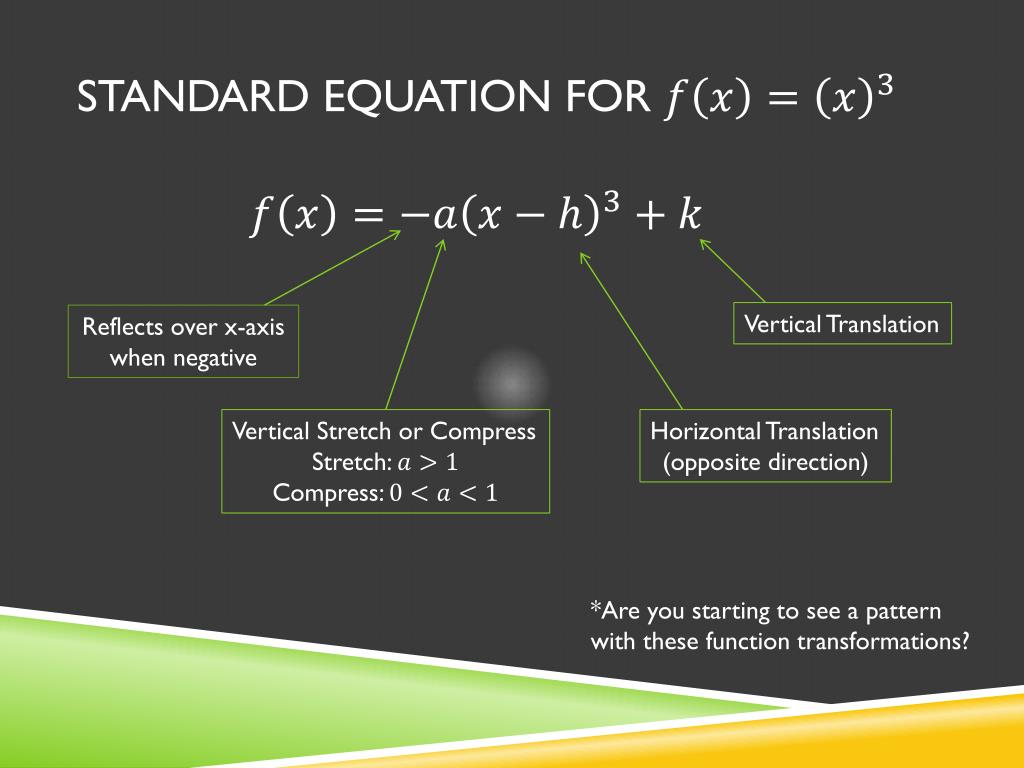

  17. Standard Equation for Vertical Translation Reflects over x-axis when negative Vertical Stretch or Compress Stretch: Compress: Horizontal Translation (opposite direction) *Are you starting to see a pattern with these function transformations?

  18. Locater Point For the cubic function we will use the origin, (0,0), of the parent function.

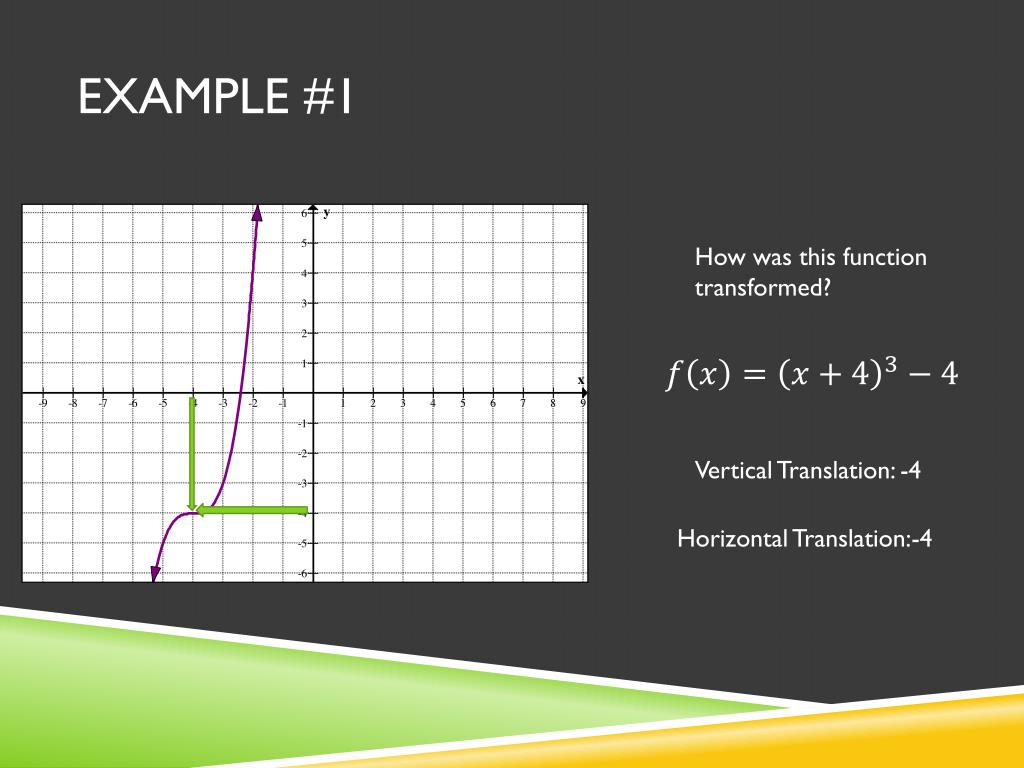

  19. Example #1 How was this function transformed? Vertical Translation: -4 Horizontal Translation:-4

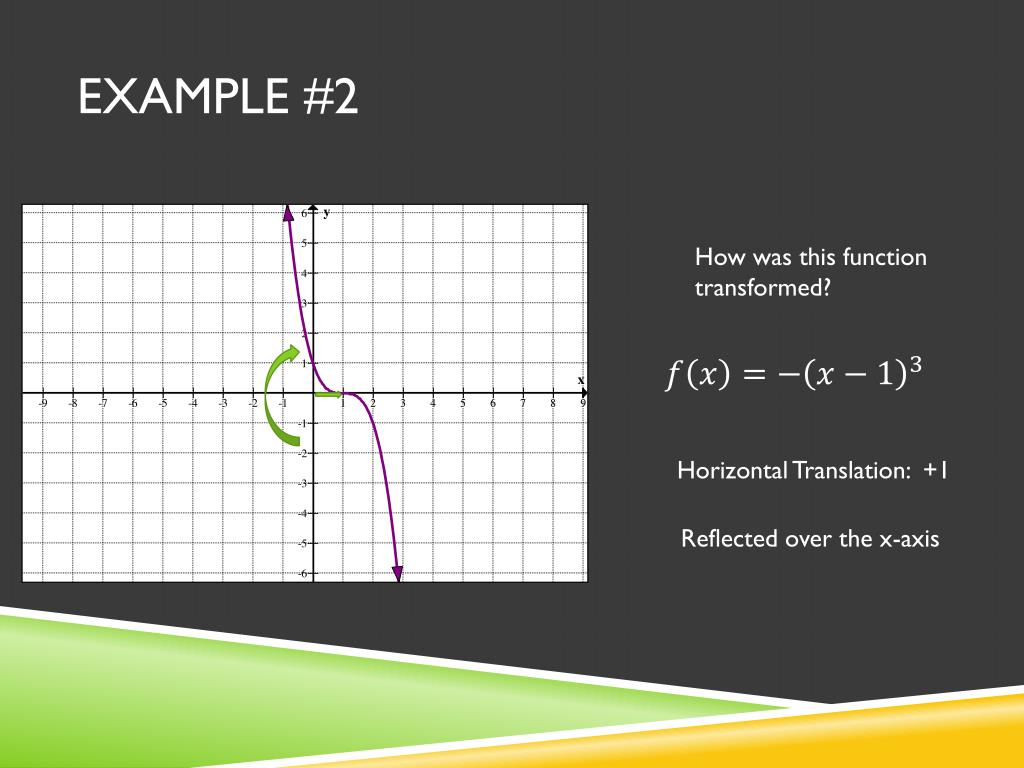

  20. Example #2 How was this function transformed? Horizontal Translation: +1 Reflected over the x-axis

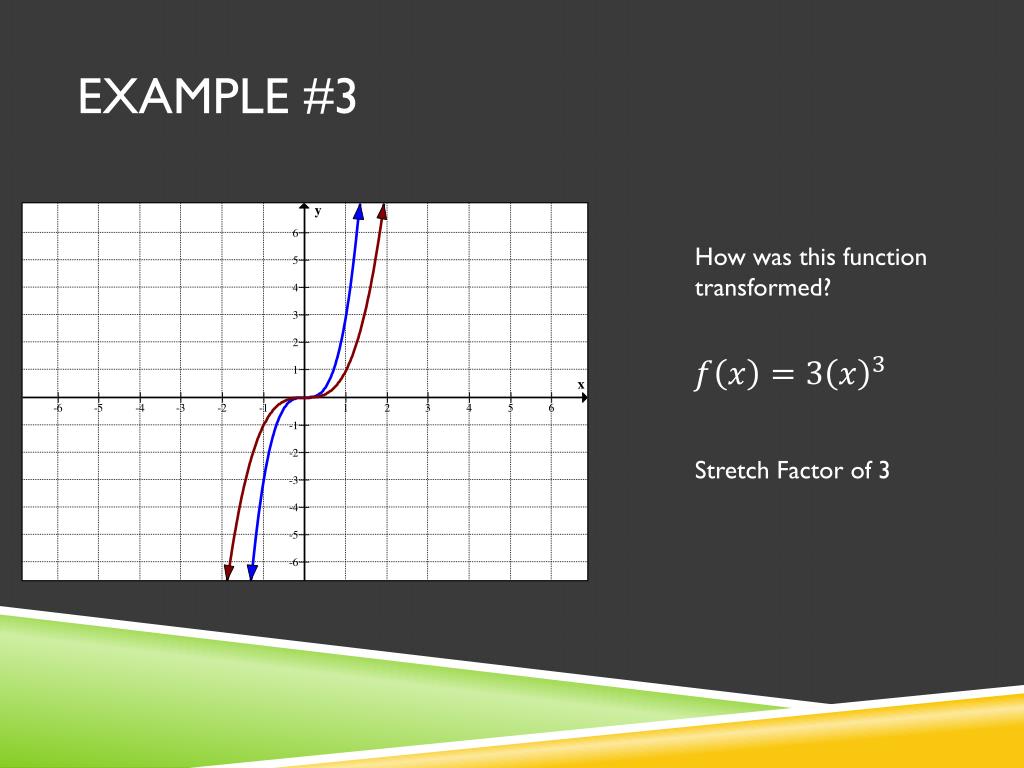

  21. Example #3 How was this function transformed? Stretch Factor of 3

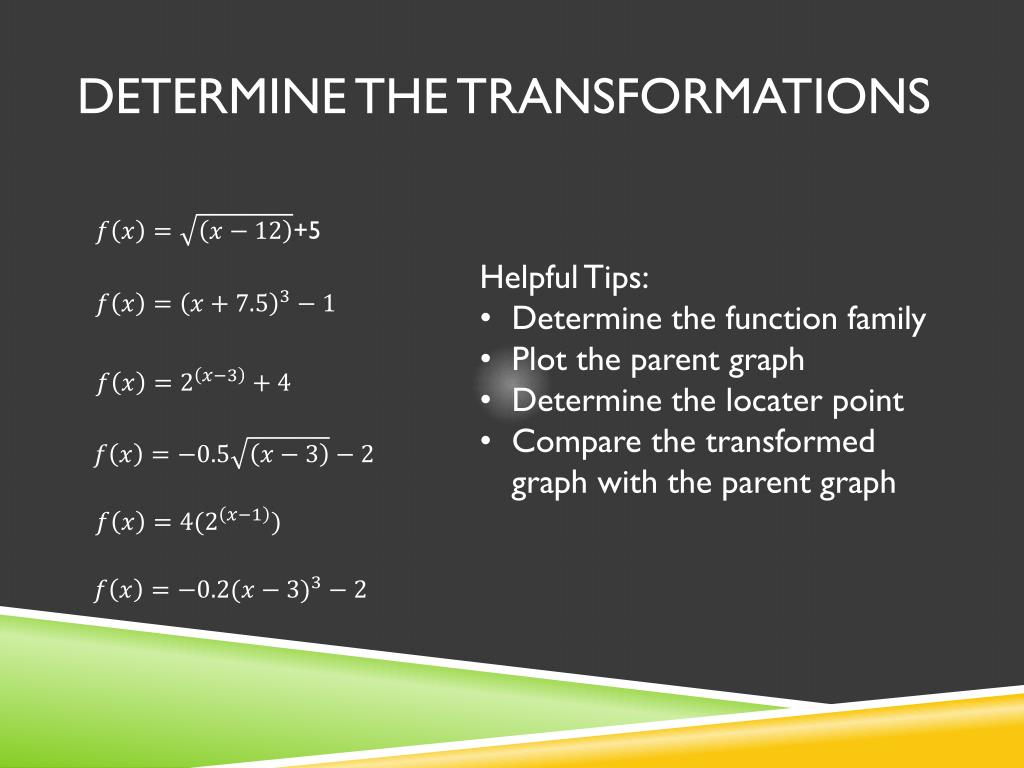

  22. Determine the Transformations +5 • Helpful Tips: • Determine the function family • Plot the parent graph • Determine the locater point • Compare the transformed graph with the parent graph

  23. Homework Worksheet #5
