AIM: What is work?

lavey avatar
lavey
46 diapositives · 807 Views · Oct 13, 2014

AIM: What is work?. Objectives. Identify when work is done on an object. Calculate the amount of work done - mathematically!. AIM: What is work?. Vocabulary. Work joule Newton. AIM: What is work?. Question

#aim: what is work? #aim: what is work? ppt #powerpoint #presentation
AIM: What is work? - slide 1
01 / 46AIM: What is work?
1 / 17

Télécharger la présentation

AIM: What is work?
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

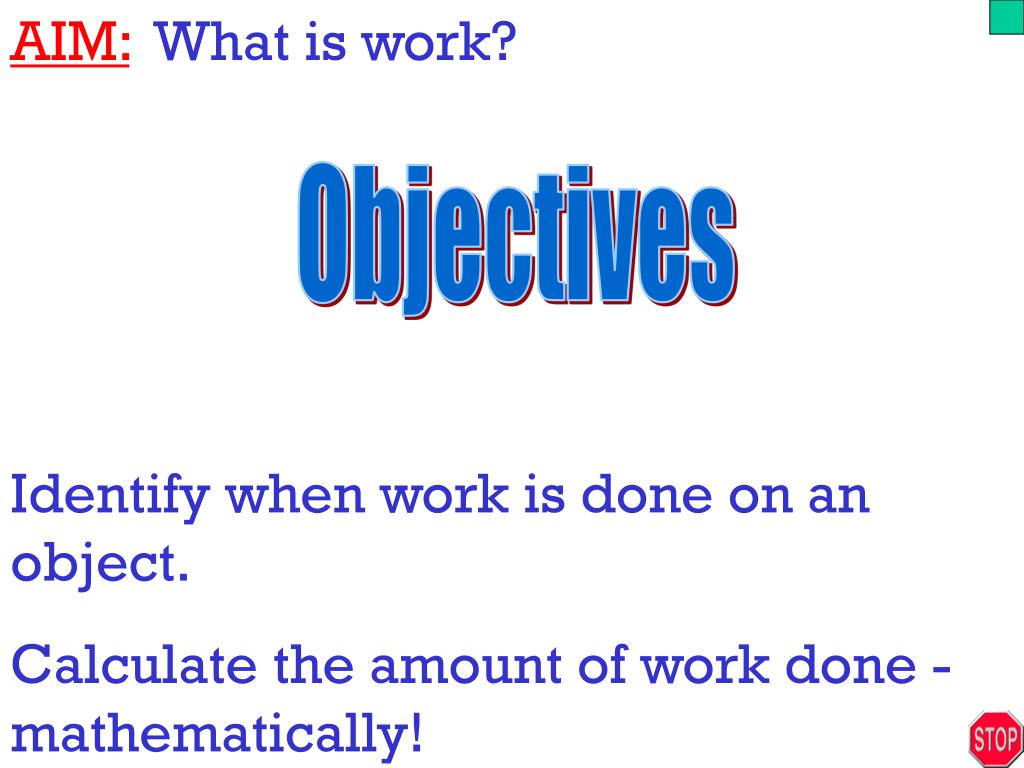

  1. AIM:What is work? Objectives Identify when work is done on an object. Calculate the amount of work done - mathematically!

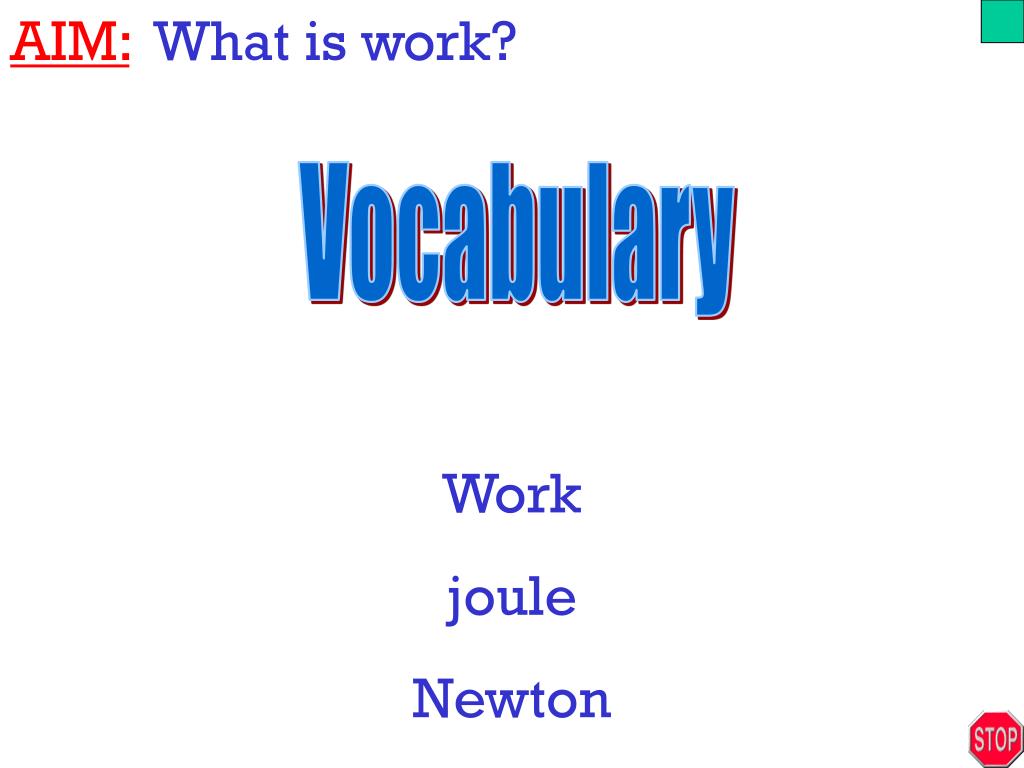

  2. AIM:What is work? Vocabulary Work joule Newton

  3. AIM:What is work? • Question • IMAGINE: It has just snowed 12 inches. Your Mom’s car is stuck in the driveway. You want to hook up with your friends. • You shovel and shovel, while you Mom tries to move the car. The tires spin and spin. You shovel with your friends some more. The car still does not move. After about 10 minutes of shoveling you are exhausted.

  4. AIM:What is work? • Did you do any work? • You exerted a lot of force on the car, right? • But, did you do any work on the car? • Scientifically the answer is NO.

  5. AIM:What is work? • In order for work to have occurred on an object -- • The object has to me moved!

  6. AIM:What is work? • Work = Force x Distance • w = F x d • Force is measured in Newtons (N) • Distance is measured in meters (m) • Work is measured in Joules (J)

  7. AIM:What is work? • Work = Force x Distance • DEFINITION: In order for work to have been accomplished on “an object”, the force must have moved “an object” over a certain distance. • If there was no distance “moved”, there was no work done ! ! !

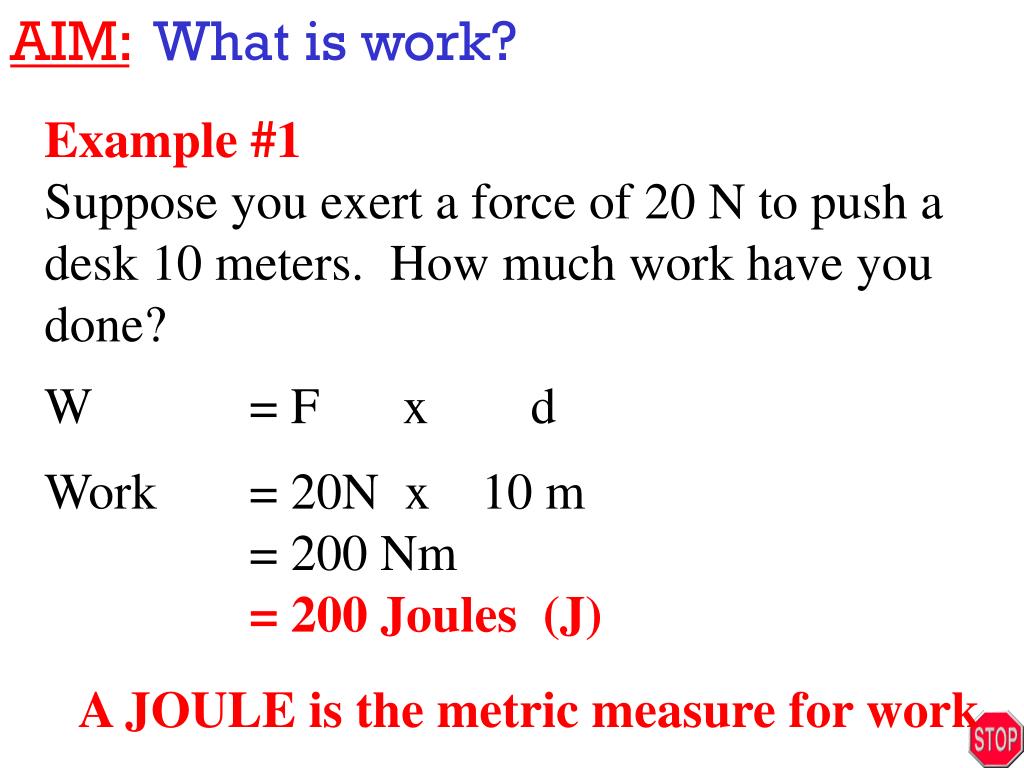

  8. AIM:What is work? • Example #1 • Suppose you exert a force of 20 N to push a desk 10 meters. How much work have you done? • W = F x d • Work = 20N x 10 m • = 200 Nm • = 200 Joules (J) • A JOULE is the metric measure for work

  9. AIM:What is work? • EXAMPLE #2 • It takes a force of 12000 N to lift a car 2m. • How much work is done? • W = F x d • W = 12000 N x 2 m • 24000 J

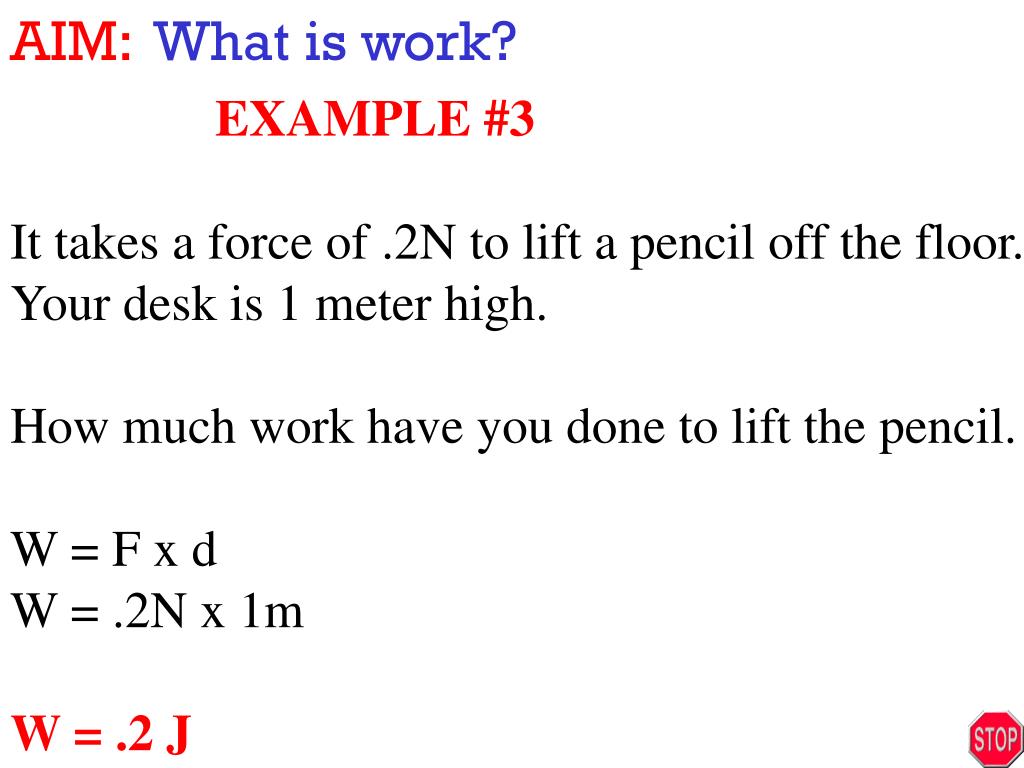

  10. AIM:What is work? • EXAMPLE #3 • It takes a force of .2N to lift a pencil off the floor. Your desk is 1 meter high. • How much work have you done to lift the pencil. • W = F x d • W = .2N x 1m • W = .2 J

  11. AIM:What is work? • REVIEW: • So why was there NO WORK done on your mom’s car when you tried to push it out of the snow? • NO MOVEMENT

  12. AIM:What is work? • However • Work is only done when the object moves in the same direction as the force being applied to it. • .

  13. AIM:What is work? • Question: Think about carrying your books or a bag of groceries? • Let’s examine specific situations with Mrs. Zim on the next page.

  14. What is happening in this picture? Which way is Mary applying force to the box?

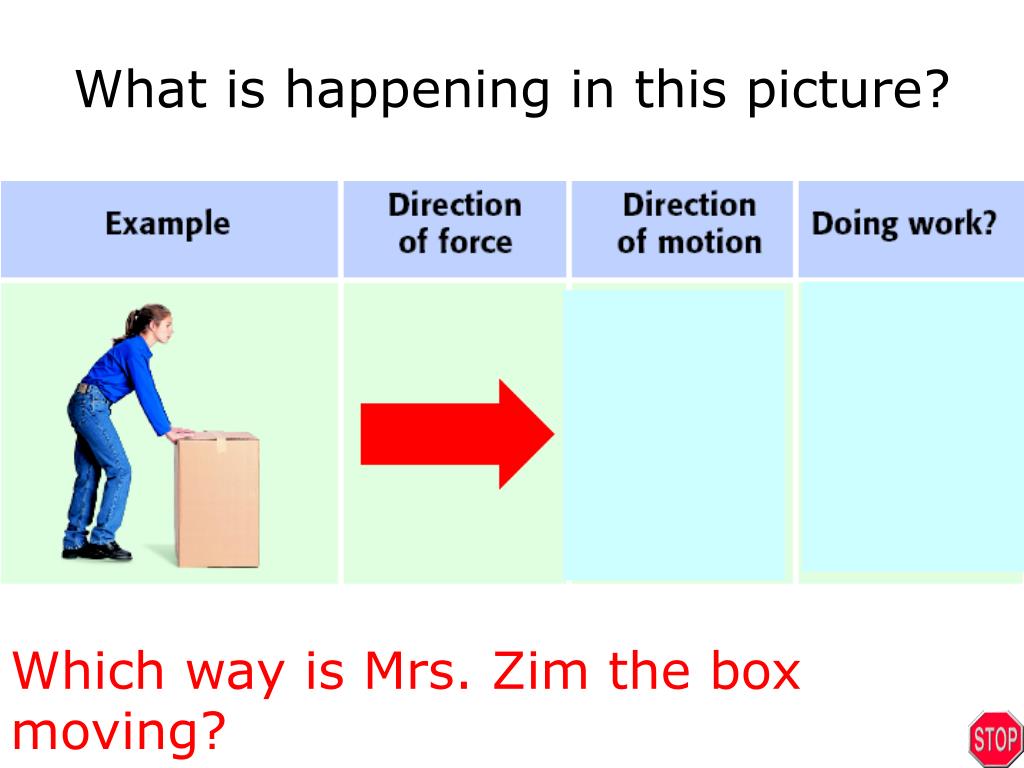

  15. What is happening in this picture? Which way is Mrs. Zim the box moving?

  16. What is happening in this picture? Did she do any work to the box

  17. What is happening in this picture?

  18. What is happening in this picture? Which way is Mrs. Zim applying force to the book bag?

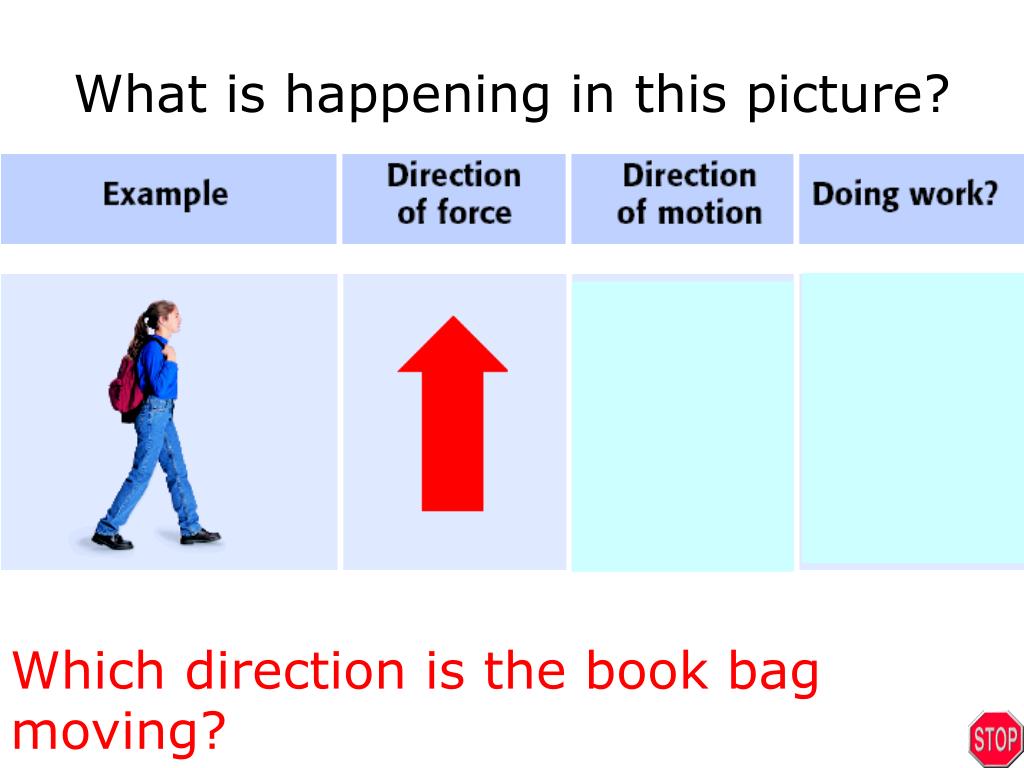

  19. What is happening in this picture? Which direction is the book bag moving?

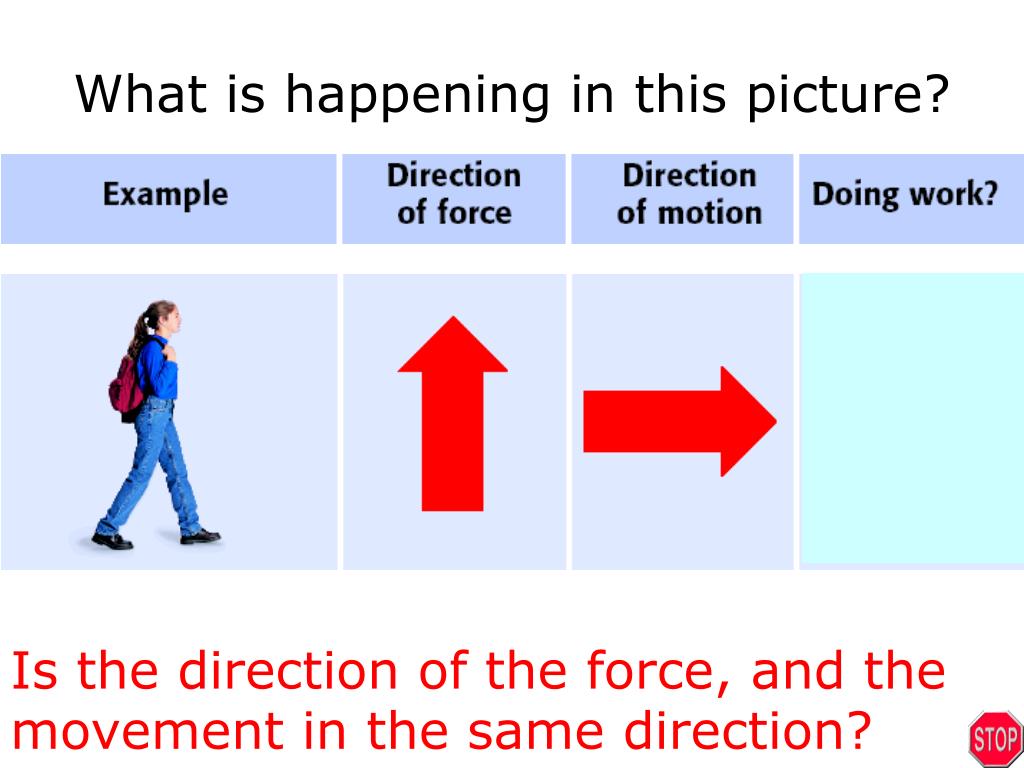

  20. What is happening in this picture? Is the direction of the force, and the movement in the same direction?

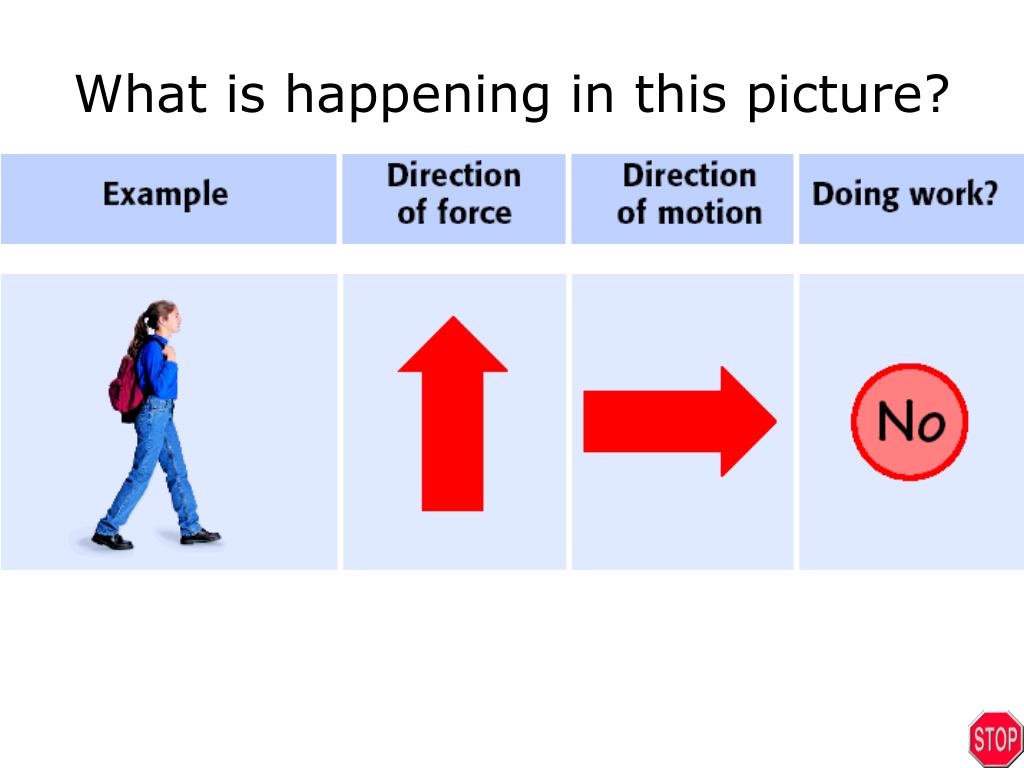

  21. What is happening in this picture?

  22. What is happening in this picture? Which way is Mrs. Zim applying force to the bag

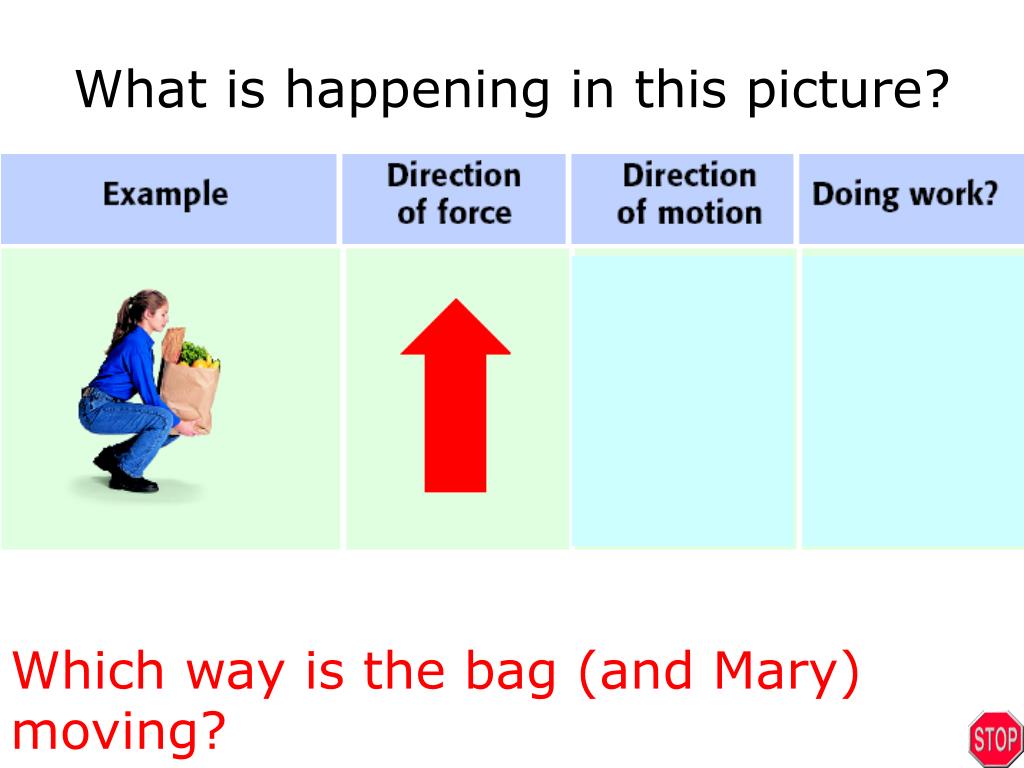

  23. What is happening in this picture? Which way is the bag (and Mary) moving?

  24. What is happening in this picture? Is the direction of the force moving in the same direction as the movement?

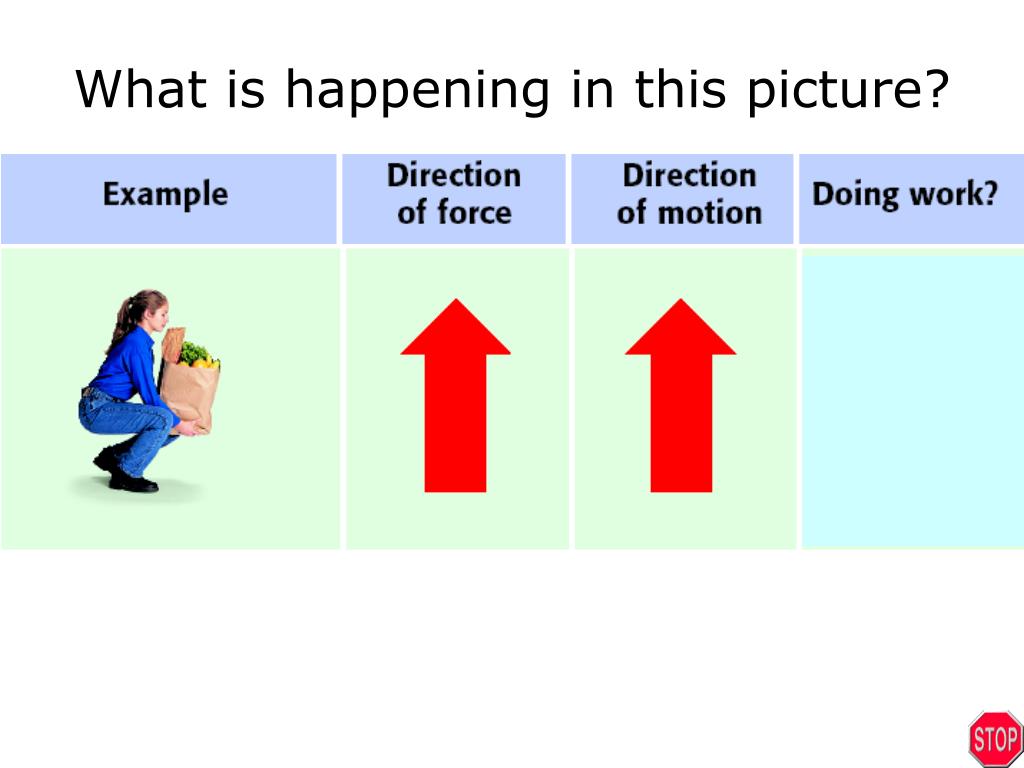

  25. What is happening in this picture?

  26. What is happening in this picture?

  27. What is happening in this picture?

  28. What is happening in this picture?

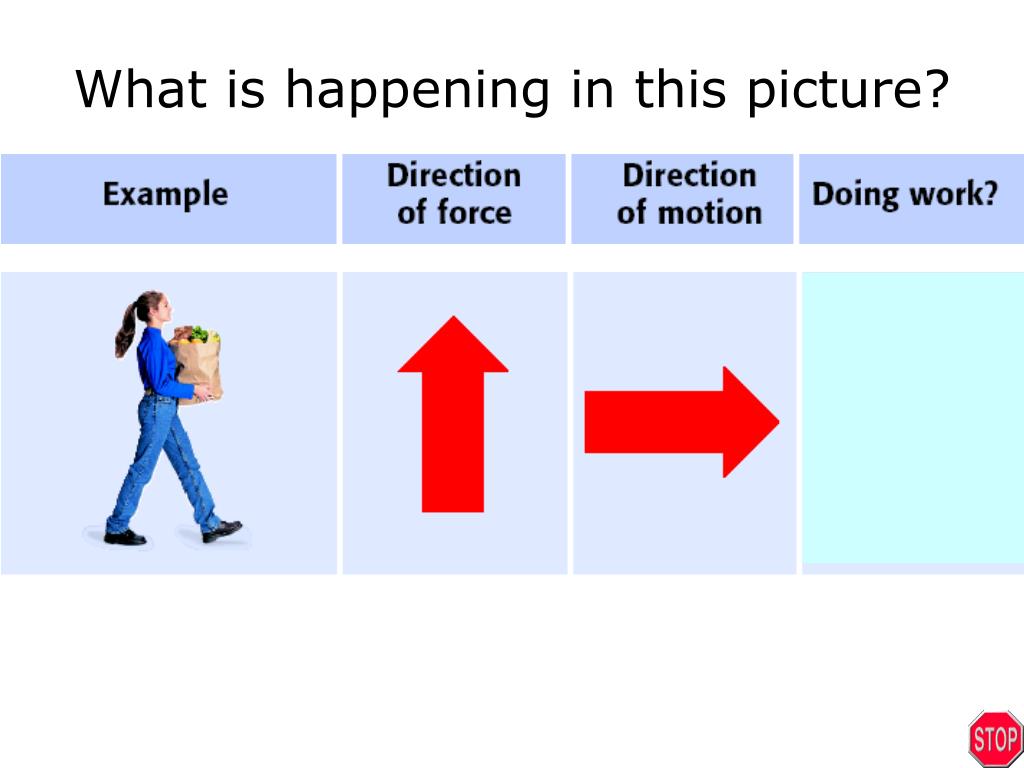

  29. What is happening in this picture?

  30. What is happening in this picture?

  31. What is happening in this picture?

  32. AIM:What is work? • What did we learn from the last few slides? • Work is only done when the object moves in the same direction as the force being applied to it.

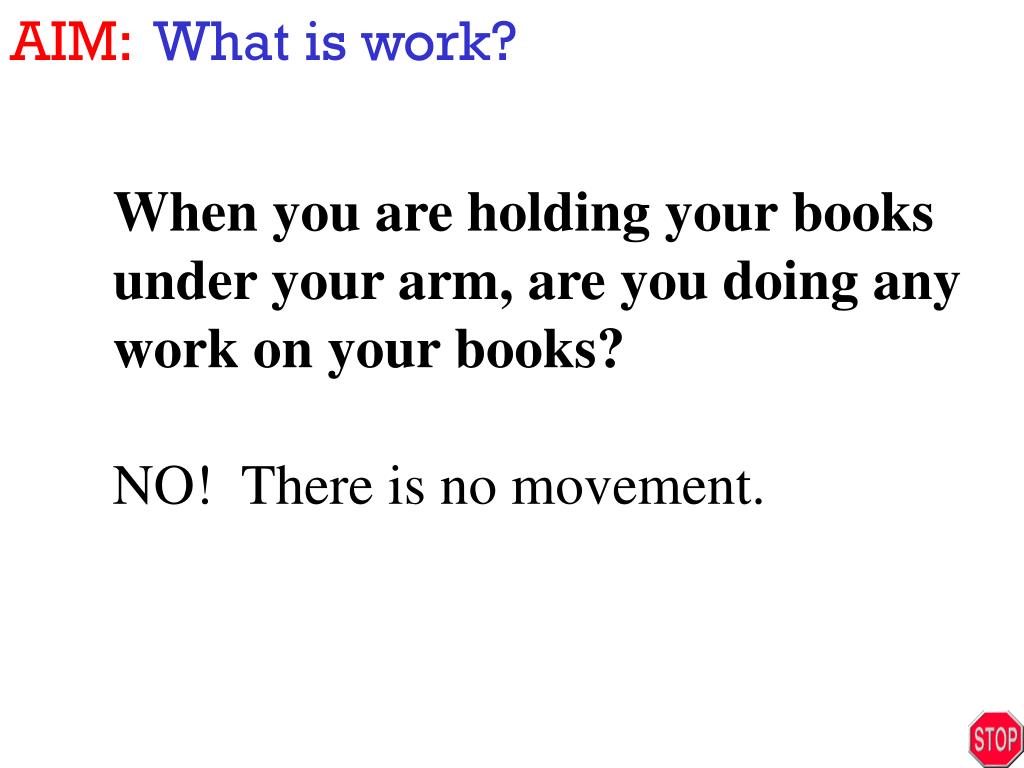

  33. AIM:What is work? • When you are holding your books under your arm, are you doing any work on your books? • NO! There is no movement.

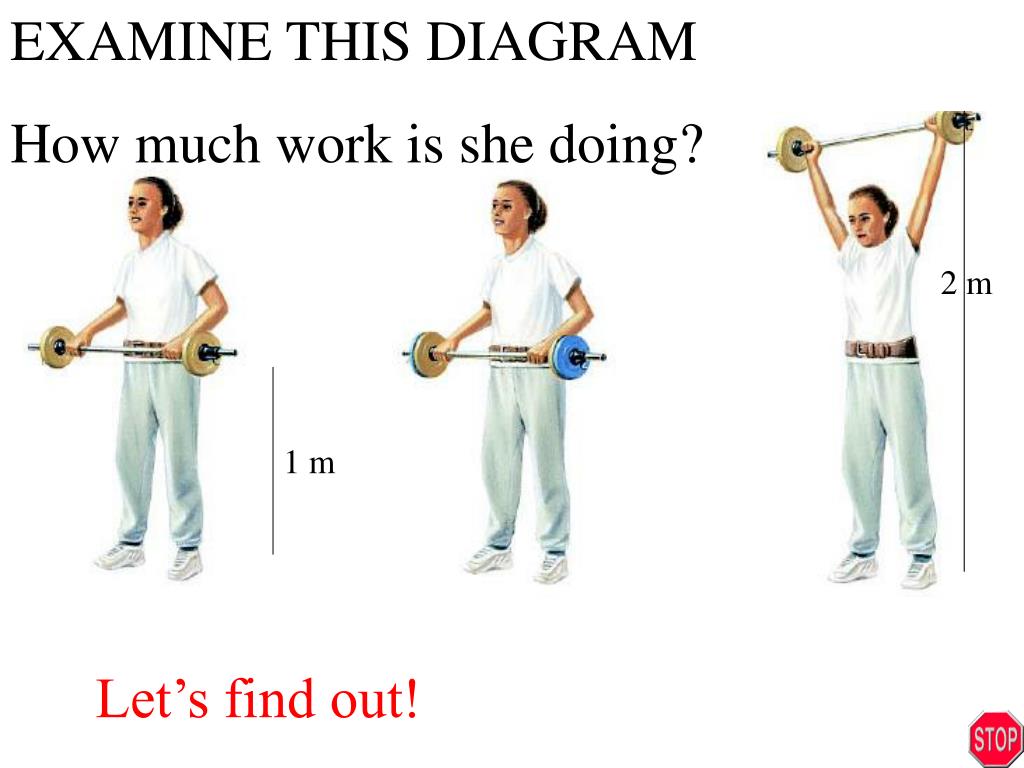

  34. EXAMINE THIS DIAGRAM How much work is she doing? 2 m 1 m Let’s find out!

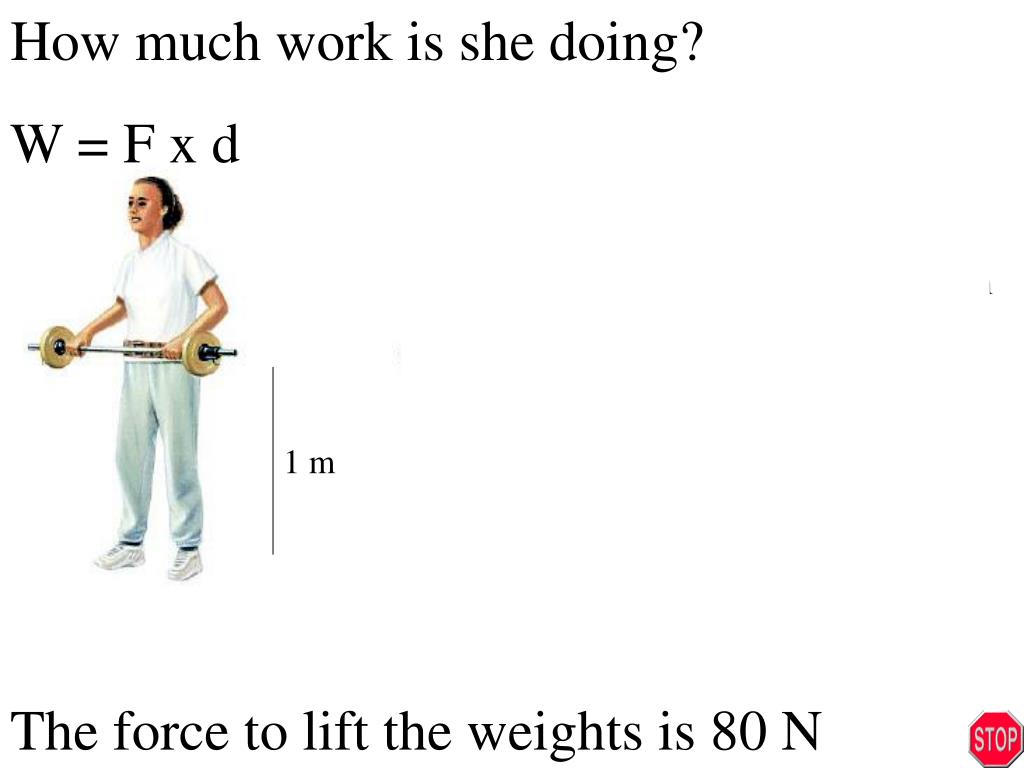

  35. How much work is she doing? W = F x d 2 m 1 m The force to lift the weights is 80 N

  36. How much work is she doing? W = F x d 2 m 1 m W = 80 J

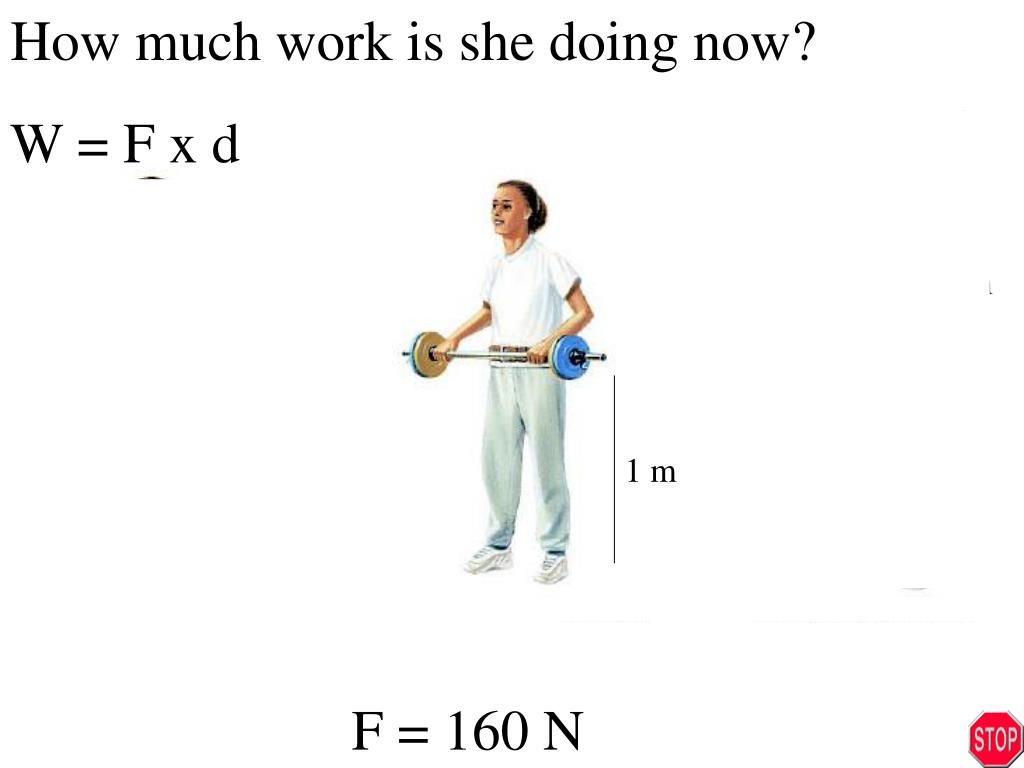

  37. How much work is she doing now? W = F x d 2 m 1 m 1 m F = 160 N

  38. How much work is she doing now? W = F x d 2 m 1 m 1 m W = 160 J

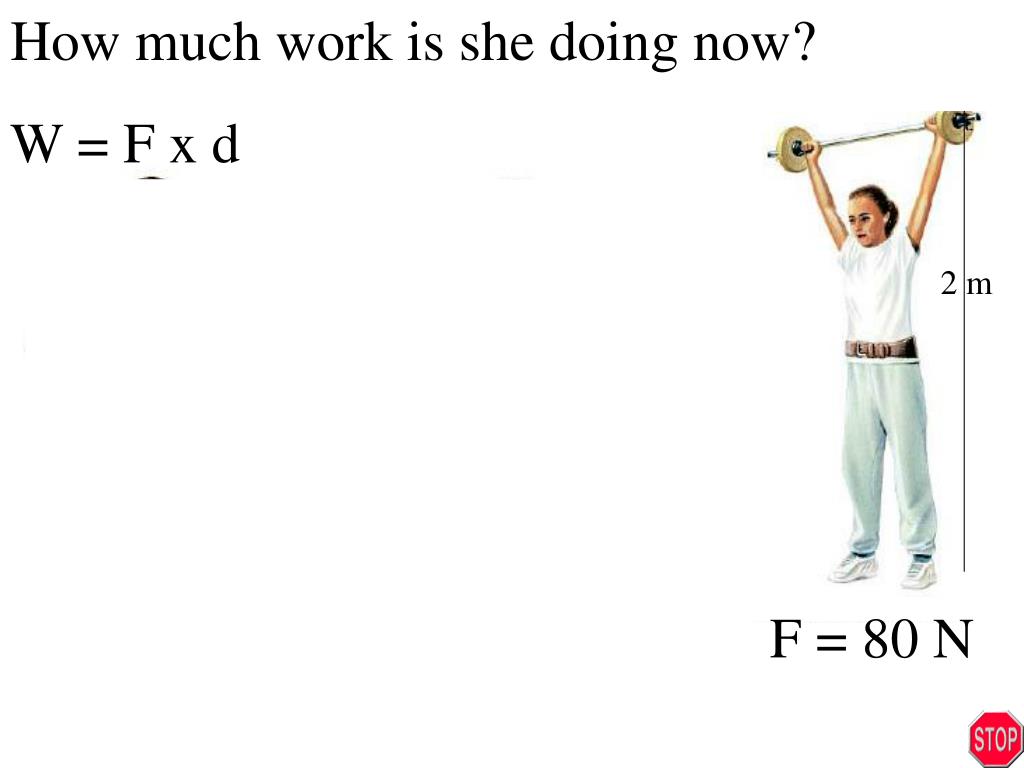

  39. How much work is she doing now? W = F x d 2 m 1 m F = 80 N

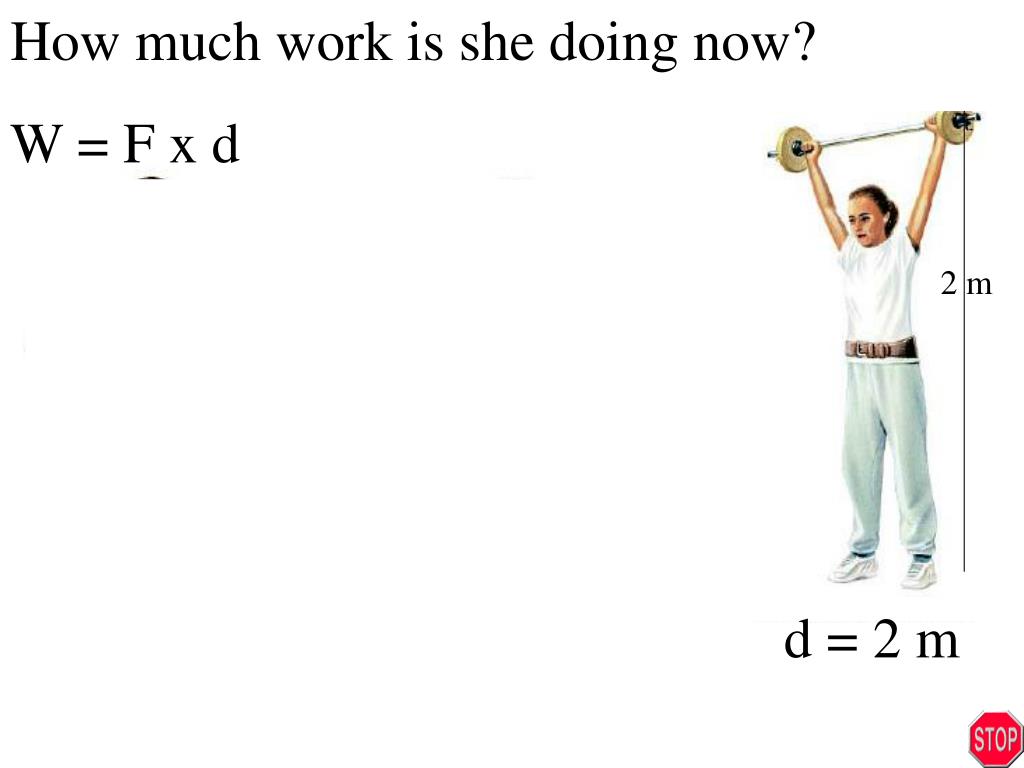

  40. How much work is she doing now? W = F x d 2 m 1 m d = 2 m

  41. How much work is she doing now? W = F x d 2 m 1 m W = 160 J

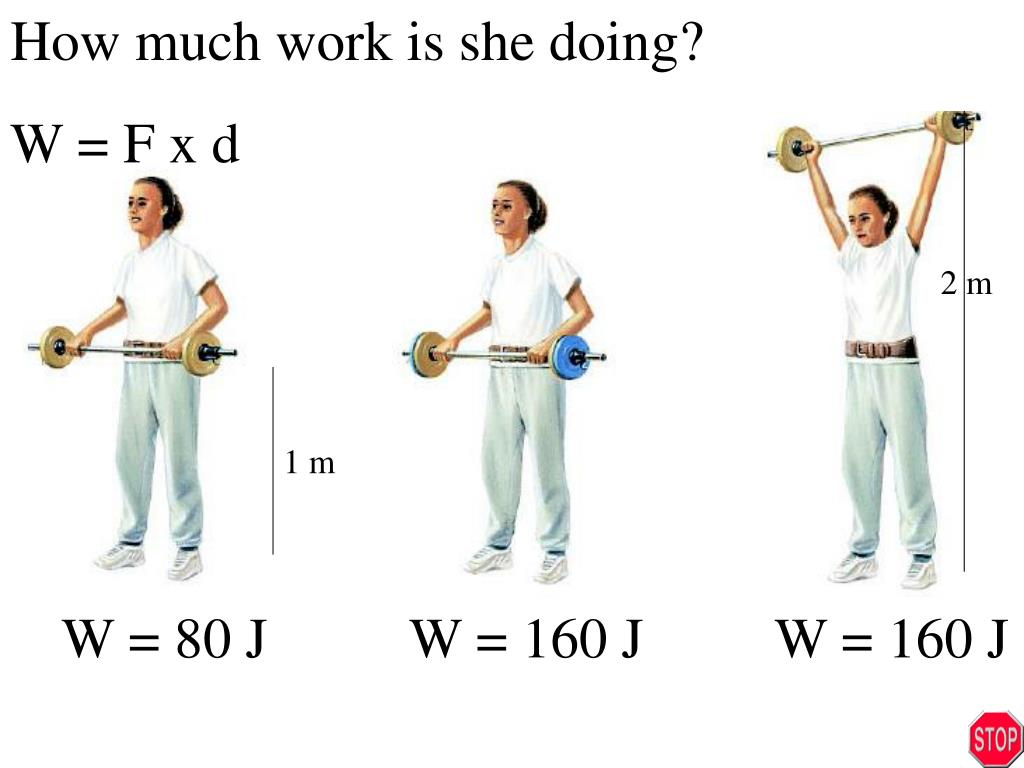

  42. How much work is she doing? W = F x d 2 m 1 m W = 80 J W = 160 J W = 160 J

  43. AIM:What is work? Summary REVIEW VOCABULARY – AND THE AIM – AND THE OBJECTIVES If 1000 slaves push a large pyramid block all day, and it does not move at all, have the slaves done any work?

  44. AIM:What is work? • Question • If you try to lift a heavy object, and fail, have you done work? • Answer? • No because the object did not move!

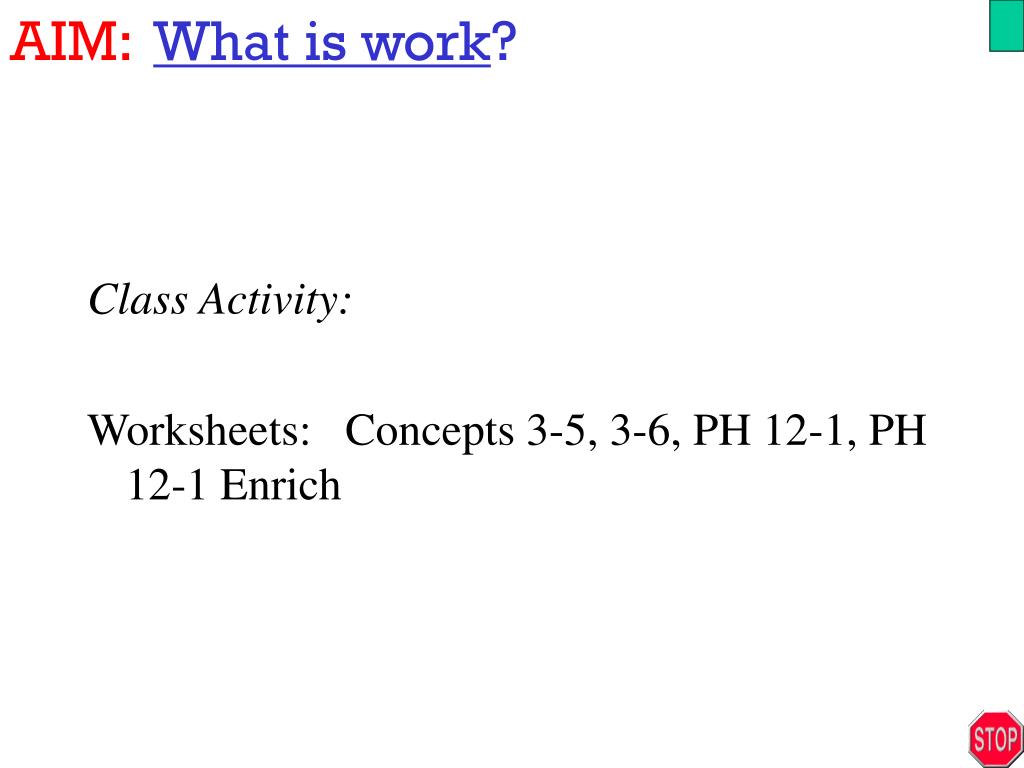

  45. AIM:What is work? Class Activity: Worksheets: Concepts 3-5, 3-6, PH 12-1, PH 12-1 Enrich

  46. AIM:What is work? Homework: INTERNET QUESTIONS FINISH W/S
