1. FAC Fast Access Controllerin FLASH in-system programming Shahar Ben-Yehuda

2. What is FLASH memory? • FLASH memory is used (also) in processors • Has two standards: NOR and NAND • It substitutes pre-programmed memory hardware • PCB’s may have many FLASH devices • It stores the system’s firmware (program code) • It can be changed and updated • Bug fixes can be made easily with it

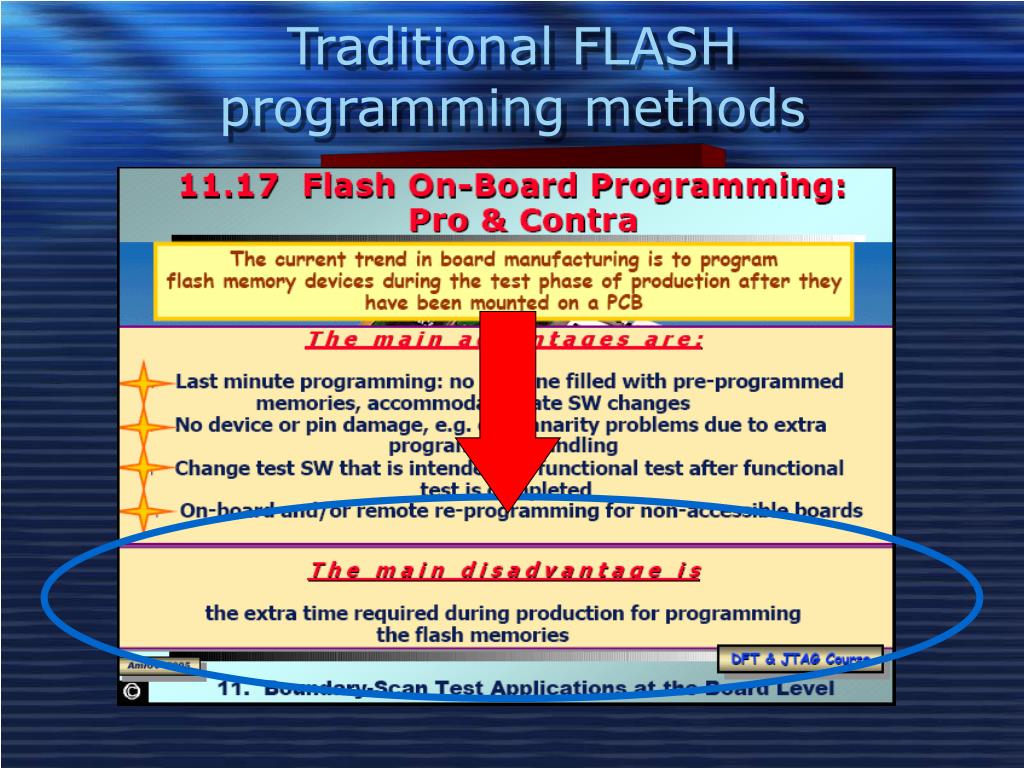

3. Traditional FLASHprogramming methods Gang & In-LineFlash programmers ICTFlash Programming Emulation based Flash Programming Flash Programming with Boundary-Scan

4. Traditional FLASHprogramming methods Flash Programming with Boundary-Scan

5. Boundary Scan disadvantages • Today’s Boundary-scan devices have a large Pin-count • More and more Boundary-scan devices are needed in each PCB • The length of the scan path becomes a major limiting factor • Programming a FLASH take 10s of minutes • We can improve that only by half

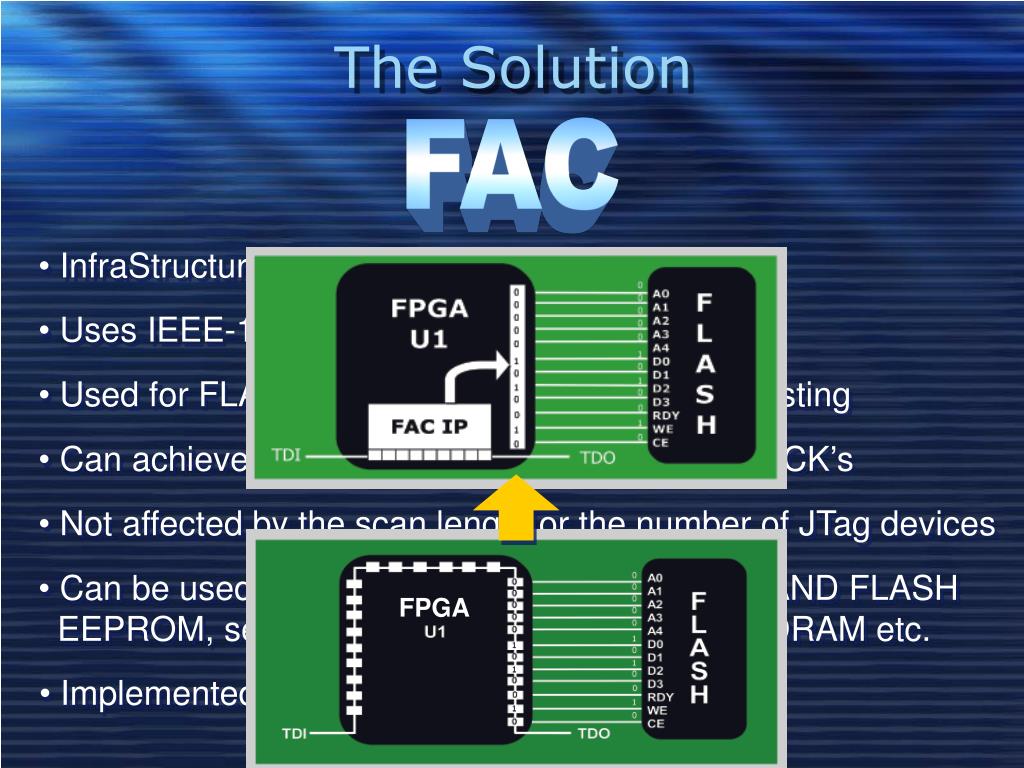

6. FPGA The Solution FAC • InfraStructure IP Block • Uses IEEE-1149.1 Standard for Bounary-Scan • Used for FLASH programming and in-system testing • Can achieve optimal throughput even in lower TCK’s • Not affected by the scan length or the number of JTag devices • Can be used in many memory types: NOR & NAND FLASH EEPROM, serial EEPROM, SRAM, SDRAM, DDRAM etc. • Implemented in a CPU or ASIC

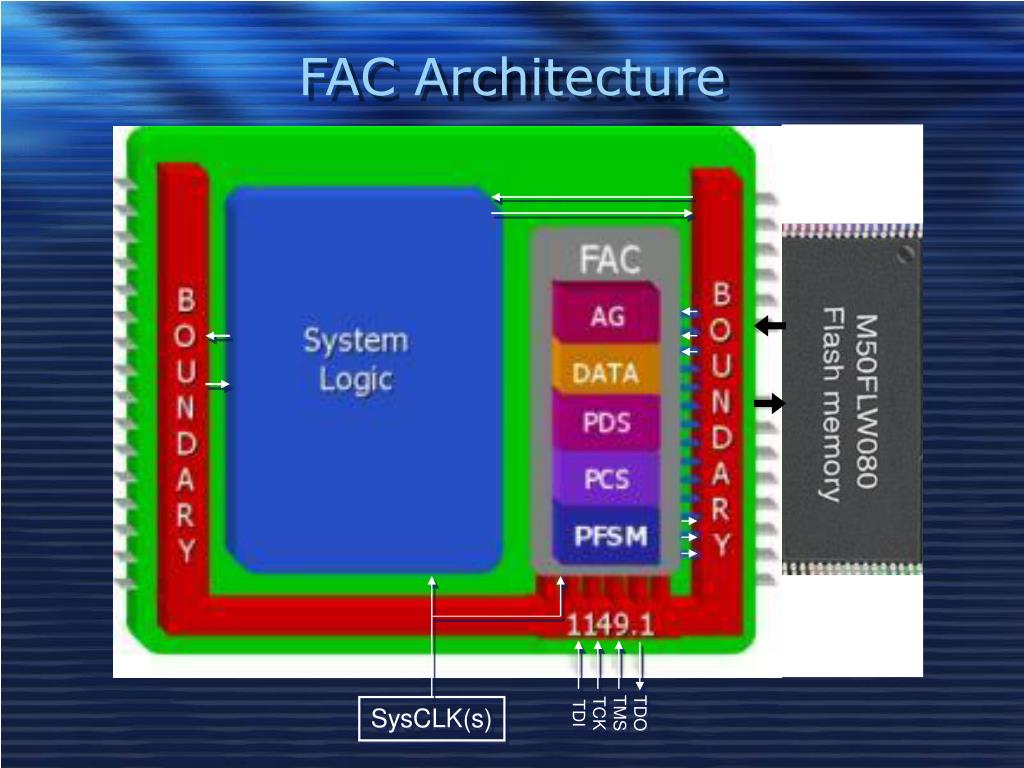

7. TDOTMSTCKTDI SysCLK(s) FAC Architecture

8. State diagram of the FSM P

9. FAC Block-Diagram The FAC logic can be synchronized with either the TCK clock or system clocks The DATA and PDS logic are used for read/write operations, and special data sequences, to/from the FLASH device The DATA register is a simple DR The AG may contain one or more address generation circuits The PFSM is connected also to the bypass register and the BSR The PCS provides the FLASH’s Control signals via the test multiplexors Each of the blocks has one or moreData Registers The PDS is programmed with data sequences required for the FLASH’s program/erase commands It is used to keep data to be written to the memory, or data that has been read from the memory The Blocks receive control input from the PFSM and the IR The AG logic outputs address sequences onto the FLASH’s Address bus These DRs may be used with the FAC,or can be shared by the BSR It also interfaces the other blocks of the FAC to sequence them for accessing the FLASH The DATA DR is separated from the PDS DR, so it could be scanned while the PDS is outputting data The AG sequences are controlled by specific instructions from the PFSM & PCS The IR and the PFSM will control the PCS to work using their current instructions As a result, concurrent writing and reading of data can be done

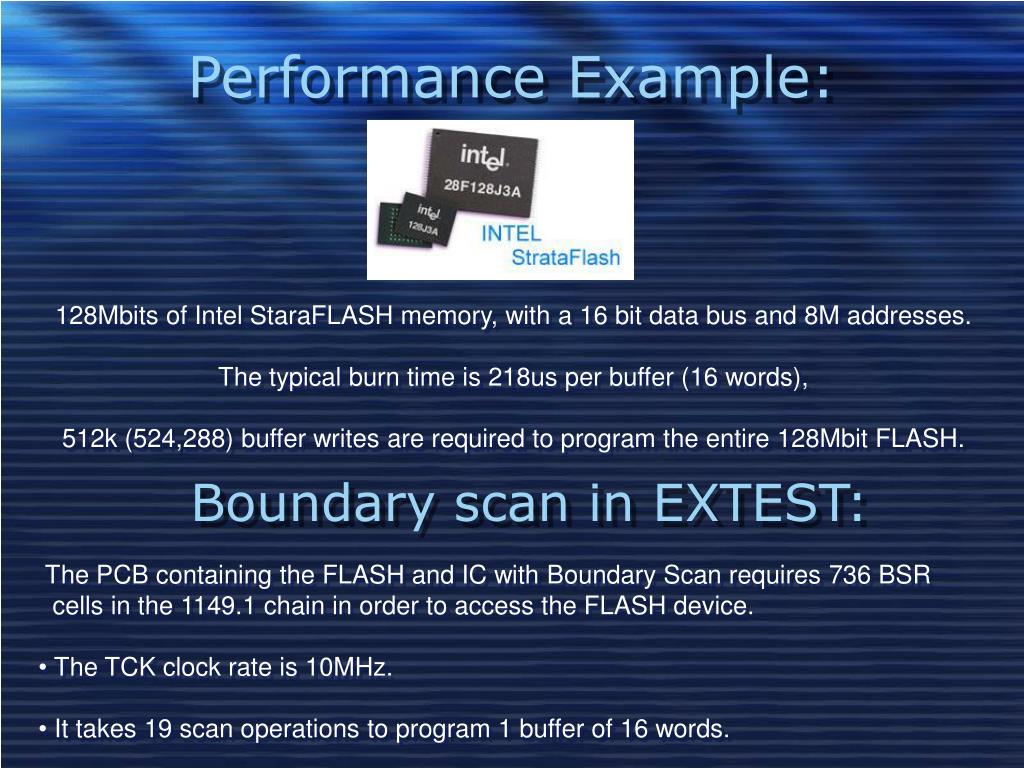

10. Performance Example: 128Mbits of Intel StaraFLASH memory, with a 16 bit data bus and 8M addresses. The typical burn time is 218us per buffer (16 words), 512k (524,288) buffer writes are required to program the entire 128Mbit FLASH. Boundary scan in EXTEST: • The PCB containing the FLASH and IC with Boundary Scan requires 736 BSR cells in the 1149.1 chain in order to access the FLASH device. • The TCK clock rate is 10MHz. • It takes 19 scan operations to program 1 buffer of 16 words.

11. Boundary scan in EXTEST: • Time for 1 buffer = #BSR cells * #scans = 736 * 19 = 1.4ms • TCK 10us • Time for entire FLASH = buffer time * #buffers = 1.4ms * 524,288 = 734 secs Using the EXTEST method: 14.1 minutes Using the EXTEST method: 12.2 minutes This doesn’t include the device burn time, which can add up to 114 second to the entire FLASH!!!

12. What) The FAC: ) • scan length is 16 data bits * 16 words, or 256 bits long • Only one scan is required to write a Buffer • Each buffer write takes two TCK cycles because of the APG2_DR and the update/capture2_DR • Time for 1 buffer = #BSR cells * #scans = 258 * 1 = 25.8us • TCK 10us • Time for entire FLASH = buffer time * #buffers = 25.8us * 524,288 = 13.5 secs • Shifting of next data and ‘burn time’ of current data can occur concurrently, burn time is bigger. • Burn time is typically 218us per Buffer • Multiplying it by 524,288 gives: approximately 114 seconds…

13. What) The FAC: ) Using the FAC method: 2.1 minutes Most of the time is due to waiting for the FLASH!!!

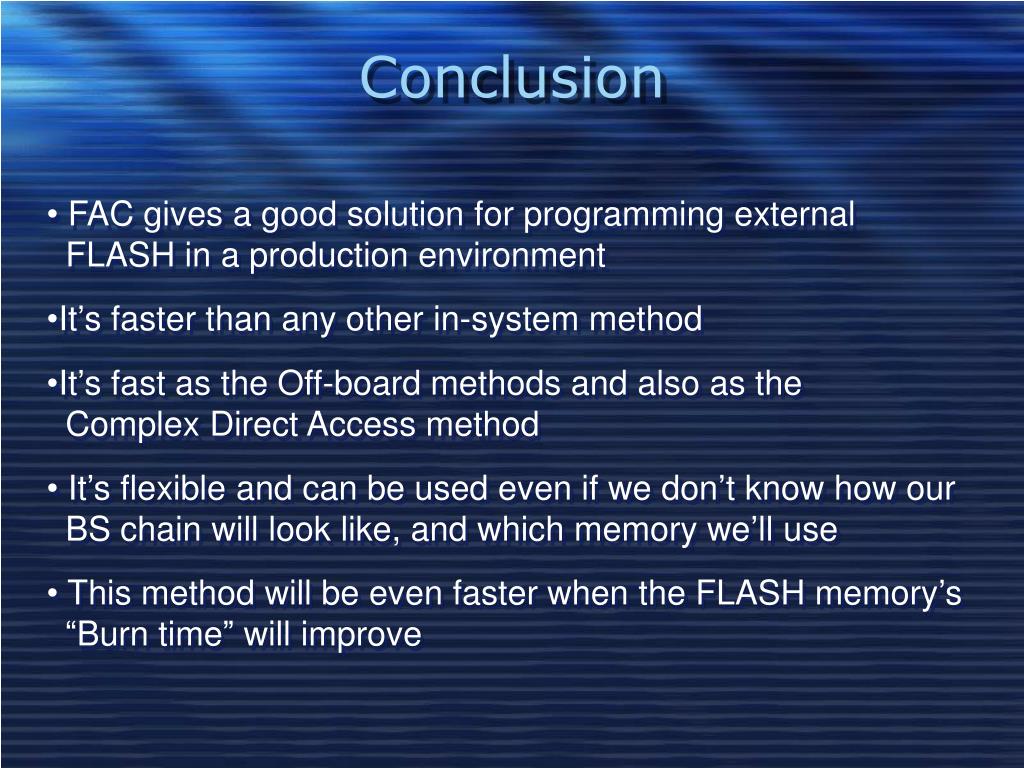

14. Conclusion • FAC gives a good solution for programming external FLASH in a production environment • It’s faster than any other in-system method • It’s fast as the Off-board methods and also as the Complex Direct Access method • It’s flexible and can be used even if we don’t know how our BS chain will look like, and which memory we’ll use • This method will be even faster when the FLASH memory’s “Burn time” will improve

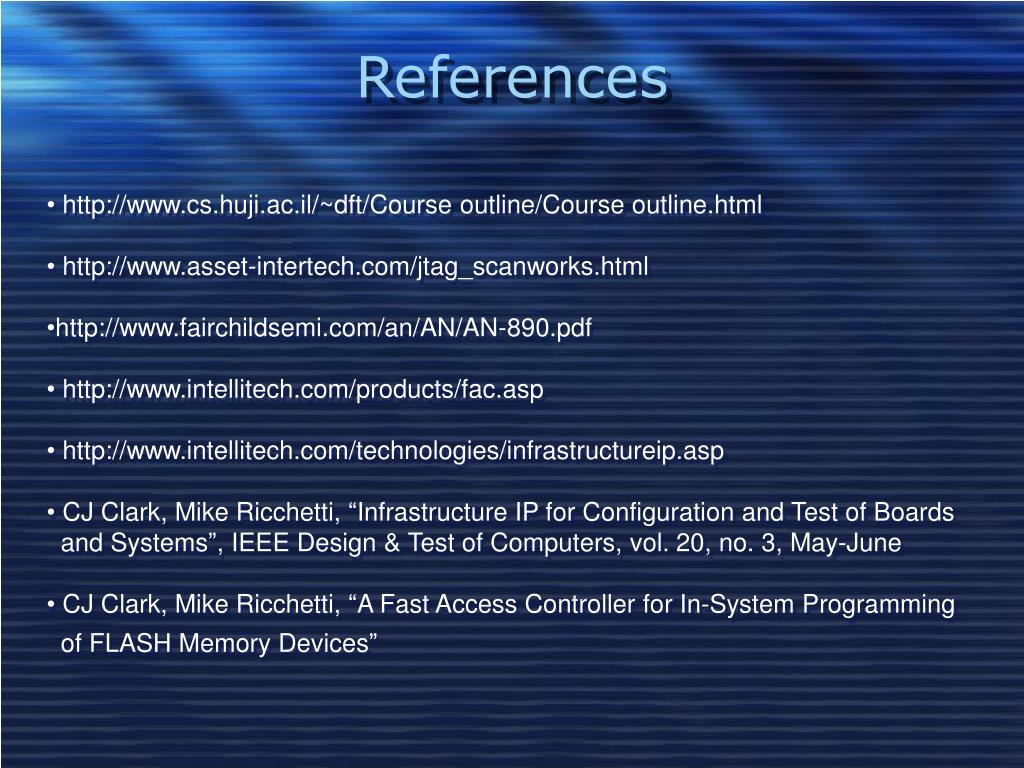

15. References • http://www.cs.huji.ac.il/~dft/Course outline/Course outline.html • http://www.asset-intertech.com/jtag_scanworks.html • http://www.fairchildsemi.com/an/AN/AN-890.pdf • http://www.intellitech.com/products/fac.asp • http://www.intellitech.com/technologies/infrastructureip.asp • CJ Clark, Mike Ricchetti, “Infrastructure IP for Configuration and Test of Boards and Systems”, IEEE Design & Test of Computers, vol. 20, no. 3, May-June • CJ Clark, Mike Ricchetti, “A Fast Access Controller for In-System Programming of FLASH Memory Devices”
