Understanding Triangle Midsegments and Their Properties

A midsegment of a triangle connects the midpoints of two sides, creating three midsegments overall. This forms the midsegment triangle, which reveals interesting properties about the triangle. In examples, we calculate midpoints M and N for vertices X, Y, and Z, compare slopes and heights of the midsegments MN and XY, and apply their relationships. A practical example involves calculating the length of a support in an A-frame structure using the midsegment theorem, illustrating the application of these concepts in real-world situations.

lavonn
Télécharger la présentation

Understanding Triangle Midsegments and Their Properties

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

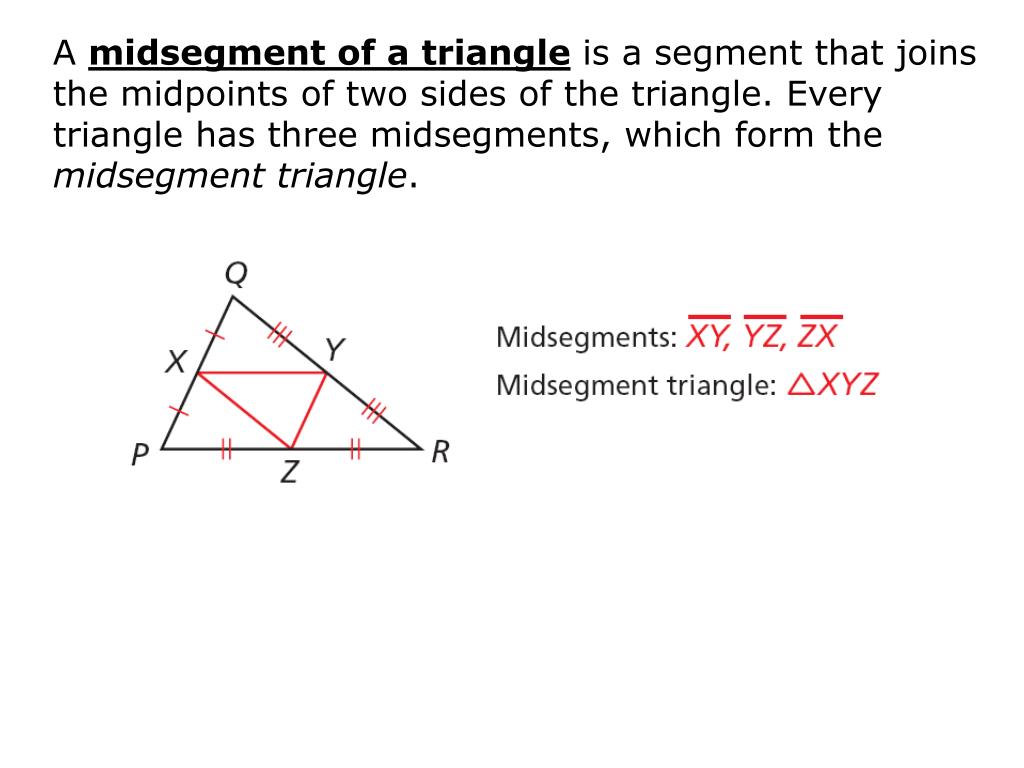

  1. A midsegment of a triangleis a segment that joins the midpoints of two sides of the triangle. Every triangle has three midsegments, which form the midsegment triangle.

  2. The vertices of ∆XYZ are X(–1, 8), Y(9, 2), and Z(3, –4). M and N are the midpoints of XZ and YZ. Show that and . Since the slopes are the same, Example 1: Step 1 Find the coordinates of M and N. Step 2 Compare the slopes of MN and XY.

  3. Step 3 Compare the heights of MN and XY.

  4. The relationship shown in Example 1 is true for the three midsegments of every triangle.

  5. Example 2A: Find each measure. BD ∆ Midsegment Thm. Substitute 17 for AE. BD = 8.5 Simplify. mCBD ∆ Midsegment Thm. mCBD = mBDF Alt. Int. s Thm. mCBD = 26° Substitute 26° for mBDF.

  6. Example 3: Indirect Measurement Application In an A-frame support, the distance PQ is 46 inches. What is the length of the support ST if S and T are at the midpoints of the sides? ∆ Midsegment Thm. Substitute 46 for PQ. ST= 23 Simplify. The length of the support ST is 23 inches.
