  1. E.Wildner, A. Fabich (CERN) Common EURISOL DS - EURONS Town MeetingHelsinki, Finland, 17-19 September 2007 Tracking and particle-matter interaction studies in the beta-beam decay ring

  2. EURISOL Scenario EURISOL scenario Aim: production of (anti-)neutrino beams from the beta decay of radio-active ions circulating in a storage ring • Similar concept to the neutrino factory, but parent particle is a beta-active isotope instead of a muon. • Accelerate parent ion to relativistic gmax • Boosted neutrino energy spectrum: En2gQ • Forward focusing of neutrinos: 1/g EURISOL scenario • Ion choice: 6He and 18Ne • Based on existing technology and machines • Study of a beta-beam implementation at CERN • Once we have thoroughly studied the EURISOL scenario, we can “easily” extrapolate to other cases. EURISOL study could serve as a reference. • Ions move almost at the speed of light Neutrino detector Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner

  3. Possible Beta Beam Complex High-energy part Low-energy part Neutrino source Acceleration Ion production Beam to experiment Proton DriverSPL Acceleration to final energy PS & SPS Ion productionISOL target & Ion source Decay ring Br = 1500 Tm B = ~6 T C = ~6900 m Lss= ~2500 m 6He: g = 100 18Ne: g = 100 SPS Neutrino Source Decay Ring Existing!!! Beam preparationECR pulsed Ion accelerationLinac, 0.4 GeV 93 GeV PS . Acceleration to medium energy RCS, 1.5 GeV 8.7 GeV Detector in the Frejus tunnel Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner 3

  4. Beta-beam tasks(Eurisol Design Study) From ”Overview” by M. Benedikt, Beta Beam Task Meeting in May 2007 Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner 4

  5. Particle Turnover Momentum collimation merging p-collimation injection decay losses Arc Straight section Arc Straight section ~1 MJ beam energy/cycle injected  equivalent ion number to be removed ~25 W/m average Momentum collimation: ~5*10126He ions to be collimated per cycle Decay: ~5*10126Li ions to be removed per cycle per meter Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner

  6. The Decay Ring Optics primary collimator Optical functions (m) A. Chance et al., CEA Saclay Decay ring: • C~7km • LSS~2.5 km s (m) One straight section used for momentum collimation. Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner

  7. Particle removal & loss Arcs Decay products Straight section Merging increases longitudinal beam size Momentum collimation Decay products Primarily accumulated and extracted at end with first dipole to external dump. Not treated yet: Betatron-Collimation Emergency cases (failure modes) Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner

  8. Large Aperture Requirements Dipole 6Li 3+ Absorber 18F 9+ Beam Pipe 8 cm radius needed for the horizontal plane where the decay products cause daughter beams + 1 cm for the sagitta (no curved magnet) 4 cm for the vertical plane Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner

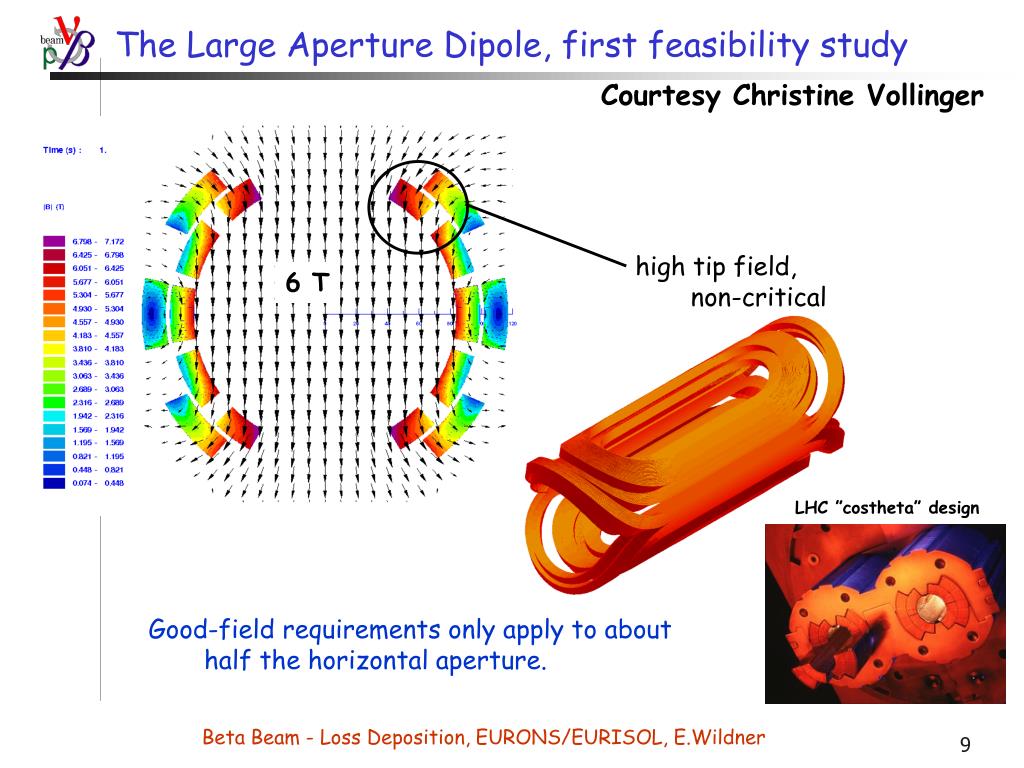

  9. The Large Aperture Dipole, first feasibility study high tip field, non-critical Courtesy Christine Vollinger 6 T LHC ”costheta” design Good-field requirements only apply to about half the horizontal aperture. Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner

  10. The Decay Products in the arcs Dipole Courtesy: A. Chancé Deposited Power (W/m) s (m) Arc, repetitive pattern Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner

  11. Heat Deposition Calculations Need to interface beam code and code for tracking particles in matter Choice: Beam Code: ACCIM (Developed at TRIUMF, many options developed specifically for the decay simulations, responsible Frederick Jones, TRIUMF) Particle Tracking in Matter: FLUKA "FLUKA: a multi-particle transport code",A. Fasso`, A. Ferrari, J. Ranft, and P.R. Sala,CERN-2005-10 (2005), INFN/TC_05/11, SLAC-R-773 "The physics models of FLUKA: status and recent developments",A. Fasso`, A. Ferrari, S. Roesler, P.R. Sala, G. Battistoni, F. Cerutti, E. Gadioli, M.V. Garzelli, F. Ballarini, A. Ottolenghi, A. Empl and J. Ranft,Computing in High Energy and Nuclear Physics 2003 Conference (CHEP2003), La Jolla, CA, USA, March 24-28, 2003 Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner 11

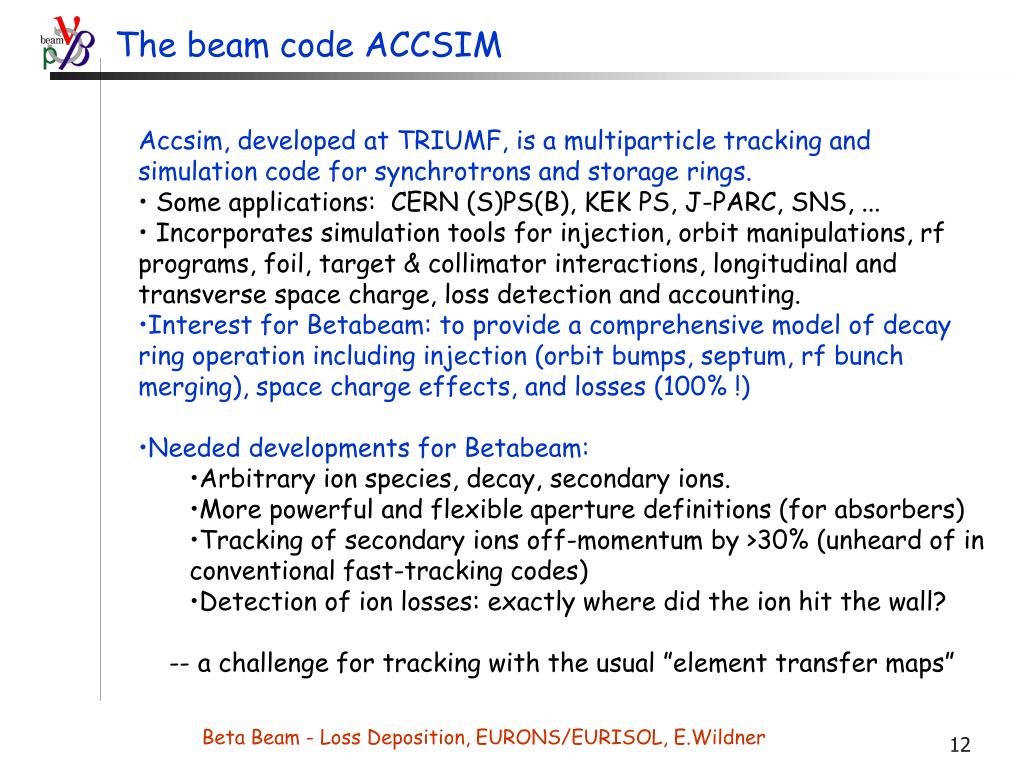

  12. The beam code ACCSIM • Accsim, developed at TRIUMF, is a multiparticle tracking and simulation code for synchrotrons and storage rings. • Some applications: CERN (S)PS(B), KEK PS, J-PARC, SNS, ... • Incorporates simulation tools for injection, orbit manipulations, rf programs, foil, target & collimator interactions, longitudinal and transverse space charge, loss detection and accounting. • Interest for Betabeam: to provide a comprehensive model of decay ring operation including injection (orbit bumps, septum, rf bunch merging), space charge effects, and losses (100% !) • Needed developments for Betabeam: • Arbitrary ion species, decay, secondary ions. • More powerful and flexible aperture definitions (for absorbers) • Tracking of secondary ions off-momentum by >30% (unheard of in conventional fast-tracking codes) • Detection of ion losses: exactly where did the ion hit the wall? • -- a challenge for tracking with the usual ”element transfer maps” Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner

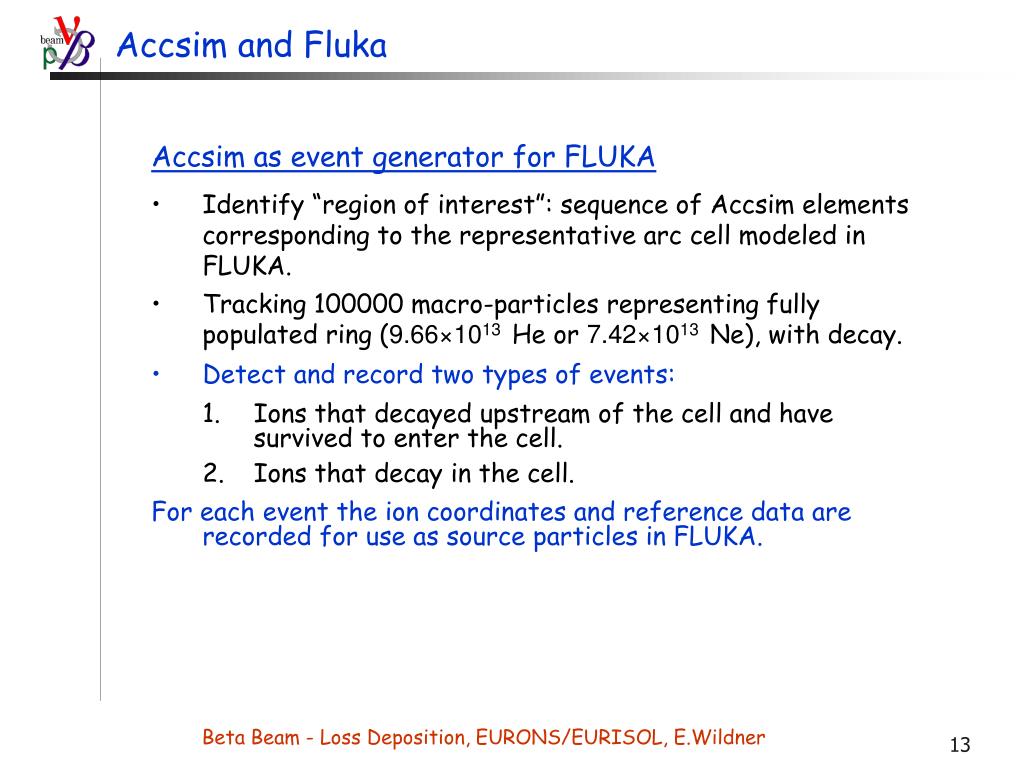

  13. Accsim and Fluka • Accsim as event generator for FLUKA • Identify “region of interest”: sequence of Accsim elements corresponding to the representative arc cell modeled in FLUKA. • Tracking 100000 macro-particles representing fully populated ring (9.66×1013He or 7.42×1013Ne), with decay. • Detect and record two types of events: • Ions that decayed upstream of the cell and have survived to enter the cell. • Ions that decay in the cell. • For each event the ion coordinates and reference data are recorded for use as source particles in FLUKA. Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner

  14. Heat Deposition Model, one cell Q Absorbers B B ”Overlapping” Quad to check repeatability of pattern Q (ISR model) B (new design) B No Beampipe (angle large) Concentric cylinders, copper (coil), iron (yoke) Q Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner

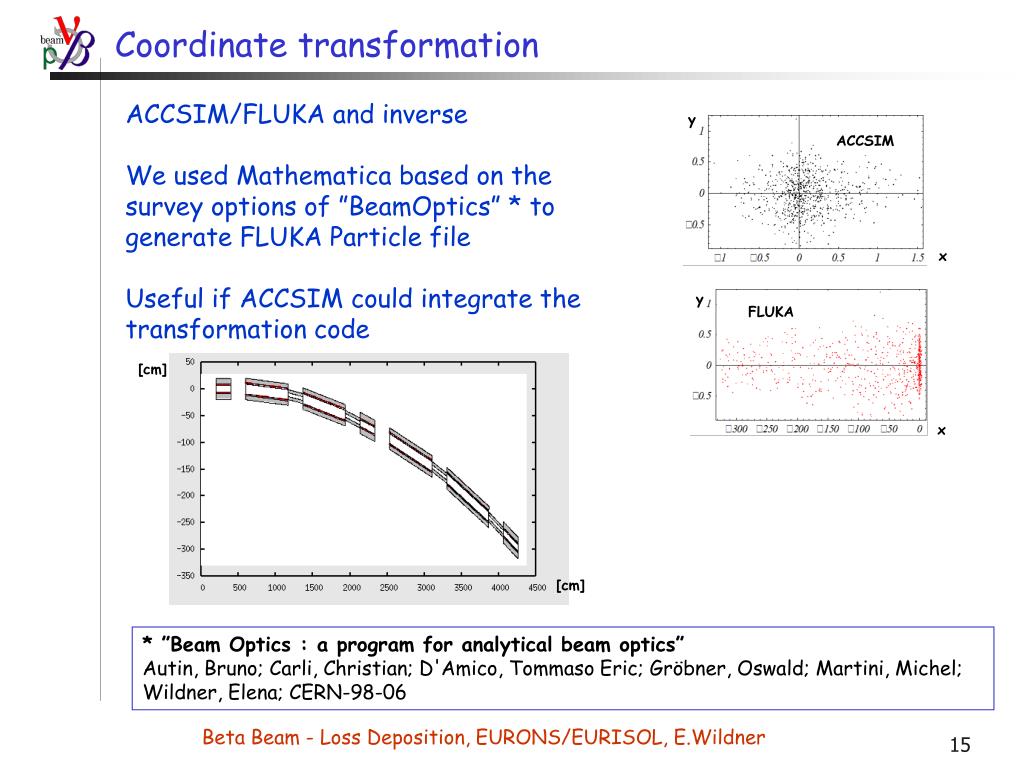

  15. Coordinate transformation ACCSIM/FLUKA and inverse We used Mathematica based on the survey options of ”BeamOptics” * to generate FLUKA Particle file Useful if ACCSIM could integrate the transformation code y ACCSIM x y FLUKA [cm] x [cm] * ”Beam Optics : a program for analytical beam optics” Autin, Bruno; Carli, Christian; D'Amico, Tommaso Eric; Gröbner, Oswald; Martini, Michel; Wildner, Elena; CERN-98-06 Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner

  16. Particle generation and treatment 1. ACCSIM tracks 6Li and 18F particle decaying in the ring up to cell entry 2. ACCSIM gives coordinates and momentum vectors of particles just decayed in cell 3. Particles escaping the vacuum pipe are treated by Fluka End of cell Decayed in cell Escaping Decayed in machine with absorbers inserted in ACCSIM Start of cell Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner

  17. Overall Power Deposition Normalized to a decay rate in cell: He: 5.37 109 decays/s Ne: 1.99 109 decays/s 6Li 18F • Compare to technical limits (10W/m) • not exceeding for either ion Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner

  18. Local Power Deposition Local power deposition concentrated around the mid plane. Limit for quench 4.3mW/cm3 (LHC cable data including margin) • Situation fine for 6Li • 18F: 12 mW/cm3 Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner

  19. Alternative solutions Open Mid Plane Magnet a better solution? Profit of work ongoing at CERN Use this model in simulations Introduce a “Beam Screen” Courtesy Erk Jensen, CERN Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner

  20. Conclusion and Future A protocol between the beam code Accsim and the material tracking code (FLUKA) has ben developed for the beta beam studies. ACCSIM to be used for the whole accelerator chain, for decay data production. Accsim now to be complemented with the packages made for model creation and for coordinate transformation (Accsim->FLUKA->Accsim) First results indicate that the deposited power is exceeding the limits locally, but not globally. Optimisation or another magnet design needed. The structure with absorbers would need special arrangements for the impedance induced. A thick liner inside the dipole could be an alternative Alternative dipole design with VERY large aperture or open mid-plane (new development, ongoing). Apply simulation tools for momentum collimation. Beta Beam - Loss Deposition, EURONS/EURISOL, E.Wildner
