  1. Spatial Wireless Soft Switch Lab Demo

  2. Capabilities to be Demonstrated • Registration/De-Registration • Normal Location Update/ Attach • IMSI Detach • Basic Calls • Mobile to Mobile • Handover – Inter MSC • BICC (in Santera) • Supplementary Services • Activation/De-activation of Services • Call Waiting / Call Hold • Call Forwarding (Busy/NA/NR) • Multiparty (Three-Way Call) • Call Barring

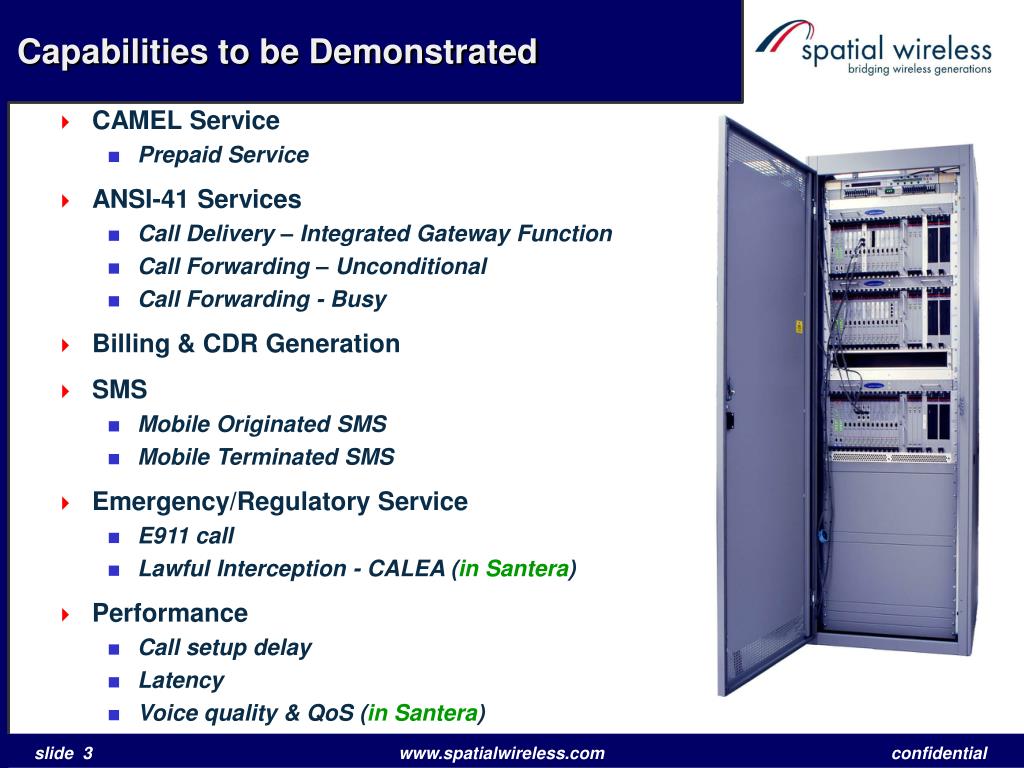

  3. Capabilities to be Demonstrated • CAMEL Service • Prepaid Service • ANSI-41 Services • Call Delivery – Integrated Gateway Function • Call Forwarding – Unconditional • Call Forwarding - Busy • Billing & CDR Generation • SMS • Mobile Originated SMS • Mobile Terminated SMS • Emergency/Regulatory Service • E911 call • Lawful Interception - CALEA (in Santera) • Performance • Call setup delay • Latency • Voice quality & QoS (in Santera)

  4. Capabilities to be Demonstrated • FCAPS Capability • Fault Management Capability • Configuration Management Capability • Account Management Capability • Performance Management Capability • Security Management Capability • Reliability & Geographic Redundancy • Call Server – Soft Fail Over • Call Server – Hard Fail Over • Capacity (1M BHCA) • Media Gateway Reliability (in Santera) • Media Gateway – Soft Fail Over • Media Gateway – Hard Fail Over

  5. Demo Lab Configuration - Functionality DSX DSX DSX Distributed MSC Zone-A Distributed MSC Zone-B Live entity in SanDiago Simulated entity in Lab MSC-A MSC-B MAP/ANSI-41 MAP ISUP/SS7 Inet-2 Inet-1 Megaco/ H.248 Megaco/ H.248 GSM-A GSM-A TDM/DS0 TDM TDM TDM TDM TDM

  6. MS Number Assignment Note 1: MS-4 is provisioned with prepaid service to demo IN service capability

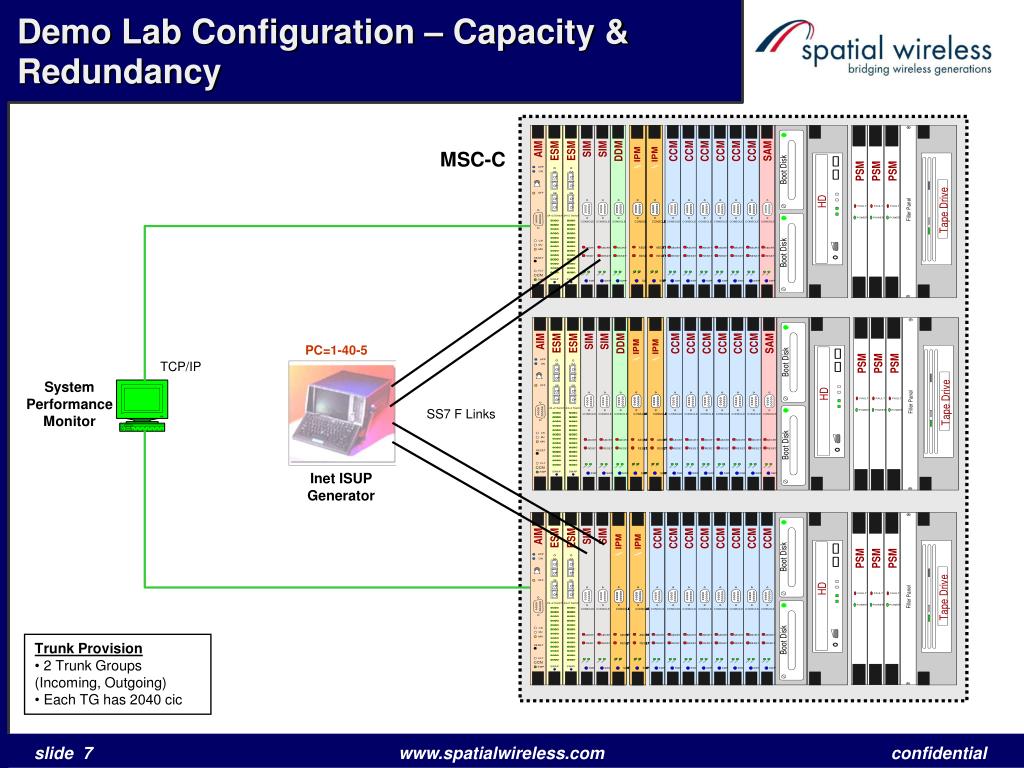

  7. Demo Lab Configuration – Capacity & Redundancy MSC-C PC=1-40-5 TCP/IP System Performance Monitor SS7 F Links Inet ISUP Generator Trunk Provision • 2 Trunk Groups (Incoming, Outgoing) • Each TG has 2040 cic

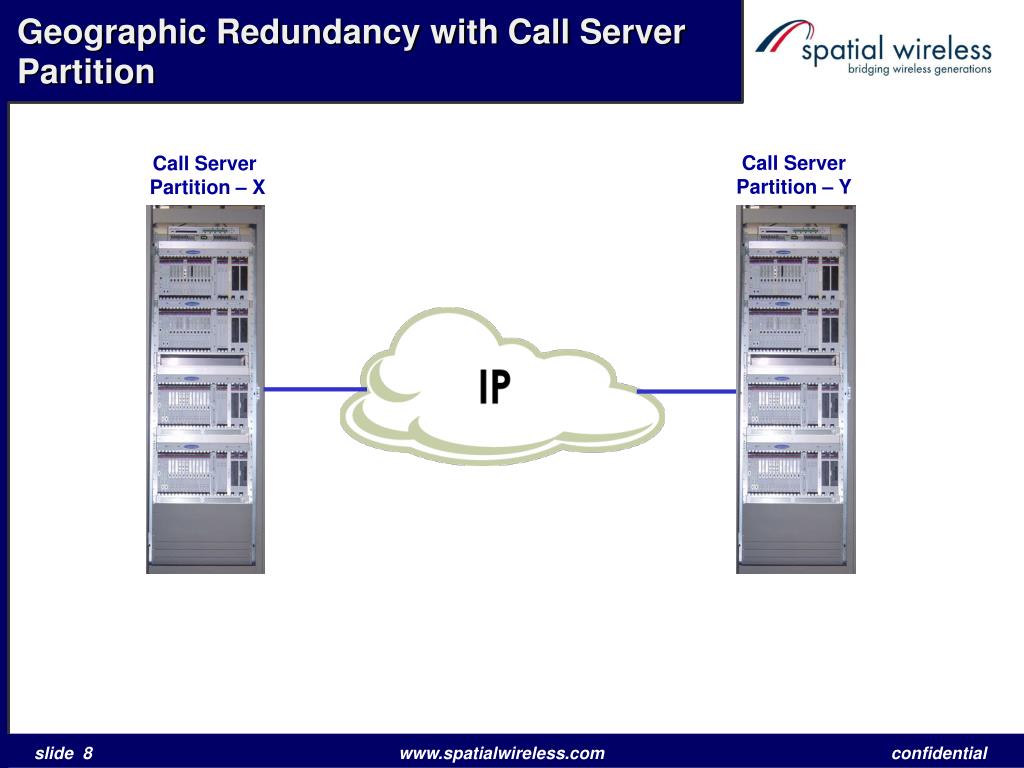

  8. Geographic Redundancy with Call Server Partition Call Server Partition – Y Call Server Partition – X

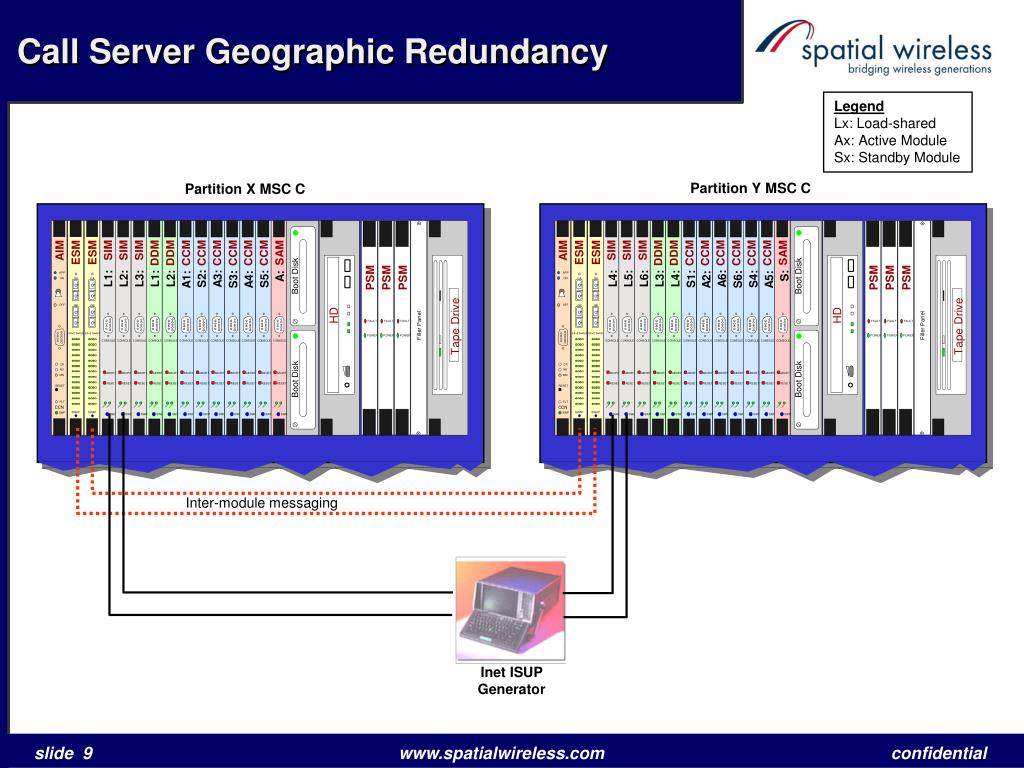

  9. Call Server Geographic Redundancy Legend Lx: Load-shared Ax: Active Module Sx: Standby Module Partition Y MSC C Partition X MSC C S: A: A3: A6: L1: L2: L3: L1: L2: L4: L5: L6: L3: L4: S2: S1: S5: S4: A1: A4: A2: A5: S3: S6: Inter-module messaging Inet ISUP Generator

  10. Registration/ De-Registration Normal Location Update IMSI Detach IMSI Attach

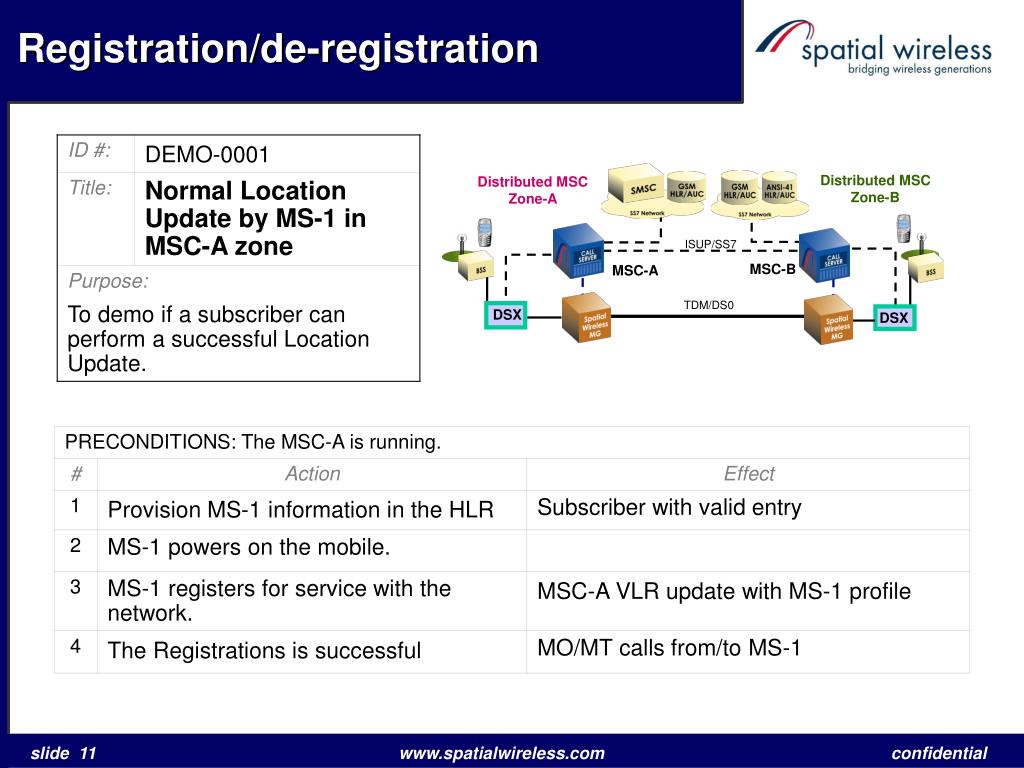

  11. Registration/de-registration Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

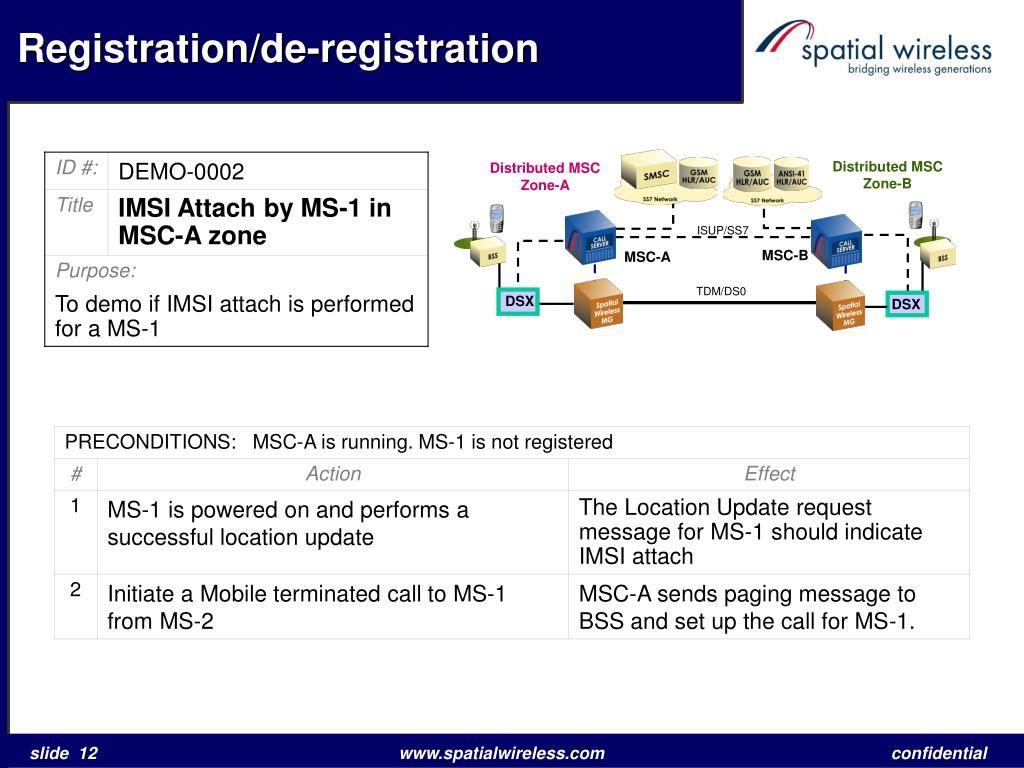

  12. Registration/de-registration Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  13. Registration/de-registration Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  14. Basic Calls Mobile to Mobile Handover – Inter MSC BICC (in Santera)

  15. Basic Call – MS to MS Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

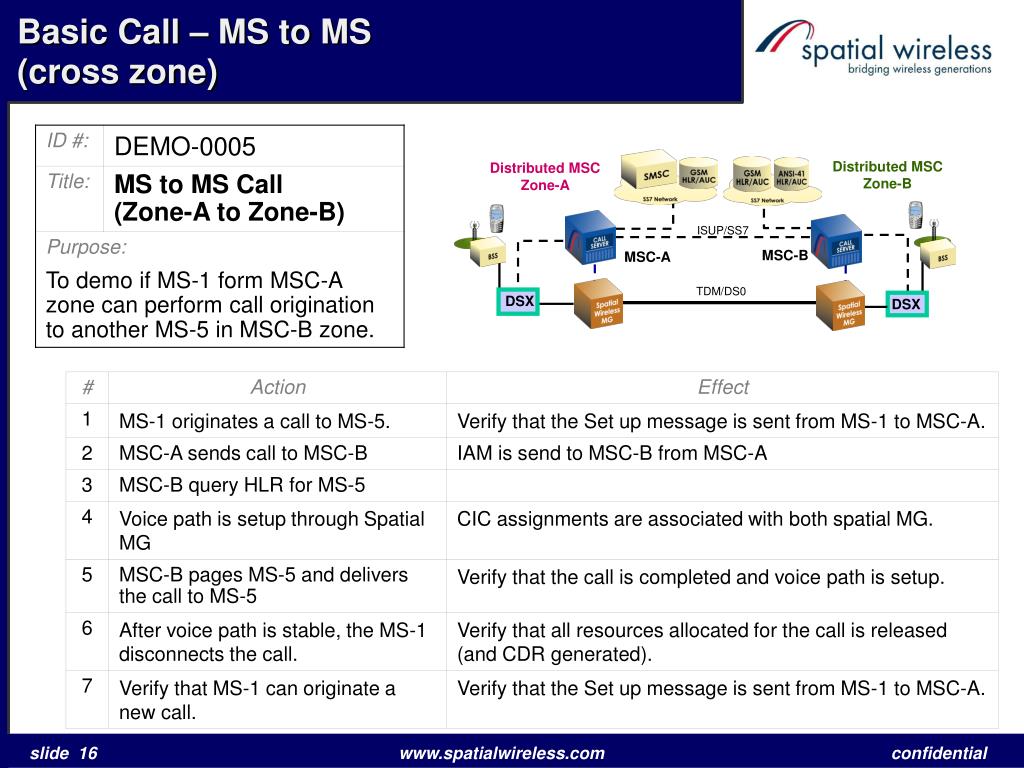

  16. Basic Call – MS to MS(cross zone) Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  17. Handover Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  18. Supplementary Services Activation/De-activation of Services Call Waiting / Call Hold Call Forwarding (Busy/NA/NR) Multiparty (Three-Way Call) Call Barring

  19. Supplementary Service Activation Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  20. Supplementary Service Deactivation Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

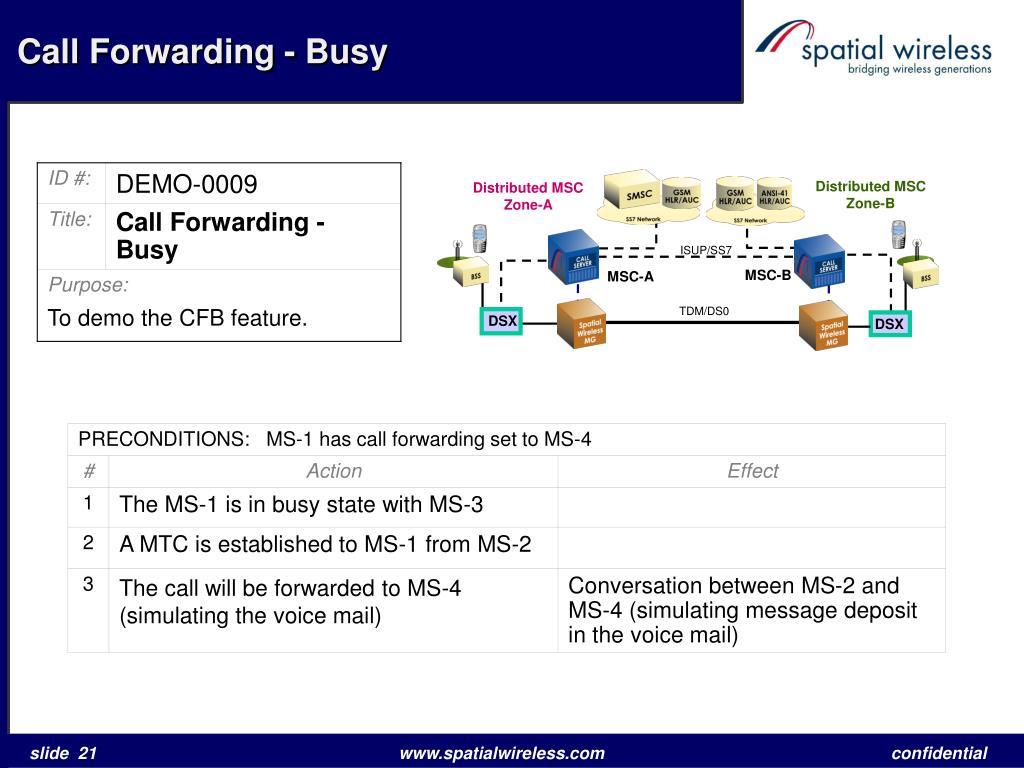

  21. Call Forwarding - Busy Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  22. Call Forwarding – No Answer Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  23. Call Forwarding – Not Reachable Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  24. Multiparty Call Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  25. Call Waiting & Call Hold Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  26. Call Barring Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  27. ANSI-41 Services Call Delivery – Integrated Gateway Function Call Forwarding – Unconditional Call Forwarding - Busy

  28. Call Delivery - Integrated Gateway Function Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  29. Call Forwarding – Unconditional (zone-B) Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  30. Call Forwarding – Busy (zone-B) Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  31. CAMEL Service Prepaid Service

  32. Prepaid Service SCP Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  33. Billing & CDR

  34. Billing & CDR Generation MSC-B MSC-A Local WEM Client Local WEM Client Fault/Alarm/Security Management Accounting Server Performance Server Remote WEM Client

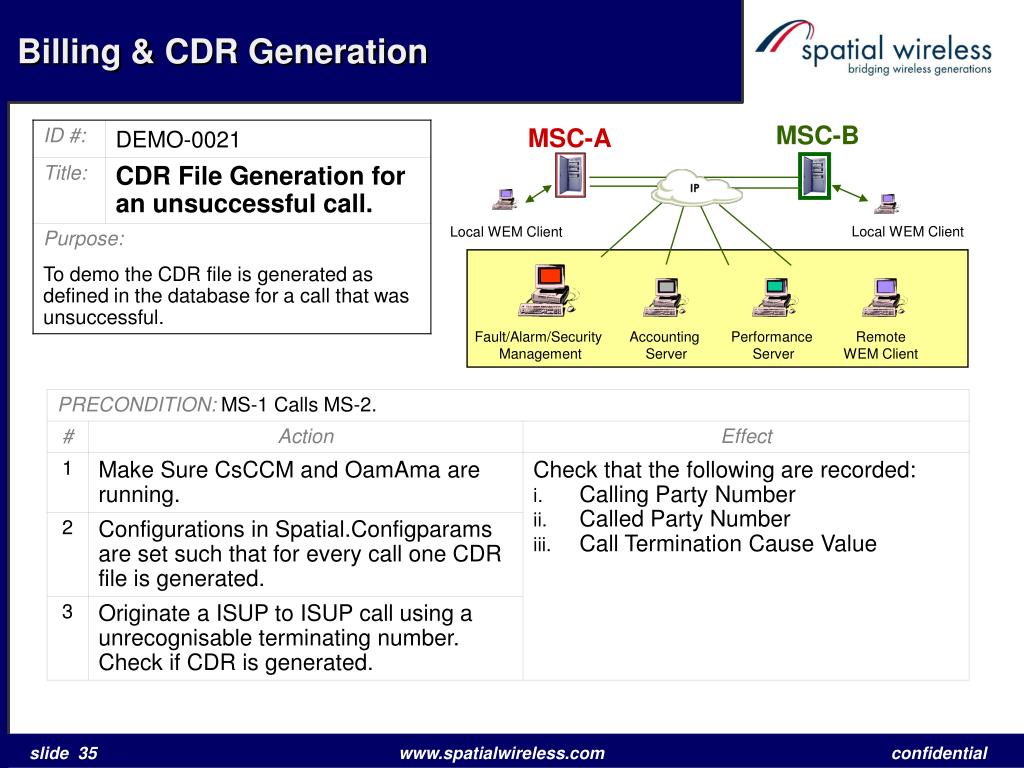

  35. Billing & CDR Generation MSC-B MSC-A Local WEM Client Local WEM Client Fault/Alarm/Security Management Accounting Server Performance Server Remote WEM Client

  36. Billing & CDR Generation MSC-B MSC-A Local WEM Client Local WEM Client Fault/Alarm/Security Management Accounting Server Performance Server Remote WEM Client

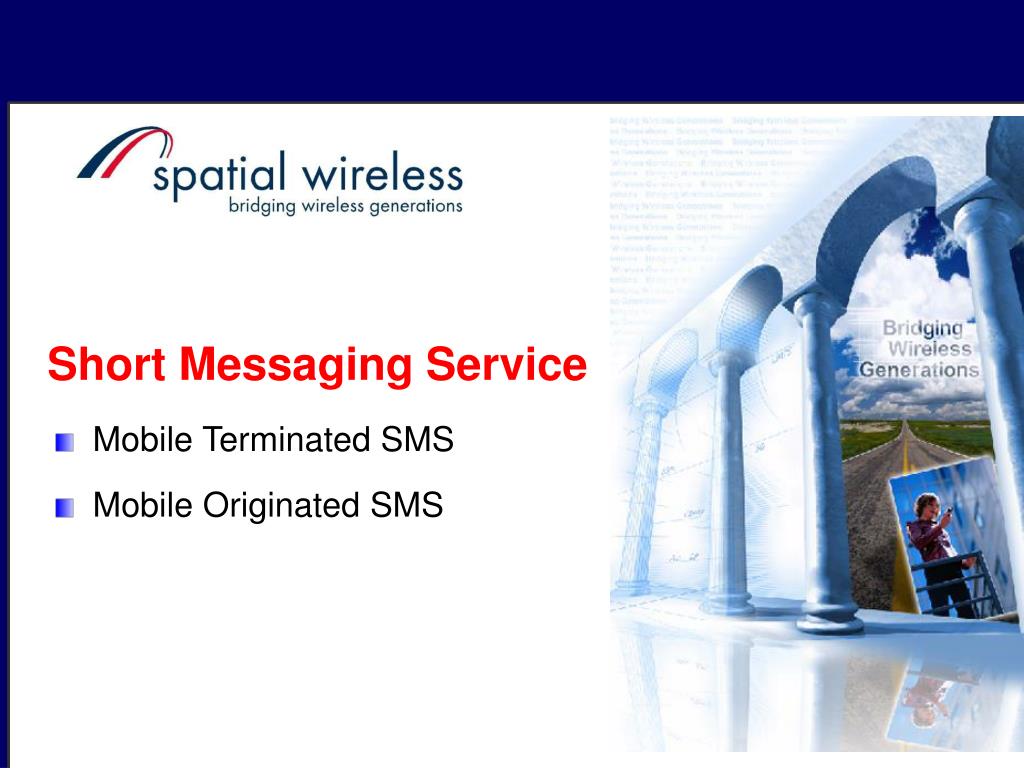

  37. Short Messaging Service Mobile Terminated SMS Mobile Originated SMS

  38. SMS - MT Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  39. SMS- MO Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  40. Emergency & Regulatory Service E911 Call CALEA (in Santera)

  41. Emergency Call – E911 Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  42. System Performance Call setup delay Latency Voice Quality

  43. End-to-end Call Setup Delay Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

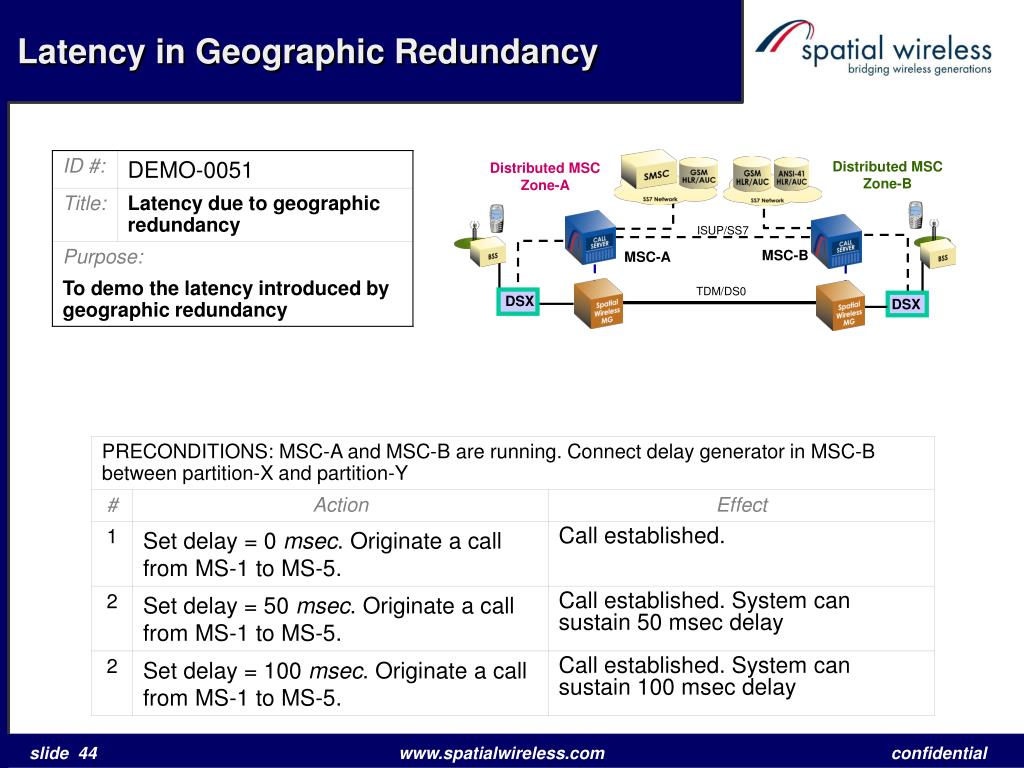

  44. Latency in Geographic Redundancy Distributed MSC Zone-B Distributed MSC Zone-A ISUP/SS7 MSC-B MSC-A TDM/DS0 DSX DSX

  45. Wireless Element Management Configuration Management Capability Performance Management Capability Security Management Capability Central Translations

  46. Wireless Network Management Spatial Atrium MSC Call Server Spatial Portico GMSC Call Server SNMP/CORBA SNMP/CORBA Java-RMI TFTP TFTP Java-RMI CORBA/ SNMP TFTP CORBA/ SNMP Java-RMI Fault/Alarm/Security Management Accounting Server Performance Server Remote WEM Client Local WEM Client Local WEM Client Regional/National Network Management Center

  47. Configuration Management Capability MSC-B MSC-A Local WEM Client Local WEM Client Fault/Alarm/Security Management Accounting Server Performance Server Remote WEM Client

  48. Configuration Management Capability MSC-B MSC-A Local WEM Client Local WEM Client Fault/Alarm/Security Management Accounting Server Performance Server Remote WEM Client

  49. Configuration Management Capability MSC-B MSC-A Local WEM Client Local WEM Client Fault/Alarm/Security Management Accounting Server Performance Server Remote WEM Client

  50. Configuration Management Capability
