  1. STAC usage at Diamond Richard Fearn Software Engineer

  2. About me • Software engineer in DASC • Coordinating GDA development for MX • primarily data acquisition

  3. GDA overview • developed at Daresbury; continued at Diamond • single software framework for all beamlines • consistent LaF; modular, flexible, configurable • mostly Java; has Jython interpreter • uses many open source components • GUI has Jython terminal for command-line interaction, and Jython script editor

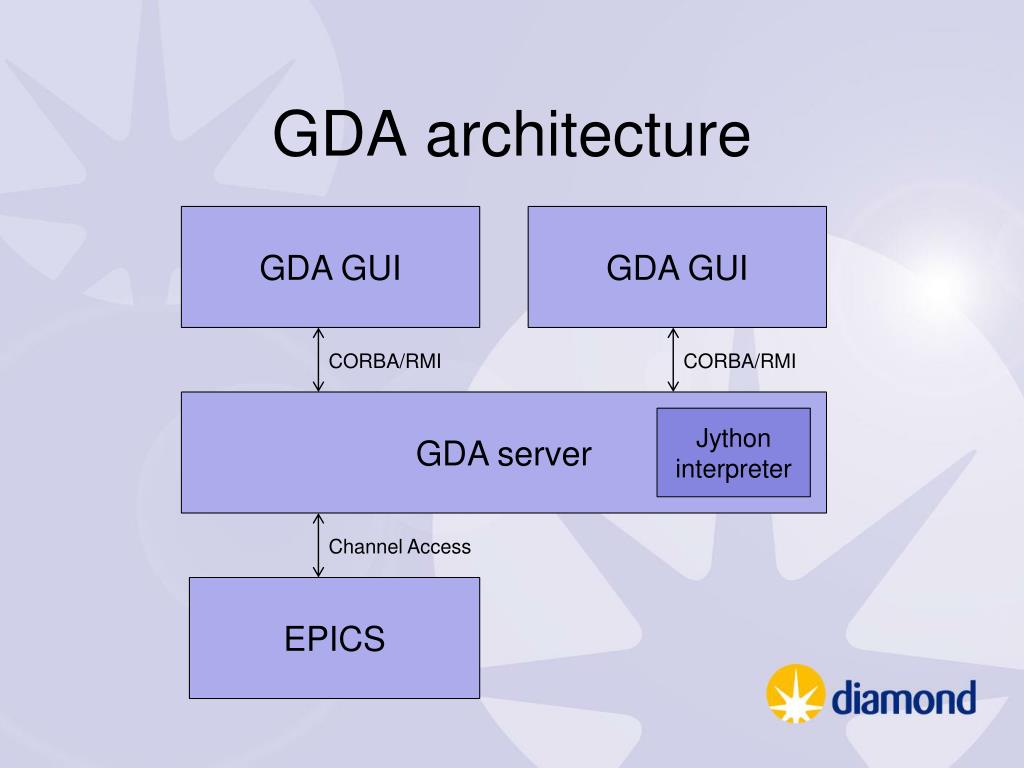

  4. GDA architecture GDA GUI GDA GUI CORBA/RMI CORBA/RMI GDA server Jython interpreter Channel Access EPICS

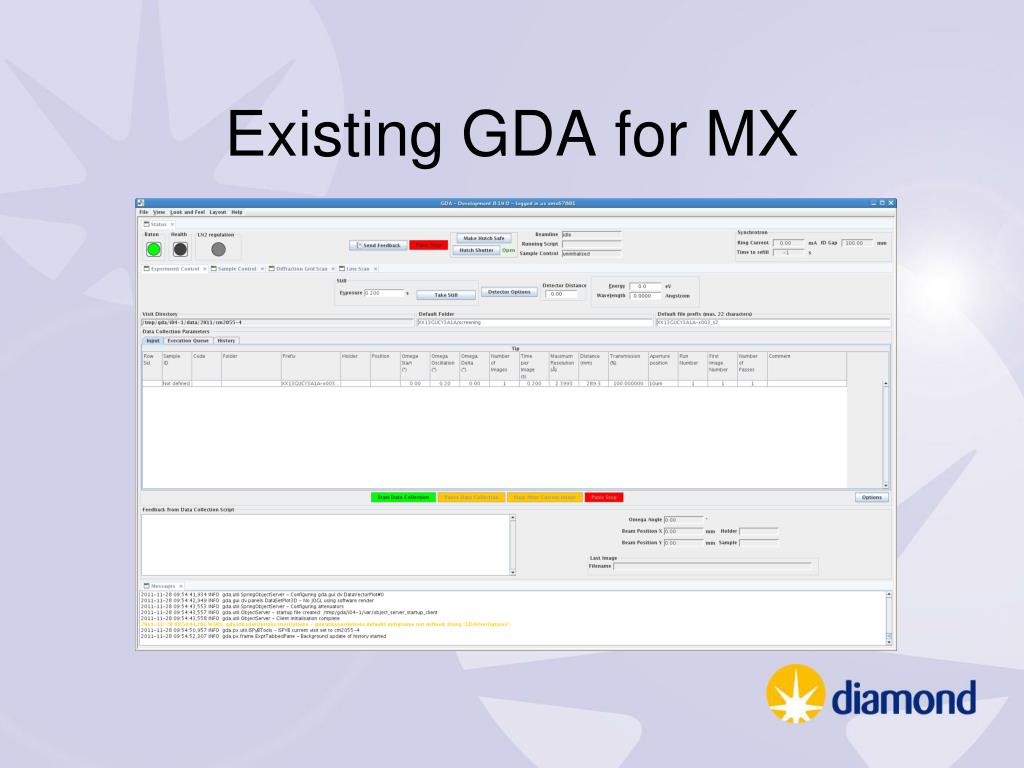

  5. Existing GDA for MX

  6. Existing GDA for MX

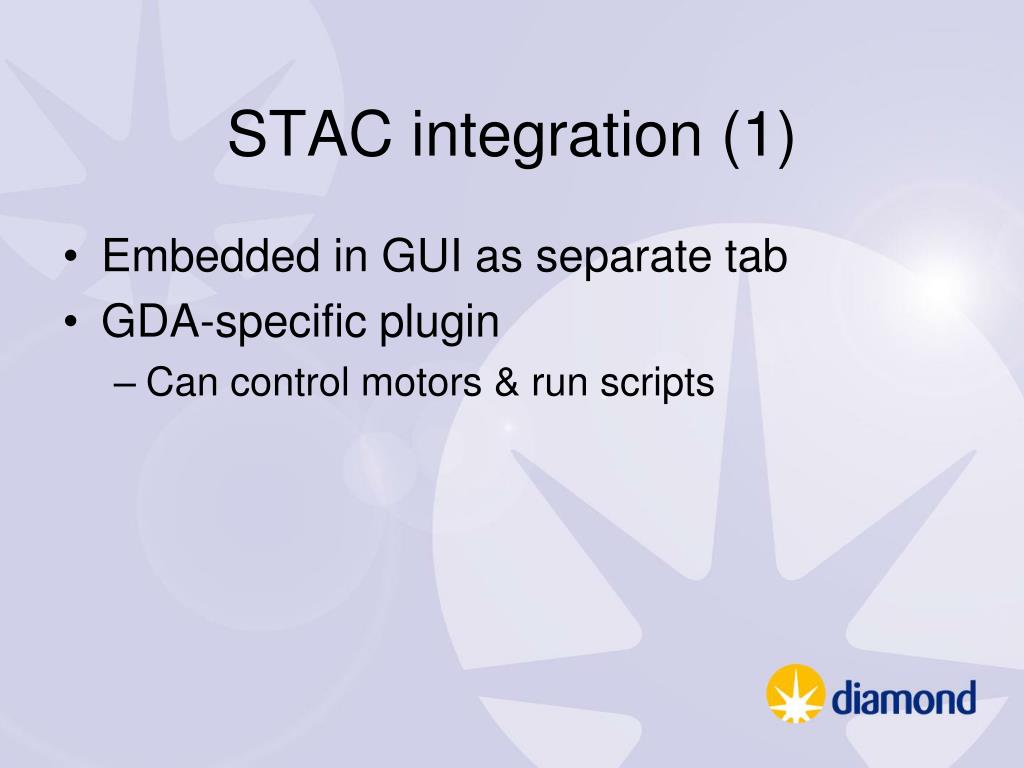

  7. STAC integration (1) • Embedded in GUI as separate tab • GDA-specific plugin • Can control motors & run scripts

  8. STAC integration (2) GDA GUI STAC CORBA/RMI CORBA/RMI GDA server Jython interpreter Channel Access EPICS

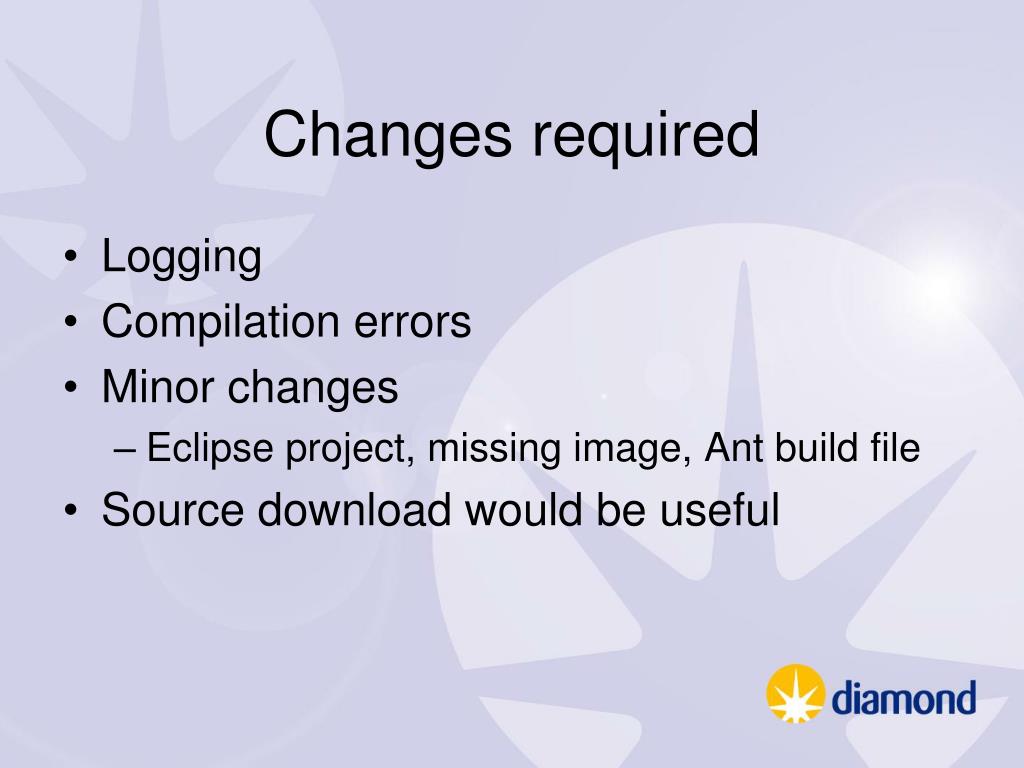

  9. Changes required • Logging • Compilation errors • Minor changes • Eclipse project, missing image, Ant build file • Source download would be useful

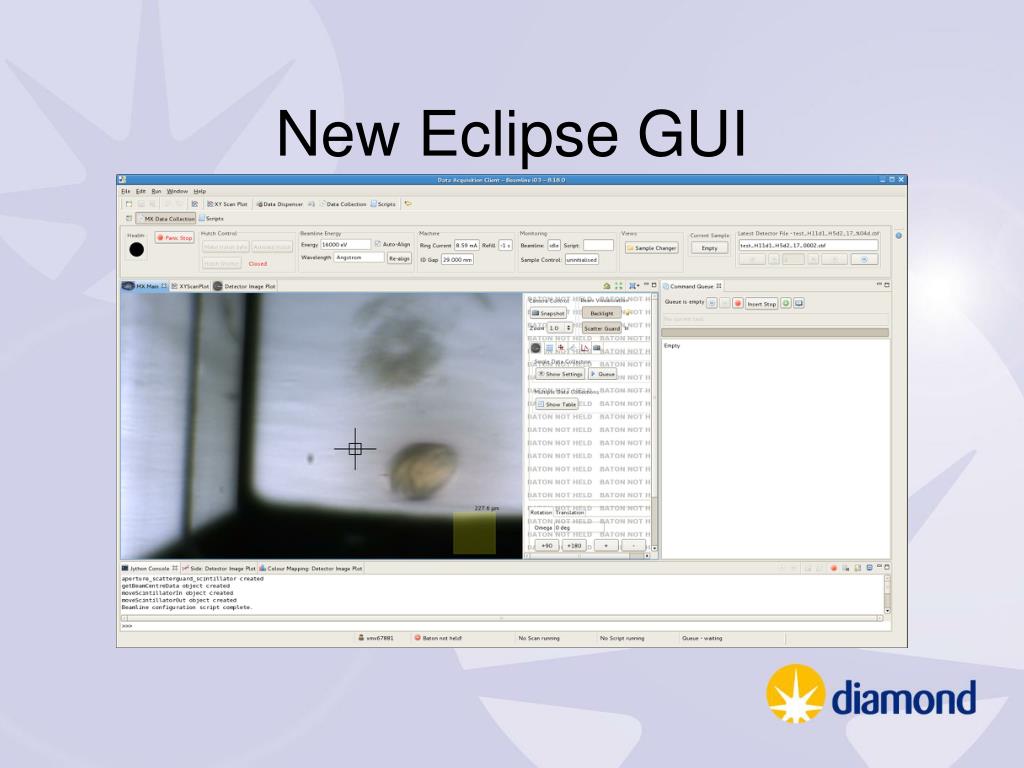

  10. New Eclipse GUI

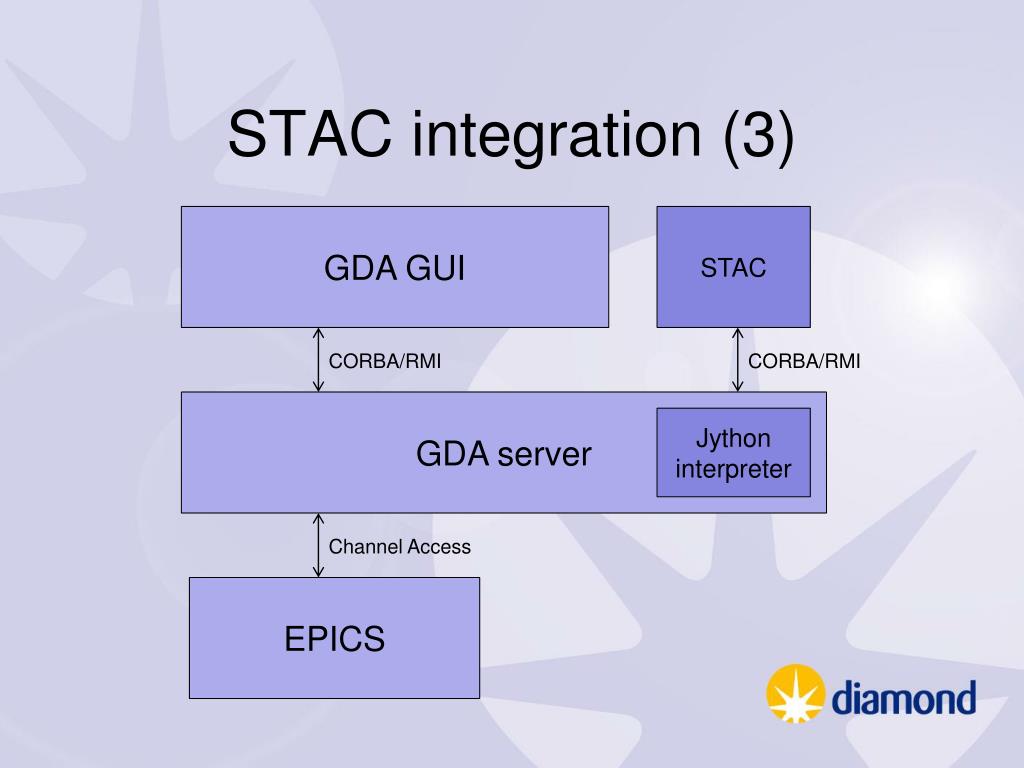

  11. STAC integration (3) GDA GUI STAC CORBA/RMI CORBA/RMI GDA server Jython interpreter Channel Access EPICS

  12. Data processing • EDNA / fast_dp / xia2 run automatically • Depending on number of images, etc. • Looking at integrating STAC into EDNA • Few images to characterise sample • Then ordinary data collection • SDA will give users more control over analysis
