  1. OFS308Deploying Microsoft SharePoint Server 2010 with Claims Authentication Wouter van Vugt SharePoint Fellow

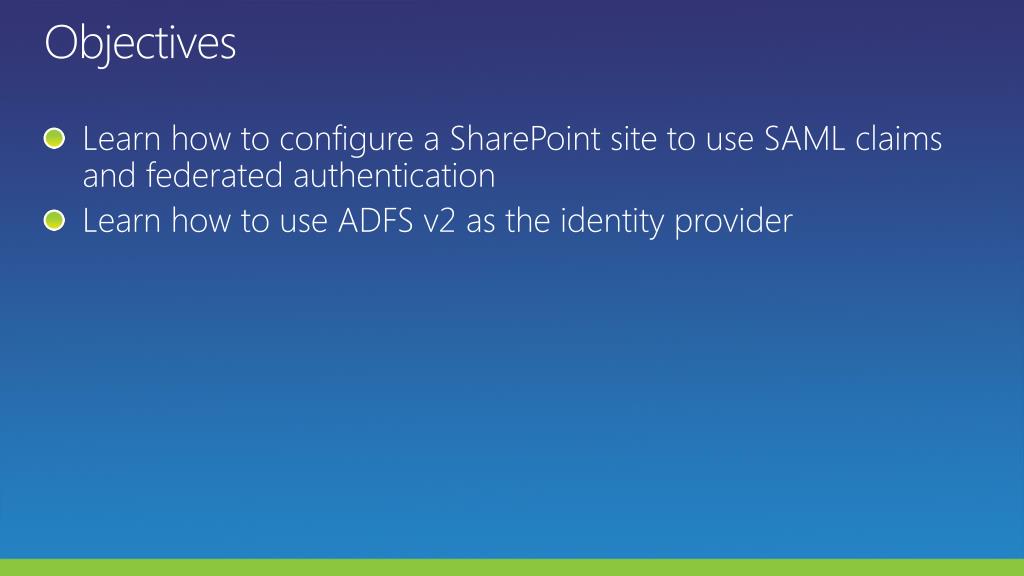

  2. Objectives • Learn how to configure a SharePoint site to use SAML claims and federated authentication • Learn how to use ADFS v2 as the identity provider

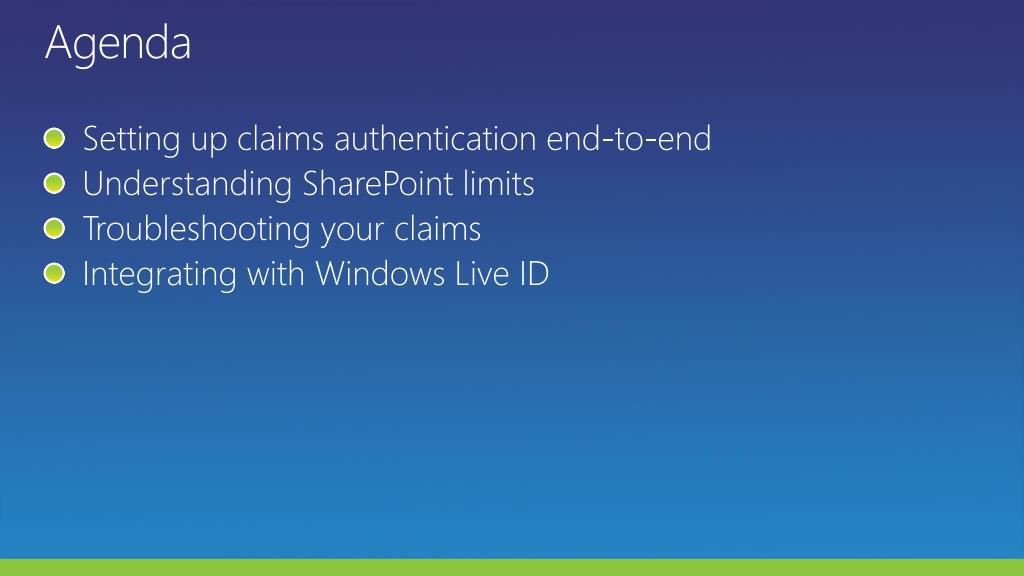

  3. Agenda • Setting up claims authentication end-to-end • Understanding SharePoint limits • Troubleshooting your claims • Integrating with Windows Live ID

  4. Terminology • Issuer • Security Token Service (STS) • Identity Provider (IP) • Application • Relying Party(RP) • Service Provider (SP) • User • Subject • Principal • Browser • Passive Client

  5. Windows and Forms authentication • Based in ASP.NET • Only allows either Windows, or Forms • Expand Web Application to a new zone • https://external.partner.contoso.com (external) • http://partners (internal) • Different coding model • WindowsIdentity.GetCurrent() • FormsAuthentication.RedirectFromLoginPage • Difficult to configure Forms authentication in SharePoint • Configure Central Admin plus Web Application • Need password reminder, recovery, change, etc...

  6. Signing in with Windows Authentication Wouter van Vugt SharePoint Fellow demo

  7. Claims Authentication • Configured on a per Web Application level • Use PowerShell to add new Issuers • Map issuer claims to application claims • Map the identity claim • Trust the issuer’s certificate • Windows Authentication and Forms are default Issuers

  8. Components of a claims enabled web site External Issuer SharePoint Issuer Page

  9. Signing in with Claims Authentication Wouter van Vugt SharePoint Fellow demo

  10. Configuring new Issuers in SharePoint • New-SPTrustedRootAuthority • New-SPTrustedIdentityTokenIssuer • Use SelfSTS as a quick and dirty issuer

  11. Configuring Issuers Wouter van Vugt SharePoint Fellow demo

  12. Configuring ADFS • Create new Relying Party Trust • ADFS v2.0 Profile • Ensure to use the _trust endpoint • Set the realm to a sensible value: urn:my:value

  13. Configuring ADFS Wouter van Vugt SharePoint Fellow demo

  14. Limits with Token Signing Certs • A token signing cert can only be used with ONE trusted identity token issuer • ADFS only supports ONE primary token signing certificate • In ADFS, the realm is how ADFS determines where it should redirect after authentication • The trick is to use multiple realms with the trusted identity token issuer • The Url associated with the realm is how SharePoint knows what realm to send at auth time

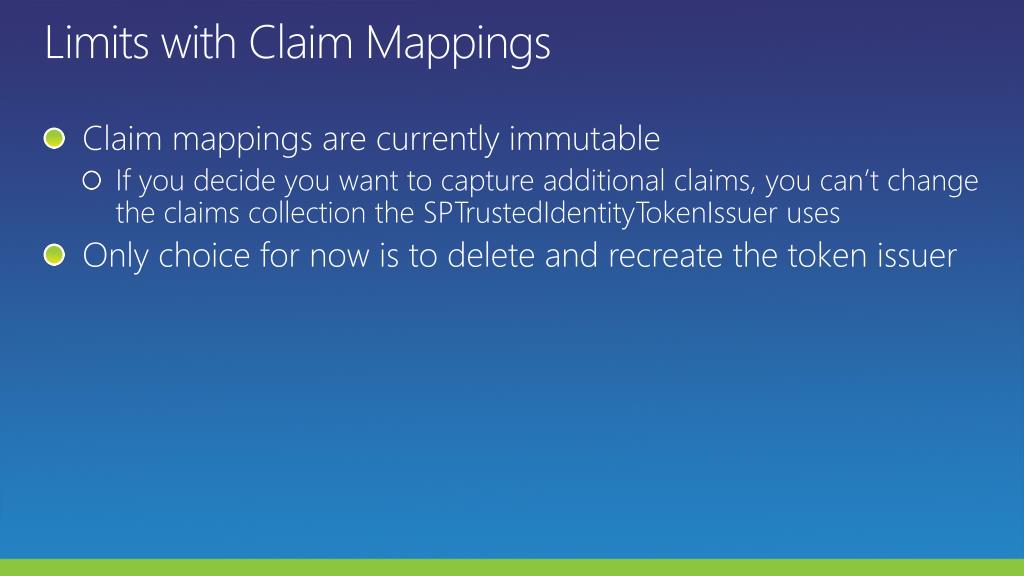

  15. Limits with Claim Mappings • Claim mappings are currently immutable • If you decide you want to capture additional claims, you can’t change the claims collection the SPTrustedIdentityTokenIssuer uses • Only choice for now is to delete and recreate the token issuer

  16. Limits with People Picker • Resolve everything • Resolve per mapped claim • No guarantees on correctness of data

  17. Troubleshooting Claims • Folks, it’s hard • Difficult to determine claims received from Issuer • Difficult to determine faulty component

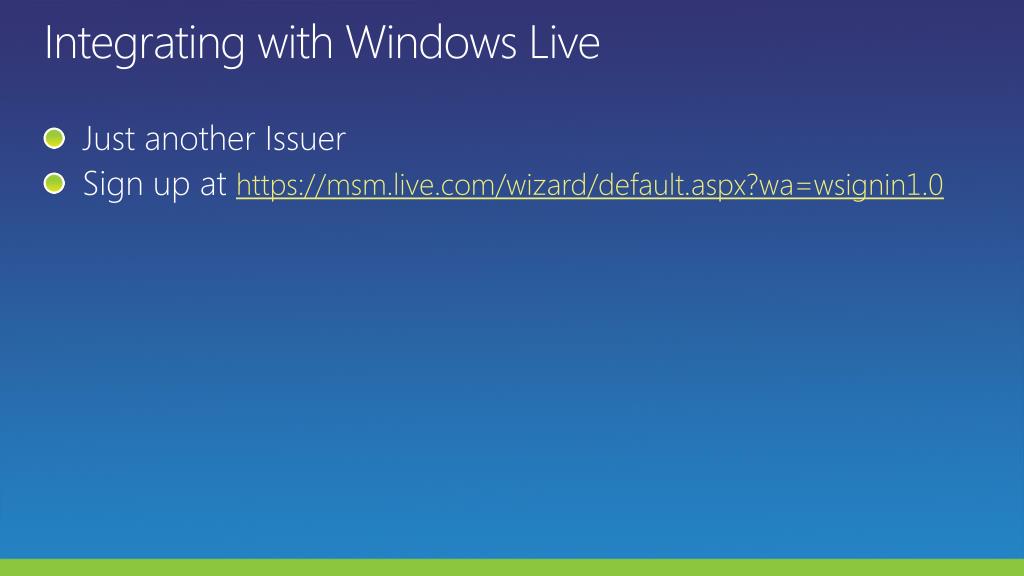

  18. Integrating with Windows Live • Just another Issuer • Sign up at https://msm.live.com/wizard/default.aspx?wa=wsignin1.0

  19. Session Evaluations Tell us what you think, and you could win! All evaluations submitted are automatically entered into a daily prize draw*  Sign-in to the Schedule Builder at http://europe.msteched.com/topic/list/ * Details of prize draw rules can be obtained from the Information Desk.
