Representing Netconf Data Models using Document Schema Definition Languages (DSDL)

Rohan Mahy Sharon Chisholm Lada Lhotka IETF 72 - Dublin. Representing Netconf Data Models using Document Schema Definition Languages (DSDL). Outline. What is DSDL? Scope of DSDL for NETCONF Overview Drafts Vocabularies Used Next Steps Open Issues. What is DSDL?.

lecea
Télécharger la présentation

Representing Netconf Data Models using Document Schema Definition Languages (DSDL)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Rohan Mahy Sharon Chisholm Lada Lhotka IETF 72 - Dublin Representing NetconfData Models using Document Schema Definition Languages (DSDL)

  2. Outline What is DSDL? Scope of DSDL for NETCONF Overview Drafts Vocabularies Used Next Steps Open Issues

  3. What is DSDL? DSDL = Document Schema Definition Languages (http://www.dsdl.org)‏ Family of standards ISO/IEC 19757 DSDL uses a modular approach to schema languages Part 1: Overview Part 2: RELAX NG – regular-grammar-based validation Part 3: Schematron – rule-based validation Part 4: NVDL – Namespace-based Validation Language Part 5: DTLL – Data Type Library Language Part 6: Path-based integrity constraints Part 7: CRDL – Character Repertoire Description Language Part 8: DSRL – Document Schema Renaming Language Part 9: Datatype- and Namespace-aware DTDs Part 10: Validation management

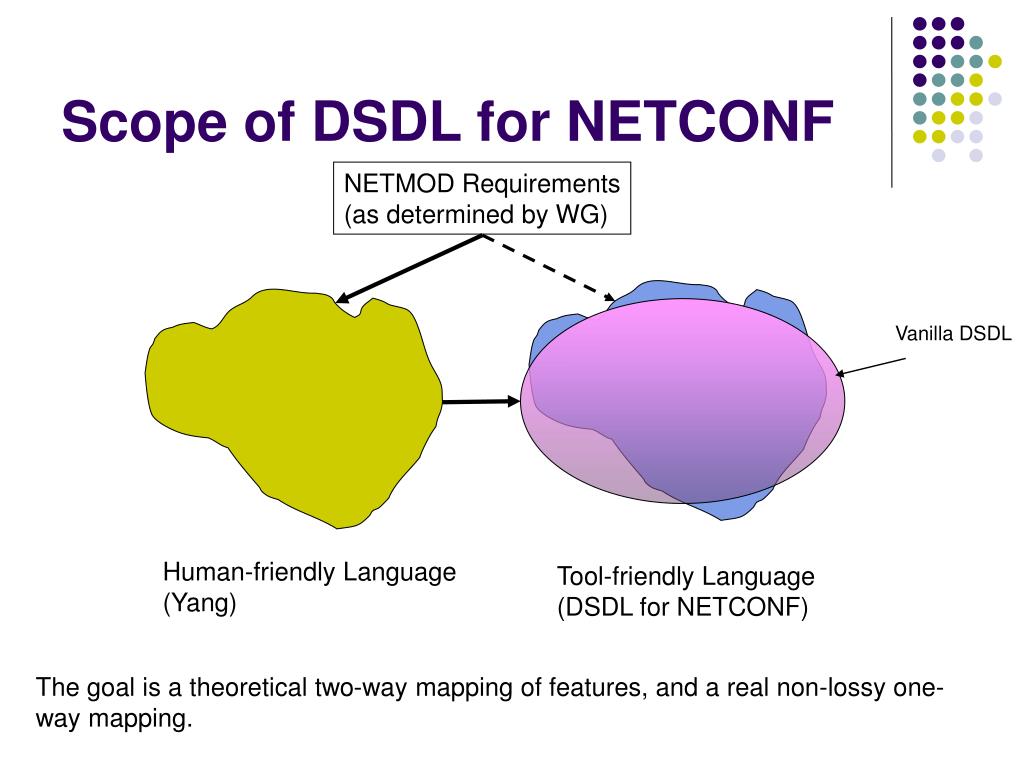

  4. Scope of DSDL for NETCONF NETMOD Requirements (as determined by WG)‏ Vanilla DSDL Human-friendly Language (Yang)‏ Tool-friendly Language (DSDL for NETCONF)‏ The goal is a theoretical two-way mapping of features, and a real non-lossy one-way mapping.

  5. Overview A layered approach leveraging existing DSDL technologies Off-the-shelf tools/libraries can be immediately used for validation, instance editing and transformations (XSLT)‏ The smarter the tool/library, the more semantics can be validated or processed but even baseline tools can do useful work The mapping uses 3 parts of the DSDL standard (ISO/IEC 19757), two standard annotation vocabularies and several new NETMOD-specific annotations A software tool is available that translates most of YANG semantics Output is an annotated RELAX NG schema

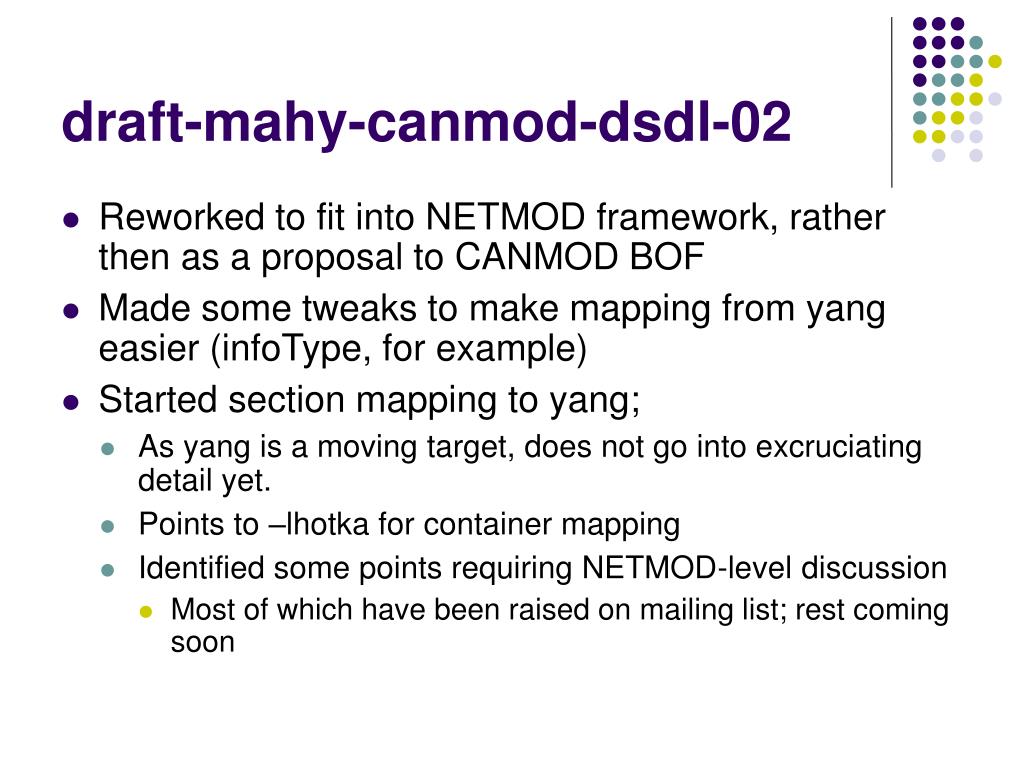

  6. draft-mahy-canmod-dsdl-02 • Reworked to fit into NETMOD framework, rather then as a proposal to CANMOD BOF • Made some tweaks to make mapping from yang easier (infoType, for example) • Started section mapping to yang; • As yang is a moving target, does not go into excruciating detail yet. • Points to –lhotka for container mapping • Identified some points requiring NETMOD-level discussion • Most of which have been raised on mailing list; rest coming soon

  7. draft-lhotka-yang-dsdl-map-00 New individual draft summarizing the experience from implementing YANG->DSDL translator – plugin for pyang application Very complementary to -mahy draft It tries to formulate principles that the WG mapping draft should state It contains a section describing mapping details for each YANG statement.

  8. Vocabularies Used RELAX NG – grammatic constraints, datatypes Schematron – semantic constraints, user-specified rules (must statement in YANG)‏ DSRL – default values of leaf nodes Dublin Core terms – module metadata (author, revision, ...)‏ RELAX NG DTD compatibility annotations – YANG description and reference. NETMOD-specific annotations – few new attributes attached to RELAX NG <element>.

  9. Next Steps The implementation revealed several issues that have to be resolved (preferable in Dublin); some of them may require changes or clarifications in YANG. Finish the chartered DSDL mapping draft (due in September 08). It will be based on merging two existing individual drafts: draft-mahy-canmod-dsdl-02 draft-lhotka-yang-dsdl-map-00 Update the implementation: alignment with the draft implement mappings of YANG extension mechanisms

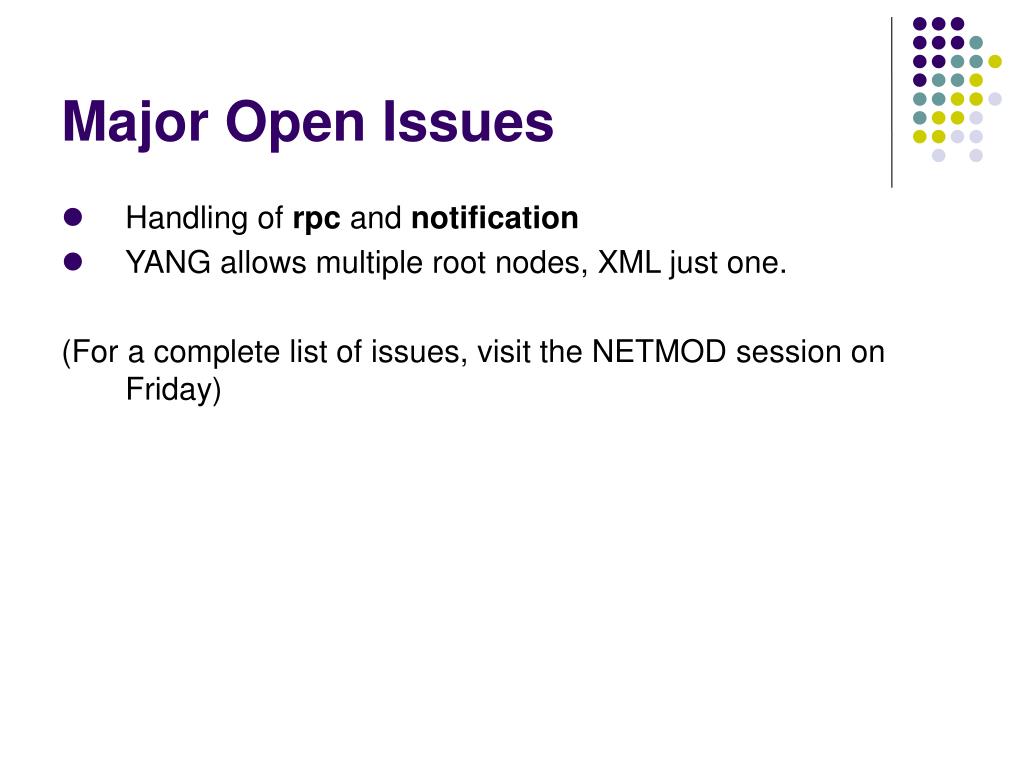

  10. Major Open Issues Handling of rpc and notification YANG allows multiple root nodes, XML just one. (For a complete list of issues, visit the NETMOD session on Friday)‏

  11. rpc and notification YANG modules describe the contents of agent configuration datastores, with two exceptions: rpc specifies signature of a new NETCONF RPC method. notification defines a NETCONF notification. Options: Generate separate schemas for the configuration data tree, RPCs and notifications. Work with a „conceptual tree“ that harbors the three types of content in different subtrees.

  12. Multiple Root Nodes YANG allows for multiple root nodes, but well-formed XML document must have exactly one. Options: • Remove this possibility from YANG • „conceptual tree“ (again) – multiple root nodes of the YANG module will appear under an artificial root node.

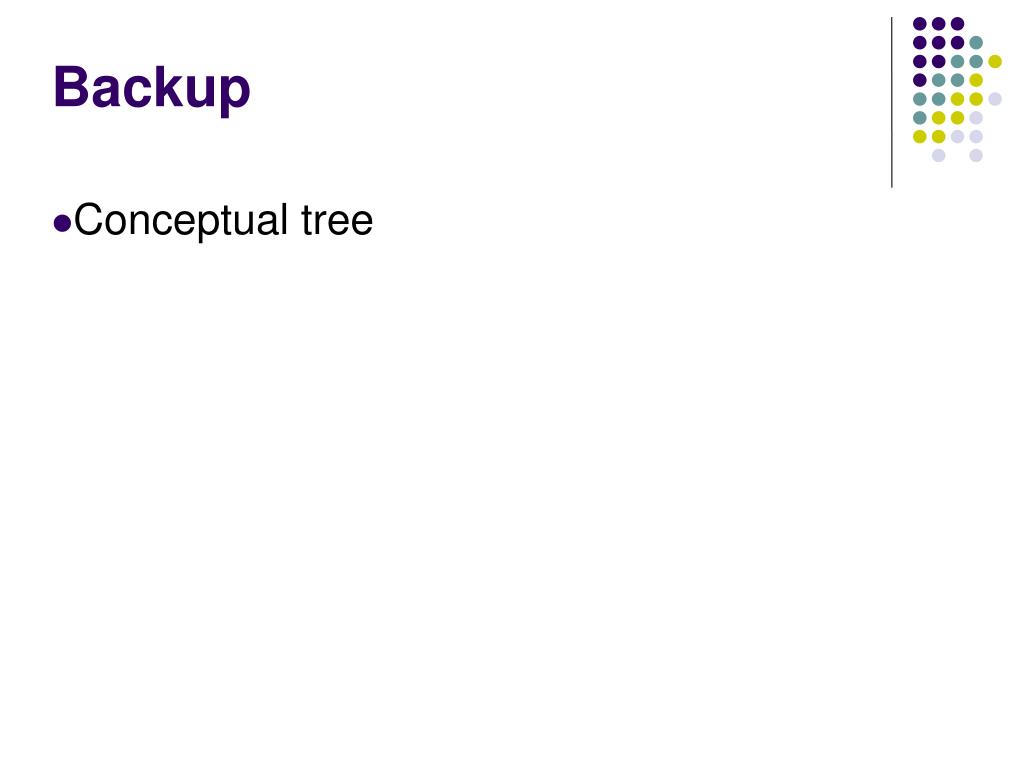

  13. Backup Conceptual tree
