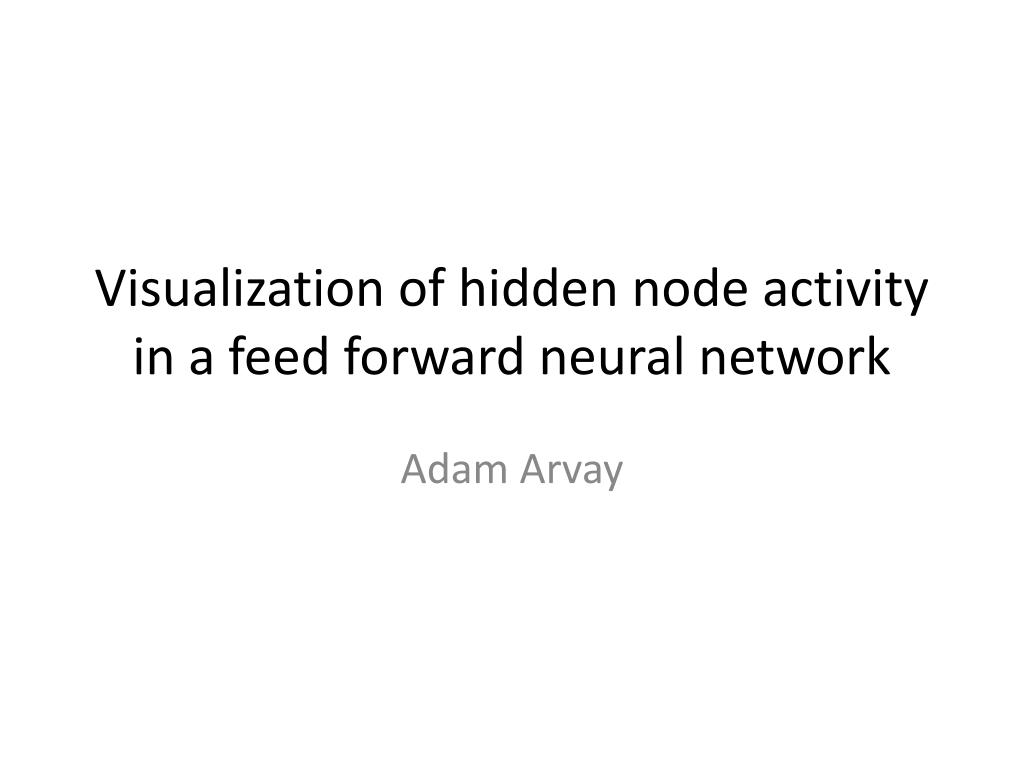

  1. Visualization of hidden node activity in a feed forward neural network Adam Arvay

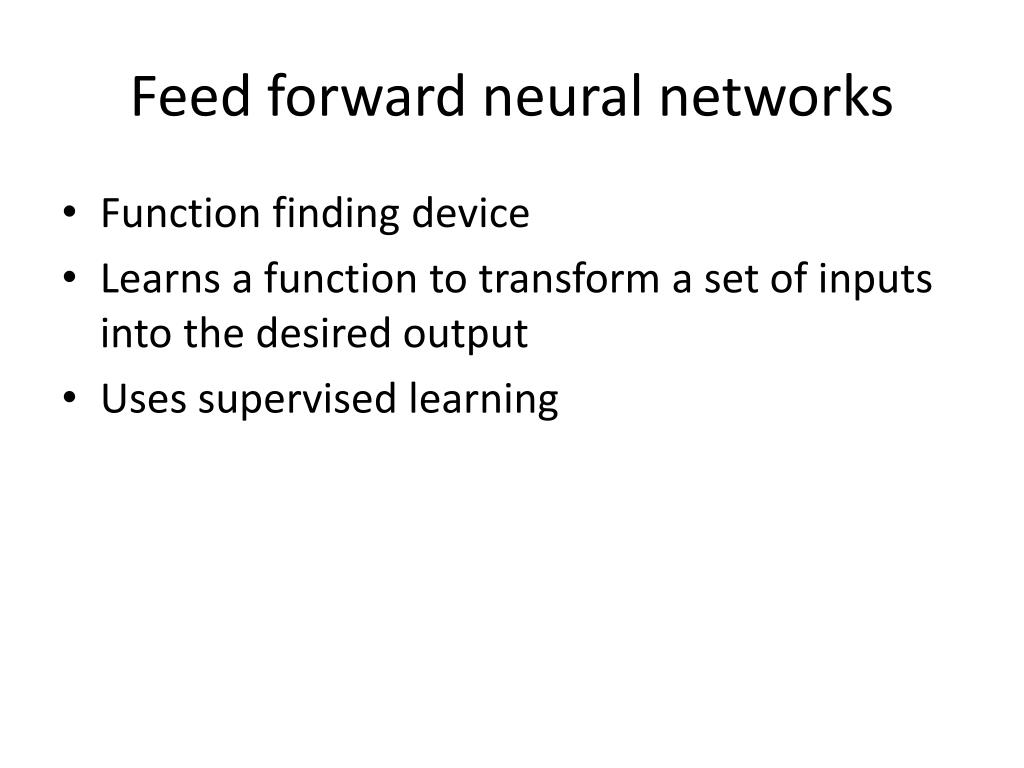

  2. Feed forward neural networks • Function finding device • Learns a function to transform a set of inputs into the desired output • Uses supervised learning

  3. Network building software • PyBrain v0.3 • Modular machine learning library for Python • PyBrain is short for Python-Based Reinforcement Learning, Artificial Intelligence and Neural Network Library

  4. Visualization tools • NetworkX • Used for keeping track of node names and edges • matplotlib/pyplot/pylab • Drawing everything

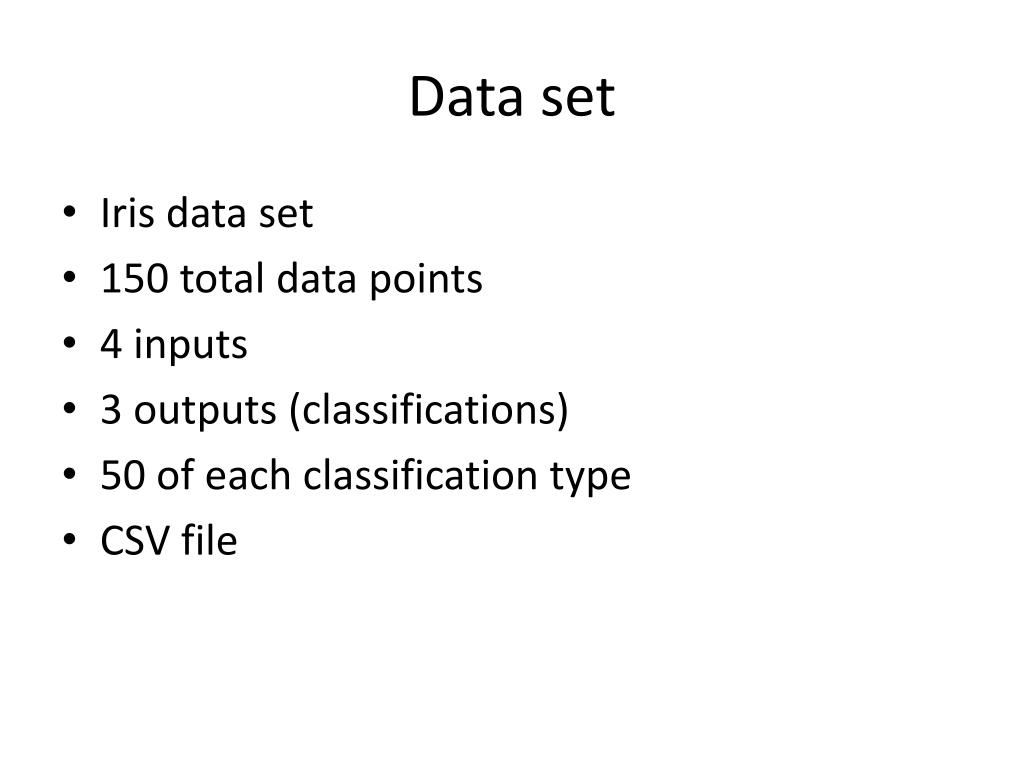

  5. Data set • Iris data set • 150 total data points • 4 inputs • 3 outputs (classifications) • 50 of each classification type • CSV file

  6. Networks analyzed • 3 networks were constructed with different numbers of hidden layers • 4 input nodes (linear) • 4, 7, 10 hidden nodes (sigmoid) • 3 output nodes (softmax) • Trained with back-propigation • Training/validation data selected randomly • 250 epochs

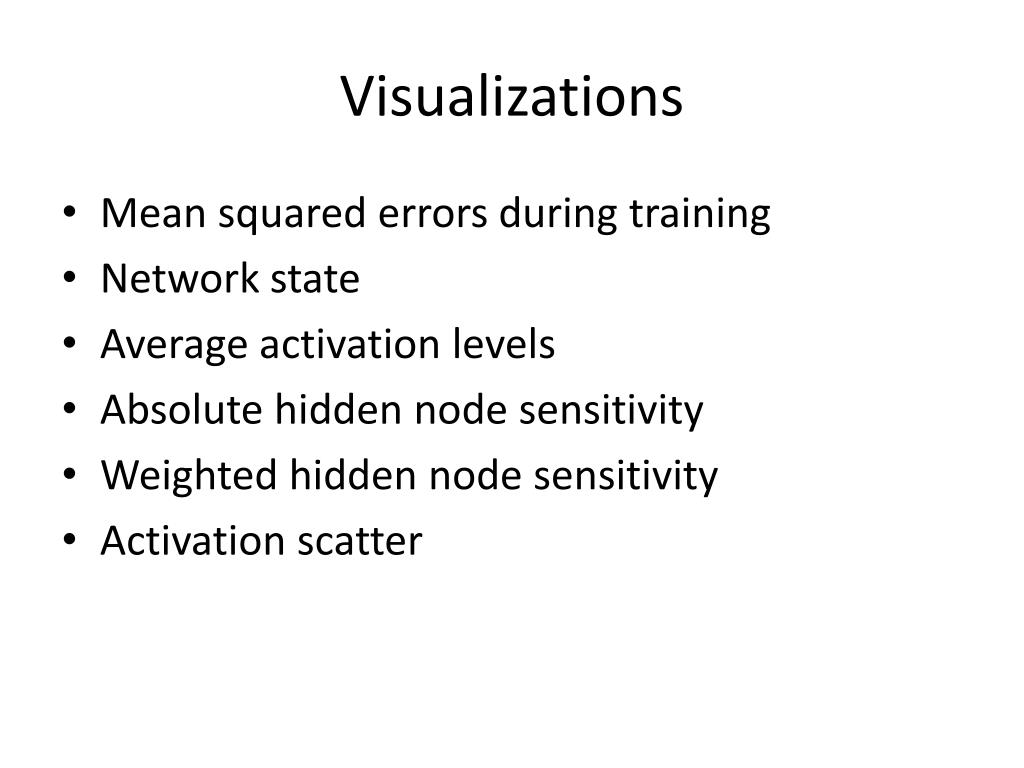

  7. Visualizations • Mean squared errors during training • Network state • Average activation levels • Absolute hidden node sensitivity • Weighted hidden node sensitivity • Activation scatter

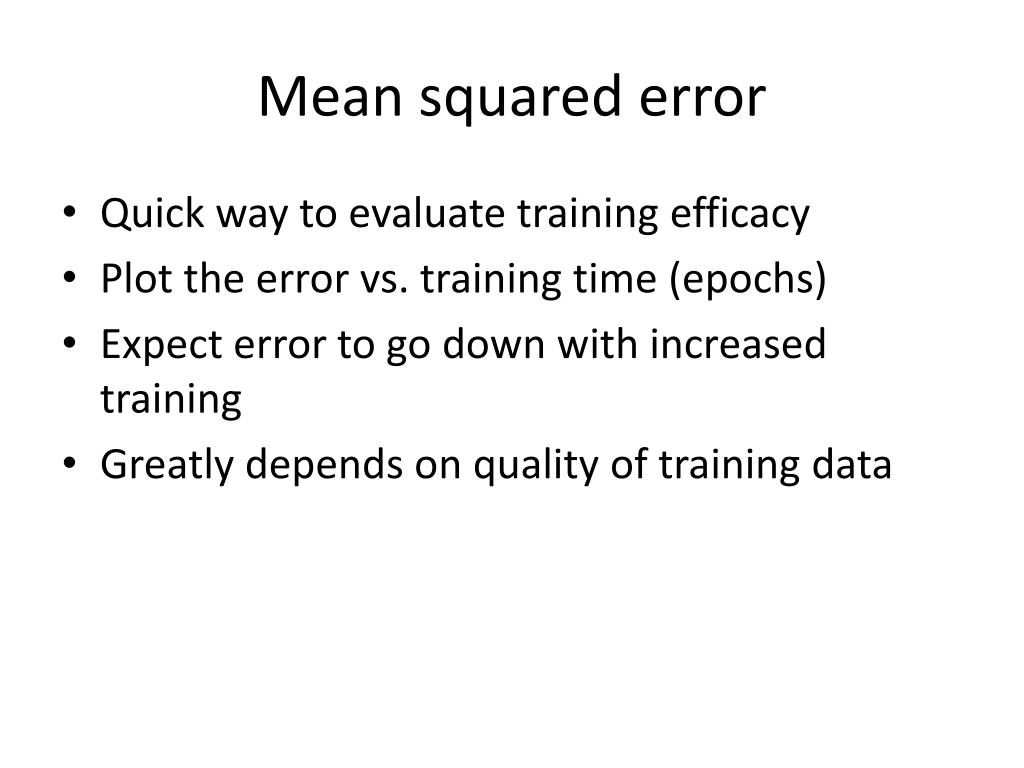

  8. Mean squared error • Quick way to evaluate training efficacy • Plot the error vs. training time (epochs) • Expect error to go down with increased training • Greatly depends on quality of training data

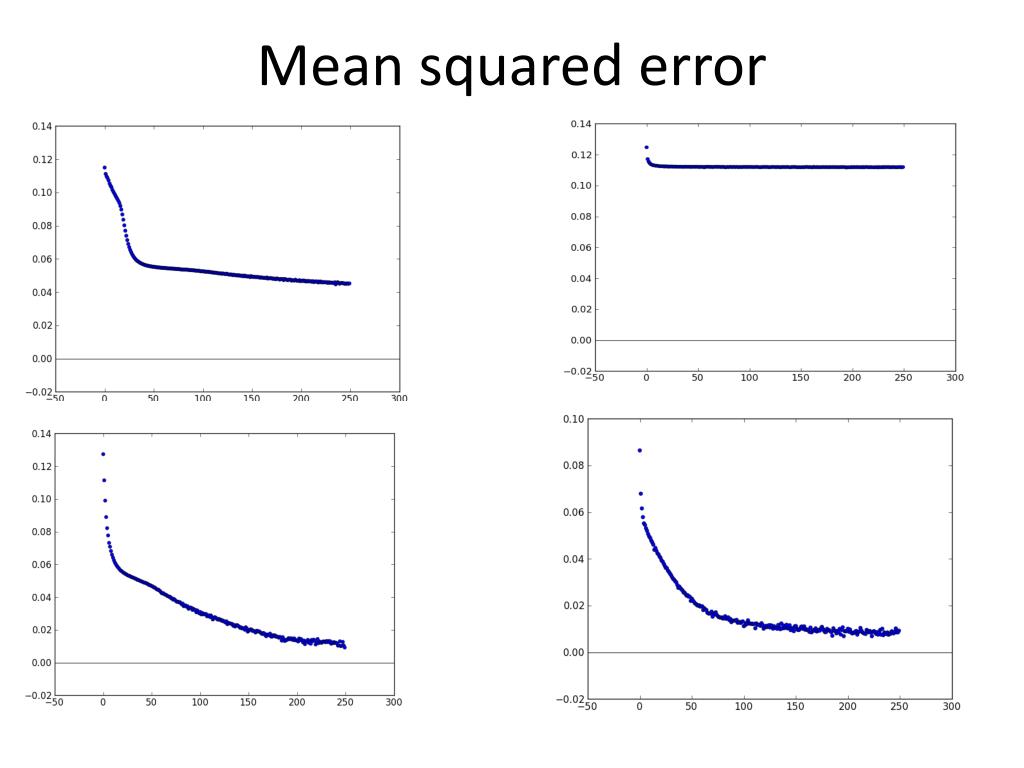

  9. Mean squared error

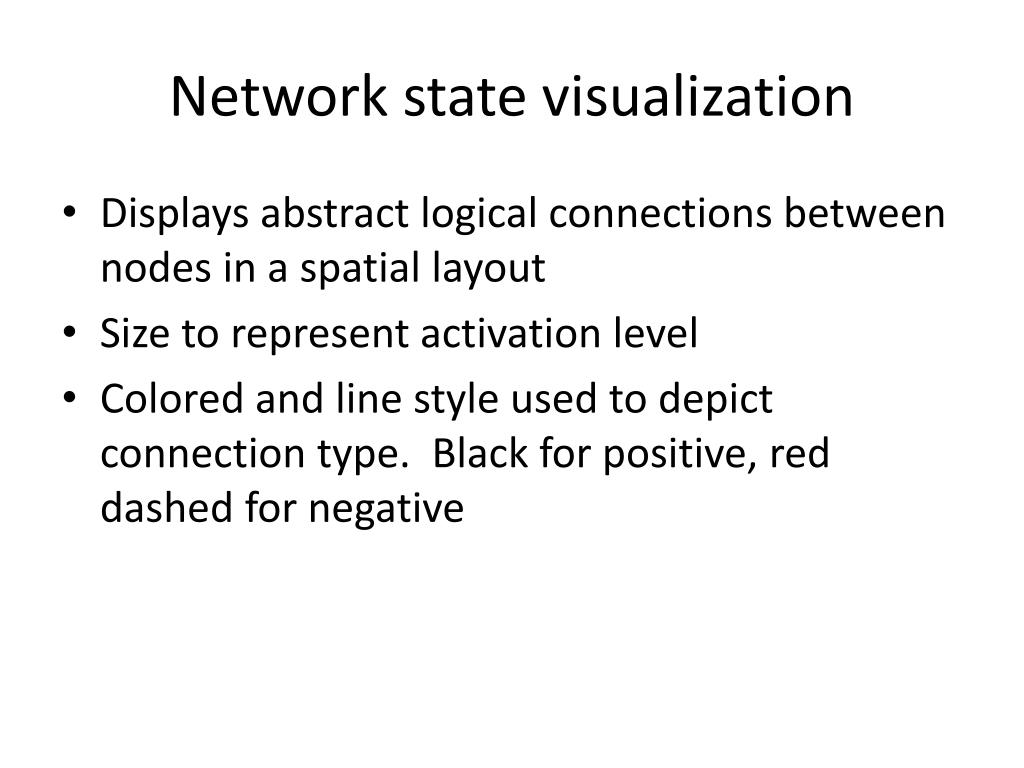

  10. Network state visualization • Displays abstract logical connections between nodes in a spatial layout • Size to represent activation level • Colored and line style used to depict connection type. Black for positive, red dashed for negative

  11. Network state visualization • A snapshot of what the network is currently doing • Interactivity: • Shows the state of the network under a particular activation • Visible edge threshold magnitude can be set • Edges can be labeled

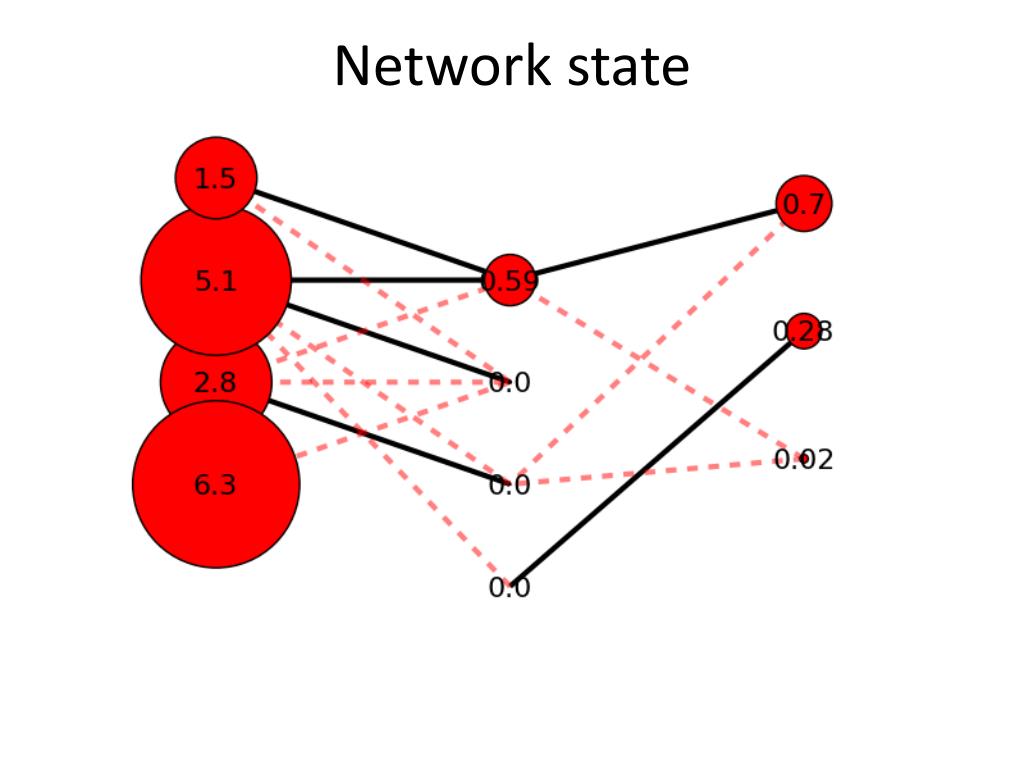

  12. Network state

  13. Network state

  14. Network state

  15. Network state all connections

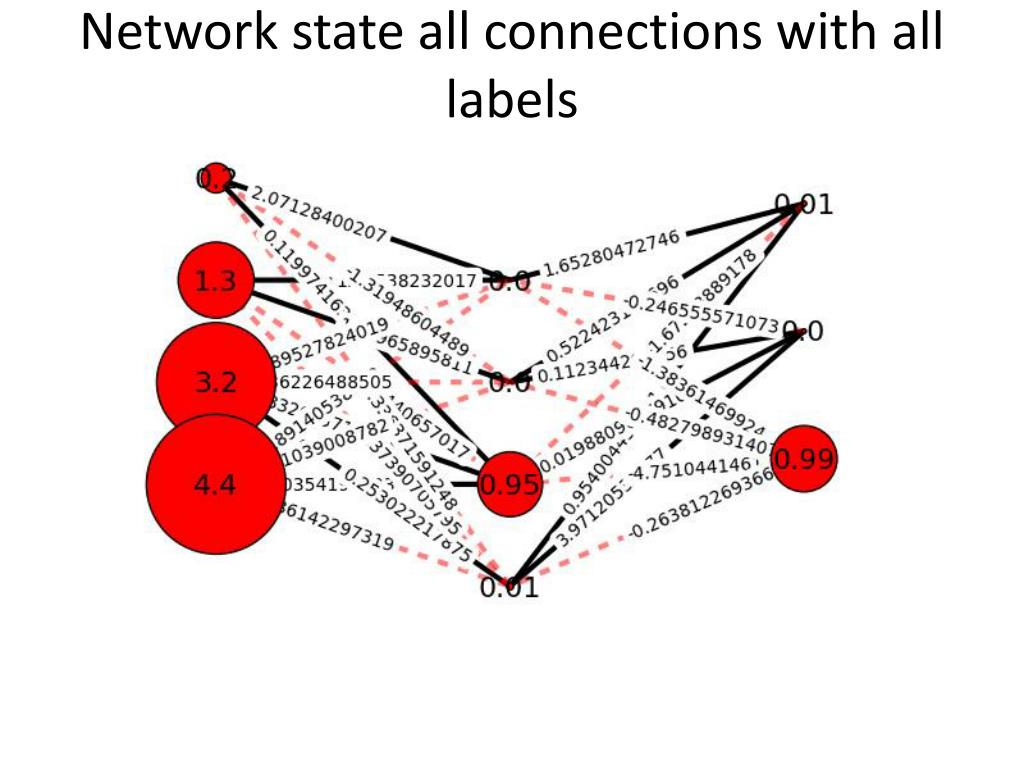

  16. Network state all connections with all labels

  17. Network state 7 nodes no labels

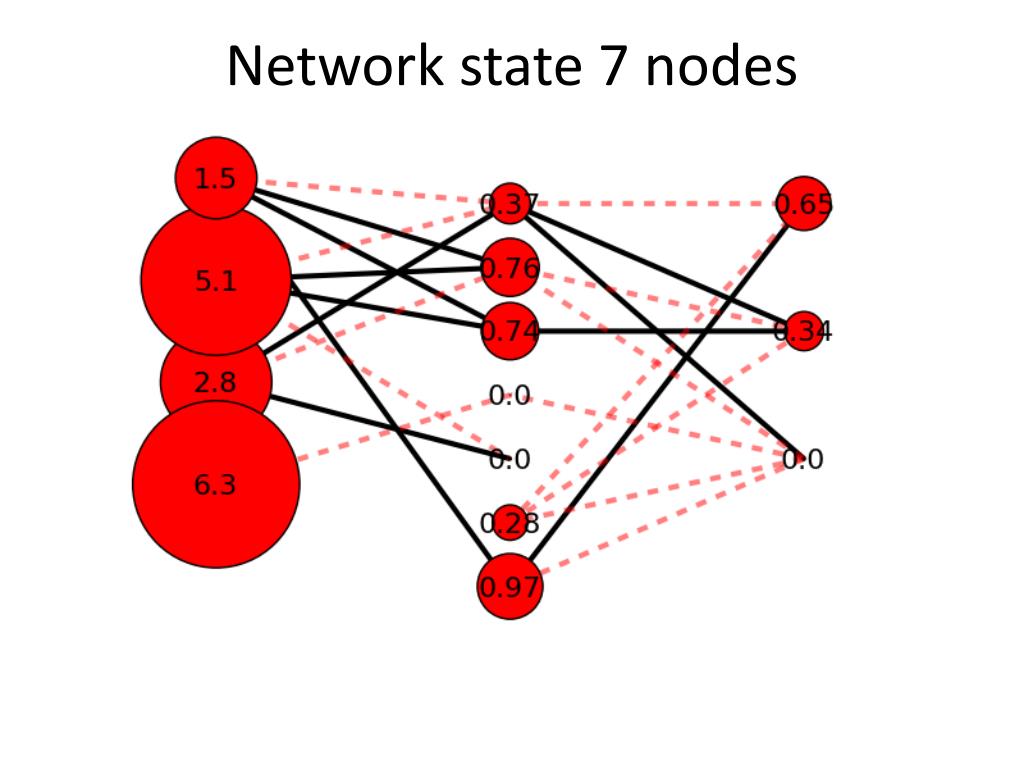

  18. Network state 7 nodes

  19. Network state 7 nodes

  20. Network state 10 nodes

  21. Network state 10 nodes

  22. Network state 10 all connections

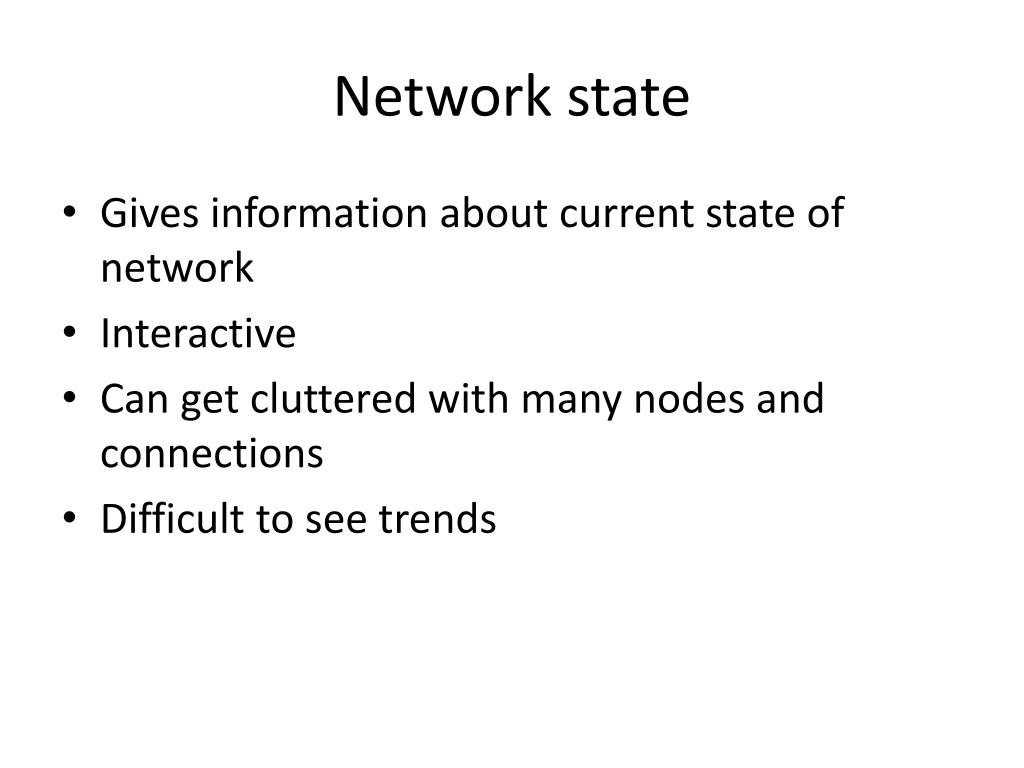

  23. Network state • Gives information about current state of network • Interactive • Can get cluttered with many nodes and connections • Difficult to see trends

  24. Average activation levels • Gives an idea of the network behavior over time for a particular classification type • Can detect pattern differences in hidden layer between classification types • Shows the average activation level of a hidden node across a classification type • No interactivity

  25. 4 nodes, setosa

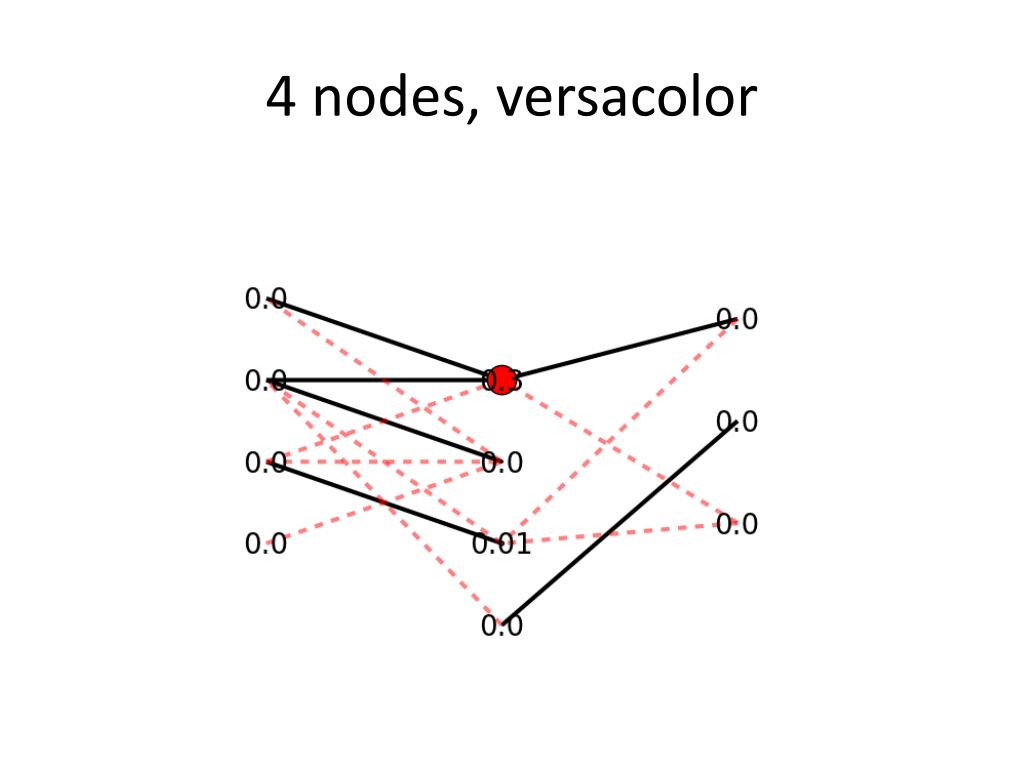

  26. 4 nodes, versacolor

  27. 4 nodes, virginica

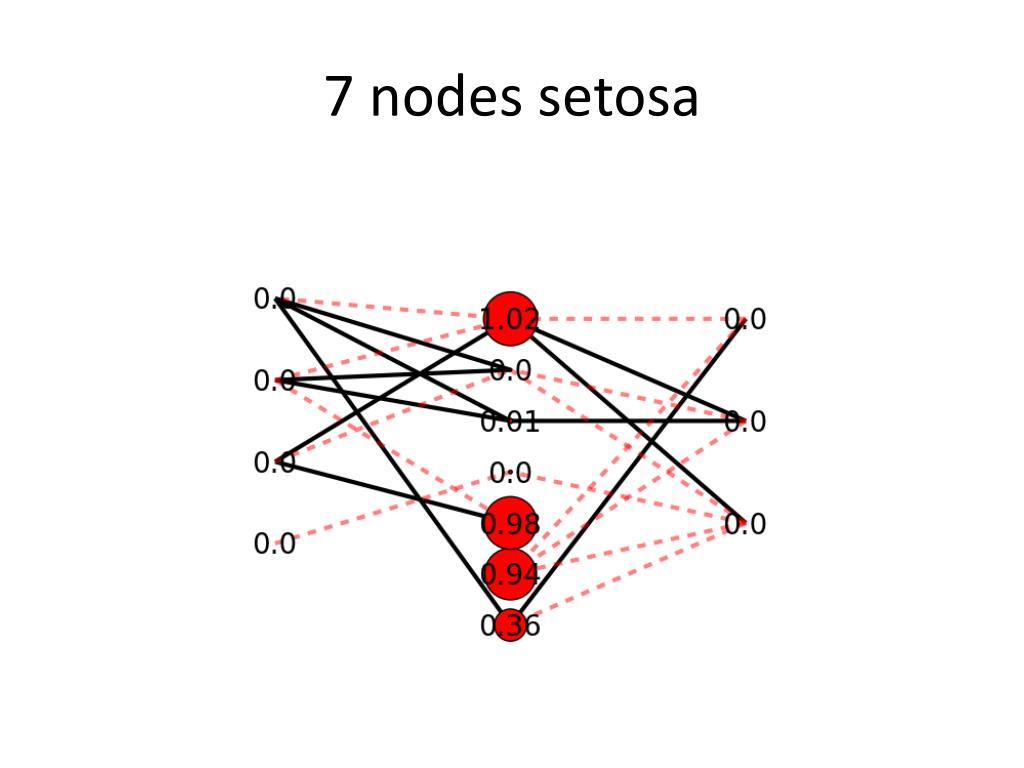

  28. 7 nodes setosa

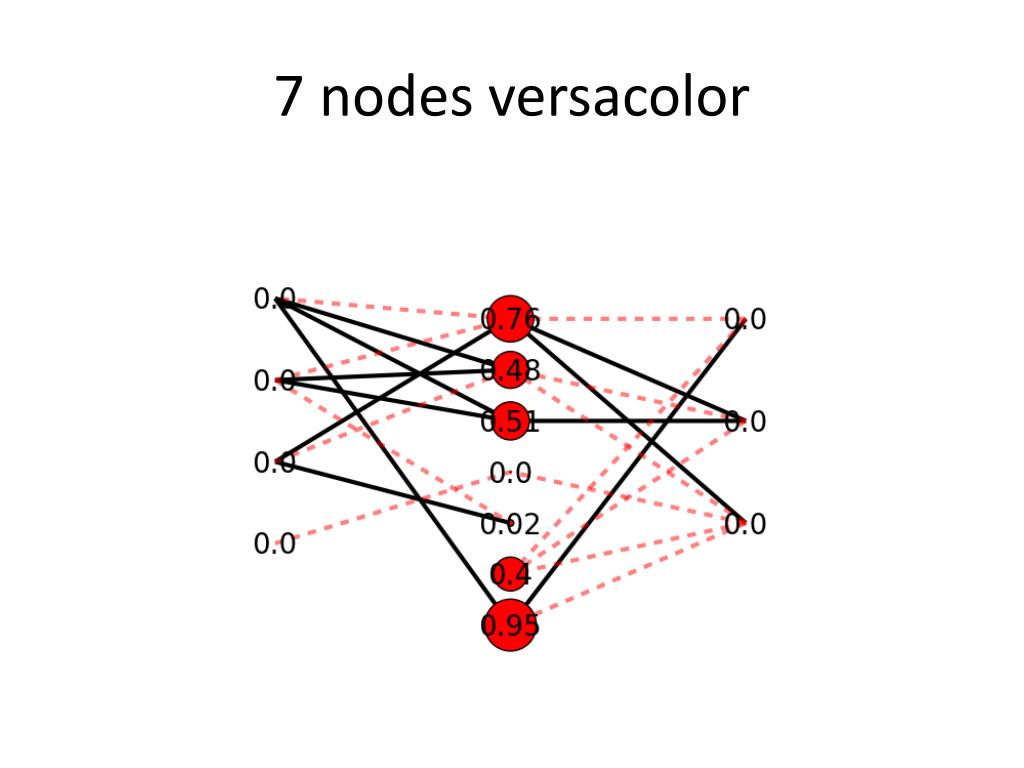

  29. 7 nodes versacolor

  30. 7 nodes virginica

  31. 10 nodes setosa

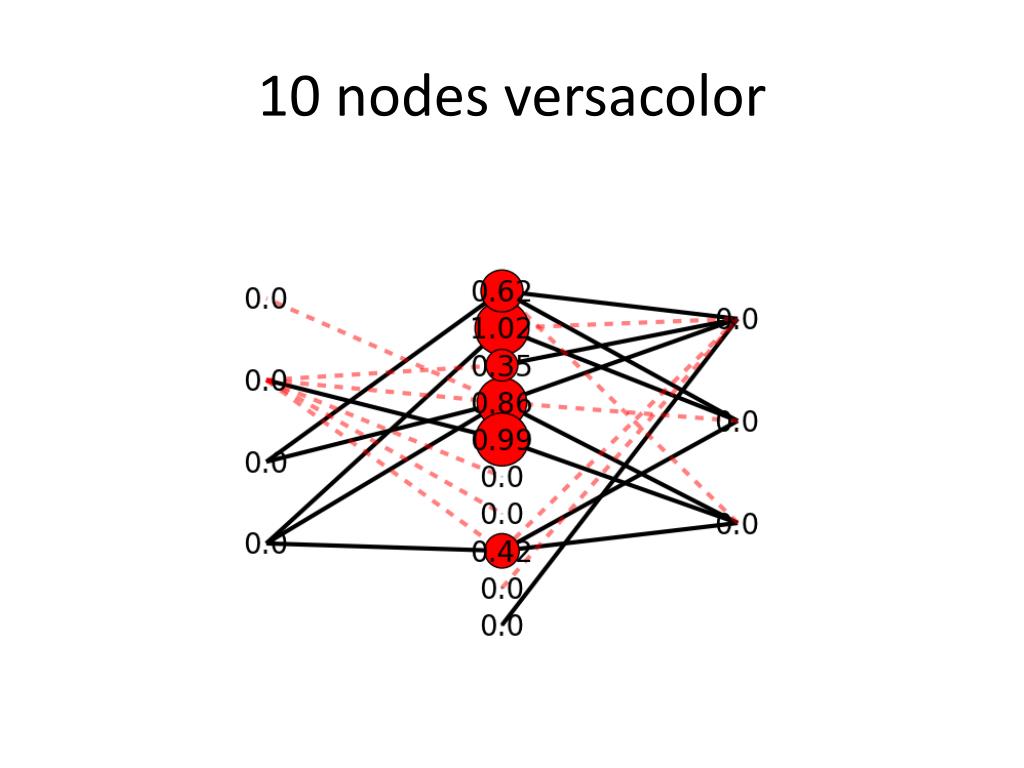

  32. 10 nodes versacolor

  33. 10 nodes virginica

  34. Average activation • Can see some patterns between classificaitons • Easy to spot changes and non-changes • Doesn’t depict the variance in the activations

  35. Absolute hidden node sensitivity • A quick way to determine the sensitivity of a hidden node to its inputs • Can detect nodes which are insensitive to all inputs • Can detect which inputs are ignored by all nodes • Can detect patterns of connections across nodes

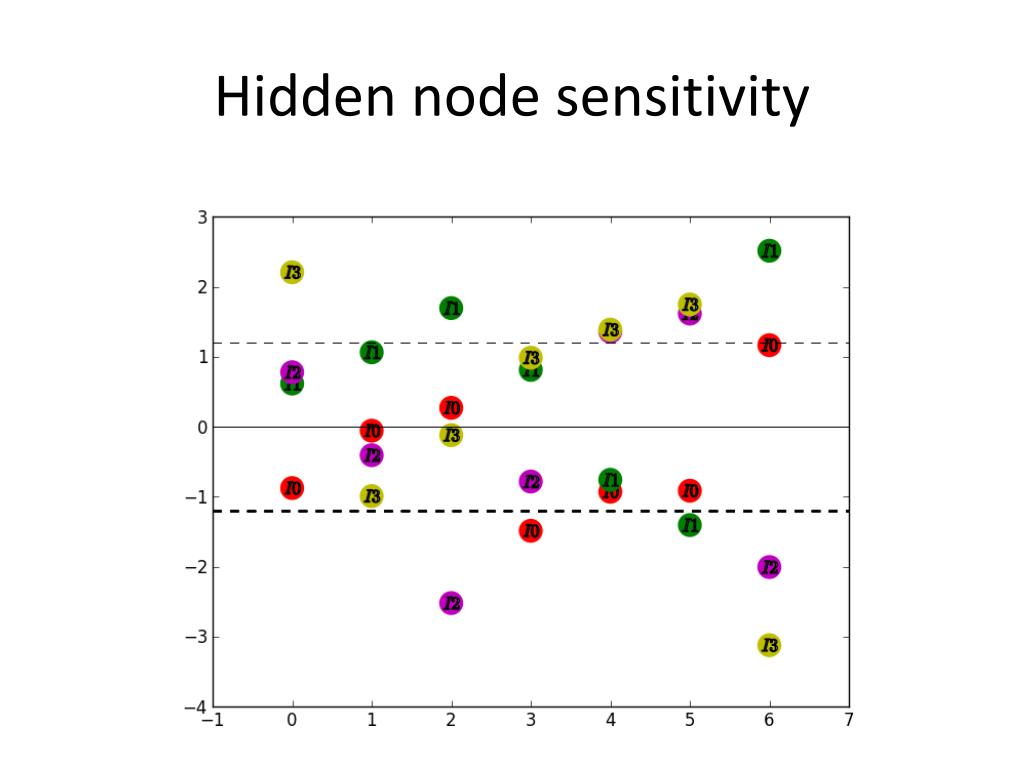

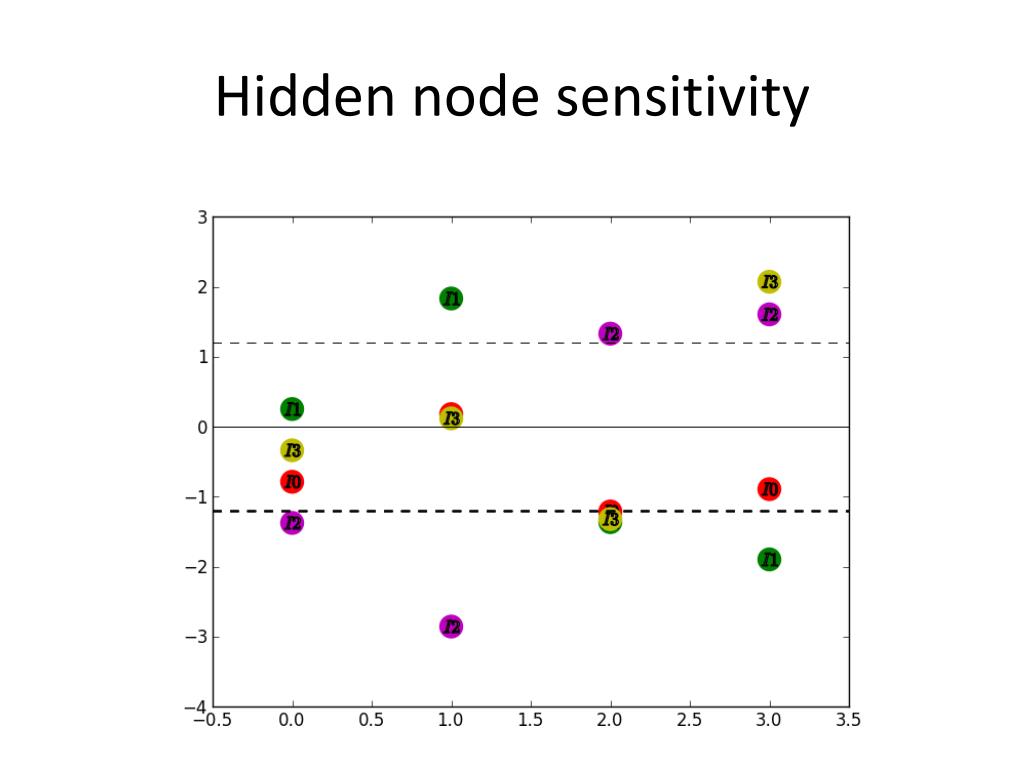

  36. Hidden node sensitivity

  37. Hidden node sensitivity

  38. Hidden node sensitivity

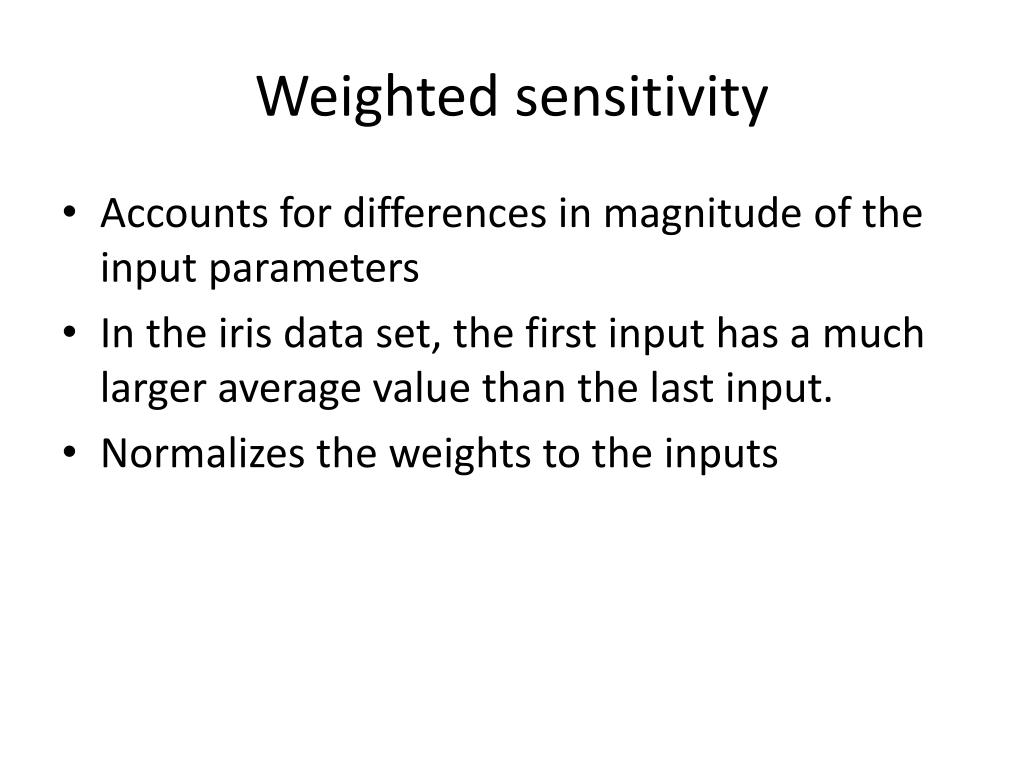

  39. Weighted sensitivity • Accounts for differences in magnitude of the input parameters • In the iris data set, the first input has a much larger average value than the last input. • Normalizes the weights to the inputs

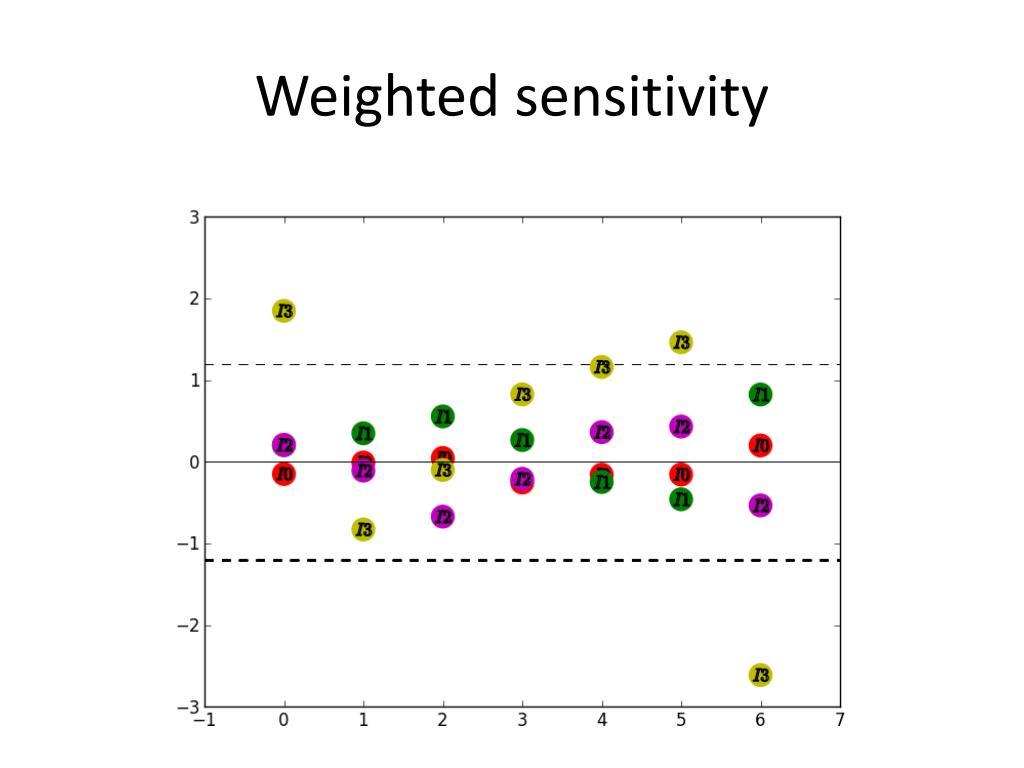

  40. Weighted sensitivity

  41. Weighted sensitivity

  42. Weighted sensitivity

  43. Comparisonnon-weighted vs weighted

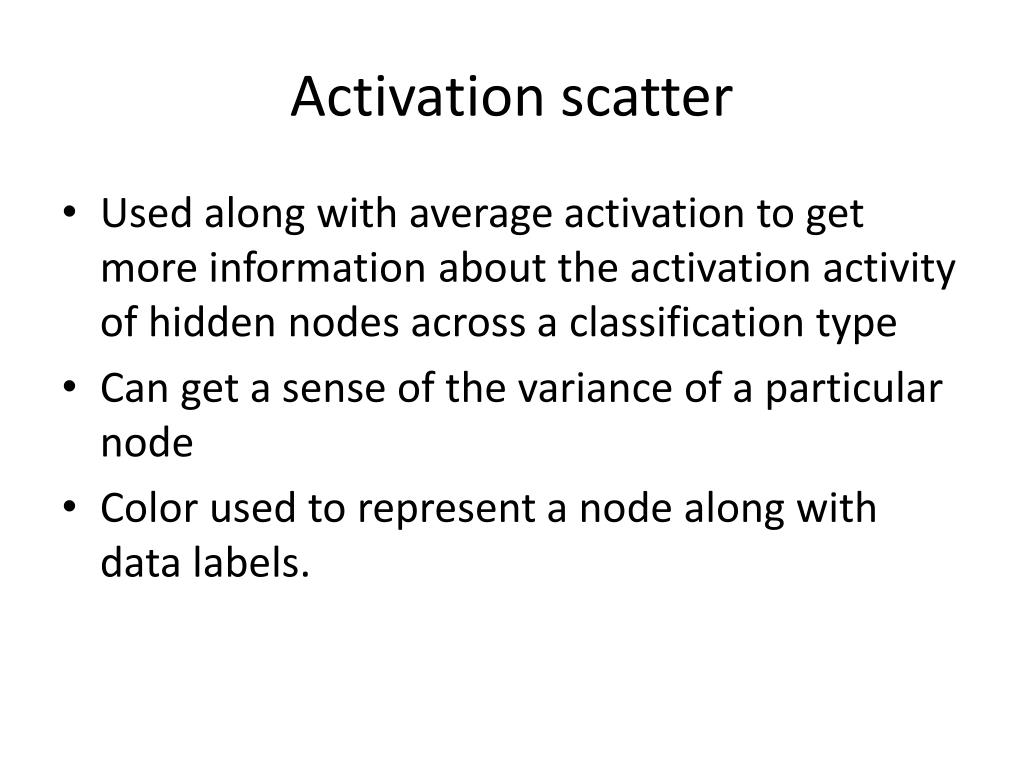

  44. Activation scatter • Used along with average activation to get more information about the activation activity of hidden nodes across a classification type • Can get a sense of the variance of a particular node • Color used to represent a node along with data labels.

  45. Activation scatter setosa

  46. Activation scatter versacolor

  47. Activation scatter virginica

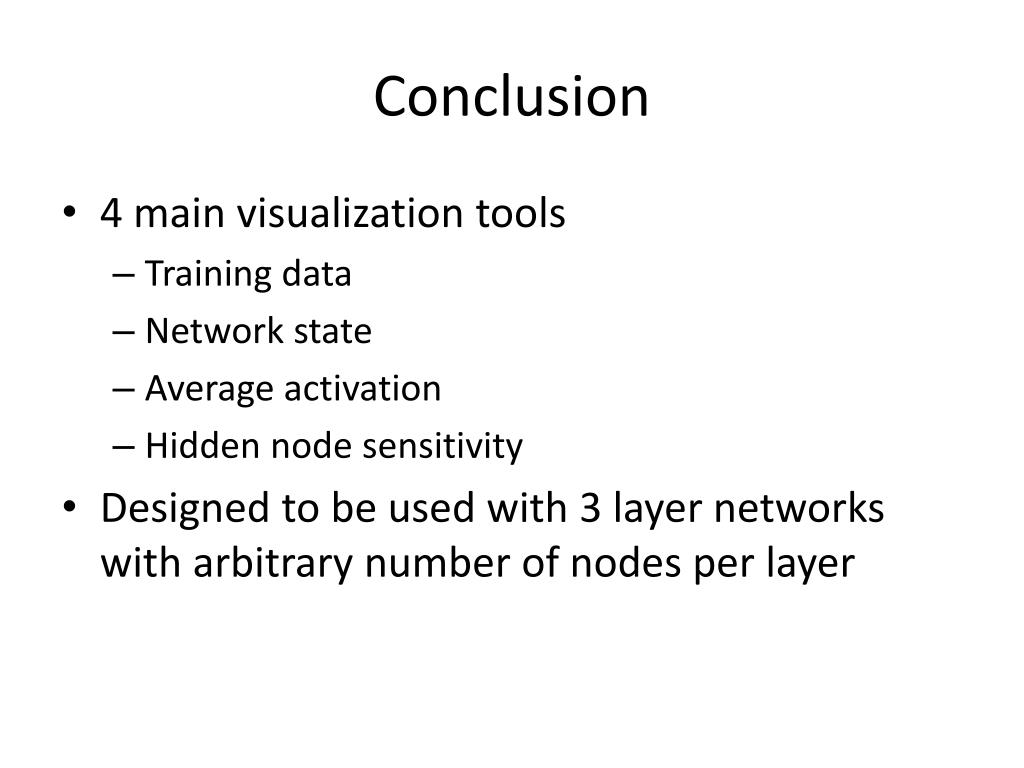

  48. Conclusion • 4 main visualization tools • Training data • Network state • Average activation • Hidden node sensitivity • Designed to be used with 3 layer networks with arbitrary number of nodes per layer
