  1. Reacção do dicloro com o acetileno Carlos Corrêa Departamento de Química (FCUP) Centro de Investigação em Química (CIQ)

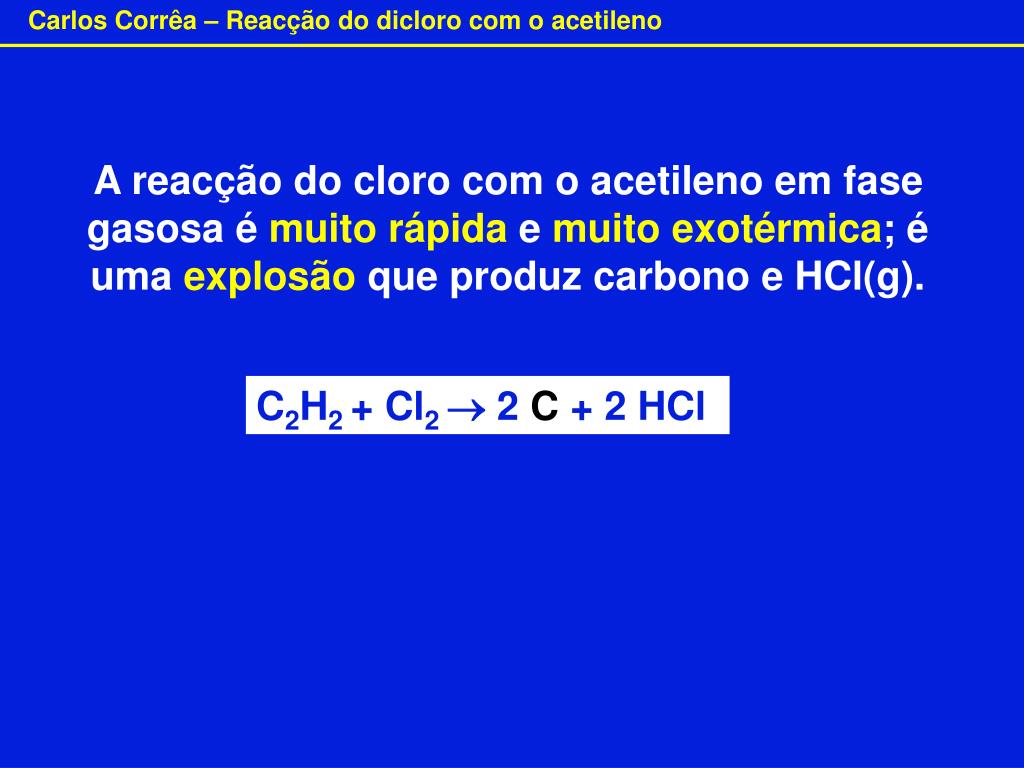

  2. A reacção do cloro com o acetileno em fase gasosa é muito rápida e muito exotérmica; é uma explosão que produz carbono e HCl(g). C2H2 + Cl2  2 C + 2 HCl

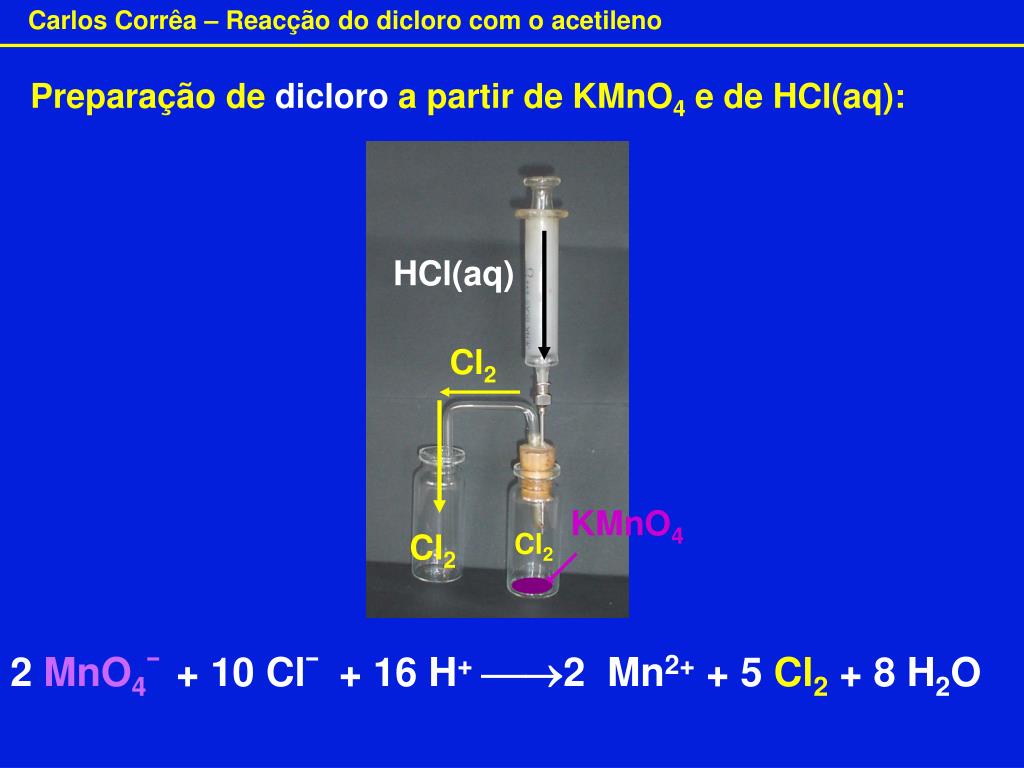

  3. Preparação de dicloro a partir de KMnO4 e de HCl(aq): HCl(aq) Cl2 KMnO4 Cl2 Cl2 2 MnO4¯+ 10 Cl¯ + 16 H+2 Mn2+ + 5 Cl2 + 8 H2O

  4. Preparação de acetileno a partir de carbite e água H2O C2H2 Carbite C2H2 CaC2(s) + H2O(l)  C2H2(g) + Ca(HO)2(s) Carbite Acetileno

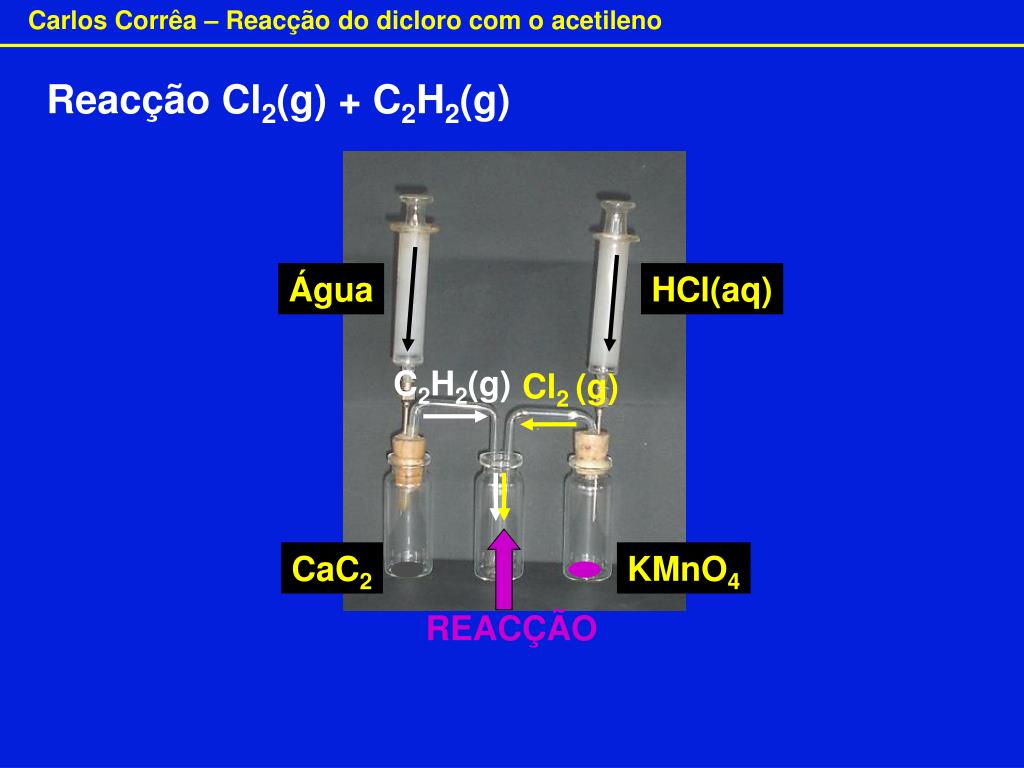

  5. Reacção Cl2(g) + C2H2(g) Água HCl(aq) C2H2(g) Cl2 (g) CaC2 KMnO4 REACÇÃO

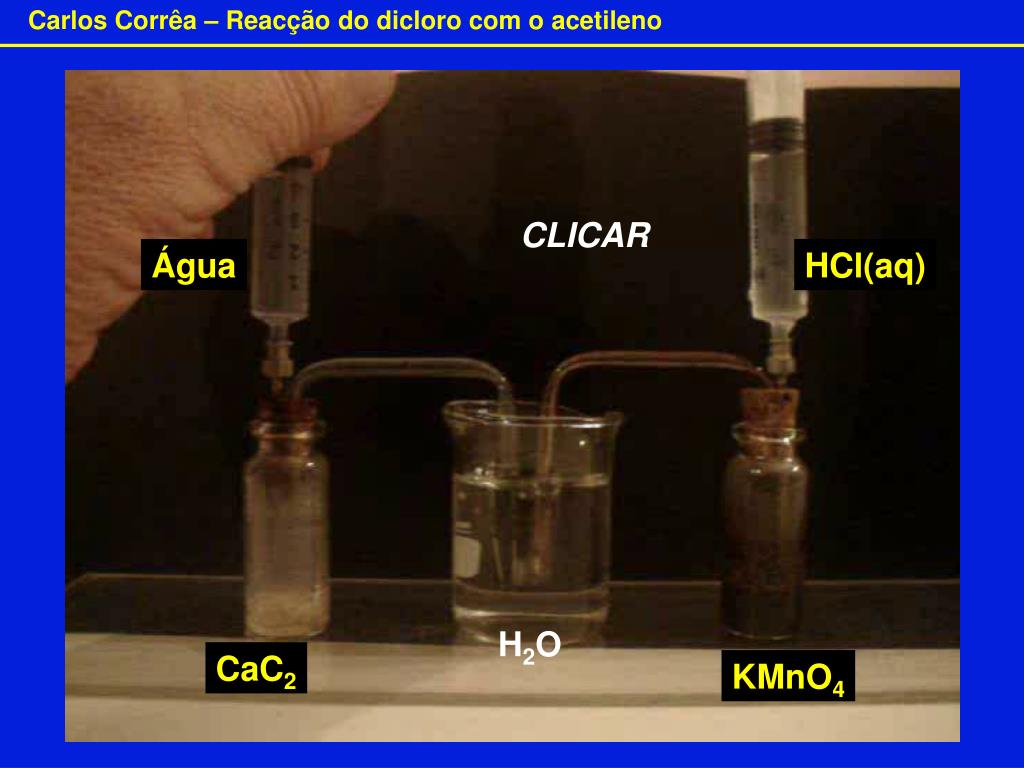

  6. CLICAR Água HCl(aq) CLICAR Água HCl(aq) H2O CaC2 KMnO4

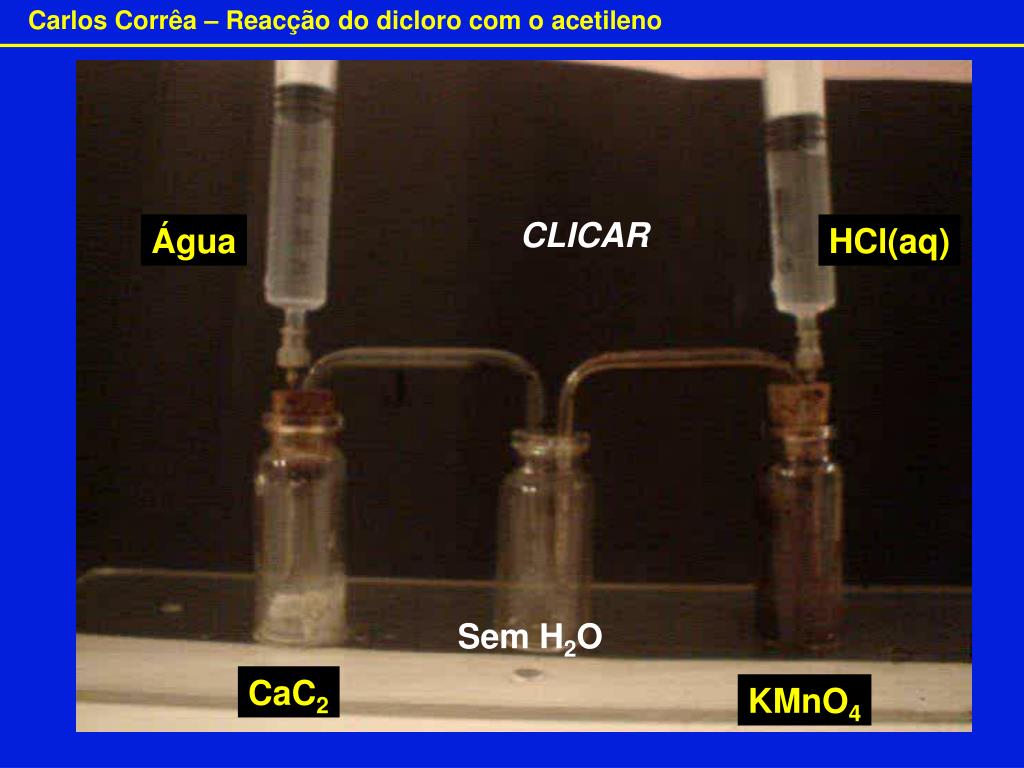

  7. CLICAR Água HCl(aq) Sem H2O CaC2 KMnO4

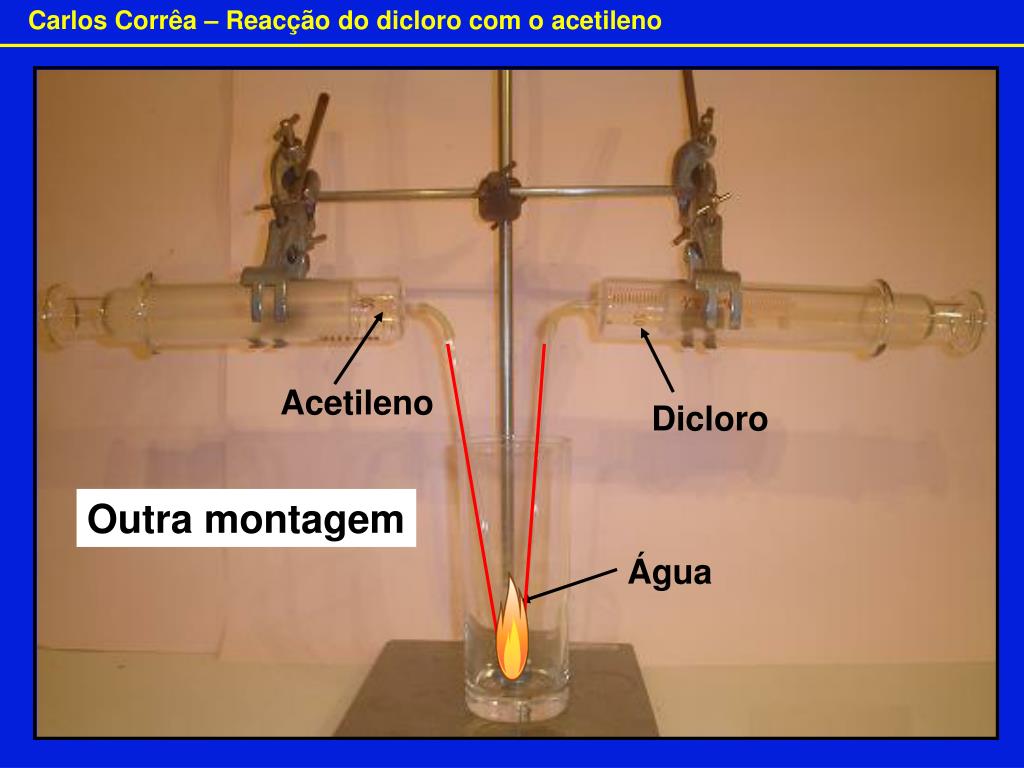

  8. Acetileno Dicloro Outra montagem Água

  9. O acetileno foi preparado em seringa CaC2(s) + H2O(l)  C2H2(g) + Ca(HO)2(s) Carbite Acetileno Água

  10. Preparação do dicloro em seringa KMnO4 na barquinha KMnO4 no fundo Descida de KMnO4 Aspirando HCl(aq) para a seringa: 2 MnO4¯+ 10 Cl¯ + 16 H+2 Mn2+ + 5 Cl2 + 8 H2O

  11. Reacção do dicloro com o acetileno Acetileno Dicloro Água

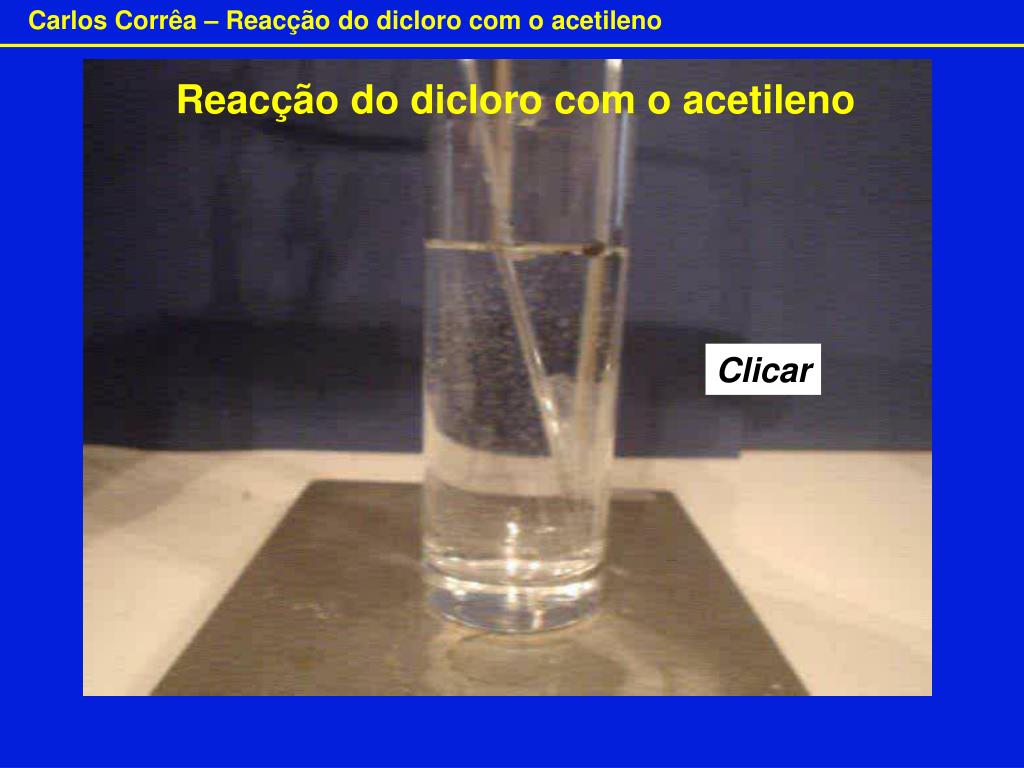

  12. Reacção do dicloro com o acetileno Clicar

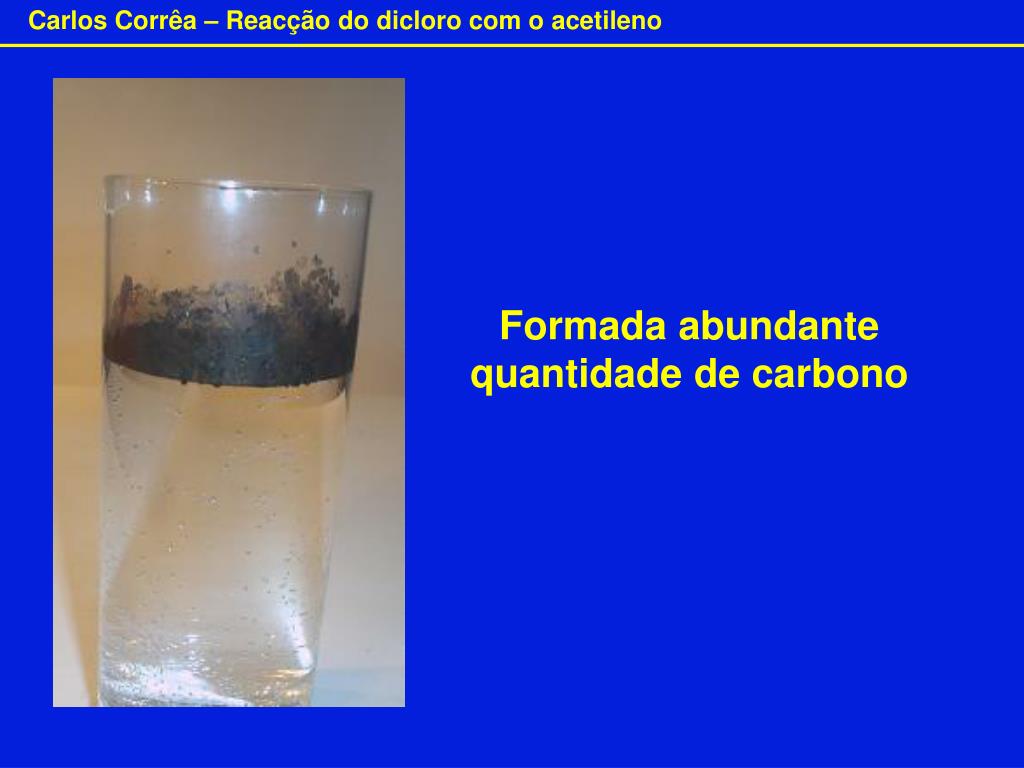

  13. Formada abundante quantidade de carbono

  14. Em câmara lenta Clicar

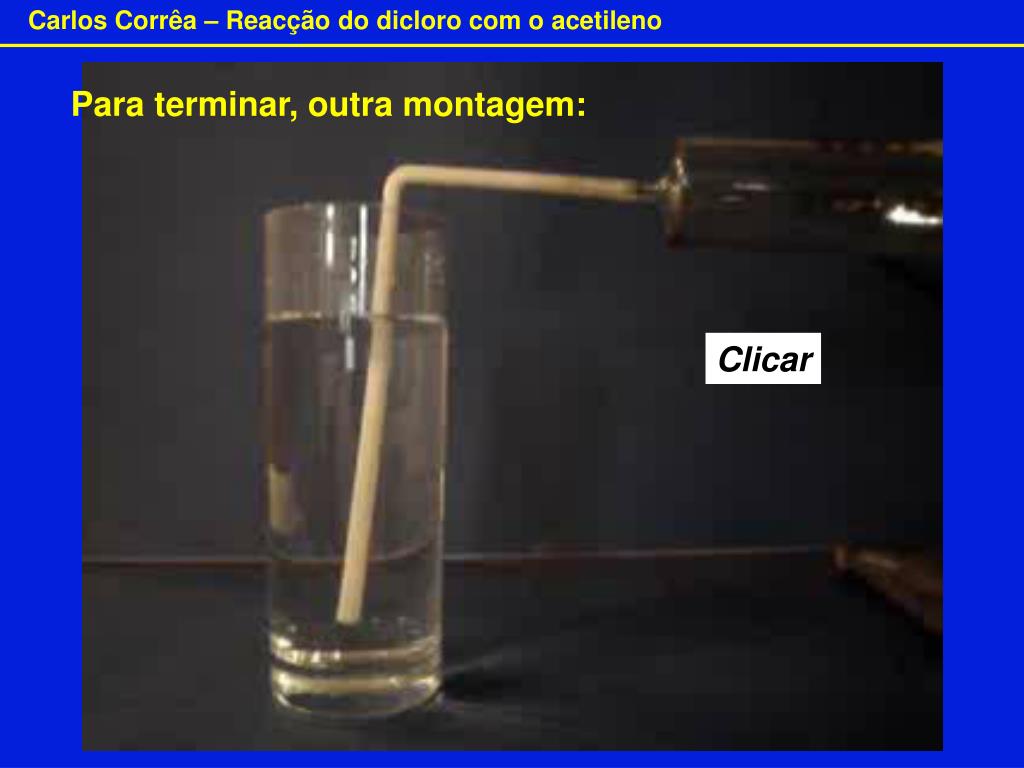

  15. Para terminar, outra montagem: Clicar

  16. F I M
