  1. MHD-I:The Future Brad Genereaux February 2014

  2. Agenda • Review summary of original scope • Review summary of high level feedback • Highlight five different directions • Proposed (and prepared) option • Two high level questions • Introduction to MHD-I • MHD-I Profile Review

  3. Original Scope • RESTful access to XDS-I repositories • A separate profile • Not an option on XDS-I profile • Read only access • Simple JSON data format • Not based on QIDO data model (at the time, work was underway in DICOM standard, not approved) • Modelled after trial MHD profile and extended

  4. Feedback from November’s F2F • Don’t like it is tied to “mobile”; it will work across all platforms • Don’t like that it is restricted to just XDS-I repositories; it should also provide access to normal DICOM repositories • Desire to bring QIDO-RS to Connectathon • Don’t like that it is tied to MHD; that profile is not stable and won’t be for some time

  5. Five Options for Moving Forward • Discussions with some stakeholders - • DICOMweb and XDS-I scenarios • One profile, two providers, one consumer • One profile, one provider, one consumer • Two separate profiles • Just XDS-I scenarios • FHIR • XDS-I.c

  6. One Profile: Two providers, One consumer • Create a new profile, modelled after ARI (Access to Radiology Information), called WARI (W = Web) • One consumer, two possible providers (DICOMweb QIDO-RS, and RESTful XDS-I format defined by profile) • Same query to both providers, but different response PRO: Logically separated for the provider CON: Burden placed onto consumer who must cope with two different data formats

  7. One Profile: One provider, One consumer • Have only one consumer, and one provider, and one data type (QIDO-RS) • Still connects to XDS-I, but as a named option with details on how to map queries PRO: Much easier for the consumer CON: Much harder for an XDS Registry to conform

  8. Two Separate Profiles • Create a QIDO-RS based profile • Create an XDS-I based profile for RESTful access PRO: Straight-forward and logically separated CON: A consumer wishing to use both methods have to implement both profiles

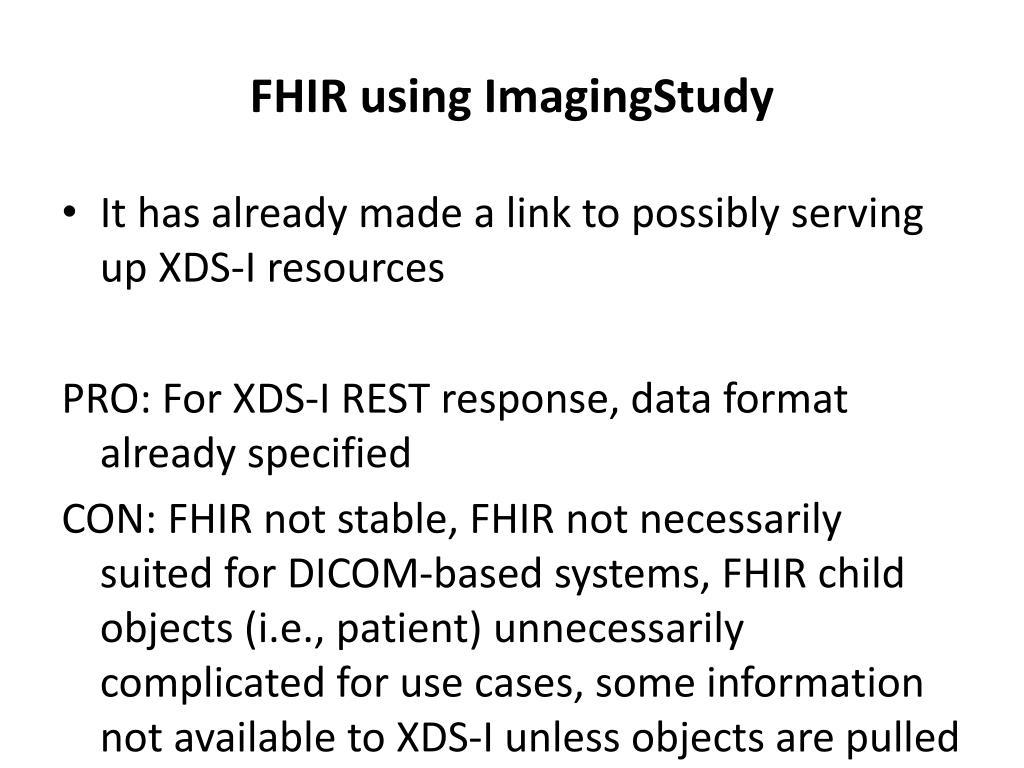

  9. FHIR using ImagingStudy • It has already made a link to possibly serving up XDS-I resources PRO: For XDS-I REST response, data format already specified CON: FHIR not stable, FHIR not necessarily suited for DICOM-based systems, FHIR child objects (i.e., patient) unnecessarily complicated for use cases, some information not available to XDS-I unless objects are pulled

  10. XDS-I.c • Natural evolution of the XDS-I profile PRO: Feels like a complete solution, more buy-in from implementers CON: Bolder than initial scope, not necessarily an “extension” of XDS

  11. Proposed Option (that I have Prepared) • One profile for MHD-I (for XDS-I) • True to both original scope, and to desire from last F2F meeting • Add WADO-RS to this profile • MHD-I title will stand • QIDO-RS will be shelved for a future profile proposal

  12. Introduction to mhd-i

  13. MHD-I Key Points
