  1. SVD Finesse Transmitter Board (FTB) (Sender Part for HSD Link) 28.06.20117 slides Version 15 For SVD meeting (29.06.2011) 28.06.2011 wacek ostrowicz

  2. SVD Finesse Transmitter Board (FTB) (Sender Part for HSD Link) 1. to remind 2. Corrected Design according to Vienna suggestions 3. Connector – routing 4. Connector – sch 5. Connector – signals 6. Backplane Connections 28.06.2011 wacek ostrowicz 1/7

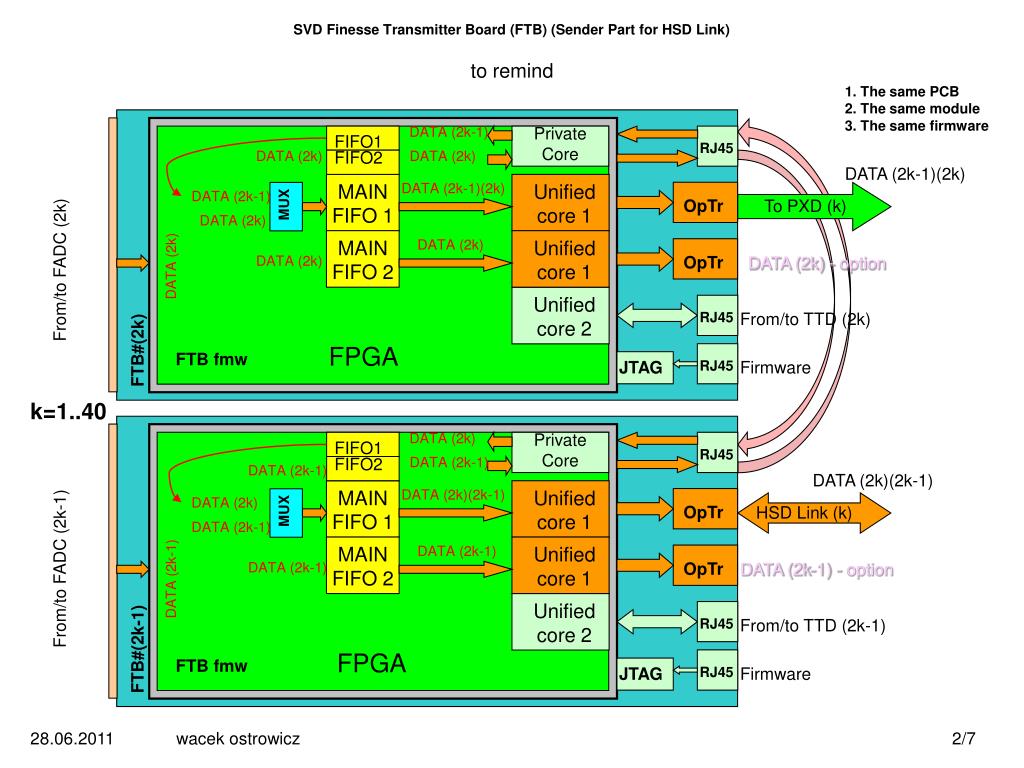

  3. SVD Finesse Transmitter Board (FTB) (Sender Part for HSD Link) to remind 1. The same PCB 2. The same module 3. The same firmware DATA (2k-1) Private Core FIFO1 RJ45 DATA (2k) FIFO2 DATA (2k) DATA (2k-1)(2k) MAIN FIFO 1 DATA (2k-1)(2k) Unified core 1 DATA (2k-1) MUX OpTr To PXD (k) DATA (2k) MAIN FIFO 2 DATA (2k) Unified core 1 OpTr DATA (2k) DATA (2k) - option From/to FADC (2k) DATA (2k) FTB#(2k) Unified core 2 RJ45 From/to TTD (2k) FPGA FTB fmw RJ45 JTAG Firmware k=1..40 DATA (2k) Private Core FIFO1 RJ45 DATA (2k-1) FIFO2 DATA (2k-1) DATA (2k)(2k-1) MAIN FIFO 1 DATA (2k)(2k-1) Unified core 1 DATA (2k) MUX OpTr HSD Link (k) DATA (2k-1) MAIN FIFO 2 DATA (2k-1) Unified core 1 From/to FADC (2k-1) OpTr DATA (2k-1) DATA (2k-1) - option DATA (2k-1) FTB#(2k-1) Unified core 2 RJ45 From/to TTD (2k-1) FPGA FTB fmw RJ45 JTAG Firmware 28.06.2011 wacek ostrowicz 2/7

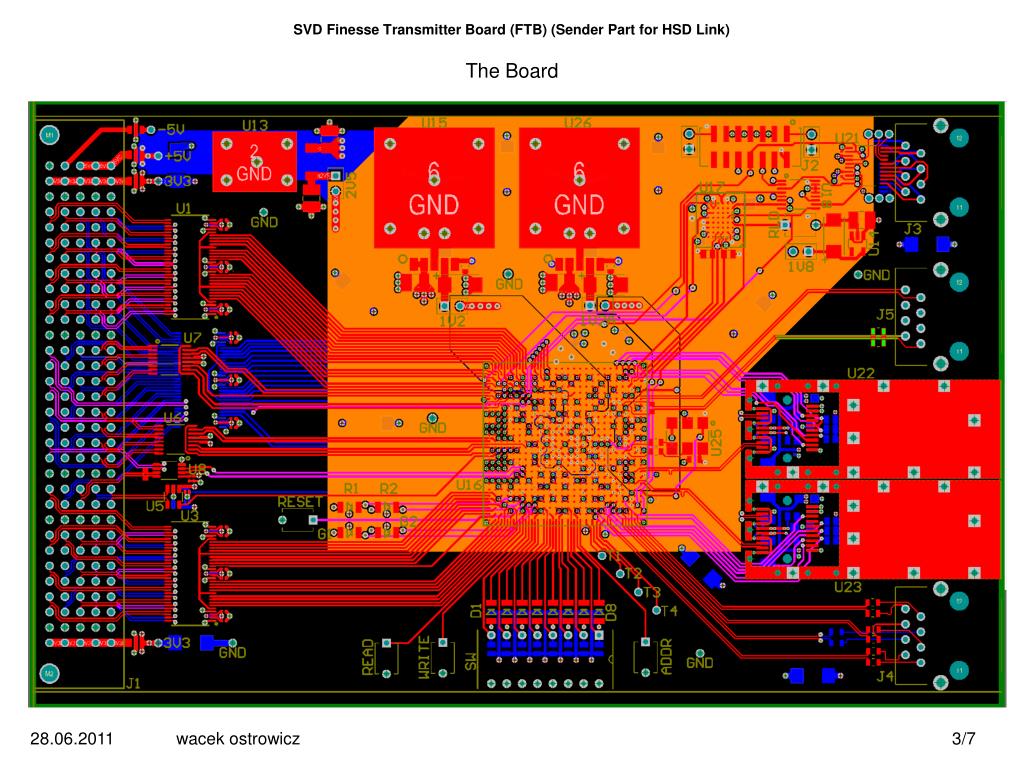

  4. SVD Finesse Transmitter Board (FTB) (Sender Part for HSD Link) The Board 28.06.2011 wacek ostrowicz 3/7

  5. SVD Finesse Transmitter Board (FTB) (Sender Part for HSD Link) Connector - routing 28.06.2011 wacek ostrowicz 4/7

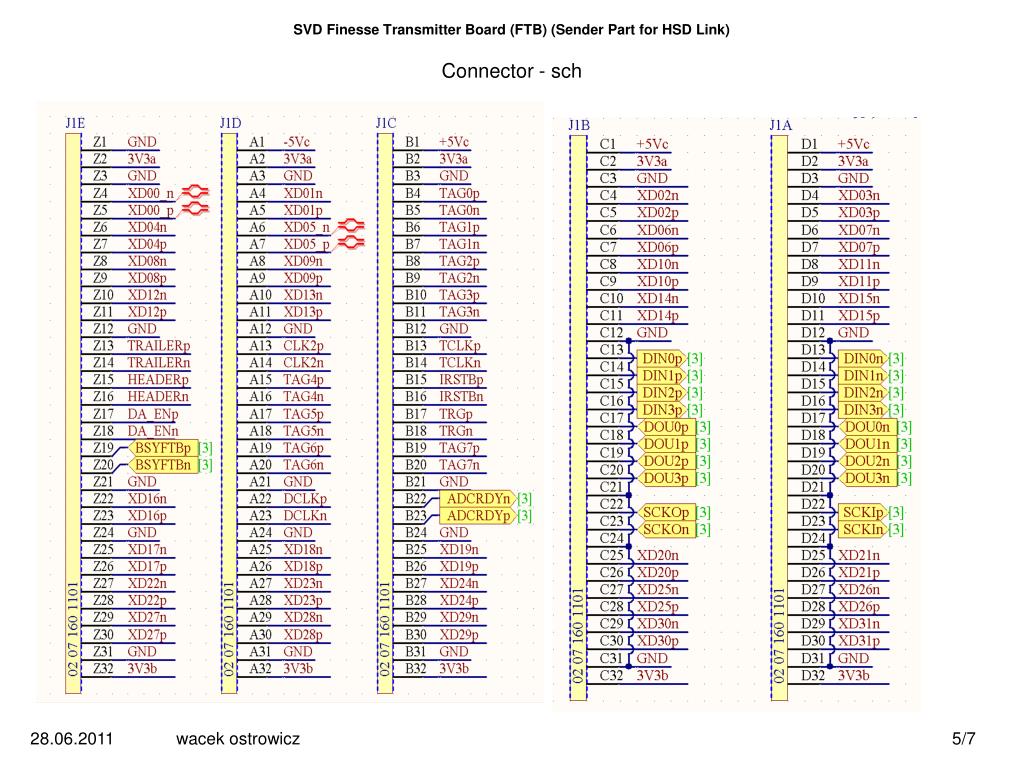

  6. SVD Finesse Transmitter Board (FTB) (Sender Part for HSD Link) Connector - sch 28.06.2011 wacek ostrowicz 5/7

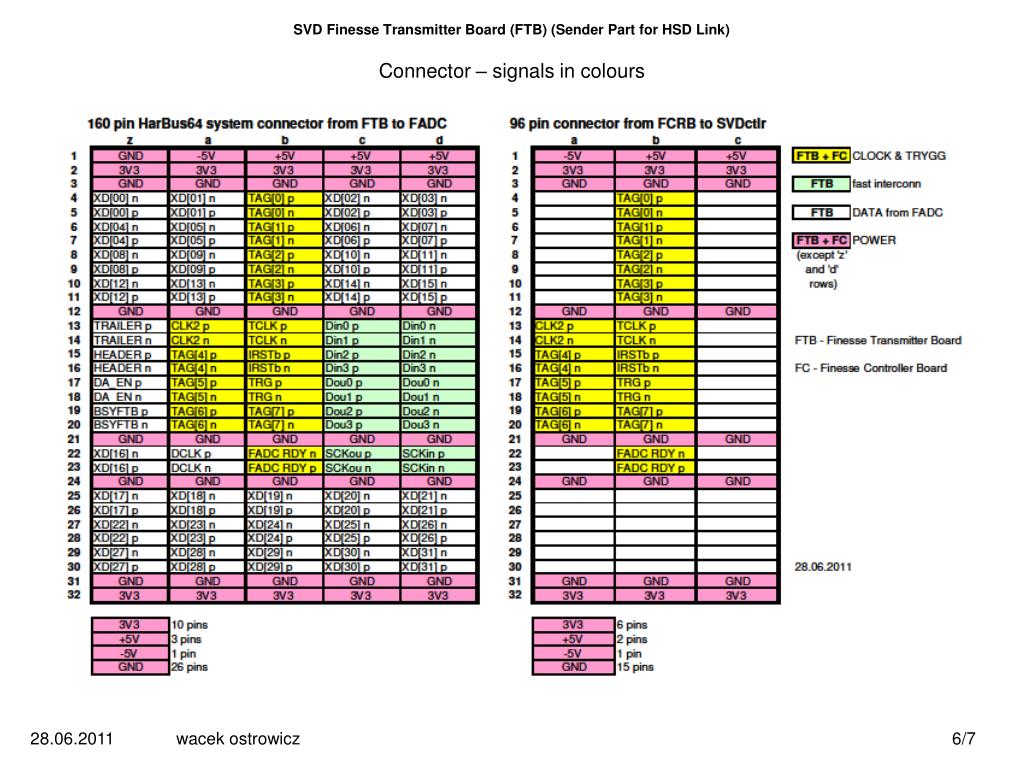

  7. SVD Finesse Transmitter Board (FTB) (Sender Part for HSD Link) Connector – signals in colours 28.06.2011 wacek ostrowicz 6/7

  8. SVD Finesse Transmitter Board (FTB) (Sender Part for HSD Link) Backplane Connections for [(2k-1) & (2k)] pairs where k=1 to 40 (41? 42?) 28.06.2011 wacek ostrowicz 7/7
