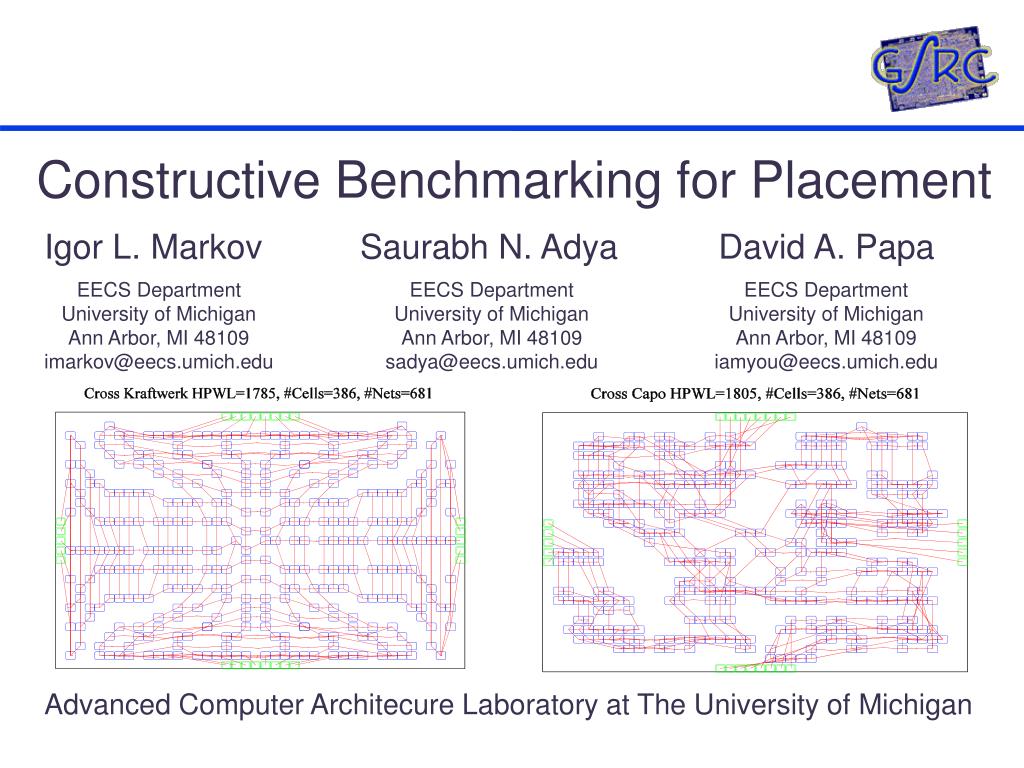

  1. Constructive Benchmarking for Placement Igor L. Markov Saurabh N. Adya David A. Papa EECS Department University of Michigan Ann Arbor, MI 48109 imarkov@eecs.umich.edu EECS Department University of Michigan Ann Arbor, MI 48109 sadya@eecs.umich.edu EECS Department University of Michigan Ann Arbor, MI 48109 iamyou@eecs.umich.edu Advanced Computer Architecure Laboratory at The University of Michigan

  2. Need New Benchmarks • Drawbacks of existing benchmarks • Placers are tuned to individual benchmarks • S. N. Adya et al., ``Benchmarking for Large-Scale VLSI Placement and Beyond,'' to appear in IEEE Trans. on CAD, April 2004. • Dragon – IBM-DRAGON - Capo – Cadence benchmarks • FengShui – MCNC - mPL – PEKO • Current benchmarks are large and difficult to interpret • No clear way to improve placers • Desirable features for new benchmarks • Want scalable artificial benchmarks with realistic features • In addition to current benchmarks, not instead of • Tailored tests for specific features • Abstraction of features in real netlists • Want results that can be visually interpreted

  3. Isolation of Key Features • Cluster tightly connected components • Ignore intra-cluster nets • Merge inter-cluster nets • Model with edge weights • Remove nets with negligible weight • Remove disconnected components • Benchmarks identify features that placers will encounter • Features form a necessary but not sufficient set Step 1 Step 2 Step 3

  4. Basic PIO Example

  5. Placers • Capo8.7 • S. N. Adya et al., “On Whitespace and Stability in Mixed-Size Placement and Physical Synthesis,” ICCAD`03, pp. 311-318. • mPL2 • C-C. Chang, J. Cong, D. Pan, X. Yuan “Physical Hierarchy Generation with Routing Congestion Control,” ISPD`02. • mPL3 • T. F. Chan, J. Cong, T. Kong, J. R. Shinnerl and K. Sze, “An Enhanced Multilevel Algorithm for Circuit Placement,” ICCAD `03. • Dragon2.23 • M. Wang, X. Yang and M. Sarrafzadeh, “Dragon2000: Standard-cell Placement Tool for Large Industry Circuits,” ICCAD 2000, pp. 260-263. • Dragon3.01 • X. Yang, B.-K. Choi and M. Sarrafzadeh, “Routability Driven White Space Allocation for Fixed-Die Standard-Cell Placement,'' ISPD 2002, pp. 42-50. • FengShui2.1 • A. Agnihotri, M. C. Yildiz, A. Khatkhate, A. Mathur, S. Ono, P. H. Madden “Fractional Cut: Improved Recursive Bisection Placement,” ICCAD `03, pp. 307-310.

  6. Solutions of PIO

  7. Observations for PIO • Only Capo finds optimal solutions • Nice test cases for a detail placer • Detail placers may mask problems with global placers(turn off detail placers when debugging global placers) • All placements shown are legal • Capo was made optimal on PIO since publication • mPL3 forms columns • FengShui2.1 packs to the left • Dragon3.01 packs somewhat to the right

  8. Other Benchmark Types

  9. Effects of Left Packing

  10. Effects of Building Columns

  11. BlobObstacle Effects

  12. Improvements to Capo • Better whitespace distribution • When whitespace is large, no need for uniform distribution • Optimal placement of single cells • Performed during end-case placement • Partitioning bugs found and removed • Affected wirelength optimization • Turned on legalizer by default • Was accidentally off by default, and overlooked

  13. Bugs in Other Placers • Some placers found to place cells very far from core area • mPL2 was unable to read certain inputs • Several placers halt in the presence of obstacles • The fixed die option of Dragon2.23 did not run • A number of off-by-one errors in Domino and FengShui • Several bug reports were made to authors of these tools • In some cases quick fixes were made

  14. Asymptotic Suboptimality

  15. Asymptotic Suboptimality

  16. Conclusions • Proposed new benchmarks • To be used in addition to, not instead of existing benchmarks • Unexpected new benchmarks expose unseen problems in algos & tools • Emphasizing individual features of realistic designs • Can easily visualize these benchmarks • All optimal solutions known in most cases (global effect in ASICs?) • Difference between optimal and actual can be seen and studied • Know what goes wrong (e.g., don’t pack to the left) • Having a unique solution seems to kill annealing (true for datapaths?) • Often can see ways to improve placers (non-uniform whitespace distr.) • Asymptotically suboptimal placements are a serious problem • Is your placer asymptotically suboptimal?  • Benchmarks are available at: • http://vlsicad.eecs.umich.edu/BK/FEATURE/ • Bookshelf, LEF/DEF, Cpin and Spc formats available
