Design Cost Modeling and Data Collection Infrastructure

1. Design Cost Modeling and Data Collection Infrastructure Andrew B. Kahng and Stefanus Mantik* UCSD CSE and ECE Departments (*) Cadence Design Systems, Inc. http://vlsicad.ucsd.edu/

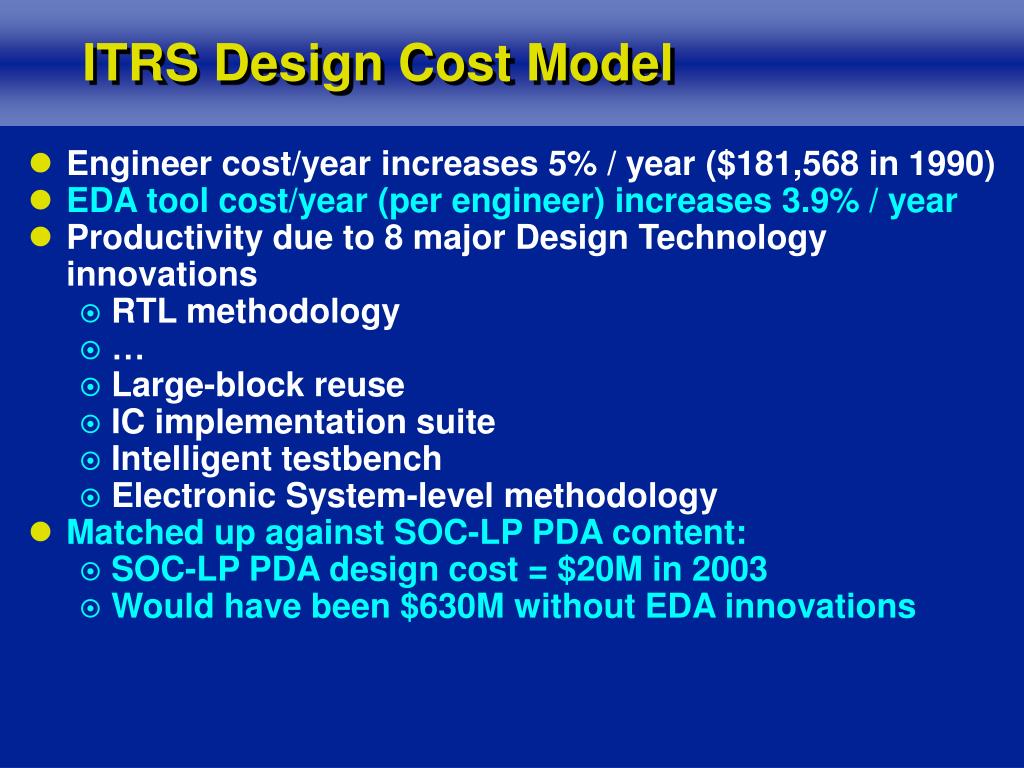

2. ITRS Design Cost Model • Engineer cost/year increases 5% / year ($181,568 in 1990) • EDA tool cost/year (per engineer) increases 3.9% / year • Productivity due to 8 major Design Technology innovations • RTL methodology • … • Large-block reuse • IC implementation suite • Intelligent testbench • Electronic System-level methodology • Matched up against SOC-LP PDA content: • SOC-LP PDA design cost = $20M in 2003 • Would have been $630M without EDA innovations

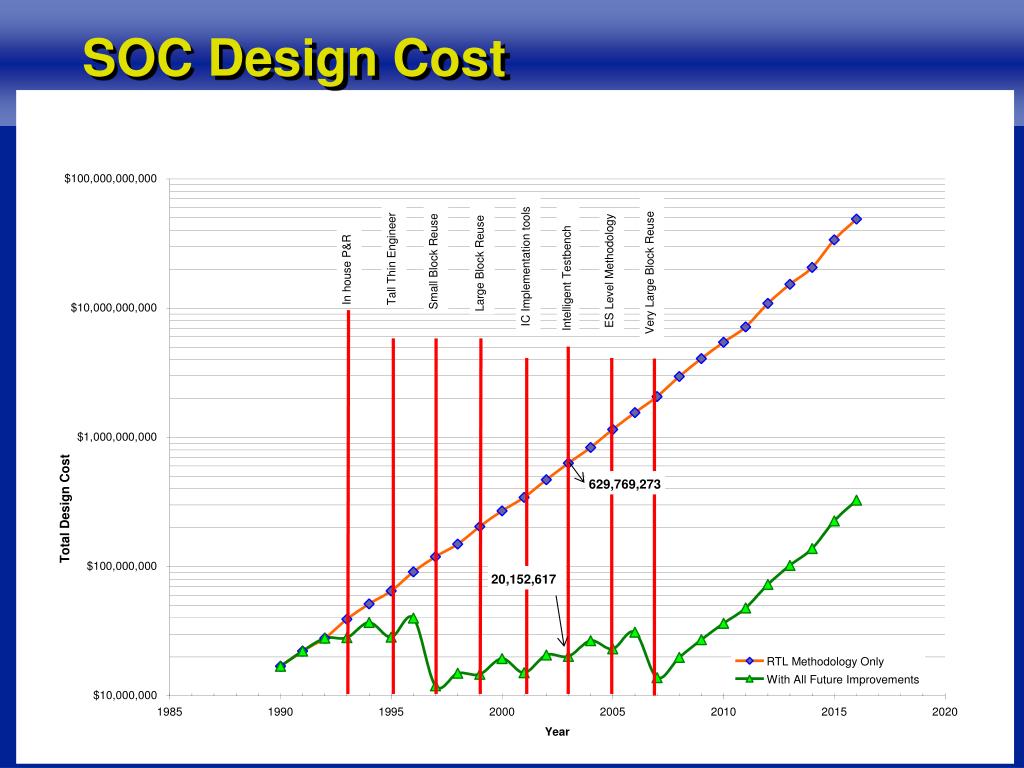

3. SOC Design Cost

4. Outline • Introduction and motivations • METRICS system architecture • Design quality metrics and tool quality metrics • Applications of the METRICS system • Issues and conclusions

5. Motivations • How do we improve design productivity ? • Is our design technology / capability better than last year? • How do we formally capture best known methods, and how do we identify them in the first place ? • Does our design environment support continuous improvement, exploratory what-if design, early predictions of success / failure, ...? • Currently, no standards or infrastructure for measuring and recording the semiconductor design process • Can benefit project management • accurate resource prediction at any point in design cycle • accurate project post-mortems • Can benefit tool R&D • feedback on tool usage and parameters used • improved benchmarking

6. Fundamental Gaps • Data to be measured is not available • Data is only available through tool log files • Metrics naming and semantics are not consistent among different tools • We do not always know what data should be measured • Some metrics are less obviously useful • Other metrics are almost impossible to discern

7. Purpose of METRICS • Standard infrastructure for the collection and the storage of design process information • Standard list of design metrics and process metrics • Analyses and reports that are useful for design process optimization METRICS allows: Collect, Data-Mine, Measure, Diagnose, then Improve

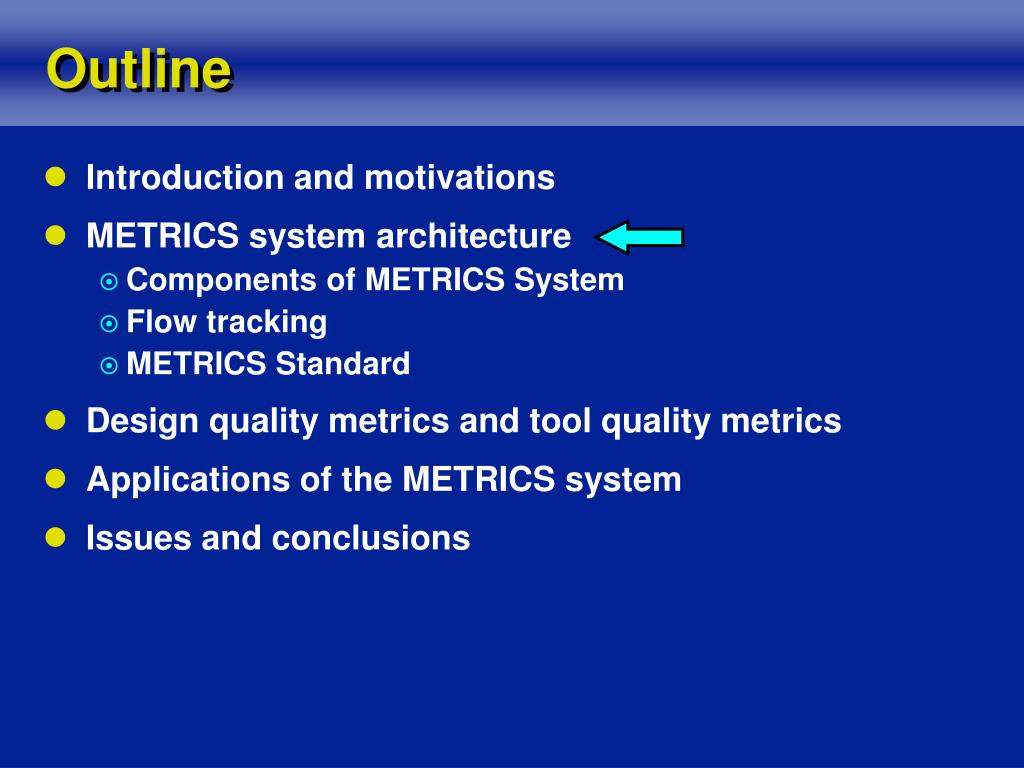

8. Outline • Introduction and motivations • METRICS system architecture • Components of METRICS System • Flow tracking • METRICS Standard • Design quality metrics and tool quality metrics • Applications of the METRICS system • Issues and conclusions

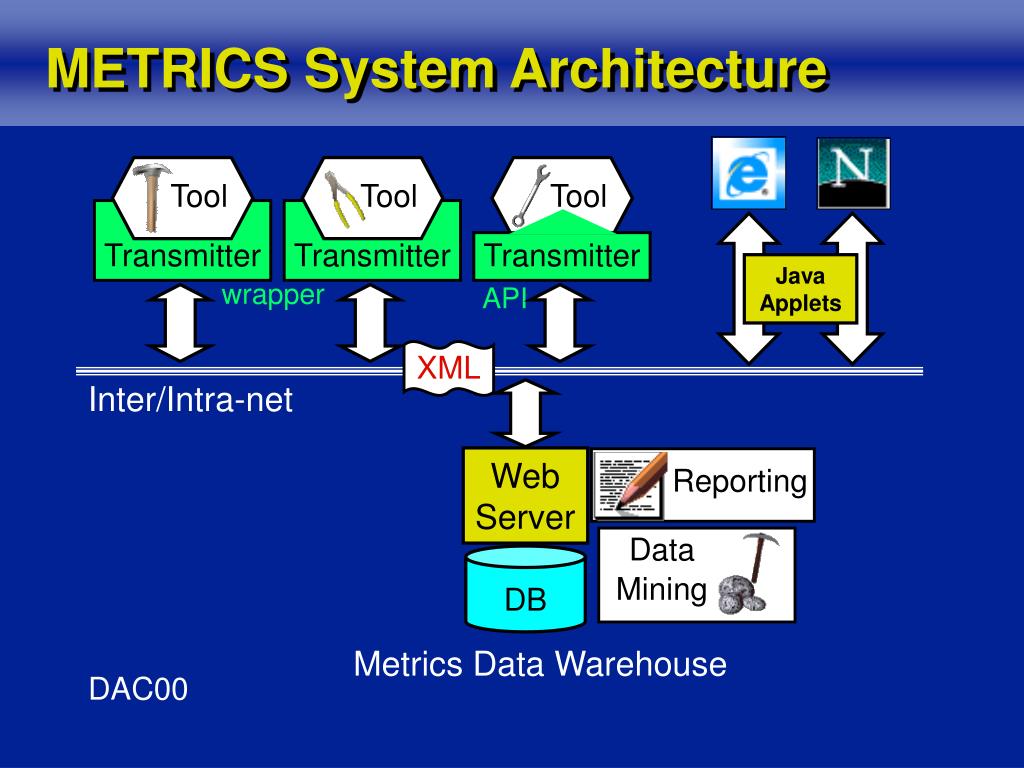

9. Tool Tool Transmitter Java Applets wrapper Tool API Transmitter Transmitter XML Inter/Intra-net Web Server Data Mining DB Reporting Metrics Data Warehouse METRICS System Architecture DAC00

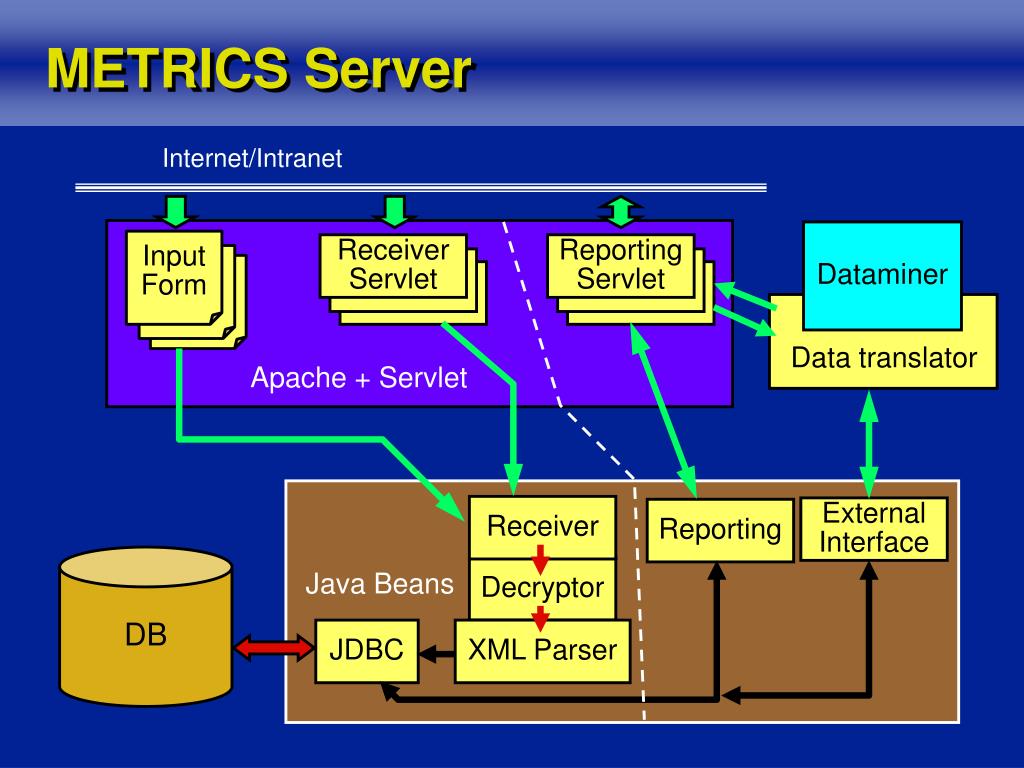

10. Receiver Servlet Reporting Servlet Input Form METRICS Server Internet/Intranet Dataminer Data translator Apache + Servlet Receiver External Interface Reporting DB Decryptor Java Beans JDBC XML Parser

11. nexus12 2% nexus11 2% nexus10 1% synthesis 20% ATPG 22% postSyntTA 13% BA 8% nexus4 95% funcSim 7% placedTA 7% physical 18% LVS 5% % aborted per machine % aborted per task Example Reports CPU_TIME = 12 + 0.027 NUM_CELLS Correlation = 0.93

12. S T1 T1 T1 T2 T2 T2 T2 T3 T3 T3 T4 T4 F Flow Tracking Task sequence: T1, T2, T1, T2, T3, T3, T3, T4, T2, T1, T2, T4

13. Synthesis & Tech Map QP Capo Placer DEF Placed DEF Incr. LEF GCF,TLF Pre-placement Opt Post-placement Opt CTGen QP ECO Clocked DEF Constraints Optimized DEF QP QP Opt WRoute Routed DEF Ambit PKS WRoute GRoute WRoute Incr WRoute Pearl CongestionAnalysis Testbeds: Metricized P&R Flow M E T R I C S DEF Placed DEF LEF Legal DEF UCLA + Cadence flow Congestion Map Routed DEF Final DEF Cadence PKS flow Cadence SLC flow

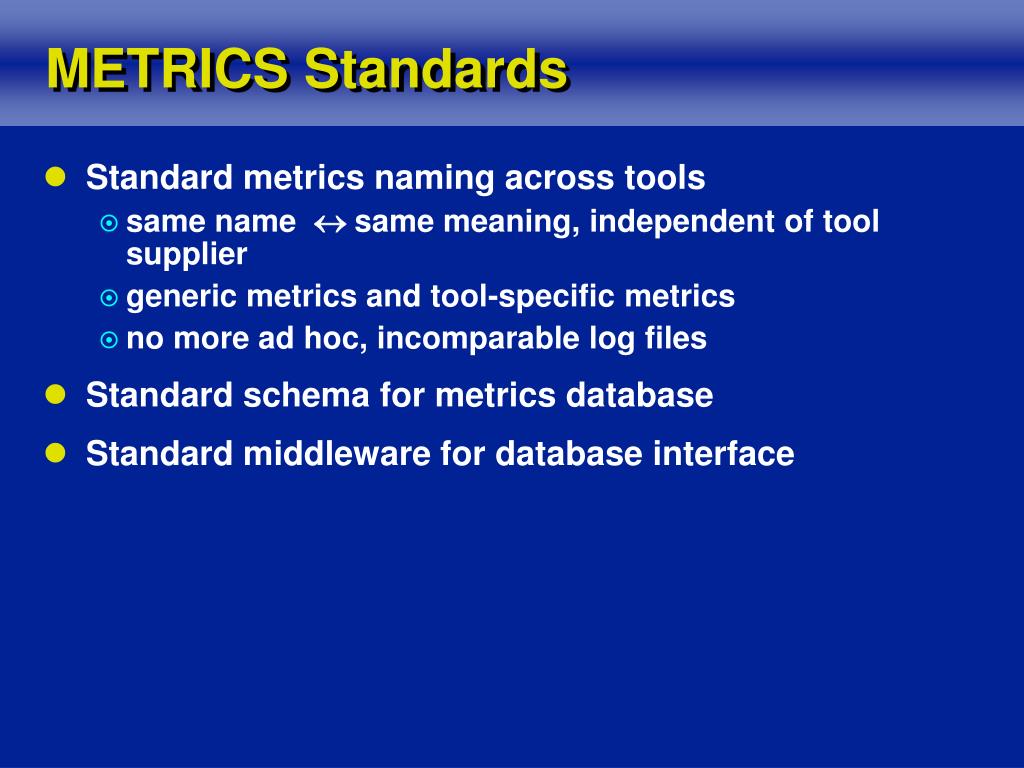

14. METRICS Standards • Standard metrics naming across tools • same name «same meaning, independent of tool supplier • generic metrics and tool-specific metrics • no more ad hoc, incomparable log files • Standard schema for metrics database • Standard middleware for database interface

15. Generic and Specific Tool Metrics Partial list of metrics now being collected in Oracle8i

16. Open Source Architecture • METRICS components are industry standards • e.g., Oracle 8i, Java servlets, XML, Apache web server, PERL/TCL scripts, etc. • Custom generated codes for wrappers and APIs are publicly available • collaboration in development of wrappers and APIs • porting to different operating systems • Codes are available at: http://www.gigascale.org/metrics

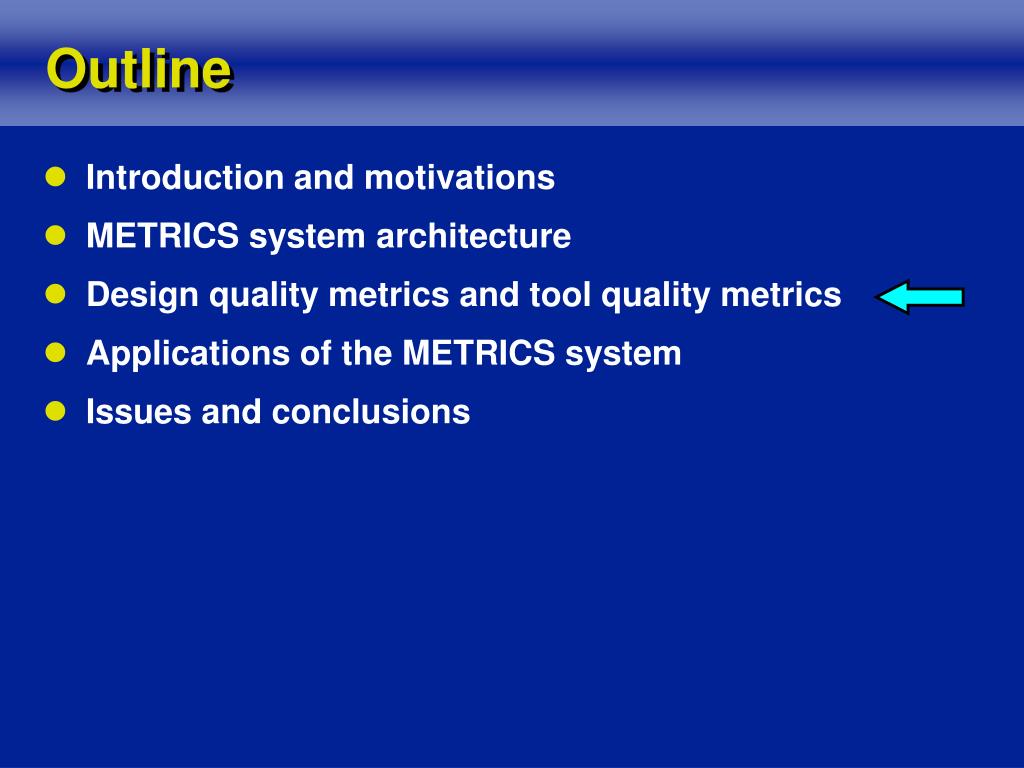

17. Outline • Introduction and motivations • METRICS system architecture • Design quality metrics and tool quality metrics • Applications of the METRICS system • Issues and conclusions

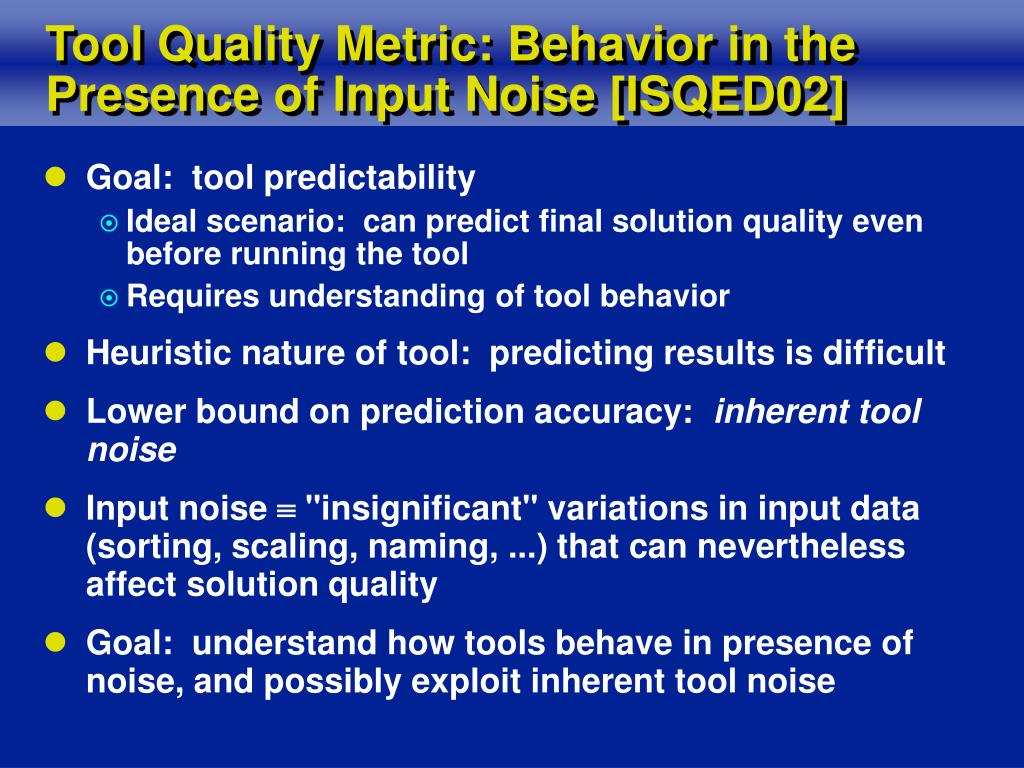

18. Tool Quality Metric: Behavior in the Presence of Input Noise [ISQED02] • Goal: tool predictability • Ideal scenario: can predict final solution quality even before running the tool • Requires understanding of tool behavior • Heuristic nature of tool: predicting results is difficult • Lower bound on prediction accuracy: inherent tool noise • Input noise  "insignificant" variations in input data (sorting, scaling, naming, ...) that can nevertheless affect solution quality • Goal: understand how tools behave in presence of noise, and possibly exploit inherent tool noise

19. Quality Quality Parameter Parameter Monotone Behavior • Monotonicity • monotone solutions w.r.t. inputs

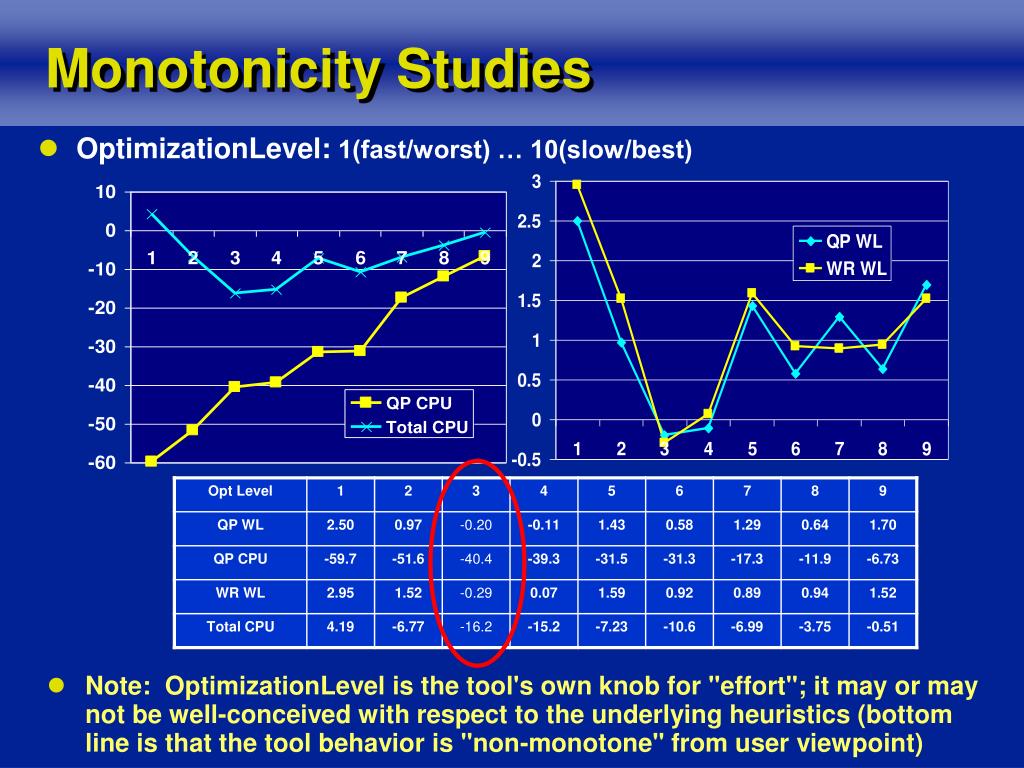

20. Monotonicity Studies • OptimizationLevel: 1(fast/worst) … 10(slow/best) • Note: OptimizationLevel is the tool's own knob for "effort"; it may or may not be well-conceived with respect to the underlying heuristics (bottom line is that the tool behavior is "non-monotone" from user viewpoint)

21. Noise Studies: Random Seeds • 200 runs with different random seeds • ½-percent spread in solution quality due to random seed -0.05%

22. Noise: Random Ordering & Naming • Data sorting  no effect on reordering • Five naming perturbation • random cell names without hierarchy (CR) • E.g., AFDX|CTRL|AX239  CELL00134 • random net names without hierarchy (NR) • random cell names with hierarchy (CH) • E.g., AFDX|CTRL|AX129  ID012|ID79|ID216 • random net names with hierarchy (NH) • random master cell names (MC) • E.g., NAND3X4  MCELL0123

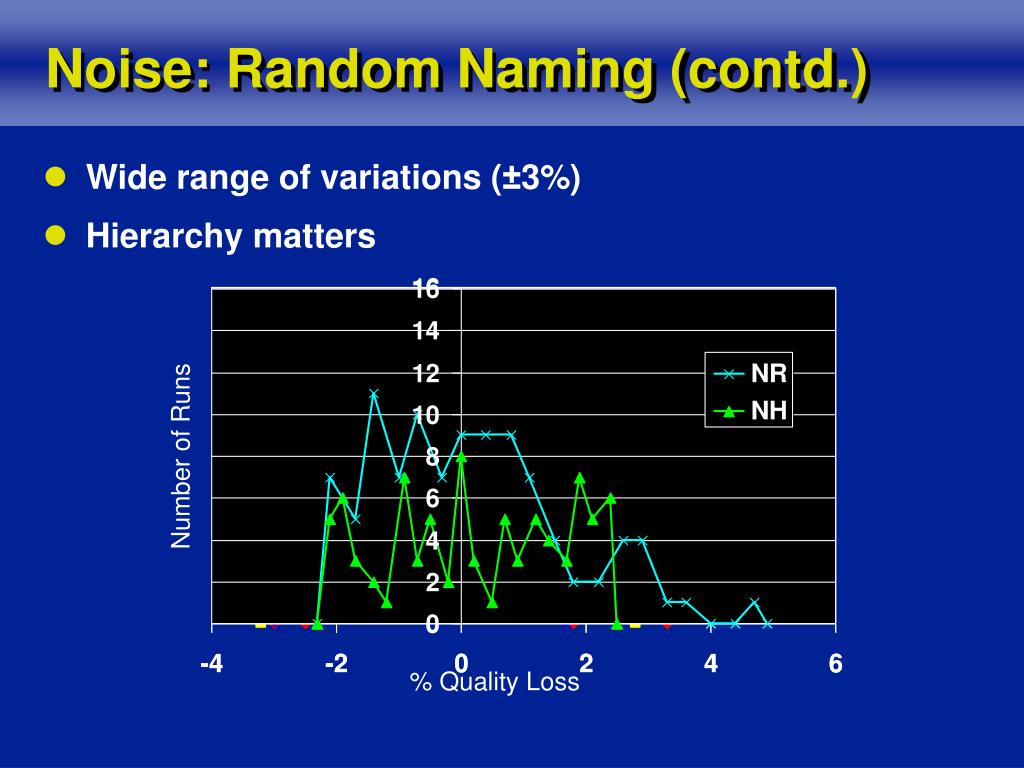

23. Noise: Random Naming (contd.) • Wide range of variations (±3%) • Hierarchy matters Number of Runs % Quality Loss

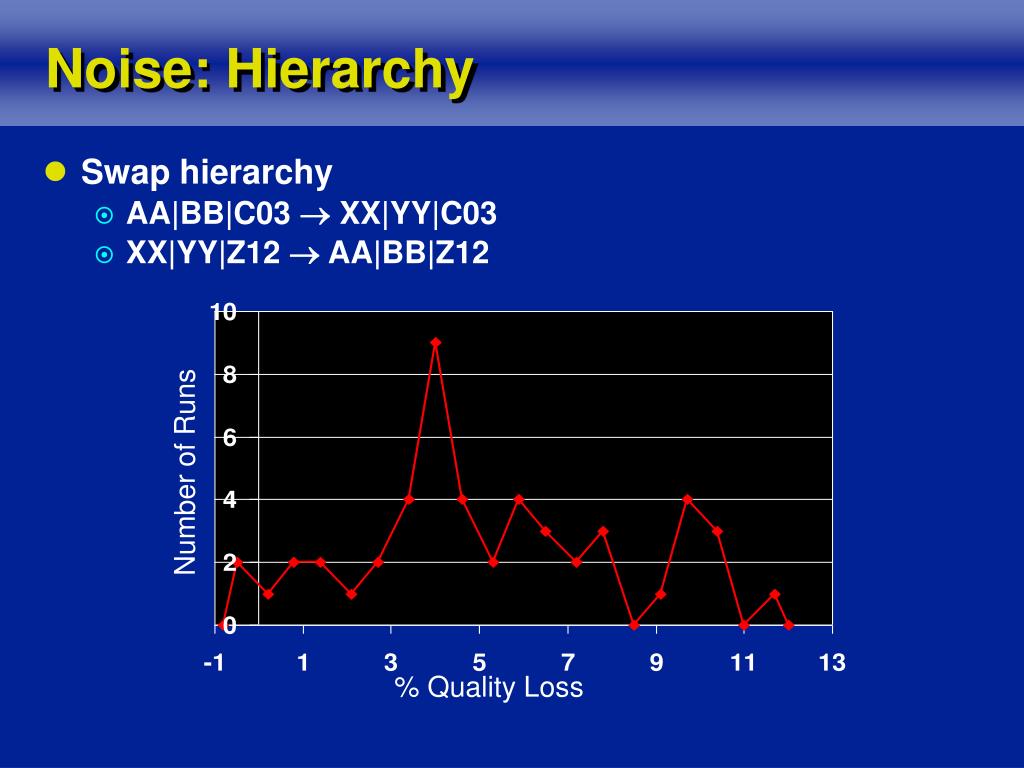

24. Noise: Hierarchy • Swap hierarchy • AA|BB|C03  XX|YY|C03 • XX|YY|Z12  AA|BB|Z12 Number of Runs % Quality Loss

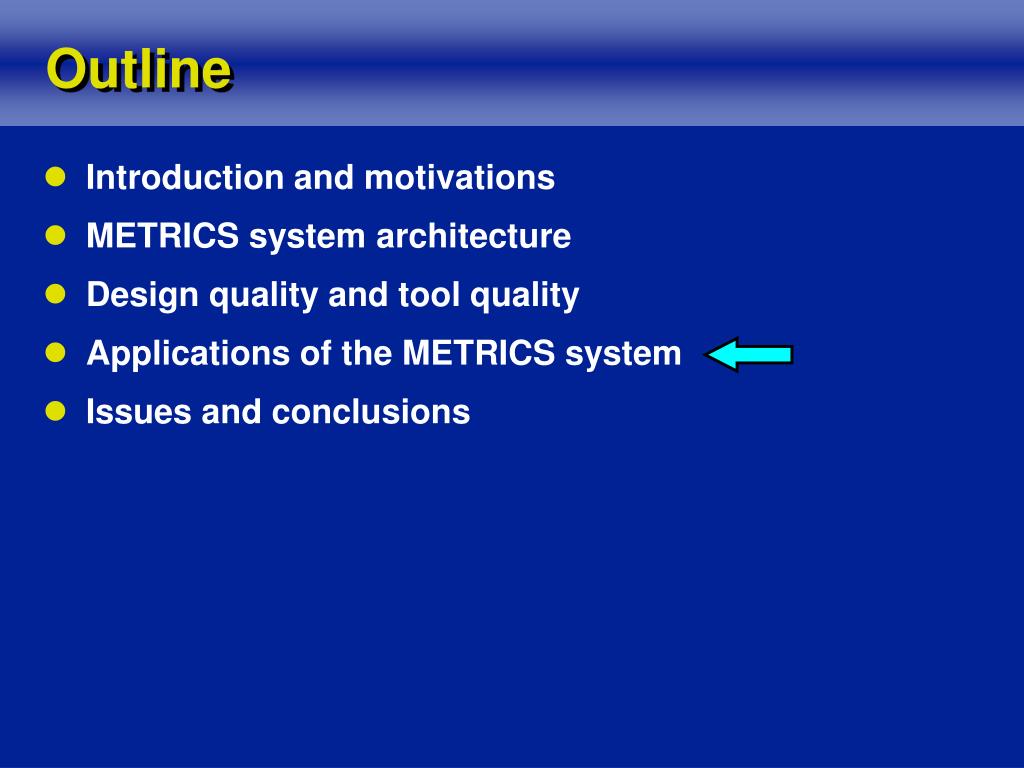

25. Outline • Introduction and motivations • METRICS system architecture • Design quality and tool quality • Applications of the METRICS system • Issues and conclusions

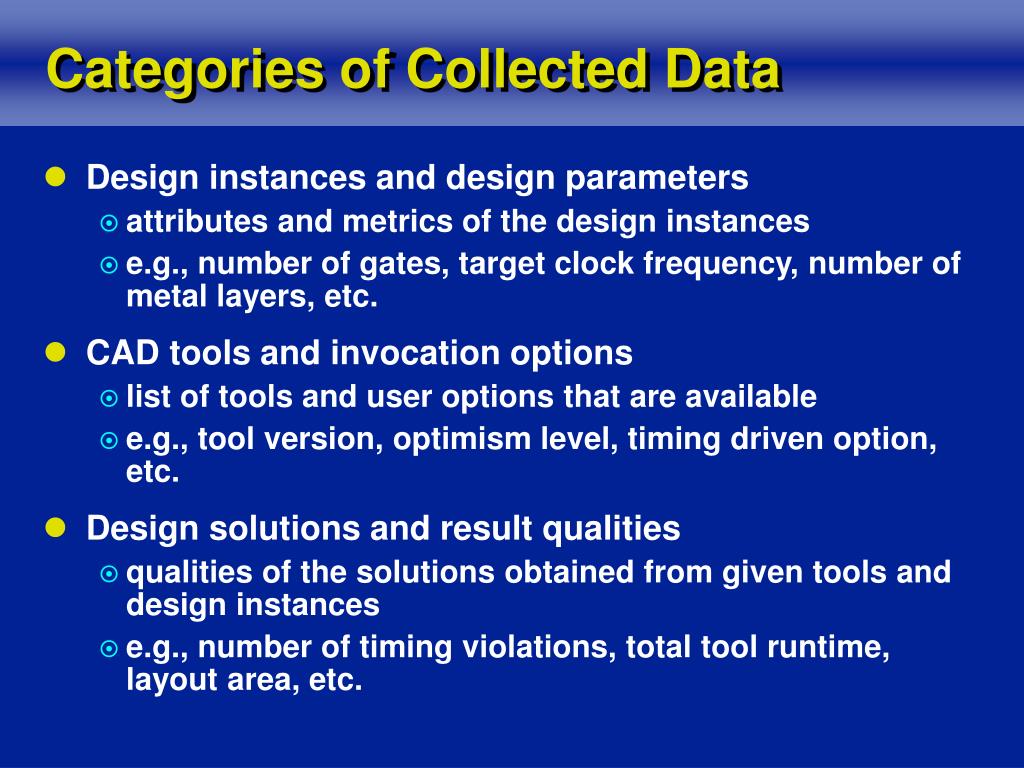

26. Categories of Collected Data • Design instances and design parameters • attributes and metrics of the design instances • e.g., number of gates, target clock frequency, number of metal layers, etc. • CAD tools and invocation options • list of tools and user options that are available • e.g., tool version, optimism level, timing driven option, etc. • Design solutions and result qualities • qualities of the solutions obtained from given tools and design instances • e.g., number of timing violations, total tool runtime, layout area, etc.

27. Three Basic Application Types • Design instances and design parameters • CAD tools and invocation options • Design solutions and result qualities • Given  and , estimate the expected quality of  • e.g., runtime predictions, wirelength estimations, etc. • Given  and , find the appropriate setting of  • e.g., best value for a specific option, etc. • Given  and , identify the subspace of  that is “doable” for the tool • e.g., category of designs that are suitable for the given tools, etc.

28. Estimation of QP CPU and Wirelength • Goal: • Estimate QPlace runtime for CPU budgeting and block partition • Estimate placement quality (total wirelength) • Collect QPlace metrics from 2000+ regression logfiles • Use data mining (Cubist 1.07) to classify and predict, e.g.: • Rule 1: [101 cases, mean 334.3, range 64 to 3881, est err 276.3] if ROW_UTILIZATION <= 76.15 then CPU_TIME = -249 + 6.7 ROW_UTILIZATION + 55 NUM_ROUTING_LAYER - 14 NUM_LAYER • Rule 2: [168 cases, mean 365.7, range 20 to 5352, est err 281.6] if NUM_ROUTING_LAYER <= 4 then CPU_TIME = -1153 + 192 NUM_ROUTING_LAYER + 12.9 ROW_UTILIZATION - 49 NUM_LAYER • Rule 3: [161 cases, mean 795.8, range 126 to 1509, est err 1069.4] if NUM_ROUTING_LAYER > 4 and ROW_UTILIZATION > 76.15 then CPU_TIME = -33 + 8.2 ROW_UTILIZATION + 55 NUM_ROUTING_LAYER - 14 NUM_LAYER • Data mining limitation  sparseness of data

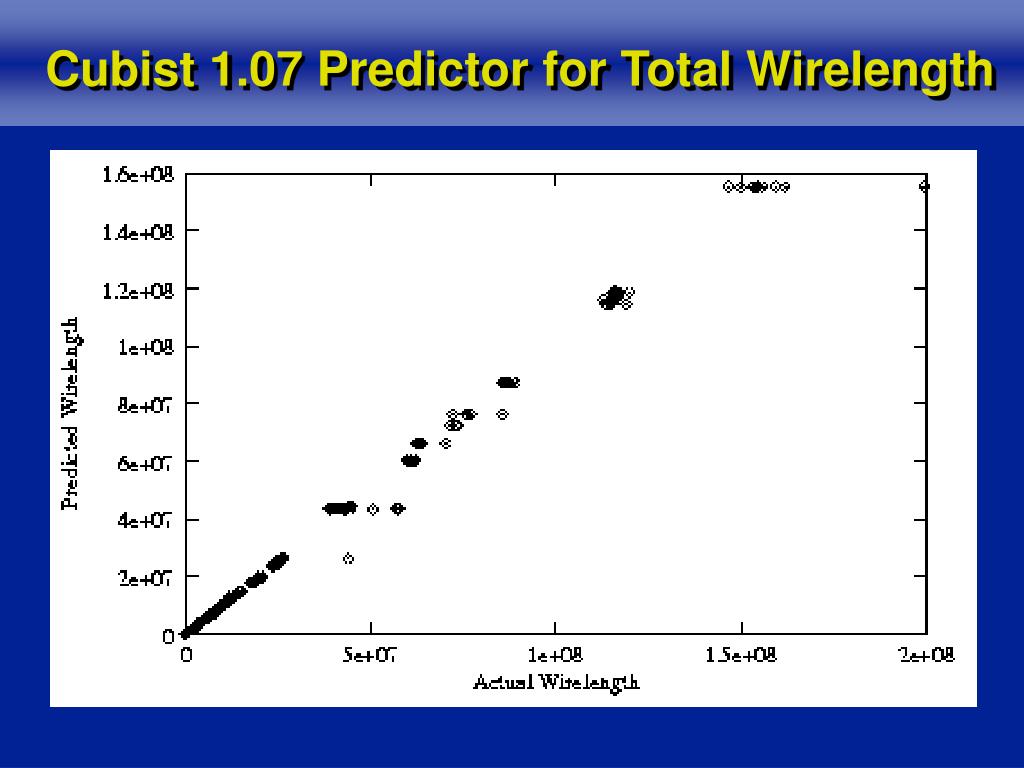

29. Cubist 1.07 Predictor for Total Wirelength

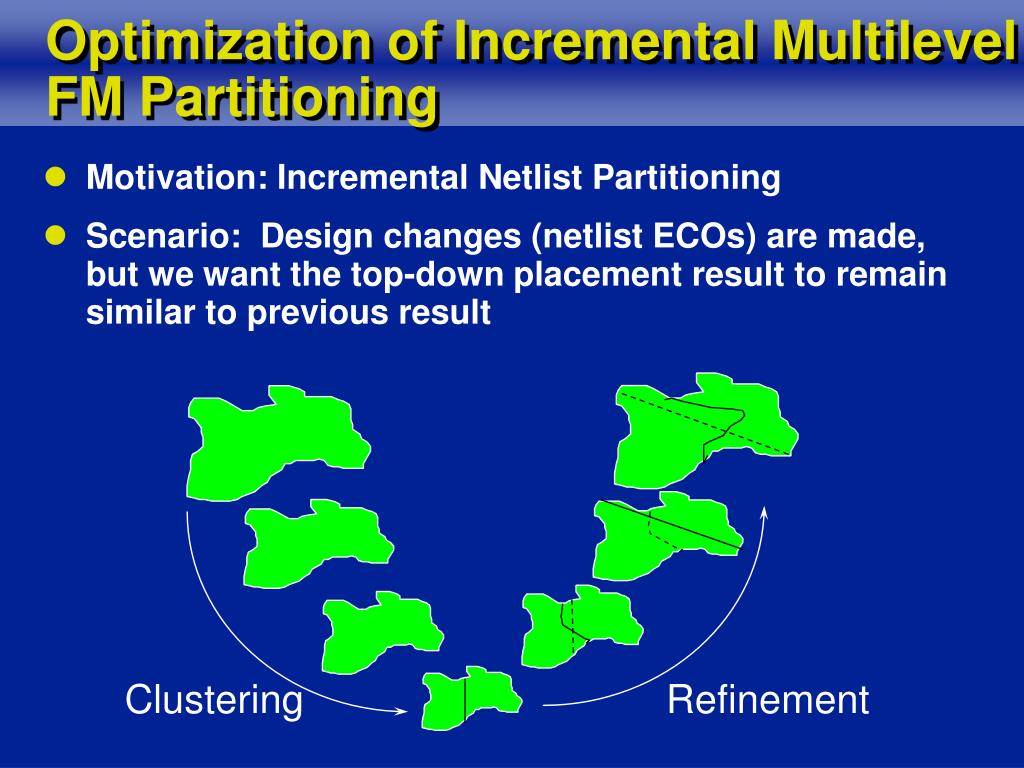

30. Clustering Refinement Optimization of Incremental Multilevel FM Partitioning • Motivation: Incremental Netlist Partitioning • Scenario: Design changes (netlist ECOs) are made, but we want the top-down placement result to remain similar to previous result

31. Optimization of Incremental Multilevel FM Partitioning • Motivation: Incremental Netlist Partitioning • Scenario: Design changes (netlist ECOs) are made, but we want the top-down placement result to remain similar to previous result • Good approach [CaldwellKM00]: “V-cycling” based multilevel Fiduccia-Mattheyses • Our goal: What is the best tuning of the approach for a given instance? • break up the ECO perturbation into multiple smaller perturbations? • #starts of the partitioner? • within a specified CPU budget?

32. ... T1 T2 T3 Tn S F Optimization of Incremental Multilevel FM Partitioning (contd.) • Given: initial partitioning solution, CPU budget and instance perturbation (I) • Find: number of stages of incremental partitioning (i.e., how to break up I ) and number of starts • Ti = incremental multilevel FM partitioning • Self-loop  multistart • n  number of breakups (I = 1 + 2 + 3 + ... + n)

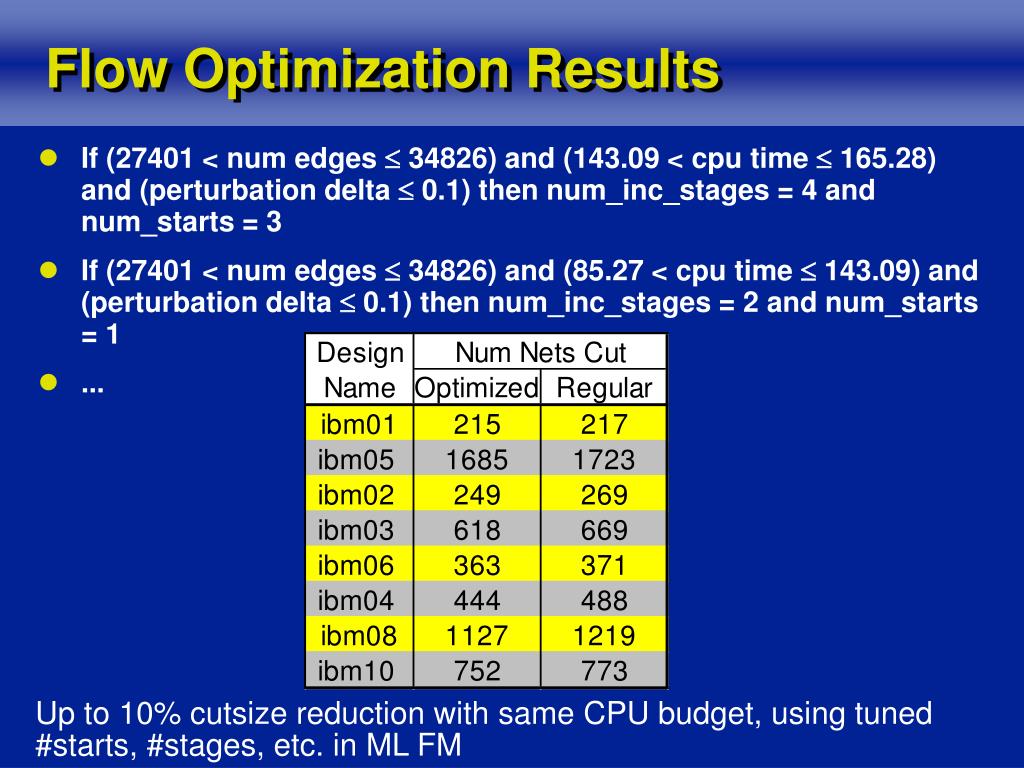

33. Flow Optimization Results • If (27401 < num edges  34826) and (143.09 < cpu time  165.28) and (perturbation delta  0.1) then num_inc_stages = 4 and num_starts = 3 • If (27401 < num edges  34826) and (85.27 < cpu time  143.09) and (perturbation delta  0.1) then num_inc_stages = 2 and num_starts = 1 • ... Up to 10% cutsize reduction with same CPU budget, using tuned #starts, #stages, etc. in ML FM

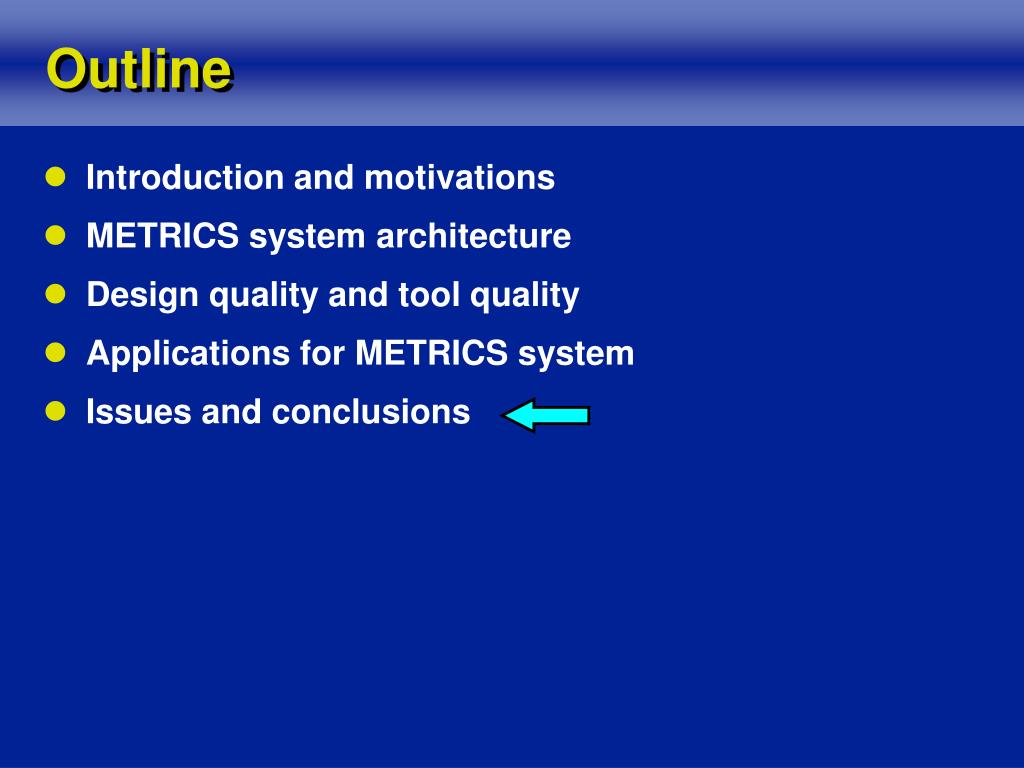

34. Outline • Introduction and motivations • METRICS system architecture • Design quality and tool quality • Applications for METRICS system • Issues and conclusions

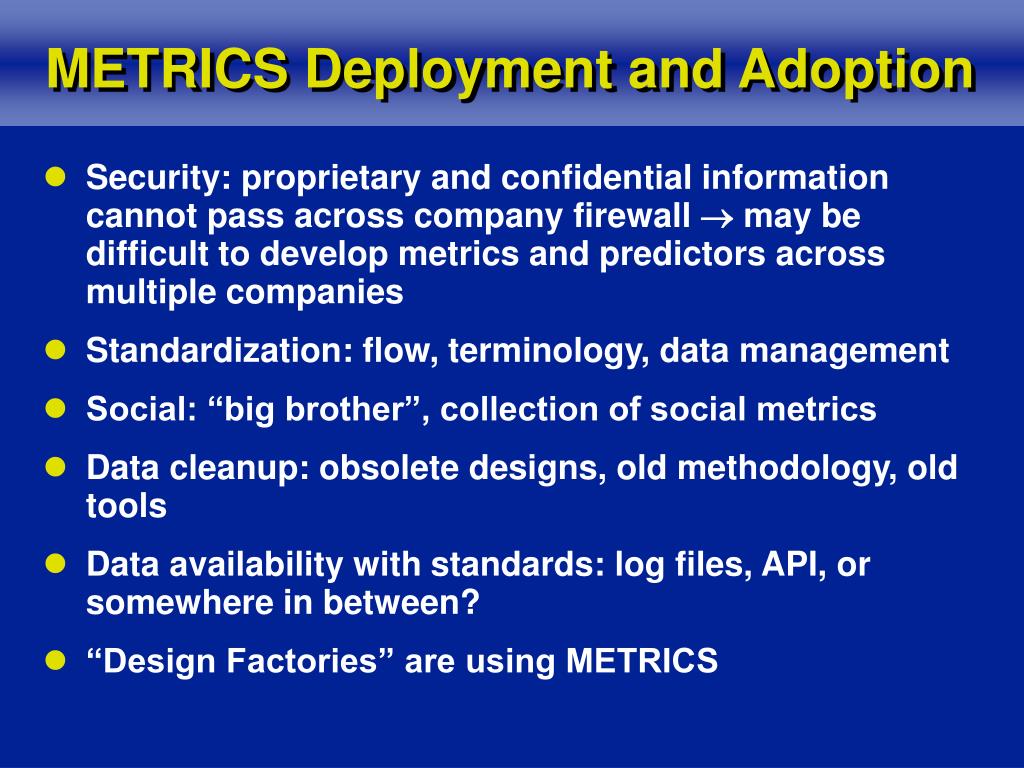

35. METRICS Deployment and Adoption • Security: proprietary and confidential information cannot pass across company firewall  may be difficult to develop metrics and predictors across multiple companies • Standardization: flow, terminology, data management • Social: “big brother”, collection of social metrics • Data cleanup: obsolete designs, old methodology, old tools • Data availability with standards: log files, API, or somewhere in between? • “Design Factories” are using METRICS

36. Conclusions • METRICS System : automatic data collection and real-time reporting • New design and process metrics with standard naming • Analysis of EDA tool quality in presence of input noise • Applications of METRICS: tool solution quality estimator (e.g., placement) and instance-specific tool parameter tuning (e.g., incremental partitioner) • Ongoing works: • Construct active feedback from METRICS to design process for automated process improvement • Expand the current metrics list to include enterprise metrics (e.g., number of engineers, number of spec revisions, etc.)
