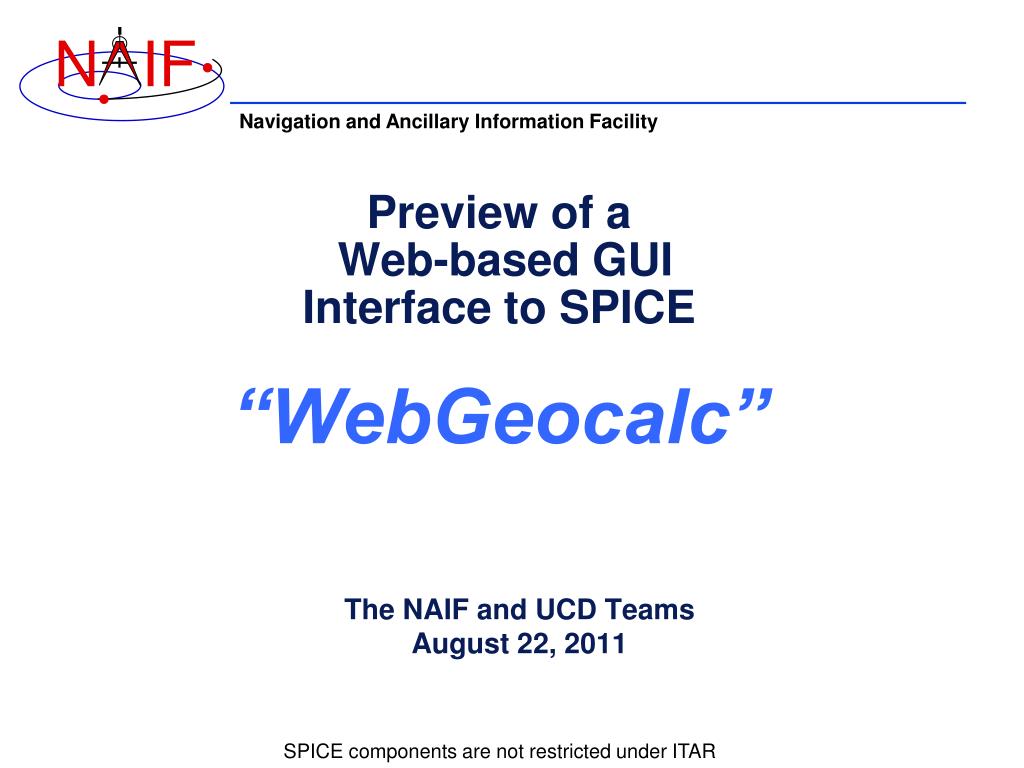

  1. Preview of a Web-based GUIInterface to SPICE“WebGeocalc” The NAIF and UCD Teams August 22, 2011 SPICE components are not restricted under ITAR

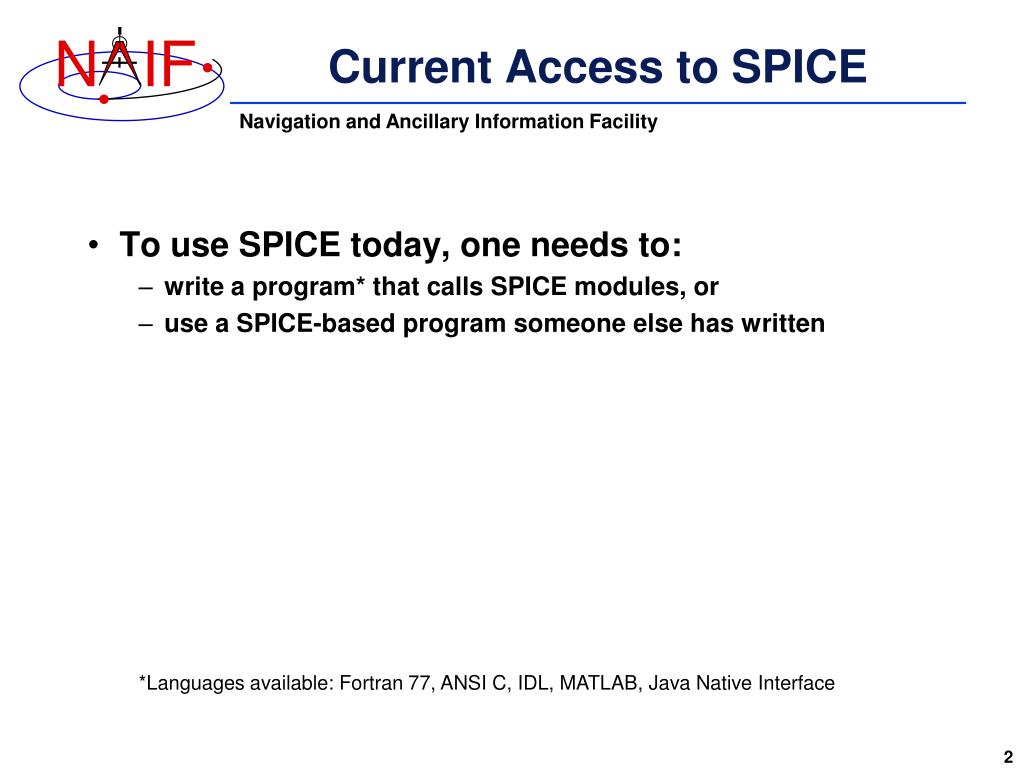

  2. Current Access to SPICE • To use SPICE today, one needs to: • write a program* that calls SPICE modules, or • use a SPICE-based program someone else has written *Languages available: Fortran 77, ANSI C, IDL, MATLAB, Java Native Interface

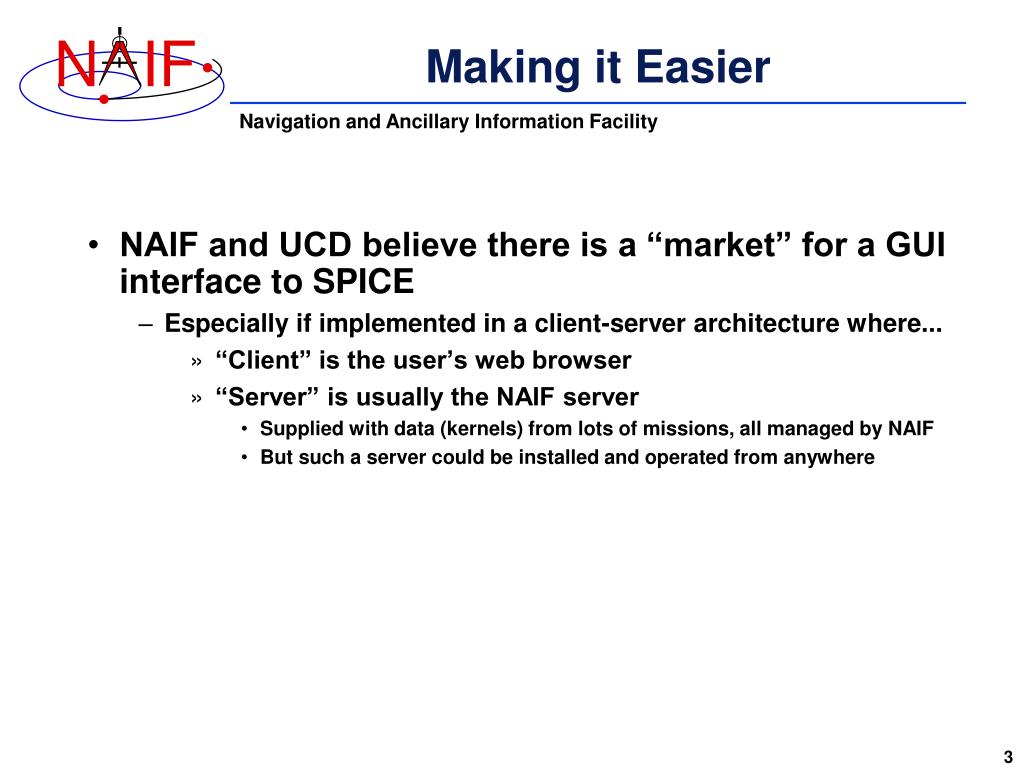

  3. Making it Easier • NAIF and UCD believe there is a “market” for a GUI interface to SPICE • Especially if implemented in a client-server architecture where... • “Client” is the user’s web browser • “Server” is usually the NAIF server • Supplied with data (kernels) from lots of missions, all managed by NAIF • But such a server could be installed and operated from anywhere

  4. Why Build This Tool? • Provides much SPICE capability to people who can’t or won’t do programing • Can be used as a “gold bar” validation for SPICE-based pipeline code being written by a customer • Customers can obtain “one-off” answers to many kinds of geometry questions very quickly • E.g. in a meeting • E.g. back of the envelope analysis • Provides outputs in several forms: • Screen displays, saved to a log file for subsequent use • Tabular, exported into Excel • Plots, pasted into other documents

  5. “Both Kinds” of SPICE Calcs. • You’ll see that the tool does “both kinds” of SPICE computations • Compute parameter “blah” at time T • Find the times, or time intervals, when: • parameter “blah” has some value or is in some range • when condition “blurp” is true (or is not true) • (NAIF calls this “geometry finder”) • The user may chain together multiple computations. • Rather like an interpreted language

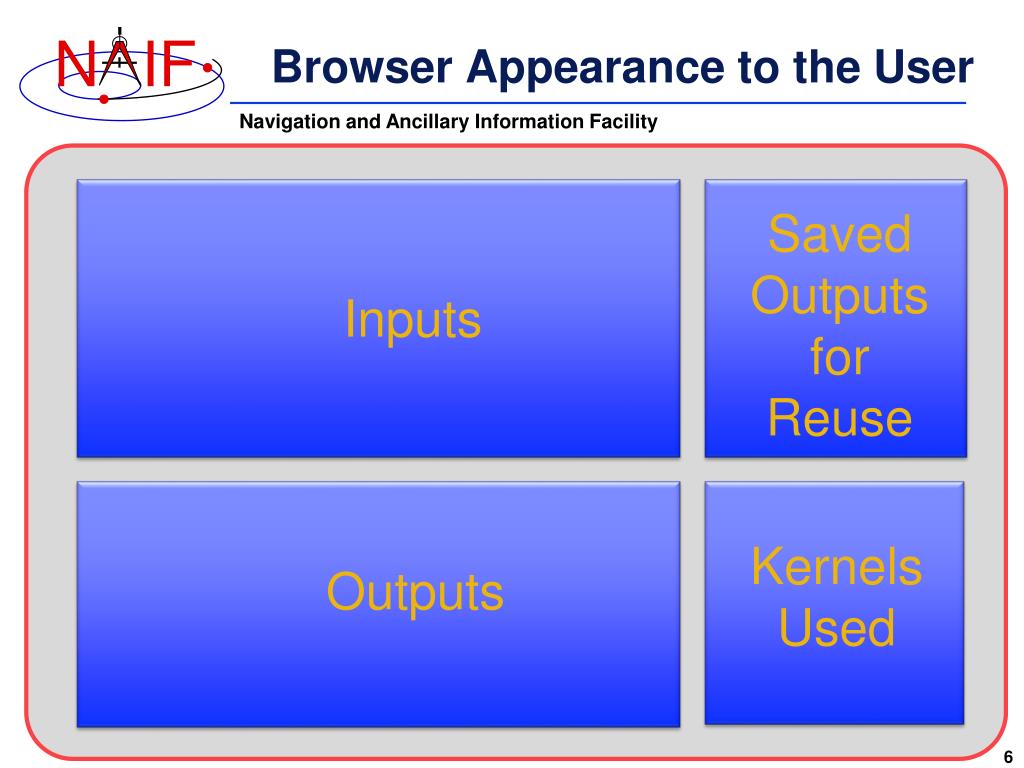

  6. Browser Appearance to the User Saved Outputs for Reuse Inputs Kernels Used Outputs

  7. Sample Screenshot - 1 Inputs area Outputs area

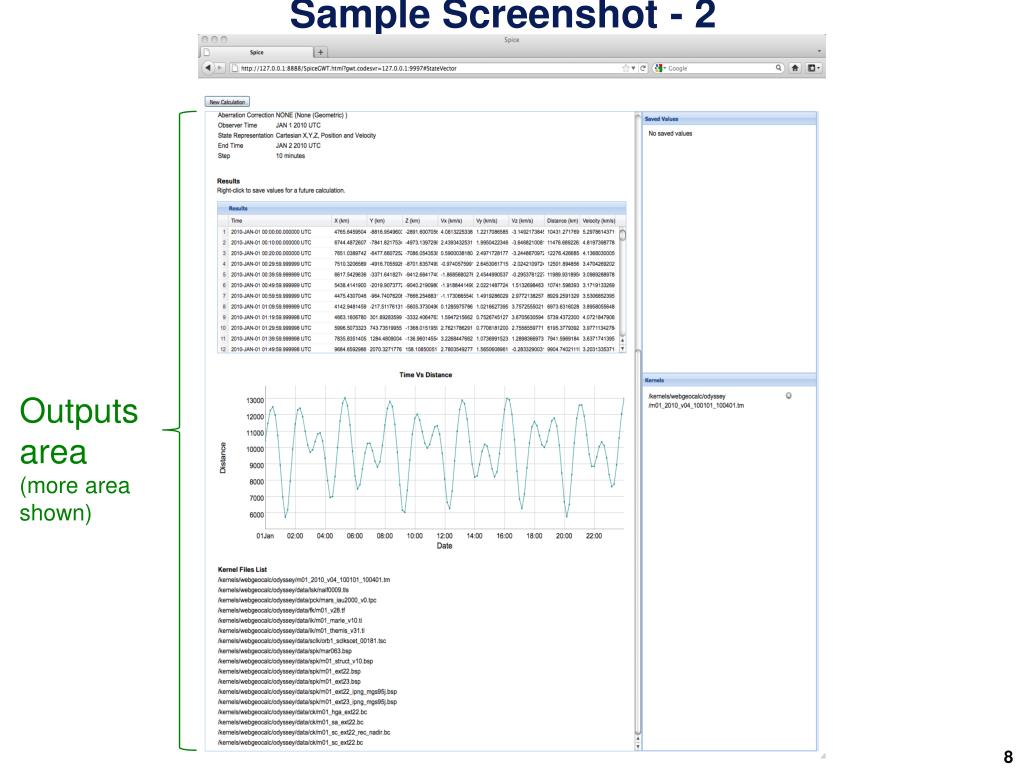

  8. Sample Screenshot - 2 Outputs area (more area shown)

  9. Why Show This Tool to the PDSMC? • Do you think WebGeocalc would be useful to the space science community? • Have you any recommendations about from whom to get some functionality and usability feedback? Also… • We believe this tool would not serve any function within the core of the PDS4 system, but thought the MC should have a chance to weigh in on this. • Comments?

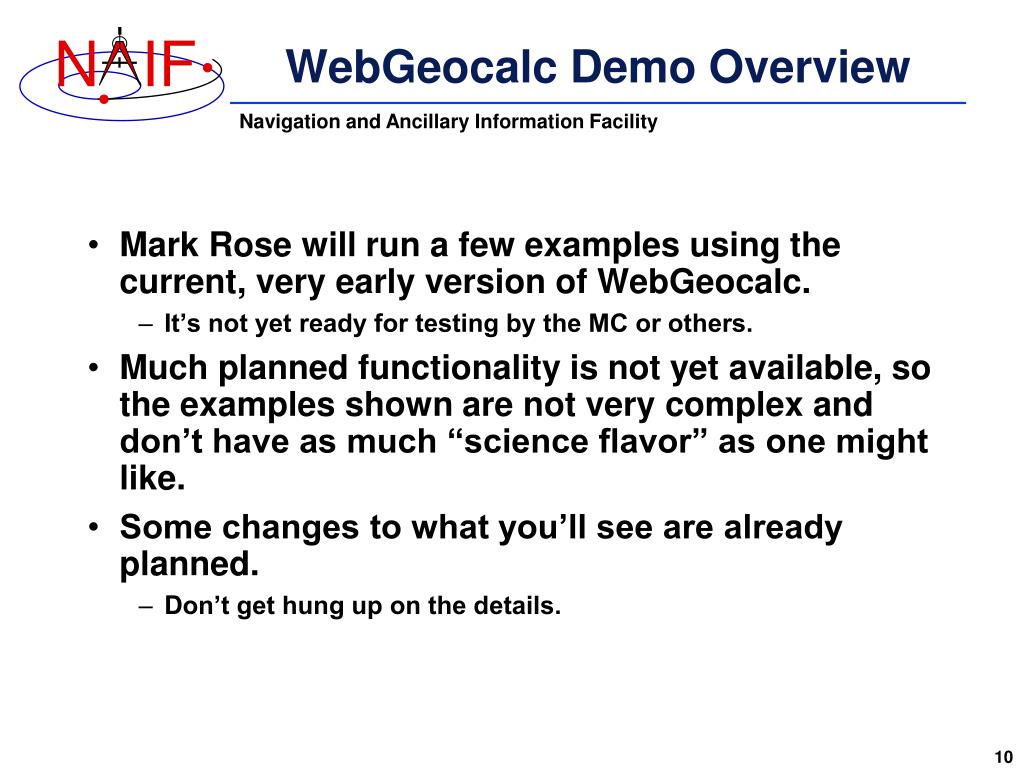

  10. WebGeocalc Demo Overview • Mark Rose will run a few examples using the current, very early version of WebGeocalc. • It’s not yet ready for testing by the MC or others. • Much planned functionality is not yet available, so the examples shown are not very complex and don’t have as much “science flavor” as one might like. • Some changes to what you’ll see are already planned. • Don’t get hung up on the details.

  11. Four User Scenarios • Compute and plot the range from Odyssey to Phobos, regardless of whether or not Mars is occulting Phobos. • Within a user supplied bounding window, find all of the Odyssey equator crossing times. • Within a user supplied bounding window, find the time intervals when Mars Odyssey is in view of the MER Opportunity rover. • a) Within a given bounding window, find the times when Cassini is within X km of Titan. b) Using any one interval from the previous result, compute distance and sub-spacecraftlocation in the Titan-fixed reference frame.

  12. Mark Do the Demo Now

  13. Challenges “Kernel management is the Achilles heel of SPICE” --B.C. • Making it “easy” for users to load the right and necessary kernels is the largest challenge. • So far we have largely put off this part of the work • Will the GUI interface, including its Help and SPICE Error Message displays, be sufficient to get users confidently achieving what they want?

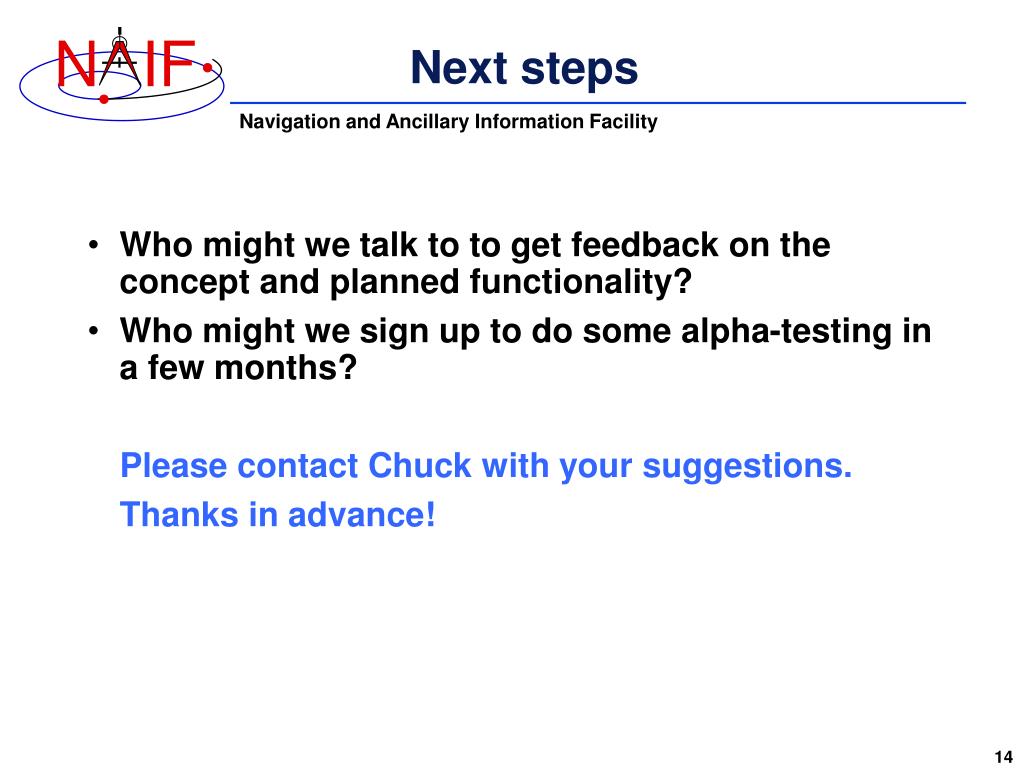

  14. Next steps • Who might we talk to toget feedback on the concept and planned functionality? • Who might we sign up to do some alpha-testing in a few months? Please contact Chuck with your suggestions. Thanks in advance!

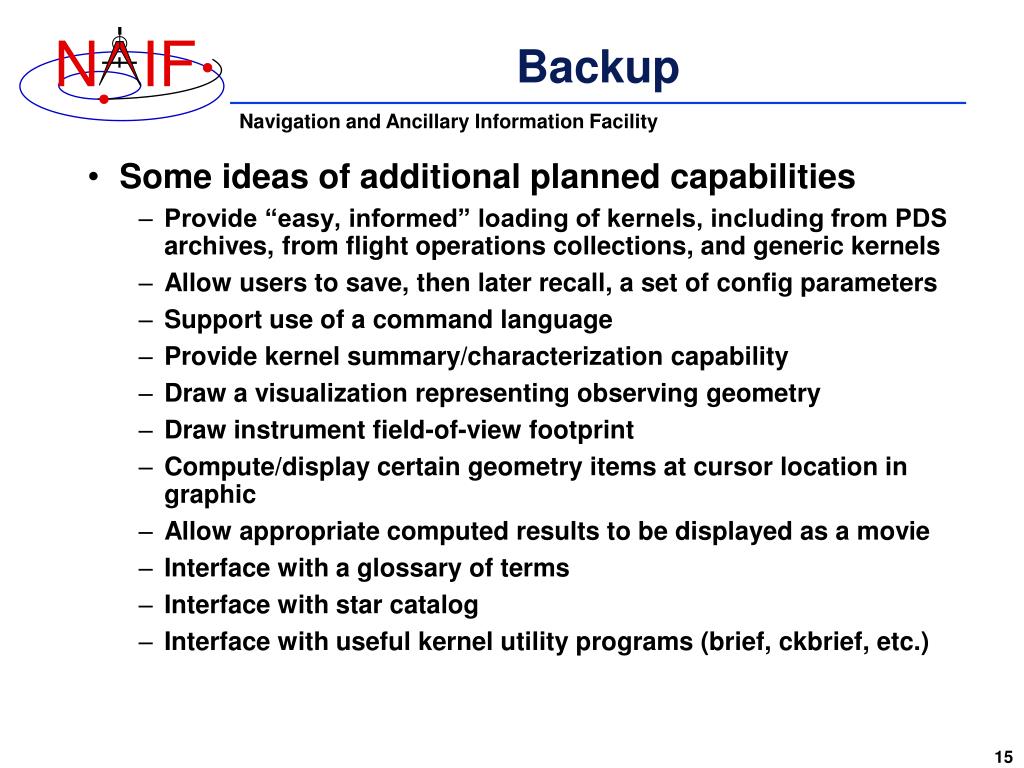

  15. Backup • Some ideas of additional planned capabilities • Provide “easy, informed” loading of kernels, including from PDS archives, from flight operations collections, and generic kernels • Allow users to save, then later recall, a set of config parameters • Support use of a command language • Provide kernel summary/characterization capability • Draw a visualization representing observing geometry • Draw instrument field-of-view footprint • Compute/display certain geometry items at cursor location in graphic • Allow appropriate computed results to be displayed as a movie • Interface with a glossary of terms • Interface with star catalog • Interface with useful kernel utility programs (brief, ckbrief, etc.)
