  1. Exploring Remote Object Coherence in XML Web Services Robert van Engelen and Wei Zhang Florida State University Madhusudhan Govindaraju State University of New Yorkat Binghamton ICWS 2006

  2. Outline • Motivation • “O/X” impedance mismatch • Object-level coherence requirements • Mapping programming language types to XML • Static-dynamic algorithms for XML (de)serialization • Results and conclusions ICWS 2006

  3. Motivation Can object-level coherence be achieved to ensure data structures and object graphs preserve their states and structure when moved in XML (de)serialization format? ICWS 2006

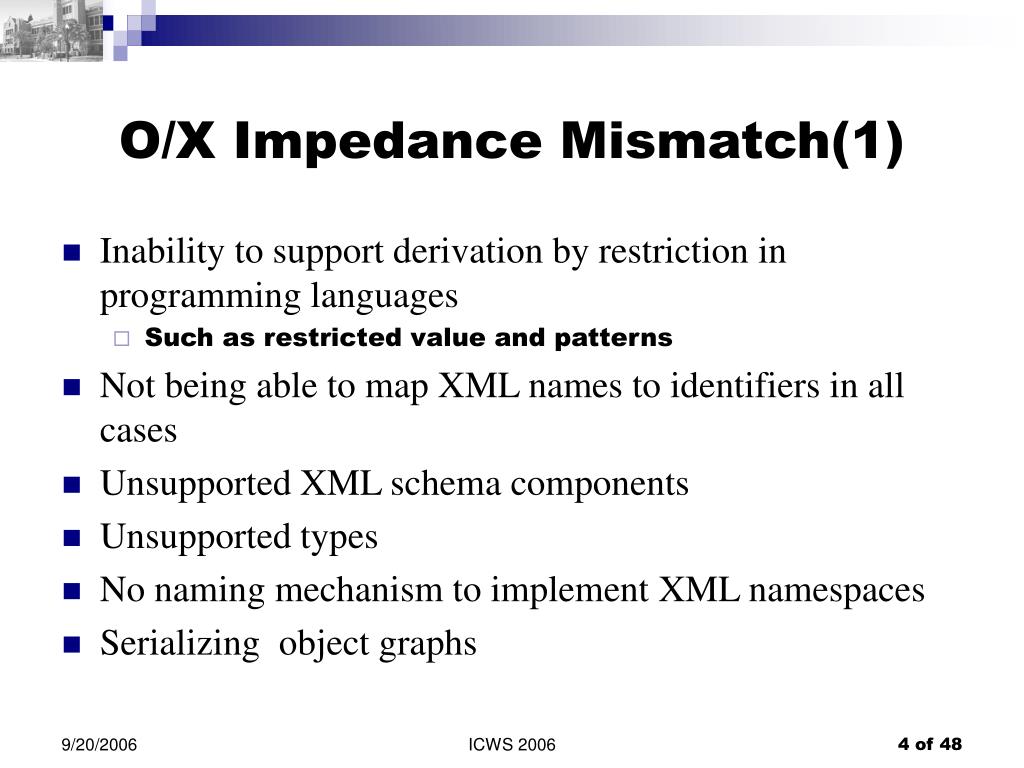

  4. O/X Impedance Mismatch(1) • Inability to support derivation by restriction in programming languages • Such as restricted value and patterns • Not being able to map XML names to identifiers in all cases • Unsupported XML schema components • Unsupported types • No naming mechanism to implement XML namespaces • Serializing object graphs ICWS 2006

  5. C++ class: Using namespace a; Class X { Y_TYPE: y; What to be here for namespace b? … } Namespaces vs Packages • XML namespace concept can not be translated to c++ namespaces or Java packages Schema snippet: <complexType name=“X”> <sequence> <element name=“a:y” type=“a:Y_TYPE”/> <element ref=“b:x” /> </sequence> … </complexType> ICWS 2006

  6. Serializing a graph of object requires object-level coherence to ensure application-level interoperability ICWS 2006

  7. XML Web Services Client Server Objectgraph y Objectgraph x Objectgraph XML Serialization XML Deserialization XML Send request Receive request Server:transform yinto y’ Objectgraph y’ Objectgraph x’ Objectgraph XML Deserialization XML Serialization XML Receive response Send response ICWS 2006

  8. Web Service Tools:Lossy Serialization in XML XML Serialization Objectgraph x Objectgraph y XML Deserialization Internal binary format X XML Serialization in XML can be lossy, because object graph x cannot be recoveredfrom its serialized XML form if we are not careful about the choice of mapping ICWS 2006

  9. Basic Requirement:Object Graph Isomorphism Mapping M Objectgraph x Objectgraph y Inverse mapping M -1 Representation X Representation Y Object graphs x and y are isomorph if M is bijective and has an inverse M-1Object-level coherence requires bijective mappings, so that distributedand serialized object graphs are always isomorph ICWS 2006

  10. Object Coherence Requires Lossless XML Serialization Serialization method M Objectgraph x Objectgraph y Deserialization method M -1 Internal binary format X XML Serialization is lossless if an object graph x can be recovered from itsserialized XML form y = M(x) by deserializing x = M-1(y) We consider structural equivalence only (location in memory is irrelevant)e.g. as in JavaRMI, IIOP, and DCOM ICWS 2006

  11. X X X X Y X X Y Z Static Structure Analysis forSOAP RPC Encoding ICWS 2006

  12. X X X X Y X X Y Z Static Structure Analysis for Document/Literal Encoding ICWS 2006

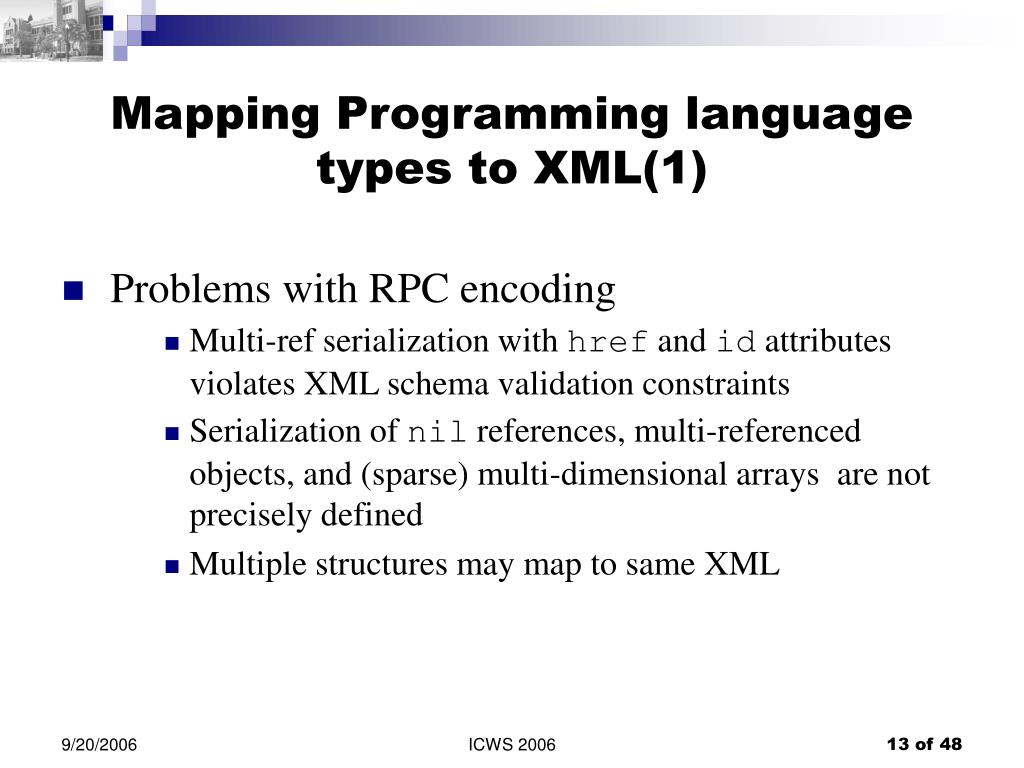

  13. Mapping Programming language types to XML(1) • Problems with RPC encoding • Multi-ref serialization with href and id attributes violates XML schema validation constraints • Serialization of nil references, multi-referenced objects, and (sparse) multi-dimensional arrays are not precisely defined • Multiple structures may map to same XML ICWS 2006

  14. Mapping Programming language types to XML(2) • Mapping SOAP RPC encoding style requirements • Mapping primitive types to built-in primitive XSD types and vice versa • Mapping records (structs, classes) to xs:complexType • Mapping arrays to SOAP arrays by ensuring support for SOAP 1.1 partial and sparse arrays • Object graph must be serialized with multi-reference encoding • Choosing a naming mechanism for XML namespaces resolution to avoid name clashes • prefix_name ICWS 2006

  15. Mapping Programming language types to XML(3) • Mapping SOAP Document/Literal encoding style requirements • Mapping XML attribute definitions within an xs:complexType • Support for repetitions of xs:element in xs:complexType sequences • Support for use of xs:choice and xs:any • Support for xs:group and xs:attributeGroup • Support for substitution group • Support for top-level element, attribute definitions and references • Support for mixed contents ICWS 2006

  16. gSOAP project: A static-dynamic approach to XML (de)serialization ICWS 2006

  17. Static Structure Analysis forCompiled XML Serialization • Construct a data model • Compiler determines which data type instances can refer to other data type instances at run time • Generate type-specific points-to analysis algorithm • Only needed for pointer types and structs/classes with pointer fields • Generate type-specific optimized serialization code • Serializer uses id-ref linking based on pointer analysis Source codetype definitions Compiler generates generates Points-toanalysis Optimizedserializer Ptr hash table(graph edges) ICWS 2006

  18. Constructing a Plausible Data Model from Source Code typedef int SSN;struct Node{ int val; int *ptr; float num; struct Node *next;}; val ptr num next Node SSN Data model graph(arcs denote all possiblepointer references) Source code typedefinitions ICWS 2006

  19. Generating an XML Schema Definition for Serialized XML <simpleType name=“SSN”> <restriction base=“int”/></simpleType><complexType name=“Node”> <sequence> <element name=“val” type=“int”/> <element name=“ptr” type=“int” minOccurs=“0”/> <element name=“num” type=“float”/> <element name=“next” type=“tns:Node” minOccurs=“0”/> </sequence></complexType> val ptr num next Node SSN Data model graph ICWS 2006

  20. Generating Code for Runtime Points-To Analysis serialize_pointerToint(int *p) { if (p != NULL) { // lookup and mark (p,TYPE_int) // as target in ptr hash table }}serialize_Node(struct Node *p){ if (p != NULL) { // lookup and mark (p,TYPE_Node) // as target in ptr hash table mark_embedded(&p->val,TYPE_int); serialize_pointerToint(p->ptr); // skip p->num serialize_pointerToNode(p->next); }} val ptr num next Node SSN Data model graph ICWS 2006

  21. Generating Serialization Code put_pointerToint(int *p) { if (p != NULL) { // lookup (p,TYPE_int) // if embedded, then output “ref” // if single, then output value // if multi, then output value // with “id” and mark embedded }}put_Node(struct Node *p){ if (p != NULL) { // lookup (p,TYPE_Node) // if embedded, then output “ref” // if single, then output value // if multi, then output value // with “id” and mark embedded put_int(&p->val); put_pointerToint(p->ptr); put_float(&p->num) put_pointerToNode(p->next); }} val ptr num next Node SSN ICWS 2006

  22. Serialization Example val=123 ptr=B num=1.4 next=B val=456 ptr=C num=2.3 next=A Nodeloc=A Nodeloc=B =789 Ptr hash table after runtime points-to analysis by thegenerated algorithm constructed from the data model SSNloc=C ICWS 2006

  23. Example (cont’d) multi, id=1 single val=123 ptr=B num=1.4 next=B val=456 ptr=C num=2.3 next=A multi, id=1 Nodeloc=A Nodeloc=B single embedded, id=2 =789 SSNloc=C ICWS 2006

  24. Example (cont’d) multi, id=1 single val=123 ptr=B num=1.4 next=B val=456 ptr=C num=2.3 next=A multi, id=1 Nodeloc=A Nodeloc=B single embedded, id=2 =789 <Node id=“_1”></Node> SSNloc=C ICWS 2006

  25. Example (cont’d) multi, id=1 single val=123 ptr=B num=1.4 next=B val=456 ptr=C num=2.3 next=A multi, id=1 Nodeloc=A Nodeloc=B single embedded, id=2 =789 <Node id=“_1”> <val>123</val></Node> SSNloc=C ICWS 2006

  26. Example (cont’d) multi, id=1 single val=123 ptr=B num=1.4 next=B val=456 ptr=C num=2.3 next=A multi, id=1 Nodeloc=A Nodeloc=B single embedded, id=2 =789 <Node id=“_1”> <val>123</val> <ptr ref=“#_2”/></Node> SSNloc=C ICWS 2006

  27. Example (cont’d) multi, id=1 single val=123 ptr=B num=1.4 next=B val=456 ptr=C num=2.3 next=A multi, id=1 Nodeloc=A Nodeloc=B single embedded, id=2 =789 <Node id=“_1”> <val>123</val> <ptr ref=“#_2”/> <num>1.4</num></Node> SSNloc=C ICWS 2006

  28. Example (cont’d) multi, id=1 single val=123 ptr=B num=1.4 next=B val=456 ptr=C num=2.3 next=A multi, id=1 Nodeloc=A Nodeloc=B single embedded, id=2 =789 <Node id=“_1”> <val>123</val> <ptr ref=“#_2”/> <num>1.4</num> <next> </next></Node> SSNloc=C ICWS 2006

  29. Example (cont’d) multi, id=1 single val=123 ptr=B num=1.4 next=B val=456 ptr=C num=2.3 next=A multi, id=1 Nodeloc=A Nodeloc=B single embedded, id=2 =789 <Node id=“_1”> <val>123</val> <ptr ref=“#_2”/> <num>1.4</num> <next> <val id=“_2”>456</val> </next> </Node> SSNloc=C ICWS 2006

  30. Example (cont’d) multi, id=1 single val=123 ptr=B num=1.4 next=B val=456 ptr=C num=2.3 next=A multi, id=1 Nodeloc=A Nodeloc=B single embedded, id=2 =789 <Node id=“_1”> <val>123</val> <ptr ref=“#_2”/> <num>1.4</num> <next> <val id=“_2”>456</val> <ptr>789</ptr> </next></Node> SSNloc=C ICWS 2006

  31. Example (cont’d) multi, id=1 single val=123 ptr=B num=1.4 next=B val=456 ptr=C num=2.3 next=A multi, id=1 Nodeloc=A Nodeloc=B single embedded, id=2 =789 <Node id=“_1”> <val>123</val> <ptr ref=“#_2”/> <num>1.4</num> <next> <val id=“_2”>456</val> <ptr>789</ptr> <num>2.3</num> </next></Node> SSNloc=C ICWS 2006

  32. Example (cont’d) multi, id=1 single val=123 ptr=B num=1.4 next=B val=456 ptr=C num=2.3 next=A multi, id=1 Nodeloc=A Nodeloc=B single embedded, id=2 =789 <Node id=“_1”> <val>123</val> <ptr ref=“#_2”/> <num>1.4</num> <next> <val id=“_2”>456</val> <ptr>789</ptr> <num>2.3</num> <next ref=“#_1”/> </next></Node> SSNloc=C ICWS 2006

  33. Example (cont’d) multi, id=1 single val=123 ptr=B num=1.4 next=B val=456 ptr=C num=2.3 next=A multi, id=1 Nodeloc=A Nodeloc=B single embedded, id=2 =789 <Node id=“_1”> <val>123</val> <ptr ref=“#_2”/> <num>1.4</num> <next> <val id=“_2”>456</val> <ptr>789</ptr> <num>2.3</num> <next ref=“#_1”/> </next></Node> SSNloc=C ICWS 2006

  34. Compiled XML Deserialization • For each data type, generate optimized deserialization code: • Generate a recursive descent LL(1) XML parser that is optimized for the data type • Embed deserialization operations as semantic actions in the parser • Invoke id hash table lookups as semantic actions to resolve id-ref references on the fly • The pointer remapper ensures the consistency of pointers in the object graph when nodes are moved in the construction process Source codetype definitions Compiler generates LL(1) parser & deserializer Pointerremapper Id hash table(resolve id-ref) ICWS 2006

  35. Deserialization Example <Node id=“_1”></Node> Recursive descent parsingwith object deserializationoperations as semantic actions val=? ptr=? num=? next=? id=1 Node ICWS 2006

  36. Example (cont’d) <Node id=“_1”> <val>123</val></Node> Recursive descent parsingwith object deserializationoperations as semantic actions val=123 ptr=? num=? next=? id=1 Node ICWS 2006

  37. Example (cont’d) <Node id=“_1”> <val>123</val> <ptr ref=“#_2”/></Node> Recursive descent parsingwith object deserializationoperations as semantic actions val=123 ptr=? num=? next=? id=1 Node ref=2(unresolved) ICWS 2006

  38. Example (cont’d) <Node id=“_1”> <val>123</val> <ptr ref=“#_2”/> <num>1.4</num></Node> Recursive descent parsingwith object deserializationoperations as semantic actions val=123 ptr=? num=1.4 next=? id=1 Node ref=2(unresolved) ICWS 2006

  39. Example (cont’d) <Node id=“_1”> <val>123</val> <ptr ref=“#_2”/> <num>1.4</num> <next> </next></Node> Recursive descent parsingwith object deserializationoperations as semantic actions val=123 ptr=? num=1.4 next=B val=? ptr=? num=? next=? id=1 Node Node ref=2(unresolved) ICWS 2006

  40. Example (cont’d) <Node id=“_1”> <val>123</val> <ptr ref=“#_2”/> <num>1.4</num> <next> <val id=“_2”>456</val> </next></Node> Recursive descent parsingwith object deserializationoperations as semantic actions val=123 ptr=B num=1.4 next=B val=456 ptr=? num=? next=? id=1 id=2 Node Node ICWS 2006

  41. Example (cont’d) <Node id=“_1”> <val>123</val> <ptr ref=“#_2”/> <num>1.4</num> <next> <val id=“_2”>456</val> <ptr>789</ptr> </next></Node> Recursive descent parsingwith object deserializationoperations as semantic actions val=123 ptr=B num=1.4 next=B val=456 ptr=C num=? next=? id=1 id=2 Node Node =789 ICWS 2006 SSN

  42. Example (cont’d) <Node id=“_1”> <val>123</val> <ptr ref=“#_2”/> <num>1.4</num> <next> <val id=“_2”>456</val> <ptr>789</ptr> <num>2.3</num> </next></Node> Recursive descent parsingwith object deserializationoperations as semantic actions val=123 ptr=B num=1.4 next=B val=456 ptr=C num=2.3 next=? id=1 id=2 Node Node =789 ICWS 2006 SSN

  43. Example (cont’d) <Node id=“_1”> <val>123</val> <ptr ref=“#_2”/> <num>1.4</num> <next> <val id=“_2”>456</val> <ptr>789</ptr> <num>2.3</num> <next ref=“#_1”/> </next></Node> Recursive descent parsingwith object deserializationoperations as semantic actions val=123 ptr=B num=1.4 next=B val=456 ptr=C num=2.3 next=A id=1 Node Node =789 ICWS 2006 SSN

  44. Example (cont’d) <Node id=“_1”> <val>123</val> <ptr ref=“#_2”/> <num>1.4</num> <next> <val id=“_2”>456</val> <ptr>789</ptr> <num>2.3</num> <next ref=“#_1”/> </next></Node> Recursive descent parsingwith object deserializationoperations as semantic actions val=123 ptr=B num=1.4 next=B val=456 ptr=C num=2.3 next=A id=1 Node Node =789 ICWS 2006 SSN

  45. Performance Results Measured on roundtrip message containing a struct of size 1.2KB Performance results in number of roundtrip messages per second of a benchmark client/server application on various platforms. ICWS 2006

  46. Performance Results(2) Measured on echoString With various array sizes End-to-end performance (in milliseconds) of a gSOAP benchmark application with and without multi-ref encoding. The data show that gSOAP’s multi-ref implementation adds just 2% to 3% overhead, which is minimal. ICWS 2006

  47. Performance Comparison to Other XML Parsers Measured on echoString Of size 1KB Experimental parsers ICWS 2006

  48. Conclusions • Object-level coherence in XML Web Service can be achieved with specialized algorithms • Design space of mapping issues is large • Algorithms to (de)serialize non-primitive data structures ensuring object-level coherence and performance guarantees • Work best with SOAP 1.2 RPC encoding • For SOAP document/literal style, we suggest use of id-ref ICWS 2006

  49. Thank You ICWS 2006

  50. Implementation: the gSOAP Toolkit • Web service applications are build in two stages: • Generate service definitions in familiar C/C++ header file format • Generate client/server stubs and skeleton source code and serialization code • Note: the soapcpp2 compiler can also be used to generate WSDL from header files Service defs:service.wsdl wsdl2h tool Header file defs:service.h soapcpp2compiler soapClient.cppsoapServer.cppsoapC.cpp ICWS 2006
