Tree Identification

Tree Identification. 1103 Jennifer Woods PowerPoint 1 - Leaves. Tree Identification Characteristics. In order to correctly identify trees in nature it is important to know certain characteristics used in tree identification.

Télécharger la présentation

Tree Identification

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.


Presentation Transcript

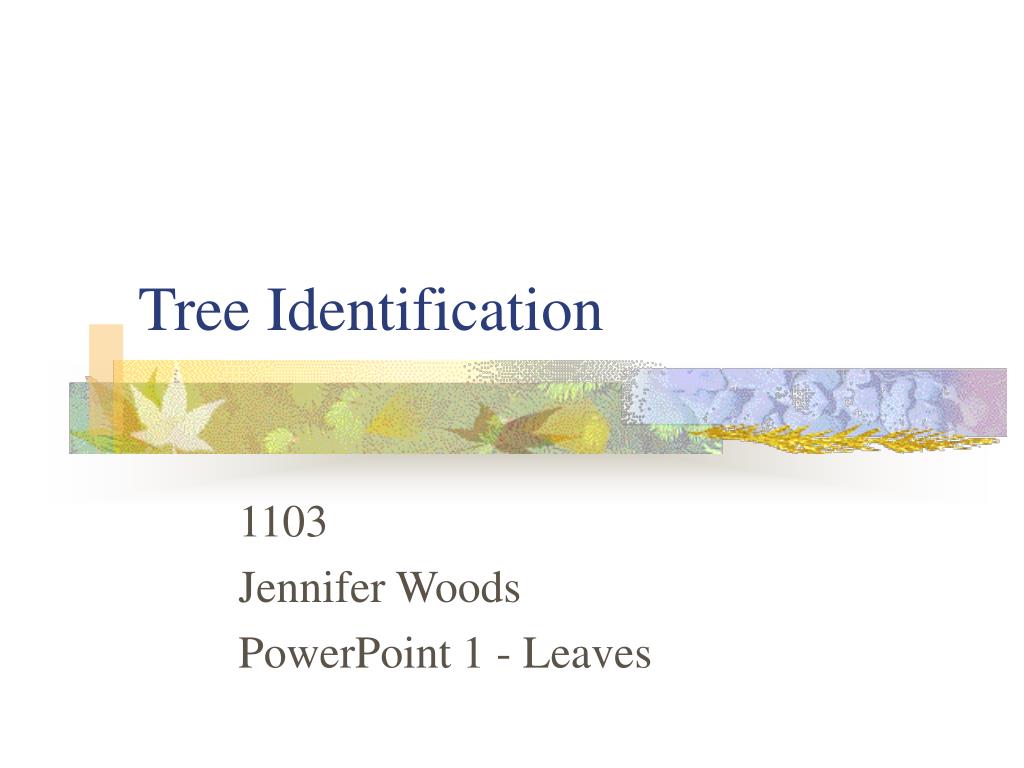

  1. Tree Identification 1103 Jennifer Woods PowerPoint 1 - Leaves

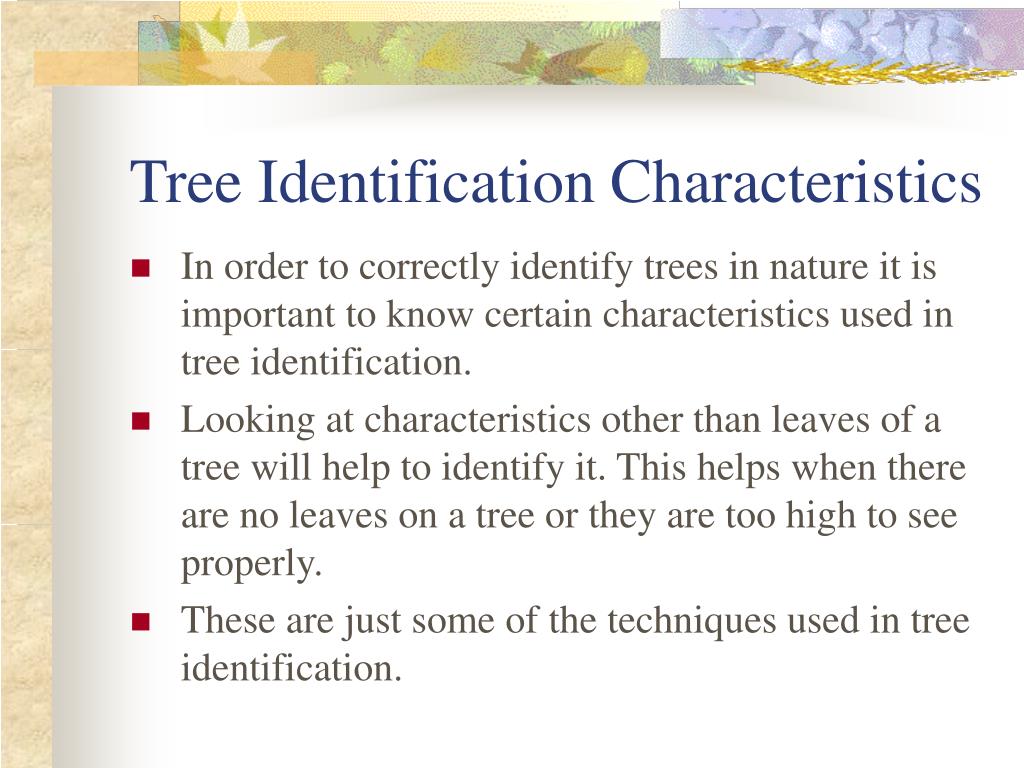

  2. Tree Identification Characteristics • In order to correctly identify trees in nature it is important to know certain characteristics used in tree identification. • Looking at characteristics other than leaves of a tree will help to identify it. This helps when there are no leaves on a tree or they are too high to see properly. • These are just some of the techniques used in tree identification.

  3. Tree Identification Characteristics • Some of these characteristics that should be looked at when identifying a tree are: • Leaf shape • Twigs and buds • Bud scars • Fruit • Flowers • Bark • Tree form/Branching pattern • Where the tree is growing and what other plants and trees it may be growing around.

  4. Leaves • Leaves are the best and often the easiest way to identify a tree. • Needles and scale of evergreens are also considered leaves. • Questions to consider when identifying leaves: • Are the leaves: • simple or compound?  • margins smooth or margins rough?  • any sinuses or lobes? • What is the size, shape, texture, and color variation of the leaves?

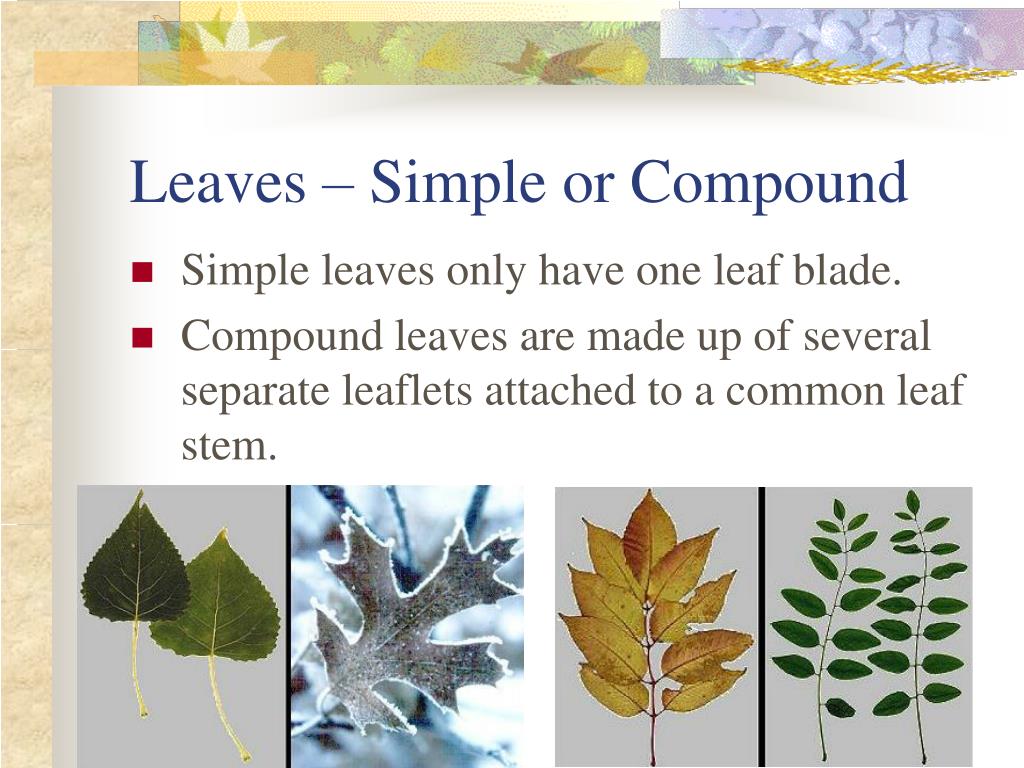

  5. Leaves – Simple or Compound • Simple leaves only have one leaf blade. • Compound leaves are made up of several separate leaflets attached to a common leaf stem.

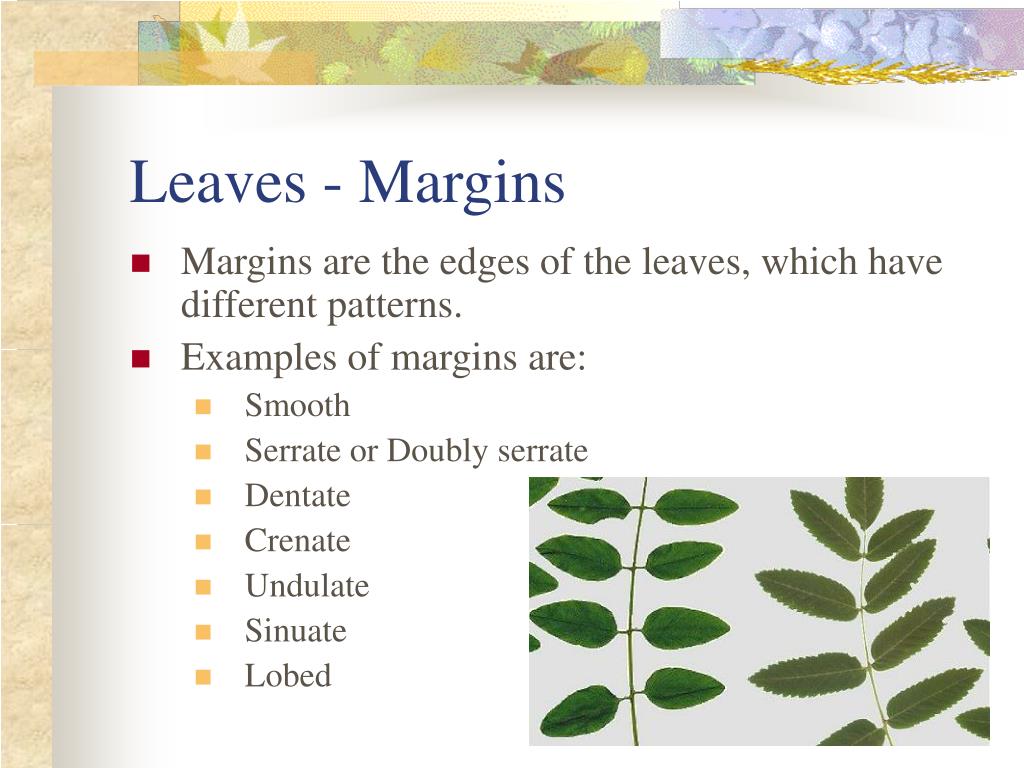

  6. Leaves - Margins • Margins are the edges of the leaves, which have different patterns. • Examples of margins are: • Smooth • Serrate or Doubly serrate • Dentate • Crenate • Undulate • Sinuate • Lobed

  7. Leaves – Sinuses or Lobes • A sinus is the indentation between two lobes. • A lobe is a division of a leaf blade that is broadly attached.

  8. Leaves - Shapes • Leaves can come in many shapes. • Some examples of leaf shapes are triangular, oval, or elliptical.

  9. Leaf Arrangements • Leaf arrangement refers to the leaf arrangement on the stem of the tree. • Leaves are arranged in three different ways: • Opposite – Buds form in pairs on either side of the twig. • Alternate – Buds are arranged singly at intervals along the twigs. • Whorled – Buds are arranged in circles around the twig.

  10. Leaf Arrangements • Most trees have alternate branching.

  11. Tree Identification 1103 Jennifer Woods PowerPoint 2 – Twigs, Buds, Fruit, Bark, Tree Forms

  12. Twigs and Buds • A twig is the current year’s growth on a tree. • A bud is where the leaves will eventually grow from and is located on a twig. Buds can be pointy, blunt, shiny, dull, smooth, hairy, and come in many colors. • A bud scar is where last year’s leaves fell off. Bud scars are unique for every species.

  13. Twigs and Buds • Terminal buds are on the end of a twig. • The marks inside a leaf scar are called bundle scars.

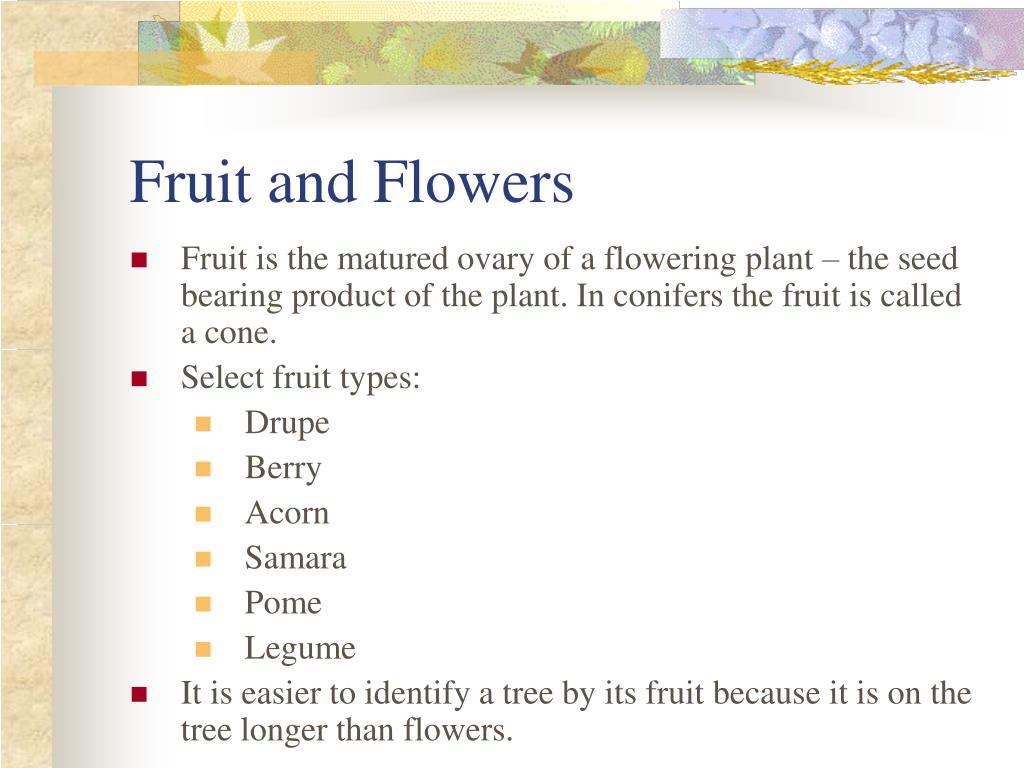

  14. Fruit and Flowers • Fruit is the matured ovary of a flowering plant – the seed bearing product of the plant. In conifers the fruit is called a cone. • Select fruit types: • Drupe • Berry • Acorn • Samara • Pome • Legume • It is easier to identify a tree by its fruit because it is on the tree longer than flowers.

  15. Fruit and Flowers • Many trees do not have perfect flowers, most have imperfect flowers. • Flower and fruit clusters are termed inflorescences. • Types of inflorescences: • Spike • Raceme • Panicle • Corymb • Umbel • Cyme

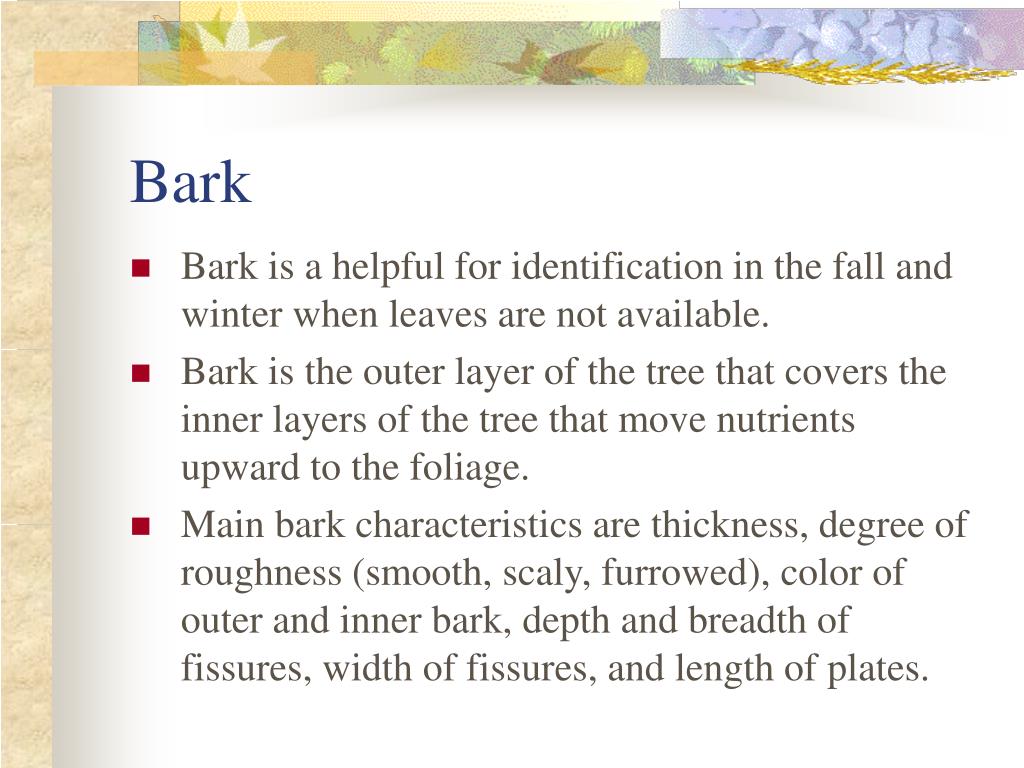

  16. Bark • Bark is a helpful for identification in the fall and winter when leaves are not available. • Bark is the outer layer of the tree that covers the inner layers of the tree that move nutrients upward to the foliage. • Main bark characteristics are thickness, degree of roughness (smooth, scaly, furrowed), color of outer and inner bark, depth and breadth of fissures, width of fissures, and length of plates.

  17. Tree Forms • A tree form is basically the silhouette that a tree makes. It is the general overall shape of a tree. • Trees of the same species will not all have the same silhouette. • Tree forms differ by the tree specie, age of tree, whether it is in an open or forested area. • When using tree forms for identification do not use trees in a forested area because they may not have had optimal growth due to light and water requirements.

  18. Tree Forms • Some examples of tree forms are: • Conical (Balsam Fir) • Pyramidal (White Spruce) • Slender (Black Spruce) • Vase-shaped (American Elm) • Oblong (Shagbark Hickory) • Drooping (Weeping Willow)

  19. Tree Identification 1103 Jennifer Woods PowerPoint 3 – Taxonomic Keys, Evergreen Identification, Scientific Names, and Michigan Trees

  20. Taxonomic Key Use • When identifying trees it is also helpful to be able to use tree identification guides and taxonomic keys. • The key works by distinguishing differences among a group of trees by various physical characteristics until only one specie is left. • A taxonomic key is used to identify trees and shrubs by using leaf shape, twigs and buds, seeds, fruit, and cones to narrow a sample down to a specific specie of tree. • Taxonomic keys usually start with a leaf sample.

  21. Angiosperms vs. Gymnosperms • Angiosperm – A flowering plant. • Gymnosperm – young seeds naked at the time of pollination, the mature seeds never borne in an ovary or fruit. • Angiosperms are also considered flowering plants. These trees lose their leaves in the winter with the exception of evergreen angiosperms. • The major group of gymnosperms in Michigan are conifers and the major group of angiosperms are the broad leafed trees.

  22. Evergreen Identification • Evergreens or conifers are identified differently than deciduous trees. • In evergreens needles or scales do not fall off in the winter except in a few species like the tamarack. • Conifers have either needles like a white pine or scales like a cedar. • Cone shape, size, and color can also be used in evergreen identification.

  23. Evergreen Identification • Needles occur in three ways on evergreens: • Needles grow in clusters of two or more (ex. true pines). • Needles grow in clusters of 10 or more in short lateral shoots (ex. Tamarack). • Needles grow solitary along the branch (ex. spruce).

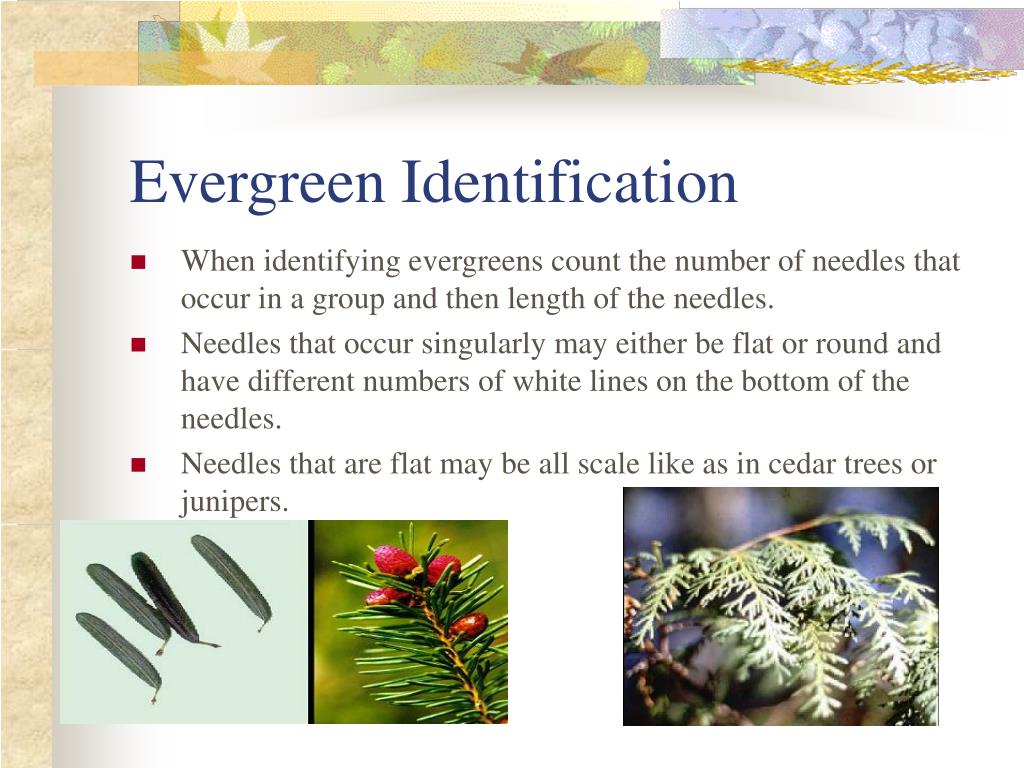

  24. Evergreen Identification • When identifying evergreens count the number of needles that occur in a group and then length of the needles. • Needles that occur singularly may either be flat or round and have different numbers of white lines on the bottom of the needles. • Needles that are flat may be all scale like as in cedar trees or junipers.

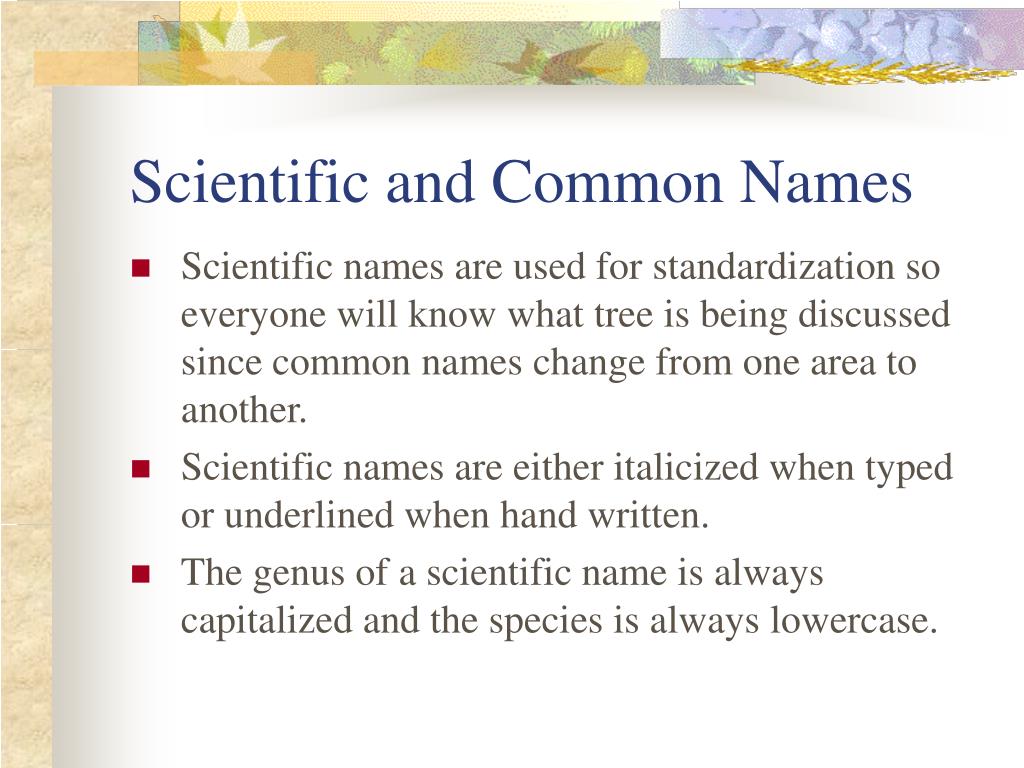

  25. Scientific and Common Names • Scientific names are used for standardization so everyone will know what tree is being discussed since common names change from one area to another. • Scientific names are either italicized when typed or underlined when hand written. • The genus of a scientific name is always capitalized and the species is always lowercase.

  26. Michigan Trees • The following are some examples of common Michigan trees. Included are the common and scientific names of these trees.

  27. Largetooth Aspen – Populus grandidentata Basswood – Tilia americana Beech – Fagus grandifolia White Birch – Betula papyrifera White Cedar – Thuja occidentalis Black Cherry – Prunus serotina Box Elder – Acer negundo American Chestnut – Castanea dentata Flowering Dogwood o Cornus florida American Elm – Ulmus americana Balsam Fir – Abies balsamea Hemlock – Tsuga canadensis Michigan Trees Examples

  28. Shagbark Hickory – Carya ovata Ironwood – Ostrya virginia Black Locust – Robinia pseudoacacia Black Maple - Acer nigrum Norway Maple – Acer platanoides Red Maple – Acer rubrum Silver Maple – Acer saccharinum Sugar Maple – Acer saccharum Mountain Ash – Sorbusspp. Red Oak – Quercus rubra White Oak – Quercus alba Jack Pine – Pinus banksiana Michigan Trees Examples

  29. Red or Norway Pine – Pinus resinosa Scotch Pine – Pinus sylbestris White Pine – Pinus strobus Austrian Pine – Pinus nigra Sassafras – Sassafras albidum Black Spruce - Picea mariana Norway Spruce – Picea abies White Spruce – Picea glauca Sycamore – Platanus occidentalis Tamarack – Larix Laricina Black Walnut – Juglans nigra Black Willow – Salix nigra Witch-Hazel – Hamamelis virginiana Michigan Trees Examples

  30. References • Barns, Burton V., Wagner, Warren H. Jr., Michigan Trees The University of Michigan Press, Ann Arbor. 1985. • Burnie, David., Tree Alfred A. Knopf, New York. 1988. • Petrides, George A., A Field Guide to Trees and Shrubs Houghton Mifflin Boston, 1972. • Smith, Norman F., Trees of Michigan and the Upper Great Lakes Thunder Bay Press, Lansing. 1995. • Pictures taken from: • http://www.usoe.k12.ut.us/curr/science/sciber00/7th/classify/sciber/taxokey.htm • http://www.dsisd.k12.mi.us/mff/TreeBasics/TreeIDkeys.htm
