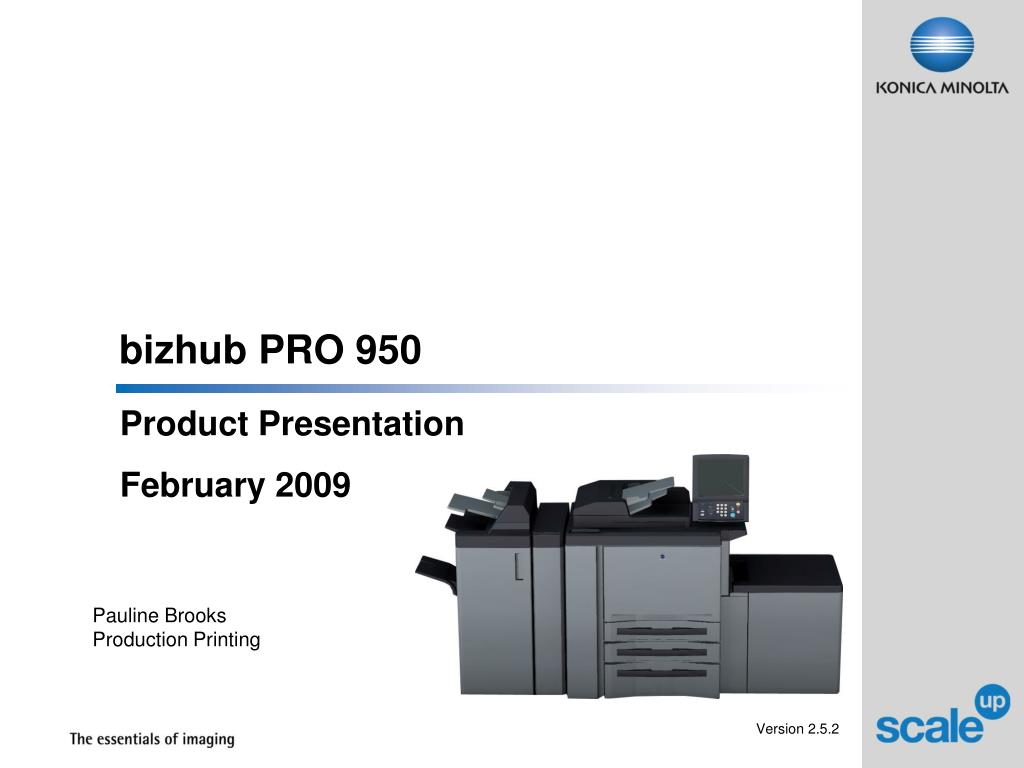

  1. bizhub PRO 950 Product Presentation February 2009 Pauline Brooks Production Printing Version 2.5.2

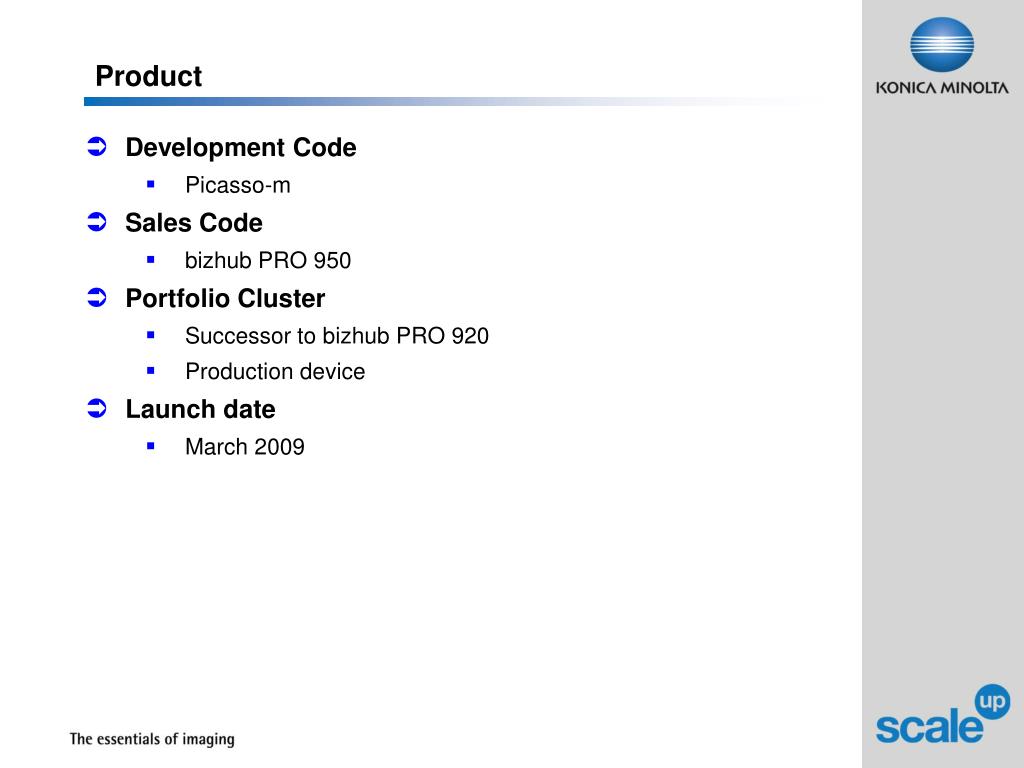

  2. Product • Development Code • Picasso-m • Sales Code • bizhub PRO 950 • Portfolio Cluster • Successor to bizhub PRO 920 • Production device • Launch date • March 2009

  3. RIP of bizhub PRO 1200 Dark grey top cover 1050e based LCD Panel Wider Workspace Enhanced media support 40 to 300gsm Enhanced FS-528 staple finisher bizhub PRO 1050e “revival technology” for improved D-max control bizhub PRO grey Design Changes

  4. New RIP • RIP benchmarking figures versus bizhub PRO 1050e

  5. New Touch Screen Monitor • Based on bizhub PRO 1050e • Production like design • Easy and comfortable operation

  6. A3 Plain A4 Heavy Paper catalogue with media logic • Customised paper types are traced by the system based on individual media names

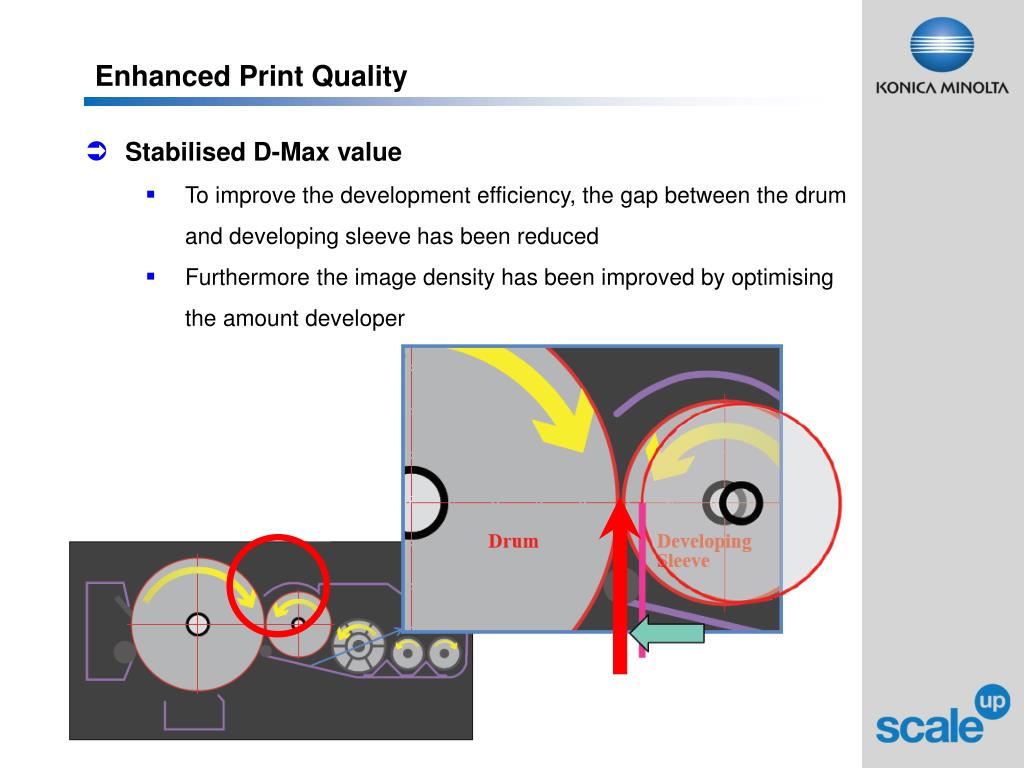

  7. Enhanced Print Quality • Stabilised D-Max value • To improve the development efficiency, the gap between the drum and developing sleeve has been reduced • Furthermore the image density has been improved by optimising the amount developer

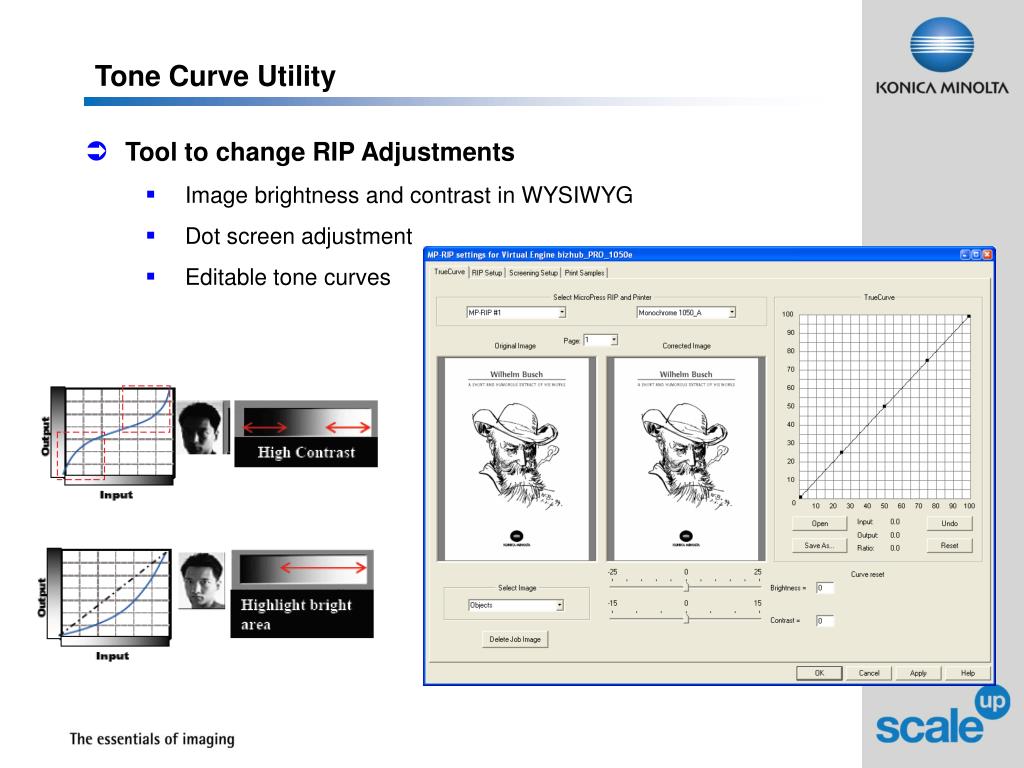

  8. Tone Curve Utility • Tool to change RIP Adjustments • Image brightness and contrast in WYSIWYG • Dot screen adjustment • Editable tone curves

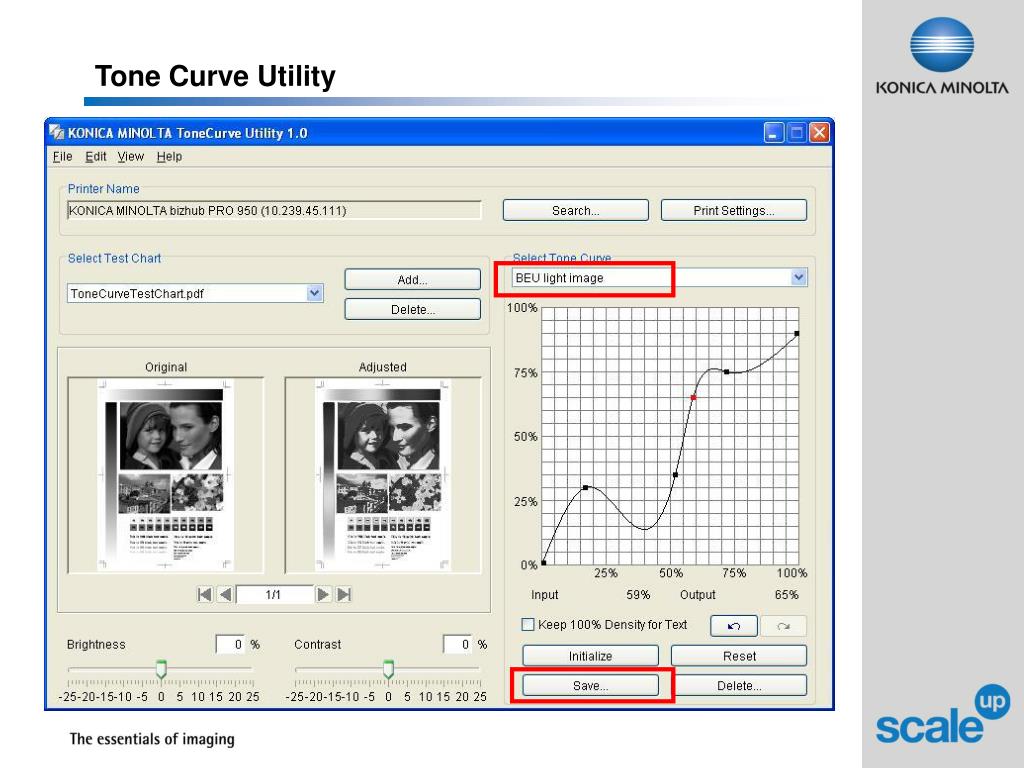

  9. Tone Curve Utility

  10. Tone Curve Utility

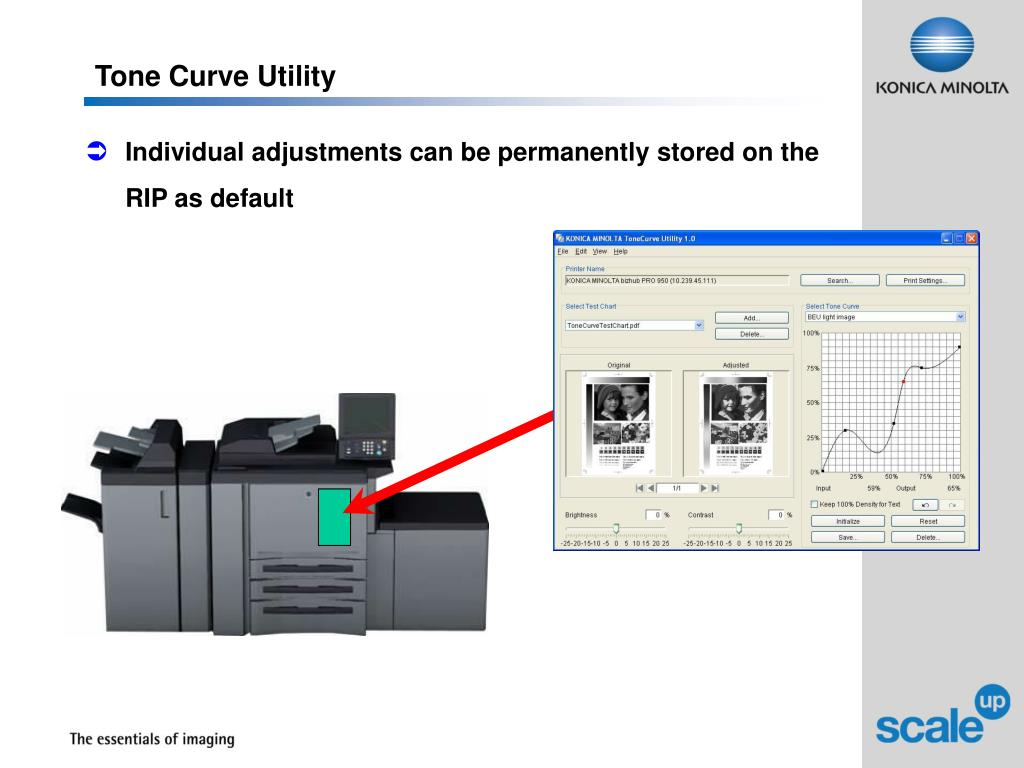

  11. Tone Curve Utility • Individual adjustments can be permanently stored on the RIP as default

  12. Tone Curve Utility • Various customized profiles stored on the RIP be recalled by means of the printer driver

  13. Screening Technology Theory

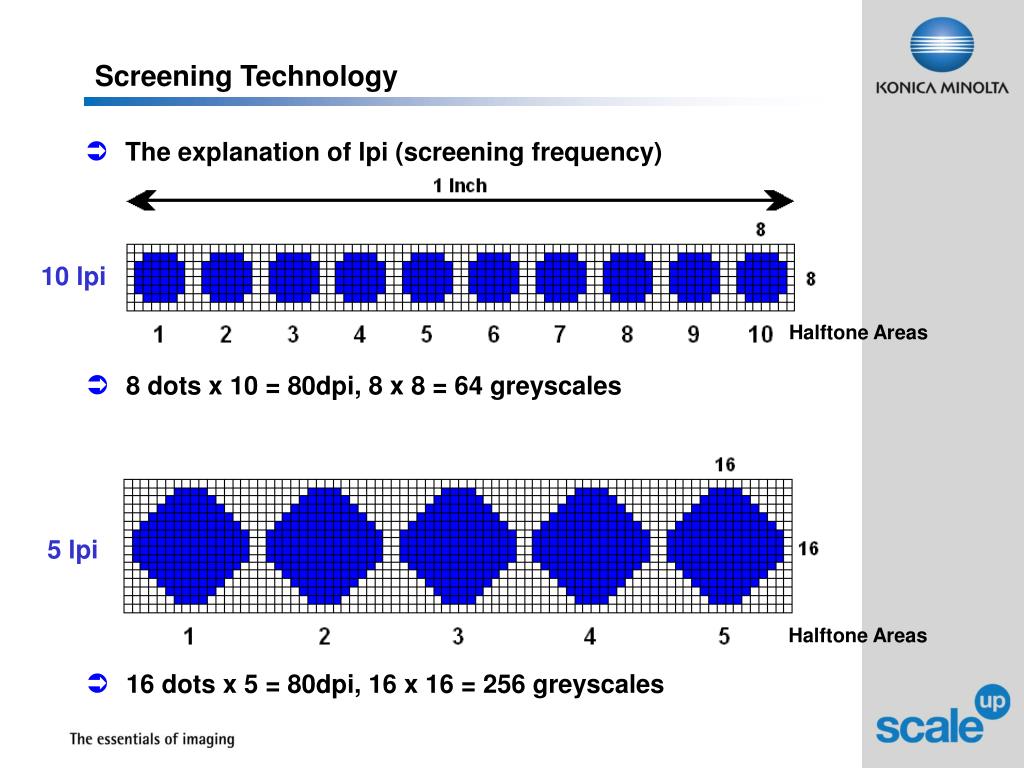

  14. Screening Technology • The explanation of lpi (screening frequency) 10 lpi Halftone Areas • 8 dots x 10 = 80dpi, 8 x 8 = 64 greyscales 5 lpi Halftone Areas • 16 dots x 5 = 80dpi, 16 x 16 = 256 greyscales

  15. lpi = lines per inch dpi = dots per inch GS = greyscales Screening Technology • The relationship between lpi, dpi and greyscales • “lpi” based values Note: The higher the lpi value, the lower the number of greyscales • “greyscale” based values

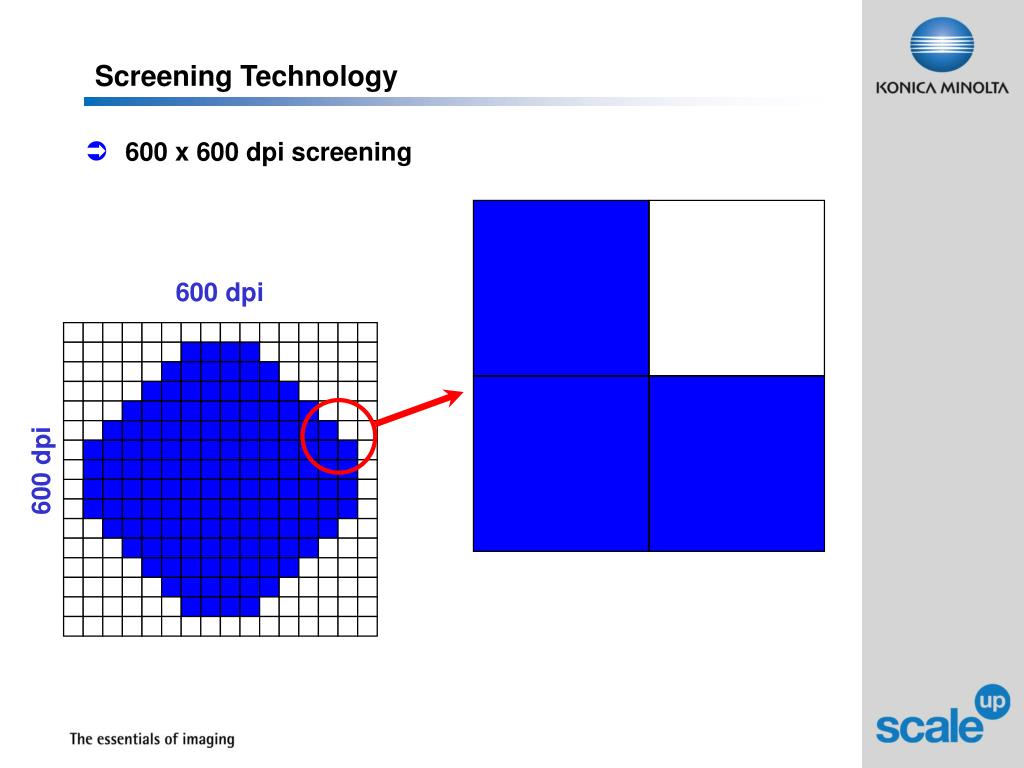

  16. Screening Technology • 600 x 600 dpi screening 600 dpi 600 dpi

  17. Screening Technology • 600 x 600 dpi screening 600 dpi 600 dpi

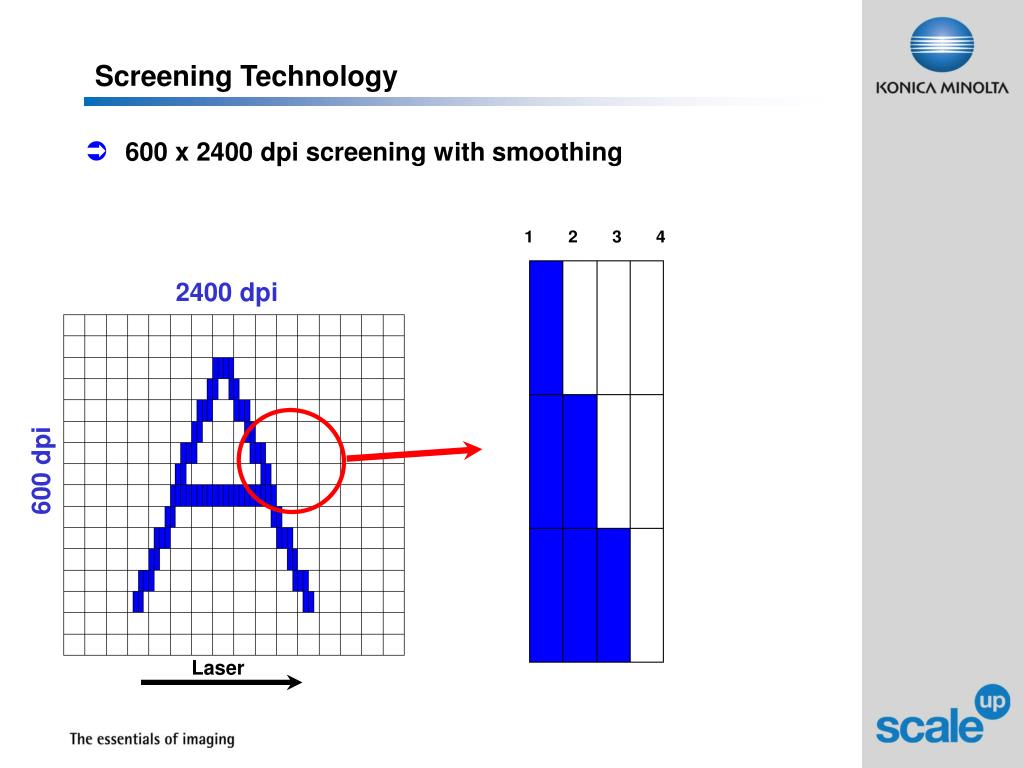

  18. Screening Technology • 600 x 2400 dpi screening with smoothing 2400 dpi 600 dpi Laser

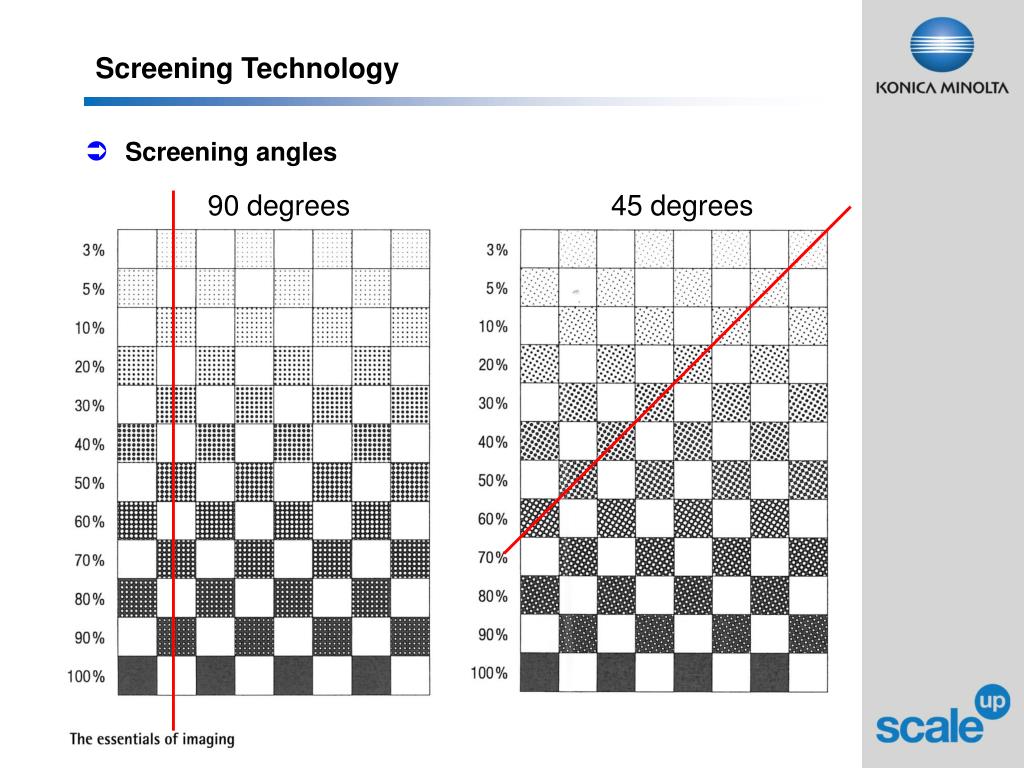

  19. Screening Technology • Screening angles 90 degrees 45 degrees

  20. Enhanced Screening Technology bizhub PRO 950

  21. Enhanced Screening Technology • Enhanced Smoothing of • Hatched lines of general characters and illustrations • Curved lines of general character and illustrations • Curved lines of ornamental writing and thin characters

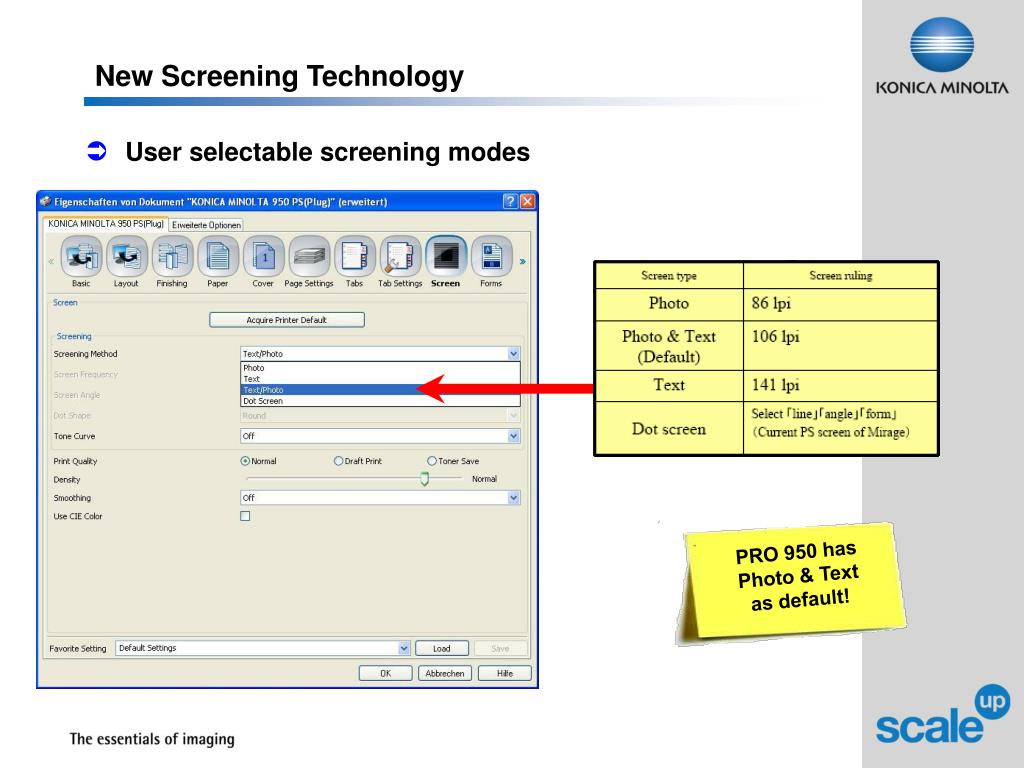

  22. PRO 950 has Photo & Text as default! New Screening Technology • User selectable screening modes

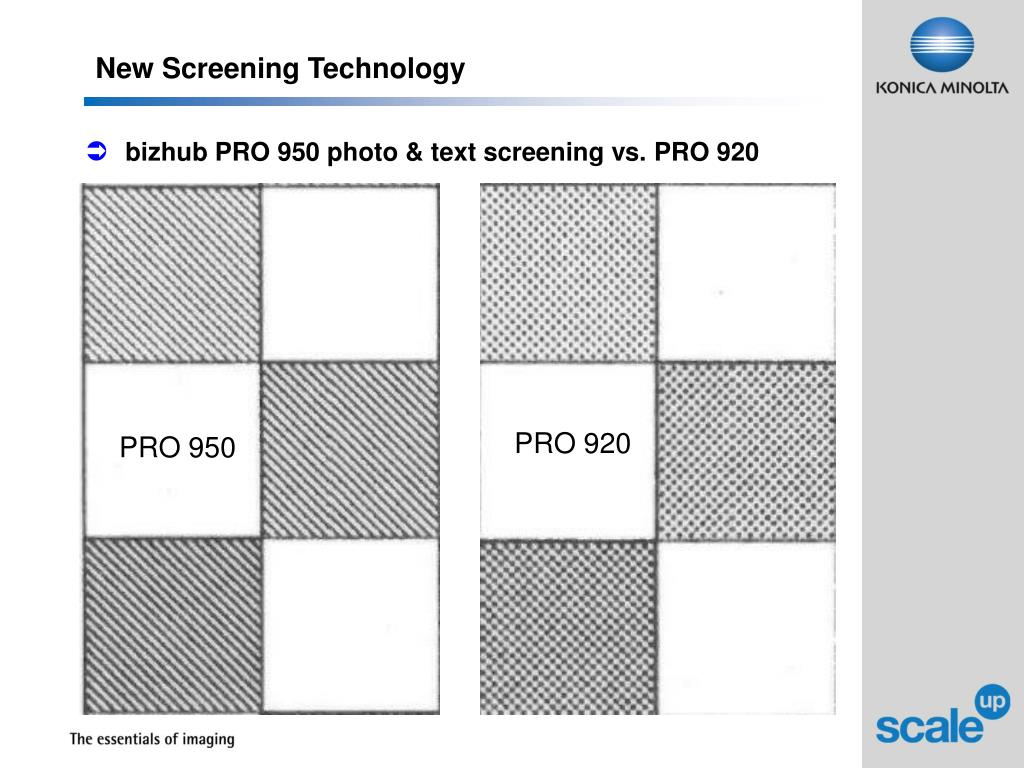

  23. New Screening Technology • bizhub PRO 950 photo & text screening vs. PRO 920 PRO 920 PRO 950

  24. PRO 950 has an enhanced reproduction of greyscales New Screening Technology • Number of greyscales with standard sceening • Number of greyscales thanks to “Supercell” Technology

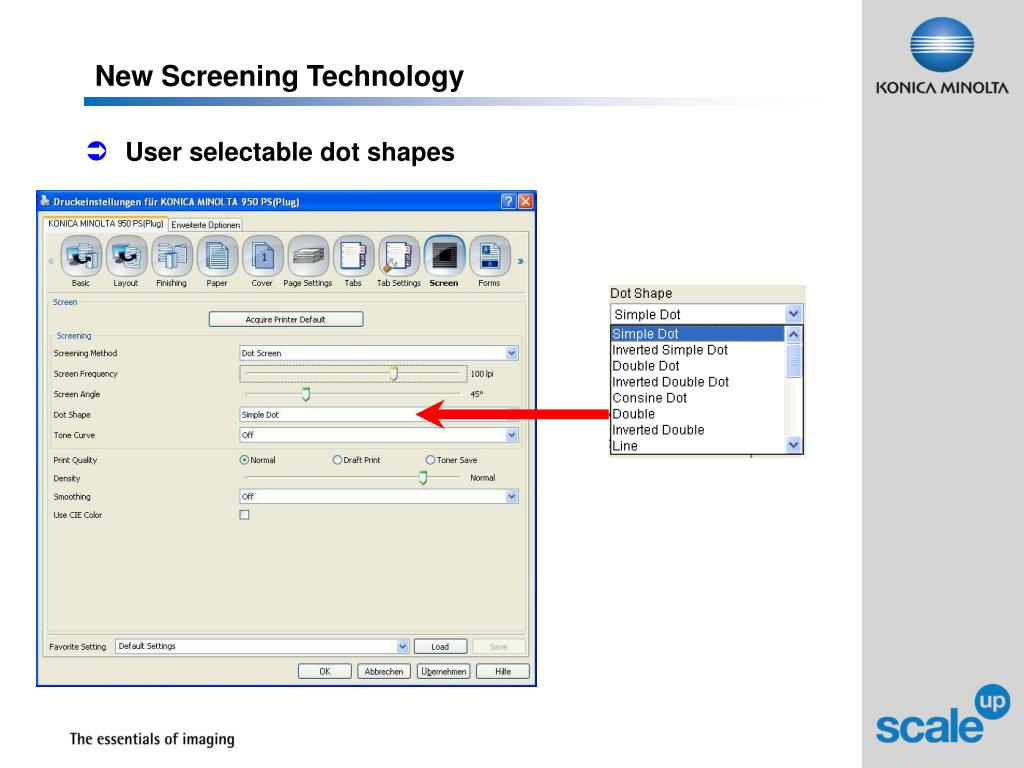

  25. New Screening Technology • User selectable dot shapes

  26. New Screening Technology • User definable tone curves • Various templates available by default • Creation of Individual curves via the Tone Curve Utility

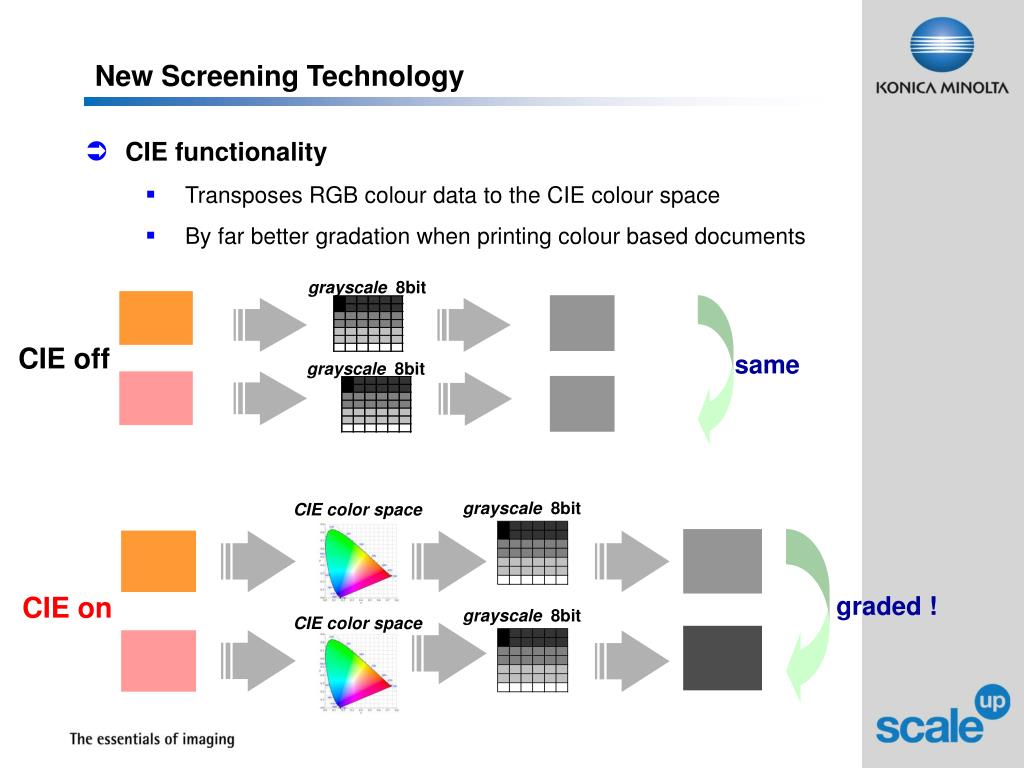

  27. grayscale 8bit CIE off same grayscale 8bit grayscale 8bit CIE color space graded ! CIE on grayscale 8bit CIE color space New Screening Technology • CIE functionality • Transposes RGB colour data to the CIE colour space • By far better gradation when printing colour based documents

  28. New Screening Technology • How to activate CIE

  29. Why does bizhub PRO 950 offer the better print quality? • New screening • Photo & Text optimised screening as default • Additional modes for Photo and Text optimisation can be selected • Higher screening frequency value (up to 300 lpi) can be adjusted • bizhub PRO 920 only up to 150 lpi • Better greyscale reproduction thanks to “Supercell” technology • Wide range of dot shapes can be selected • Better reproduction of colour based documents thanks to CIE • Customers can optimise and control the system by means of the Tone Curve Utility • Enhanced hardware • Improved DMax thanks to improved developing section • “Soft” fusing roller available as option • Minimises the “orange skin” effect on solid black areas

  30. System bizhub PRO 950

  31. Components: bizhub PRO 950 Main Unit • Print Speed • A4: 95ppm • A3: 55ppm A3 • Resolution • Copier: 600 x 600dpi • Printer: 600 x 2400 dpi • Gradation 256 levels • Print volumes • Average 60k to 200k • Duty cycle 750k • Paper weights 40-300gsm • Paper sizes • min. 100x140mm • Max. 314 x 460mm (A3 plus) • Controller • Pentium 2GHZ embedded type • 2GB memory • HDD 80GB S-ATA • Optional PostScript (PS-504) PS-504 Main Unit

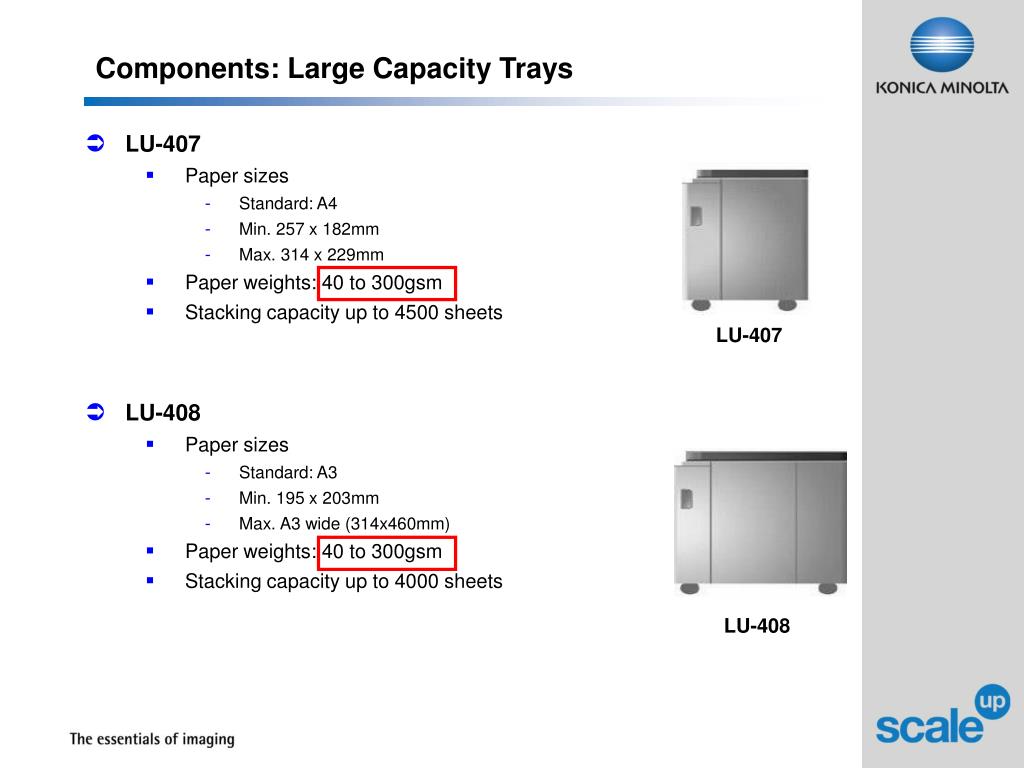

  32. LU-407 LU-408 Components: Large Capacity Trays • LU-407 • Paper sizes • Standard: A4 • Min. 257 x 182mm • Max. 314 x 229mm • Paper weights: 40 to 300gsm • Stacking capacity up to 4500 sheets • LU-408 • Paper sizes • Standard: A3 • Min. 195 x 203mm • Max. A3 wide (314x460mm) • Paper weights: 40 to 300gsm • Stacking capacity up to 4000 sheets

  33. Components: Folding Finisher ZU-607 • Folding • Z-Folding • Paper Weights from 50 to 200gsm • Punching • 2 and 4 hole • Paper Types • Thin: 61 to 90gsm • Plain: 61 to 90gsm • Thick: 91 to 170gsm • Paper sizes from A5R to A3 ZU-607

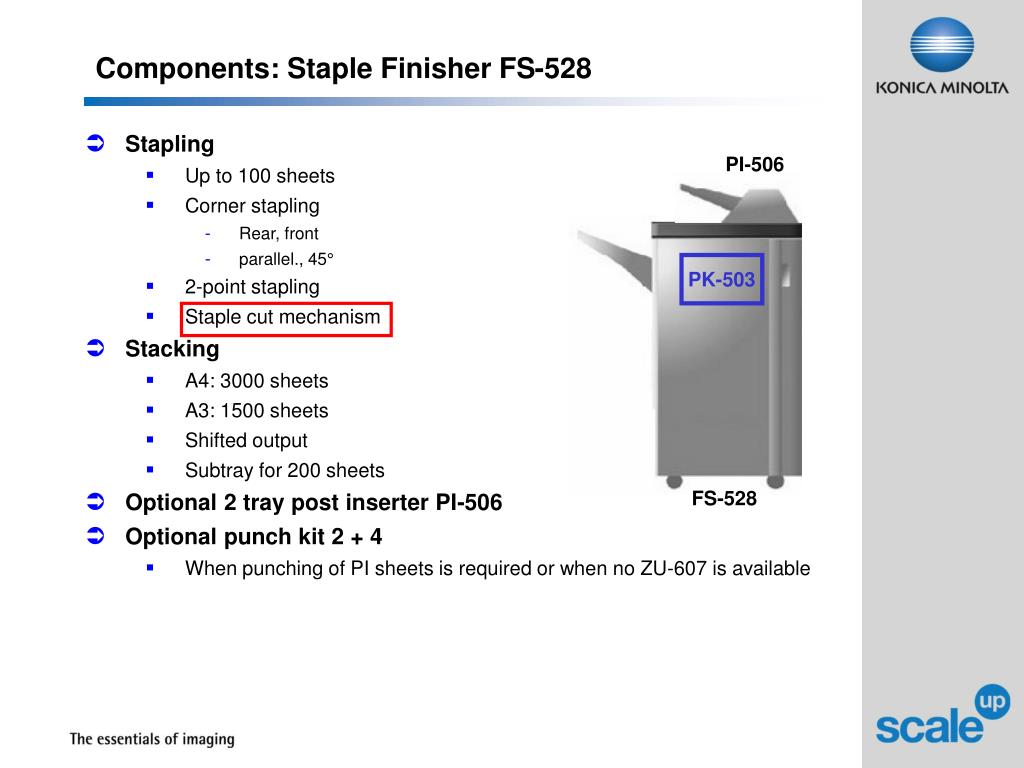

  34. PI-506 FS-528 Components: Staple Finisher FS-528 • Stapling • Up to 100 sheets • Corner stapling • Rear, front • parallel., 45° • 2-point stapling • Staple cut mechanism • Stacking • A4: 3000 sheets • A3: 1500 sheets • Shifted output • Subtray for 200 sheets • Optional 2 tray post inserter PI-506 • Optional punch kit 2 + 4 • When punching of PI sheets is required or when no ZU-607 is available PK-503

  35. PI-506 FS-611 TU-502 Components: Booklet Finisher FS-528 • Booklet making up to 20 sheets • Half and tri-folding up to 3 sheets • Stapling • Up to 50 sheets • Saddle stitch • Corner stapling • Rear, front • parallel., 45° • 2-point stapling • Stacking • A4: up to 2500 sheets • A3: up to 1500 sheets • Shifted output • Subtray for 200 sheets • Optional 2 tray post inserter PI-506 • Optional punch kit 2 + 4 • When punching of PI sheets is required or when no ZU-607 is available • Optional booklet trimming unit TU-502 • Trimming capacity up to 20 sheets • Stacking capacity up to 100 booklets PK-503 MK-721

  36. PI-506 LU-408 FS-528 FS-528 ZU-607 Main Unit LU-407 FS-528 GP-501 bizhub PRO 950 System Overview • FS-528 Staple Finisher based system PS-504 PK-503

  37. PI-506 FS-611 ZU-607 FS-611 GP-501 LU-408 FS-611 LU-407 Main Unit TU-502 bizhub PRO 950 System Overview • FS-611 Booklet Finisher based system PS-504 PK-503 MK-721

  38. GP-501 New Option: GP-501 • New GBC Multi Punch Option (2nd Release) • Schedule: 6 months after Product Launch • 2nd Release • Configuration/ Features • GBC OR ZU, GBC + ZU is not available • Common with Mirage-M GP-501 • Optional I/F board is required to connect with Picasso-m • Tab punch is not supported

  39. Additional Features • bizhub PRO 950 supports • Printgroove • IP version 6 • New generation of I.P. numbers with more digits • PSWC 3.0 • PageScope Web Connection • Scan to XPS • LDAP • TWAIN with brightness control • JDF/JMF support • Tone Curve Utility
