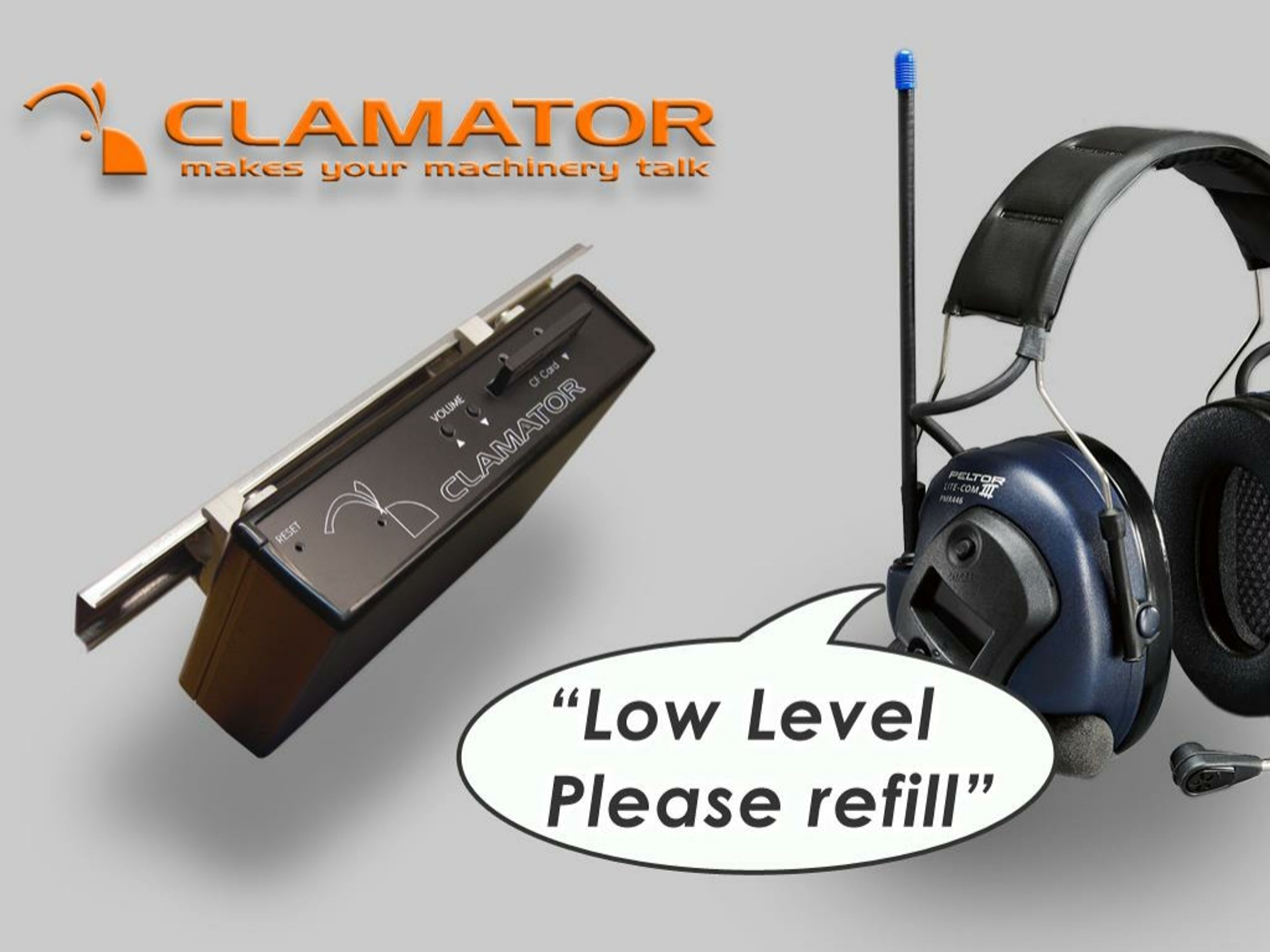

  1. Wiring example VOICE MESSAGES Clamator MINI Manufacturing machinery Ordinary radio equipment Switches, relays,dig.I/O’s etc

  2. How to activate a voice message Input connector on Clamator MINI SW1 triggers Input1 and the soundfile ”sound01.wav” will play. …just as easy as turning on the light.

  3. ClamatorMINI CM-24R ☑ CE ☑ RoHS ☑ EMC ☑ IP20 Technical Specifications Power consumption 10-15VDC /~*450mA@12V * Depending on radio type Number of inputs/type 24/digital ConnectorsLine In, Line Out, Phones, SPKR, PTT, Transceiver Memory card typeCompact Flash (CF)
