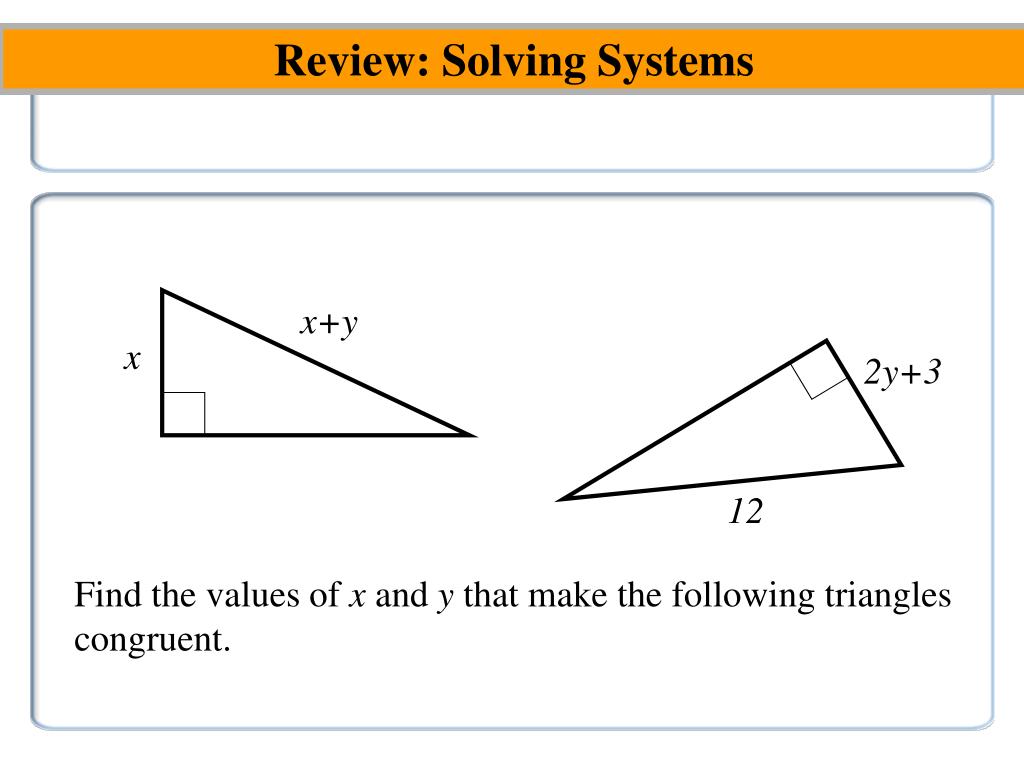

  1. Review: Solving Systems x+y x 2y+3 12 Find the values of x and y that make the following triangles congruent.

  2. Congruent Triangles (CPCTC) Two triangles are congruent triangles if and only if the corresponding parts of those congruent triangles are congruent. • Corresponding sides are congruent • Corresponding angles are congruent

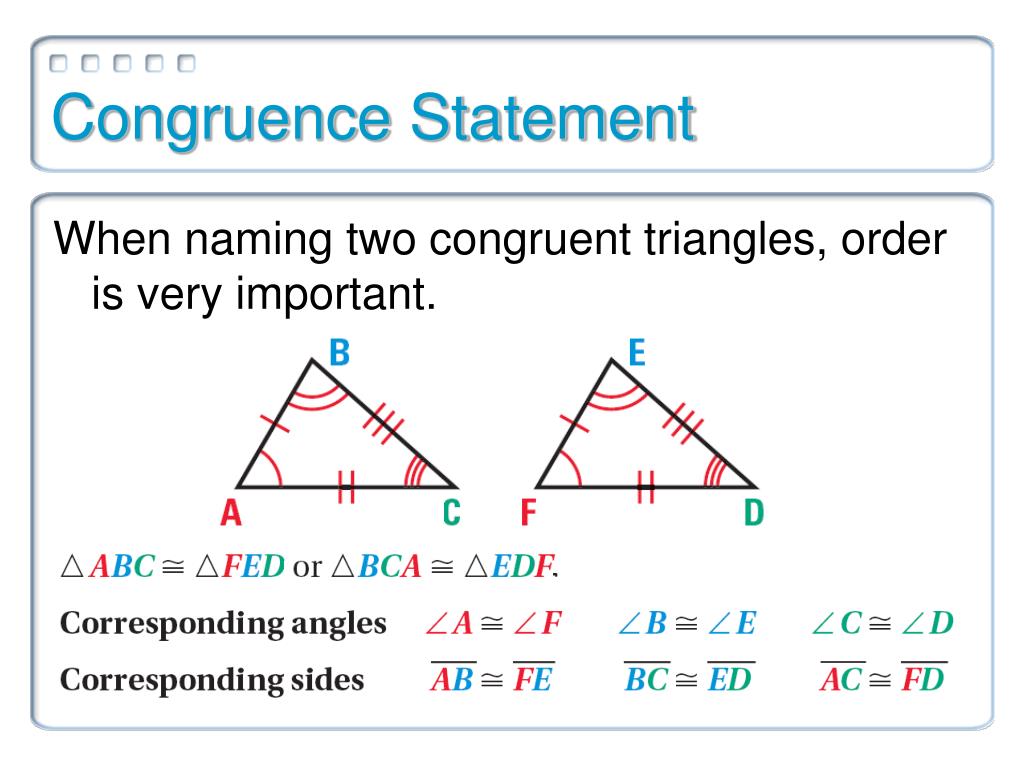

  3. Congruence Statement When naming two congruent triangles, order is very important.

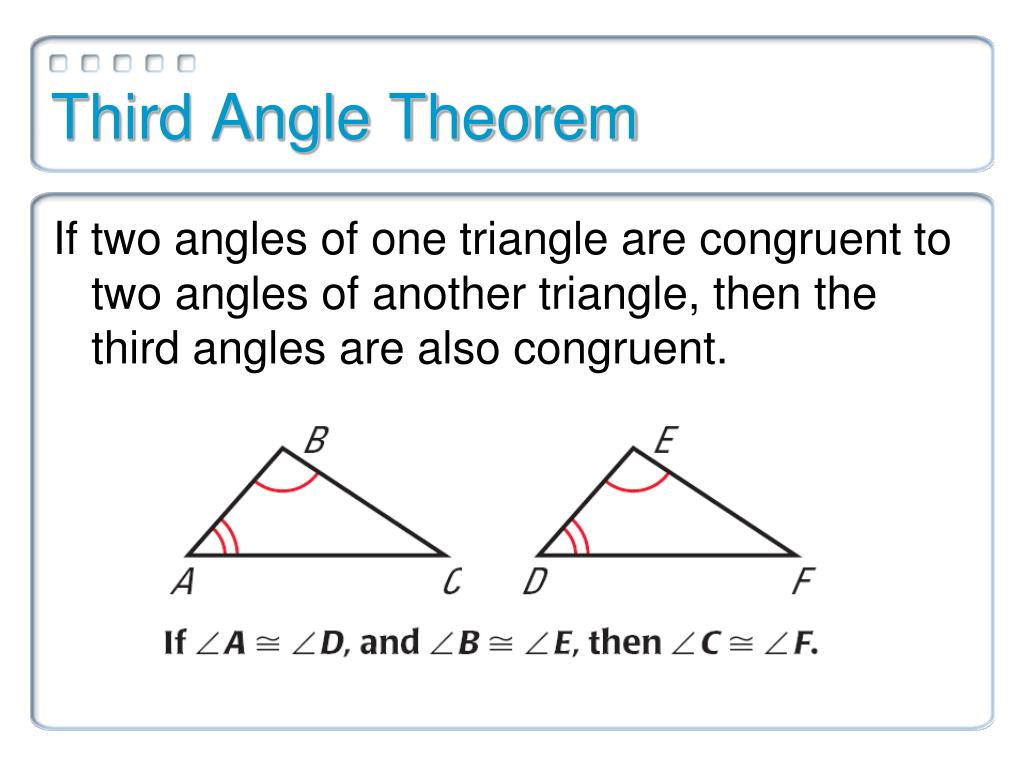

  4. Third Angle Theorem If two angles of one triangle are congruent to two angles of another triangle, then the third angles are also congruent.

  5. Congruence Shortcuts Side-Angle-Side (SAS) Congruence Postulate: If two sides and the included angle of one triangle are congruent to two sides and the included angle of another triangle, then the two triangles are congruent.

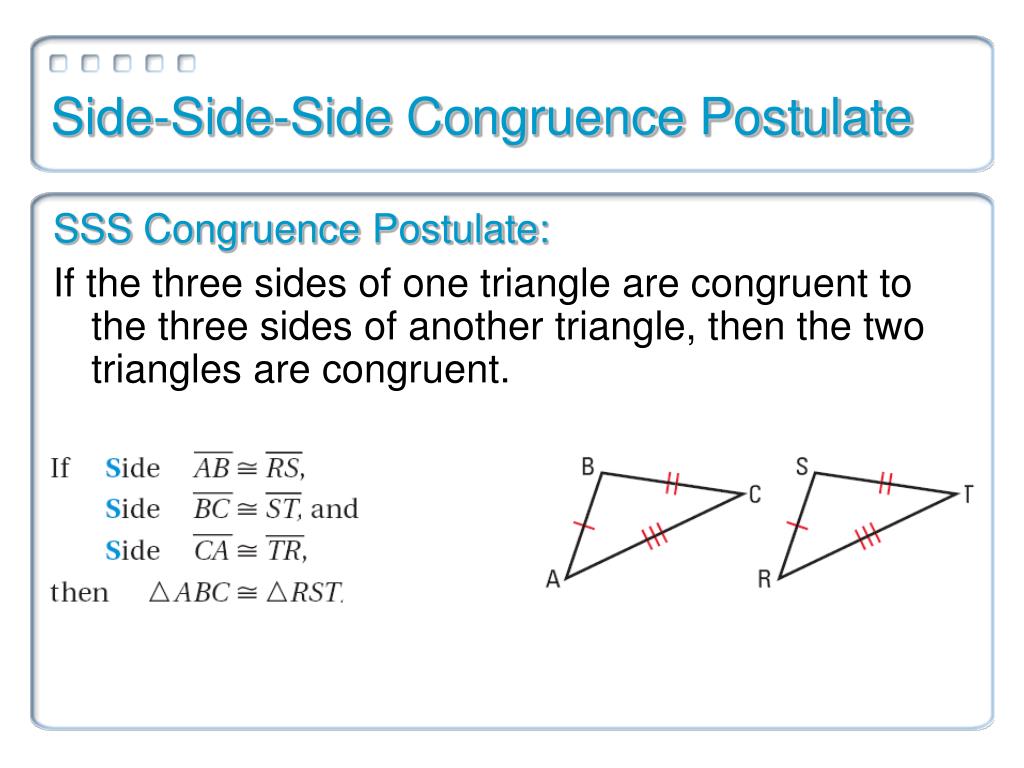

  6. Side-Side-Side Congruence Postulate SSS Congruence Postulate: If the three sides of one triangle are congruent to the three sides of another triangle, then the two triangles are congruent.

  7. Congruence Shortcuts Angle-Side-Angle (ASA) Congruence Postulate: If two angles and the included side of one triangle are congruent to two angles and the included side of another triangle, then the two triangles are congruent.

  8. Congruence Shortcuts Angle-Angle-Side (AAS) Congruence Theorem: If two angles and a non-included side of one triangle are congruent to the corresponding two angles and the non-included side of another triangle, then the two triangles are congruent.

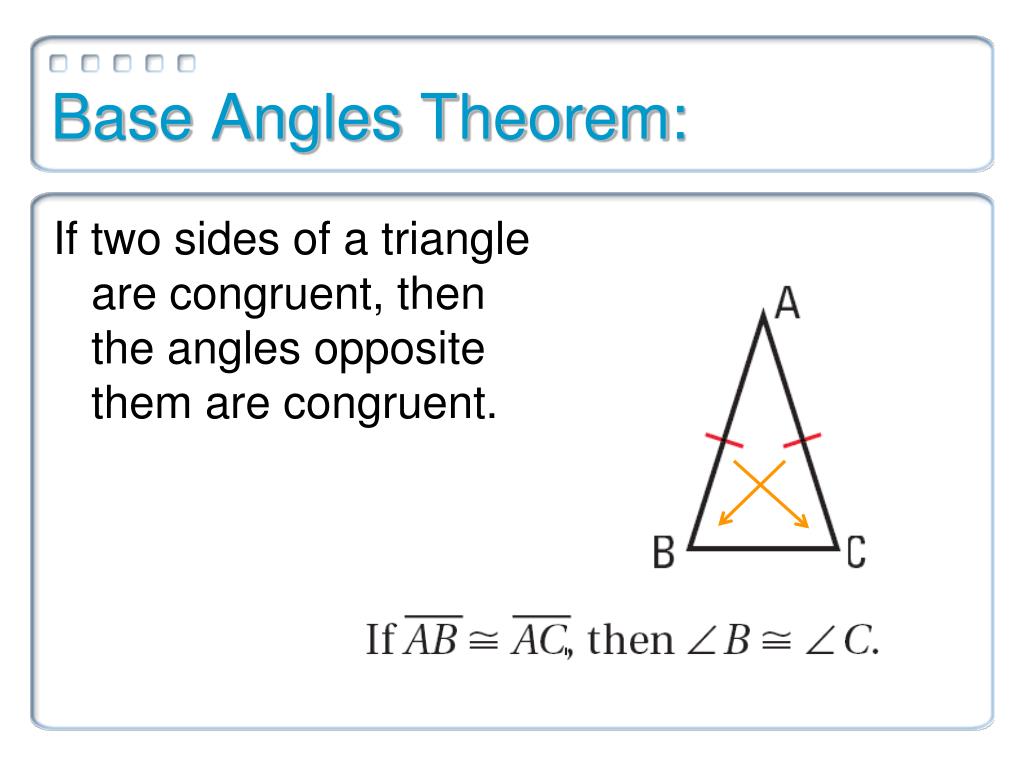

  9. Base Angles Theorem: If two sides of a triangle are congruent, then the angles opposite them are congruent.

  10. Converse of the Base Angles Theorem: If two angles of a triangle are congruent, then the sides opposite them are congruent.

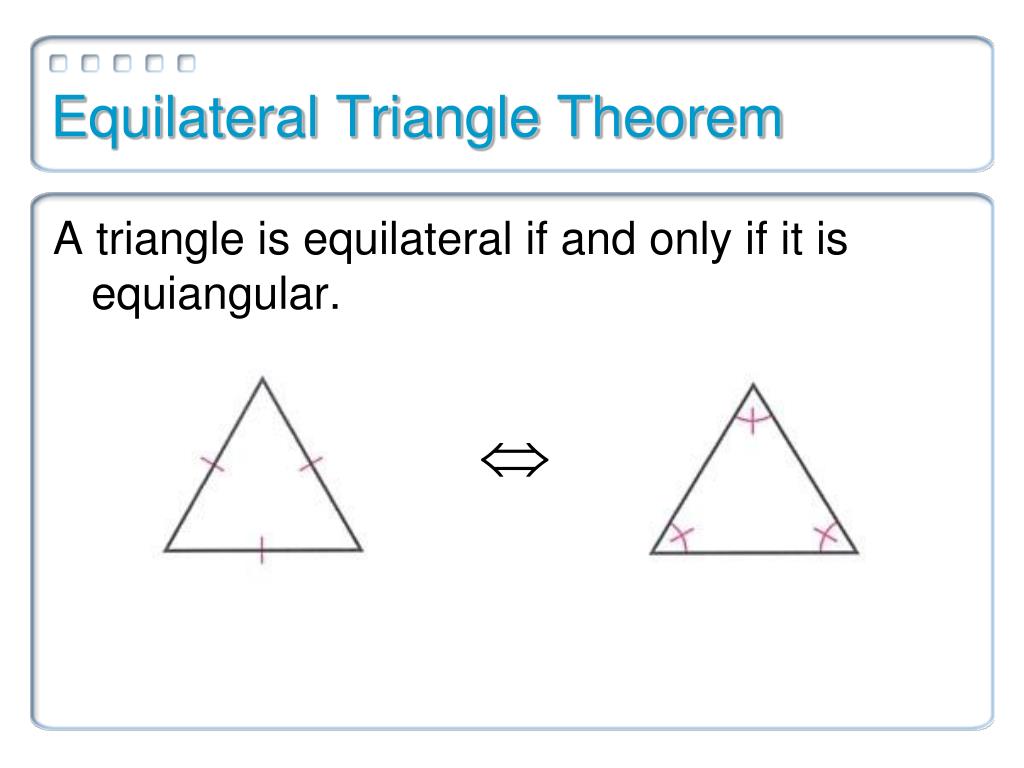

  11. Equilateral Triangle Theorem A triangle is equilateral if and only if it is equiangular.

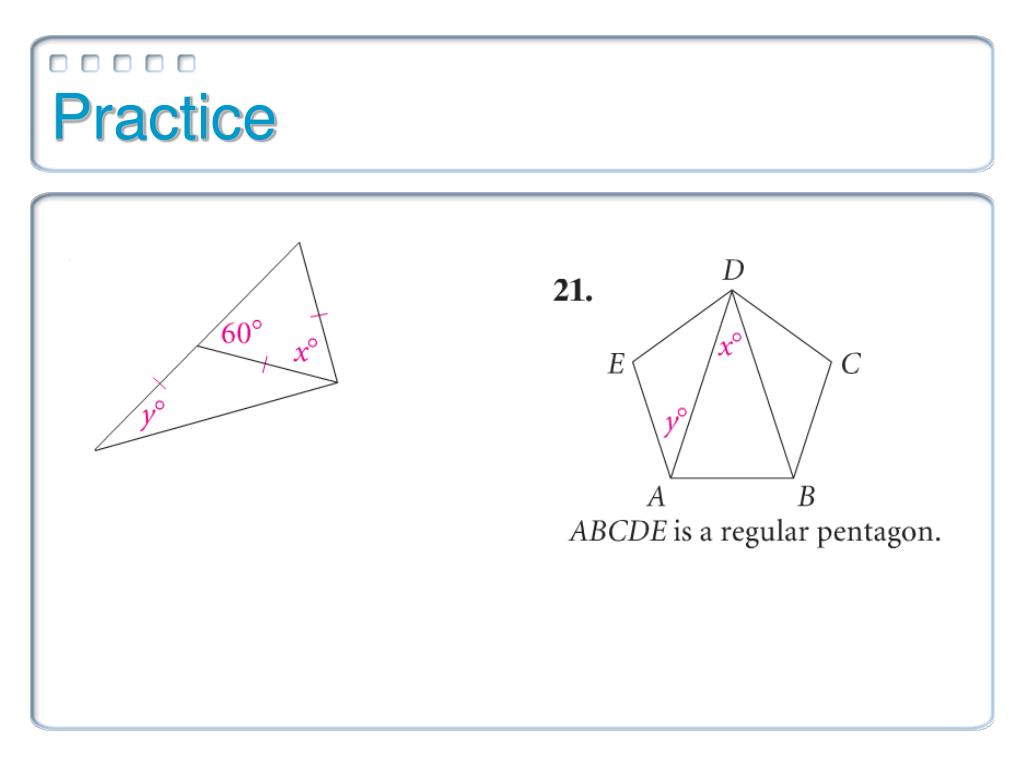

  12. Practice

  13. Practice

  14. Practice

  15. Congruence in Right Triangles

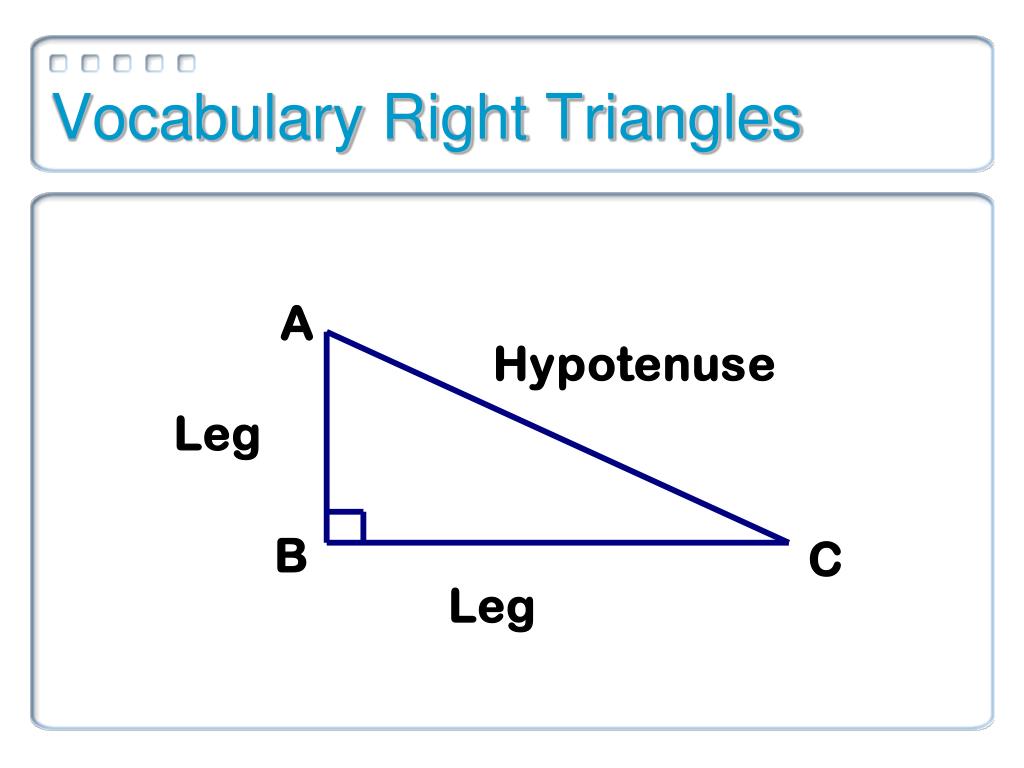

  16. Vocabulary Right Triangles

  17. Hypotenuse-Leg Theorem Hypotenuse-Leg (HL) Congruence Theorem: If the hypotenuse and a leg of a right triangle are congruent to the hypotenuse and leg of another right triangle, then the two triangles are congruent.

  18. To use the HL Theorem, you must show that three conditions are met: • There are two right triangles • The triangles have congruent hypotenuses • There is one pair of congruent legs

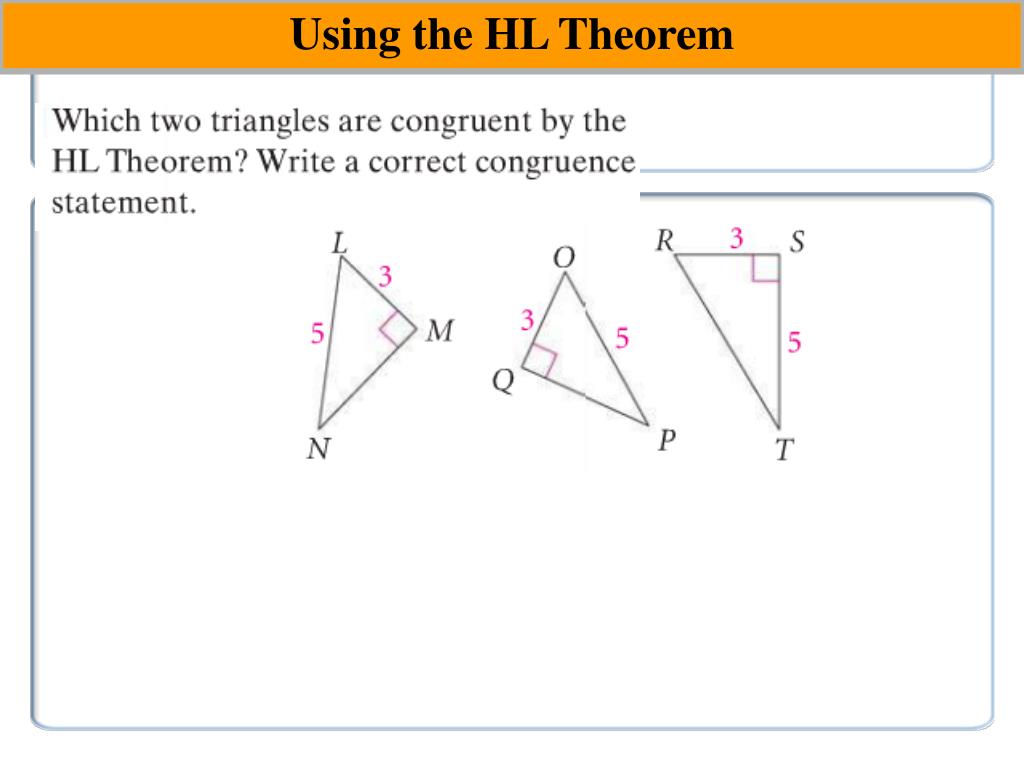

  19. Using the HL Theorem

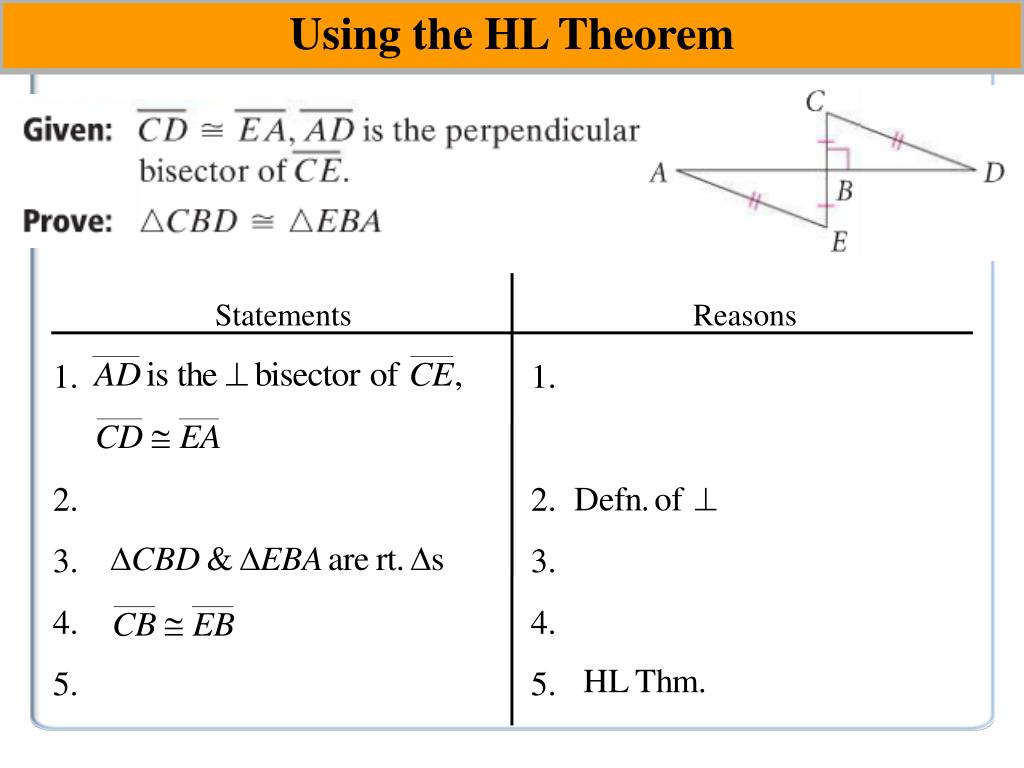

  20. Using the HL Theorem Statements Reasons 1. 2. 3. 4. 5. 1. 2. 3. 4. 5.

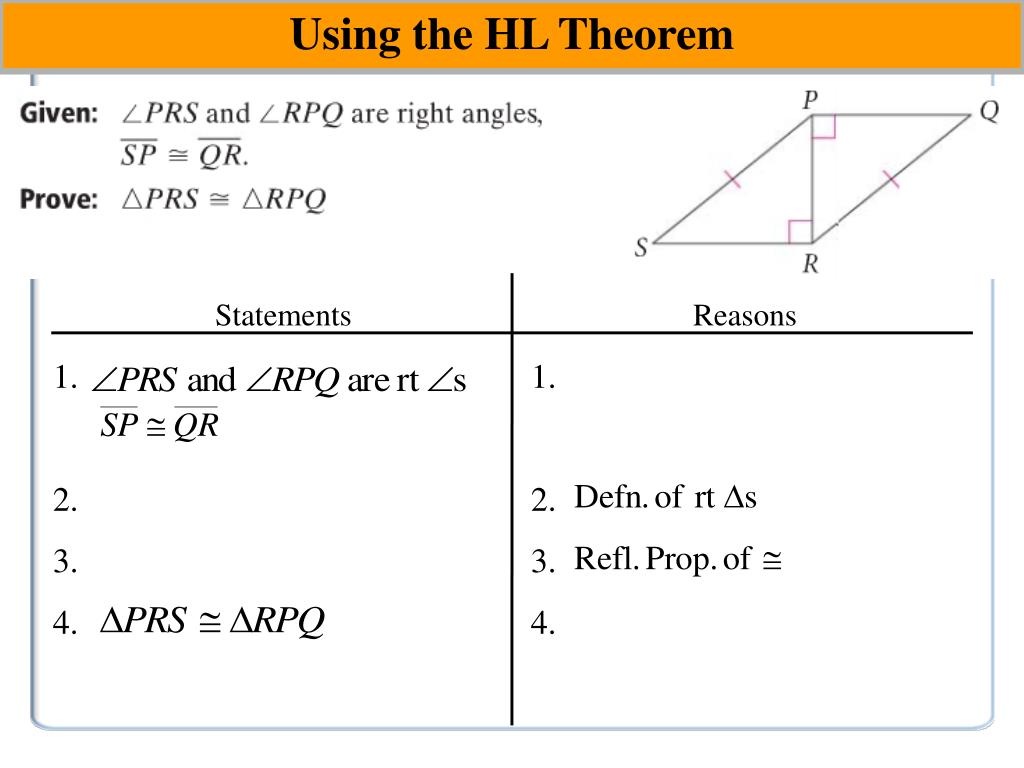

  21. Using the HL Theorem Statements Reasons 1. 2. 3. 4. 1. 2. 3. 4.

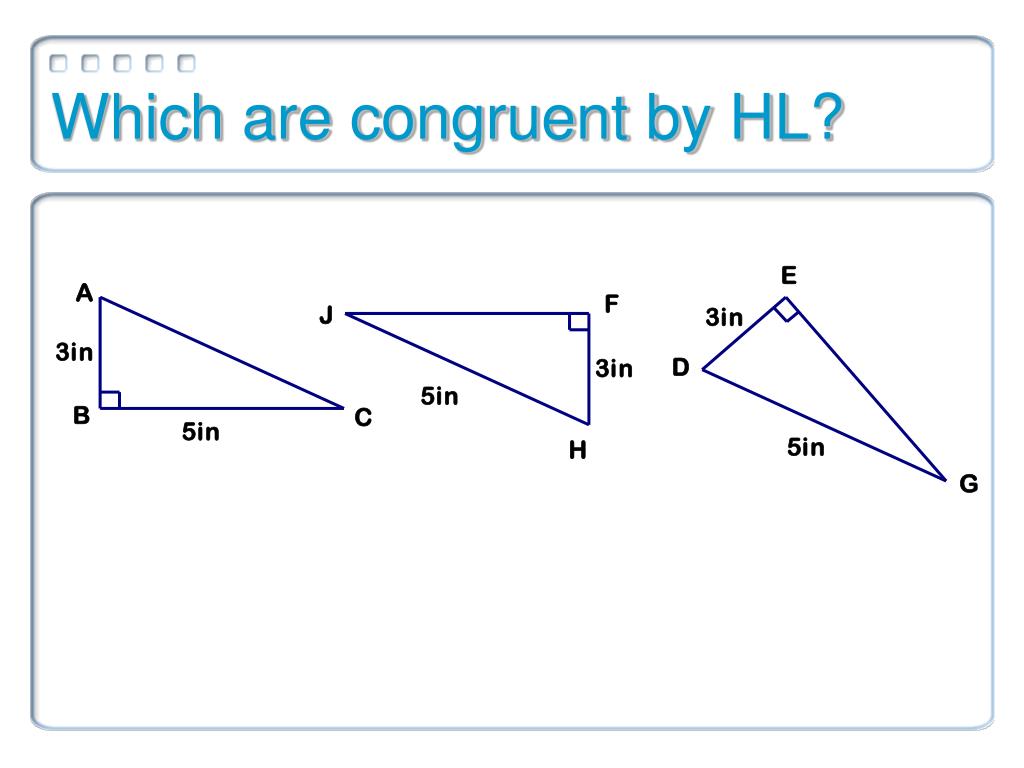

  22. Which are congruent by HL?

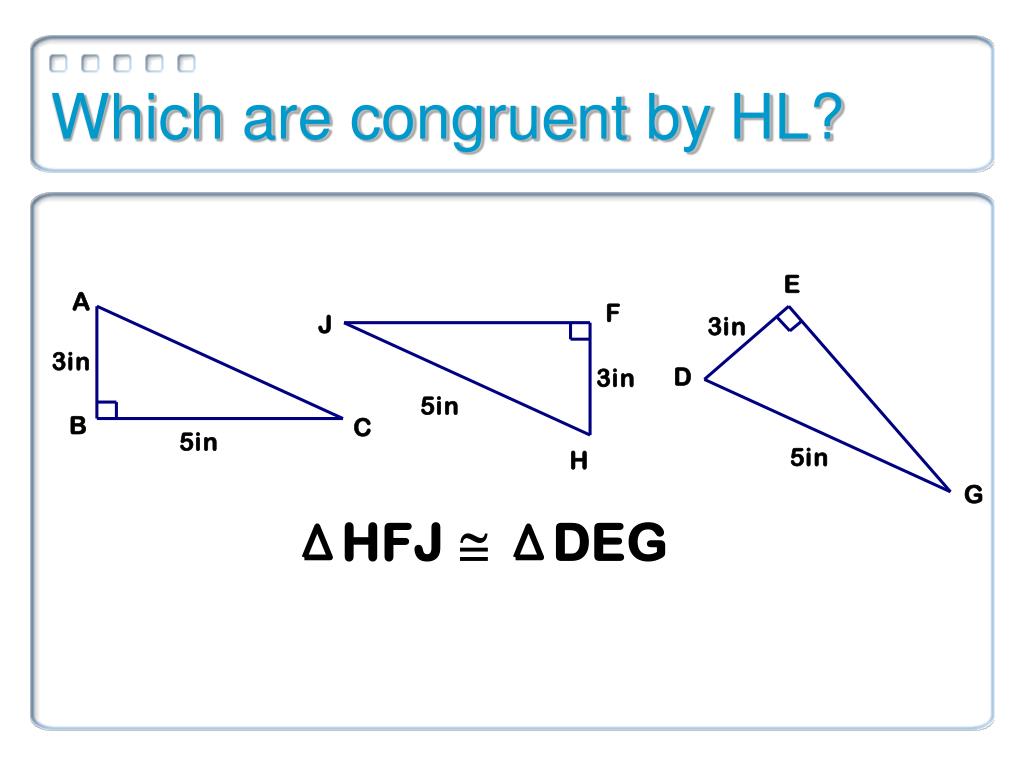

  23. Which are congruent by HL?

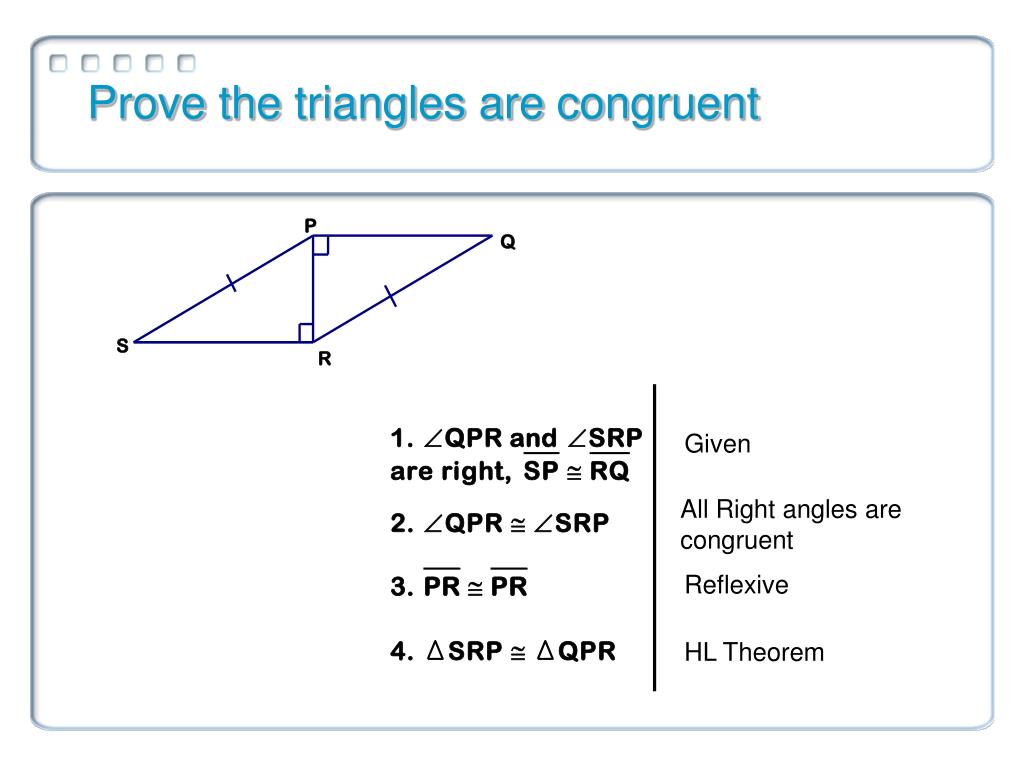

  24. Prove the triangles are congruent Given All Right angles are congruent Reflexive HL Theorem

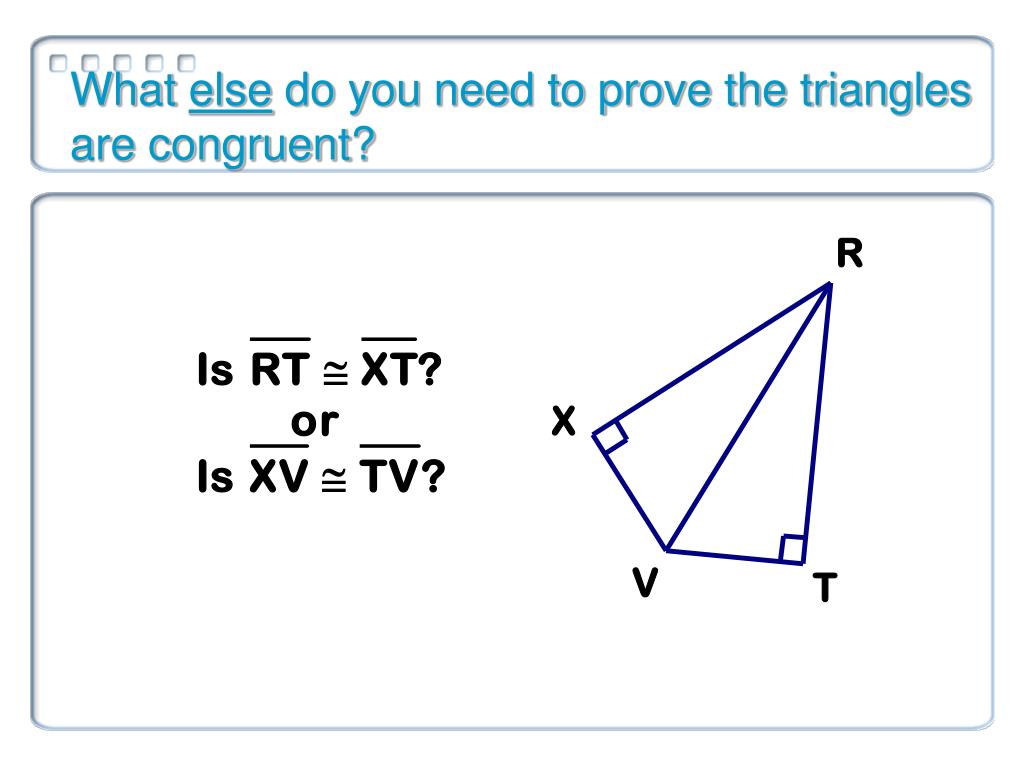

  25. What else do you need to prove the triangles are congruent?

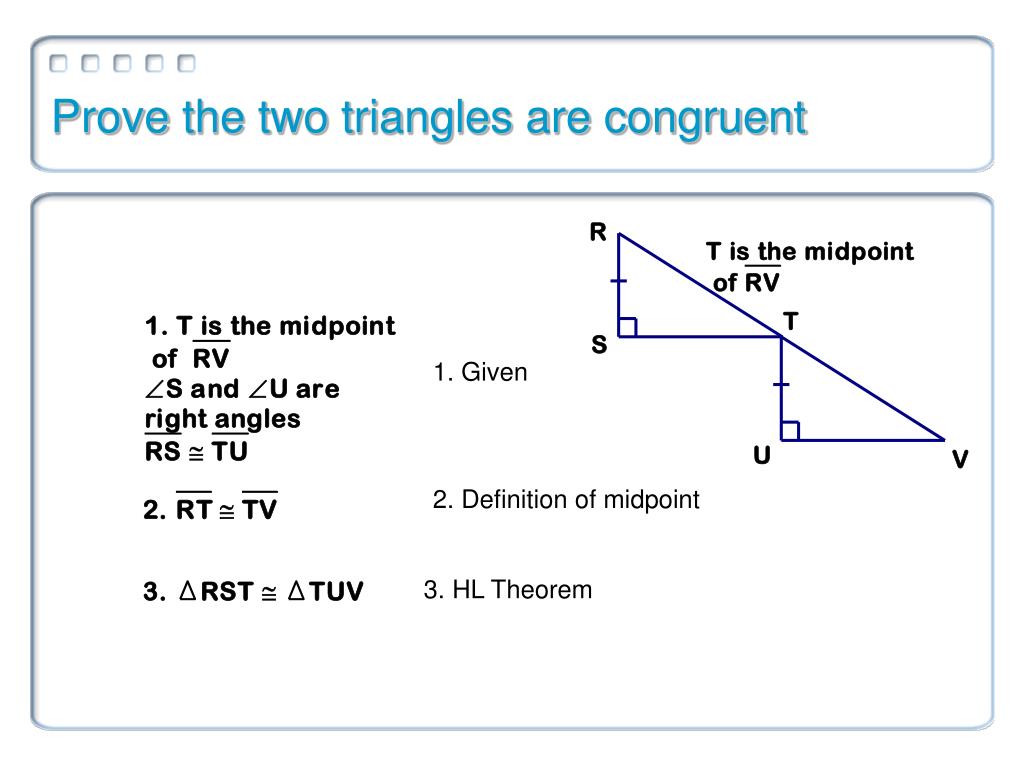

  26. Prove the two triangles are congruent 1. Given 2. Definition of midpoint 3. HL Theorem
