  1. The Work-Energy Theorem Physics 6(A)

  2. Learning Objectives • Explain how work is done on an object • Describe the relationship between the work done on an object and the kinetic energy of the object • Calculate the quantities associated with work and the work-energy theorem • Work-Energy Theorem

  3. Work (W ) – quantity describing when a force (F ) is applied to an object over a distance (d ) • Measured in joules, J • Force and distance must be in the same direction • Work is done by lifting a barbell overhead • Force is in the vertical direction • Distance is in the vertical direction • No work is done while walking down the hall wearing backpack • Force is in the vertical direction • Distance is in the horizontal direction Defining Work

  4. Work Calculation • Write unknown and givens • Identify the formula and rearrange, if needed Ex) A sled is pulled 11 m across a patch of ice by a force of 5.0 N. What is the total work done on the sled? • Convert units and find intermediates, if needed • Plug in and solve • Make sure the answer is reasonable

  5. Work Calculation • Write unknown and givens • Identify the formula and rearrange, if needed Ex) The sled is let go and eventually slides to a stop on the ice due to friction. If the force of friction is 4.0 N and the work done on the sled by the ice is 24 J, how far did the sled go before it came to a stop? • Convert units and find intermediates, if needed • Plug in and solve • Make sure the answer is reasonable

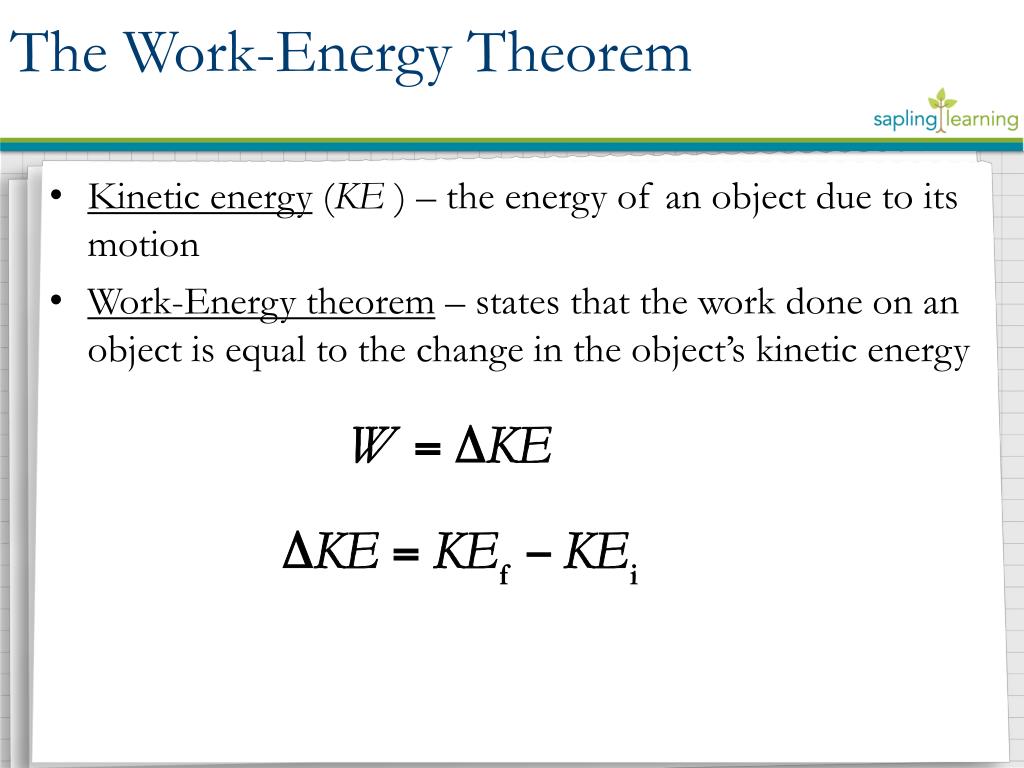

  6. Kinetic energy(KE ) – the energy of an object due to its motion • Work-Energy theorem– states that the work done on an object is equal to the change in the object’s kinetic energy • The Work-Energy Theorem

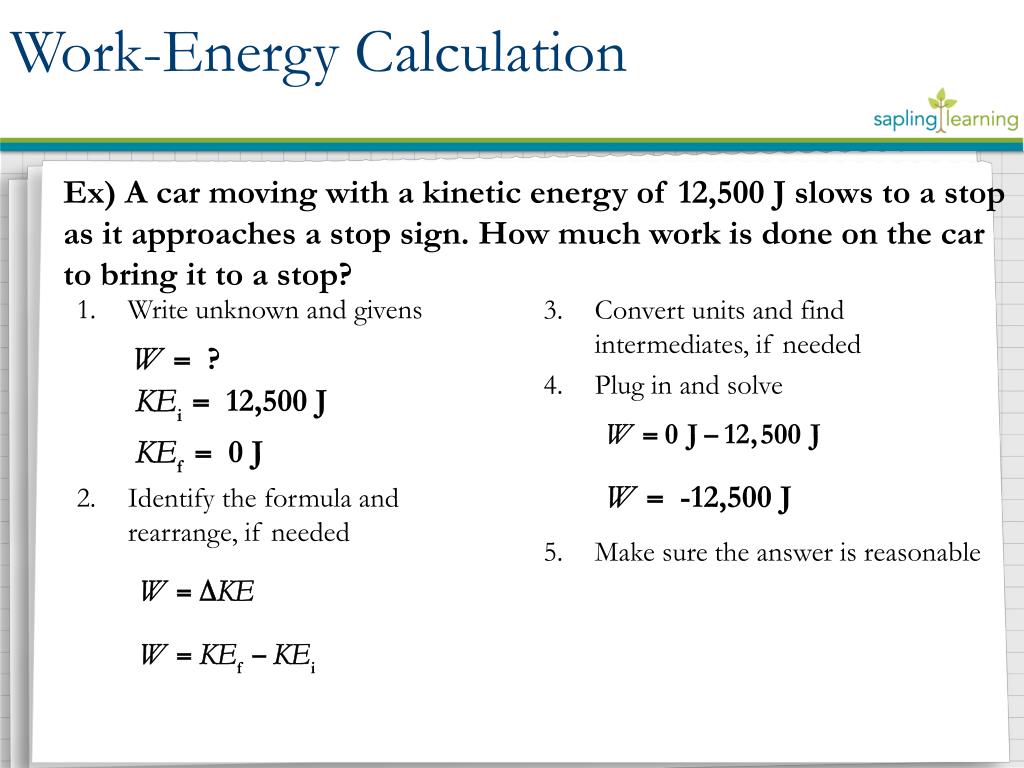

  7. Work-Energy Calculation • Write unknown and givens • Identify the formula and rearrange, if needed Ex) A car moving with a kinetic energy of 12,500 J slows to a stop as it approaches a stop sign. How much work is done on the car to bring it to a stop? • Convert units and find intermediates, if needed • Plug in and solve • Make sure the answer is reasonable

  8. Ex) A second car approaches the same stop sign, but does not slow to a complete stop before proceeding. The car has a kinetic energy of 13,000 J as it begins to slow down. The brakes do 9,000 J of work on the car. How much kinetic energy does the car have when it begins to proceed through the stop sign? • Work-Energy Calculation • Write unknown and givens • Identify the formula and rearrange, if needed • Convert units and find intermediates, if needed • Plug in and solve • Make sure the answer is reasonable

  9. Work-Energy Calculation • Write unknown and givens • Identify the formula and rearrange, if needed Ex) A child pulling a sled is joined by a friend. Combined, they do 200 J of work on the sled causing it to move with a final kinetic energy of 350 J. What was the kinetic energy of the sled when only the first child was pulling it? • Convert units and find intermediates, if needed • Plug in and solve • Make sure the answer is reasonable

  10. Learning Objectives • Explain how work is done on an object • Describe the relationship between the work done on an object and the kinetic energy of the object • Calculate the quantities associated with work and the work-energy theorem • Work-Energy Theorem
