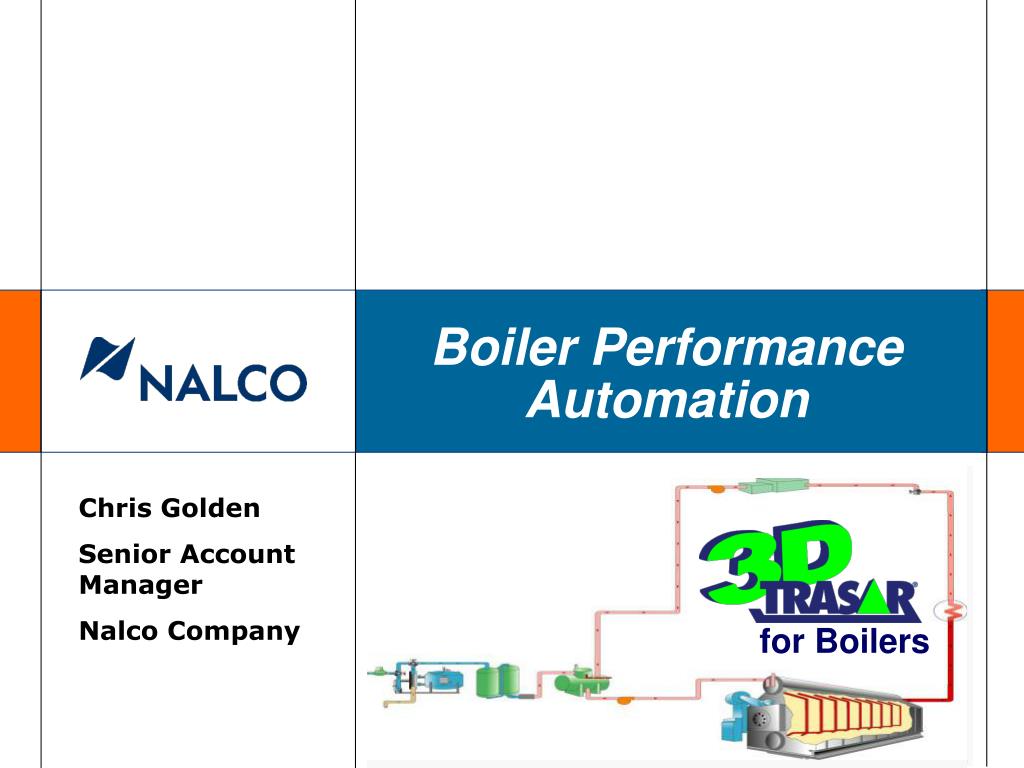

  1. for Boilers Boiler Performance Automation Chris Golden Senior Account Manager Nalco Company

  2. for Boilers 3D TRASAR for Boilers  3D TRASAR for boilers delivers maximum performance. • Safer operation • Improved system reliability • Lowest Cost of Operation  Technology scope • Advanced monitoring & control • Performance sensors • New chemistry • Software • Wireless communication Performance Management for Boiler Systems

  3. Boiler Sample 3D TRASAR Boiler Basic System @T ORPTM Controller & Fluorometer

  4. TRASAR Automation 45 TRASAR Automation 40 Detect System Upsets 35 30 ppm 22310 25 ppm 22310 20 15 10 Optimum Operation 5 0 10/11/1997 20/11/1997 30/11/1997 10/12/1997 20/12/1997 30/12/1997 09/01/1998 19/01/1998 Date 3D TRASAR Internal Treatment Automatically responds Maintain optimum treatment levels Keeps your boiler clean Good for Boilers from 10 psig to over 2400 psig

  5. 3D TRASAR Preboiler Corrosion Control @T ORP Starter Controller & T3 Fluorometer Boiler Sample 3D TRASAR Preboiler Corrosion Control

  6. Preboiler Corrosion Control Vision • Today: • Test Oxygen • Test Scavenger Residual • Inspect Equipment • Tomorrow: • Continuous, Real-Time Measurement of Corrosion Potential • Automation of Oxygen Scavenger Feed

  7. -100 0 -200 -100 -300 -200 @ Temp Orp (mv) RT ORP (mv) -400 -300 -500 -400 -600 -500 -600 -700 Time (hrs) @T ORP vs RT ORP(at Temp vs Room Temp – 200 MW Coal Fired Plant) @T ORP more sensitive than RT ORP to optimize CHZ feed

  8. @T ORP vs Dissolved O2 ORP Cell Internal Configuration @T ORP faster response than DO monitor

  9. Low Chemical Treatment High 3D TRASAR Preboiler Corrosion Monitoring Typical Corrosion Control High Underfeed Results in Corrosion Potential Overfeed leads to Excess Treatment Costs Low Today we have fixed feed rates regardless of the boilers water’s potential to corrode

  10. New Best Practice for Preboiler Corrosion Control @T ORP • Performance based control of corrosion stress • Maintains “Reduced” Conditions • Minimizes corrosion • Promotes passivation Customer Value • Safety, Reliability • Mitigates failures • Reduce boiler iron deposits • Minimize Cost • Asset protection • Minimize downtime • Maximize Availability • Improve turbine efficiency

  11. ISE ISE – – Breakthrough Breakthrough pH pH NCM NCM Level sensor Level sensor Level sensor TRASAR 3 probe TRASAR 3 probe Particle counter Particle counter pH pH Conductivity Detection Detection TRASAR 3 probe & & or other 4 or other 4 or other 4 - - - 20 20 20 TRASAR 1 probe TRASAR 1 probe LCM LCM mA inputs mA inputs mA inputs Misc. Misc. Boiler Condensate 3D Boiler Starter Performance Automation Controller – Host Module Boiler Optimizer Web Web Interface Interface Boiler Configurator Boiler Configurator Web Web Server Server At At - - T ORP probe T ORP probe Pretreatment Preboiler Pretreatment Preboiler

  12. Performance Automation Dynamic Control - Expanded MOC Approach

  13. 3D TRASAR Web is... A convenient way for Nalco Reps and Customers to monitor system performance, and the value of 3D TRASAR control View performance summary of all systems Display performance detail for a single system Generate, print, and schedule graphs and reports Download data to your PC for advanced analysis and reporting with Vantage V100 Alarming 3D TRASAR WebSystem Performance Monitoring

  14. 3D Boiler Starter @T ORP Preboiler corrosion stress Monitoring & Control TRASAR Treatment Control @T ORP + 3D TRASAR Web data analysis, reporting and alarming Controller & Fluorometer

  15. Safety Reliability for Boilers for Boilers for Boilers TCO Performance Under Pressure 3D TRASAR for boilers delivers maximum performance under pressure, resulting in a safer operation, improved system reliability, and reduced total operating costs. performance performance performance performance performance Safety Reliability
