1. MultiscaleModelling Project Fallot Tariq Abdulla December 2009

2. Outline • Information Modelling – Ontologies, XML and databases • Petri nets – graph based representation of networks and pathways • Network Analysis – network type, motifs • Integration of models

3. Ontologies Provide a common, structured vocabulary, in order to overcome confusion in terminology. Facilitate the integration and querying of heterogeneous datasets (and, increasingly, models).

4. Gene Ontology Collaboration between model organism databases – thus inherently cross-species Reference ontology – for more specific annotation, we may develop application ontologies, that reference GO and other reference ontologies Split into 3 seperate ontologies: Biological Process, Cellular Component and Molecular Function

5. Gene Ontology: AmiGO

6. Gene Ontology: AmiGO

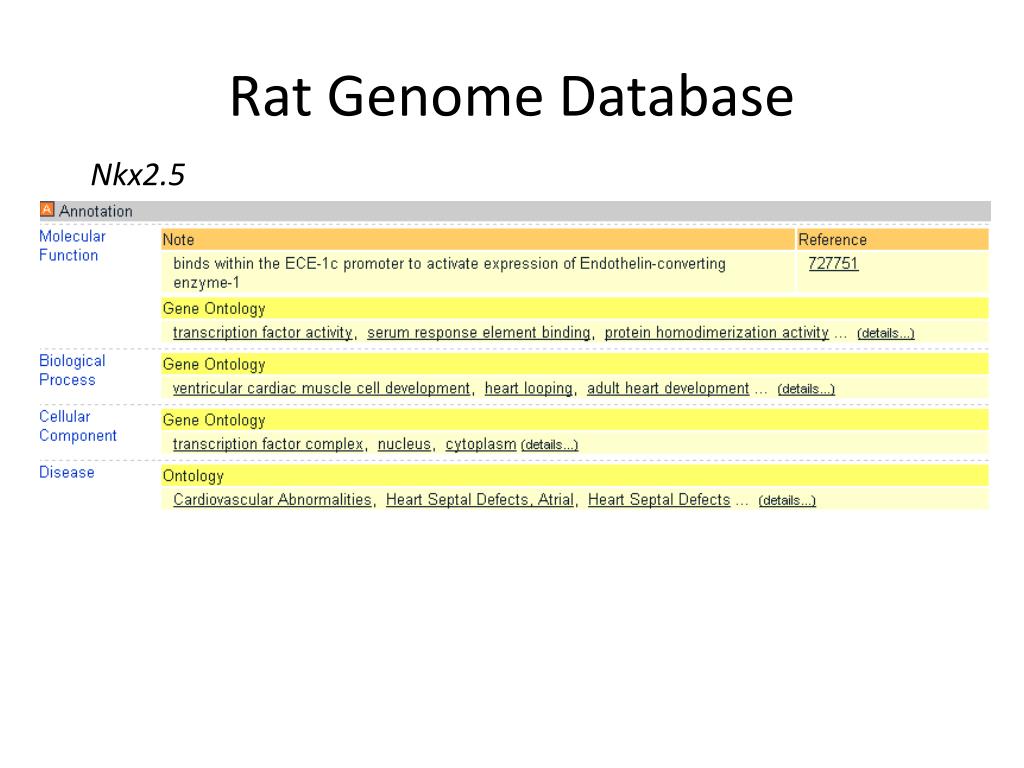

7. Rat Genome Database Nkx2.5

8. Rat Genome Database Jagged1

9. (Horridge et al. 2009) Properties Functional Inverse Functional Symmetric Transitive Reflexive Irreflexive

10. Properties

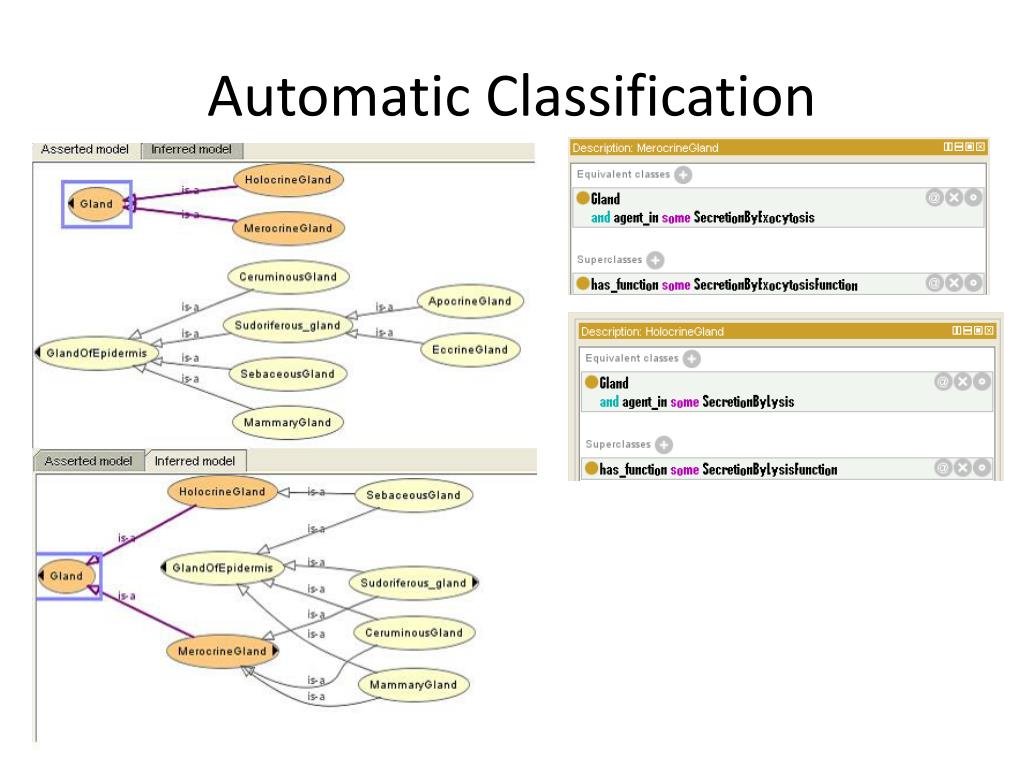

11. Automatic Classification

12. Automatic Classification

13. place arc inhibitory arc transition token Petri Nets t2 p4 p1 p3 t1 p2 t3 3

14. vmax = Kcat[E] (Gilbert, et al. 2006)

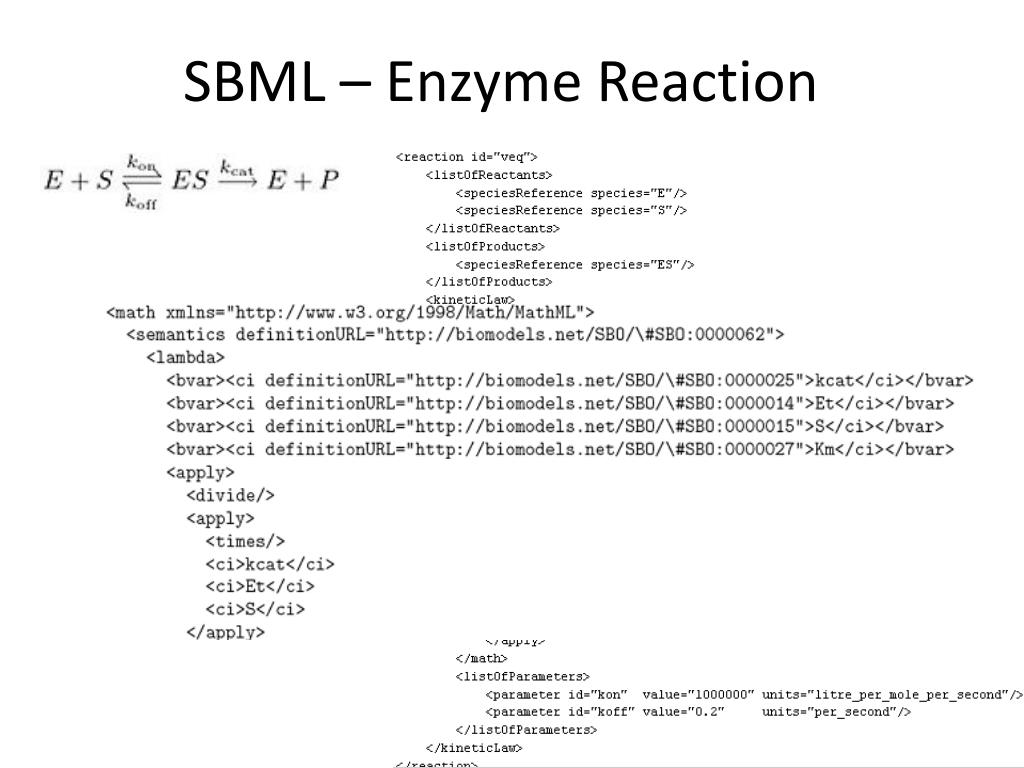

15. SBML – Enzyme Reaction

16. KEGG Representation Is this straightforward?

17. (Heiner, Koch and Will 2004)

18. (Heiner, Koch and Will 2004)

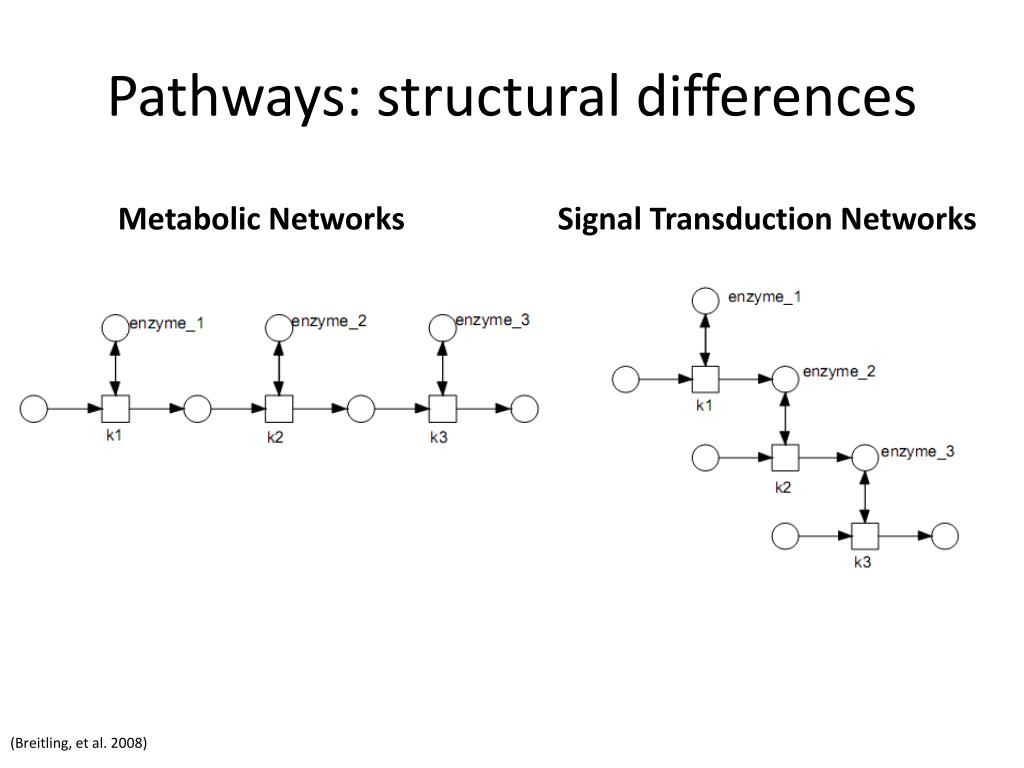

20. Pathways: structural differences Metabolic Networks Signal Transduction Networks (Breitling, et al. 2008)

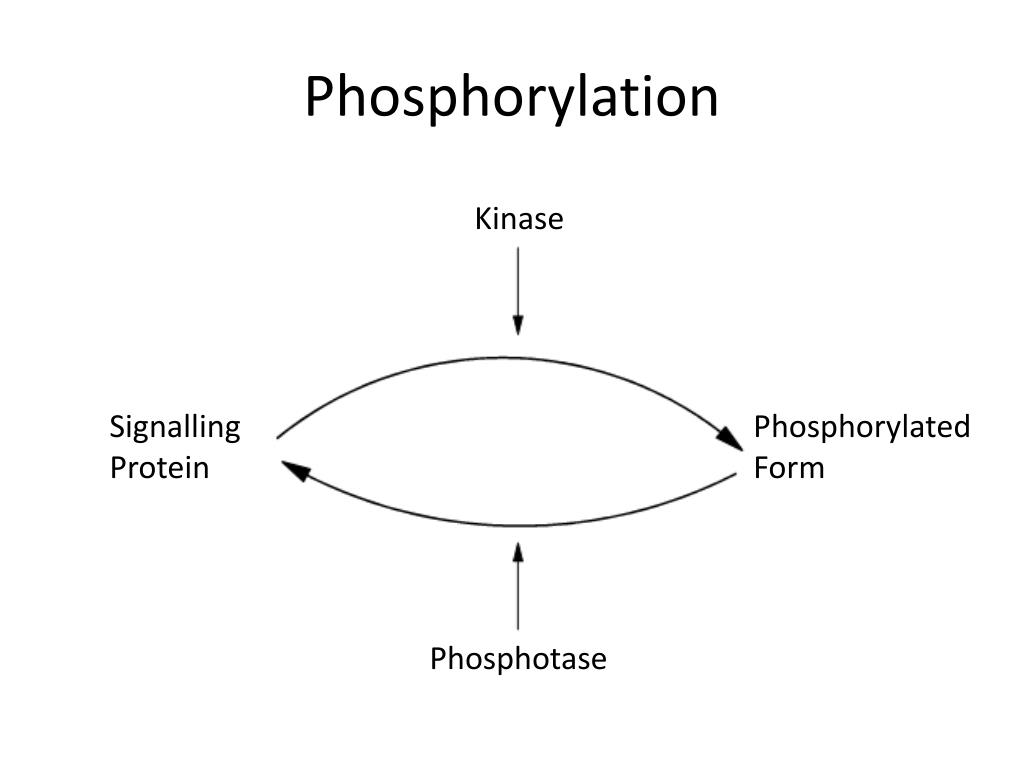

21. Phosphorylation Kinase Signalling Protein Phosphorylated Form Phosphotase

22. Notch Signalling (Artavanis-Tsakonas, Rand and Lake 1999)

23. Hybrid Petri Nets • Places and Transitions can be either discrete or continuous

24. HFPN: Notch Signalling

25. HFPN: Notch Signalling

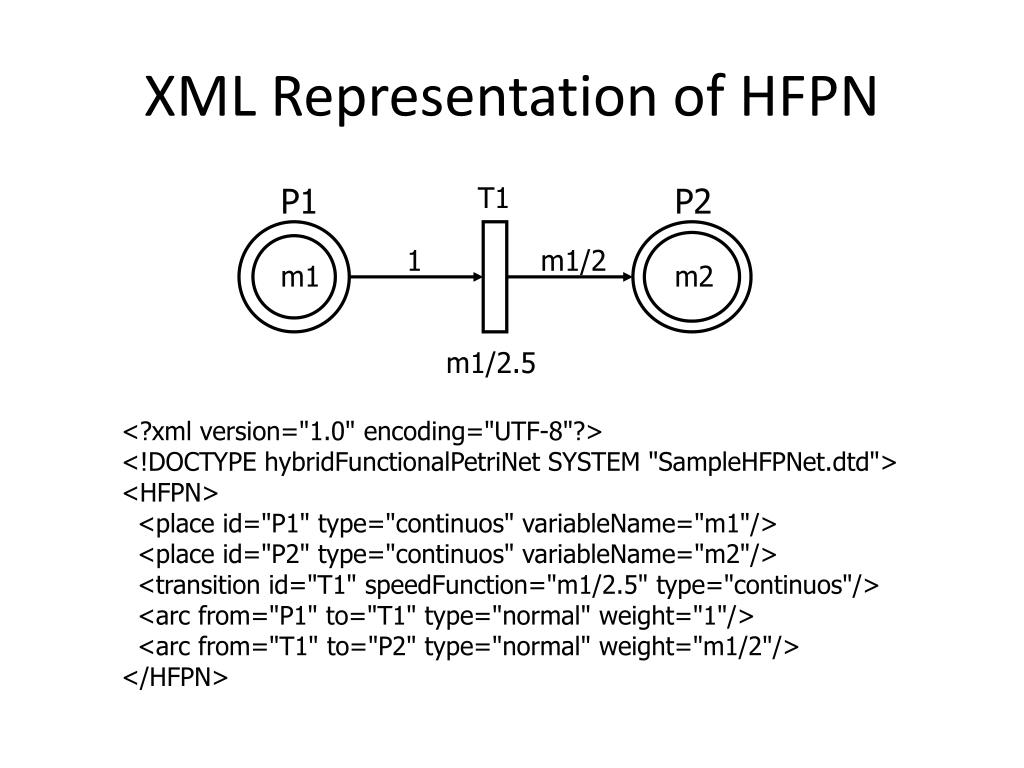

26. P1 T1 P2 1 m1/2 m1 m2 m1/2.5 XML Representation of HFPN <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE hybridFunctionalPetriNet SYSTEM "SampleHFPNet.dtd"> <HFPN> <place id="P1" type="continuos" variableName="m1"/> <place id="P2" type="continuos" variableName="m2"/> <transition id="T1" speedFunction="m1/2.5" type="continuos"/> <arc from="P1" to="T1" type="normal" weight="1"/> <arc from="T1" to="P2" type="normal" weight="m1/2"/> </HFPN>

27. How Can we understand this? Network Analysis!

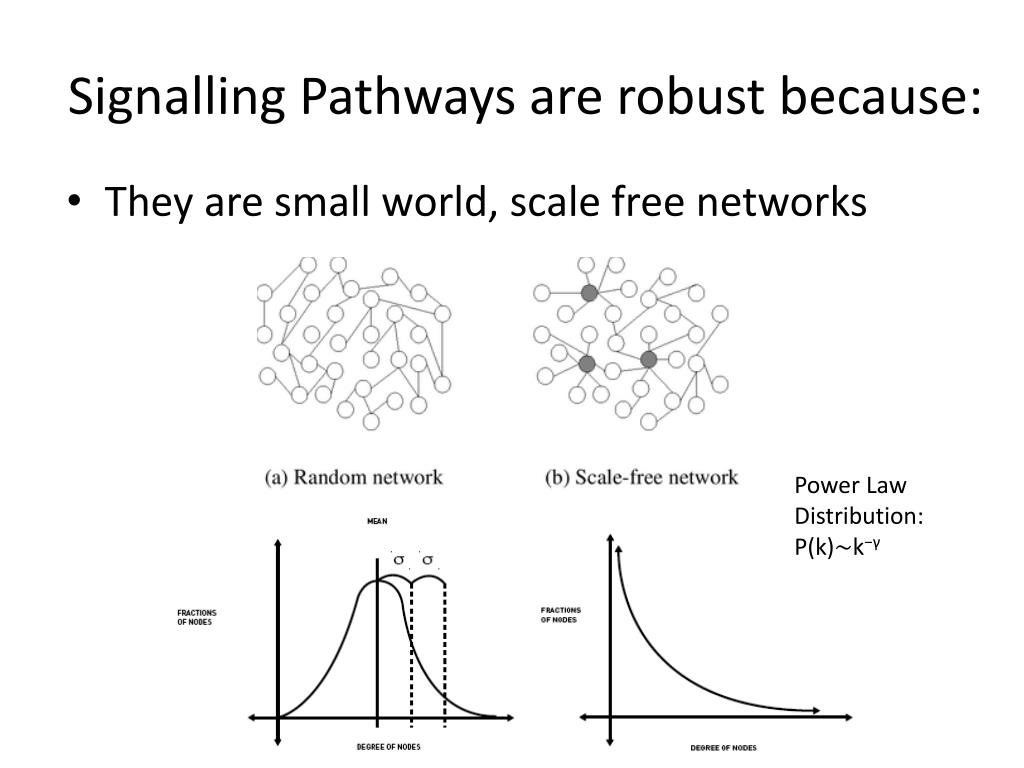

28. Signalling Pathways are robust because: • They are small world, scale free networks Power Law Distribution: P(k)∼k−γ

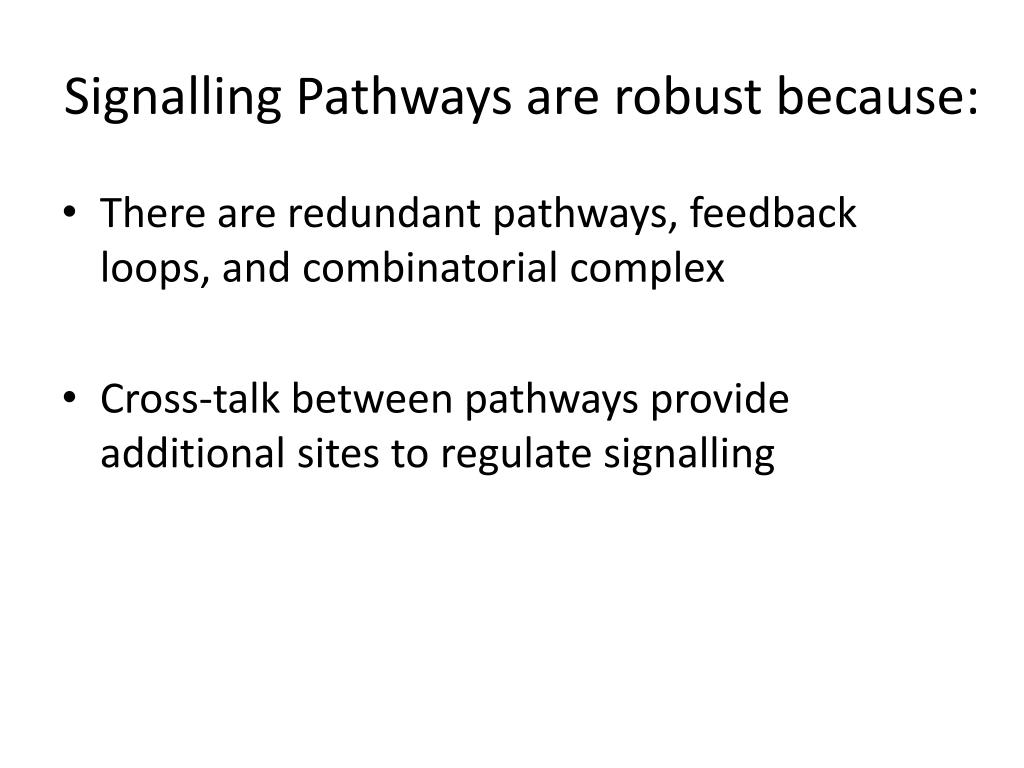

29. Signalling Pathways are robust because: • There are redundant pathways, feedback loops, and combinatorial complex • Cross-talk between pathways provide additional sites to regulate signalling

30. Network Motifs

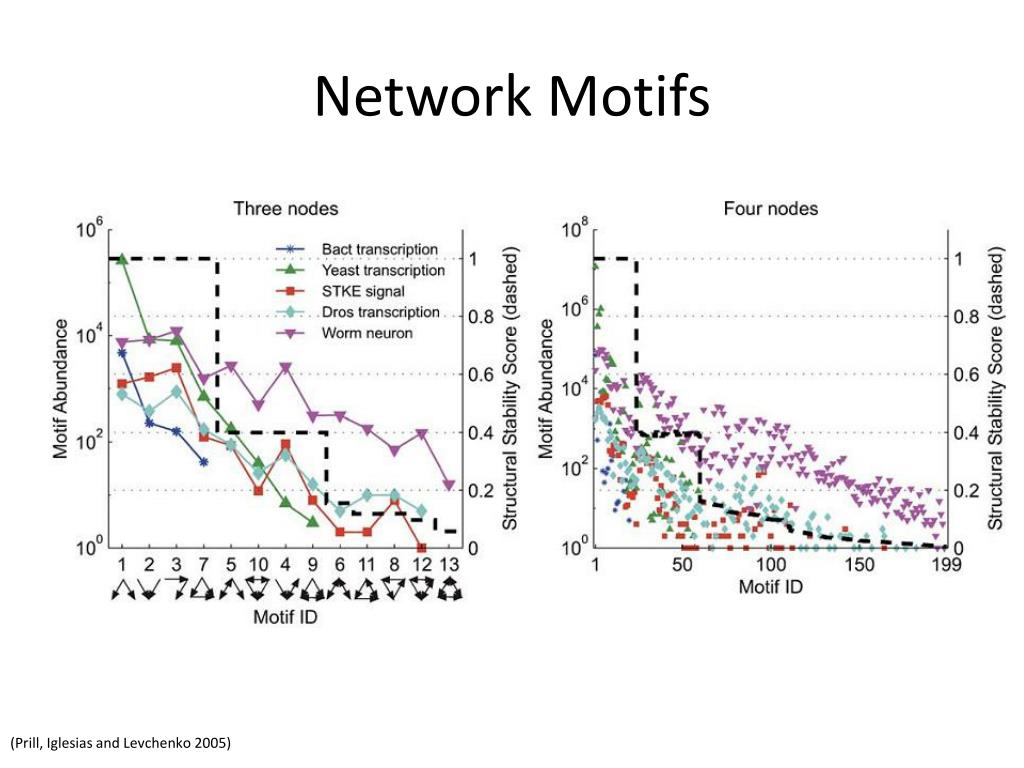

31. Network Motifs (Prill, Iglesias and Levchenko 2005)

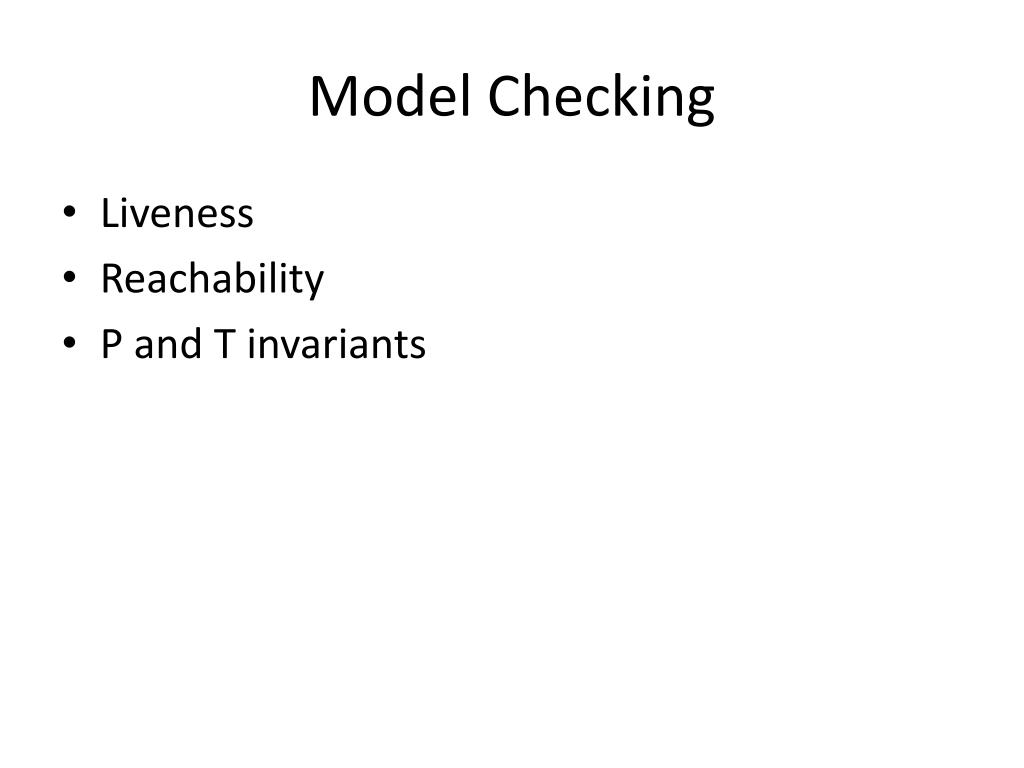

32. Model Checking • Liveness • Reachability • P and T invariants

33. Mining Pathway Information • Pathway databases are either created by curators, or through text mining of the literature • Curated databases tend to be higher quality, but the breadth may be narrower

34. Levels of Abstraction

35. Why model? • Generate new insights • Make testable predictions • Test conditions that may be difficult/impossible to study in vitro / in vivo • Rule out particular explanations for an experimental observation • Help identify what is right/wrong with an hypothesis

36. Analysis and Interpretation • Validation: do the model results match experimental data? • Prediction: • Sensitivity analysis • Knockout experiments

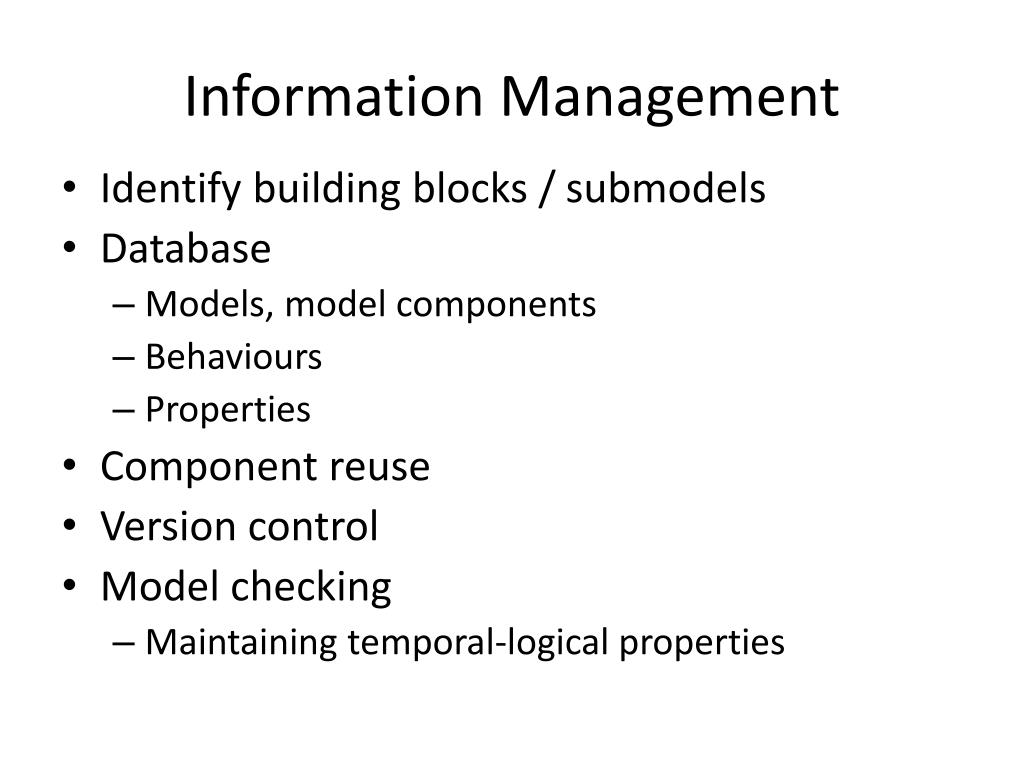

37. Information Management • Identify building blocks / submodels • Database • Models, model components • Behaviours • Properties • Component reuse • Version control • Model checking • Maintaining temporal-logical properties

38. A Proposition: • Find out the expression of Delta and Notch in the precursor cells of the Heart fields at an early stage • Simulate to find if the patterning corresponds to what is expected

39. Conclusion • By encoding models, literature and experimental results in XML, and storing them in web-accessible databases, intermediated by ontologies, we facilitate more holistic approaches. • A range of modelling are appropriate to different levels of scale • In the places where these can begin to be integrated, there is insight to be gained in silico
