Understanding Electromagnetic Wave Interactions with Medium at the Microscopic and Macroscopic Levels

Explore the intricate interaction between EM waves and electrons, resulting in complex electric fields. Delve into the macroscopic description of light waves and particles, including refraction phenomena like Snell's Law and total internal reflection. Discover applications in optical fiber and prism color dispersion.

lexiss
Télécharger la présentation

Understanding Electromagnetic Wave Interactions with Medium at the Microscopic and Macroscopic Levels

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

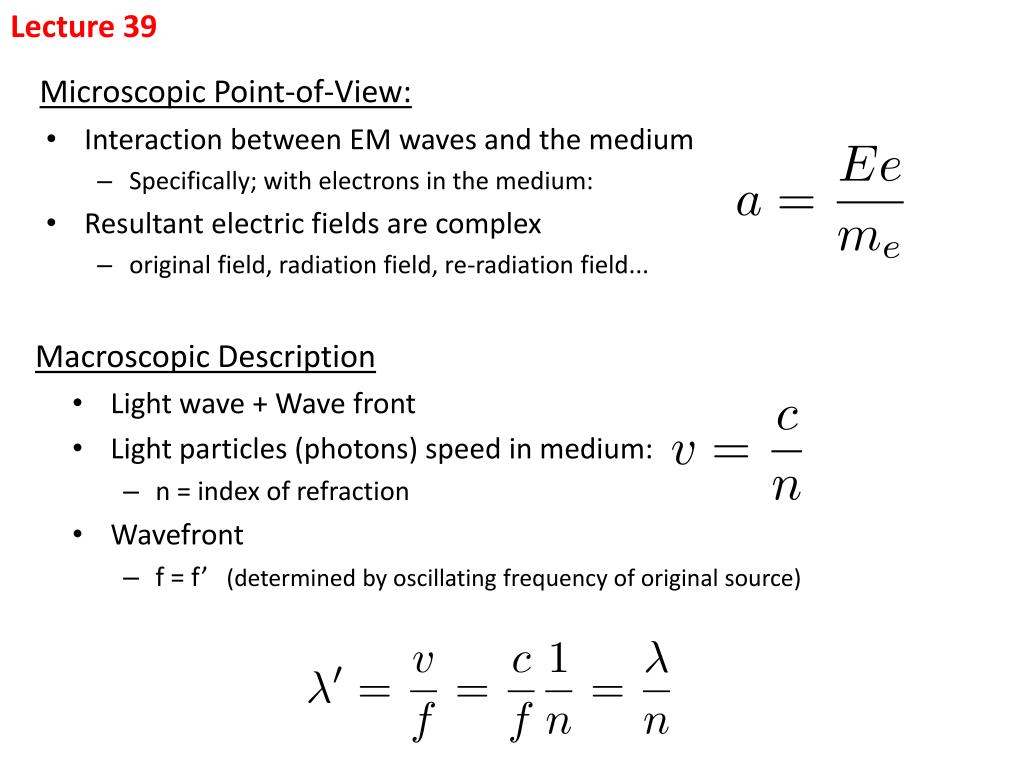

  1. Lecture 39 Microscopic Point-of-View: • Interaction between EM waves and the medium • Specifically; with electrons in the medium: • Resultant electric fields are complex • original field, radiation field, re-radiation field... Macroscopic Description • Light wave + Wave front • Light particles (photons) speed in medium: • n = index of refraction • Wavefront • f = f’ (determined by oscillating frequency of original source)

  2. Refraction Phenomena Snell’s Law:

  3. Clicker IQ 38.1c

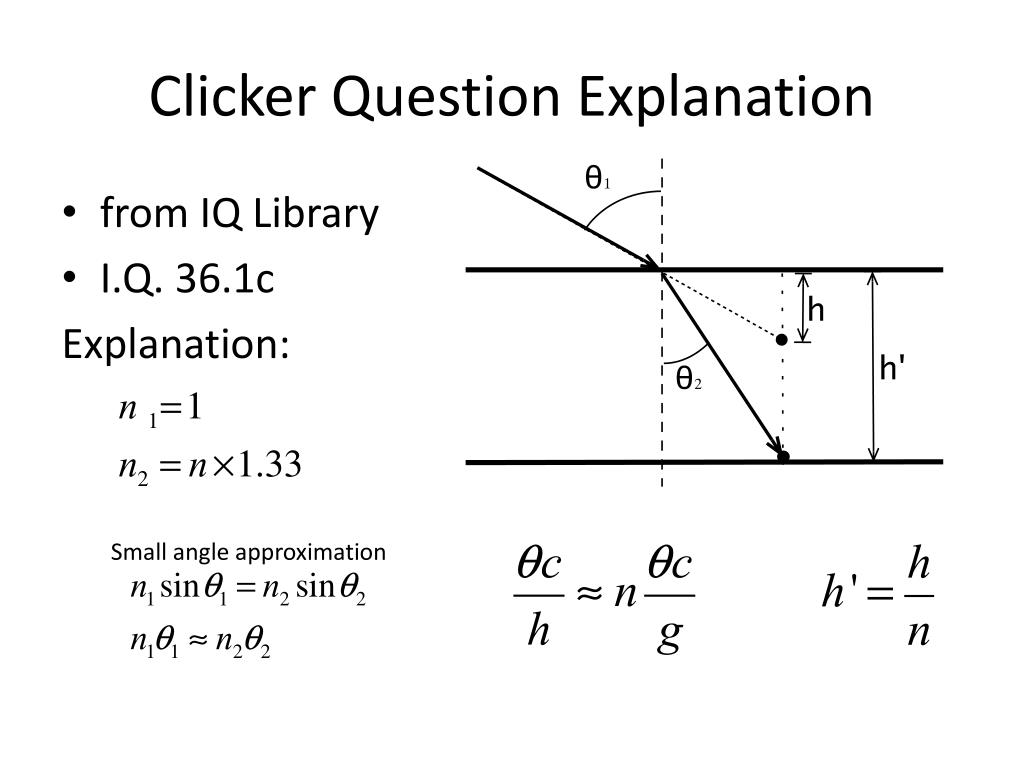

  4. Clicker Question Explanation • from IQ Library • I.Q. 36.1c Explanation: Small angle approximation

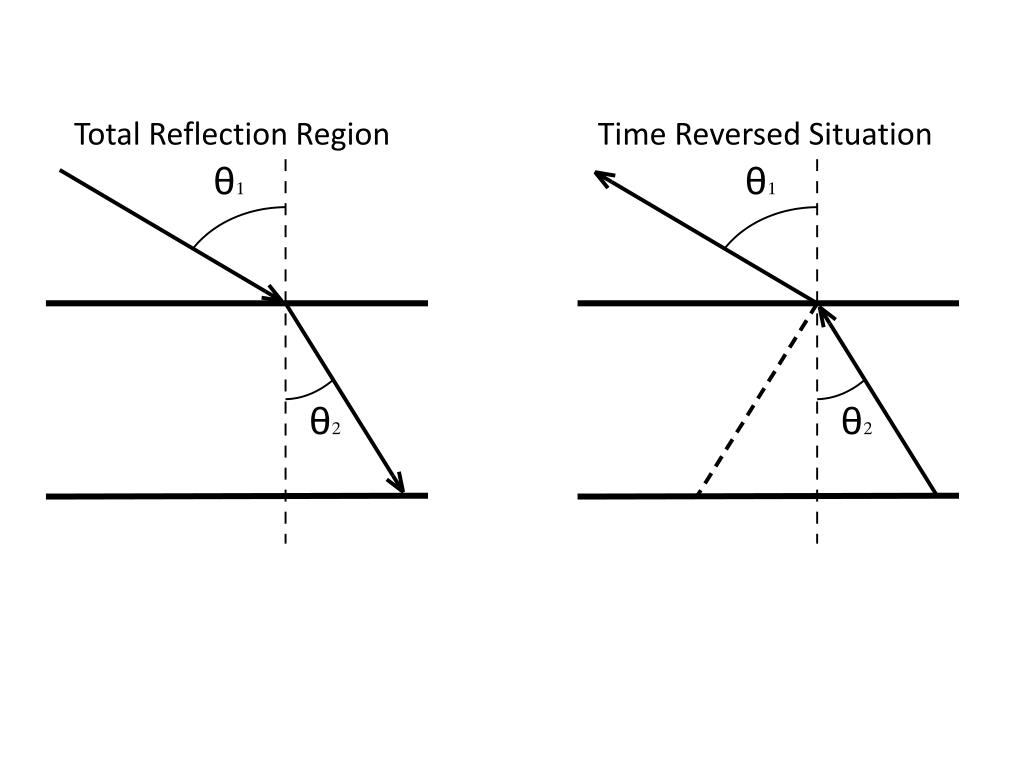

  5. Total Reflection Region Time Reversed Situation

  6. Reflection/Refraction Critical Angle As θ2 increases, θ1 increases more rapidly At critical angle, θ2 = θc θ1 = 90°

  7. Application: Optical Fiber [Ch24.HW4.009] Total reflection region

  8. Derivation of Snell’s Law

  9. Prism Color Dispersion At each surface, the light ray is bending Violet light has more bending than red

  10. Two Prisms Convergent Divergent
