Presentation Transcript

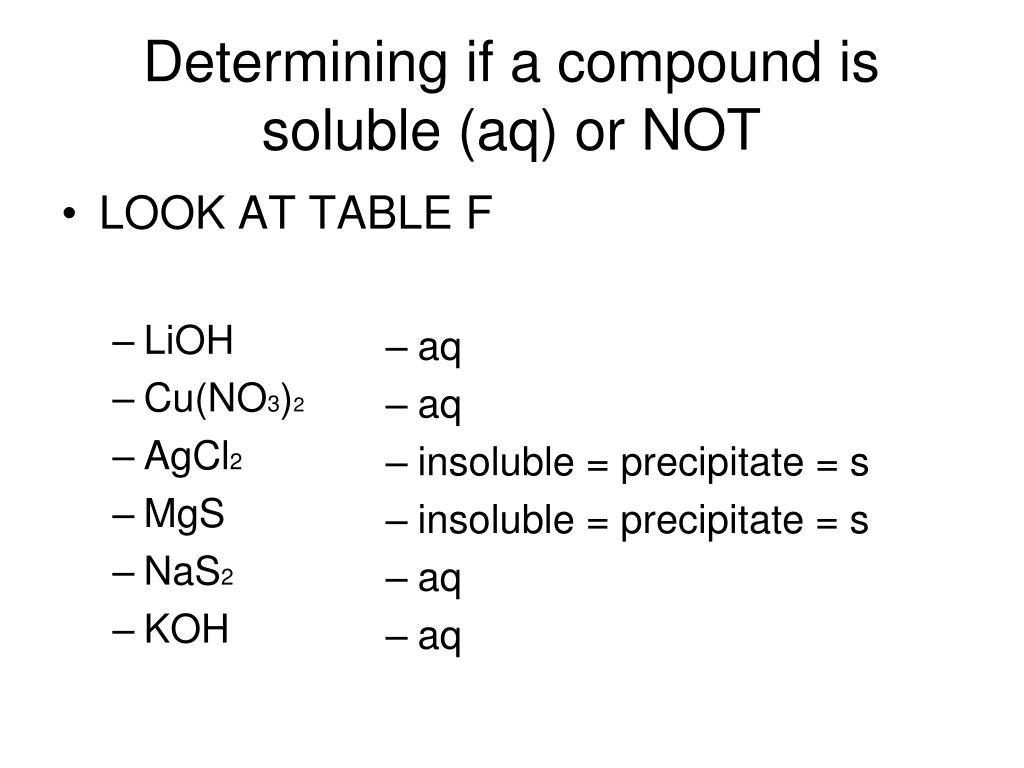

  1. Determining if a compound is soluble (aq) or NOT • LOOK AT TABLE F • LiOH • Cu(NO3)2 • AgCl2 • MgS • NaS2 • KOH • aq • aq • insoluble = precipitate = s • insoluble = precipitate = s • aq • aq

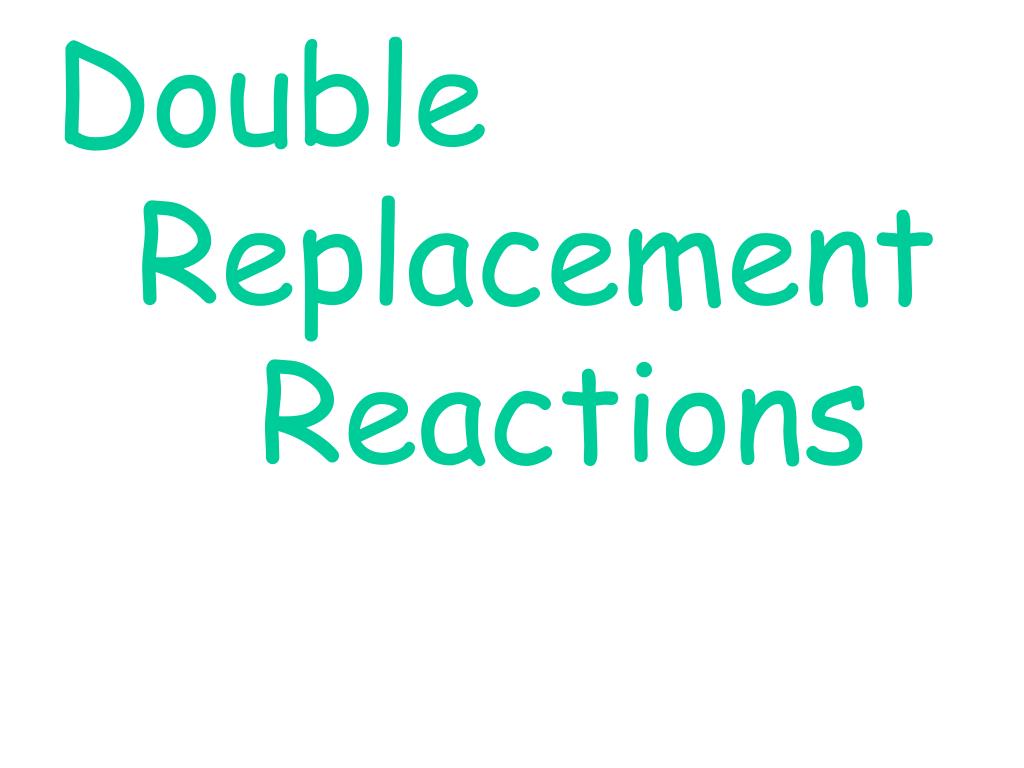

  2. Double Replacement Reactions

  3. Format: AX + BY  AY + BX Double Replacement

  4. DR rns occur in aqueous solutions • So, what exactly happens to a substance when we put it in water? • depends if ionic or covalent

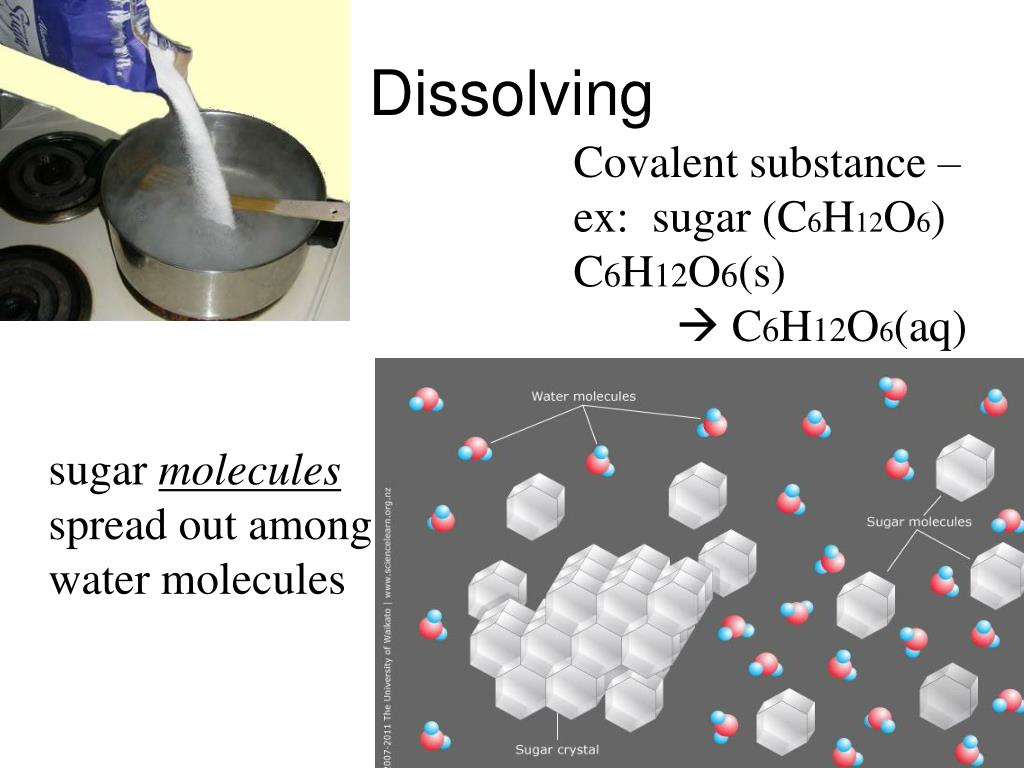

  5. Dissolving Covalent substance – ex: sugar (C6H12O6) C6H12O6(s)  C6H12O6(aq) • sugar molecules spread out among water molecules

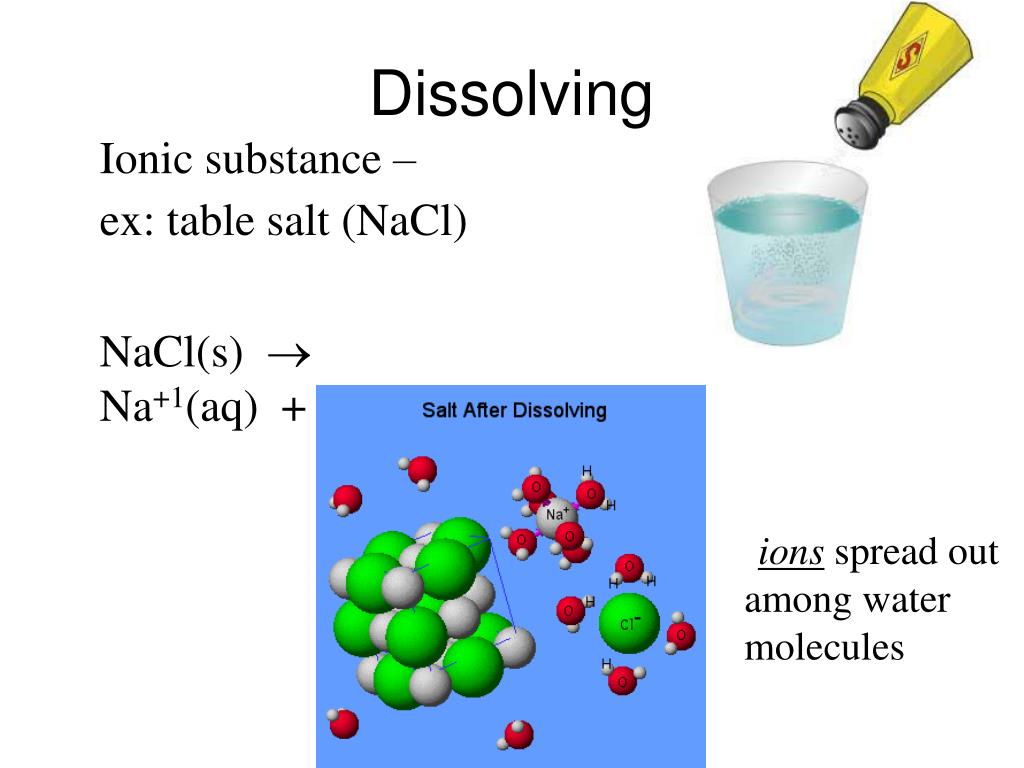

  6. Dissolving • Ionic substance – • ex: table salt (NaCl) • NaCl(s)  Na+1(aq) + Cl-1(aq) • ions spread out among water molecules

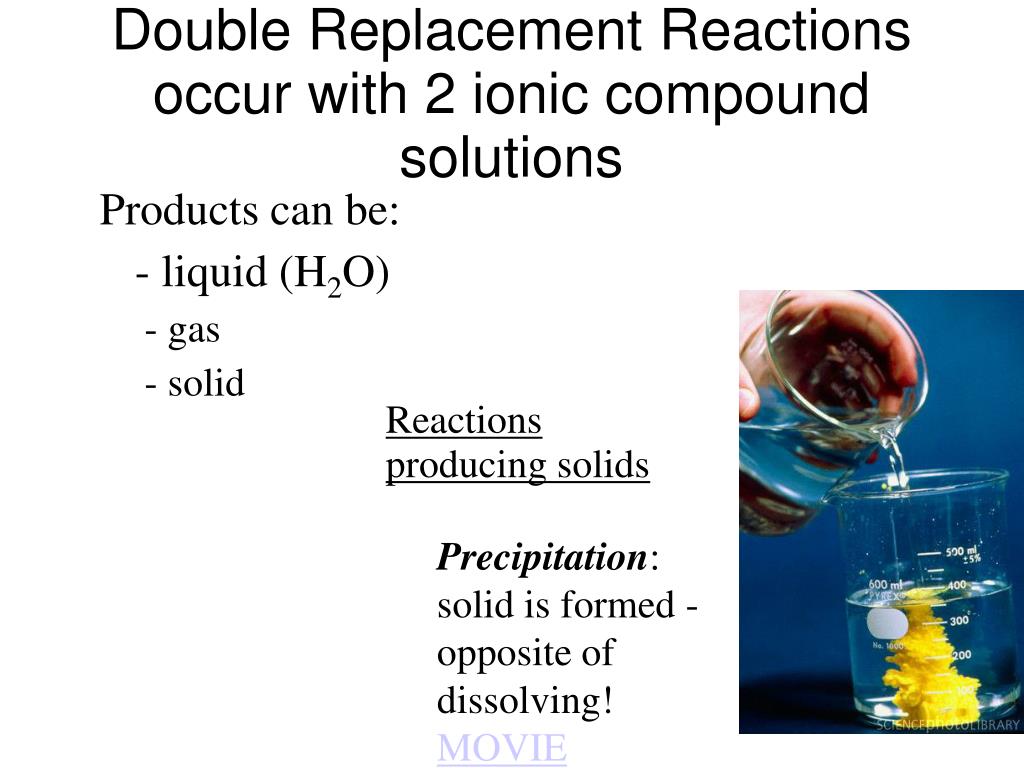

  7. Double Replacement Reactionsoccur with 2 ionic compound solutions • Products can be: - liquid (H2O) • - gas • - solid Reactions producing solids • Precipitation: • solid is formed - opposite of dissolving! MOVIE

  8. This is the Chemical Equation but it’s not the whole story… EX: Reactions producing Solids 2 NaOH(aq) + CuCl2(aq)  2 NaCl(aq) + Cu(OH)2(s)

  9. 2 NaOH(aq) + CuCl2(aq)  2 NaCl(aq) + Cu(OH)2(s) In solution it’s not NaOH and CuCl2You actually have ions floating around in water • Reactants: 2Na+1(aq) + 2OH-1(aq) + Cu2+(aq) + 2Cl-1(aq) • Products: 2Na+1(aq) + 2Cl-1(aq) + Cu(OH)2(s) Cu2+ Na+1 Cu2+ Na+1 H H O H O H H O H O H H Cl+1 Cu2+ Cu O Na+1 O H H O H H H H O O Cu2+ H O Cl+1 Cu Cl-1 O H ions in solution are written as aqueous

  10. Here’s what is really involved in the reaction… 2OH-1(aq) + Cu2+(aq)  Cu(OH)2(s) 2 NaOH(aq) + CuCl2(aq)  2 NaCl(aq) + Cu(OH)2(s) Net Ionic Equations 2Na+1(aq) + 2OH-1(aq) + Cu2+(aq) + 2Cl-1(aq)  2Na+1(aq) + 2Cl-1(aq) + Cu(OH)2(s) • Notice some ions do not participate in reaction • = spectator ions • cross out spectator ions to get net ionic equation

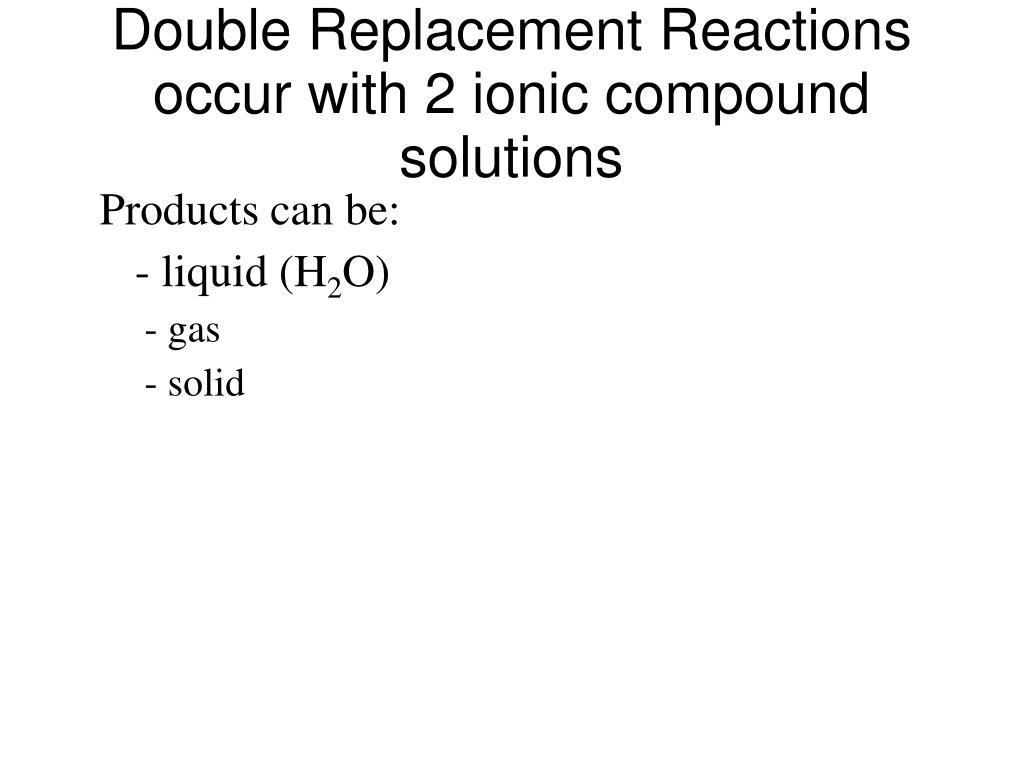

  11. Double Replacement Reactionsoccur with 2 ionic compound solutions • Products can be: - liquid (H2O) • - gas • - solid

  12. H+1(aq) + OH-1(aq)  H2O(l) Reactions that form Water HBr(aq) + NaOH(aq)  H2O(l) + NaBr(aq) H+1(aq) + Br-1(aq) + Na+1(aq) + OH-1(aq)  H2O(l) + Na+1(aq) + Br-1(aq)

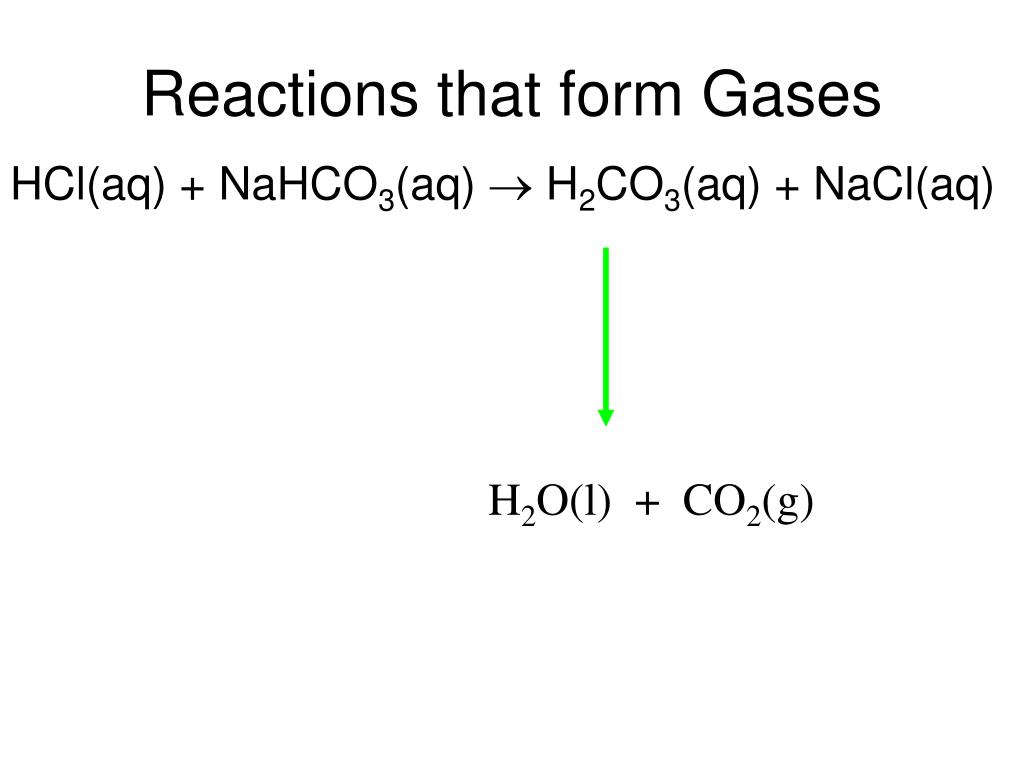

  13. H2O(l) + CO2(g) Reactions that form Gases HCl(aq) + NaHCO3(aq)  H2CO3(aq) + NaCl(aq)

  14. H+1(aq) + HCO3-1(aq)  H2O(l) + CO2(g) Reactions that form Gases HCl(aq) + NaHCO3(aq)  H2O(l) + CO2(g) + NaCl(aq) H+1(aq) + Cl-1(aq) + Na+1(aq) + HCO3-1(aq)  H2O(l) + CO2(g) + Na+1(aq) + Cl-1(aq)

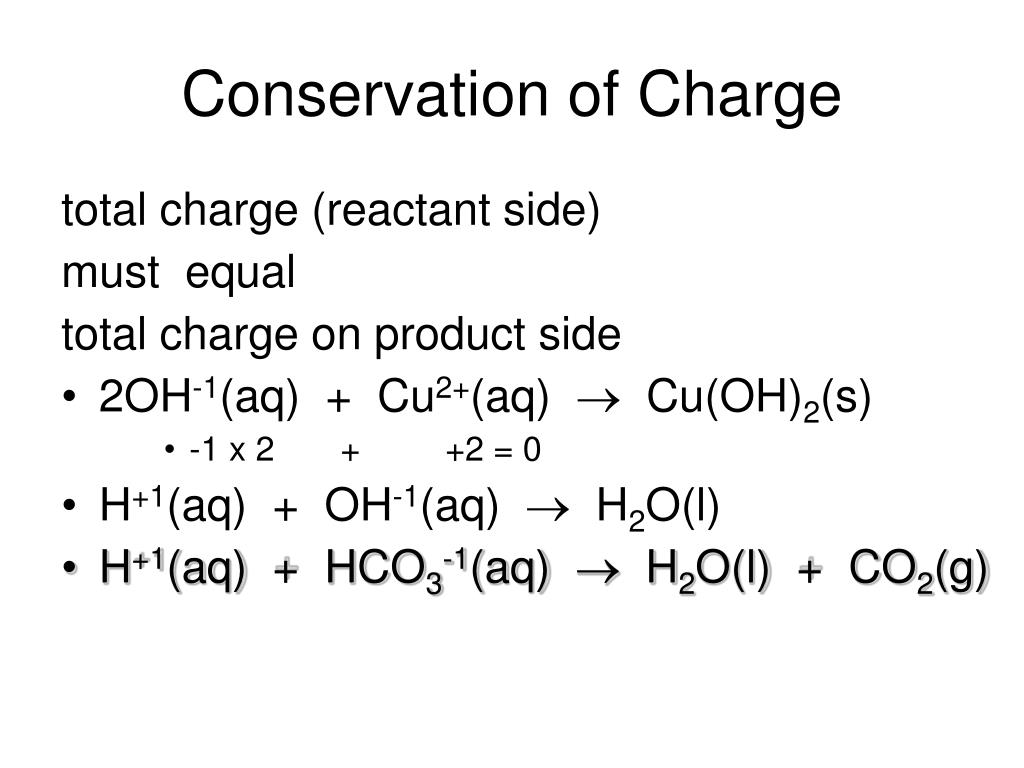

  15. Conservation of Charge total charge (reactant side) must equal total charge on product side • 2OH-1(aq) + Cu2+(aq)  Cu(OH)2(s) • -1 x 2 + +2 = 0 • H+1(aq) + OH-1(aq)  H2O(l) • H+1(aq) + HCO3-1(aq)  H2O(l) + CO2(g)
